Scheduler Activations: Effective Kernel Support for User-Level Management of Parallelism

This paper explores user-level threads and kernel-level threads, and proposes a scheduler activation mechanism for efficient parallelism management without crossing the user/kernel boundary.

josefinad
Télécharger la présentation

Scheduler Activations: Effective Kernel Support for User-Level Management of Parallelism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

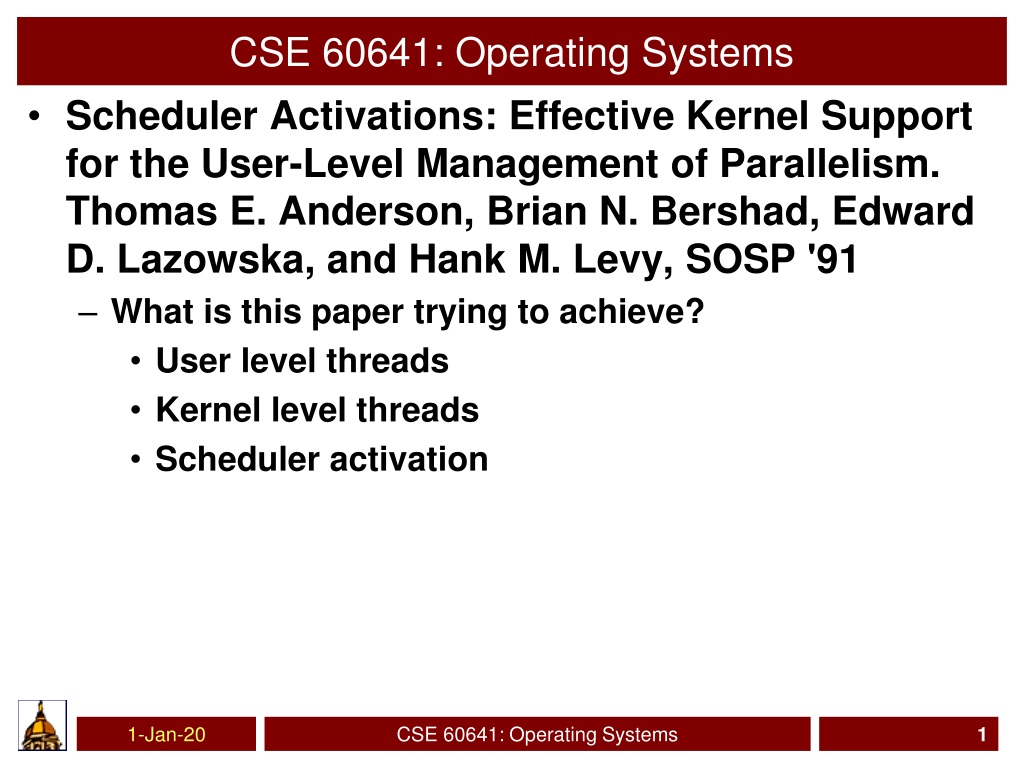

  1. CSE 60641: Operating Systems • Scheduler Activations: Effective Kernel Support for the User-Level Management of Parallelism. Thomas E. Anderson, Brian N. Bershad, Edward D. Lazowska, and Hank M. Levy, SOSP '91 • What is this paper trying to achieve? • User level threads • Kernel level threads • Scheduler activation CSE 60641: Operating Systems

  2. User level threads • Excellent performance (no crossing user/kernel boundary) • No protection issues because all threads belong to the same process • Cost of generality: user threads can be tuned to a particular application • Problems: • blocking call, kernel thread allocated to the user thread cannot be reclaimed • Allocate more virtual processors (unfair) • Kernel might interfere with critical sections • Processors cannot be returned CSE 60641: Operating Systems

  3. Solution: Scheduler activation • A mechanism for kernel and user level to cooperate • Kernel makes an upcall with a scheduler activation • You can either keep the activation, or perform the task informed by the activation. • User level -> kernel is still system call • Number of scheduler activations = number of virtual processors assigned to a process • Application is free to implement any scheduling policy using the assigned activations • Kernel will notify user if any thread blocks CSE 60641: Operating Systems

  4. Kernel upcalls because of • Add this processor • Processor has been preempted • Return to the ready list of the user-level thread that was executing in the context of the preempted activation • Scheduler activation has blocked • Blocked scheduler is no longer using its processor • Scheduler activation has unblocked • Ready to the ready list the user level thread that was executing in the context of the blocked activation. • New activation includes processor context the newly unblocked one and the one that was preempted CSE 60641: Operating Systems

  5. From user space to kernel • Add more processors • Processor is idle • Together, they can allow the kernel to give and take away processors dynamically CSE 60641: Operating Systems

  6. User level priority scheduling: • Deschedule a lower priorty thread • If the lower priority thread is in critical section, don’t do it • Detected using application maintained flags • Performance good: • Upcall latency: 5x kernel threads CSE 60641: Operating Systems

  7. Lessons learnt • Can kernel/user partnership make sense for other things? If so, how general can they be? CSE 60641: Operating Systems
