  1. Omni Switch/Router

  2. …it’s even got its own trade show …it’s expected to be rapidly deployed… The truth about gigabit networking It’s a big jump in capacity… WW Market forecast (millions)

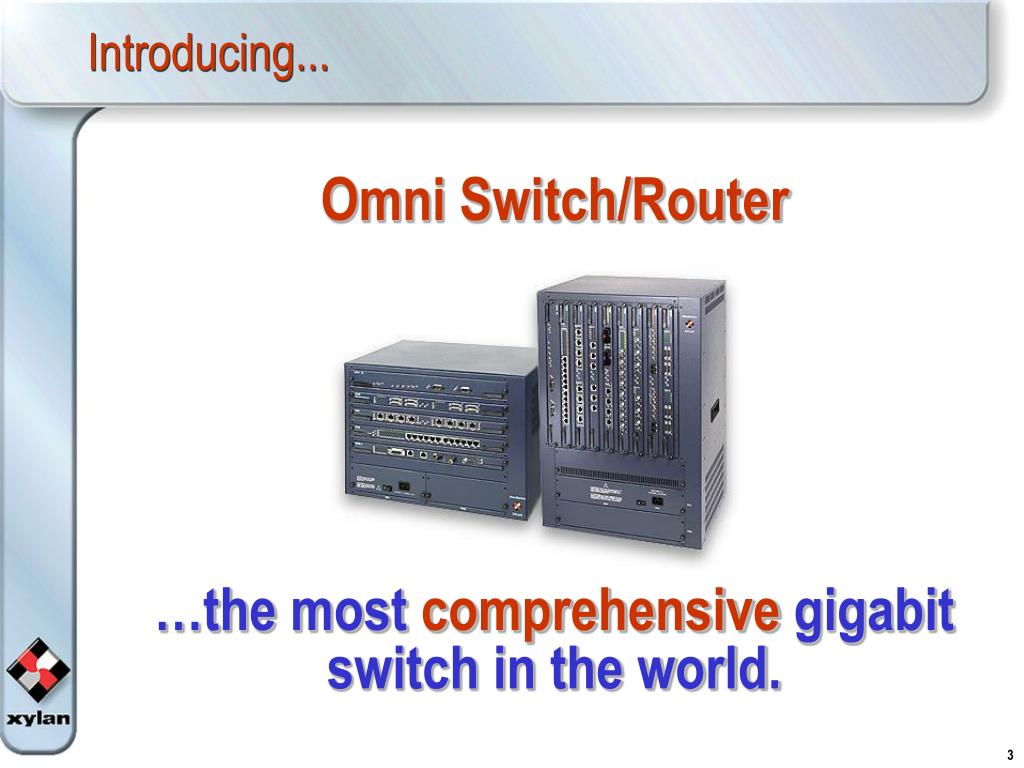

  3. Introducing... • Omni Switch/Router • …the most comprehensive gigabit switch in the world.

  4. OmniS/R is a powerful Gigabit switch • 22 Gbps switching fabric • 12 Mpps layer-three switching • Up to 37 RISC processors • Up to 92 Xylan- designed switching ASICs • Up to 32 Gigabit Ethernet ports Maximum port density

  5. System capacity switching capacity: 22 Gbps layer three switching Distributed layer three switching 12 million pps HardwareRtg. Engine HardwareRtg. Engine Firewall 22 Gbps Frame Fabric OmniS/R architecture OC-12 SAR LEC(s) 10/100 Ethernet Switching Module Gigabit Ethernet Switching Module ATM Uplink Module Mgmt. Processor

  6. OmniS/R layer-three switching • HRE-X: • fully distributed, multi-protocol layer-three switching ASIC • IP and IPX • RIP, RIP II, OSPF, IP Multicast, DCHP relay • 12 Mpps / switch • one HRE-X per blade • ISP-class table size • 256,000 route entries • 64,000 next-hop destinations

  7. Features: high capacity high port density inverse multiplexing 802.3X flow control 802.1Q frame tagging 802.1p prioritization server load balancing QoS & layer-four switching OmniS/R and Ethernet 10 / 100 OmniS/R Gigabit Ethernet or Fast Ethernet with OmniChannel Fast Ethernet OmniStack Gigabit Ethernet Gig Ethernet OmniS/R

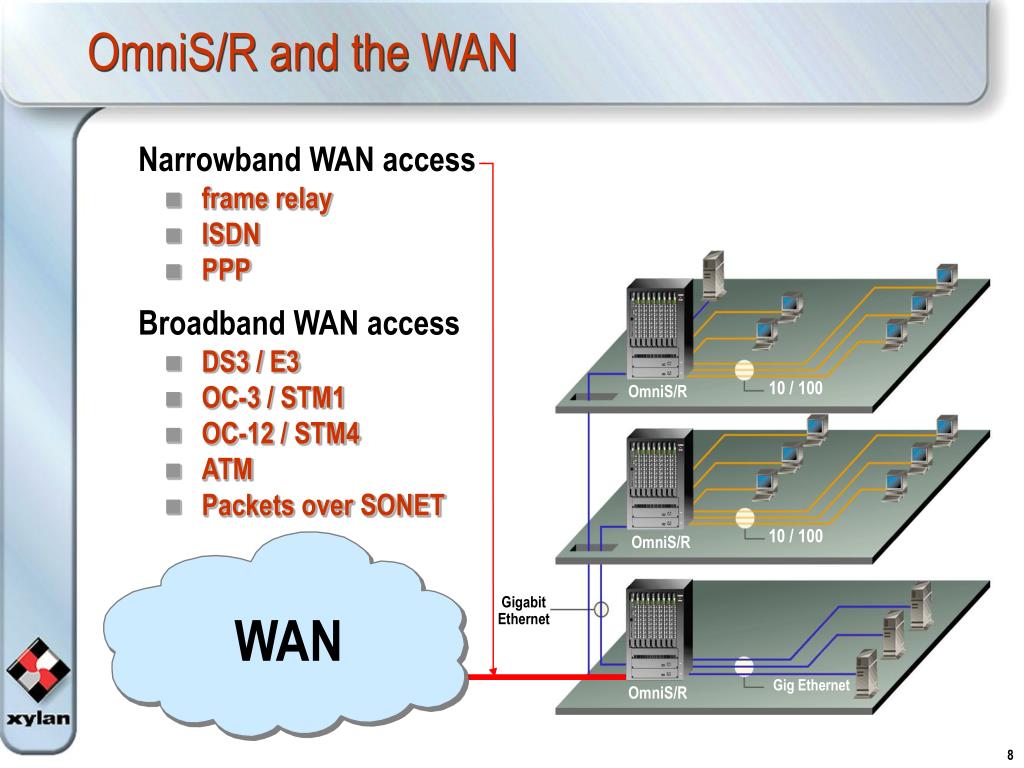

  8. 10 / 100 OmniS/R 10 / 100 OmniS/R WAN Gig Ethernet OmniS/R OmniS/R and the WAN • frame relay • ISDN • PPP • Narrowband WAN access • Broadband WAN access • DS3 / E3 • OC-3 / STM1 • OC-12 / STM4 • ATM • Packets over SONET Gigabit Ethernet

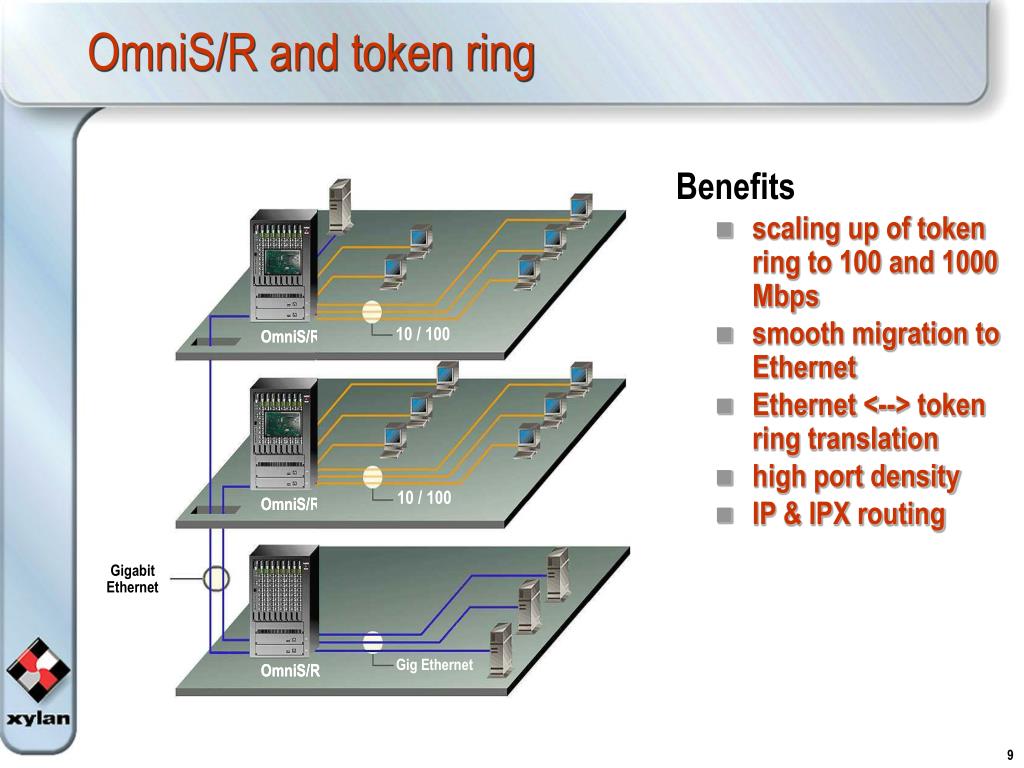

  9. Benefits scaling up of token ring to 100 and 1000 Mbps smooth migration to Ethernet Ethernet <--> token ring translation high port density IP & IPX routing Token ring 10 / 100 10 / 100 Token ring Gigabit Ethernet Gig Ethernet OmniS/R and token ring OmniS/R OmniS/R OmniS/R OmniS/R OmniS/R OmniS/R

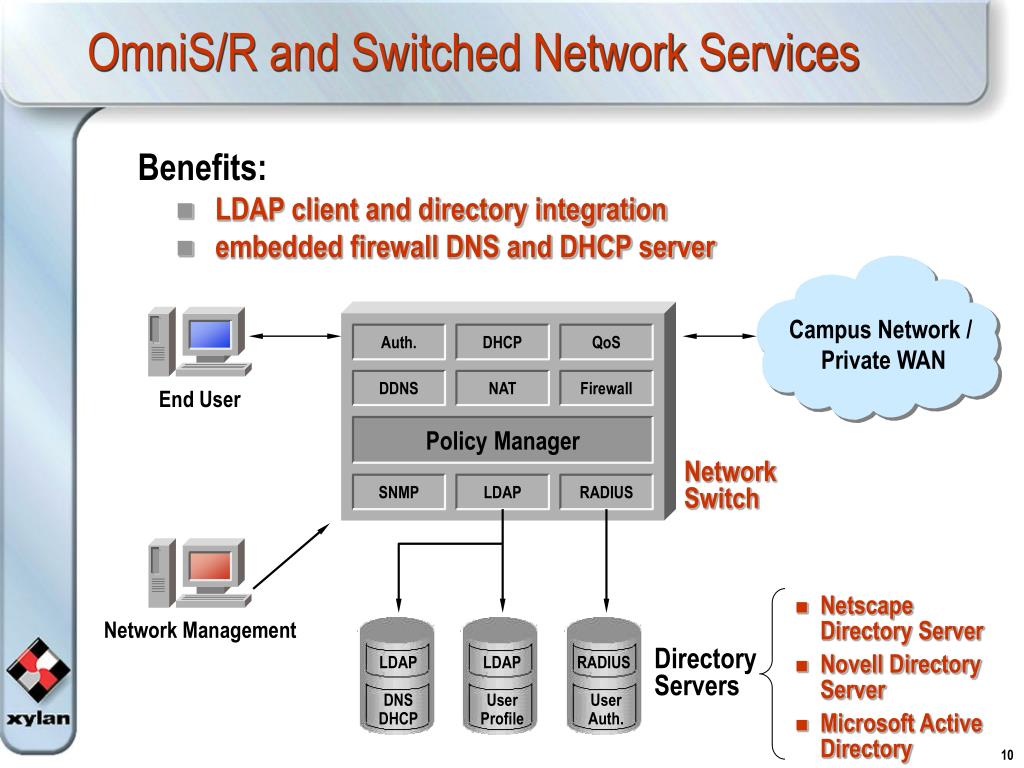

  10. Benefits: LDAP client and directory integration embedded firewall DNS and DHCP server Auth. DHCP QoS DDNS NAT Firewall End User Policy Manager SNMP LDAP RADIUS Network Management LDAP LDAP RADIUS DNS DHCP User Profile User Auth. OmniS/R and Switched Network Services Campus Network / Private WAN Network Switch • Netscape Directory Server • Novell Directory Server • Microsoft Active Directory Directory Servers

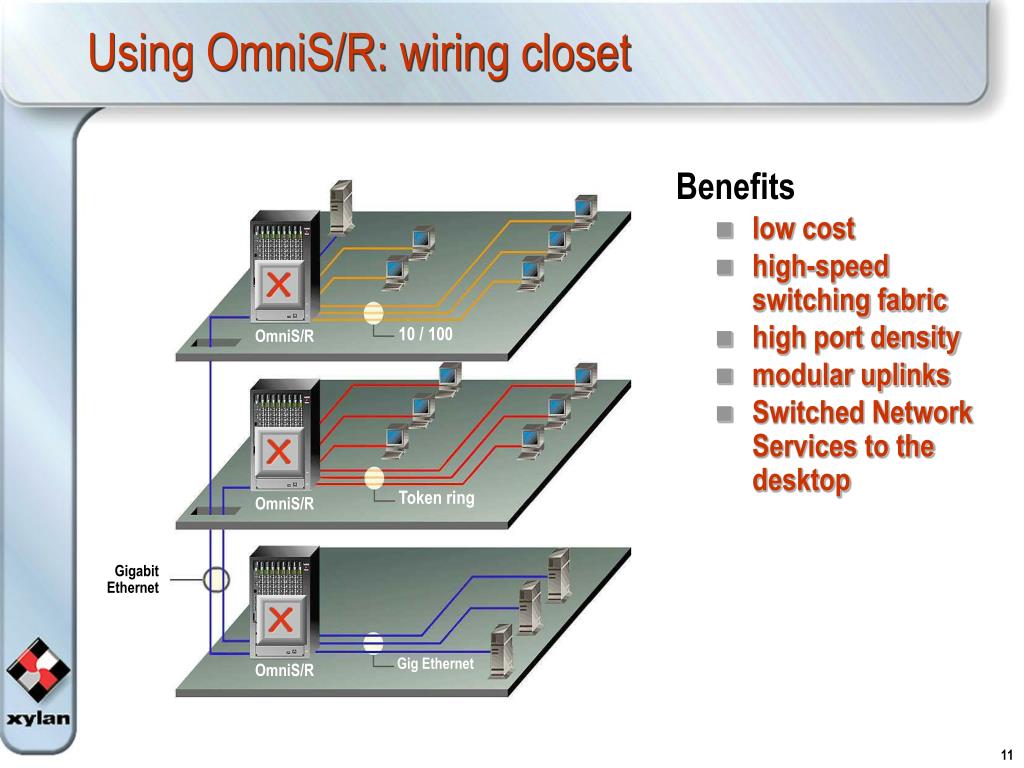

  11. Benefits low cost high-speed switching fabric high port density modular uplinks Switched Network Services to the desktop Gigabit Ethernet Gig Ethernet Using OmniS/R: wiring closet 10 / 100 OmniS/R Token ring OmniS/R OmniS/R

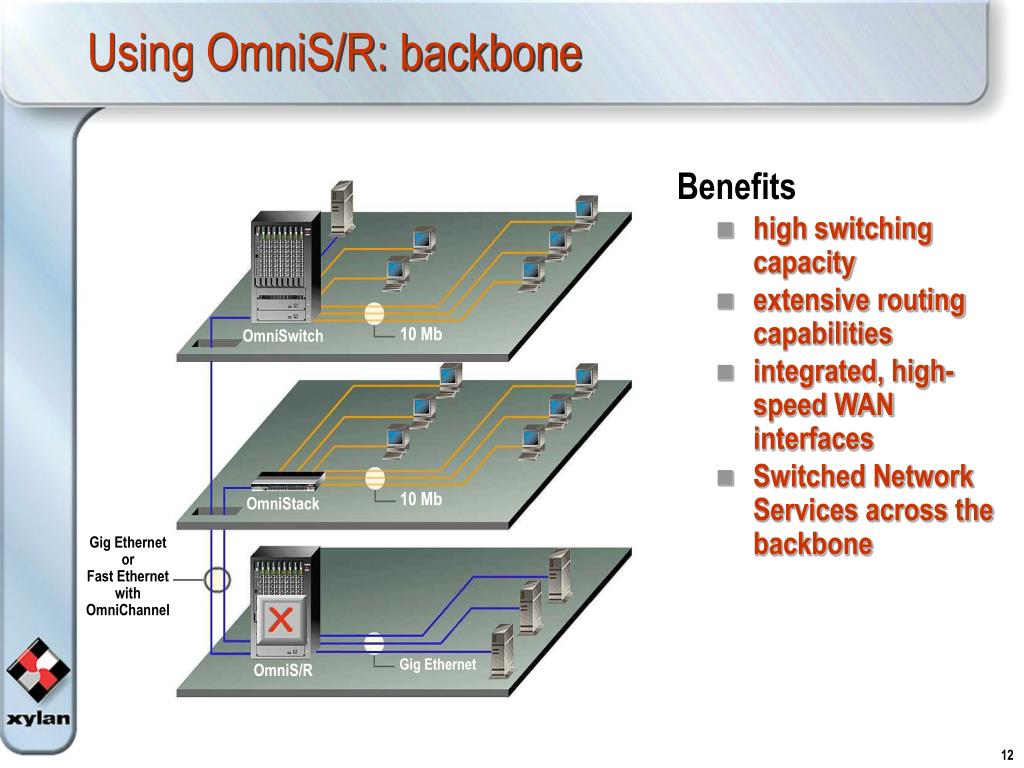

  12. 10 Mb 10 Mb Using OmniS/R: backbone • Benefits • high switching capacity • extensive routing capabilities • integrated, high-speed WAN interfaces • Switched Network Services across the backbone OmniSwitch OmniStack Gig Ethernet or Fast Ethernet with OmniChannel Gig Ethernet OmniS/R

  13. OmniS/R / ATM hybrid network • Benefits • integration of voice, data and video • guaranteed QoS • seamless WAN integration Gigabit Ethernet with OmniS/R ATM OC-12 Campus network WAN PBX ATM Video X-Cell ATM OC-12 ATM OC-12 ATM with OmniS/R

  14. OmniS/R OmniSwitch 10 / 100 10 Mb 10 / 100 OmniStack OmniS/R 10 / 100 10 / 100 10 Mb Fast Ethernet Gig Ethernet Gig Ethernet Fast Ethernet OmniSwitch OmniCore Evolution of high-speed switched networks • Existing network • any-to-any switching • low cost per port • layer 3 switching • Switched Network Services • Step 1: OmniS/R in the backbone • Gigabit capacity • modular uplinks • low cost per port • layer 3 switching • Switched Network Services OmniSwitch • Step 2: OmniS/R in the wiringcloset • Gigabit capacity • modular uplinks • high port capacity • low cost per port • layer 3 switching • Switched Network Services OmniStack • Step #3: OmniCore • extreme switching and routing capacity • high port density • Switched Network Services OmniSwitch OmniS/R OmniS/R

  15. Address Mgmt. Directory Multicast Security QoS &Priority Advanced Mgmt. Services 10M Ethernet 100M Ethernet Gigabit Ethernet Token Ring FDDI / CDDI Frame Relay 25M ATM 34/45M ATM 155M ATM 622M ATM Services Layer Two Translation Adaptation Switching Media 100M Ethernet 34/45M ATM 25M ATM Frame Relay FDDI / CDDI Gigabit Ethernet 10M Ethernet 622M ATM 155M ATM Token Ring Layer Three ATM Xylan
