  1. eRADPACS Diagram Overview

  2. Off-site OR Onsite Disaster Recovery Network ArchitectureOrtho Center of Palm Beach SITE 2 SITE 3 MAIN SITE High Speed Network Send Server Send Server Online Storage 1.4 TB Smart Server OPTIONAL

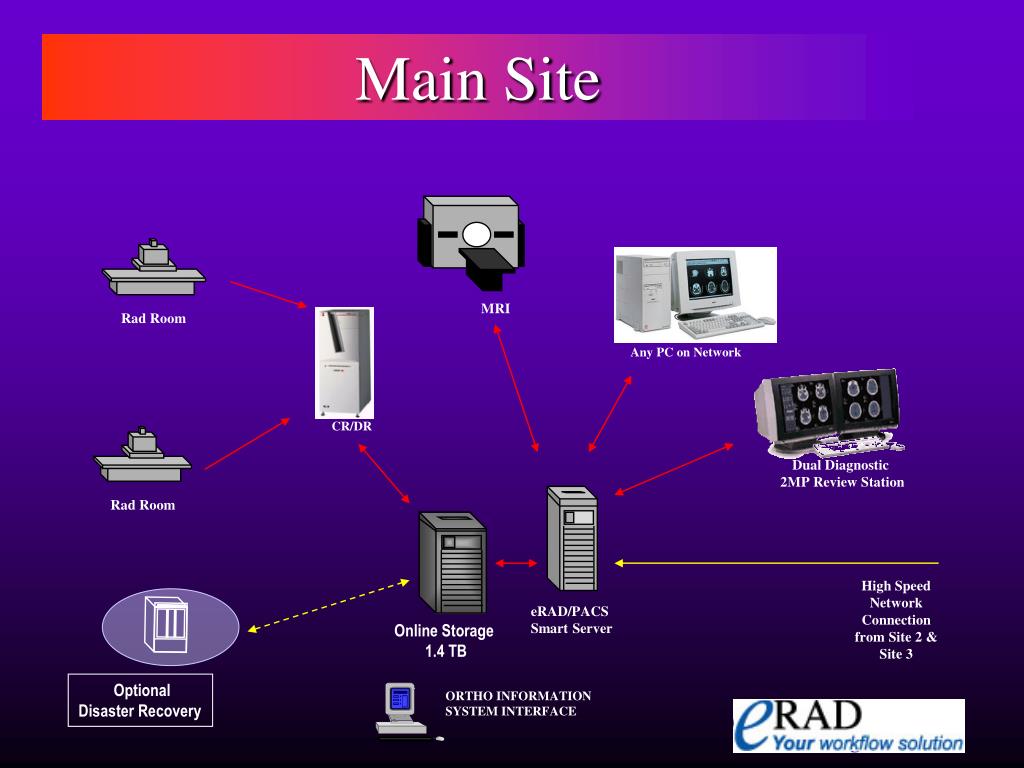

  3. MRI CR/DR Rad Room Rad Room Any PC on Network Dual Diagnostic 2MP Review Station Main Site High Speed Network Connection from Site 2 & Site 3 eRAD/PACS Smart Server Online Storage 1.4 TB Optional Disaster Recovery ORTHO INFORMATION SYSTEM INTERFACE

  4. CR/DR Rad Room Rad Room Send Server w/ Hierarchy Manager Software Site 2 High Speed Network Connection to Main Site

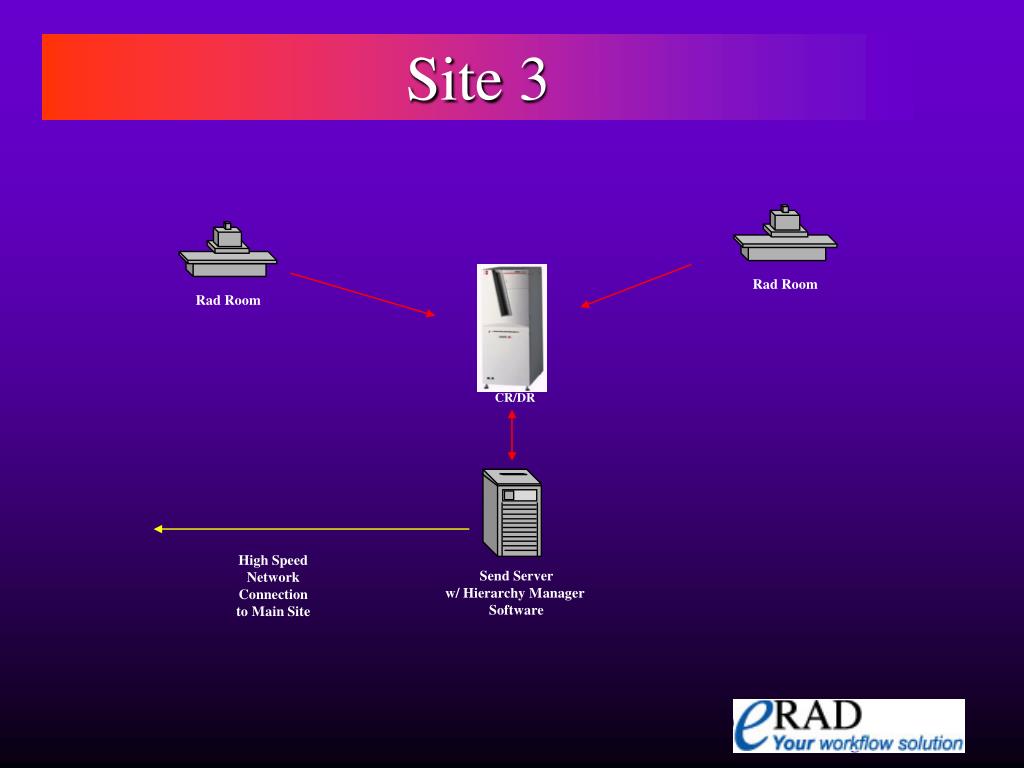

  5. CR/DR Rad Room Rad Room Send Server w/ Hierarchy Manager Software Site 3 High Speed Network Connection to Main Site
