  1. Unit 10Sub Procedures and FunctionsChapter 6Sub Procedures and Functions

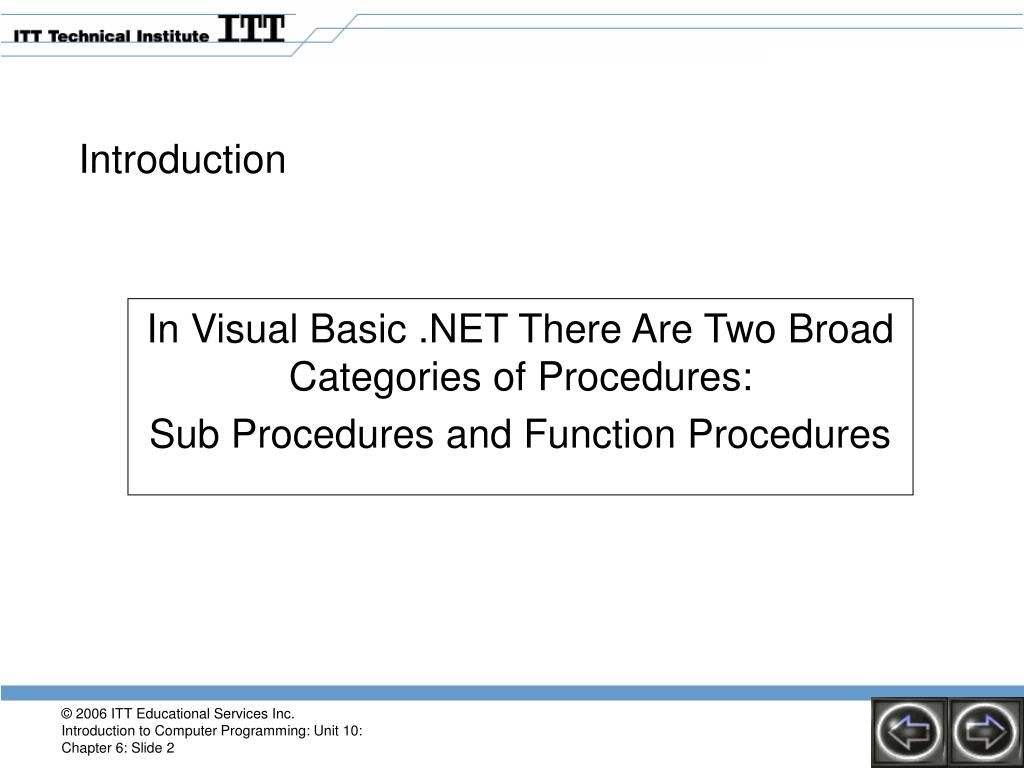

  2. In Visual Basic .NET There Are Two Broad Categories of Procedures: Sub Procedures and Function Procedures Introduction

  3. Chapter 6 Topics • A Sub Procedure is a collection of statements that performs a task • The word Sub is an abbreviation for the older term “subroutine” • Event procedures belong to this category • A Function procedure is a collection of statements that performs a task and then returns a value to the part of the program that executed it • Function procedures work like intrinsic functions, such as Val and IsNumeric

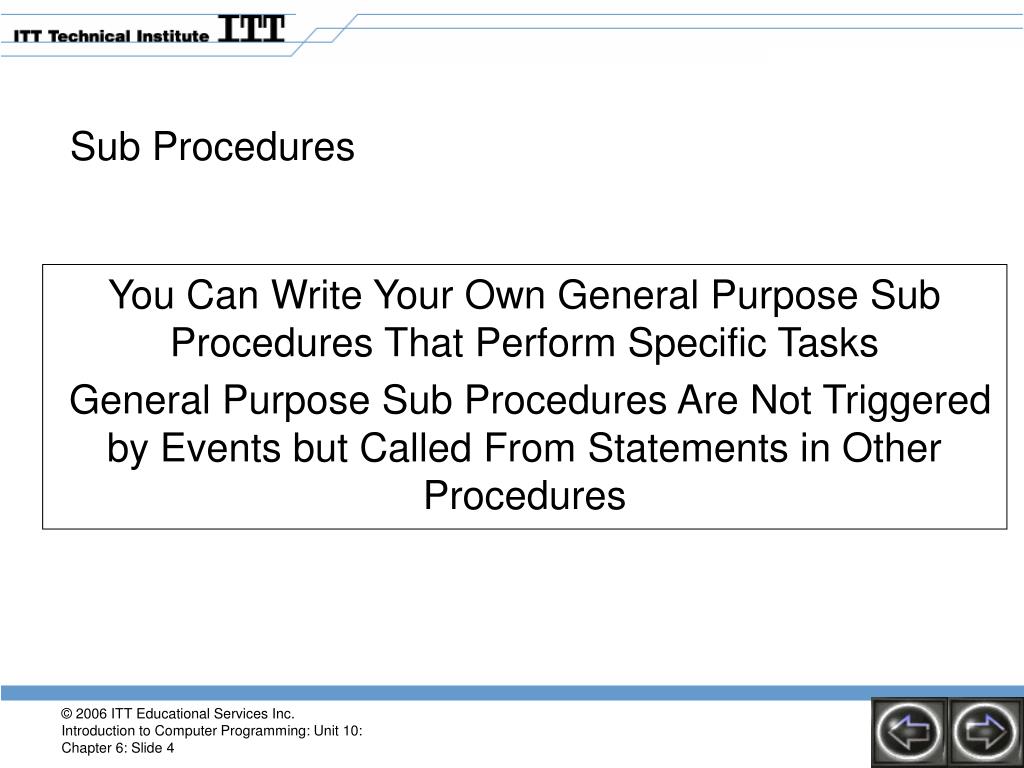

  4. You Can Write Your Own General Purpose Sub Procedures That Perform Specific Tasks General Purpose Sub Procedures Are Not Triggered by Events but Called From Statements in Other Procedures Sub Procedures

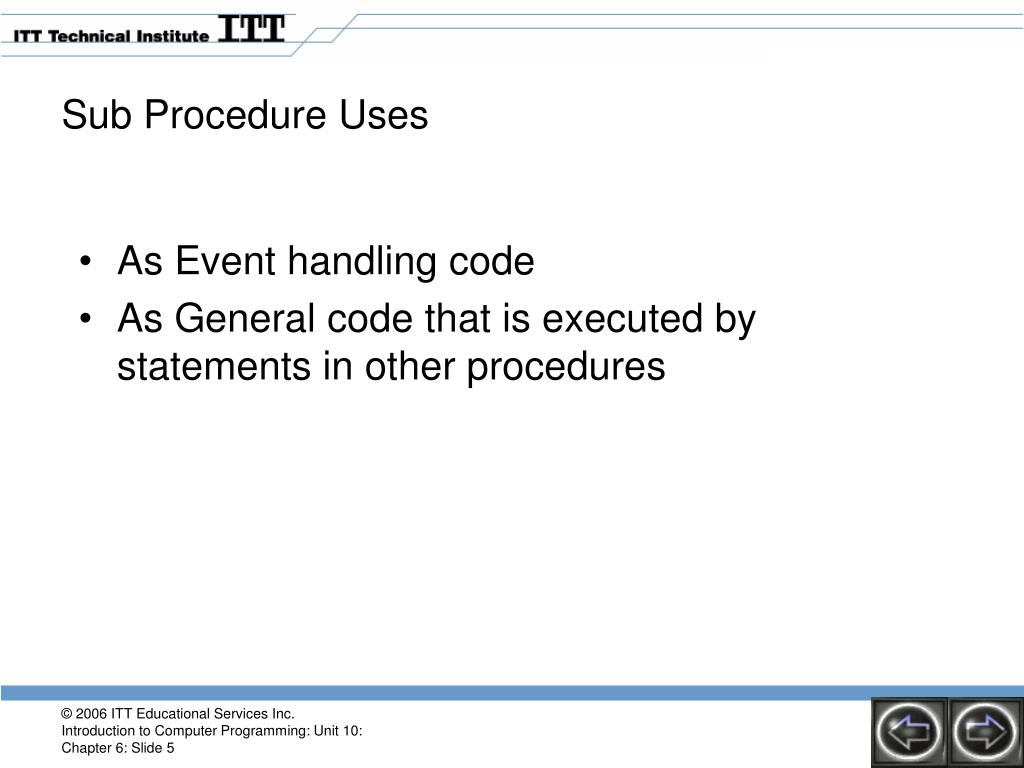

  5. Sub Procedure Uses • As Event handling code • As General code that is executed by statements in other procedures

  6. Uses for Sub Procedures • To Modularize one's program • Break it into small, manageable hunks • To Simplify one's program • Create individual sub procedures to perform tasks that are done repeatedly

  7. Sample Sub Procedure Private Sub btnGo_Click(ByVal sender As System.Object, _ ByVal e As System.EventArgs) Handles btnGo.Click ' This procedure calls the DisplayMessage procedure. lstOutput.Items.Add("Hello from btnGo_Click procedure.") lstOutput.Items.Add("Calling the DisplayMessage " & _ "procedure.") DisplayMessage() lstOutput.Items.Add("Now I am back in the btnGo_Click procedure.") End Sub Sub DisplayMessage() 'A Sub procedure that displays a message. lstOutput.Items.Add("") lstOutput.Items.Add("Hello from DisplayMessage.") lstOutput.Items.Add("") End Sub

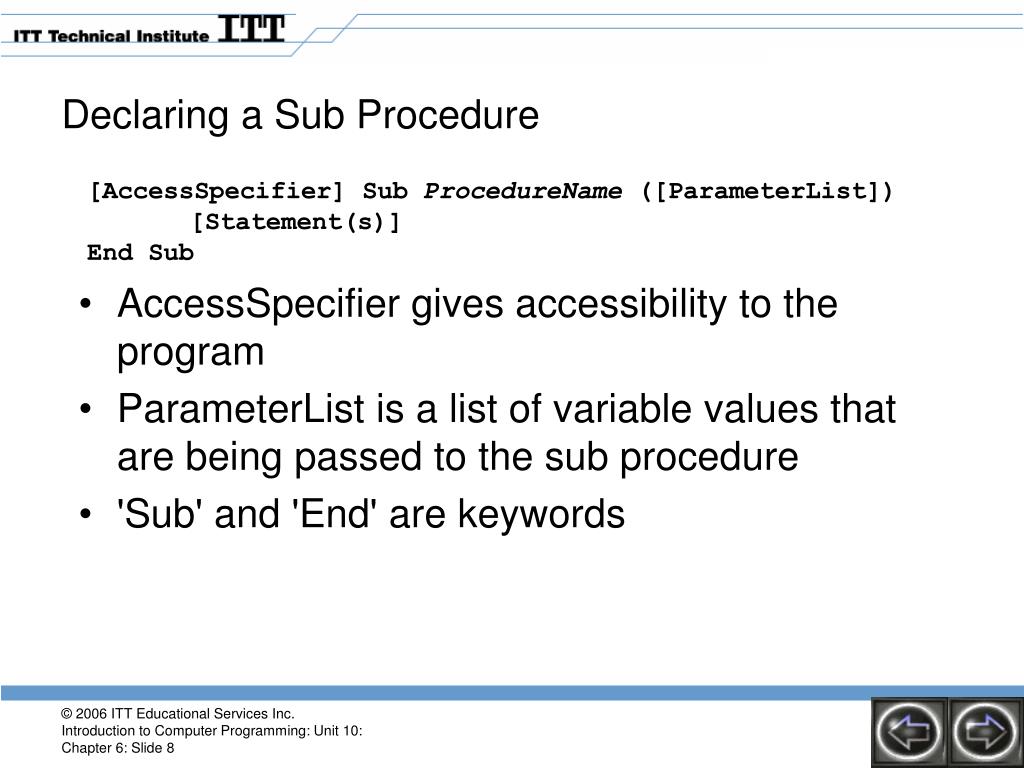

  8. Declaring a Sub Procedure • AccessSpecifier gives accessibility to the program • ParameterList is a list of variable values that are being passed to the sub procedure • 'Sub' and 'End' are keywords [AccessSpecifier] Sub ProcedureName ([ParameterList]) [Statement(s)] End Sub

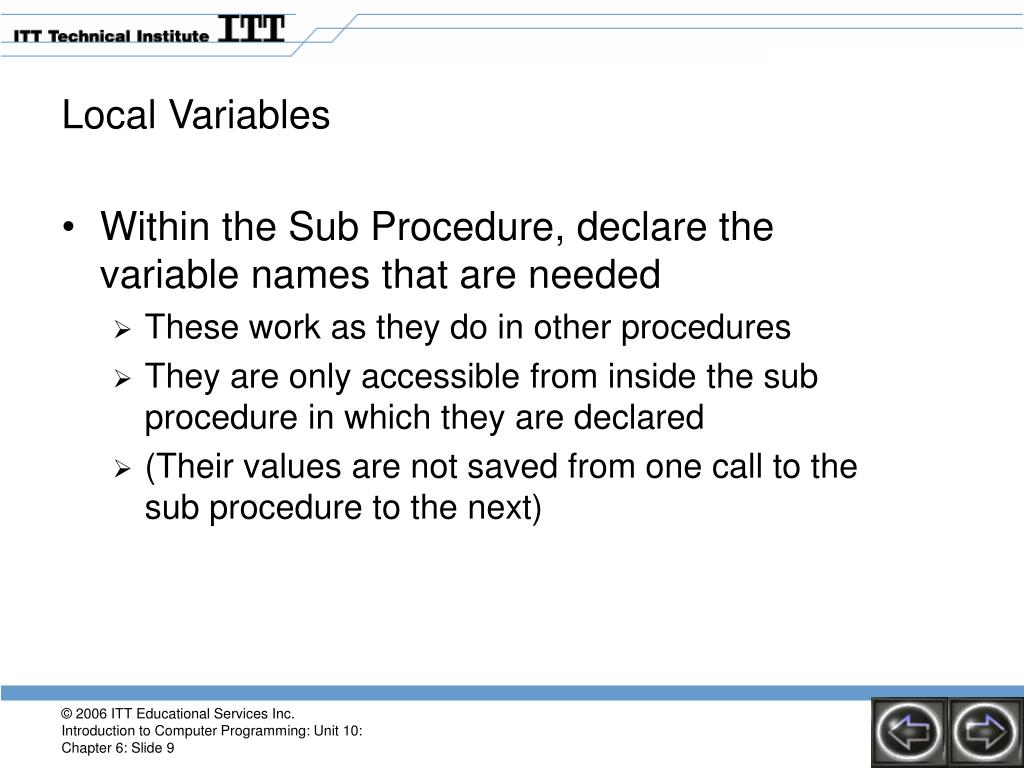

  9. Local Variables • Within the Sub Procedure, declare the variable names that are needed • These work as they do in other procedures • They are only accessible from inside the sub procedure in which they are declared • (Their values are not saved from one call to the sub procedure to the next)

  10. Static Local Variables • Declared with • These local variables do maintain their values from one call to the sub procedure to the next Static VariableName As DataType

  11. When a Procedure Is Called, Values May Be Passed to It Passing Values to a Sub Procedure

  12. Passing Parameters By Value, Example • The value, 5, is copied into the storage location of 'number' in DisplayValue • Then DisplayValue executes DisplayValue(5) Sub DisplayValue(ByVal number As Integer) ' This procedure displays a value in a message box. MessageBox.Show(number.ToString) End Sub

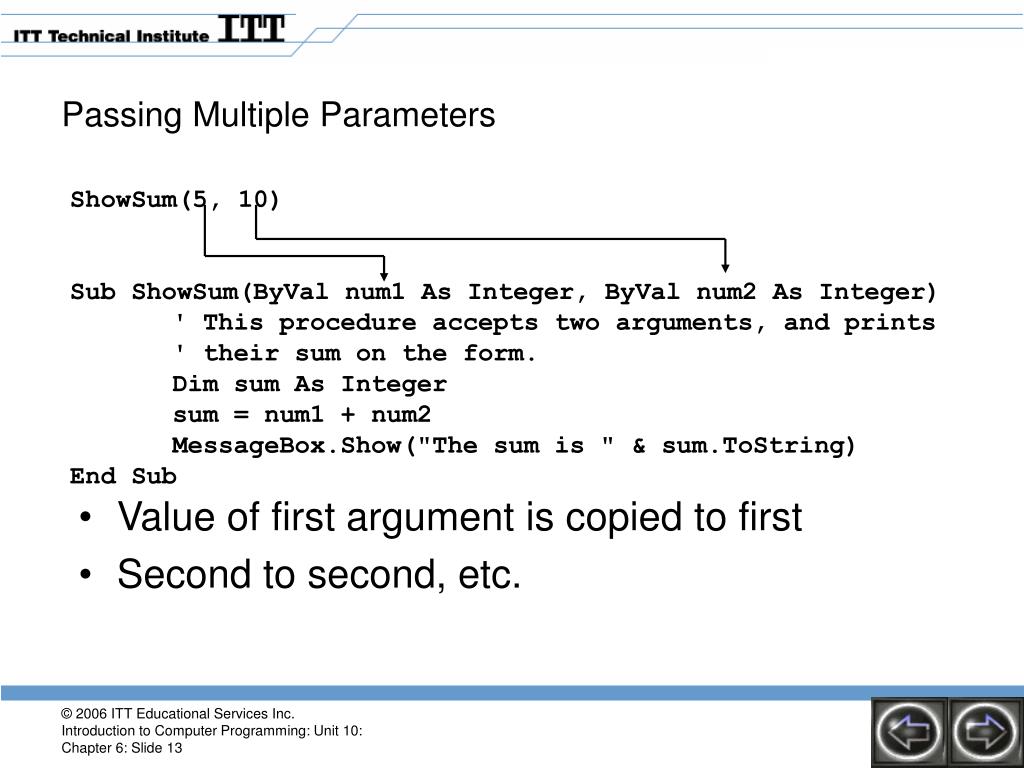

  13. Passing Multiple Parameters • Value of first argument is copied to first • Second to second, etc. ShowSum(5, 10) Sub ShowSum(ByVal num1 As Integer, ByVal num2 As Integer) ' This procedure accepts two arguments, and prints ' their sum on the form. Dim sum As Integer sum = num1 + num2 MessageBox.Show("The sum is " & sum.ToString) End Sub

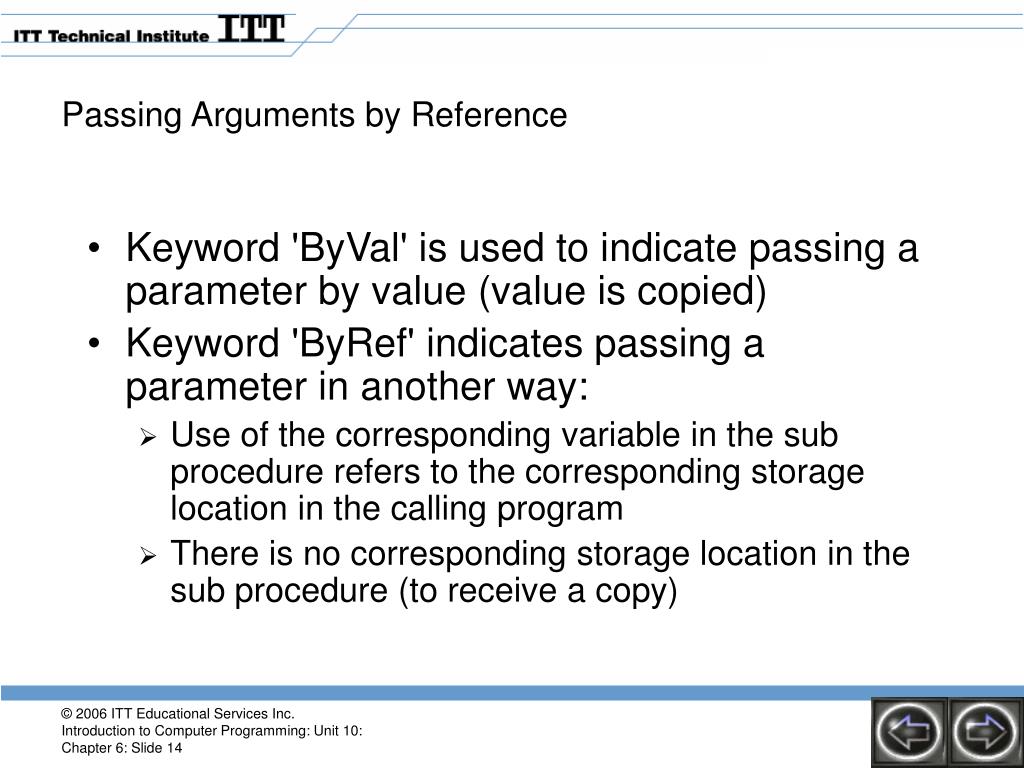

  14. Passing Arguments by Reference • Keyword 'ByVal' is used to indicate passing a parameter by value (value is copied) • Keyword 'ByRef' indicates passing a parameter in another way: • Use of the corresponding variable in the sub procedure refers to the corresponding storage location in the calling program • There is no corresponding storage location in the sub procedure (to receive a copy)

  15. A Function Procedure Returns a Value to the Part of the Program That Called the Function Procedure Function Procedures

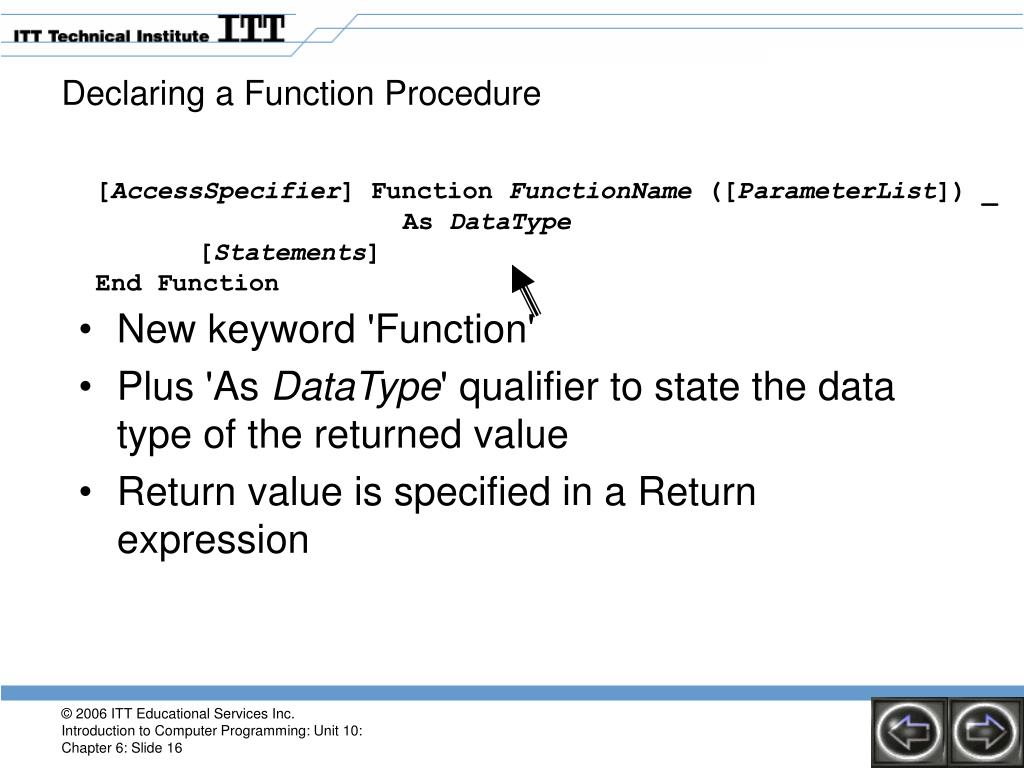

  16. Declaring a Function Procedure • New keyword 'Function' • Plus 'As DataType' qualifier to state the data type of the returned value • Return value is specified in a Return expression [AccessSpecifier] Function FunctionName ([ParameterList]) _ As DataType [Statements] End Function

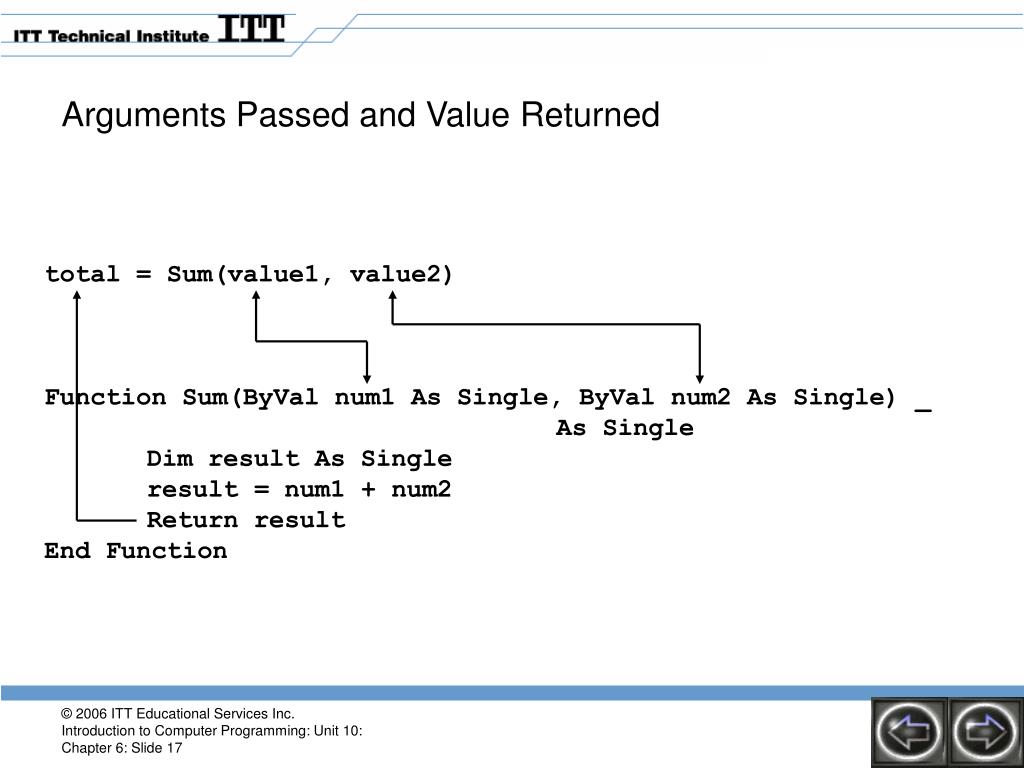

  17. Arguments Passed and Value Returned total = Sum(value1, value2) Function Sum(ByVal num1 As Single, ByVal num2 As Single) _ As Single Dim result As Single result = num1 + num2 Return result End Function

  18. Returning Nonnumeric Values Function FullName(ByVal first As String, ByVal last As String)_ As String Dim name As String name = last & ", " & first Return name End Function Function IsValid(num As Integer) As Boolean Dim status As Boolean If num >= 0 And num <= 100 Then status = True Else status = False End If Return status End Function
