  1. Command Control DeviceSDmay11-02 Scott Coffin Adam Faucher Jason Graika Brian Voelz Client: Honeywell Advisor: Dr. Zhengdao Wang

  2. Project description • Short range wireless control device • The desired outcome of this project is for the transmitter to communicate with the receiver and have the receiver do a particular command that was programmed by the dongle. • Four deliverables • Transmitter, Receiver, Programming Dongle, and GUI

  3. Project description • Plan for project is for the transmitter to communicate with receiver based on push button input • Receiver will do a particular command that was programmed by the wireless dongle. • All devices will communicate using Bluetooth

  4. Project Design Overview • System consists of four components: • Transmitter(Tx) • Receiver(Rx) • Bluetooth Dongle • GUI for programming Rx

  5. Project Design • Unit layout

  6. Project Design • GUI Prototype

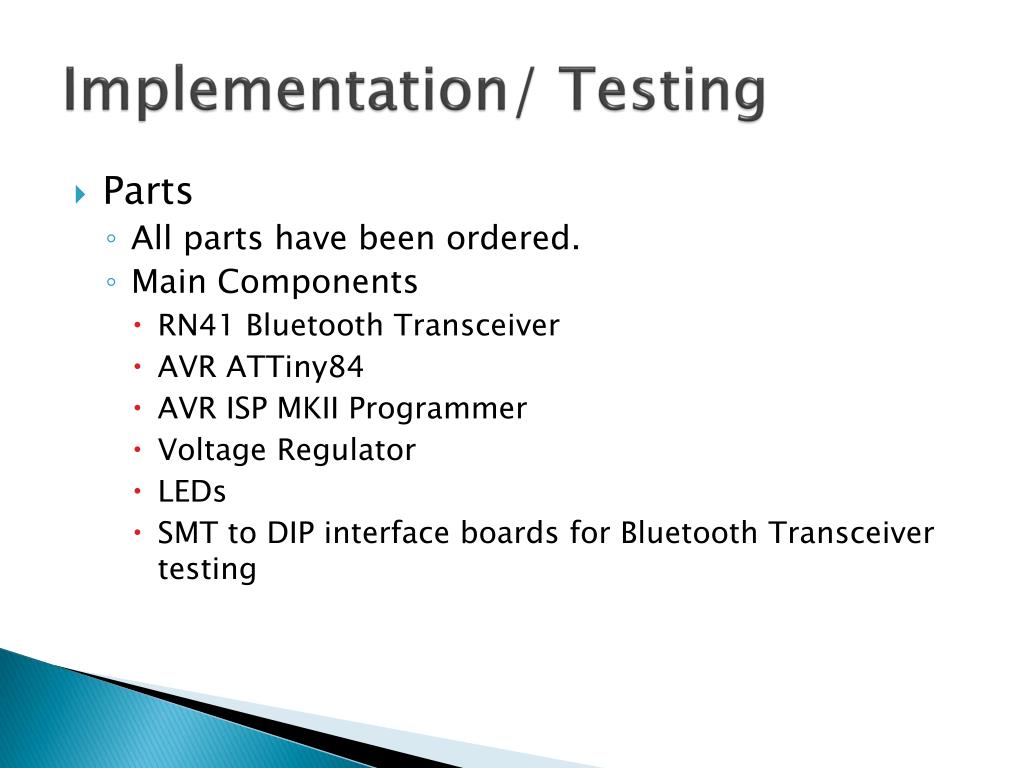

  7. Implementation/ Testing • Parts • All parts have been ordered. • Main Components • RN41 Bluetooth Transceiver • AVR ATTiny84 • AVR ISP MKII Programmer • Voltage Regulator • LEDs • SMT to DIP interface boards for Bluetooth Transceiver testing

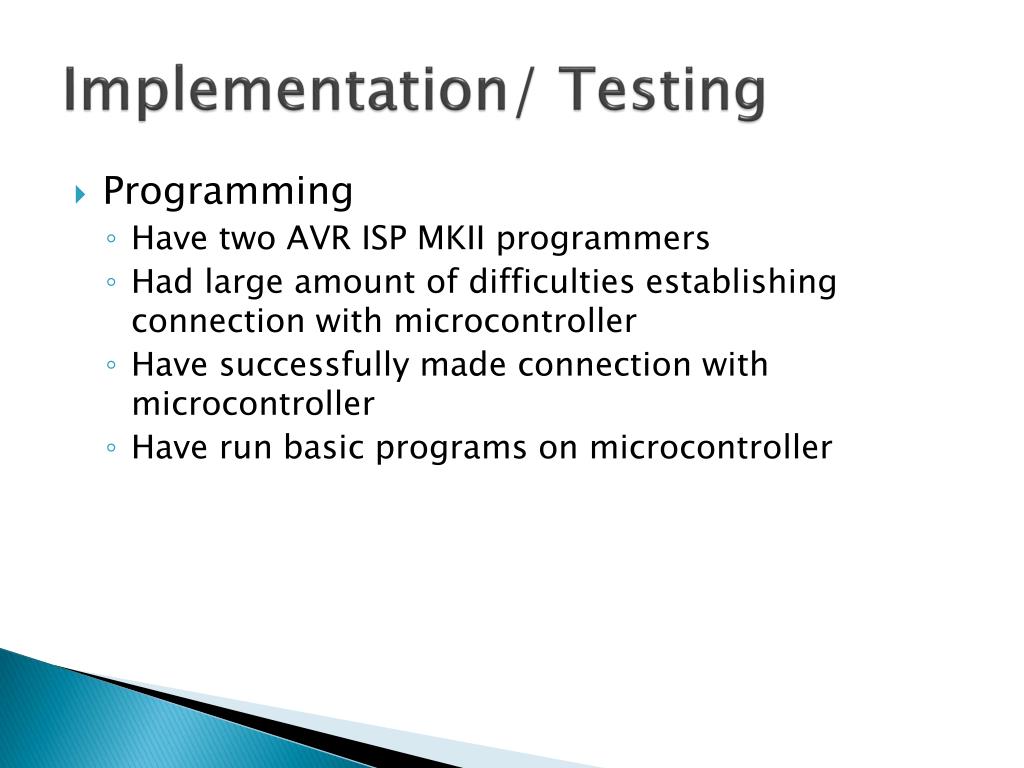

  8. Implementation/ Testing • Programming • Have two AVR ISP MKII programmers • Had large amount of difficulties establishing connection with microcontroller • Have successfully made connection with microcontroller • Have run basic programs on microcontroller

  9. Implementation/ Testing • Unit testing • Currently testing communication links between Bluetooth devices • Testing communication between microcontroller and Bluetooth devices

  10. Schedule • Finished prototype testing – 3/20 • Ordered final PCB board – 4/1 • Board populated and working - 4/22 • Final project Repot – 4/25 • Final project Report- 4/25

  11. Questions?
