  1. High Performance Web Sites14 rules for faster pages Steve Souders Chief Performance Yahoo! souders@yahoo-inc.com

  2. Exceptional Performance • quantify and improve the performance of all Yahoo! products worldwide • center of expertise • build tools, analyze data • gather, research, and evangelize best practices

  3. Scope • performance breaks into two categories • response time • efficiency • current focus is response time • of web products • coming up next: mobile, backend

  4. The Importance of Frontend Performance Backend = 5% Frontend = 95% Even primed cache, frontend = 88%

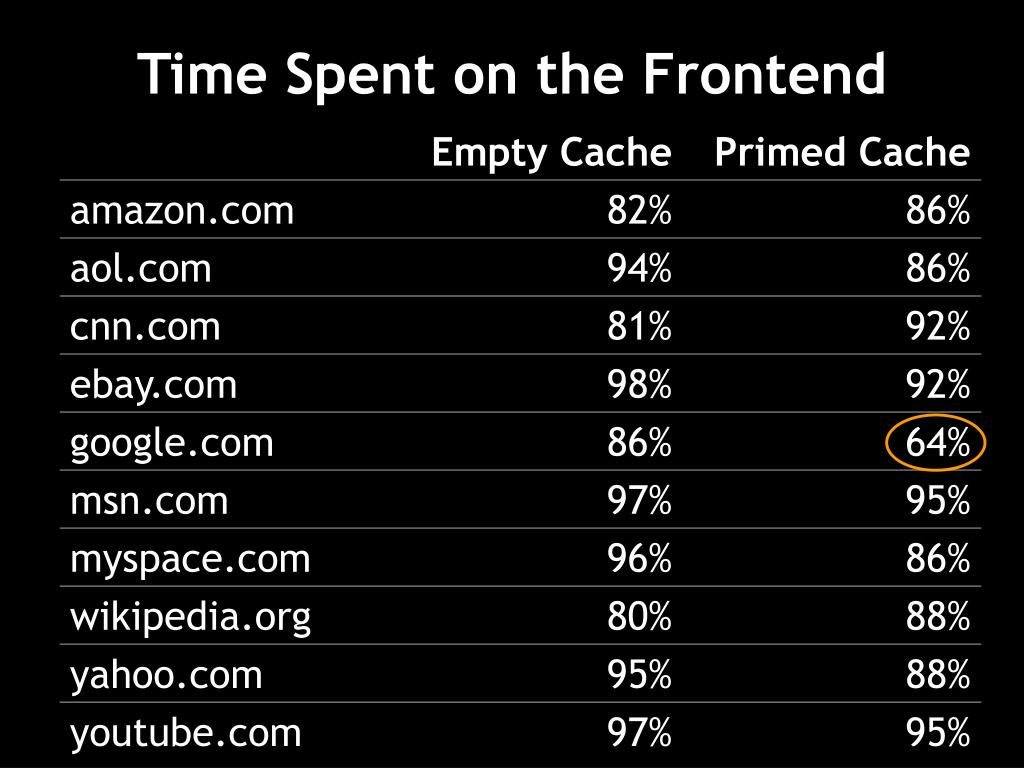

  5. Time Spent on the Frontend

  6. The Performance Golden Rule • 80-90% of the end-user response time is spent on the frontend. Start there. • Greater potential for improvement • Simpler • Proven to work

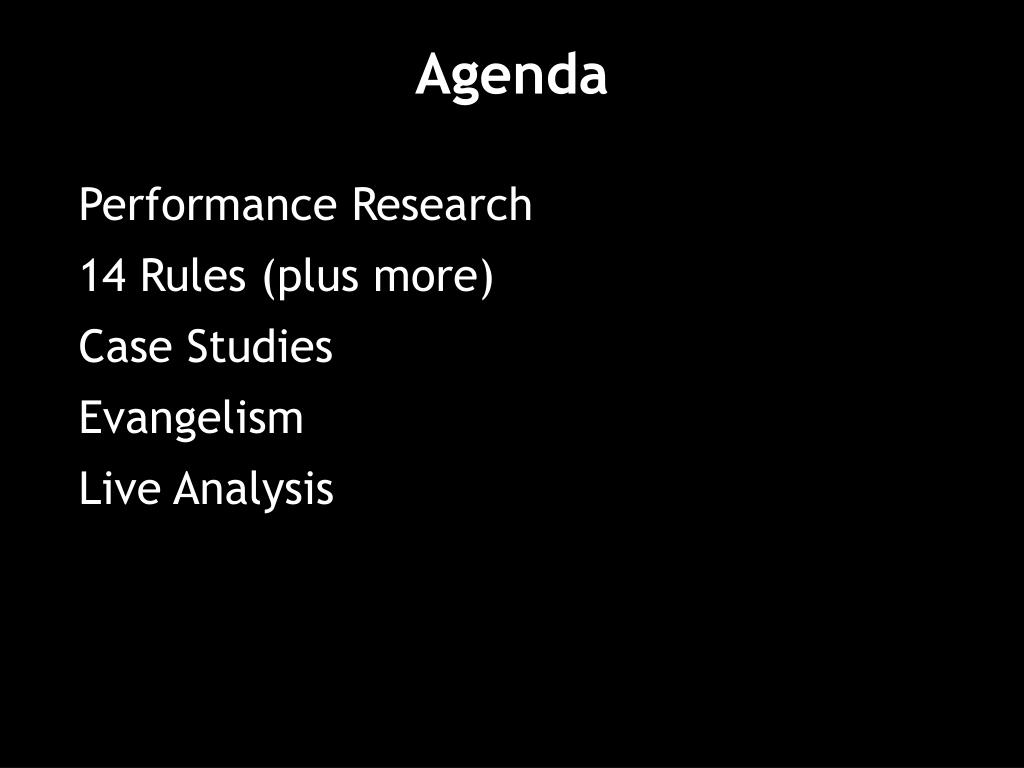

  7. Agenda • Performance Research • 14 Rules (plus more) • Case Studies • Evangelism • Live Analysis

  8. Performance Research

  9. # users with at least one 200 response • total # unique users • Percentage of users with an empty cache? • Percentage of page views with an empty cache? • # of 200 responses • total # responses Browser Cache Experiment • Add an image to the page: • Expires: Thu, 15 Apr 2004 20:00:00 GMT • Last-Modified: Wed, 28 Sep 2006 23:49:57 GMT

  10. users withempty cache page views withempty cache Browser Cache Expt Results 40-60% ~20%

  11. Experiment Takeaways • The empty cache user experience is more prevalent than you think! • Optimize for both primed cache and empty cache experience.

  12. dialup users 80 ms delay keep sizes low Impact of Cookies on Response Time

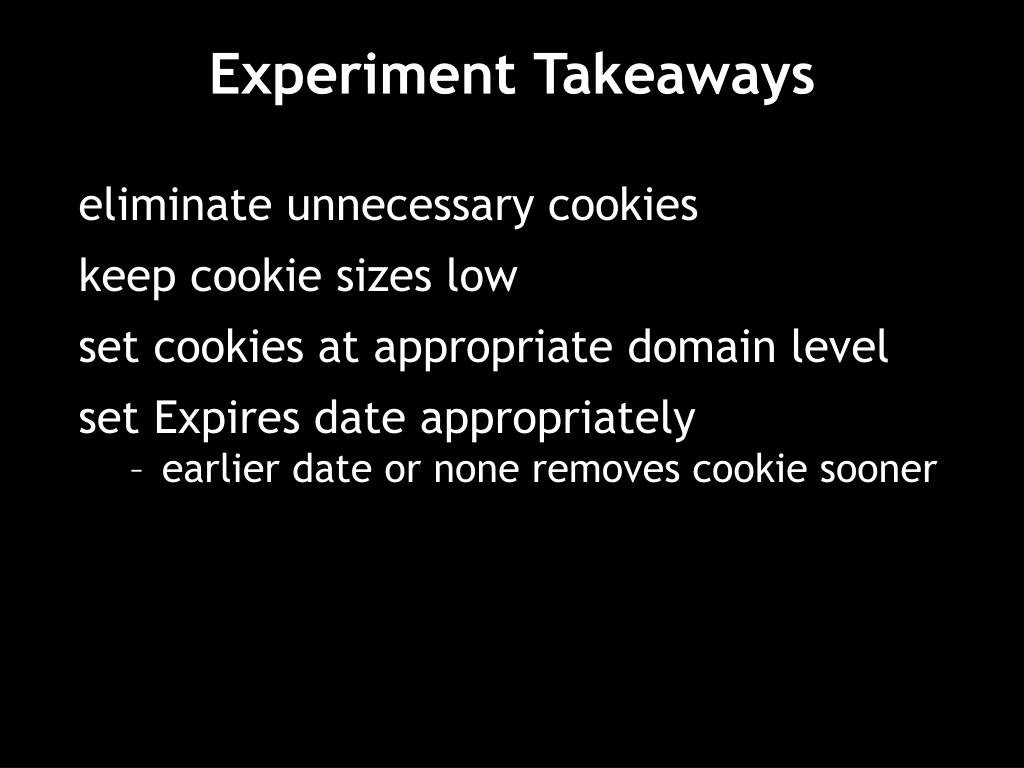

  13. Experiment Takeaways • eliminate unnecessary cookies • keep cookie sizes low • set cookies at appropriate domain level • set Expires date appropriately • earlier date or none removes cookie sooner

  14. Parallel Downloads • Two in parallel • Four in parallel • Eight in parallel

  15. Maximizing Parallel Downloads response time (seconds) aliases

  16. Maximizing Parallel Downloads response time (seconds) aliases rule of thumb: use at least two but no more than four aliases

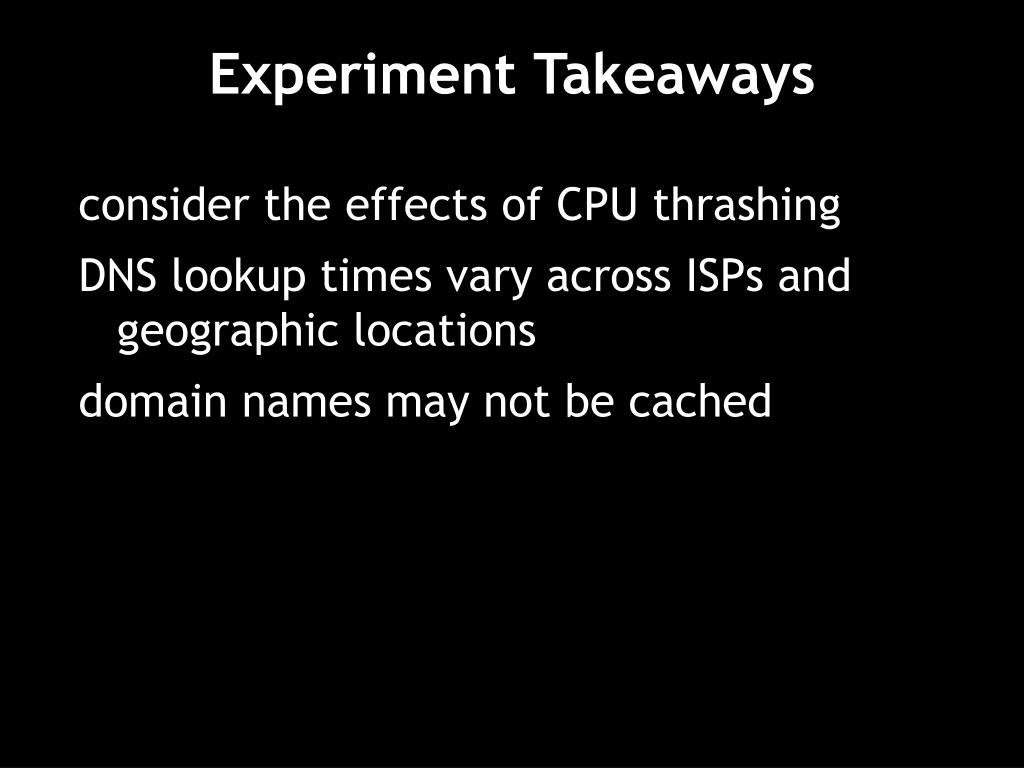

  17. Experiment Takeaways • consider the effects of CPU thrashing • DNS lookup times vary across ISPs and geographic locations • domain names may not be cached

  18. 14 Rules

  19. 14 Rules • Make fewer HTTP requests • Use a CDN • Add an Expires header • Gzip components • Put stylesheets at the top • Move scripts to the bottom • Avoid CSS expressions • Make JS and CSS external • Reduce DNS lookups • Minify JS • Avoid redirects • Remove duplicate scripts • Configure ETags • Make AJAX cacheable

  20. Rule 1: Make fewer HTTP requests • CSS sprites • combined scripts, combined stylesheets • preloading • image maps • inline images

  21. CSS Sprites • size of combined image is less <span style=" background-image: url('sprites.gif'); background-position: -260px -90px;"> </span> http://alistapart.com/articles/sprites

  22. Combined Scripts, Combined Stylesheets

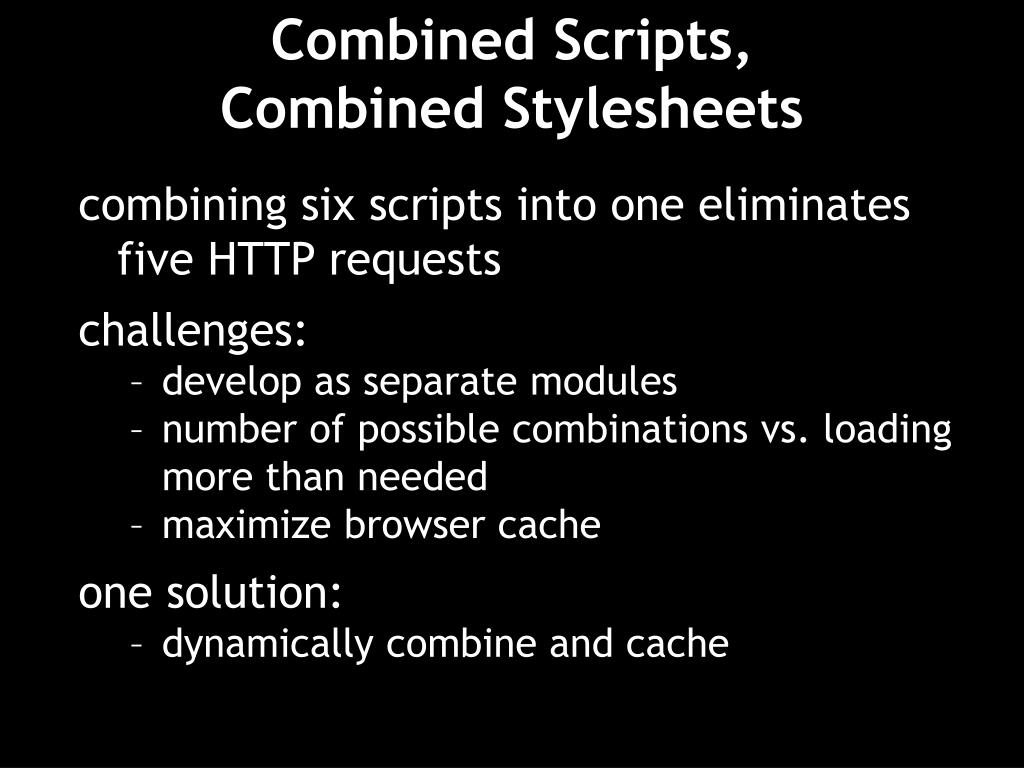

  23. Combined Scripts,Combined Stylesheets • combining six scripts into one eliminates five HTTP requests • challenges: • develop as separate modules • number of possible combinations vs. loading more than needed • maximize browser cache • one solution: • dynamically combine and cache

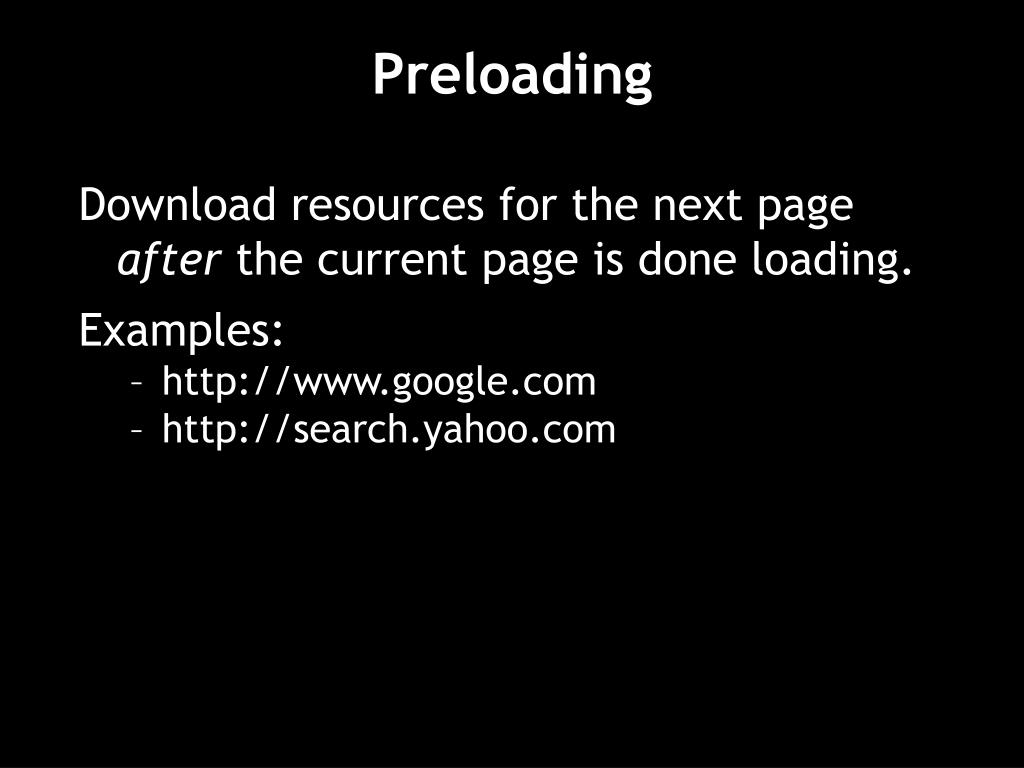

  24. Preloading • Download resources for the next page after the current page is done loading. • Examples: • http://www.google.com • http://search.yahoo.com

  25. Rule 2: Use a CDN • distribute your static content before distributing your dynamic content

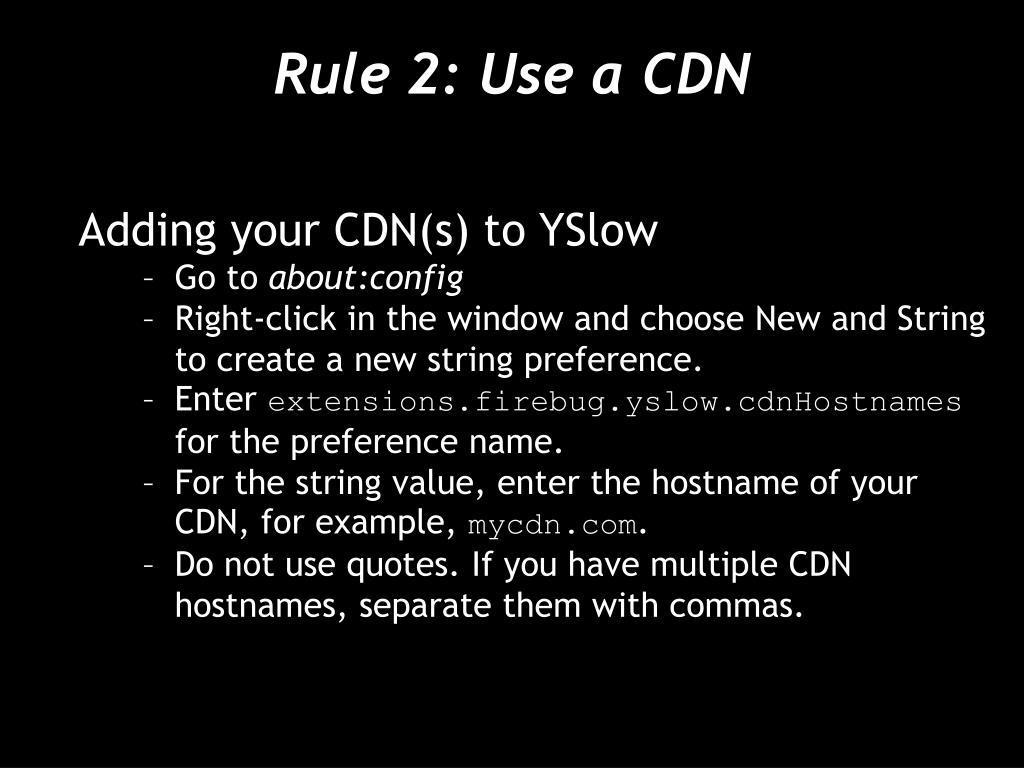

  26. Rule 2: Use a CDN • Adding your CDN(s) to YSlow • Go to about:config • Right-click in the window and choose New and String to create a new string preference. • Enter extensions.firebug.yslow.cdnHostnames for the preference name. • For the string value, enter the hostname of your CDN, for example, mycdn.com. • Do not use quotes. If you have multiple CDN hostnames, separate them with commas.

  27. Rule 3: Add an Expires header • not just for images

  28. Rule 4: Gzip components • you can affect users' download times • 90%+ of browsers support compression

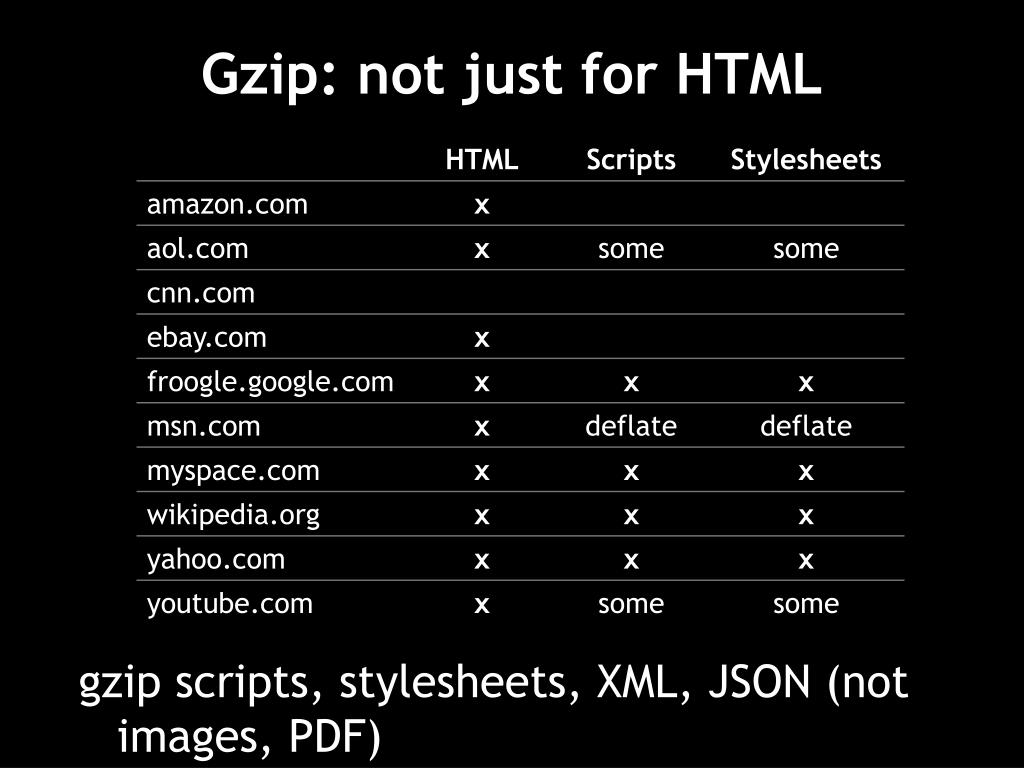

  29. Gzip: not just for HTML • gzip scripts, stylesheets, XML, JSON (not images, PDF)

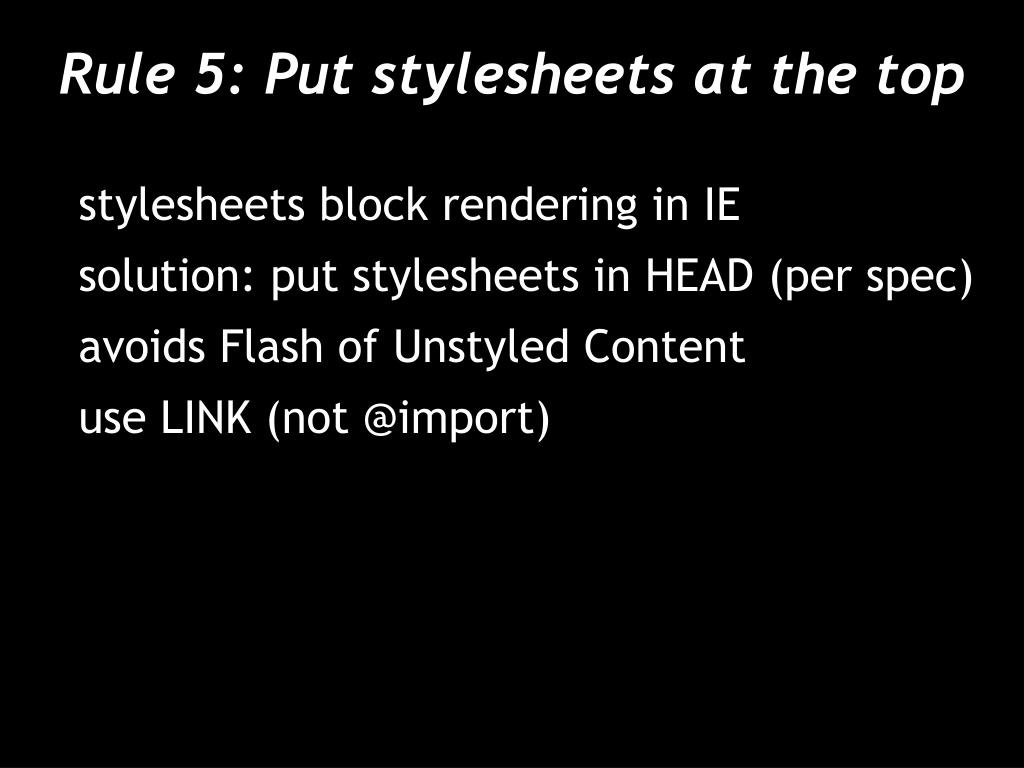

  30. Rule 5: Put stylesheets at the top • stylesheets block rendering in IE • solution: put stylesheets in HEAD (per spec) • avoids Flash of Unstyled Content • use LINK (not @import)

  31. Rule 6: Move scripts to the bottom • scripts block parallel downloads across all hostnames • scripts block rendering of everything below them in the page • script defer attribute is not a solution • blocks rendering and downloads in FF • slight blocking in IE

  32. Rule 7: Avoid CSS expressions • used to set CSS properties dynamically in IE width: expression( document.body.clientWidth < 600 ? “600px” : “auto” ); • problem: expressions execute many times • mouse move, key press, resize, scroll, etc. • alternatives: • one-time expressions • event handlers

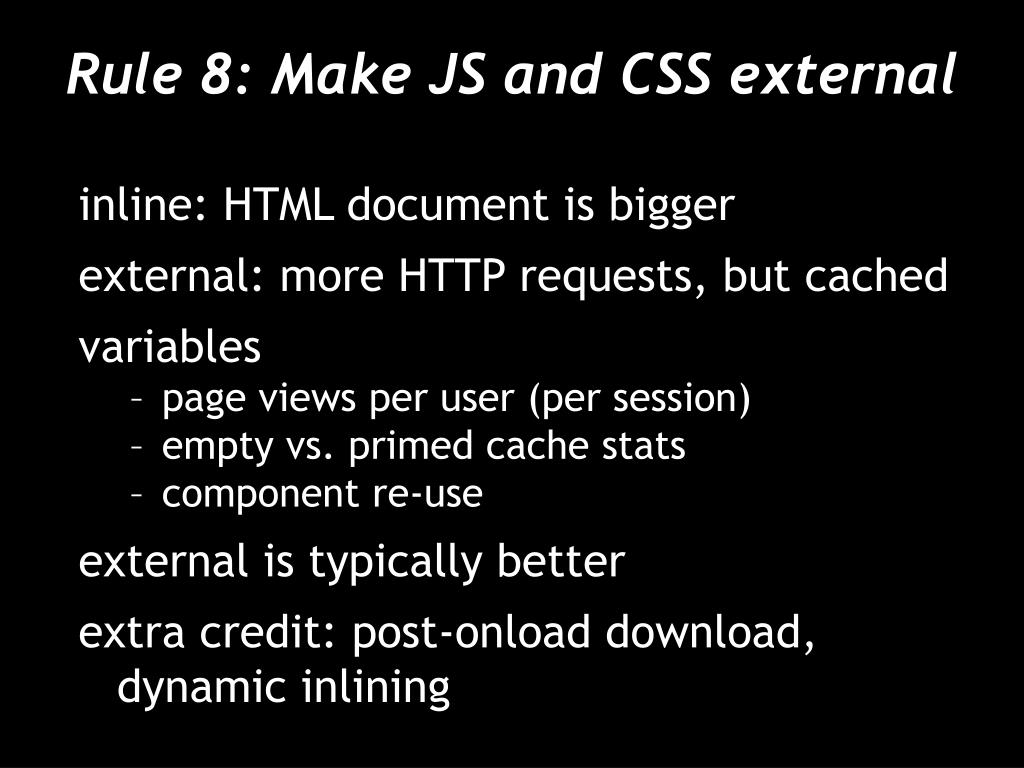

  33. Rule 8: Make JS and CSS external • inline: HTML document is bigger • external: more HTTP requests, but cached • variables • page views per user (per session) • empty vs. primed cache stats • component re-use • external is typically better • extra credit: post-onload download, dynamic inlining

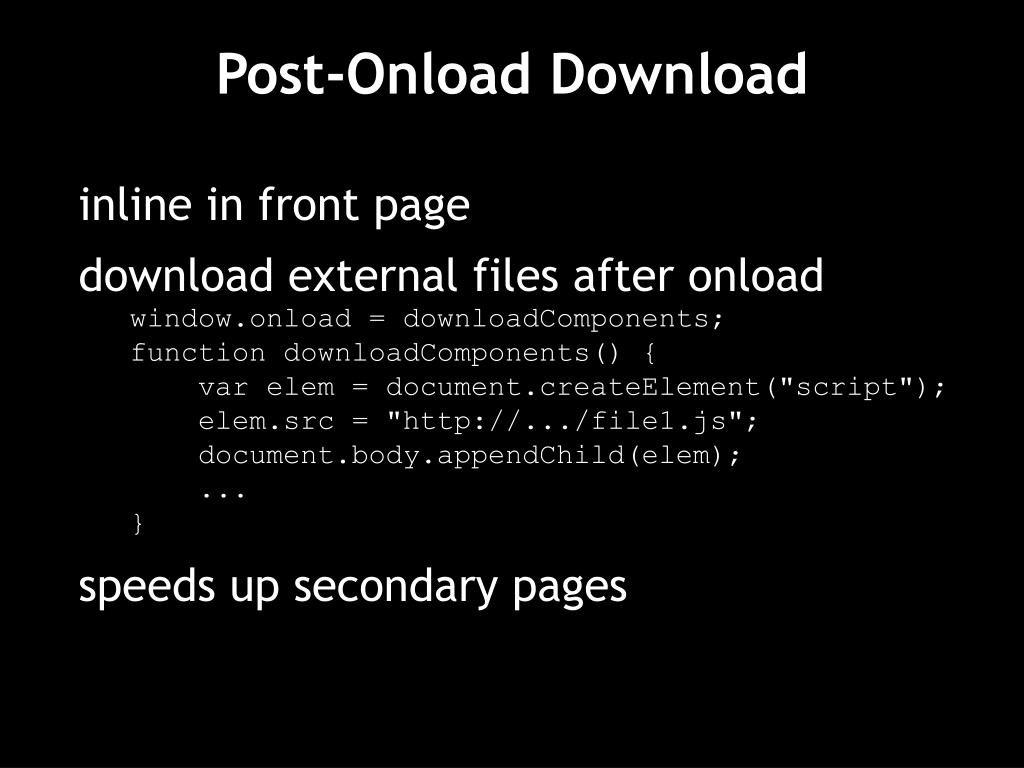

  34. Post-Onload Download • inline in front page • download external files after onload window.onload = downloadComponents; function downloadComponents() { var elem = document.createElement("script"); elem.src = "http://.../file1.js"; document.body.appendChild(elem); ... } • speeds up secondary pages

  35. Dynamic Inlining • start with post-onload download • set cookie after components downloaded • server-side: • if cookie, use external • else, do inline with post-onload download • cookie expiration date is key • speeds up all pages

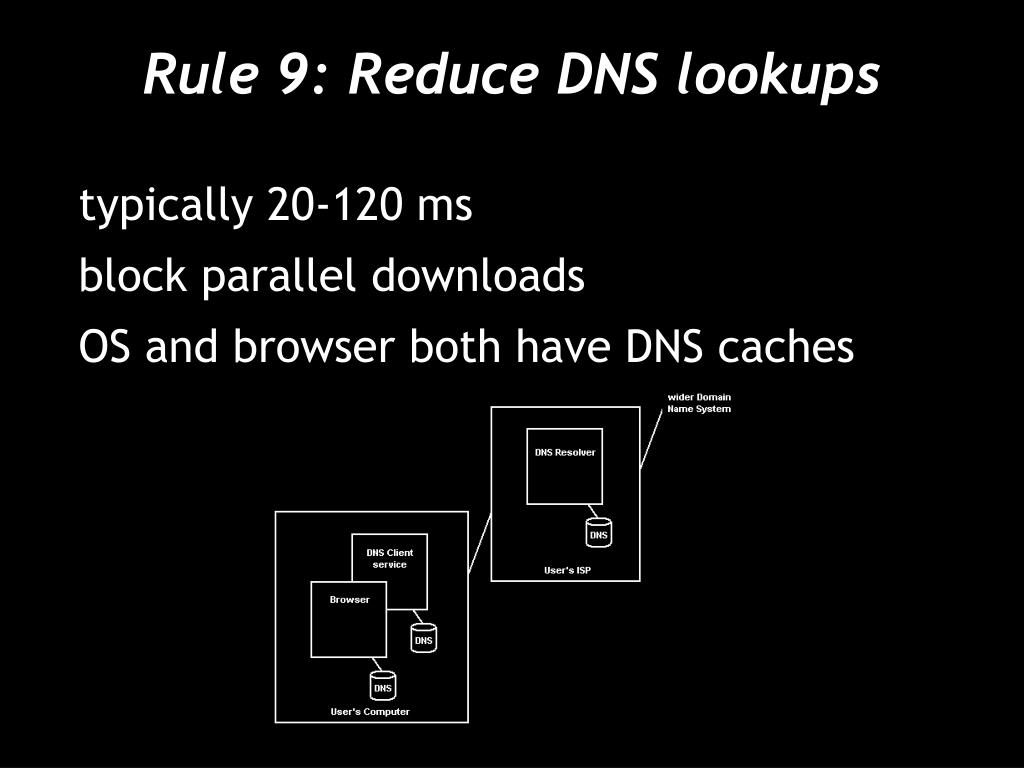

  36. Rule 9: Reduce DNS lookups • typically 20-120 ms • block parallel downloads • OS and browser both have DNS caches

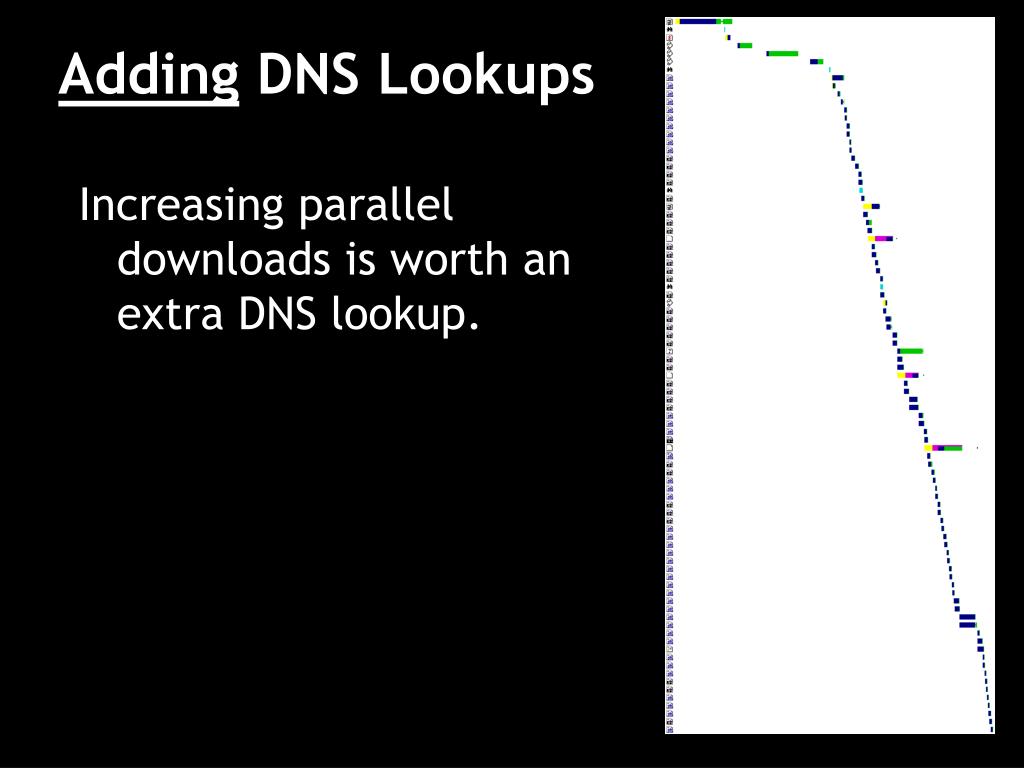

  37. Adding DNS Lookups • Increasing parallel downloads is worth an extra DNS lookup.

  38. Rule 10: Minify JavaScript • minify inline scripts, too

  39. Rule 11: Avoid redirects • 3xx status codes – mostly 301 and 302 HTTP/1.1 301 Moved Permanently Location: http://stevesouders.com/newuri • add Expires headers to cache redirects • worst form of blocking

  40. Rule 12: Remove duplicate scripts • hurts performance • extra HTTP requests (IE only) • extra executions • atypical? • 2 of 10 top sites contain duplicate scripts • team size, # of scripts

  41. Rule 13: Configure ETags • unique identifier returned in response ETag: "c8897e-aee-4165acf0" Last-Modified: Thu, 07 Oct 2004 20:54:08 GMT • used in conditional GET requests If-None-Match: "c8897e-aee-4165acf0" If-Modified-Since: Thu, 07 Oct 2004 20:54:08 GMT • if ETag doesn't match, can't send 304 • ETag format • Apache: inode-size-timestamp • IIS: Filetimestamp:ChangeNumber • Use 'em or lose 'em • Apache: FileETag none • IIS: http://support.microsoft.com/kb/922703/

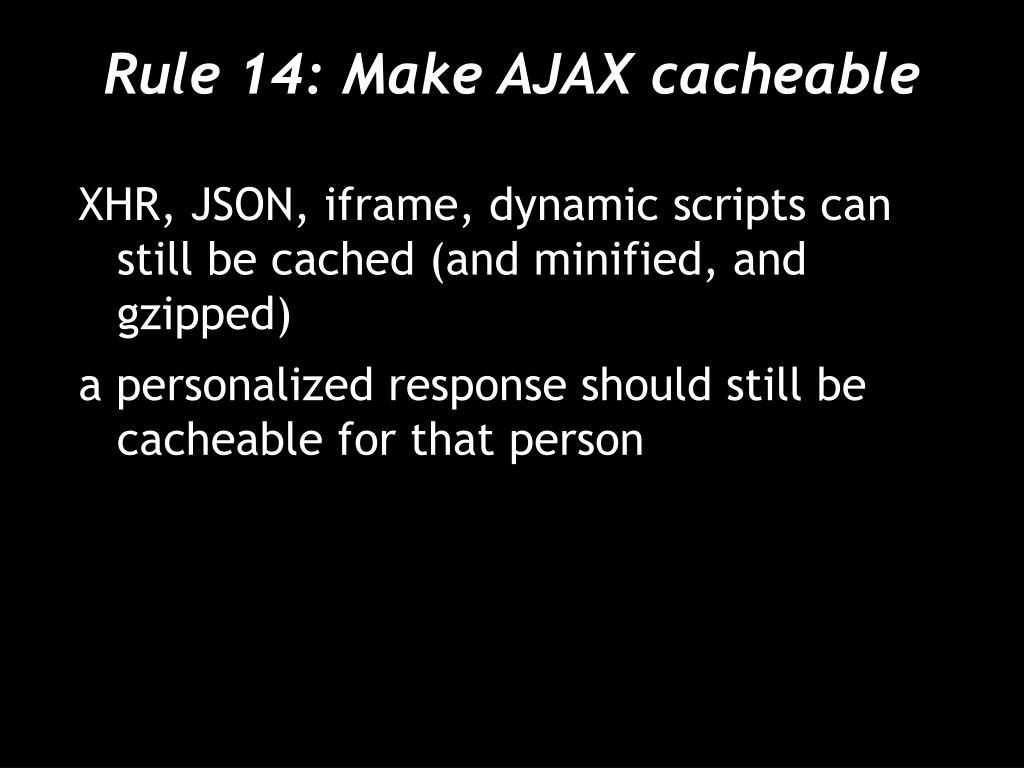

  42. Rule 14: Make AJAX cacheable • XHR, JSON, iframe, dynamic scripts can still be cached (and minified, and gzipped) • a personalized response should still be cacheable for that person

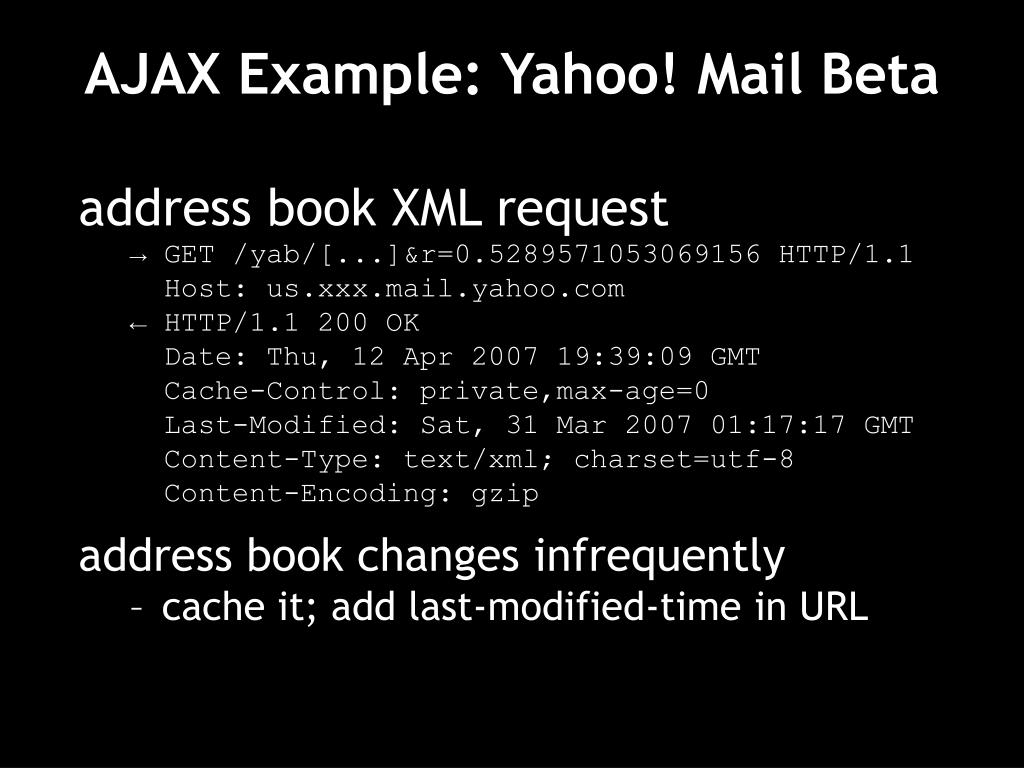

  43. AJAX Example: Yahoo! Mail Beta • address book XML request → GET /yab/[...]&r=0.5289571053069156 HTTP/1.1 Host: us.xxx.mail.yahoo.com ← HTTP/1.1 200 OK Date: Thu, 12 Apr 2007 19:39:09 GMT Cache-Control: private,max-age=0 Last-Modified: Sat, 31 Mar 2007 01:17:17 GMT Content-Type: text/xml; charset=utf-8 Content-Encoding: gzip • address book changes infrequently • cache it; add last-modified-time in URL

  44. Next Rules • Split static content across multiple domains • Reduce the size of cookies • Host static content on a different domain • Minify CSS • Avoid IFrames

  45. Case Studies

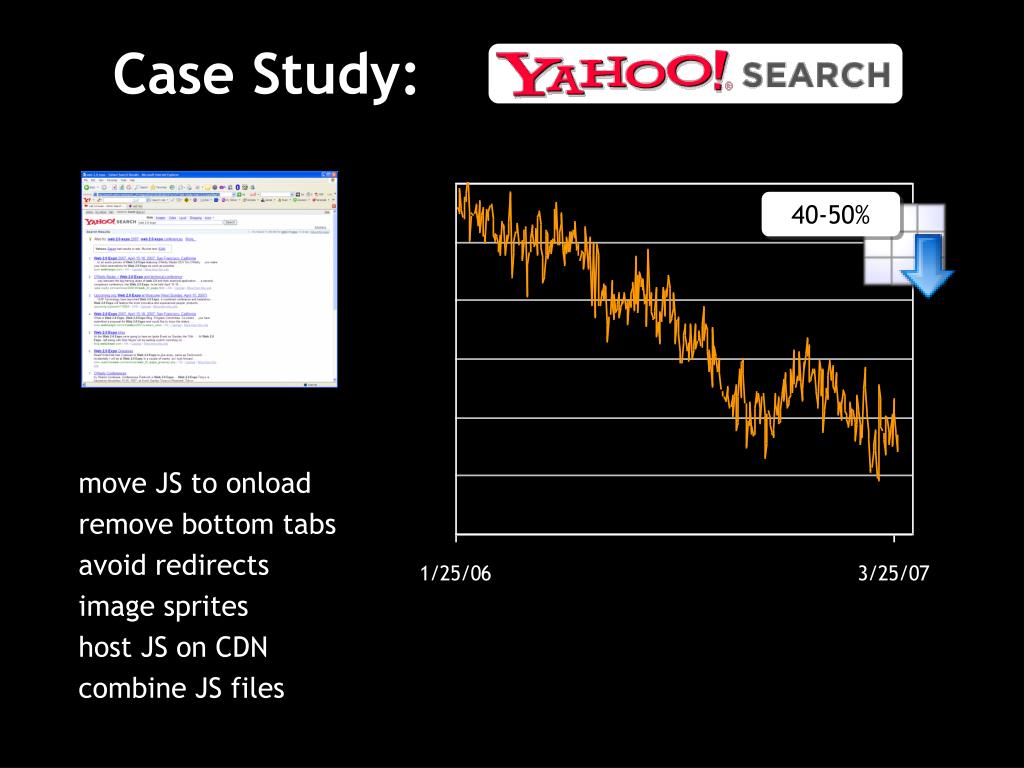

  46. 40-50% Case Study: • move JS to onload • remove bottom tabs • avoid redirects • image sprites • host JS on CDN • combine JS files

  47. What about performance and Web 2.0 apps? • client-side CPU is more of an issue • user expectations are higher • these rules still apply, new rules will come out • start off on the right foot

  48. Case Study: Mail Classic Mail • User Workflow • mail.yahoo.com • view inbox folder • read messages (x3) • compose message • confirm send • total time: • Time • 2.40 s • 4.98 s • 6.39 s • 2.21 s • 2.10 s • 18.08 s • Time • 12.48 s • 1.52 s • 1.53 s • 0.34 s • 0s • 15.87 s • Delta • +420% • -70% • -76% • -85% • -100% • -12%

  49. Evangelism

  50. Evangelism • Book High Performance Web Sites • Conferences Yahoo! F2E Summit Web 2.0 Expo Rich Web Experience • Blogs YUI Blog:http://yuiblog.com/blog/category/performance YDN Blog:http://developer.yahoo.com/performance/ • Open Source YSlow OSCon Ajax Experience Blogher Future of Web Apps
