  1. MegaBit ISDN Digital Subscriber Line IDSL

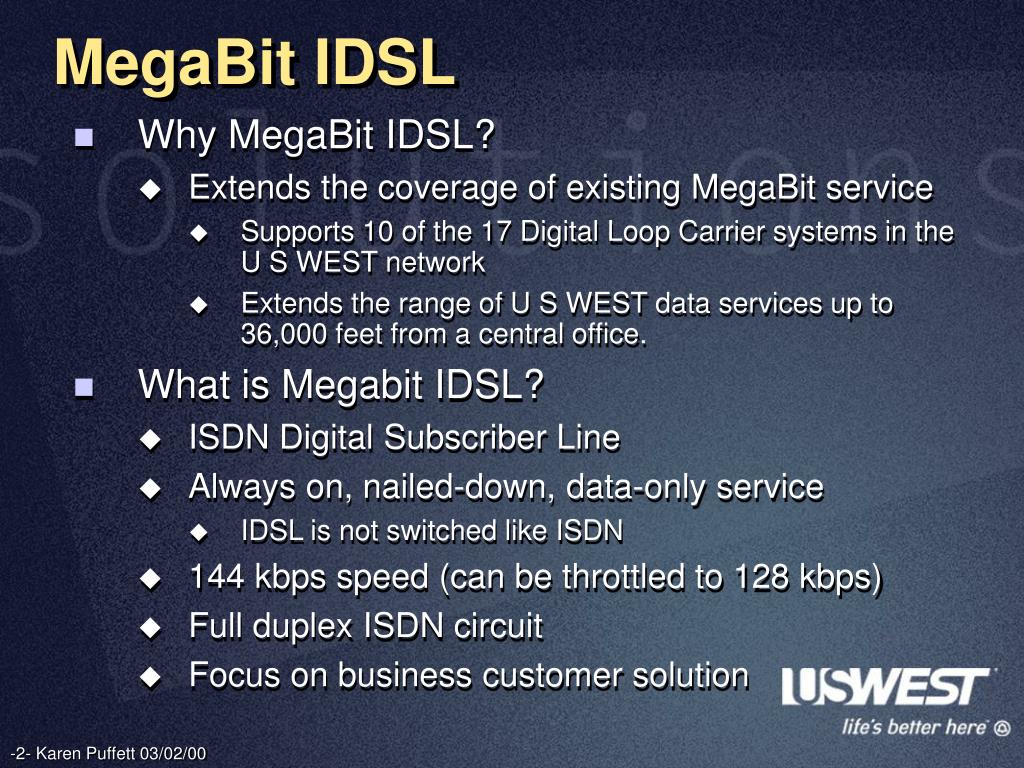

  2. MegaBit IDSL • Why MegaBit IDSL? • Extends the coverage of existing MegaBit service • Supports 10 of the 17 Digital Loop Carrier systems in the U S WEST network • Extends the range of U S WEST data services up to 36,000 feet from a central office. • What is Megabit IDSL? • ISDN Digital Subscriber Line • Always on, nailed-down, data-only service • IDSL is not switched like ISDN • 144 kbps speed (can be throttled to 128 kbps) • Full duplex ISDN circuit • Focus on business customer solution

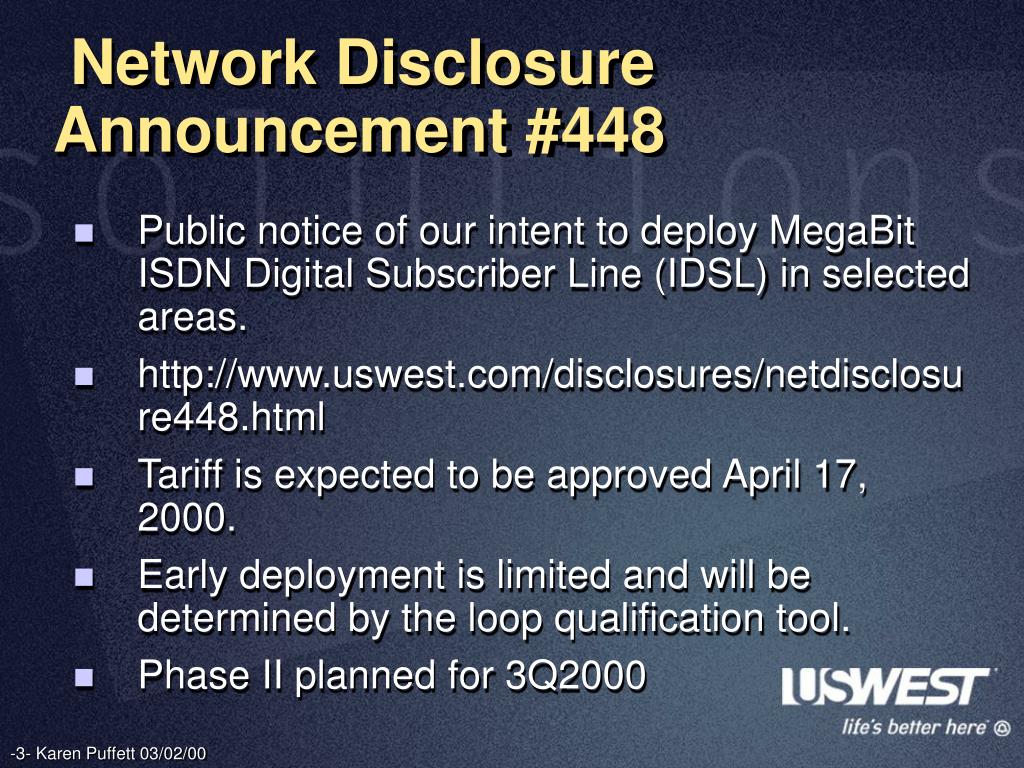

  3. Network Disclosure Announcement #448 • Public notice of our intent to deploy MegaBit ISDN Digital Subscriber Line (IDSL) in selected areas. • http://www.uswest.com/disclosures/netdisclosure448.html • Tariff is expected to be approved April 17, 2000. • Early deployment is limited and will be determined by the loop qualification tool. • Phase II planned for 3Q2000

  4. MegaBit IDSL deployment Network Disclosurehttp://www.uswest.com/disclosures/netdisclosure448.html • States • Arizona • Colorado • Iowa • Idaho • Minnesota • Nebraska • Oregon • South Dakota • Utah • Washington

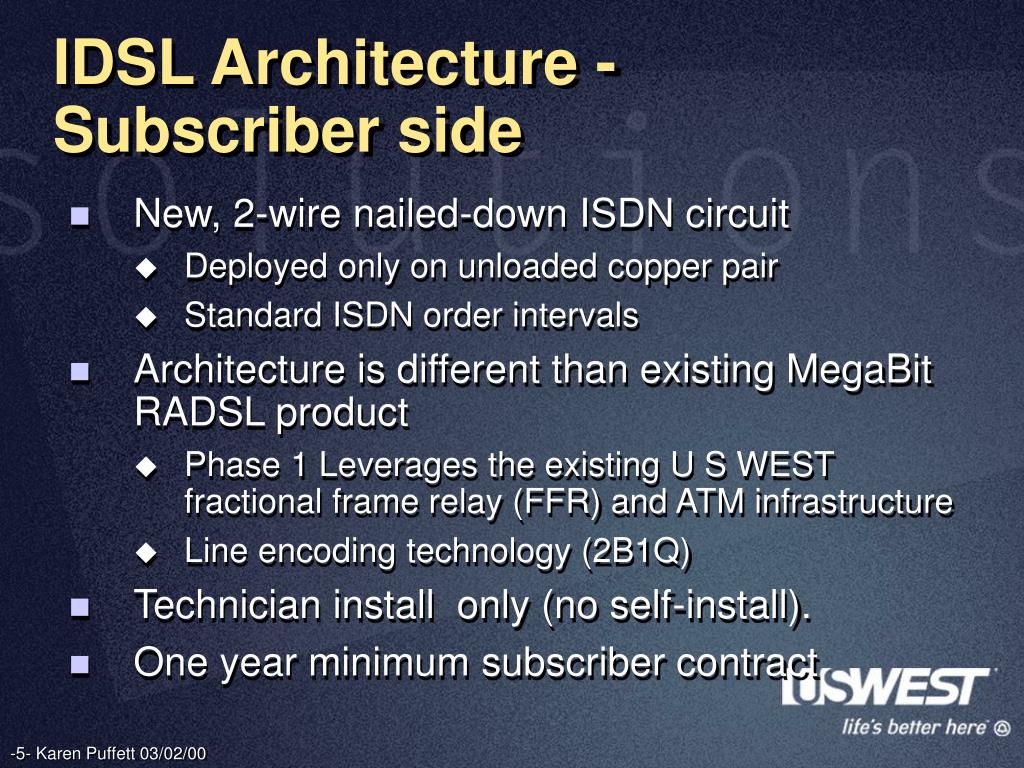

  5. IDSL Architecture - Subscriber side • New, 2-wire nailed-down ISDN circuit • Deployed only on unloaded copper pair • Standard ISDN order intervals • Architecture is different than existing MegaBit RADSL product • Phase 1 Leverages the existing U S WEST fractional frame relay (FFR) and ATM infrastructure • Line encoding technology (2B1Q) • Technician install only (no self-install). • One year minimum subscriber contract

  6. MegaBit IDSL - MegaCentral • IDSL and RADSL can be delivered to the ISP host using the same MegaCentral connection. • MegaCentral Router Configuration Requirements • PPPoATM only • Logical Link Control (LLC) encapsulated PPP payloads. • Technology design does not support Bridging • Initially configured for AAL SNAP (RADSL is AAL MU) • MegaBit IDSL technical parameters are delineated in U S WEST Communications Technical Publication PUB 77399.

  7. Front Back Supported CPE - Motorola Vanguard 65 • Motorola Vanguard 65 terminal adapter with compression, cabling and product guide • Can be configured to support various types of connections. • Supports STAC compression but STAC will not be a part of the initial service offering • Price $336.95 (plus tax)

  8. Non-recurring service initiation fee Motorola Vanguard technician installation fee (required) Motorola Vanguard 65 terminal adapter IDSL service recurring monthly charge $250 (one time charge) $110 (one time charge) $336.95 (one time charge) $69.95/month MegaBit IDSL Pricing

  9. MegaBit IDSL Order Processing • Order entry options • 1. 877-634-2725 • U S WEST Small Business, Business & Government Services, or Home Office centers • Order Interval: Standard ISDN • Installation requires on-site configuration and new loop turn-up during initial rollout • Plan to migrate to self-installation in Phase II • Subscriber Billing charges appear on the subscriber’s U S WEST bill ordirected to host for payment

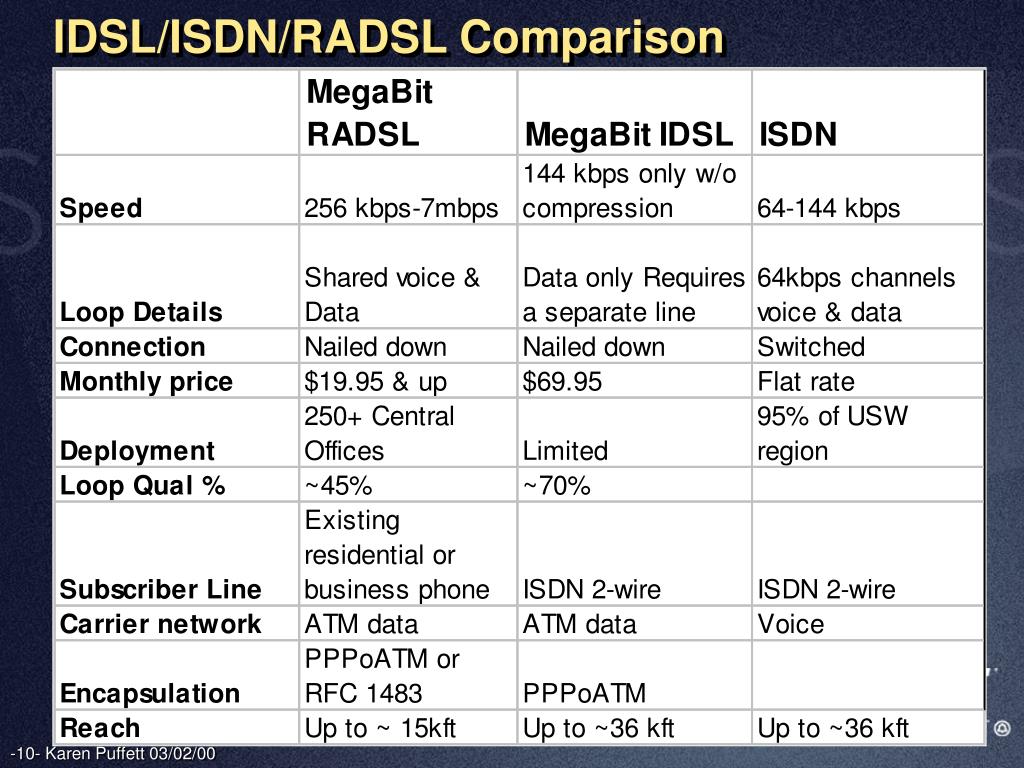

  10. IDSL/ISDN/RADSL Comparison
