  1. Floating Production Systems Presentation at Tulane Energy Week 2010 Jim McCaul – IMA

  2. Outline of Presentation • Overview of FPS Technology • Current FPS Situation • FPS Projects Being Planned • Forecast of FPS Orders International Maritime Associates - 2 - www.imastudies.com

  3. Four Basic FPS Solutions • FPSO • Production Semi • Tension Leg Platform • Production Spar International Maritime Associates - 3 - www.imastudies.com

  4. FPSO Serpentina FPSO Pazflor FPSO International Maritime Associates - 4 - www.imastudies.com

  5. FPSO International Maritime Associates - 5 - www.imastudies.com

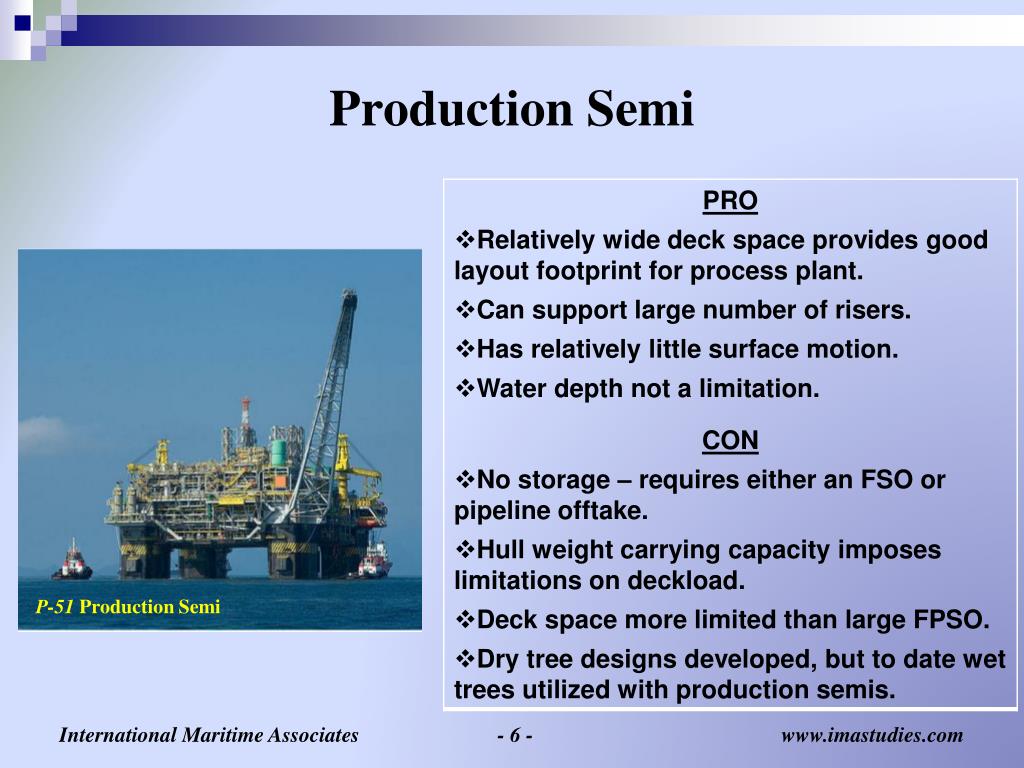

  6. Production Semi P-51 Production Semi International Maritime Associates - 6 - www.imastudies.com

  7. Tension Leg Platform ETLP Moses TLP Sea Star TLP International Maritime Associates - 7 - www.imastudies.com

  8. Production Spar Kikeh Spar International Maritime Associates - 8 - www.imastudies.com

  9. Optimum Application Range Source: FloaTEC,Review of Deepwater Floating Structures and Dry Tree Semi Developments, November 2006 International Maritime Associates - 9 - www.imastudies.com

  10. FPS Units in Operation(as of July 2010) • 22 tension leg platforms • 43 production semis • 152 FPSOs • 18 production spars • 8 production barges • 5 FSRUs • 95 FSOs International Maritime Associates - 10 - www.imastudies.com

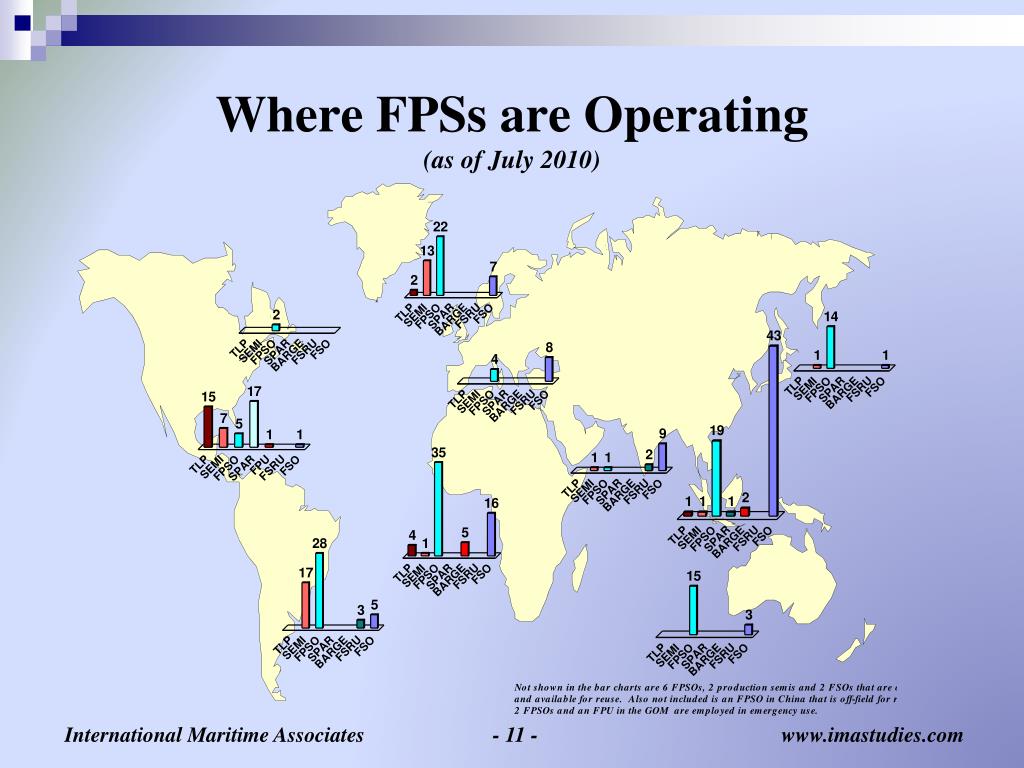

  11. Where FPSs are Operating(as of July 2010) International Maritime Associates - 11 - www.imastudies.com

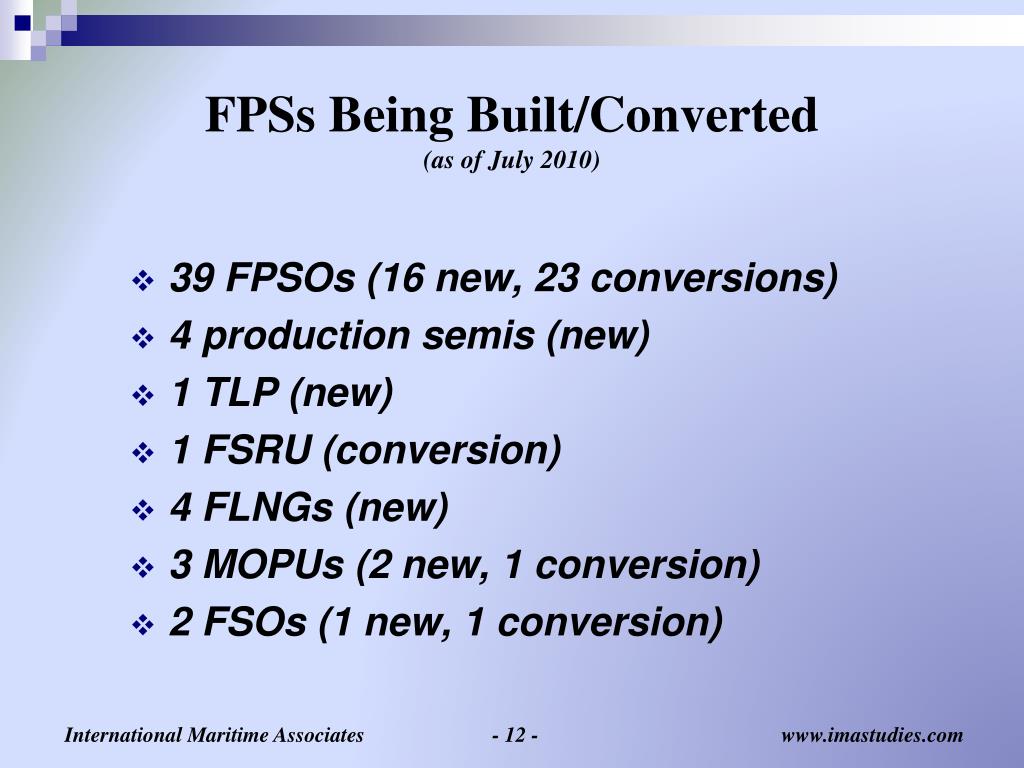

  12. FPSs Being Built/Converted(as of July 2010) • 39 FPSOs (16 new, 23 conversions) • 4 production semis (new) • 1 TLP (new) • 1 FSRU (conversion) • 4 FLNGs (new) • 3 MOPUs (2 new, 1 conversion) • 2 FSOs (1 new, 1 conversion) International Maritime Associates - 12 - www.imastudies.com

  13. Where FPSs Are Being Built(as of July 2010) International Maritime Associates - 13 - www.imastudies.com

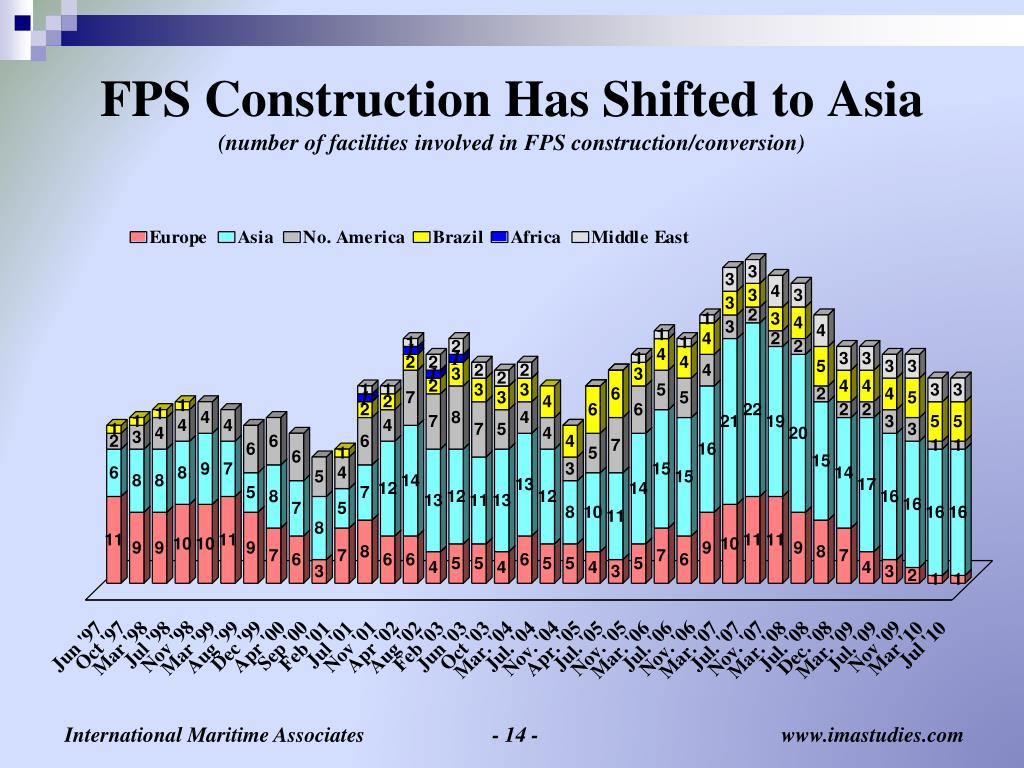

  14. FPS Construction Has Shifted to Asia(number of facilities involved in FPS construction/conversion) International Maritime Associates - 14 - www.imastudies.com

  15. Where FPSs Will Be Installed(as of July 2010) International Maritime Associates - 15 - www.imastudies.com

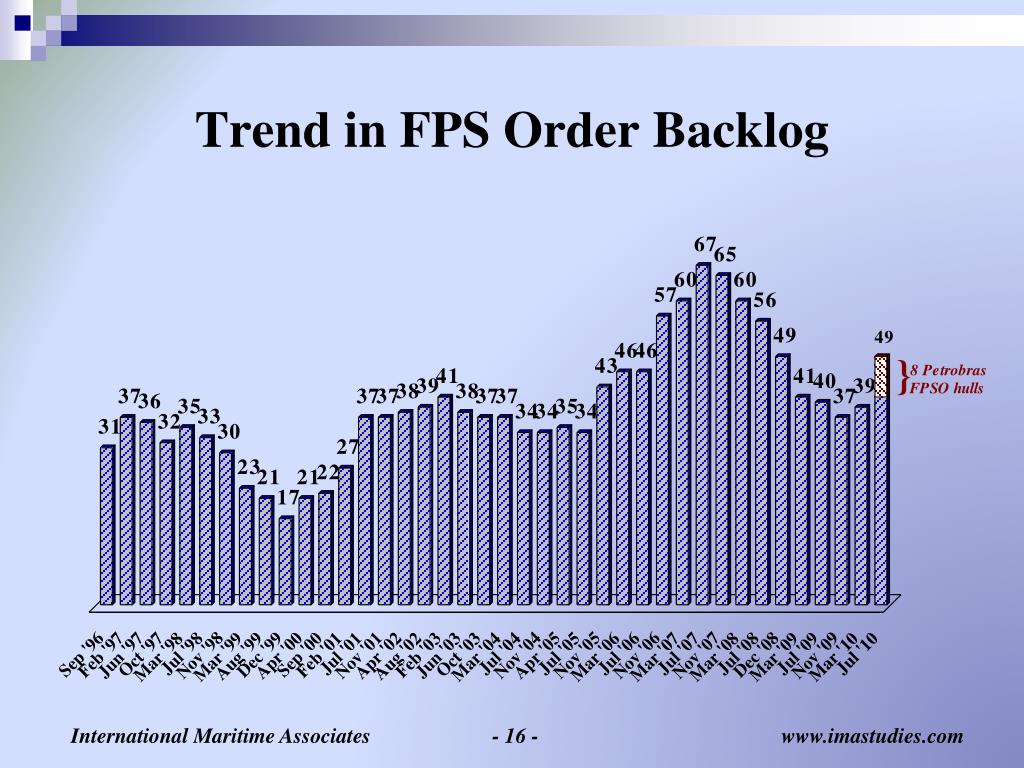

  16. Trend in FPS Order Backlog International Maritime Associates - 16 - www.imastudies.com

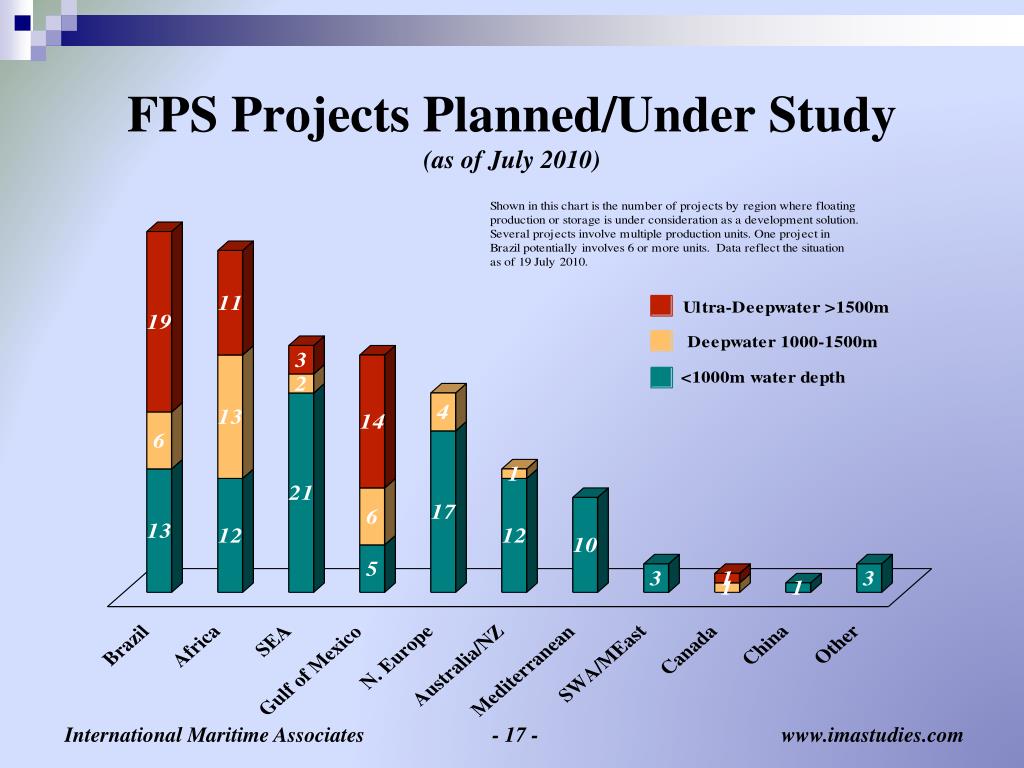

  17. FPS Projects Planned/Under Study(as of July 2010) International Maritime Associates - 17 - www.imastudies.com

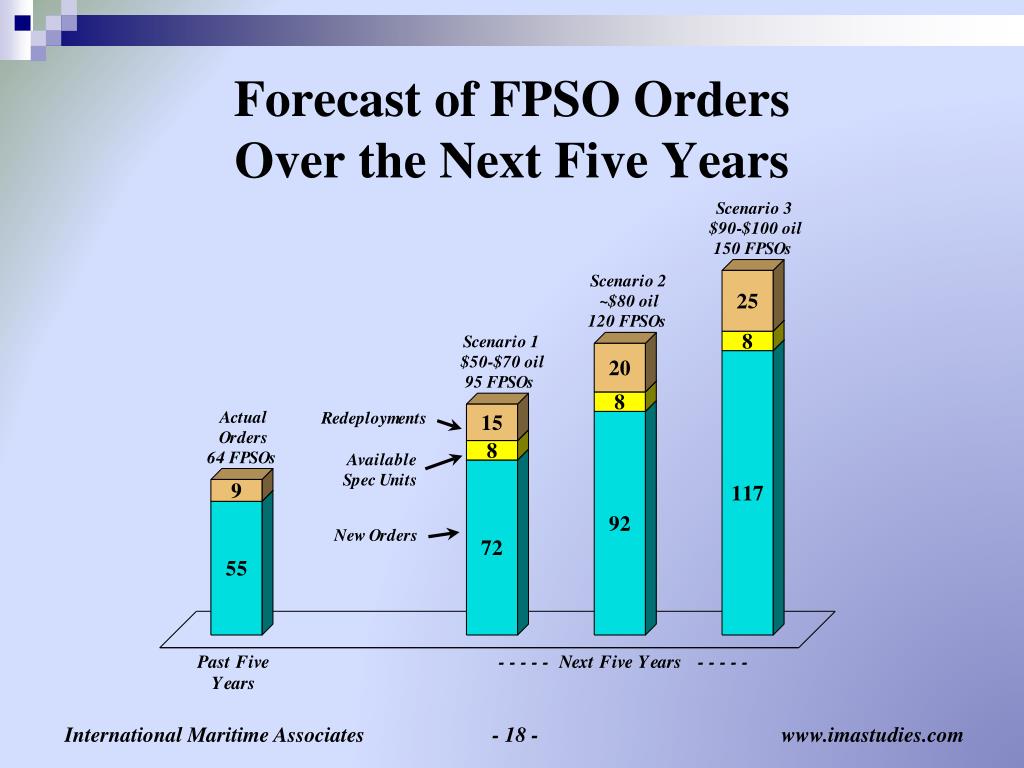

  18. Forecast of FPSO OrdersOver the Next Five Years International Maritime Associates - 18 - www.imastudies.com

  19. Forecast of Production Semi OrdersOver the Next Five Years International Maritime Associates - 19 - www.imastudies.com

  20. Forecast of TLP OrdersOver the Next Five Years International Maritime Associates - 20 - www.imastudies.com

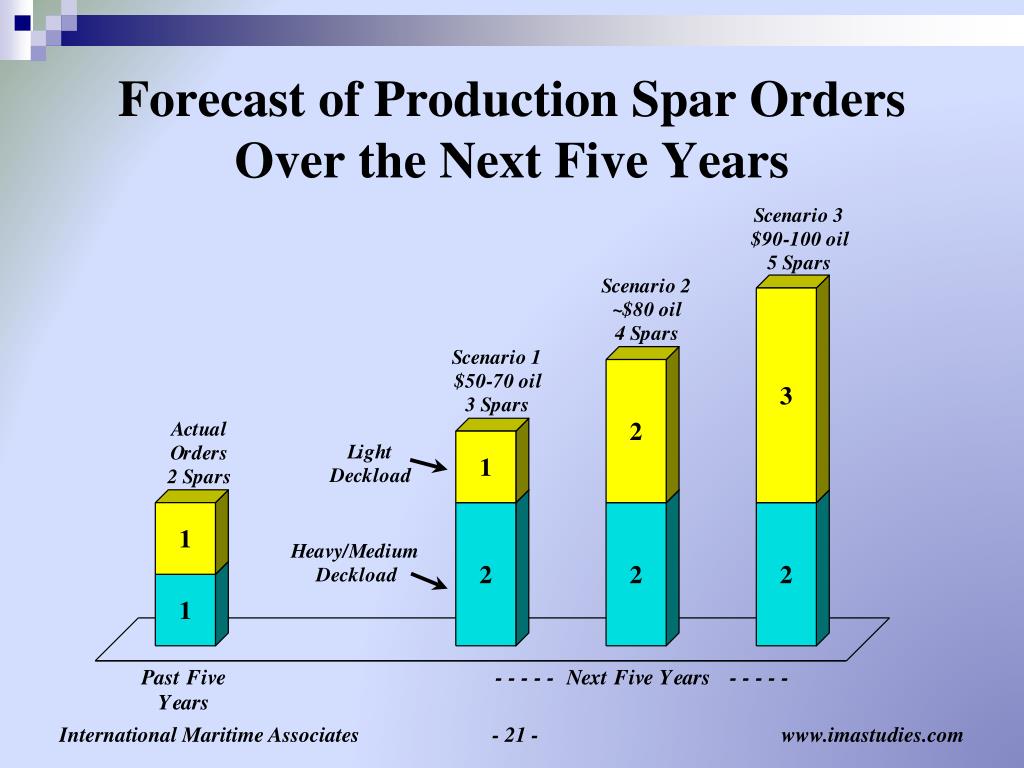

  21. Forecast of Production Spar OrdersOver the Next Five Years International Maritime Associates - 21 - www.imastudies.com

  22. Forecast of FSO OrdersOver the Next Five Years International Maritime Associates - 22 - www.imastudies.com

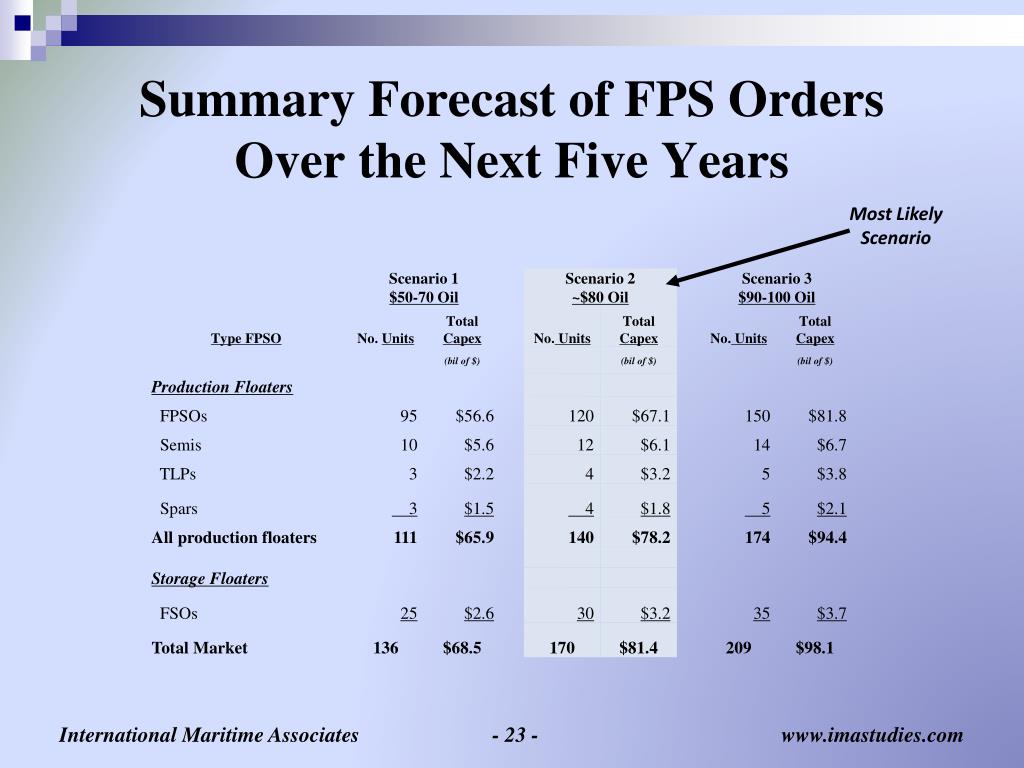

  23. Summary Forecast of FPS OrdersOver the Next Five Years Most LikelyScenario International Maritime Associates - 23 - www.imastudies.com

  24. International Maritime Associates, Inc. 1250 24th Street, NW — Suite 350 Washington, DC 20037 USA Tel: 202-333-8501 (Washington) Tel: 832-203-5622 (Houston) Fax: 202-333-8504 Email: imaassoc@msn.com Website: www.imastudies.com
