Configuration Web Service

.NET Reference Implementation Components. Email Clients. Windows SMTP Service (Gateway). “Real” SMTP Server. SMTP. Inbound, Outbound SMTP Msgs. SMTP Event Sinks. Security Agent. File. Drop. Pickup. XDD Gateway. Inbound, Outbound XDD Msgs. DNS Responder. XDD Clients. MX, CERT

Télécharger la présentation

Configuration Web Service

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

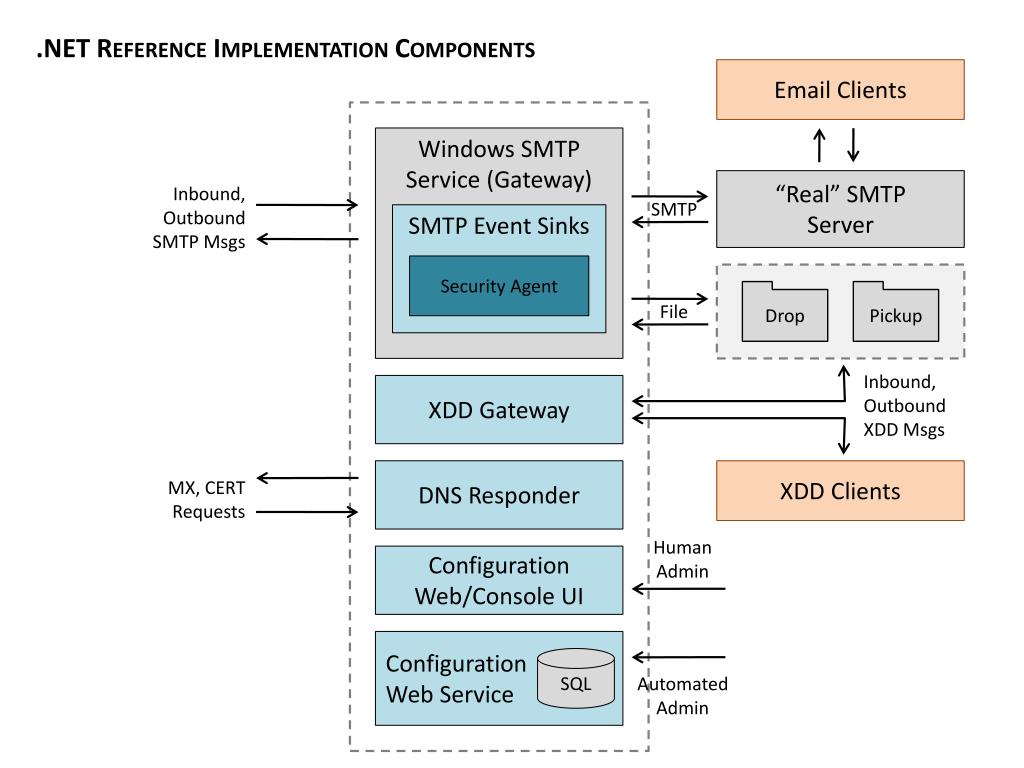

  1. .NET Reference Implementation Components Email Clients Windows SMTP Service (Gateway) “Real” SMTP Server SMTP Inbound, Outbound SMTP Msgs SMTP Event Sinks Security Agent File Drop Pickup XDD Gateway Inbound, Outbound XDD Msgs DNS Responder XDD Clients MX, CERT Requests Human Admin Configuration Web/Console UI Configuration Web Service SQL Automated Admin

  2. C# Reference Implementation Configuration Schema administrators • Owner * • PasswordHash • CreateDate • UpdateDate Domains MXs • DomainName (string) • DomainID (auto) • PostmasterAddressID • Type ** • CreateDate • UpdateDate • Status • SMTPDomainName (string) • MXID (auto) • DomainID (FK) • Preference • CreateDate • UpdateDate settings • Owner * • SettingName • SettingValue • CreateDate • UpdateDate Addresses Certificates (private) Anchors • EmailAddress (string) • AddressID (auto) • DomainID (FK) • DisplayName • Type ** • CreateDate • UpdateDate • Status • Owner * • Thumbprint • CertificateID (auto) • CreateDate • CertificateData • ValidStartDate • ValidEndDate • AutoTrustAuthority • Status • Owner * • Thumbprint • CertificateID (auto) • CertificateData • ValidStartDate • ValidEndDate • ForIncoming • ForOutgoing • Status Items in red are deprecated and will be removed. Items in green are not yet implemented. * “Owner” fields FK to either Domain.DomainName or Addresses.EmailAddress and inherit from domain to address. ** Domains.Type and Addresses.Type are free-text strings for use by implementations to manage routing.
