  1. Taylor Floyd Scott Gangel Sebastian Redcay Ben Zoghby Cab Evaluation

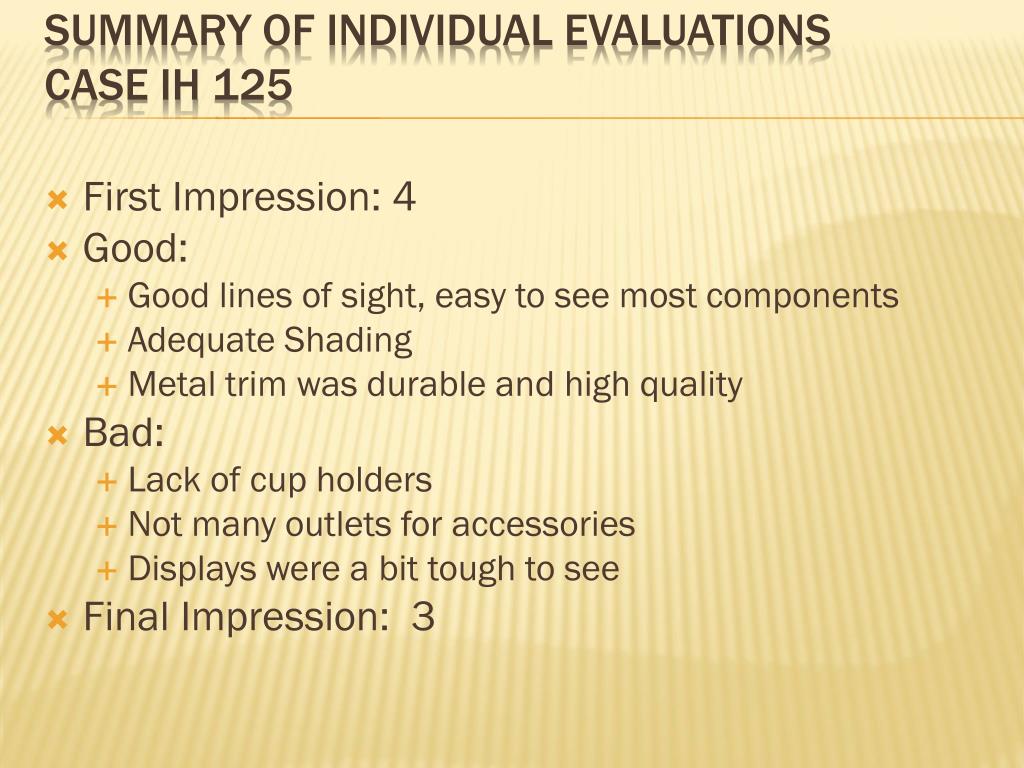

  2. First Impression: 4 • Good: • Good lines of sight, easy to see most components • Adequate Shading • Metal trim was durable and high quality • Bad: • Lack of cup holders • Not many outlets for accessories • Displays were a bit tough to see • Final Impression: 3 Summary of Individual EvaluationsCase iH 125

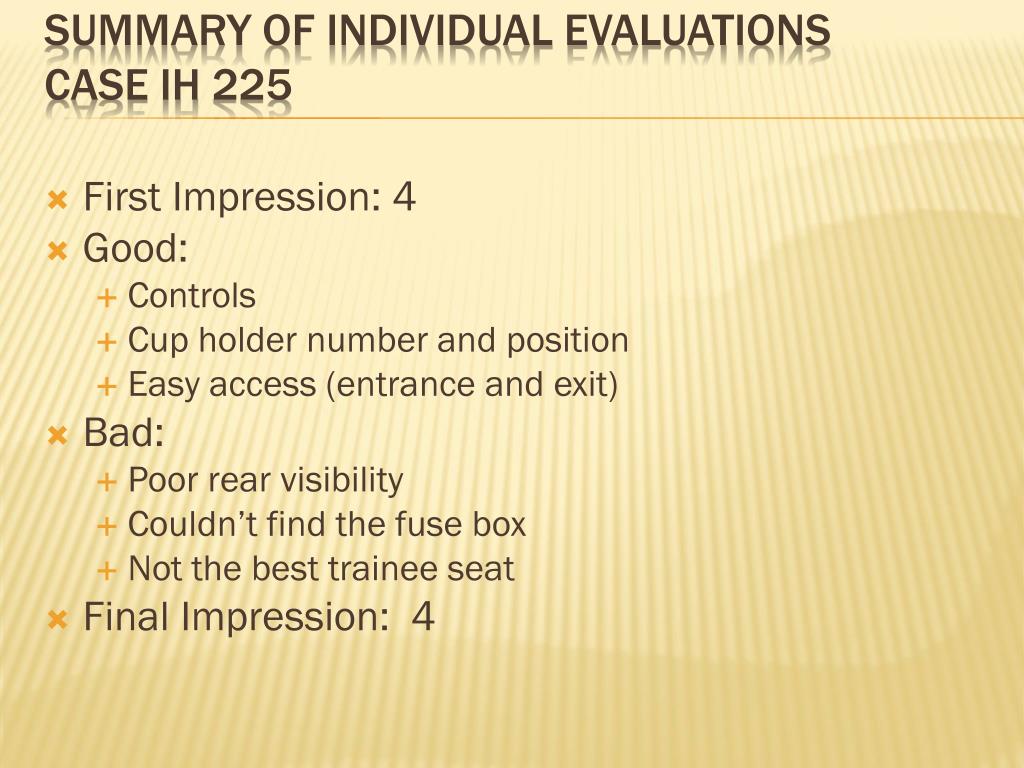

  3. First Impression: 4 • Good: • Controls • Cup holder number and position • Easy access (entrance and exit) • Bad: • Poor rear visibility • Couldn’t find the fuse box • Not the best trainee seat • Final Impression: 4 Summary of Individual EvaluationsCase iH 225

  4. First Impression: 3 • Good: • Comfortable Seat • HVAC • Space for Stretching • Bad: • Trainee seat was terrible • Front visibility wasn’t the greatest • Tough to see mirrors • Final Impression: 4 Summary of Individual EvaluationsFendt

  5. First Impression: 4 • Good: • Good lines of sight, easy to see most components • HVAC • Lots of outlets for add-ons • Bad: • Fuses seemed a bit tougher to access than some of the other tractors • Didn’t like the plastic drive selector • Poor E-brake placement • Final Impression: 5 Summary of Individual EvaluationsNew Holland T7

  6. Base to SIP = 21” • Front of Chair to SIP = 11” • Zone of Reach: 12”-36” (300-900mm) from SIP SIP & Zone of Reach SummaryNew Holland T7

  7. Tilting capabilities of Steering Wheel • Bottom of seat adjusts ~2”

  8. Zone of Comfort • 12”-24” ahead of driver, 20” to either side of driver • Most important driving controls lie in Zone of Comfort • Radio and HVAC controls lie outside of Zone of Comfort • Generally Accessories unimportant to driving the tractor

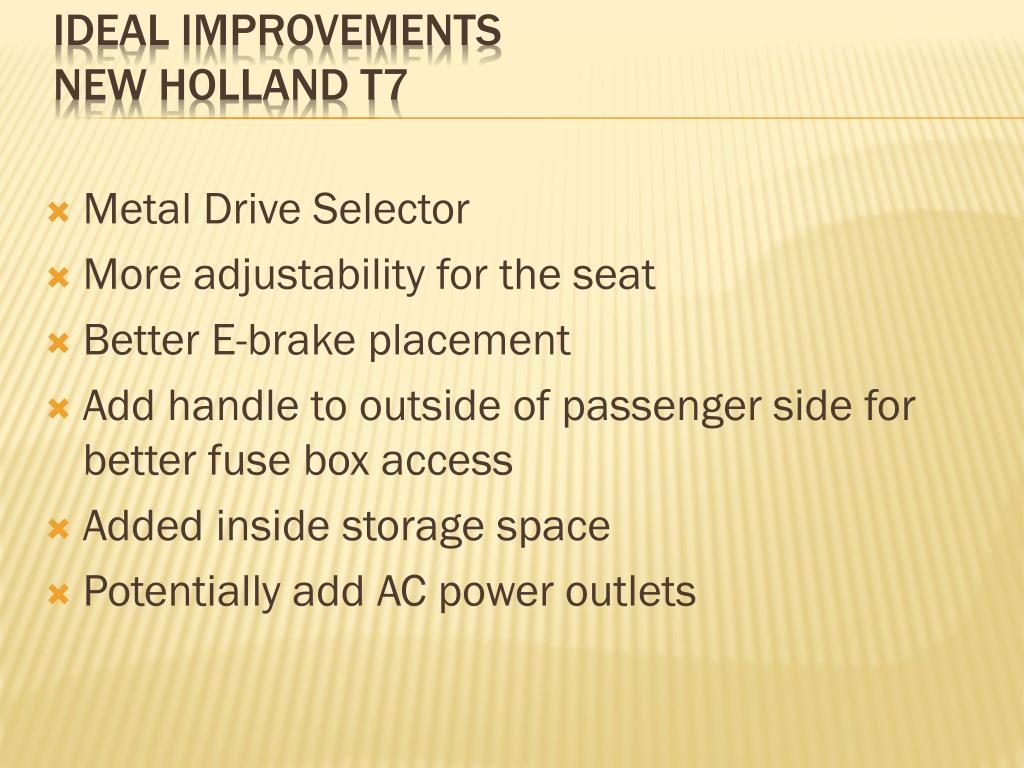

  9. Metal Drive Selector More adjustability for the seat Better E-brake placement Add handle to outside of passenger side for better fuse box access Added inside storage space Potentially add AC power outlets Ideal ImprovementsNew Holland T7
