Transact-SQL Tips and Tricks

1. Required Slide SESSION CODE: DAT405 Transact-SQL Tips and Tricks Itzik Ben-Gan Mentor and Co-Founder Solid Quality Mentors Tobias Ternstrom Senior Program Manager Lead SQL Server Engine

2. Agenda • 75 mins • Intro • 5 minutes • Warm-up, a couple of Tips to get started! • 15 minutes • Fetching Query Results • 30 minutes • Why it does matter! • When can T-SQL Cursors actually make sense (including coverage of CLR alternative)? • 25 minutes

3. Warm-Up Tips • Virtual Auxiliary Table of Numbers • Packing Date Intervals

4. Virtual Auxiliary Table of Numbers • A helper table of numbers is a very useful tool • Problem: can’t always create a real one due to policies • Solution: can generate a virtual auxiliary table of numbers on the fly

5. Definition of GetNums Function CREATEFUNCTIONdbo.GetNums(@n ASBIGINT)RETURNSTABLE AS RETURN WITH L0 AS(SELECT 1 AS c UNIONALLSELECT 1), L1 AS(SELECT 1 AS c FROM L0 AS A CROSSJOIN L0 AS B), L2 AS(SELECT 1 AS c FROM L1 AS A CROSSJOIN L1 AS B), L3 AS(SELECT 1 AS c FROM L2 AS A CROSSJOIN L2 AS B), L4 AS(SELECT 1 AS c FROM L3 AS A CROSSJOIN L3 AS B), L5 AS(SELECT 1 AS c FROM L4 AS A CROSSJOIN L4 AS B), NumsAS(SELECTROW_NUMBER()OVER(ORDERBY (SELECTNULL))ASn FROM L5) SELECTTOP (@n) n FROMNumsORDERBY n; GO

6. Packing Date Intervals • No built-in support for temporal interval types and operators • Packing is a common need with intervals • Business case: return periods of project activity

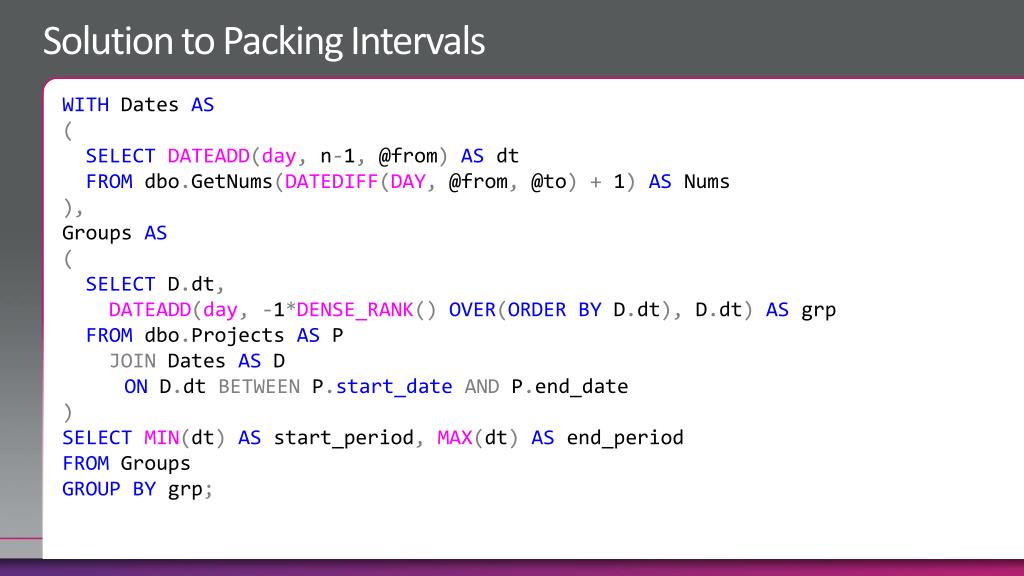

7. Solution to Packing Intervals WITH Dates AS ( SELECTDATEADD(day, n-1, @from)ASdt FROMdbo.GetNums(DATEDIFF(DAY, @from, @to)+ 1)ASNums ), Groups AS ( SELECTD.dt, DATEADD(day,-1*DENSE_RANK()OVER(ORDERBYD.dt),D.dt)ASgrp FROMdbo.ProjectsAS P JOIN Dates AS D OND.dtBETWEENP.start_dateANDP.end_date ) SELECTMIN(dt)ASstart_period,MAX(dt)ASend_period FROM Groups GROUPBYgrp;

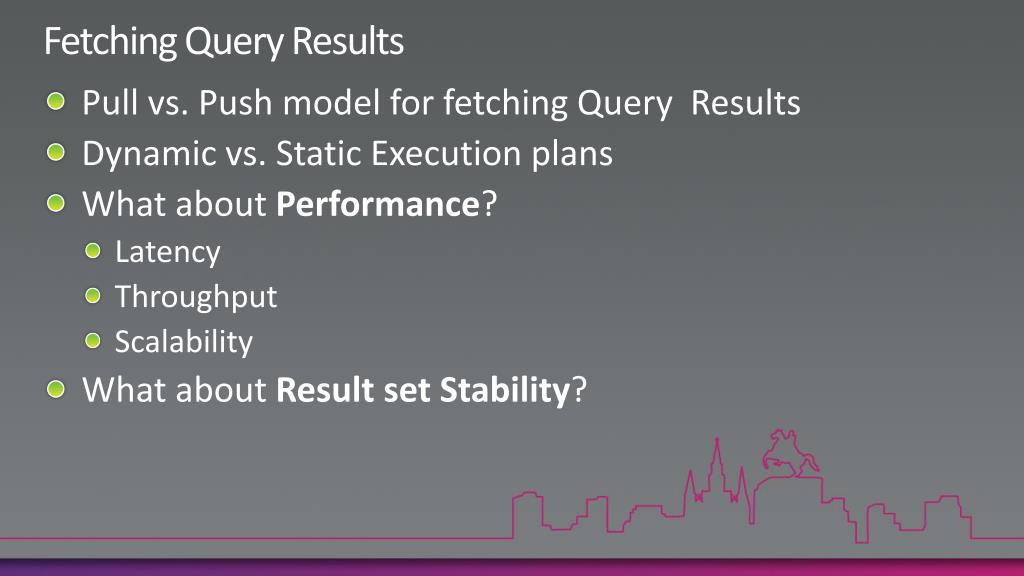

8. Fetching Query Results • Pull vs. Push model for fetching Query Results • Dynamic vs. Static Execution plans • What about Performance? • Latency • Throughput • Scalability • What about Result set Stability?

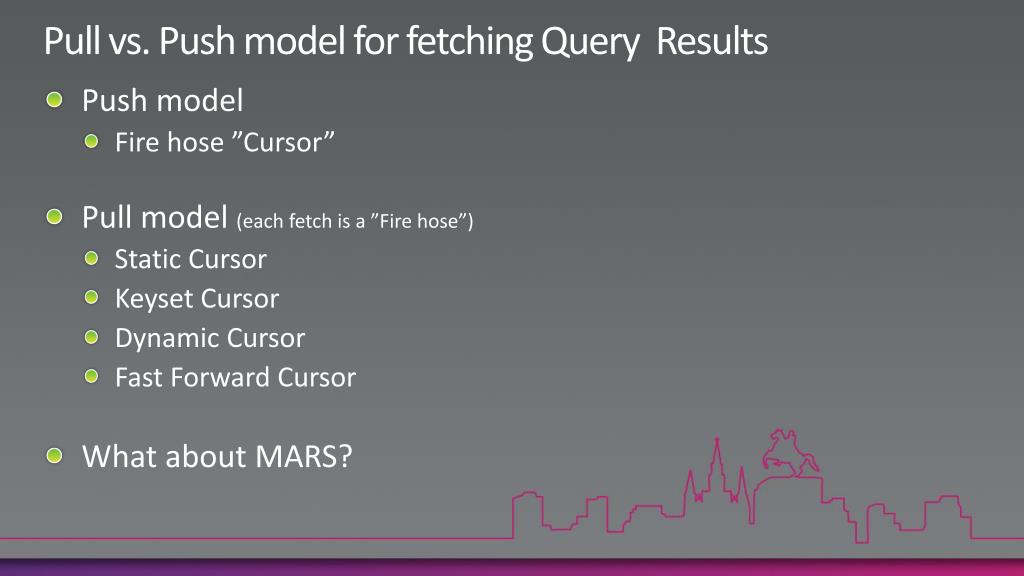

9. Pull vs. Push model for fetching Query Results • Push model • Fire hose ”Cursor” • Pull model (each fetch is a ”Fire hose”) • Static Cursor • Keyset Cursor • Dynamic Cursor • Fast Forward Cursor • What about MARS?

10. Dynamic vs. Static Execution plans • Dynamic plan • Is restartable • Requires fully streaming plan • Static plan • Cannot be restarted • Does not require streaming plan • Dynamic Cursors require a Dynamic plan • Static & Keyset Cursors use Static plans • Fast Forward Cursors uses ”the best option”

11. What about Performance? • Throughput • Latency • Scalability

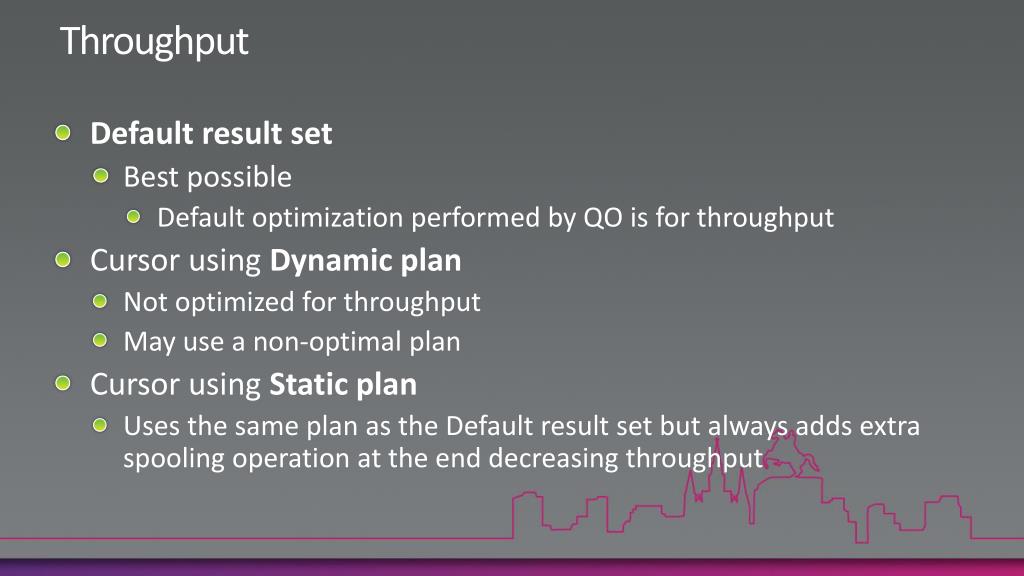

12. Throughput • Default result set • Best possible • Default optimization performed by QO is for throughput • Cursor using Dynamic plan • Not optimized for throughput • May use a non-optimal plan • Cursor using Static plan • Uses the same plan as the Default result set but always adds extra spooling operation at the end decreasing throughput

13. Latency • Default result set • Can be optimized for low latency by changing query or using query hints • Cursor using Dynamic plan • It depends, did you get a “good” streaming plan? • Cursor using Static plan • Never as good as default result set • Always spools the entire result set

14. Scalability “Dormant result sets consume threads and memory” • Default result set • Experiences this problem • MARS? • Cursor using Dynamic plan • Uses a restartable plan so does not use resources when not fetching rows • Cursor using Static plan • Does not experience threading & memory problems but: • Can experience tempdb-contention

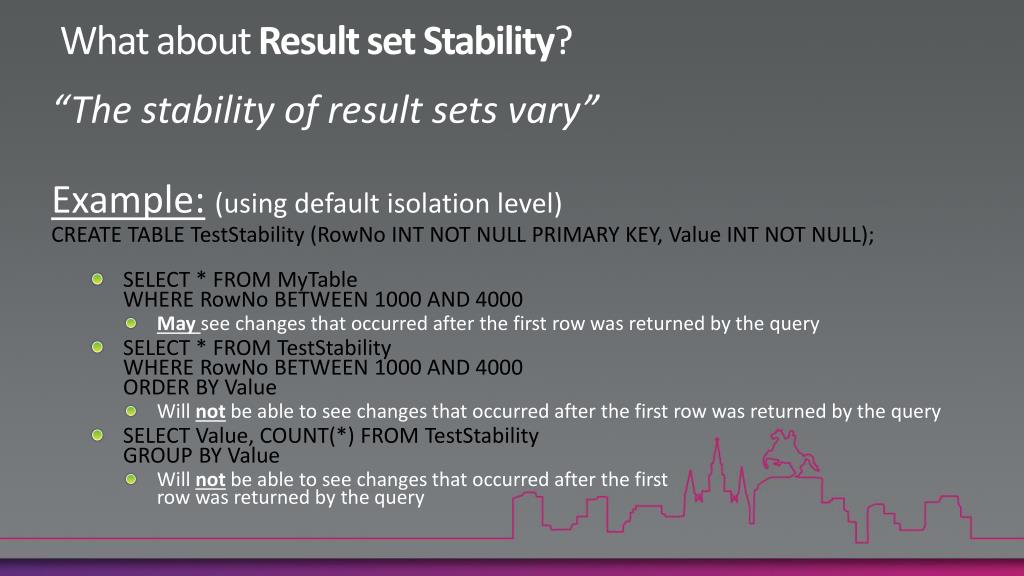

15. What about Result set Stability? “The stability of result sets vary” Example:(using default isolation level) CREATE TABLE TestStability (RowNo INT NOT NULL PRIMARY KEY, Value INT NOT NULL); • SELECT * FROM MyTableWHERE RowNo BETWEEN 1000 AND 4000 • May see changes that occurred after the first row was returned by the query • SELECT * FROM TestStabilityWHERE RowNo BETWEEN 1000 AND 4000ORDER BY Value • Will not be able to see changes that occurred after the first row was returned by the query • SELECT Value, COUNT(*) FROM TestStabilityGROUP BY Value • Will not be able to see changes that occurred after the firstrow was returned by the query

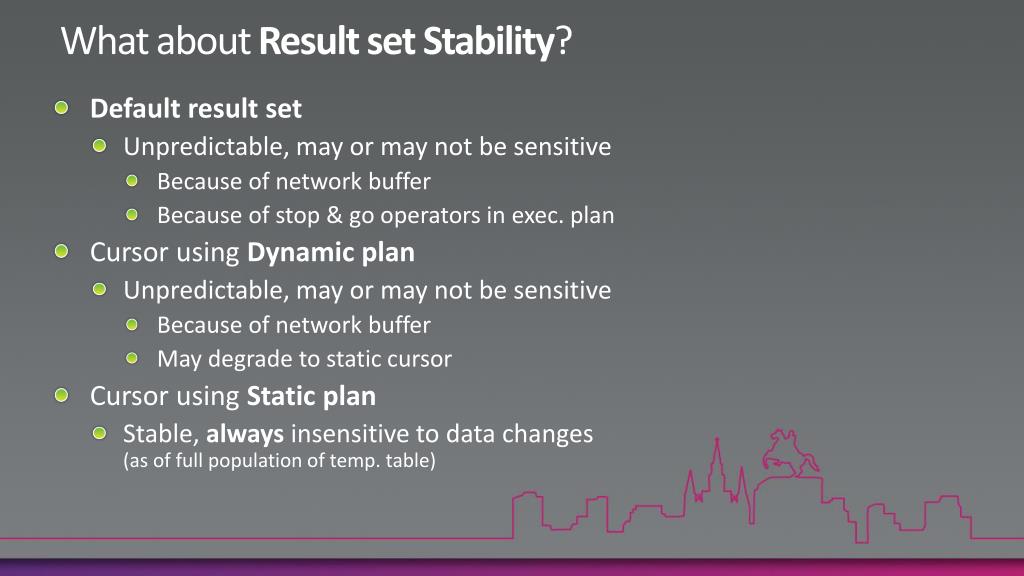

16. What about Result set Stability? • Default result set • Unpredictable, may or may not be sensitive • Because of network buffer • Because of stop & go operators in exec. plan • Cursor using Dynamic plan • Unpredictable, may or may not be sensitive • Because of network buffer • May degrade to static cursor • Cursor using Static plan • Stable, always insensitive to data changes(as of full population of temp. table)

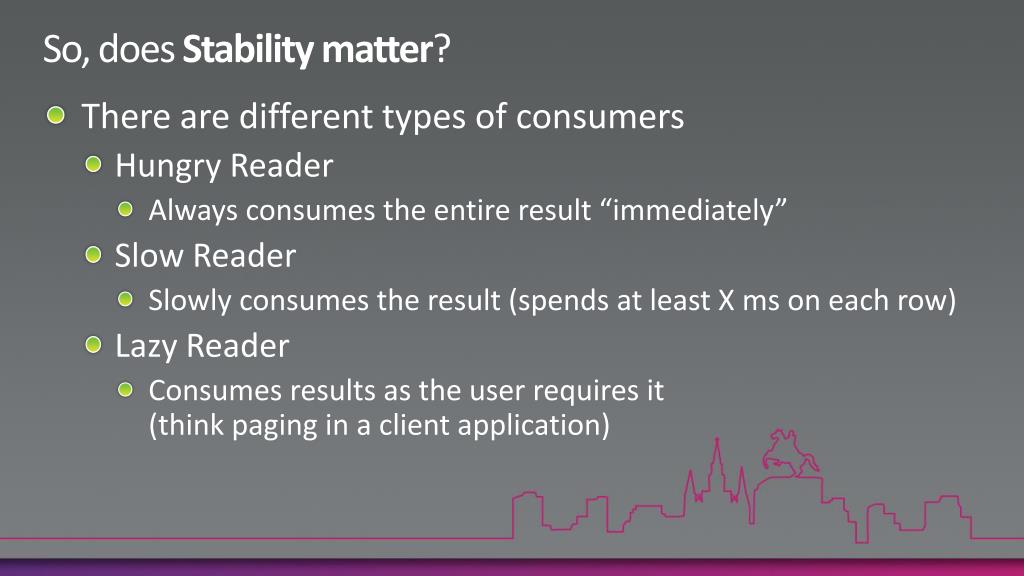

17. So, does Stability matter? • There are different types of consumers • Hungry Reader • Always consumes the entire result “immediately” • Slow Reader • Slowly consumes the result (spends at least X ms on each row) • Lazy Reader • Consumes results as the user requires it (think paging in a client application)

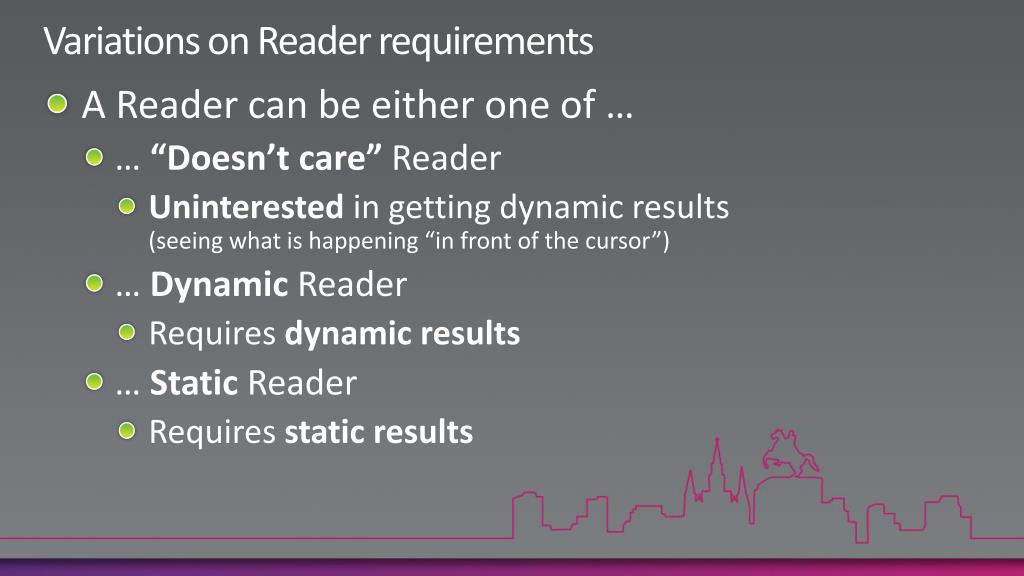

18. Variations on Reader requirements • A Reader can be either one of … • … “Doesn’t care” Reader • Uninterested in getting dynamic results (seeing what is happening “in front of the cursor”) • … Dynamic Reader • Requires dynamic results • … Static Reader • Requires static results

19. Which gives us the following options • Hungry • “Doesn’t care” Reader • Static Reader • Dynamic Reader • Slow • “Doesn’t care” Reader • Static Reader • Dynamic Reader • Lazy • “Doesn’t care” Reader • Static Reader • Dynamic Reader

20. Hungry • “Doesn’t care” Reader • Static Reader • Should use SNAPSHOT isolation • Dynamic Reader • Doesn’t make sense • Slow • “Doesn’t care” Reader • Static Reader • Should use SNAPSHOT isolation • Dynamic Reader • Lazy • “Doesn’t care” Reader • Static Reader • Should use SNAPSHOT isolation • Dynamic Reader

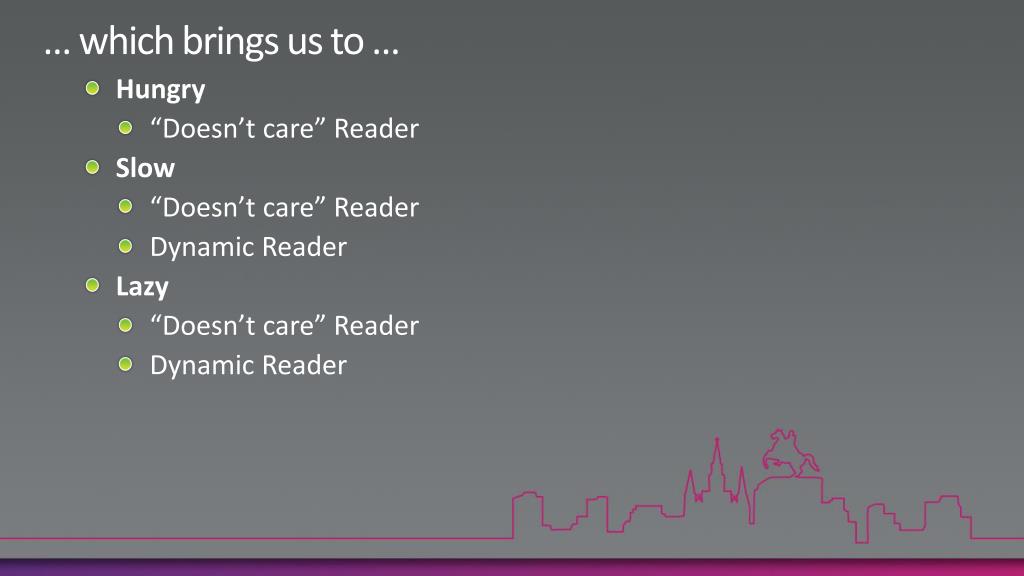

21. … which brings us to … • Hungry • “Doesn’t care” Reader • Slow • “Doesn’t care” Reader • Dynamic Reader • Lazy • “Doesn’t care” Reader • Dynamic Reader

22. … • Hungry • “Doesn’t care” Reader • Slow • “Doesn’t care” Reader • Dynamic Reader • A dynamic reader should be using dynamic paging, i.e. re-execute the query • Lazy • “Doesn’t care” Reader • Dynamic Reader • A dynamic reader should be using dynamic paging, i.e. re-execute the query

23. …and now we are finally here: • Hungry Reader • Slow Reader • Lazy Reader • If you require an insensitive result set • You should use SNAPSHOT isolation • If you require a dynamic result set • You should re-execute the query • I.e. Result set stability matters,but you don’tuse a specific cursor type to achieve it

24. T-SQL Cursors • Cursors - why not by default? • Sensible use of cursors • Examples

25. Cursors – Why Not By Default? • Contradicts the Relational Model—not set-based • Cursors incur high overhead for each record manipulation • Usually more code than set-based solutions (how vs. what)—maintenance burden

26. Sensible Use Of Cursors • The process is iterative by nature—e.g., need to run a procedure per row • Still, consider using APPLY if procedure logic can be expressed as table function • Performance—when algorithmic complexity (scaling) of best set-based solution is problematic • Still, keep revisiting the problem and see if a good performing set-based solution can be found

27. Examples • Calculating maximum number of concurrent sessions • Running totals

28. Calculating Maximum Number of Concurrent Sessions • Given a set of intervals return the maximum number of intervals that were active concurrently • Business case example: per-user license 3

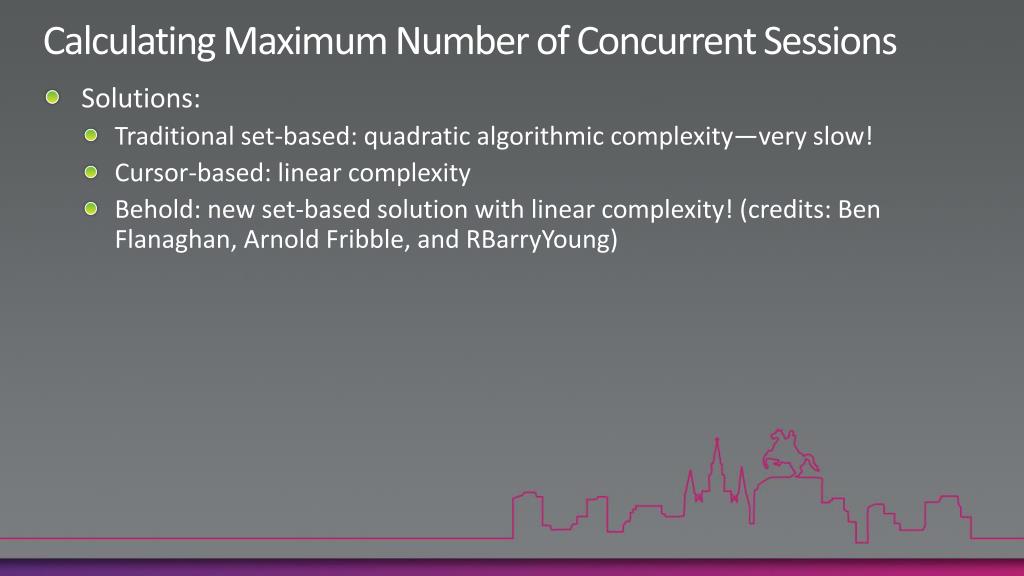

29. Calculating Maximum Number of Concurrent Sessions • Solutions: • Traditional set-based: quadratic algorithmic complexity—very slow! • Cursor-based: linear complexity • Behold: new set-based solution with linear complexity! (credits: Ben Flanaghan, Arnold Fribble, and RBarryYoung)

30. Benchmark Results

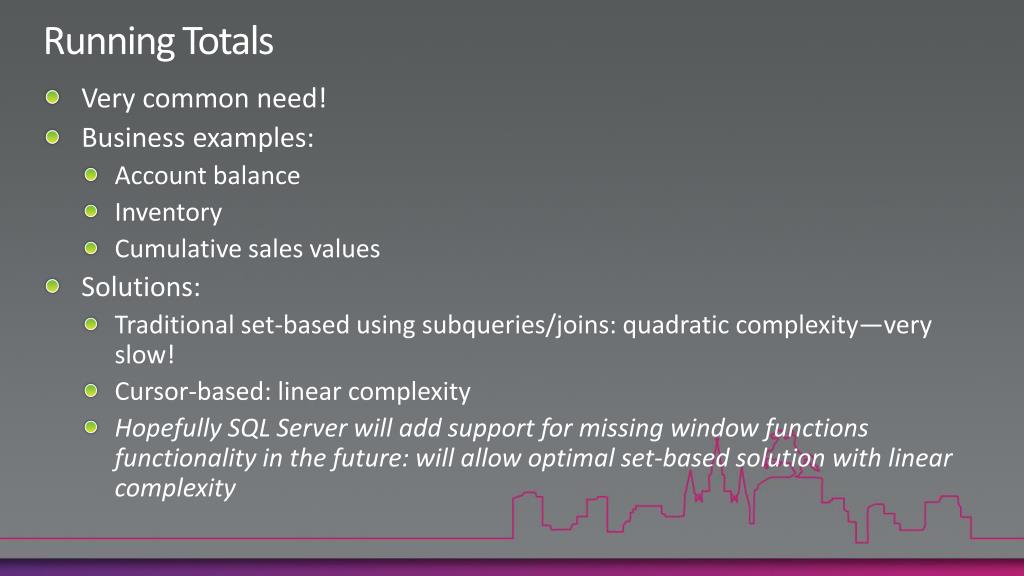

31. Running Totals • Very common need! • Business examples: • Account balance • Inventory • Cumulative sales values • Solutions: • Traditional set-based using subqueries/joins: quadratic complexity—very slow! • Cursor-based: linear complexity • Hopefully SQL Server will add support for missing window functions functionality in the future: will allow optimal set-based solution with linear complexity

32. Benchmark Results

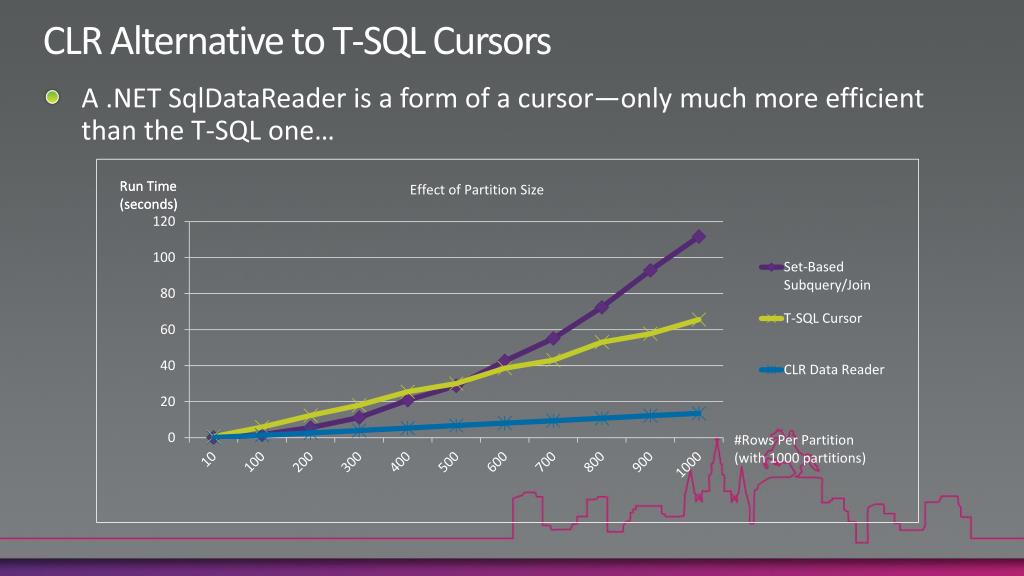

33. CLR Alternative to T-SQL Cursors • A .NET SqlDataReader is a form of a cursor—only much more efficient than the T-SQL one…
