  1. PC35 Silverlight Control Roadmap  Shawn Burke Product Unit Manager Microsoft Corporation

  2. Introduction • Introducing the Controls Team • How we ship code • PDC Controls • Controls from WPF • New Controls • Styling support • Future Plans • MIX Controls • WPF work

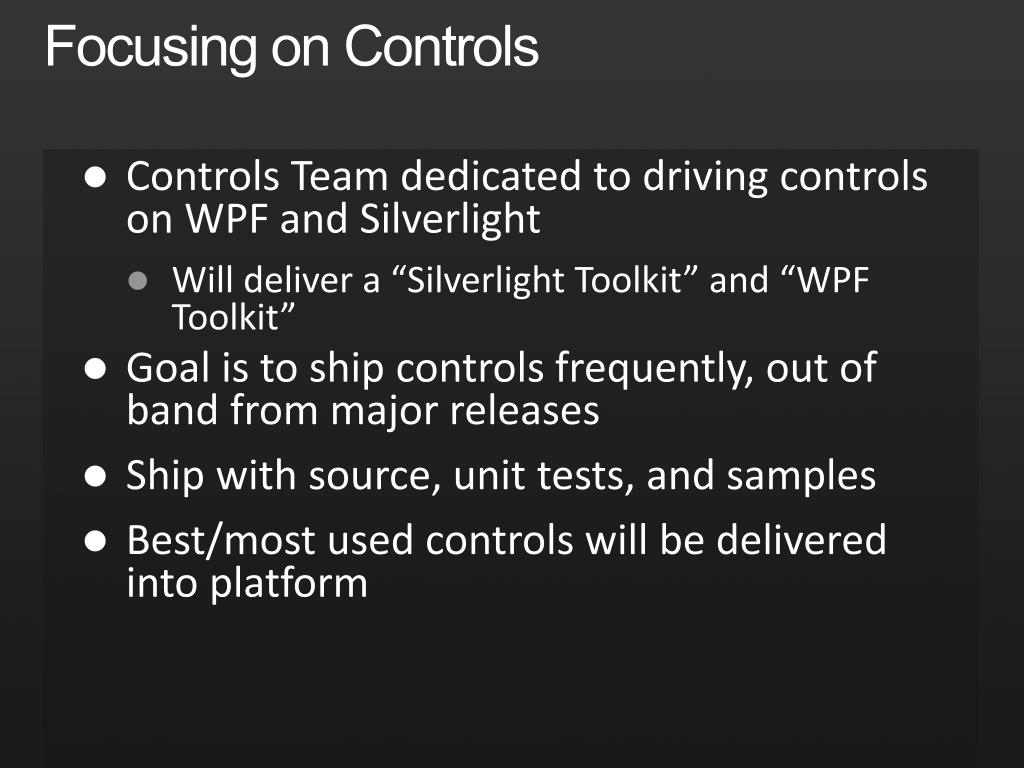

  3. Focusing on Controls • Controls Team dedicated to driving controls on WPF and Silverlight • Will deliver a “Silverlight Toolkit” and “WPF Toolkit” • Goal is to ship controls frequently, out of band from major releases • Ship with source, unit tests, and samples • Best/most used controls will be delivered into platform

  4. Delivery Model CodePlex Project Iterative releases (6-8w) • Customer Feedback Driven • May include new components • “No-brainer” upgrade New Controls Component “Quality Bands” Experimental Preview Stable Mature • “Mature” band controls delivered with SDK/Tools • Customers can replace with CodePlex release for full control package Core Runtime SDK/Tools Release Some controls may move to core runtime

  5. demo Silverlight Toolkit Walkthrough

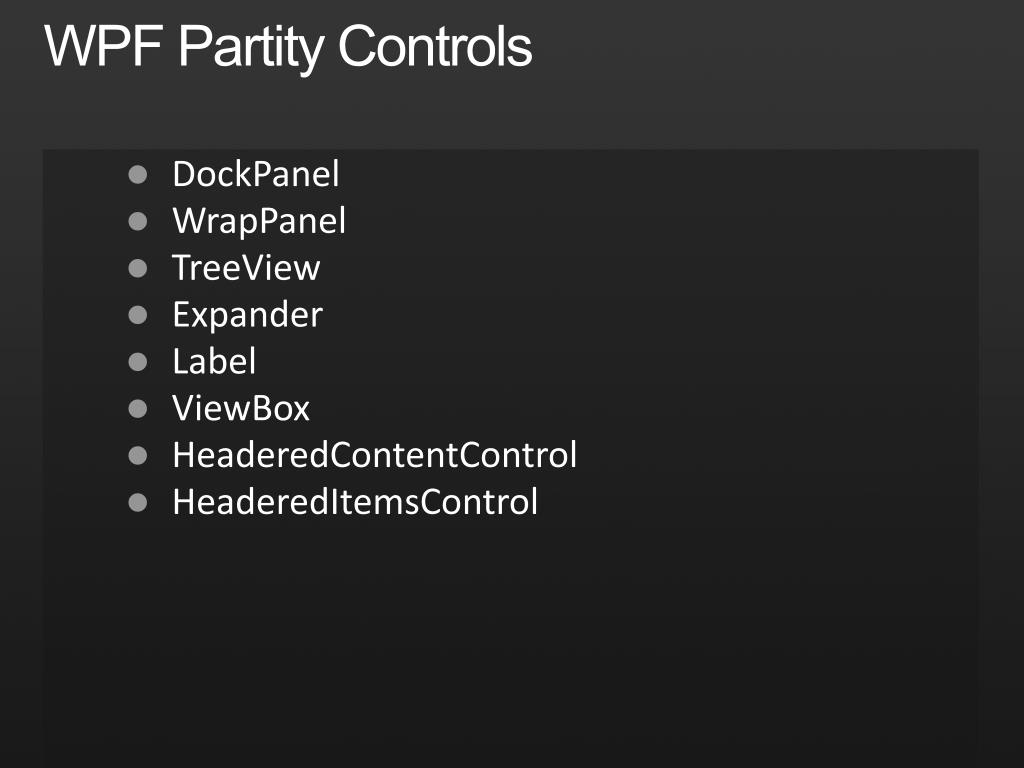

  6. WPF Partity Controls • DockPanel • WrapPanel • TreeView • Expander • Label • ViewBox • HeaderedContentControl • HeaderedItemsControl

  7. DockPanel • DockPanel docks children to a particular side via an attached property • IsLastChildFill property sets last child to fill remaining space Left Top Right

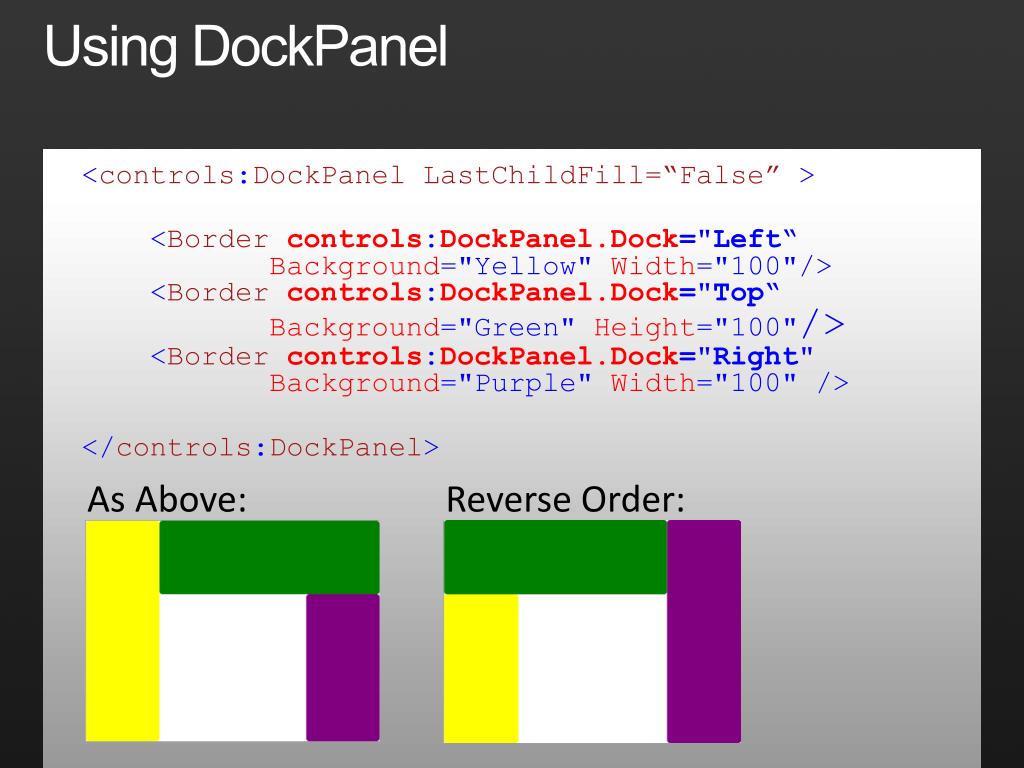

  8. Using DockPanel • <controls:DockPanelLastChildFill=“False” > • <Bordercontrols:DockPanel.Dock="Left“ Background="Yellow" Width="100"/> • <Bordercontrols:DockPanel.Dock="Top“ Background="Green" Height="100"/> • <Bordercontrols:DockPanel.Dock="Right" Background="Purple" Width="100"/> • </controls:DockPanel> As Above: Reverse Order:

  9. Expander • Expander allows the expand/collapse of content in one of four directions • Has Header and Content area

  10. Using Expander • <controls:ExpanderExpandDirection="Down" Header="Tasks"> • <Border Width="100" Background="#BFFFFFFF" • BorderBrush="#FF000000"CornerRadius="3,3,3,3"BorderThickness="1,1,1,1"> • <StackPanel> • <HyperlinkButton Content="Do this" FontSize="14"/> • <HyperlinkButton Content="Do that"FontSize="14"/> • <HyperlinkButton Content="Do it all" FontSize="14"/> • </StackPanel> • </Border> • </controls:Expander>

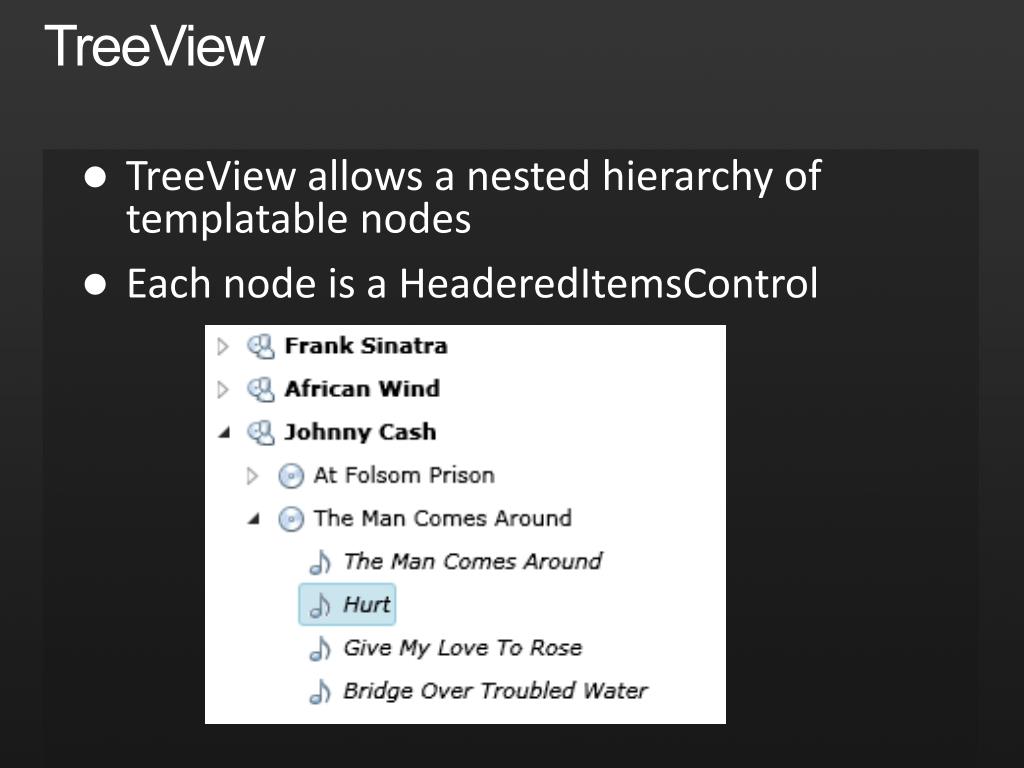

  11. TreeView • TreeView allows a nested hierarchy of templatable nodes • Each node is a HeaderedItemsControl

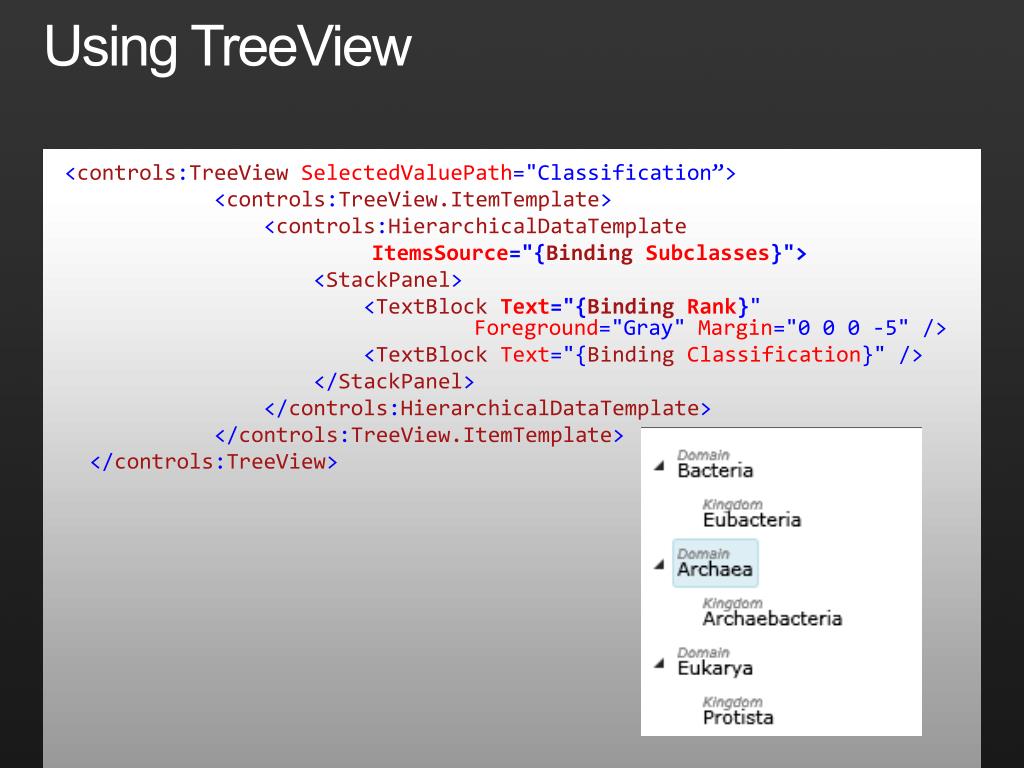

  12. Using TreeView • <controls:TreeViewSelectedValuePath="Classification”> • <controls:TreeView.ItemTemplate> • <controls:HierarchicalDataTemplate • ItemsSource="{Binding Subclasses}"> • <StackPanel> • <TextBlockText="{Binding Rank}" Foreground="Gray" Margin="0 0 0 -5" /> • <TextBlock Text="{Binding Classification}" /> • </StackPanel> • </controls:HierarchicalDataTemplate> • </controls:TreeView.ItemTemplate> • </controls:TreeView>

  13. New Silverlight Controls • New controls for Silverlight at PDC: • AutoComplete • Charting • NumericUpDown • These controls will be made available on WPF • WPF versions will take advantage of WPF capabilities where appropriate

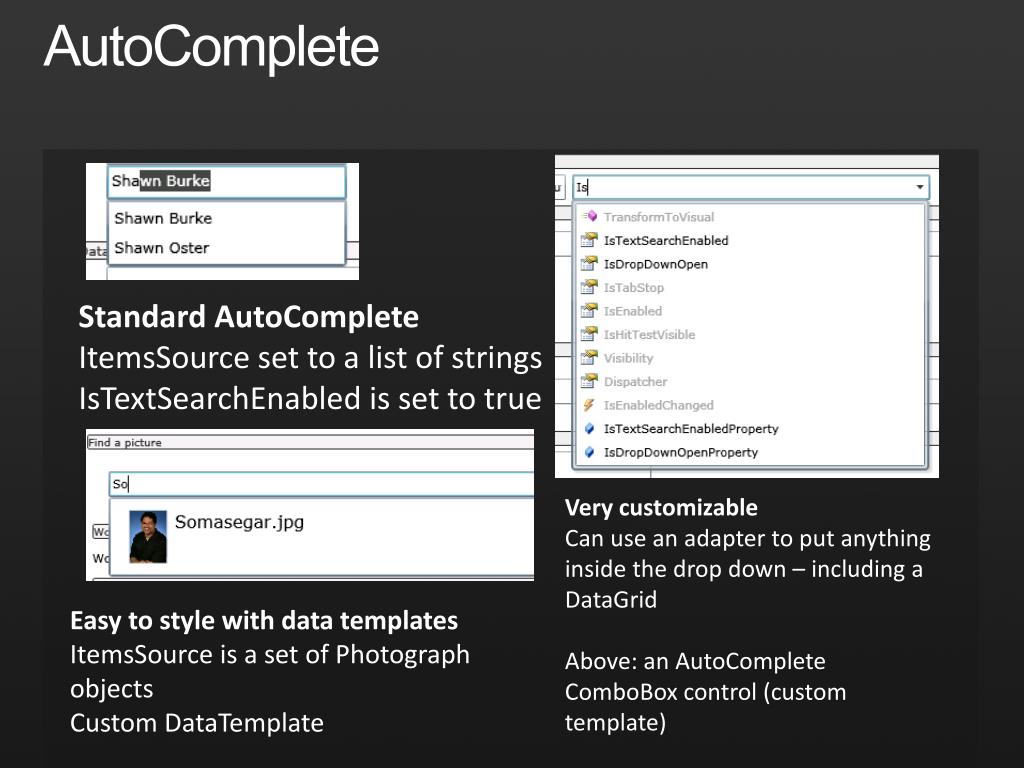

  14. AutoComplete Standard AutoComplete ItemsSource set to a list of strings IsTextSearchEnabled is set to true Very customizable Can use an adapter to put anything inside the drop down – including a DataGrid Above: an AutoComplete ComboBox control (custom template) Easy to style with data templates ItemsSource is a set of Photograph objects Custom DataTemplate

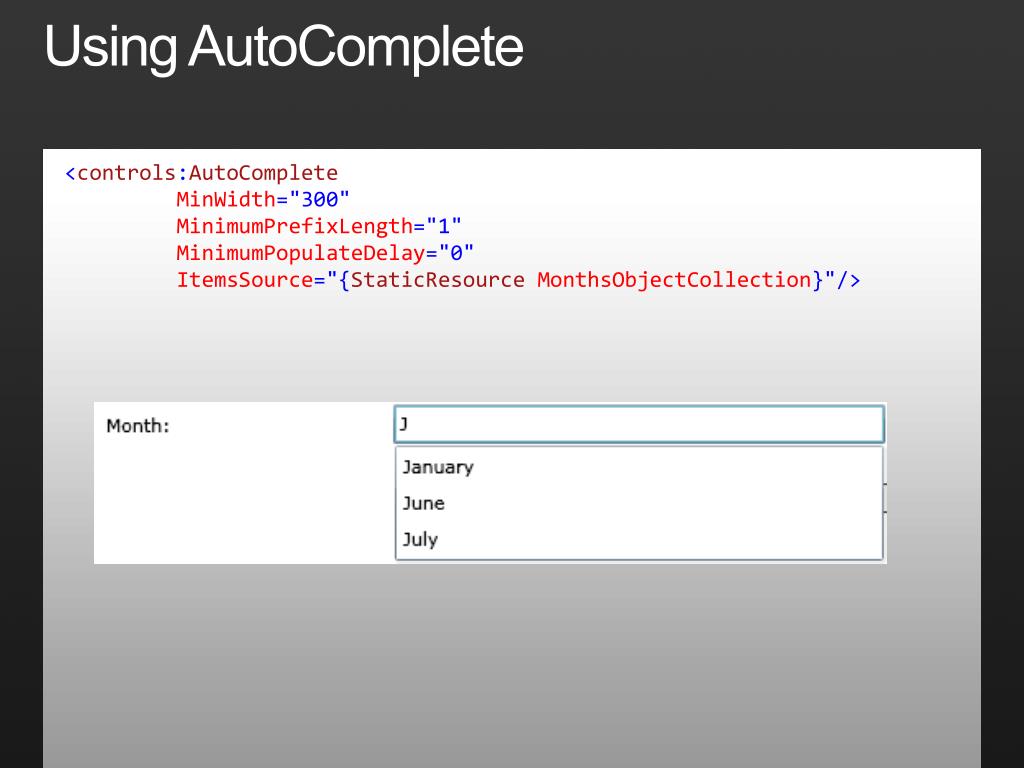

  15. Using AutoComplete • <controls:AutoComplete • MinWidth="300" • MinimumPrefixLength="1" • MinimumPopulateDelay="0" • ItemsSource="{StaticResourceMonthsObjectCollection}"/>

  16. Charting • Supports Line, Pie, Column, Scatter charts • Heavy focus on architecture allows easily adding more chart types • Chart types are extensible, templatable

  17. Using Charts • <controls:ObjectCollection x:Key=“AssetValues"> • <local:Assets Type="Stocks" Value="10000“/> • <local:Assets Type="Bonds" Value="2124“/> • <local:Assets Type="Cash" Value="22000“/> • </controls:ObjectCollection> • <charting:Chart> • <charting:Chart.Series> • <charting:ColumnSeries • ItemsSource="{StaticResourceBasicValues}" • DependentValueBinding="{Binding Value}" • IndependentValueBinding="{Binding Type}" Title="Portfolio“> • </charting:ColumnSeries> • </charting:Chart.Series> • </charting:Chart> • <charting:Chart><charting:Chart.Series> • <charting:PieSeriesItemsSource="{StaticResourceBasicValues}“ • DependentValueBinding="{Binding Value}" • IndependentValueBinding="{Binding Type}" Title="Portfolio“> • </charting:PieSeries> • </charting:Chart.Series></charting:Chart>

  18. demo Controls in Action

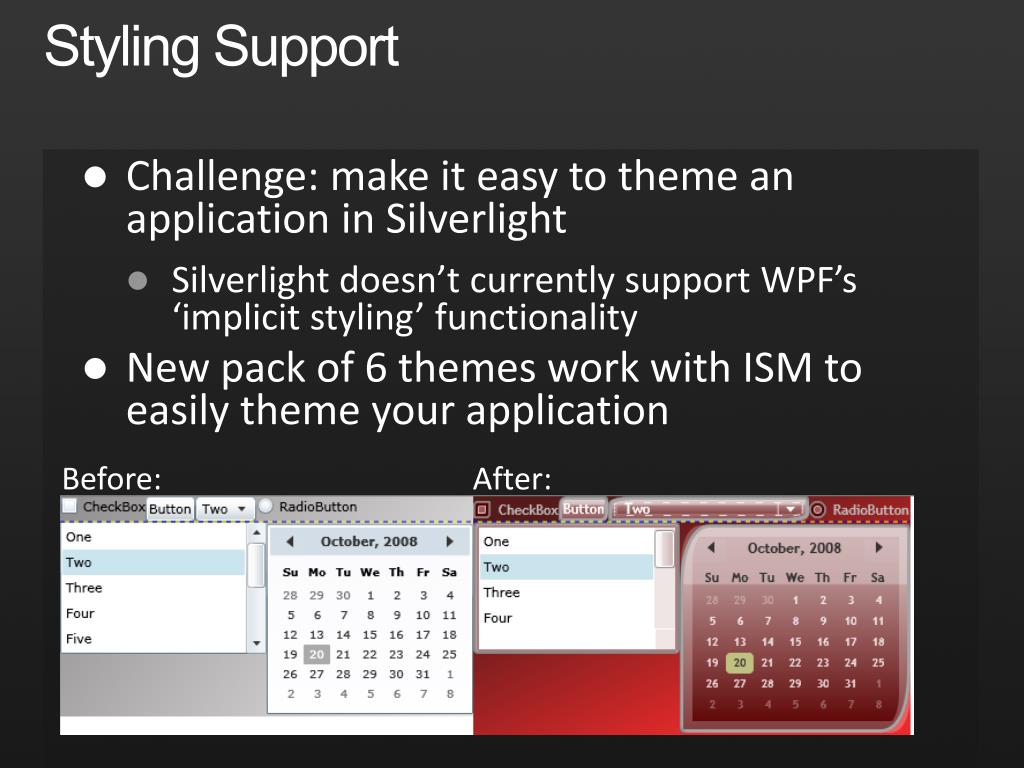

  19. Styling Support • Challenge: make it easy to theme an application in Silverlight • Silverlight doesn’t currently support WPF’s ‘implicit styling’ functionality • New pack of 6 themes work with ISM to easily theme your application Before: After:

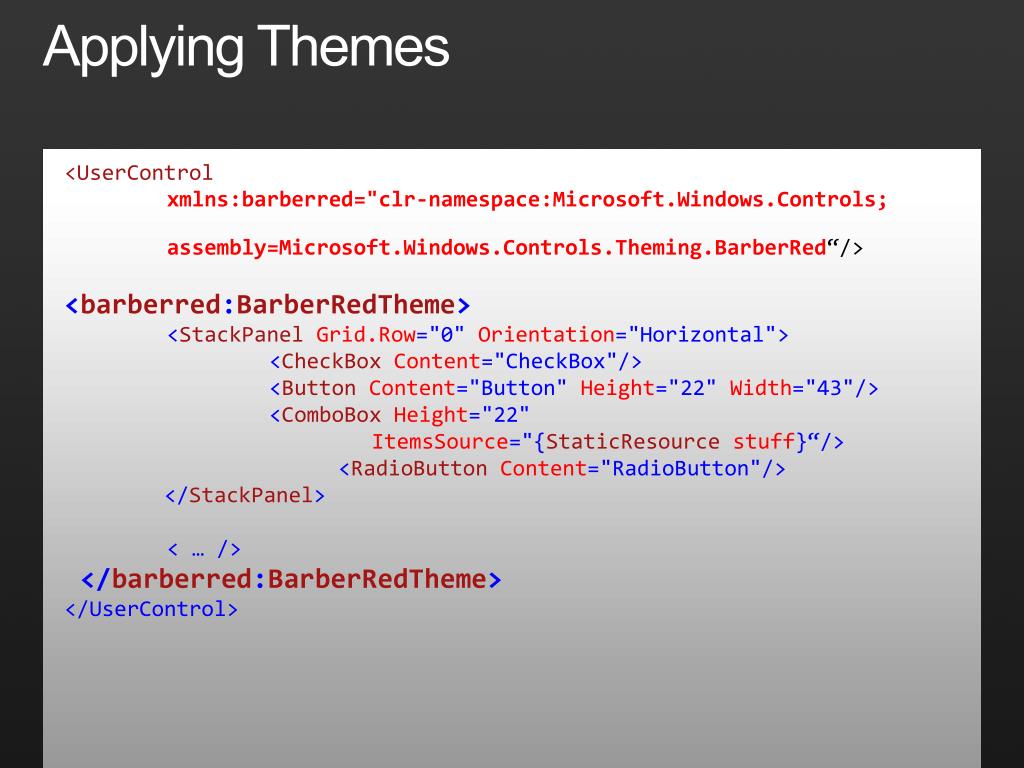

  20. Applying Themes • <UserControl • xmlns:barberred="clr-namespace:Microsoft.Windows.Controls; • assembly=Microsoft.Windows.Controls.Theming.BarberRed“/> • <barberred:BarberRedTheme> • <StackPanelGrid.Row="0" Orientation="Horizontal"> • <CheckBox Content="CheckBox"/> • <Button Content="Button" Height="22" Width="43"/> • <ComboBox Height="22" • ItemsSource="{StaticResource stuff}“/> • <RadioButton Content="RadioButton"/> • </StackPanel> • < … /> • </barberred:BarberRedTheme> • </UserControl>

  21. demo Styling

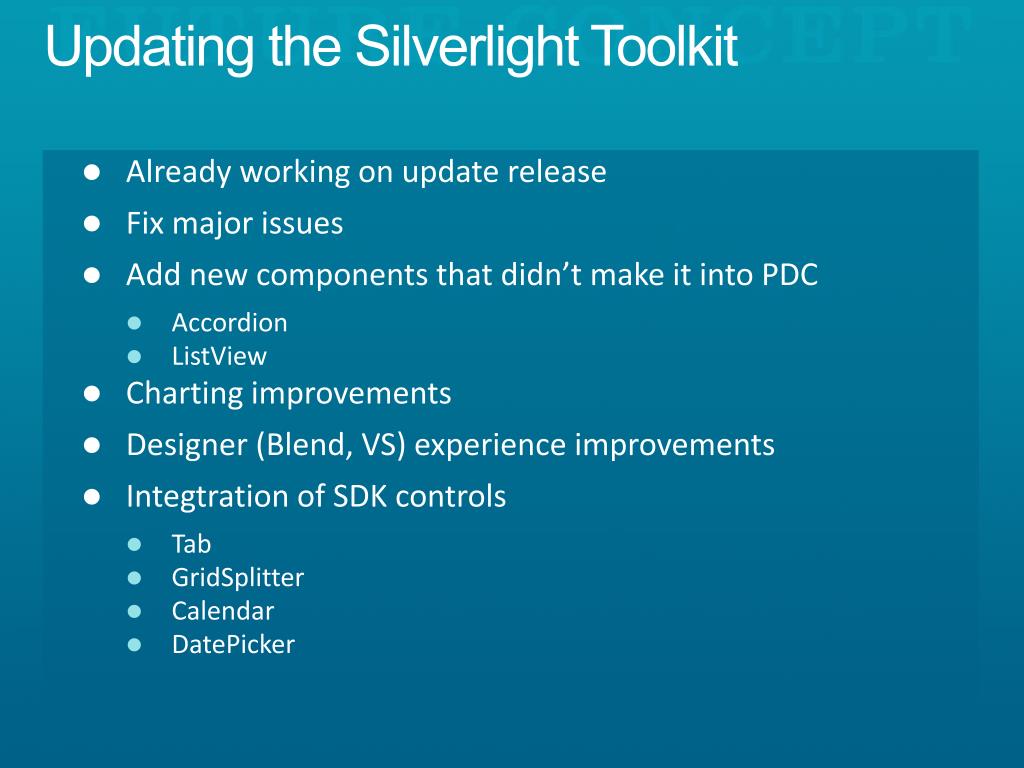

  22. Updating the Silverlight Toolkit • Already working on update release • Fix major issues • Add new components that didn’t make it into PDC • Accordion • ListView • Charting improvements • Designer (Blend, VS) experience improvements • Integtration of SDK controls • Tab • GridSplitter • Calendar • DatePicker

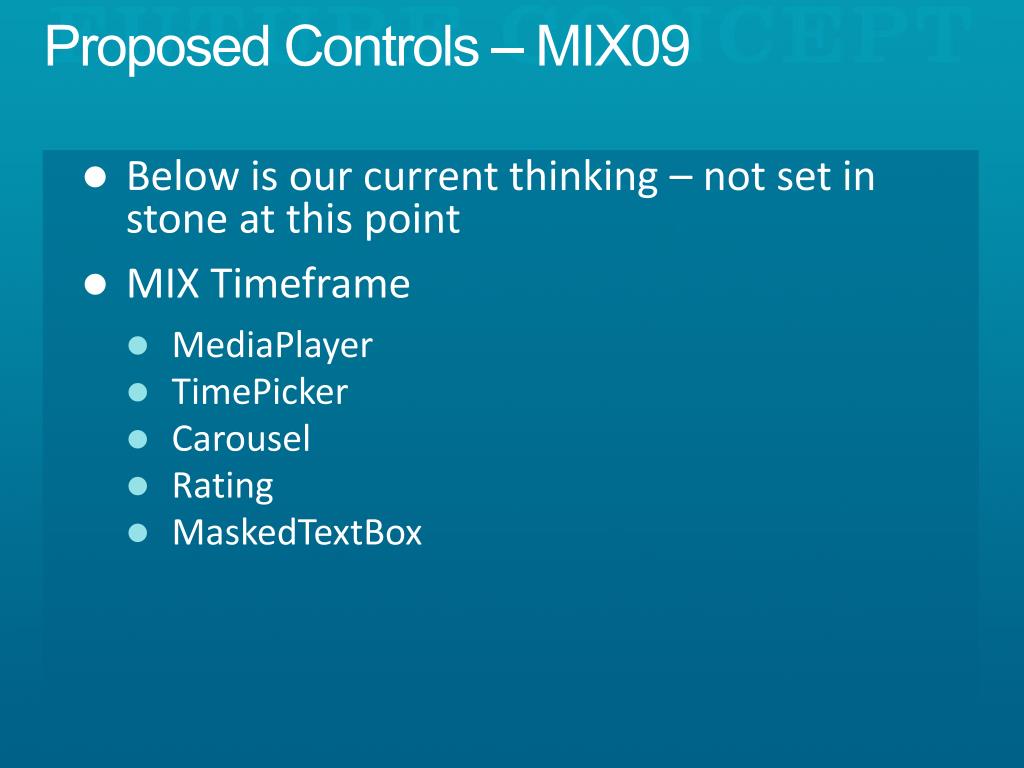

  23. Proposed Controls – MIX09 • Below is our current thinking – not set in stone at this point • MIX Timeframe • MediaPlayer • TimePicker • Carousel • Rating • MaskedTextBox

  24. Proposed Controls – Future • InPlaceEditing • AppointmentCalendar • ImageMap • FileUpload • Menu • Slideshow

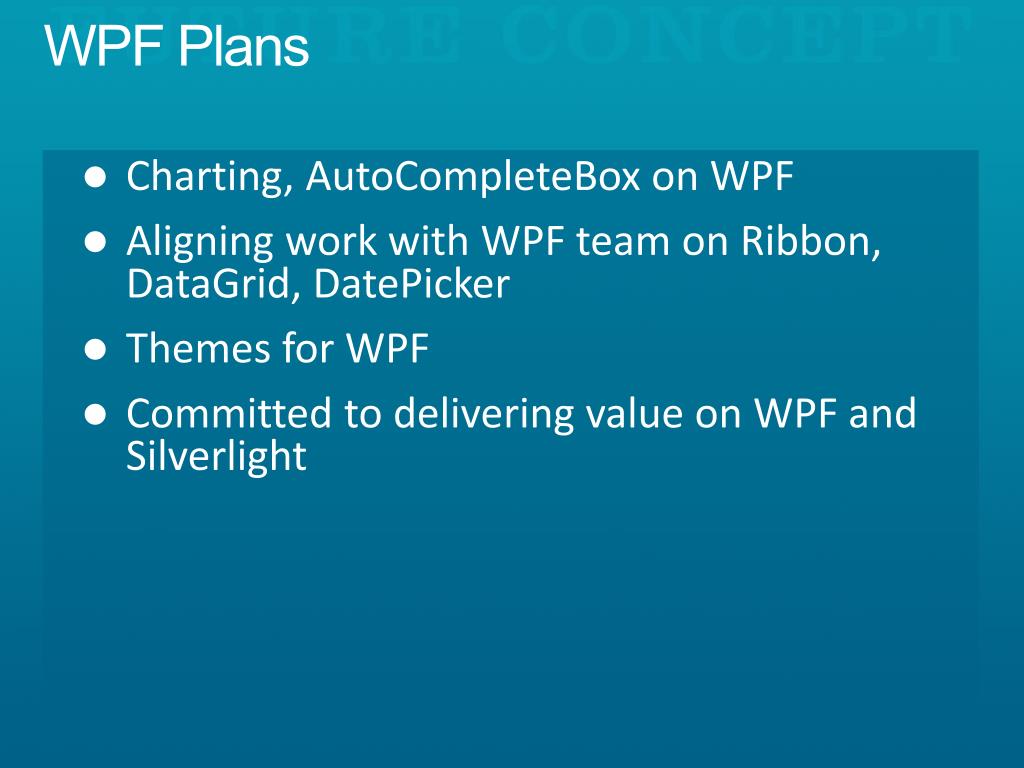

  25. WPF Plans • Charting, AutoCompleteBox on WPF • Aligning work with WPF team on Ribbon, DataGrid, DatePicker • Themes for WPF • Committed to delivering value on WPF and Silverlight

  26. Evals & Recordings Please fill out your evaluation for this session at: This session will be available as a recording at: www.microsoftpdc.com

  27. Q&A Please use the microphones provided
