Sage CRM Developers Course

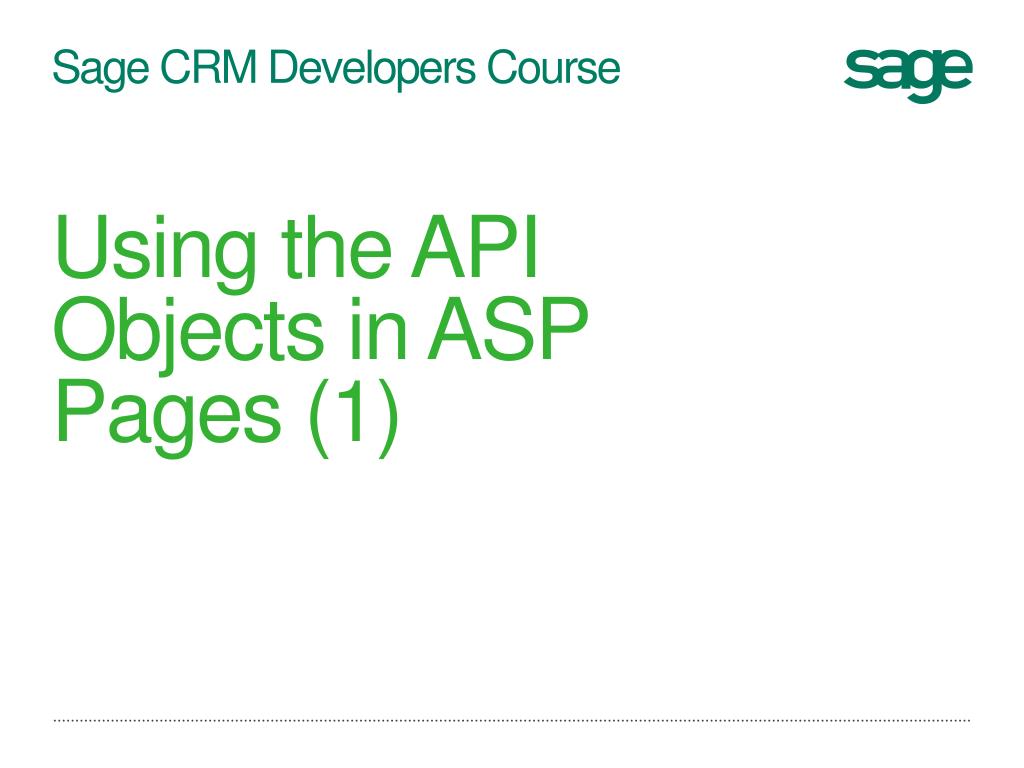

1. Sage CRM Developers Course Using the API Objects in ASP Pages (1)

2. Looking ahead to the classes • DP01: Introduction to the Development Partner Program • DP02: Entities and the Data Model (Part 1 of 2) • DP03: Entities and the Data Model (Part 2 of 2) • DP04: Implementing Screen Based Rules (Part 1 of 2) • DP05: Implementing Screen Based Rules (Part 2 of 2) • DP06: Screen and User Independent Business Rules • DP07: Workflow (Part 1 of 2) • DP08: Workflow (Part 2 of 2) • DP09: Using the API Objects in ASP Pages (Part 1 of 2) • DP10 : Using the API Objects in ASP Pages (Part 2 of 2) • DP11: Using the Component Manager • DP12: Programming for the Advanced Email Manager • DP13: Using the Web Services API • DP14: Using the Web Services API (Part 2 of 2) • DP15: Coding the Web Self Service COM API (Part 1 of 2) • DP16: Coding the Web Self Service COM API (Part 2 of 2) • DP17: Using the .NET API (Part 1 of 2) • DP18: Using the .NET API (Part 2 of 2)

3. Agenda • Using the API objects in ASP Pages • Linking to External Databases • Extending the Data Model • Basic Data Handling within an ASP Page • Listing Data • Editing Data • Adding Data

4. Creating a Page

5. Standard include files • sagecrm.js • reference in JavaScript-based ASP pages. This file sets the default language to JavaScript. (Default for Sage CRM v7.x) • sagecrmnolang.js • this file does not set the default language. (Default for Sage CRM v7.x) • accpaccrm.js • reference in JavaScript-based ASP pages. This file sets the default language to JavaScript. • accpacnolang.js • this file does not set the default language. • ewaress.js • reference in JavaScript-based, Self Service ASP pages.

6. sagecrmnolang.js file • CRM = Server.CreateObject("eWare.CRM"); • eMsg = CRM.Init( • Request.Querystring, • Request.Form, • Request.ServerVariables("HTTPS"), • Request.ServerVariables("SERVER_NAME"), • false, • Request.ServerVariables("HTTP_USER_AGENT"), • Accept);

7. Developer Include Files • Received when DP joins program. • sagecrmdpp.js • Sagecrmnolangdpp.js • sagecrmdpp.vbs • accpaccrmdpp.js • accpaccrmnolangdpp.js • accpaccrmdpp.vbs • Include the appropriate files in your third-party products/installs. • These files are supplied to CRM Development Partners only. • They will enable your product to run on the CRM installs that do not have the Enterprise Integration Server (EIS). • Products using the standard accpaccrm.js will not run on systems without EIS.

9. Connecting to an external Database • Making a permanent database connection • Making a 3rd Party table work like a CRM table • select * from custom_databases

10. New Entities • Full Customization of new screens, lists and views • Full use of field and table level scripts • Governed by Security Territories • Workflow can be built • Automatic System Policing of insert by, update by and timestamps • Available for reporting and target lists CREATE TABLE [dbo].[Project] ( [PROJ_ProjectId] [int] IDENTITY (1, 1) NOT NULL , [PROJ_PrimaryCompanyId] [int] NULL , [PROJ_PrimaryPersonId] [int] NULL , [PROJ_AssignedUserId] [int] NULL , [PROJ_ChannelId] [int] NULL , [PROJ_Description] [char] (40) NULL , [PROJ_CreatedBy] [int] NULL , [PROJ_CreatedDate] [datetime] NULL , [PROJ_UpdatedBy] [int] NULL , [PROJ_UpdatedDate] [datetime] NULL , [PROJ_TimeStamp] [datetime] NULL , [PROJ_Deleted] [tinyint] NULL , [PROJ_SegmentID] [int] NULL , [PROJ_SecTerr] [int] NULL , [PROJ_WorkflowId] [int] NULL )

11. ASP Example Screenflow

12. New Entity Tasks • Create New Project Table Must have core columns as discussed in documentation • Link new project table to CRM. • Add additional columns to create relationships • Create screens • entityWebPicker • entityDetailBox • entitySearchBox • entityTopContent Create a view that will exclude deleted entities. e.g. select * from project where proj_deleted is null • Create lists with appropriate hyperlinks entitylist entitygrid • If list calls proj_status "selection as gif" add folder and images • Create calls to asp pages from menus Admin>Customization>System>find Admin>Customisation>System>new • Create Tab bar for new entity(with same name as entity) Project • Create asp pages projectnew.asp projectsummary.asp projectfind.asp projectlist.asp • Create workflow project workflow

13. Naming Conventions • Suggested Naming Convention for new Entity Blocks Screens • entityWebPicker • entityDetailBox • entitySearchBox • entityTopContent Lists • entityGrid • entityList • ASP pages entityFind.asp entityNew.asp entitySummary.asp entityUser.asp entityEntity.asp • (for listing children of new entity from entities tab bar)

14. Typical Tasks • Create a List Page • Create an Insert Page • Create an Edit Page • Handling deletes • Create a Search Page

15. List Page Structure varmyBlock = CRM.GetBlock('opportunitylist'); varmyRecordId = CRM.GetContextInfo('company','comp_companyid'); varArg = 'oppo_primarycompanyid='+myRecordId CRM.AddContent(myBlock.Execute(Arg)); Response.Write(CRM.GetPage());

16. Edit Page Structure varmyBlock = CRM.GetBlock('OpportunityDetailBox'); varmyRecordId = CRM.GetContextInfo('Opportunity','oppo_opportunityid'); //varmyRecordId = Request.QueryString('oppo_opportunityid'); varmyRecord = CRM.FindRecord('Opportunity','oppo_opportunityid='+myRecordId); CRM.AddContent(myBlock.Execute(myRecord)); Response.Write(CRM.GetPage());

17. Adding Buttons • //Example to call an inbuilt CRM action e.g 130 is find company • varstrFindCompanyButton = CRM.Button('search','search.gif', CRM.Url(130)); • //Example to call a Custom ASP page • varstrCallASPButton = CRM.Button('ASP','save.gif', CRM.Url('myPage.asp')); • //Example to show control of buttons display on screen using entity security • //The following button is only available for users with insert rights on company entity (see security) • varstrNewCompanySecurityButton = CRM.Button('New','newcompany.gif', CRM.Url(1200),'COMPANY','INSERT'); • //Example to show how to build a custom help button • varhelpFile = "FI_SearchingForCompany.htm"; • varstrCustomHelpButton =CRM.Button("Help", "help.gif", "javascript:window.open('/"+sInstallName+"/help/EN/Main Menu/Default_CSH.htm#User/"+helpFile+"', 'HELPWIN','scrollbars=yes,toolbar=no,menubar=no,resizable=yes,top=200, width=600,height=400');"); • re = /href/gi; • strCustomHelpButton = strCustomHelpButton.replace(re, "onclick"); • myBlock.AddButton(strFindCompanyButton); • myBlock.AddButton(strCallASPButton); • myBlock.AddButton(strNewCompanySecurityButton); • myBlock.AddButton(strCustomHelpButton);

18. Add Page Structure if(CRM.Mode ==View) { CRM.Mode = Edit; } varmyBlock = CRM.GetBlock('opportunitydetailbox'); varmyRecord = CRM.CreateRecord('Opportunity'); myRecord.oppo_stage= 'Lead'; myRecord.oppo_status= 'In Progress'; myRecord.oppo_primarycompanyid= CRM.GetContextInfo('Company','comp_companyid'); myRecord.oppo_primarypersonid= CRM.GetContextInfo('person','pers_personid'); CRM.AddContent(myBlock.Execute(myRecord)); Response.Write(CRM.GetPage()); if(CRM.Mode == Save) { Response.Redirect(CRM.URL('customoppolist.asp')) }

19. Q&A

20. Looking ahead to the classes • DP01: Introduction to the Development Partner Program • DP02: Entities and the Data Model (Part 1 of 2) • DP03: Entities and the Data Model (Part 2 of 2) • DP04: Implementing Screen Based Rules (Part 1 of 2) • DP05: Implementing Screen Based Rules (Part 2 of 2) • DP06: Screen and User Independent Business Rules • DP07: Workflow (Part 1 of 2) • DP08: Workflow (Part 2 of 2) • DP09: Using the API Objects in ASP Pages (Part 1 of 2) • DP10 : Using the API Objects in ASP Pages (Part 2 of 2) • DP11: Using the Component Manager • DP12: Programming for the Advanced Email Manager • DP13: Using the Web Services API • DP14: Using the Web Services API (Part 2 of 2) • DP15: Coding the Web Self Service COM API (Part 1 of 2) • DP16: Coding the Web Self Service COM API (Part 2 of 2) • DP17: Using the .NET API (Part 1 of 2) • DP18: Using the .NET API (Part 2 of 2)
