  1. Development of a Rapid Intensification Index for the Eastern Pacific Basin John Kaplan NOAA/AOML Hurricane Research Division Miami, FL and Mark DeMaria NOAA/NESDIS Fort Collins, Colorado Acknowledgements: Joint Hurricane Testbed

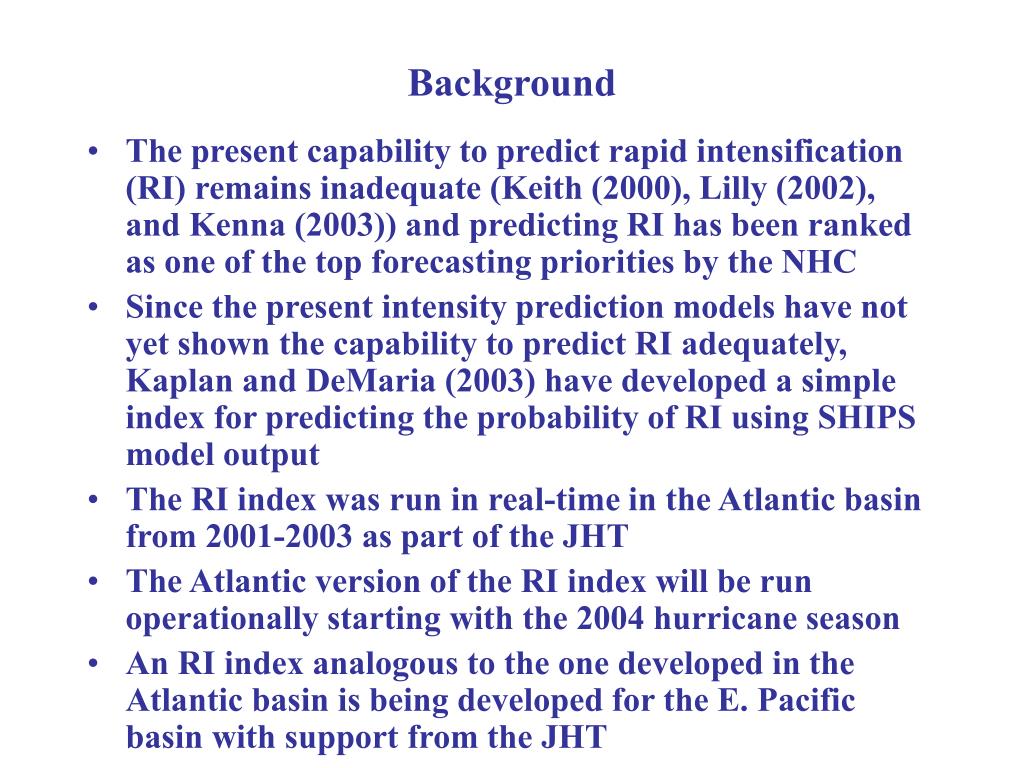

  2. Background • The present capability to predict rapid intensification (RI) remains inadequate (Keith (2000), Lilly (2002), and Kenna (2003)) and predicting RI has been ranked as one of the top forecasting priorities by the NHC • Since the present intensity prediction models have not yet shown the capability to predict RI adequately, Kaplan and DeMaria (2003) have developed a simple index for predicting the probability of RI using SHIPS model output • The RI index was run in real-time in the Atlantic basin from 2001-2003 as part of the JHT • The Atlantic version of the RI index will be run operationally starting with the 2004 hurricane season • An RI index analogous to the one developed in the Atlantic basin is being developed for the E. Pacific basin with support from the JHT

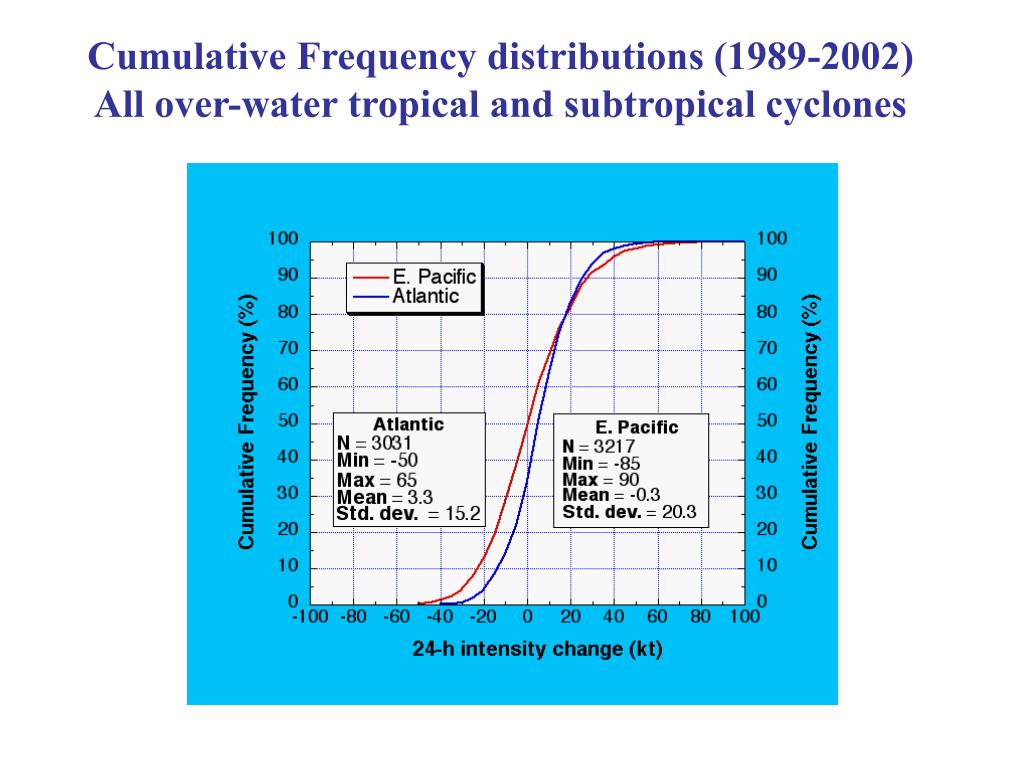

  3. Cumulative Frequency distributions (1989-2002) All over-water tropical and subtropical cyclones

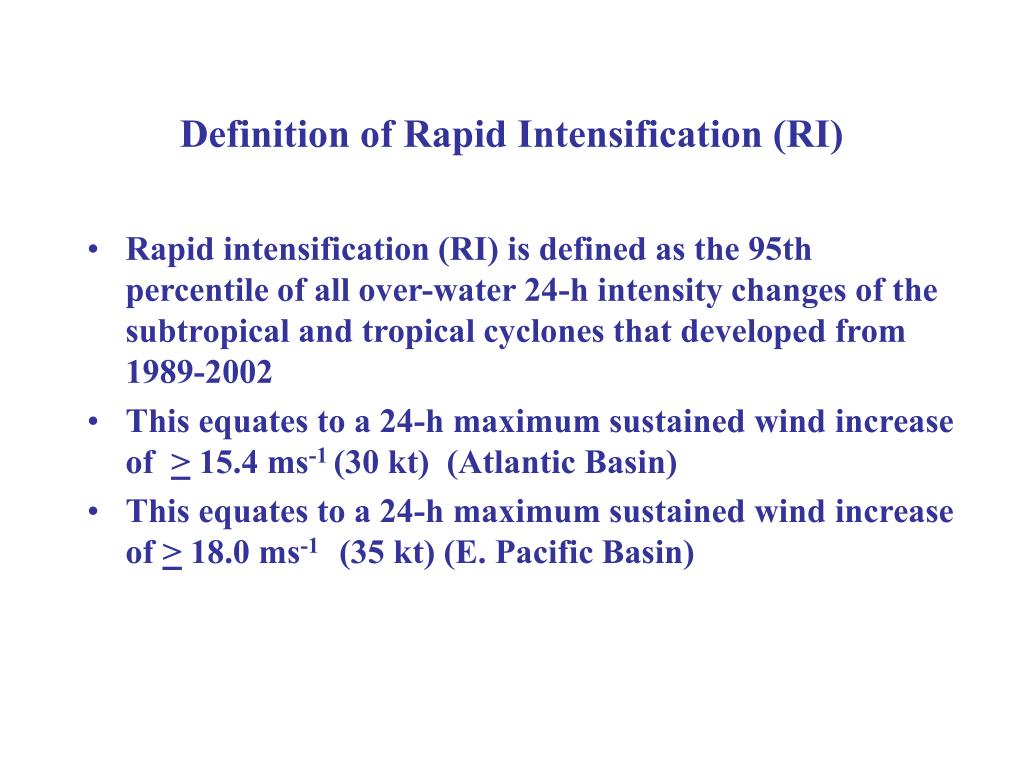

  4. Definition of Rapid Intensification (RI) • Rapid intensification (RI) is defined as the 95th percentile of all over-water 24-h intensity changes of the subtropical and tropical cyclones that developed from 1989-2002 • This equates to a 24-h maximum sustained wind increase of > 15.4 ms-1 (30 kt) (Atlantic Basin) • This equates to a 24-h maximum sustained wind increase of > 18.0 ms-1 (35 kt) (E. Pacific Basin)

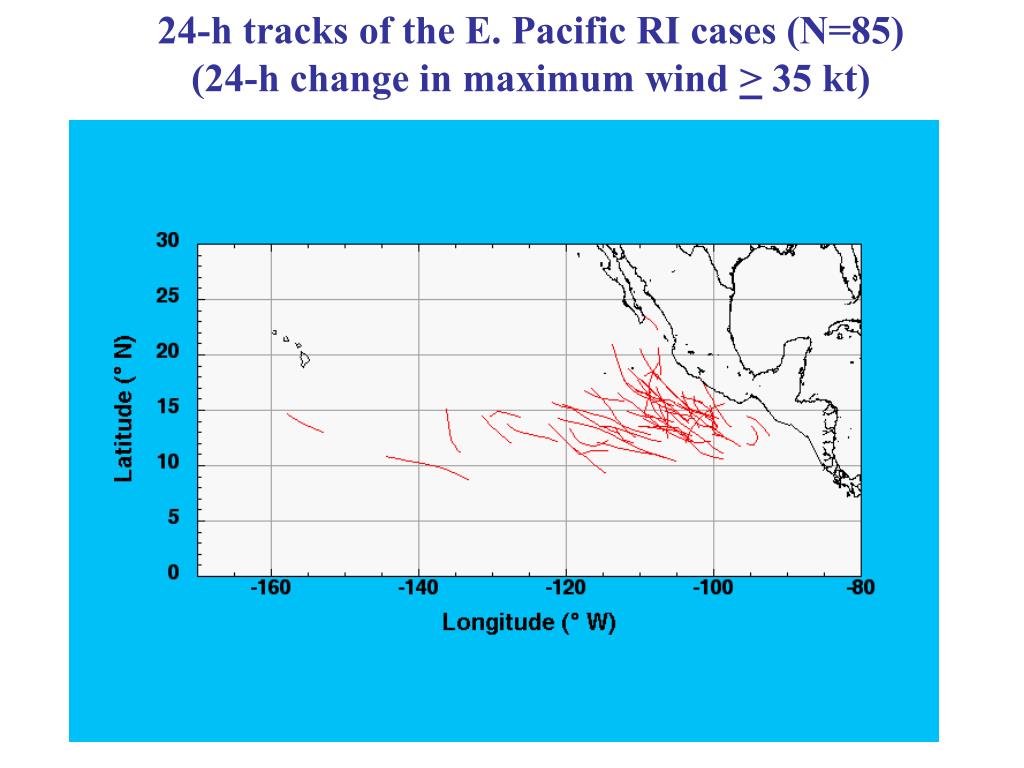

  5. 24-h tracks of the E. Pacific RI cases (N=85) (24-h change in maximum wind > 35 kt)

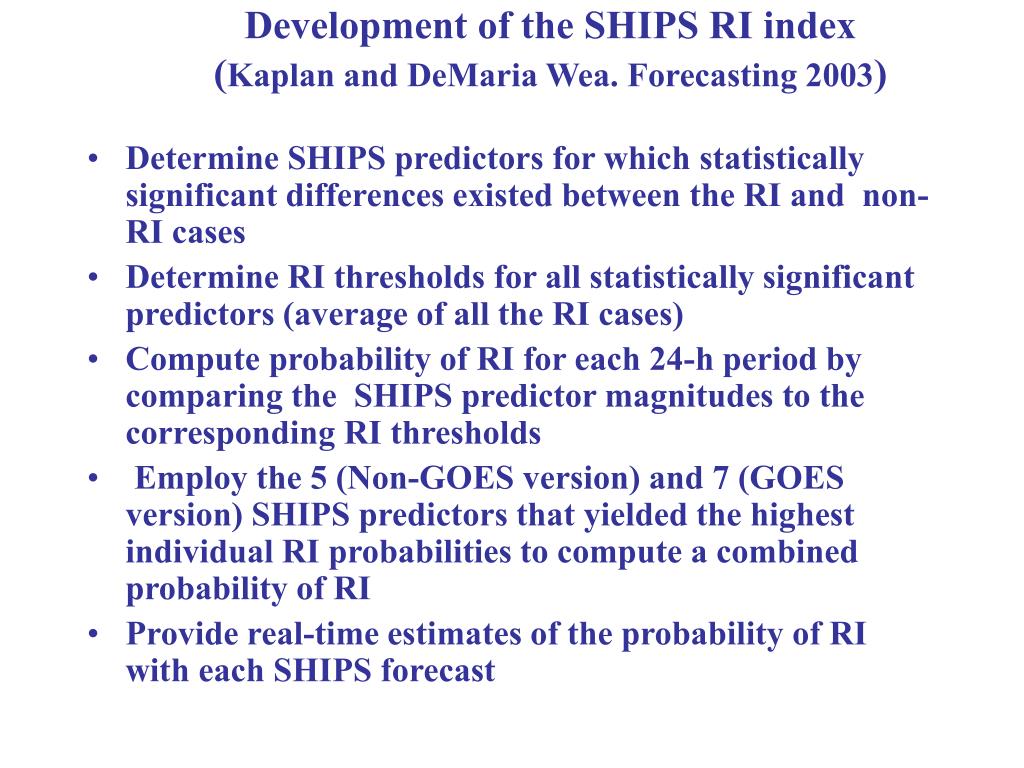

  6. Development of the SHIPS RI index(Kaplan and DeMaria Wea. Forecasting 2003) • Determine SHIPS predictors for which statistically significant differences existed between the RI and non-RI cases • Determine RI thresholds for all statistically significant predictors (average of all the RI cases) • Compute probability of RI for each 24-h period by comparing the SHIPS predictor magnitudes to the corresponding RI thresholds • Employ the 5 (Non-GOES version) and 7 (GOES version) SHIPS predictors that yielded the highest individual RI probabilities to compute a combined probability of RI • Provide real-time estimates of the probability of RI with each SHIPS forecast

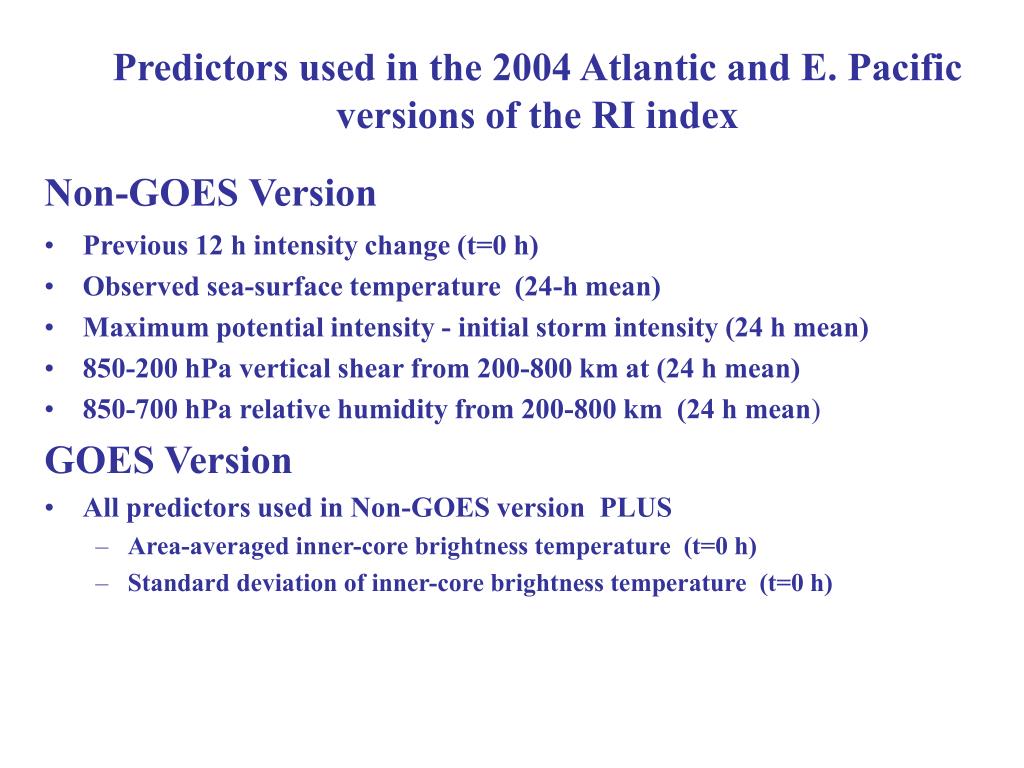

  7. Predictors used in the 2004 Atlantic and E. Pacific versions of the RI index Non-GOES Version • Previous 12 h intensity change (t=0 h) • Observed sea-surface temperature (24-h mean) • Maximum potential intensity - initial storm intensity (24 h mean) • 850-200 hPa vertical shear from 200-800 km at (24 h mean) • 850-700 hPa relative humidity from 200-800 km (24 h mean) GOES Version • All predictors used in Non-GOES version PLUS • Area-averaged inner-core brightness temperature (t=0 h) • Standard deviation of inner-core brightness temperature (t=0 h)

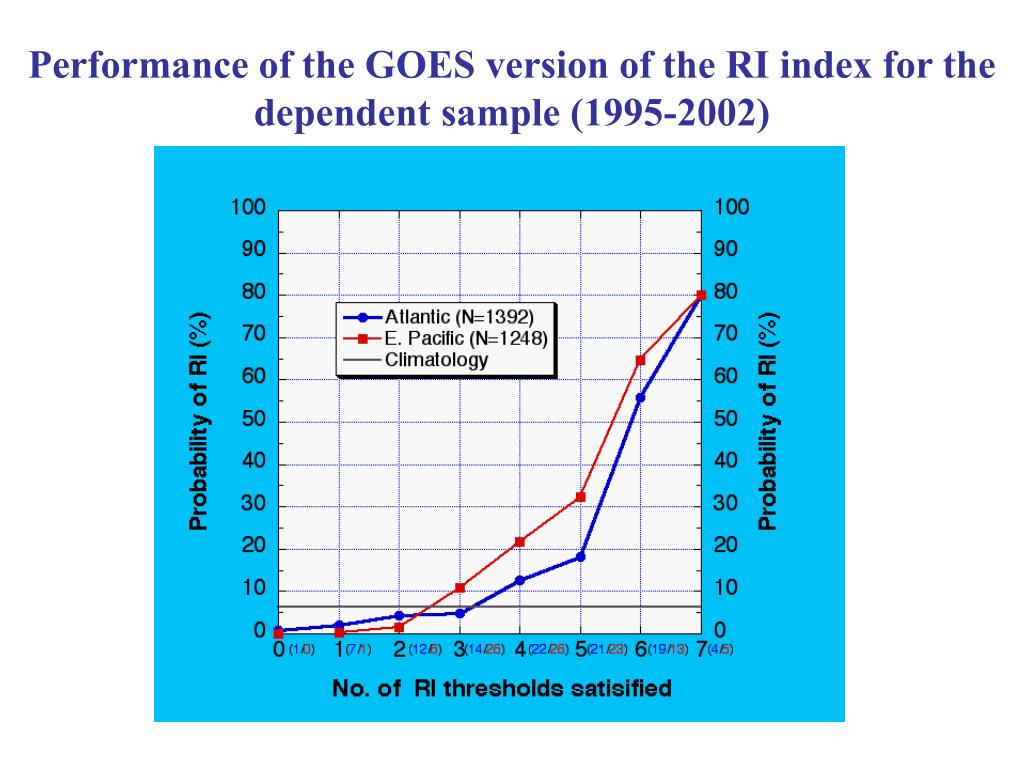

  8. Performance of the GOES version of the RI index for the dependent sample (1995-2002)

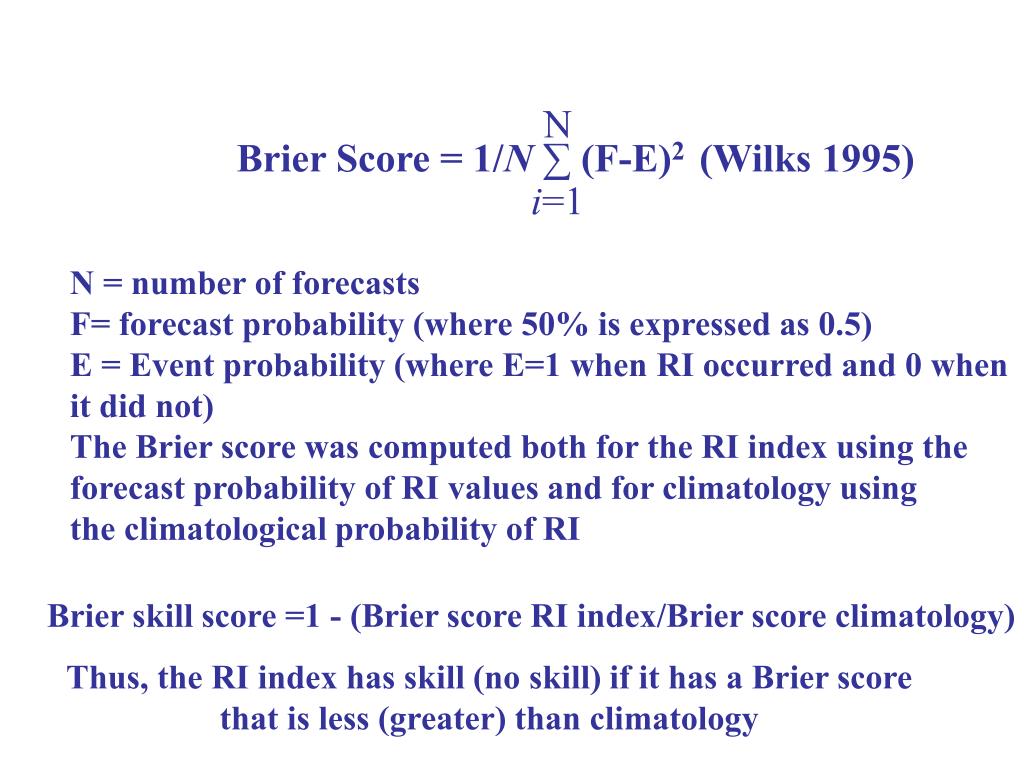

  9. N Brier Score = 1/N ∑ (F-E)2 (Wilks 1995) i=1 N = number of forecasts F= forecast probability (where 50% is expressed as 0.5) E = Event probability (where E=1 when RI occurred and 0 when it did not) The Brier score was computed both for the RI index using the forecast probability of RI values and for climatology using the climatological probability of RI Brier skill score =1 - (Brier score RI index/Brier score climatology) Thus, the RI index has skill (no skill) if it has a Brier score that is less (greater) than climatology

  10. Brier Skill scores for the GOES versions of the Atlantic and E. Pacific RI indices for the dependent samples (95-02)

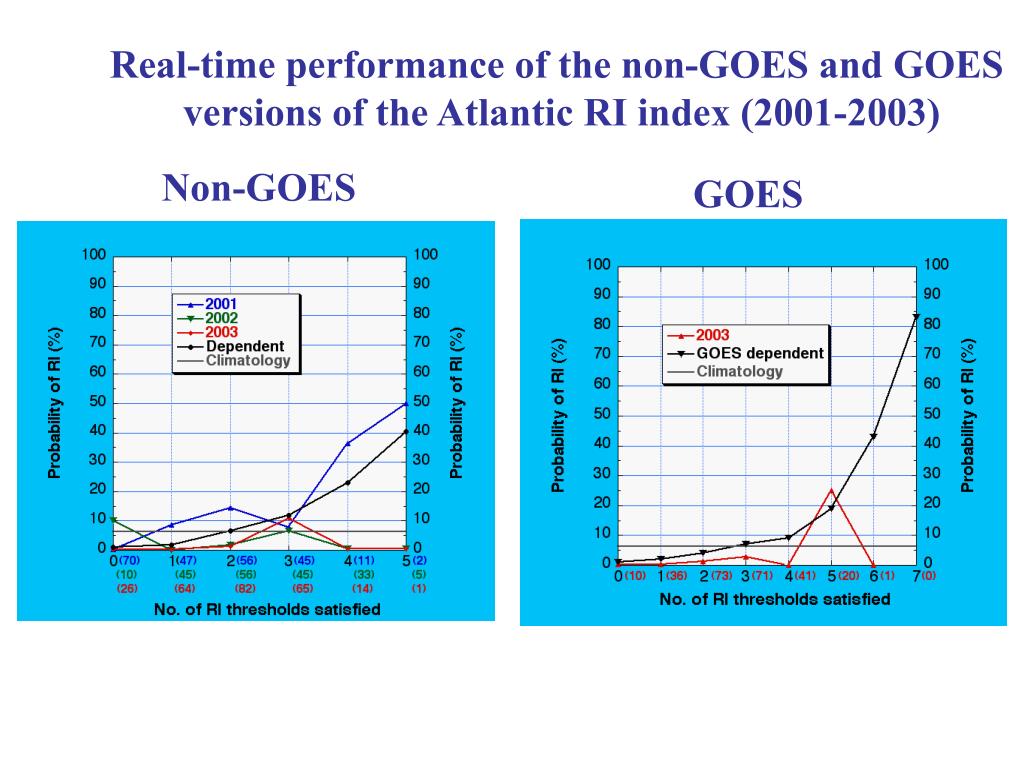

  11. Real-time performance of the non-GOES and GOES versions of the Atlantic RI index (2001-2003) Non-GOES GOES

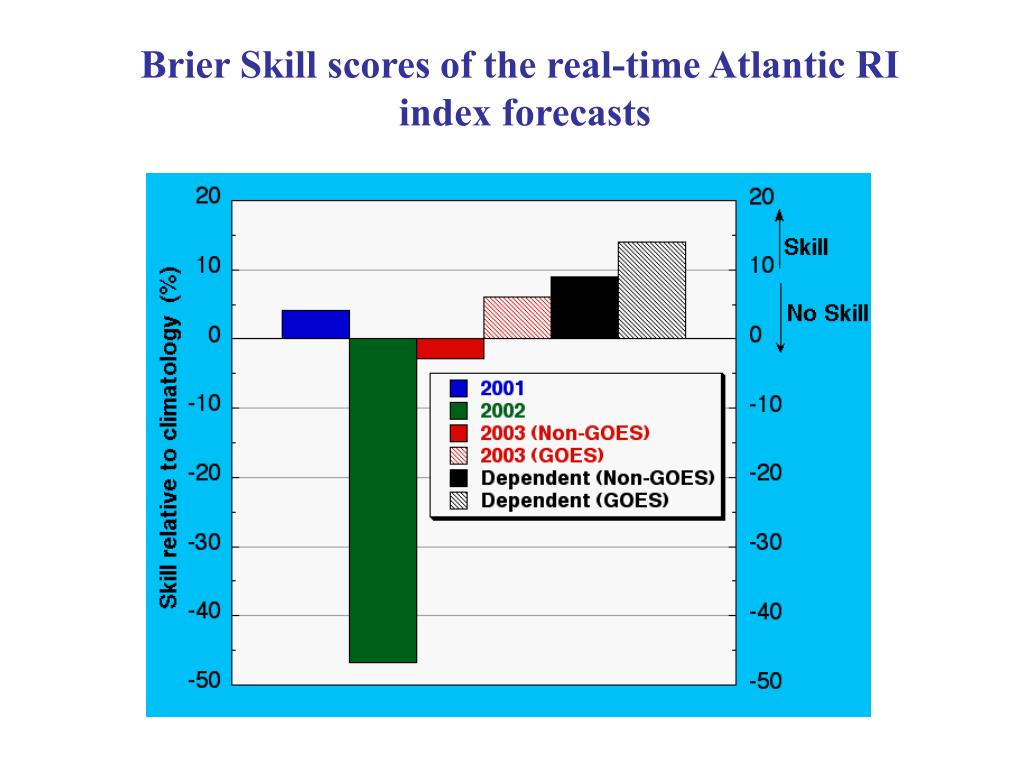

  12. Brier Skill scores of the real-time Atlantic RI index forecasts

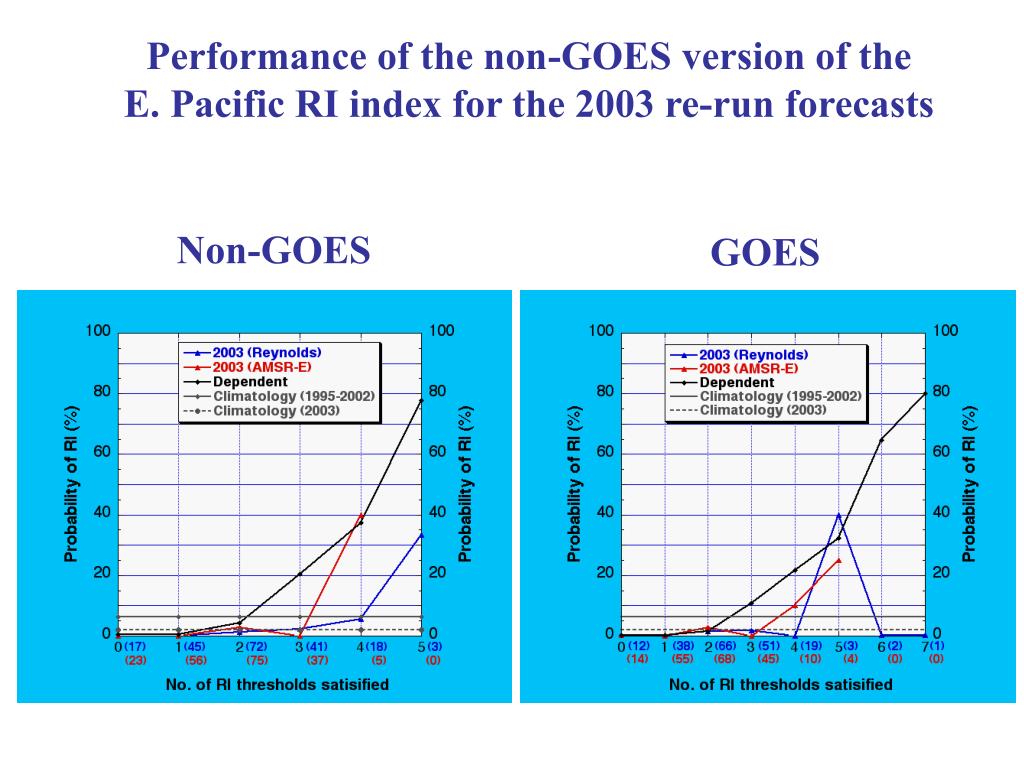

  13. Performance of the non-GOES version of the E. Pacific RI index for the 2003 re-run forecasts Non-GOES GOES

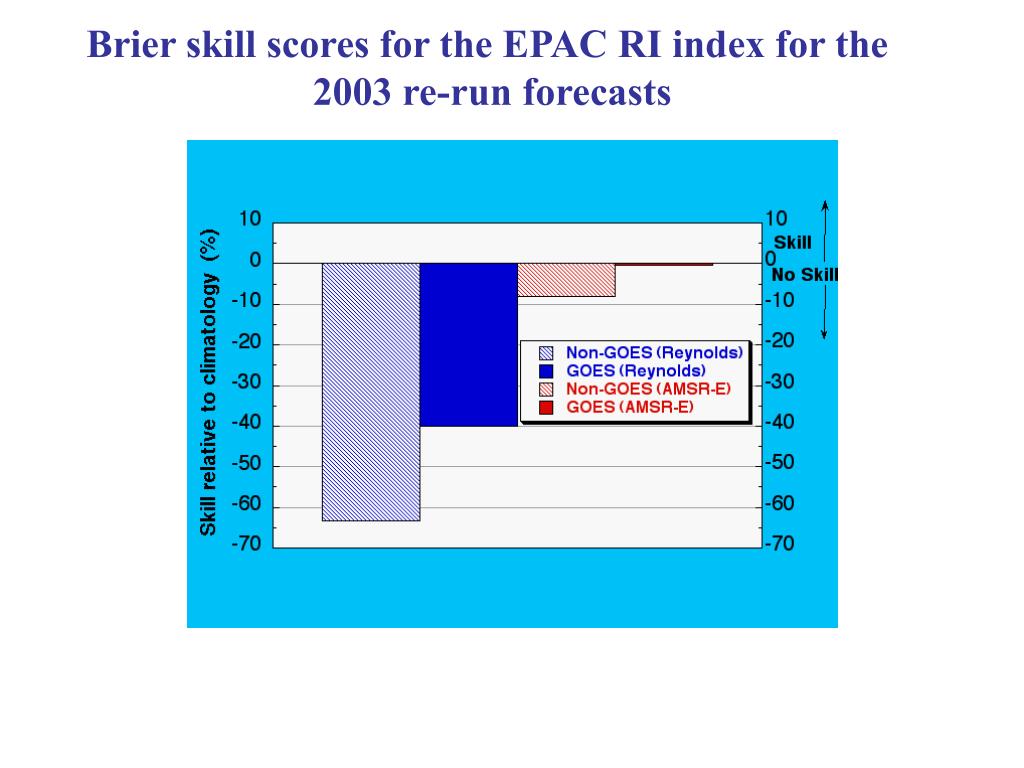

  14. Brier skill scores for the EPAC RI index for the 2003 re-run forecasts

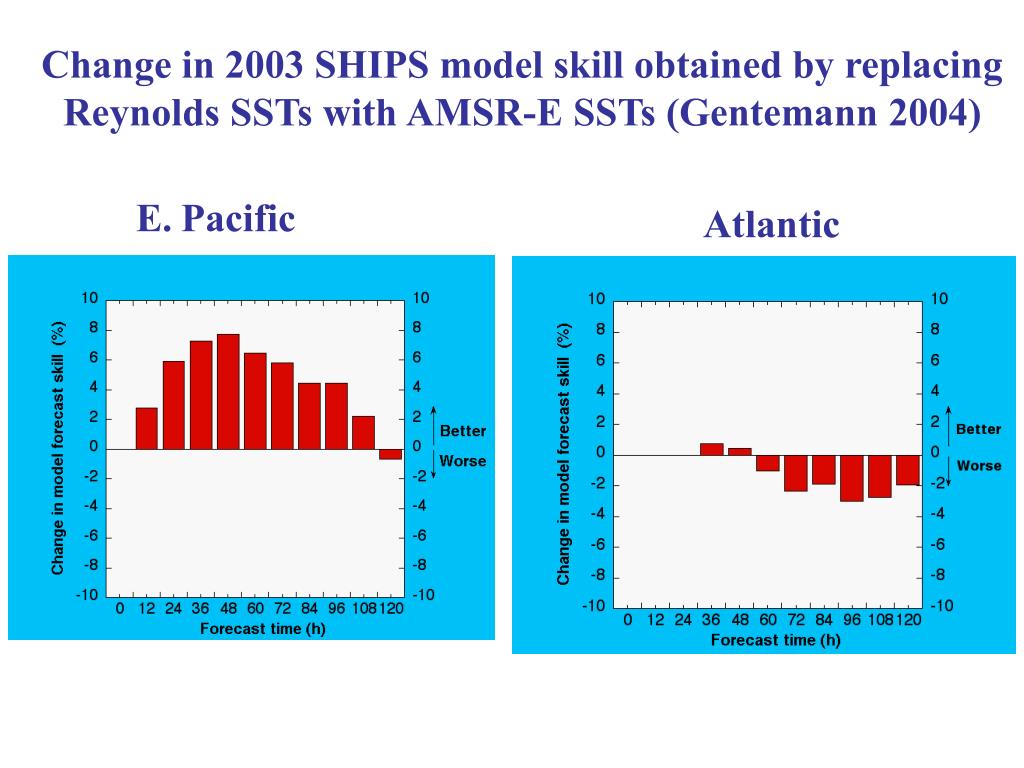

  15. Change in 2003 SHIPS model skill obtained by replacing Reynolds SSTs with AMSR-E SSTs (Gentemann 2004) E.Pacific Atlantic

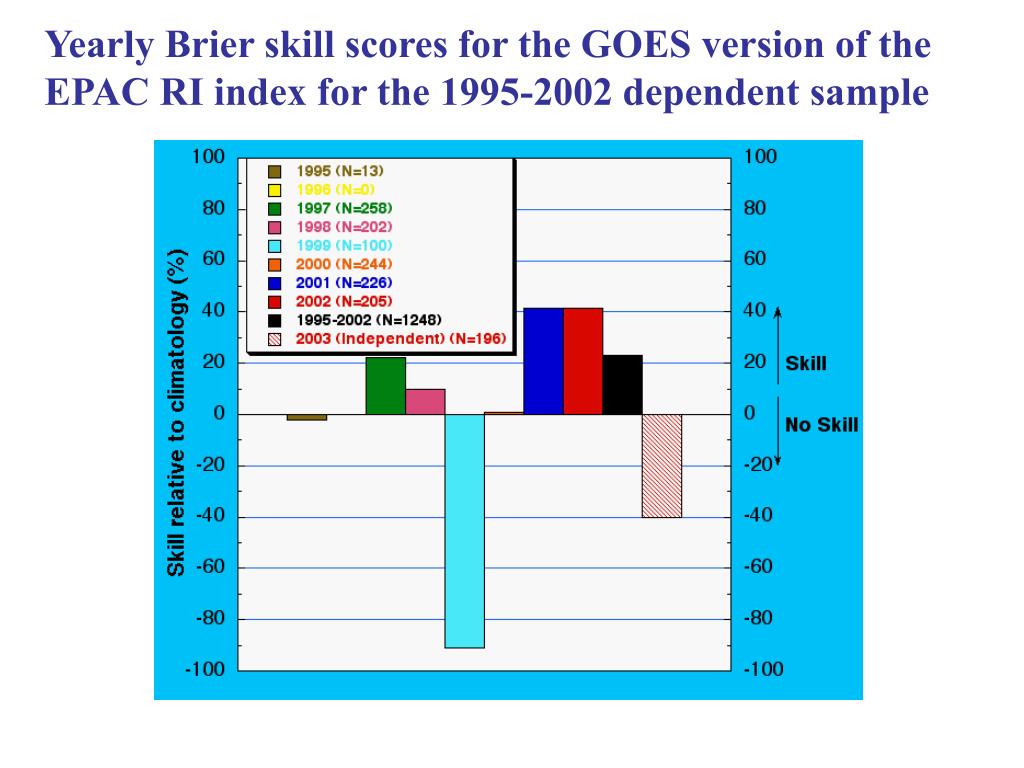

  16. Yearly Brier skill scores for the GOES version of the EPAC RI index for the 1995-2002 dependent sample

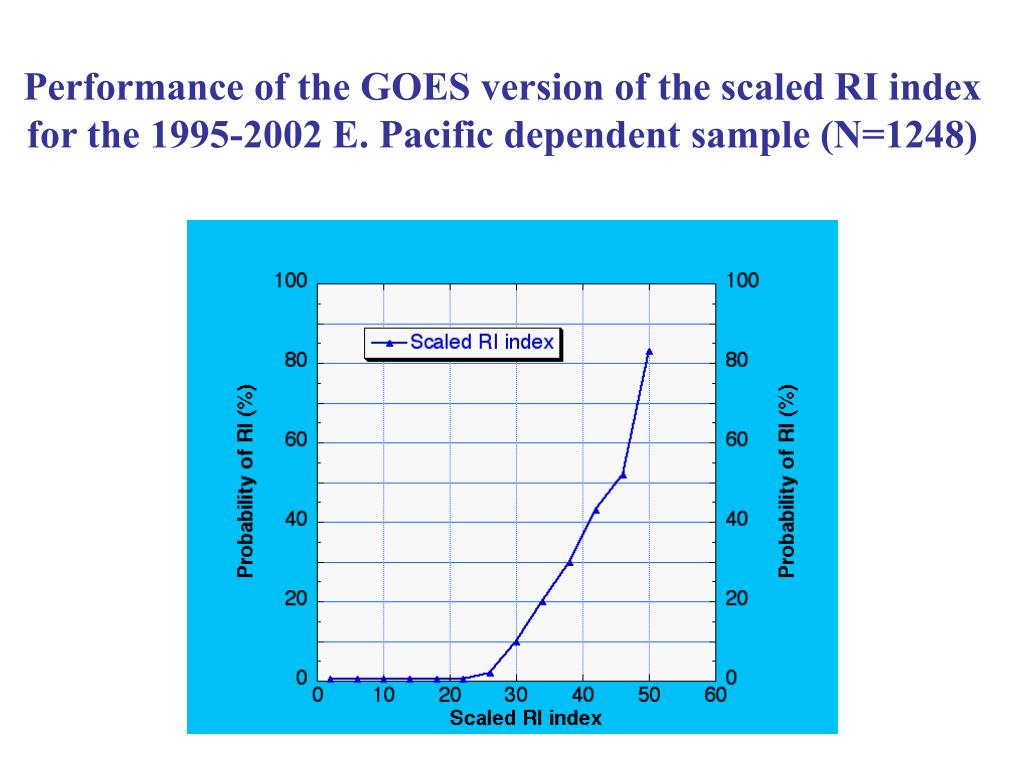

  17. Performance of the GOES version of the scaled RI index for the 1995-2002 E. Pacific dependent sample (N=1248)

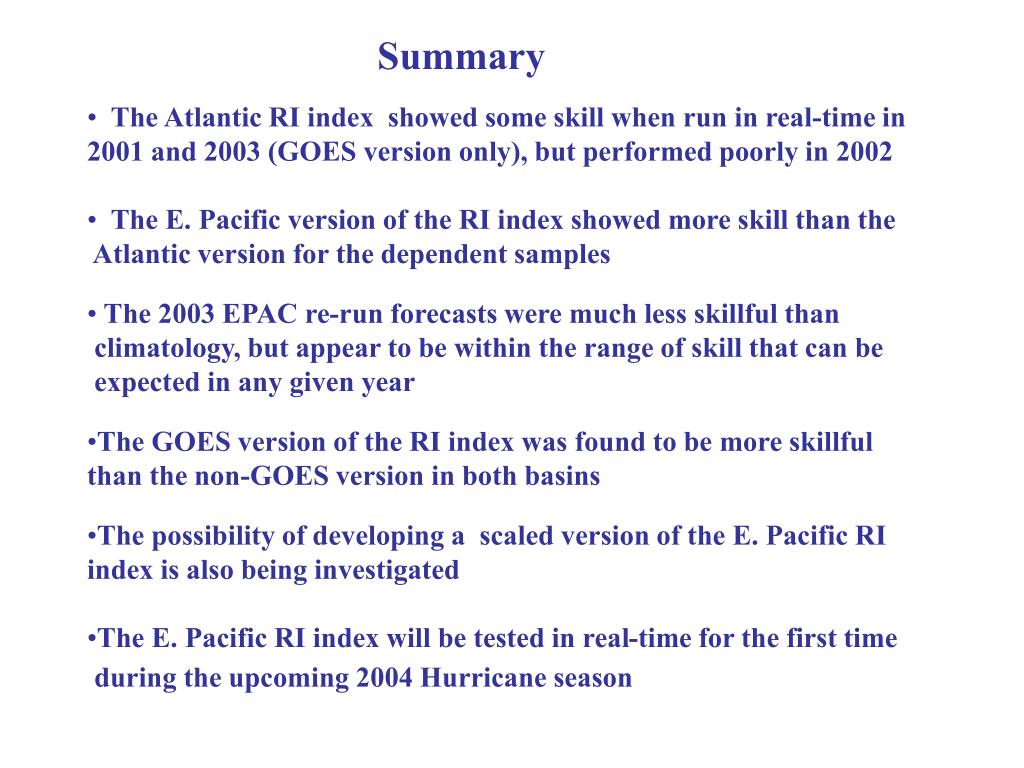

  18. Summary • The Atlantic RI index showed some skill when run in real-time in 2001 and 2003 (GOES version only), but performed poorly in 2002 • The E. Pacific version of the RI index showed more skill than the • Atlantic version for the dependent samples • The 2003 EPAC re-run forecasts were much less skillful than • climatology, but appear to be within the range of skill that can be • expected in any given year • The GOES version of the RI index was found to be more skillful than the non-GOES version in both basins • The possibility of developing a scaled version of the E. Pacific RI index is also being investigated • The E. Pacific RI index will be tested in real-time for the first time • during the upcoming 2004 Hurricane season

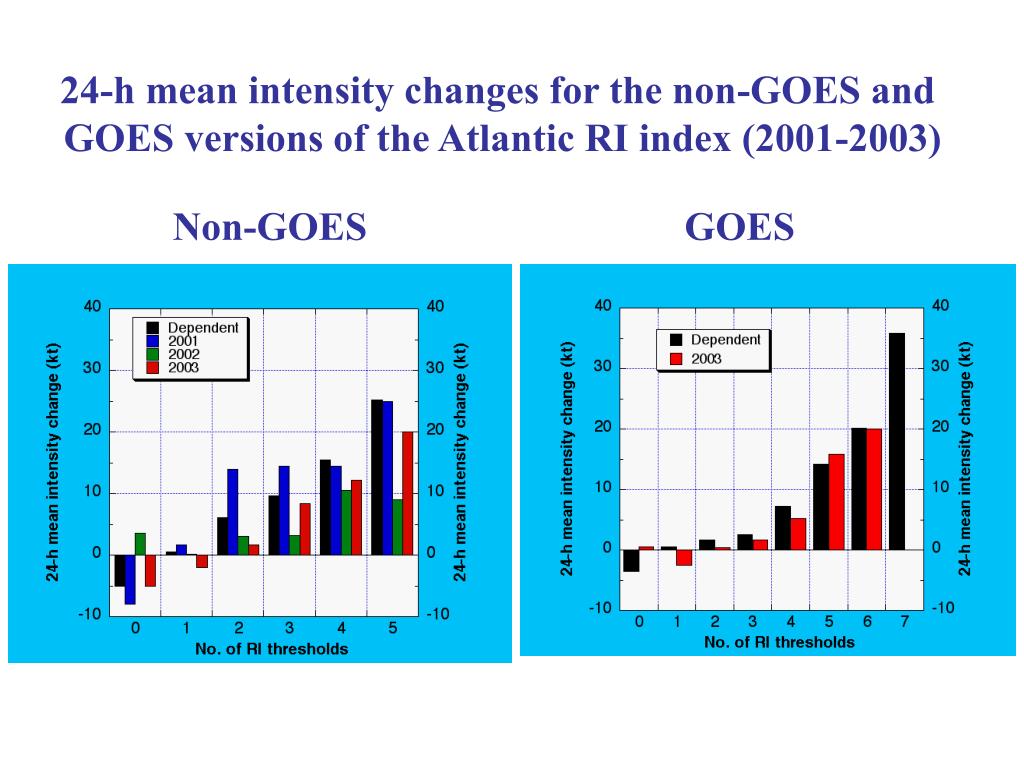

  19. 24-h mean intensity changes for the non-GOES and GOES versions of the Atlantic RI index (2001-2003) Non-GOES GOES

  20. 24-h mean intensity changes for the E. Pacific 2003 re-run forecasts Non-GOES GOES
