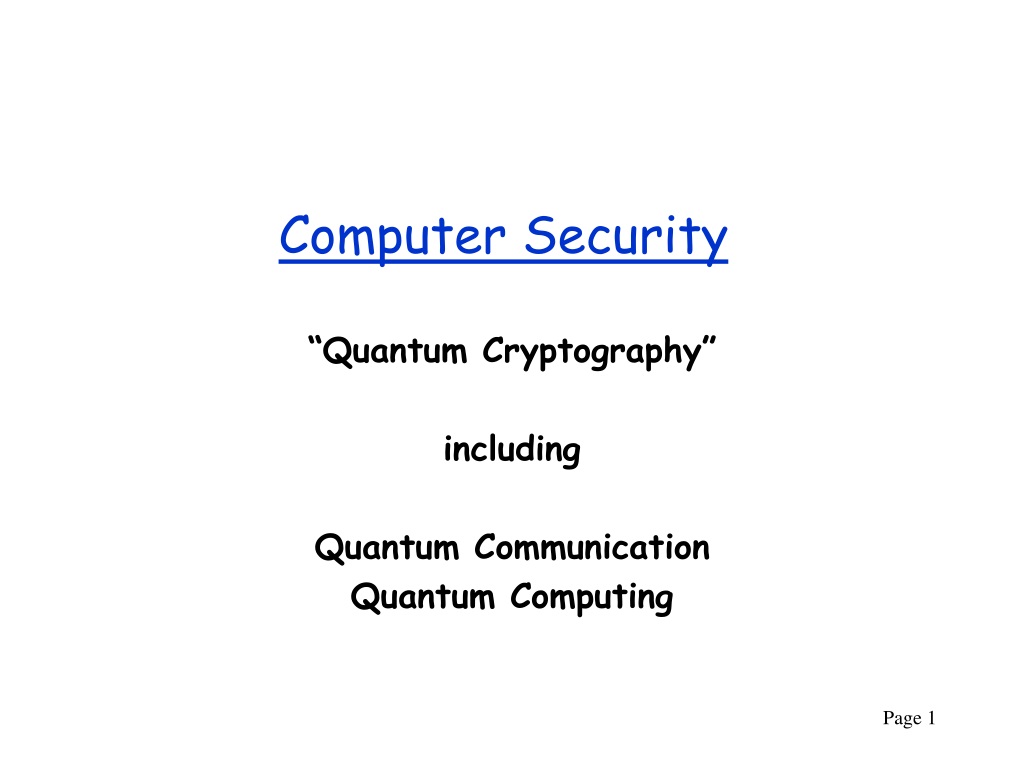

  1. Computer Security “Quantum Cryptography” including Quantum Communication Quantum Computing

  2. Quantum Communication • NOT used to encrypt data! • Goal, instead, is to detect eavesdroppers • Can be used to exchange a private key

  3. Uncertainty Principle • In quantum mechanics, certain pairs of properties of particles cannot both be known simultaneously, e.g., • Position and momentum of an electron (Heisenberg) • If a measurement determines (with precision) the value of one of the properties, then the value of the other cannot be known

  4. Photon Spin (Polarization) • Photons can be given either “rectilinear’’ or “diagonal’’ spin as they travel down a fiber. • Rectilinear: or • Diagonal: or • Measuring rectilinear spin with a rectilinear filter yields polarization of photon. • blocked

  5. measurerectilinear • measurediagonal • destroys state What if the wrong filter is used? • or • (blocked) • (equal probability)

  6. Quantum Key Exchange • The goal is to enable Alice and Bob to agree on a private key, even in the face of an eavesdropper, Eve. • Like Diffie-Hellman, the protocol is still susceptible to a “man-in-the-middle” attack. • But unlike Diffie-Hellman, the protocol does not depend on the difficulty of computing discrete logarithms or any other computational problem.

  7. BB84 Protocol (Bennet and Brassard) • bit encoding: 0 1 0 1 • Alice sends Bob a stream of photons randomly polarized in one of 4 polarizations: • Bob measures the photons in random orientationse.g.: x + + x x x + x (orientations used) \ | - \ / / - \ (measured polarizations) 1 0 1 1 0 0 1 1 (encoded bit values) • Bob tells Alice in the open what orientations he used, but not what bit values he measured • Alice sends Bob in the open a list of positions at which the orientations are correct

  8. Detecting an Eavesdropper • Alice selects some subset of k of the shared bits and reveals them to Bob in the open. • If Bob notices any differences, then Eve must have changed a bit by guessing the wrong polarization when eavesdropping. • Eve has little hope of guessing the same polarization as Bob all k times. Each measurement has a ¼ chance of changing a bit value. The probability of not changing any values is (3/4)k – which can be very small if k is chosen large enough

  9. In the “real world” • In April 2014 China began installing a 2000-kilometer quantum communications link between Beijing and Shanghai • In August 2016 China launched the Quantum Science Satellite (QUESS) and plans to test quantum entanglement over large distances, and quantum key exchange

  10. Quantum Computers • The state of a computer consists of the contents of its memory and storage, including values of registers (including the program counter), memory, disk contents, etc. • In a conventional computer each memory “unit” holds one value (e.g., 0 or 1) at a time. Computation consists of a sequence of state transitions. • But in a quantum computer, a memory unit holds a “superposition” of possible values.

  11. Qubit (somewhat simplified) • A single quantum “bit” which is 1 with probability p and 0 with probability 1-p. • When measured, outcome is either 0 or 1. • Measuring a qubit changes its value! If outcome is 0, p is set to 0, if outcome is 1, p is set to 1. • A qubit could be implemented using a photon to carry a horizontal or vertical polarization.

  12. Quantum Entanglement • Suppose two bits have value 00 with probability ½ and 11 with probability ½. If the bits are separated and measured at different locations, the measurements must yield the same values. E.g., if first measurement is 0, second must also be 0. • Entanglement also allows multiple states (e.g., 00 vs. 11) to be acted on simultaneously. • Difficulty in building a quantum computer is maintaining quantum entanglement in the face of environmental noise (quantum decoherence).

  13. More on Qubits • A qubit is a superposition of two basis states, and (representing values 0 and 1), which can be thought of as north and south poles of a unit sphere. • I.e., qubit is , where v0 and v1 are complex numbers such that |v0|2 + |v1|2 = 1. (|v0|2 and |v1|2 are probabilities of qubit being 0 or 1) • https://commons.wikimedia.org/wiki/File:Bloch_sphere.svg • can be written as

  14. Quantum Gates • Qubits are manipulated with quantum logic gates. • Gates are just multiplications by unitary matrices. • Hadamard matrix maps to and to • i.e., gate operation is • This gate randomizes a basis state to have equal chance of being measured 0 or 1.

  15. Factoring Large Primes • In 1994 Peter Shor showed that a quantum computer can factor a number n in O(log3 n) time. • A similar result holds for solving the discrete logarithm problem. • If a large-enough quantum computer can be built, then RSA and Diffie-Hellman key-exchange will no longer be secure. • (But largest number factored with this algorithm as of 2015 was 21!)

  16. Details of Shor’s Algorithm • Pick a random number 1 < a < n • If a is a factor of n (i.e., GCD(a,n) > 1), what a lucky guess! • Use a quantum circuit to find smallest r > 1 such that ar = 1 mod n, i.e., find the order of a • If r is odd go back to step 1 • If ar/2 = -1 mod n go back to step 1 • GCD(ar/2 + 1, n) and GCD(ar/2 - 1, n) are factors of n • Example: n = 15, a = 7, r = 4 • a1 = 7 mod n, a2 = 4 mod n, a3 = 13 mod n, a4 = 1 mod n • a4/2+1 = 50, a4/2-1 = 48 • GCD(50,15) = 5, GCD(48,15) = 3

  17. Analysis of Shor’s Algorithm • Reduces factoring to order finding. Uses quantum computation to solve order finding. • After step 4, r is even, ar/2 ≠ 1 mod n. Proof: Otherwise r was not smallest positive integer such that ar = 1 mod n. Thus ar/2 - 1 ≠ 0 mod n. • After step 5, ar/2 ≠ -1 mod n. Thus ar/2 + 1 ≠ 0 mod n. • Observe that (ar/2 - 1)(ar/2 + 1) = ar – 1 = 0 mod n • So (ar/2 - 1)(ar/2 + 1) = kn for some integer k. • But neither (ar/2 - 1)or(ar/2 + 1) is a multiple of n. • Therefore by the prime factorization theorem, one contains p and the other contains q.

  18. Analysis of Shor’s Algorithm • What is the probability that if a is chosen at random in step 1, r (the order of a) is odd? • Claim: If the order of a is odd, the order of –a is even. • Proof: Let r’ be the order of –a, and suppose r’ is odd. Then ar’=(-1*-a)r’=-1*(-a)r’=-1 mod n. If r’ < r, then the order of a is r=2r’, and hence r is even, a contradiction. If r’ > r, then (-a)r=-1 mod n, so r’ = 2r, and hence r’ is even, another contradiction. • Thus at most half of the elements between 2 and n-1 have odd order.

  19. Controversial Quantum Computer • D-Wave Systems, Inc., purports to build a quantum computer based on a 128-qubit chipset. • No convincing demonstration of speed-up over conventional computer yet. • Unresolved debate about whether there is actually quantum entanglement among the qubits. (Evidence seems to be leaning towards yes?)
