  1. Preliminary Design Review Presentation

  2. Vehicle Overview • G12 Fiberglass • Diameter – 6” • Length – 138” • Weight – 60.1 lbs

  3. Vehicle Overview (cont.) • Cesaroni N1800-P • 4grain 98mm motor • Thrust-to-weight ratio – 8.3: 1 • rail exit velocity – 38.7 ft/s • Stability margin – 2.99 cal

  4. Vehicle Safety

  5. Vehicle Test Plan

  6. Fin Can

  7. Recovery - Avionics

  8. Recovery - Parachute • Drogue – 36” • Main – 96” • Semi-elliptical design • Nylon • Eye bolts on bulkheads • Quick links • *image from fruitychutes.com

  9. Nose Cone

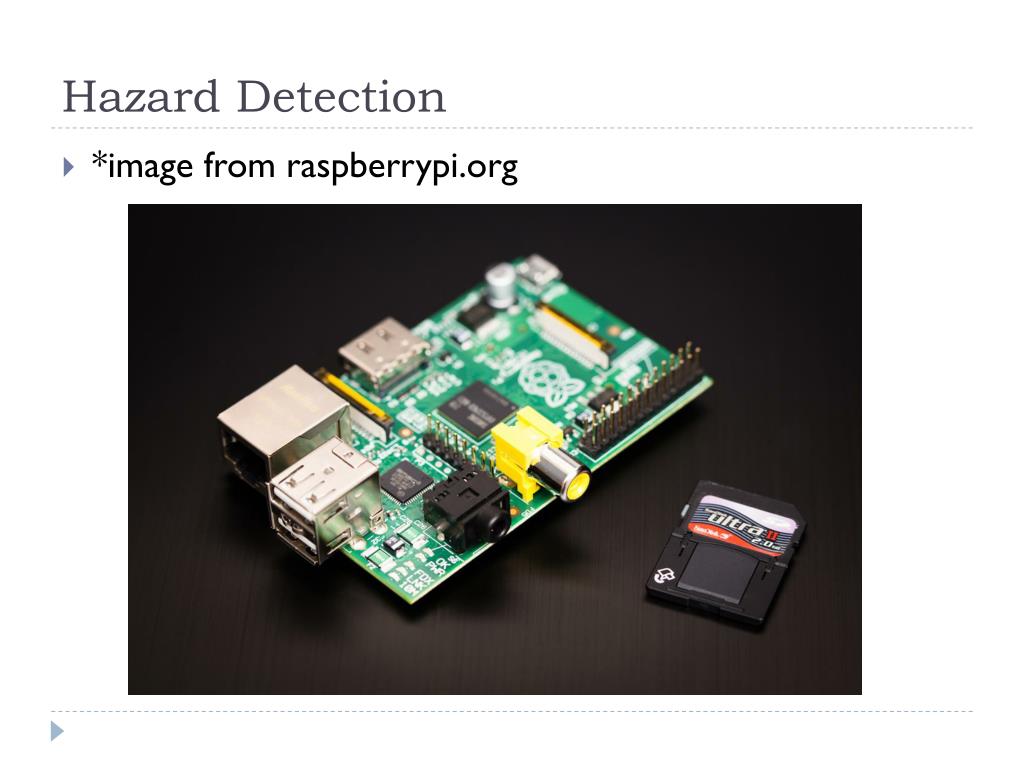

  10. Hazard Detection • *image from raspberrypi.org

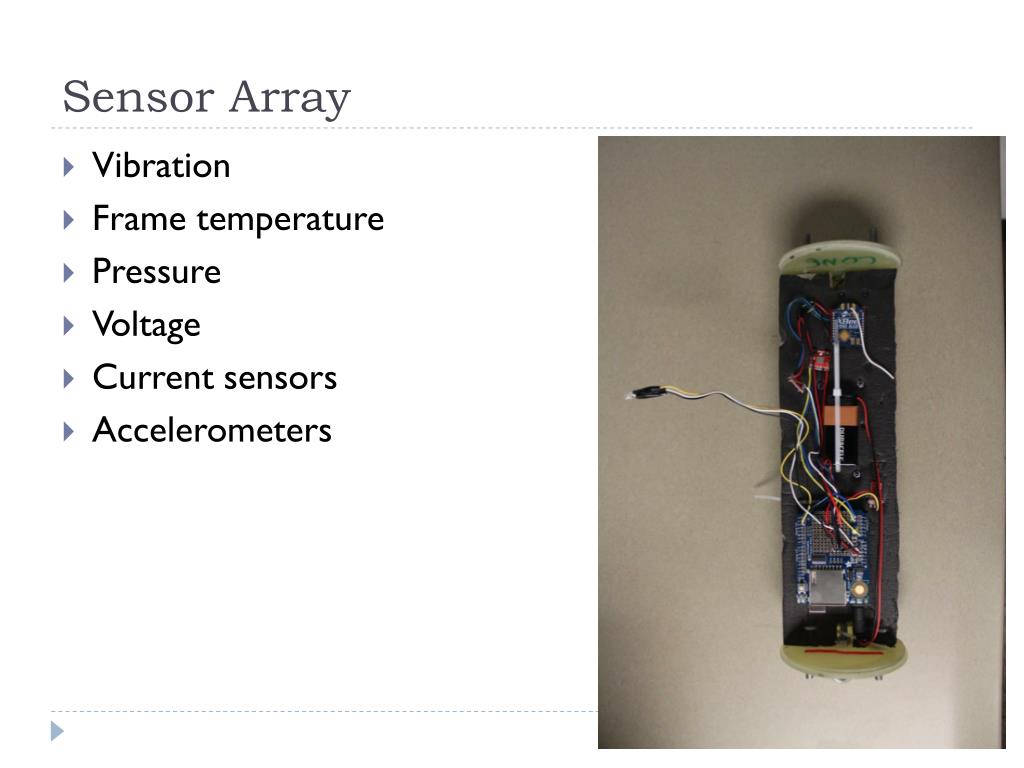

  11. Sensor Array • Vibration • Frame temperature • Pressure • Voltage • Current sensors • Accelerometers

  12. Payload Test Plan
