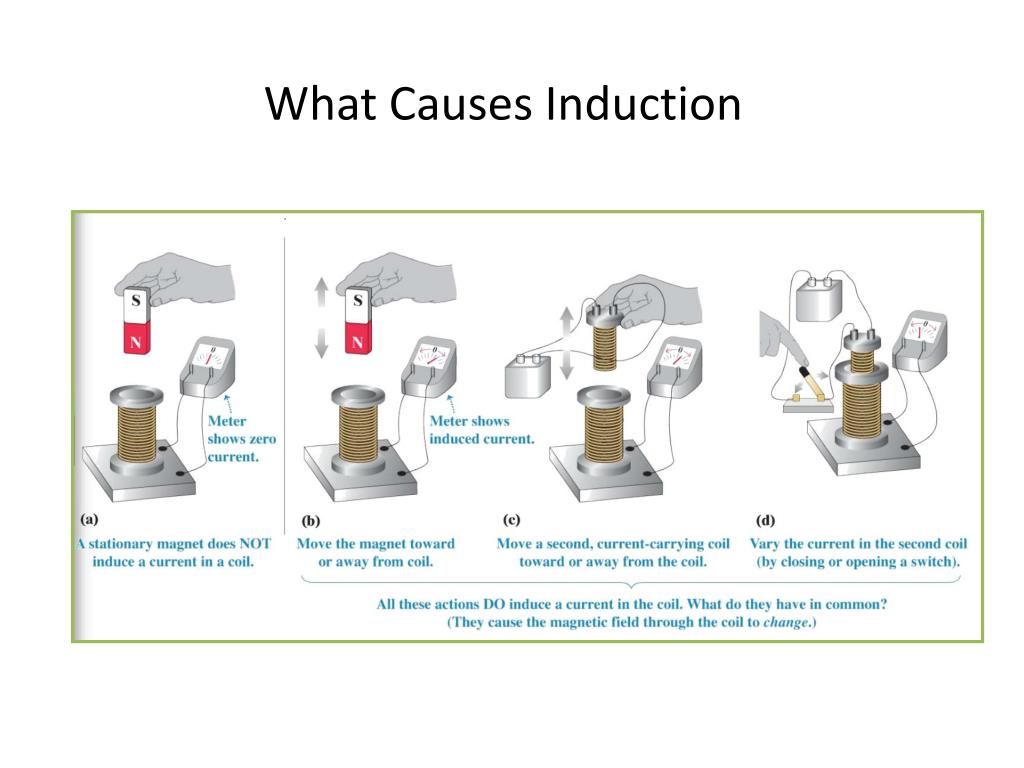

Electromagnetic Induction (EMI). AP Physics. Electromagnetic Induction (EMI). A changing magnetic field can induce a current in a circuit called the induced current . The corresponding emf that must be present to cause the current is the induced emf . What Causes Induction.

Télécharger la présentation
## Electromagnetic Induction (EMI)

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

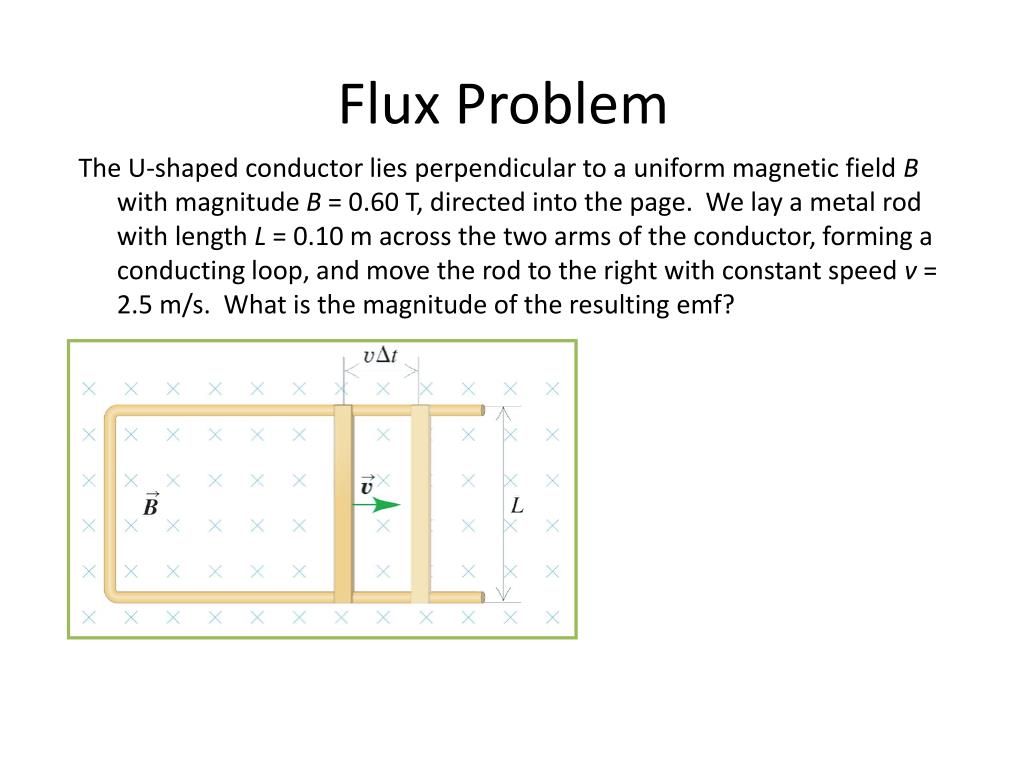

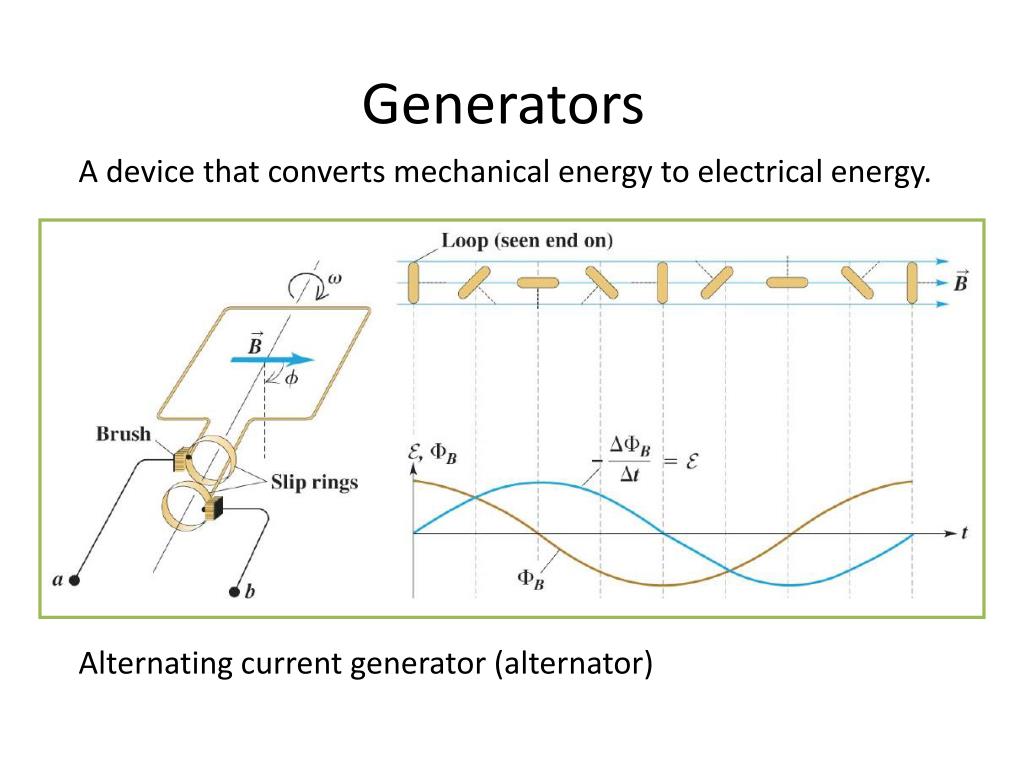

**Electromagnetic Induction(EMI)**AP Physics**Electromagnetic Induction (EMI)**A changing magnetic field can induce a current in a circuit called the induced current. The corresponding emf that must be present to cause the current is the induced emf.**Magnetic Flux (φm)**The amount of magnetic field there is in an area. (The number of magnetic field lines in an area.) Units of φm: Only the components of magnetic field that are perpendicular to the area contribute to the flux. θ**Magnetic Flux (φm)**θ θ θ**Faraday’s Law**But wait…to have induction there must be a change in the magnetic field (therefore a change in the magnetic flux)!! “The induced emf in a circuit equals the rate of change of the magnetic flux through the circuit.”**Flux Problem**The U-shaped conductor lies perpendicular to a uniform magnetic field B with magnitude B = 0.60 T, directed into the page. We lay a metal rod with length L = 0.10 m across the two arms of the conductor, forming a conducting loop, and move the rod to the right with constant speed v = 2.5 m/s. What is the magnitude of the resulting emf?**Generators**A device that converts mechanical energy to electrical energy. Alternating current generator (alternator)**Lenz’s Law**“The direction of any magnetically induced current or emf is such as to oppose the direction of the phenomena causing it.”**Lenz’s Law**Lenz’s Law requires some thinking!**Motional emf**The induced emf in a circuit equals the rate of change of the magnetic flux through the circuit.**Transformers**A device that converts voltage.**Physics Rock Band**Electromagnetic Induction is used to ROCK OUT!! • Microphones**Physics Rock Band**Electromagnetic Induction is used to ROCK OUT!! • Electric Guitar**Physics Rock Band**Electromagnetic Induction is used to ROCK OUT!! • Cassette Tapes (kickin’ it old school)
