  1. ECE 477 Demo PresentationTeam 01  Spring 2010 Mike Wei Jon Schwarz Bill Bergquist Carlo Mesina

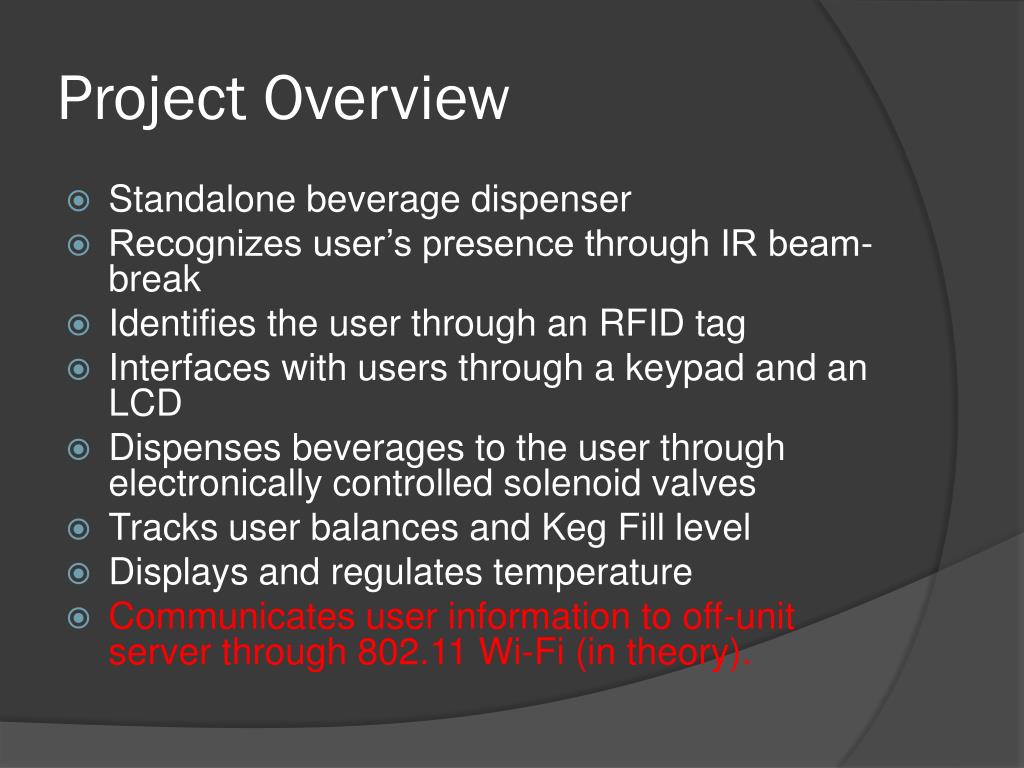

  2. Project Overview • Standalone beverage dispenser • Recognizes user’s presence through IR beam-break • Identifies the user through an RFID tag • Interfaces with users through a keypad and an LCD • Dispenses beverages to the user through electronically controlled solenoid valves • Tracks user balances and Keg Fill level • Displays and regulates temperature • Communicates user information to off-unit server through 802.11 Wi-Fi (in theory).

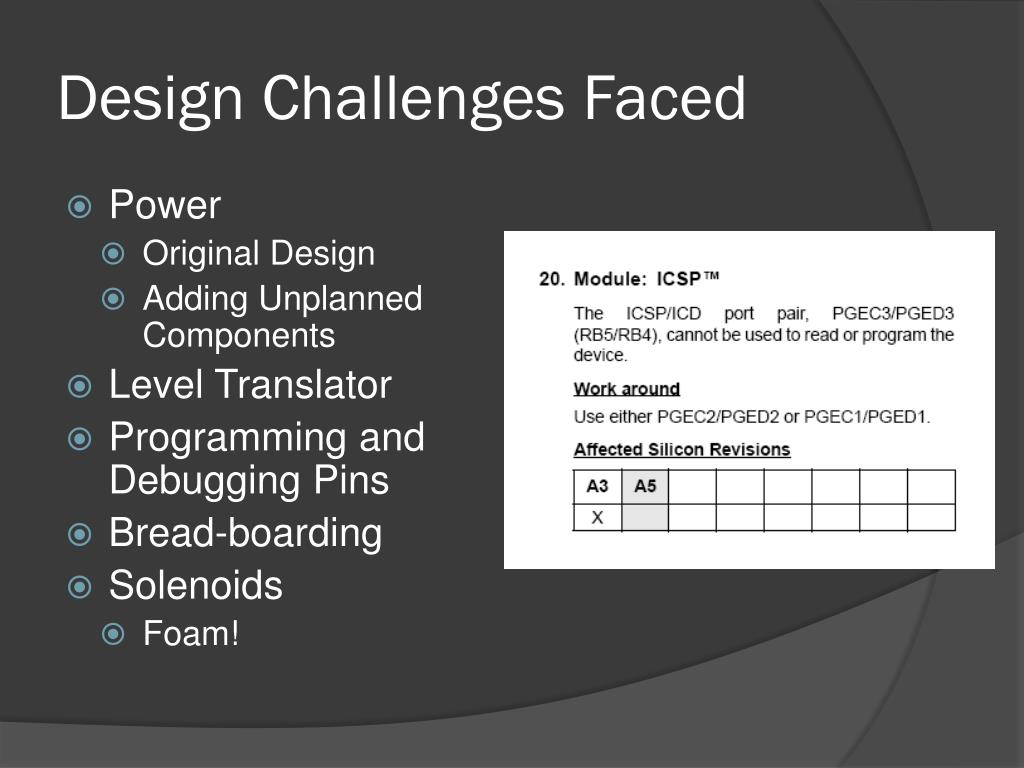

  3. Design Challenges Faced • Power • Original Design • Adding Unplanned Components • Level Translator • Programming and Debugging Pins • Bread-boarding • Solenoids • Foam!

  4. Video • http://www.youtube.com/watch?v=6ikUSsLE7kQ
