Vehicle Diagnostic Scan Tool: Step-by-Step Guide for Heavy Duty Vehicle Connection

This guide outlines the process of performing diagnostic scans using a vehicle scan tool for heavy-duty vehicles. Begin by selecting the appropriate scan diagnostics option and vehicle type. Navigate to "USA Heavy Duty Standard," then to the "9-Pin Deutsch" connector. Confirm the connector selection and choose the equipped SAE J1939/CAN controller. Next, select "Engine" for testing and connect the correct cable to the vehicle. After hooking up the cable and turning the ignition on, press the "Demo" soft key for training purposes.

kalli
Télécharger la présentation

Vehicle Diagnostic Scan Tool: Step-by-Step Guide for Heavy Duty Vehicle Connection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vehicle Data Entry

  2. To perform Scan Tool functions scroll to Scan Diagnostics and press Enter Enter Scroll to Scan Diagnostics

  3. Scroll to the vehicle type you are working with and press Enter Enter Scroll to USA Heavy Duty Standard

  4. Scroll to the type Vehicle Connector, 9 – Pin Deutsch Enter Scroll to 9-Pin Deutsch

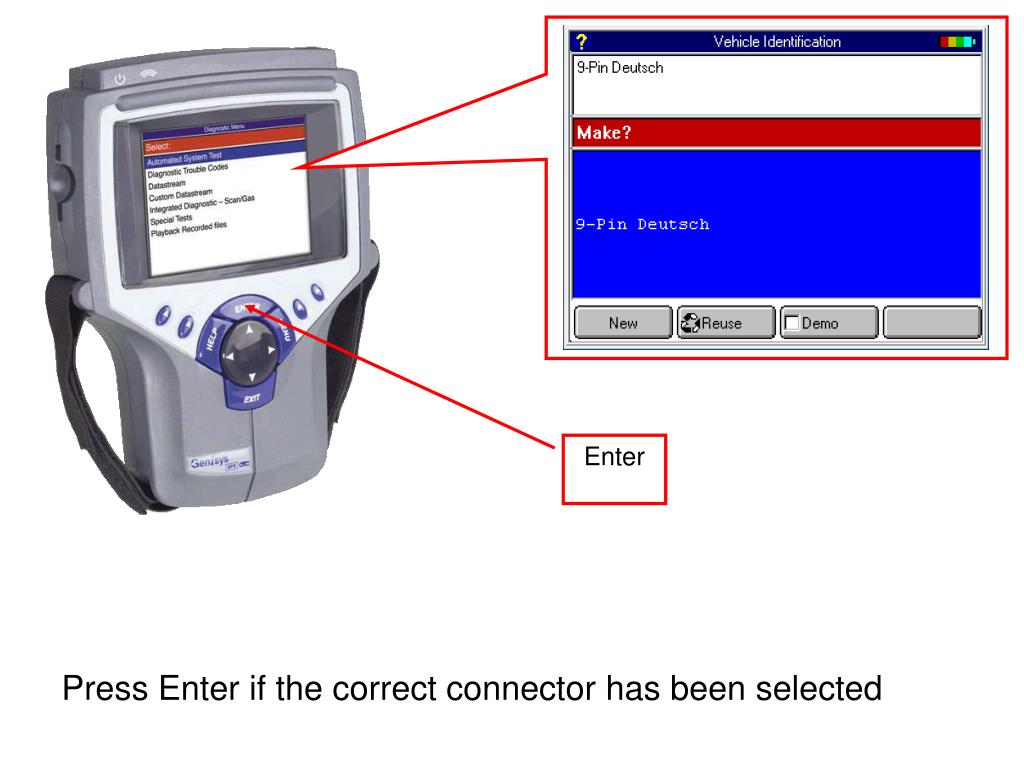

  5. Press Enter if the correct connector has been selected Enter

  6. Select the controller the vehicle is equipped with, scroll to SAE J1939/CAN controller Enter Scroll to SAE J1939/CAN

  7. Select the Computer you wish to test, scroll to Engine and press Enter Enter Scroll to Engine

  8. Select the correct cable to hook to the Vehicle, hook up the cable, turn the ignition key on

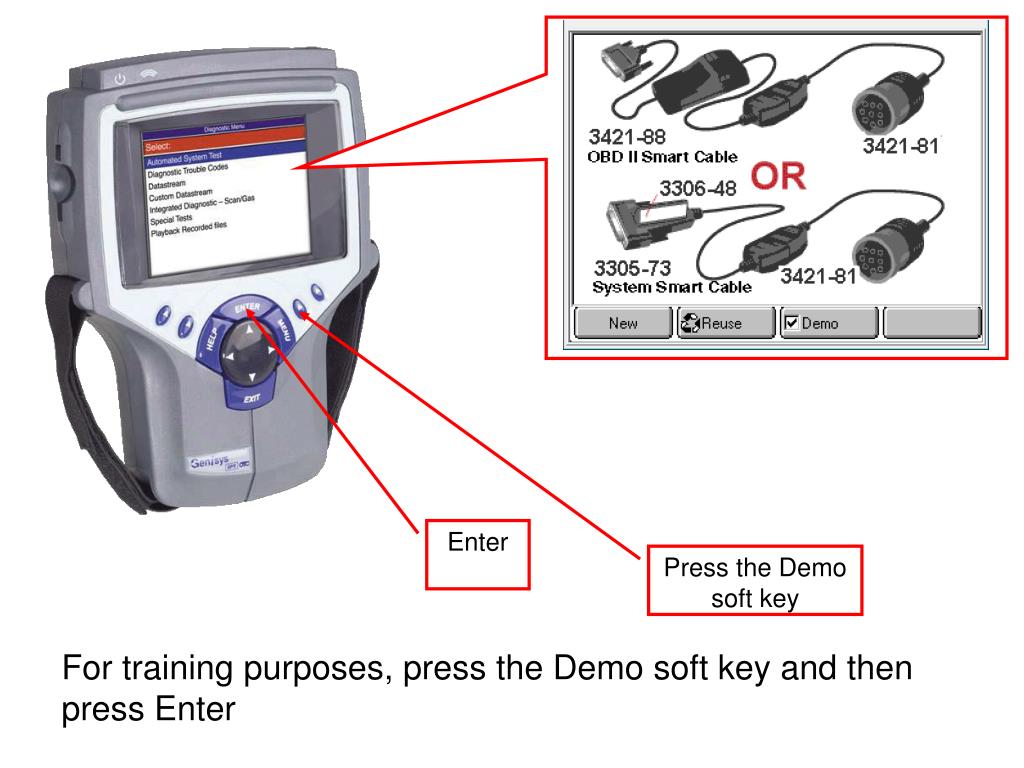

  9. For training purposes, press the Demo soft key and then press Enter Enter Press the Demo soft key
