Building Your Dev and Test Sandbox with Windows Azure Infrastructure Services

2. Building Your Dev and Test Sandbox with Windows Azure Infrastructure Services Drew McDaniel Senior Program Manager Lead 3-556

3. Agenda • Windows Azure Compute • Drill-down on Infrastructure Services • Automation Options • Advanced Networking Options • Azure as your Sandbox

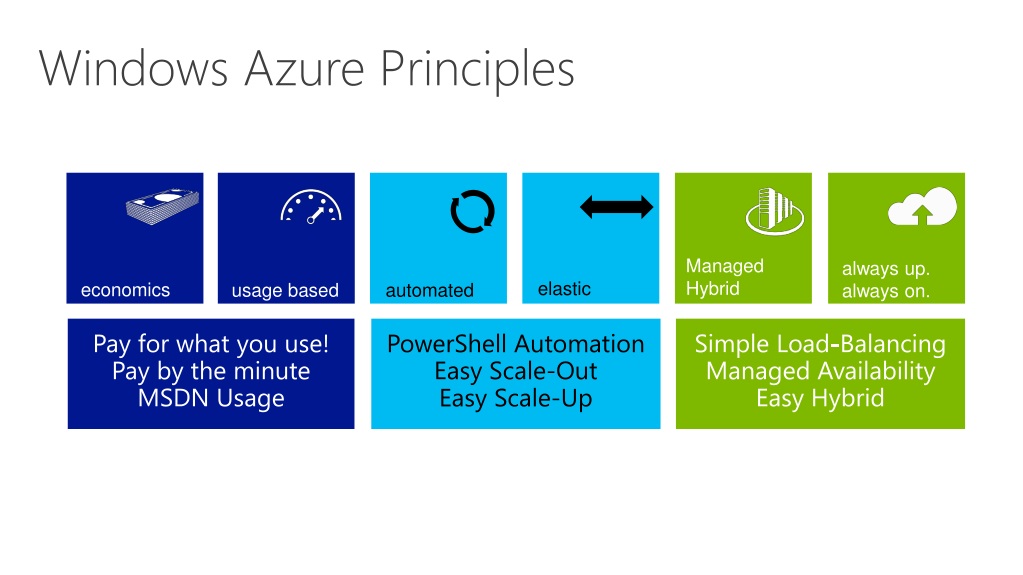

4. Windows Azure Principles Managed Hybrid always up. always on. elastic economics usage based automated Pay for what you use! Pay by the minute MSDN Usage PowerShell Automation Easy Scale-Out Easy Scale-Up Simple Load-Balancing Managed Availability Easy Hybrid

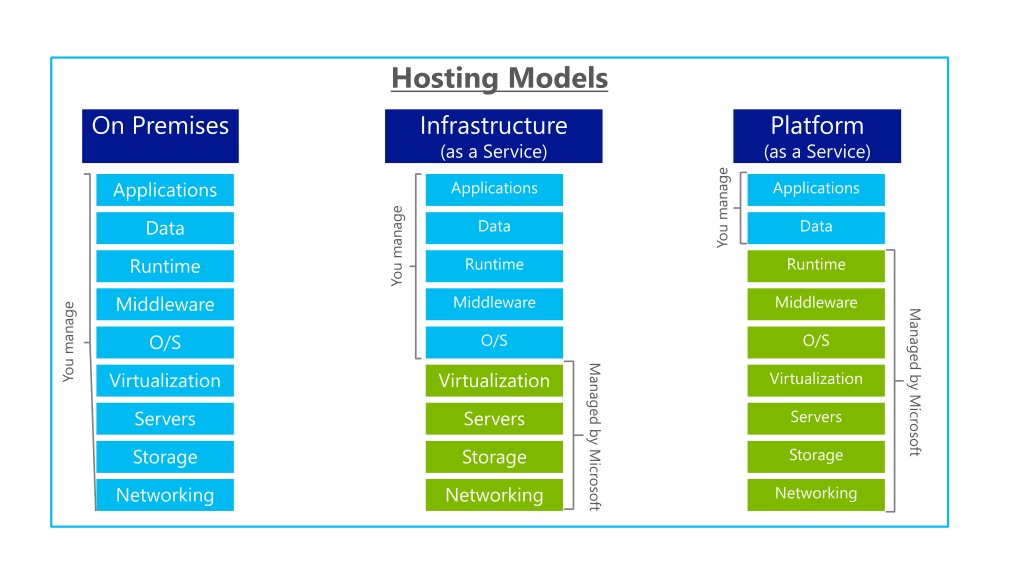

5. Hosting Models • Infrastructure • (as a Service) • Platform • (as a Service) • On Premises • You manage Applications Applications Applications • You manage Data Data Data Runtime Runtime Runtime Middleware Middleware • Managed by Microsoft Middleware • You manage O/S O/S O/S • Managed by Microsoft Virtualization Virtualization Virtualization Servers Servers Servers Storage Storage Storage Networking Networking Networking

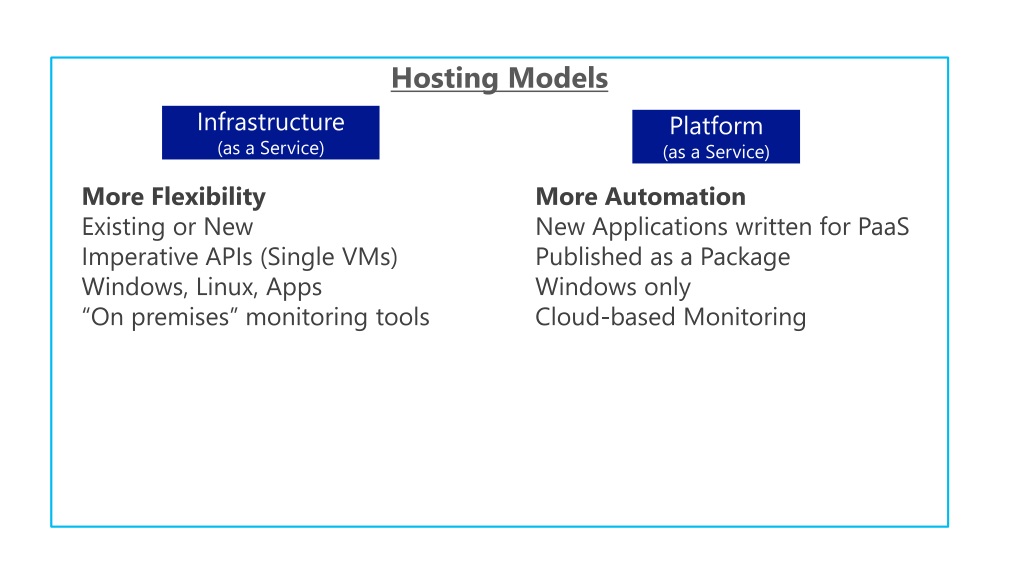

6. Hosting Models • Infrastructure • (as a Service) • Platform • (as a Service) • More Flexibility • Existing or New • Imperative APIs (Single VMs) • Windows, Linux, Apps • “On premises” monitoring tools • More Automation • New Applications written for PaaS • Published as a Package • Windows only • Cloud-based Monitoring

7. Infrastructure Services on Windows Azure • IT Pro experience

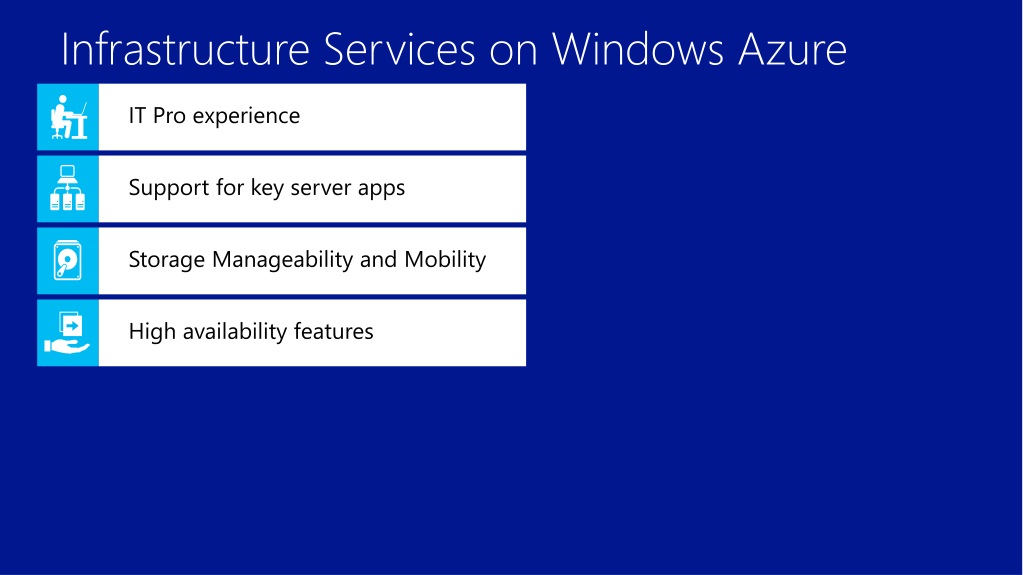

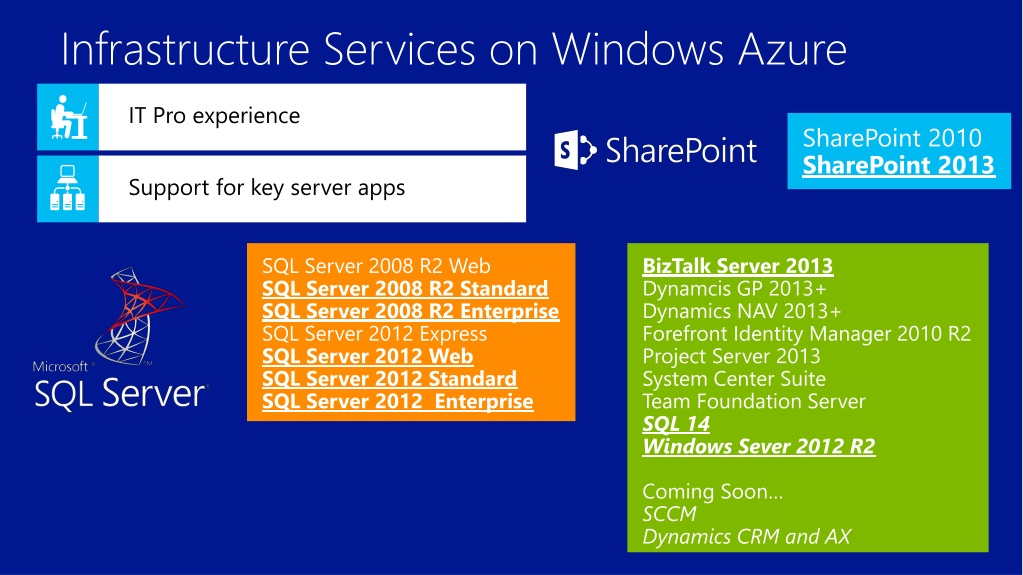

8. Infrastructure Services on Windows Azure • IT Pro experience SharePoint 2010 SharePoint 2013 • Support for key server apps SQL Server 2008 R2 Web SQL Server 2008 R2 Standard SQL Server 2008 R2 Enterprise SQL Server 2012 Express SQL Server 2012 Web SQL Server 2012 Standard SQL Server 2012 Enterprise BizTalk Server 2013 Dynamcis GP 2013+ Dynamics NAV 2013+ Forefront Identity Manager 2010 R2 Project Server 2013 System Center Suite Team Foundation Server SQL 14 Windows Sever 2012 R2 Coming Soon… SCCM Dynamics CRM and AX

9. Infrastructure Services on Windows Azure Windows Azure • IT Pro experience • Support for key server apps • Storage Manageability and Mobility Windows Server 2012 Your Data Center

10. Demo: VM Snapshot and Restore

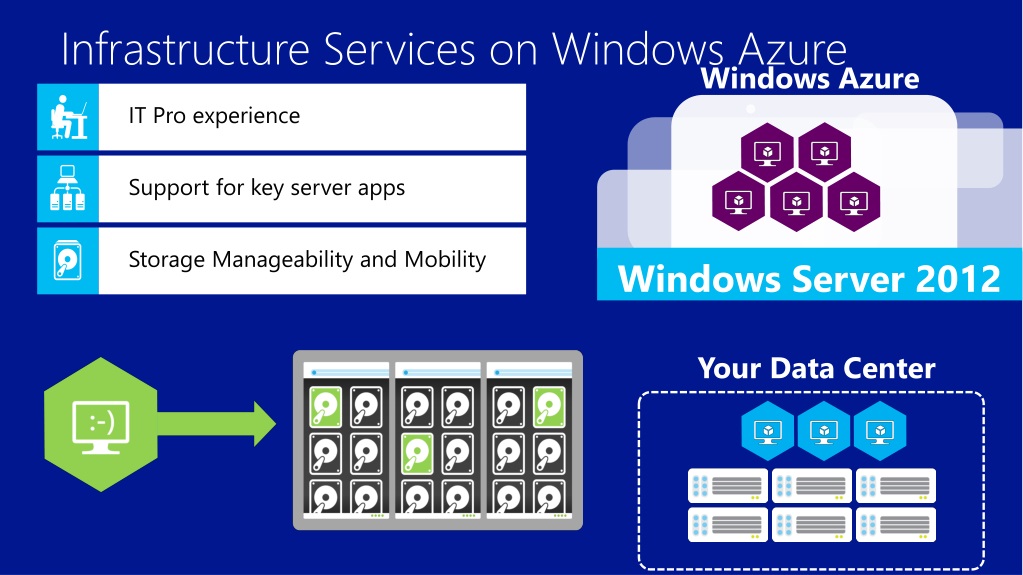

11. Infrastructure Services on Windows Azure • IT Pro experience • Support for key server apps • Storage Manageability and Mobility • High availability features

12. High availability features Physical Machines Power Unit Rack Switch

13. High availability features Load Balancer Load-Balanced Set Physical Machines Power Unit Rack Switch VM1 VM2 VM2 VM1 Availability Set Availability SLA: 99.95%

14. Economics of Azure

15. True cloud economics. Pay by the minute! No minimums. No rounding-up. $ 60 45 30 15 Virtual Machines

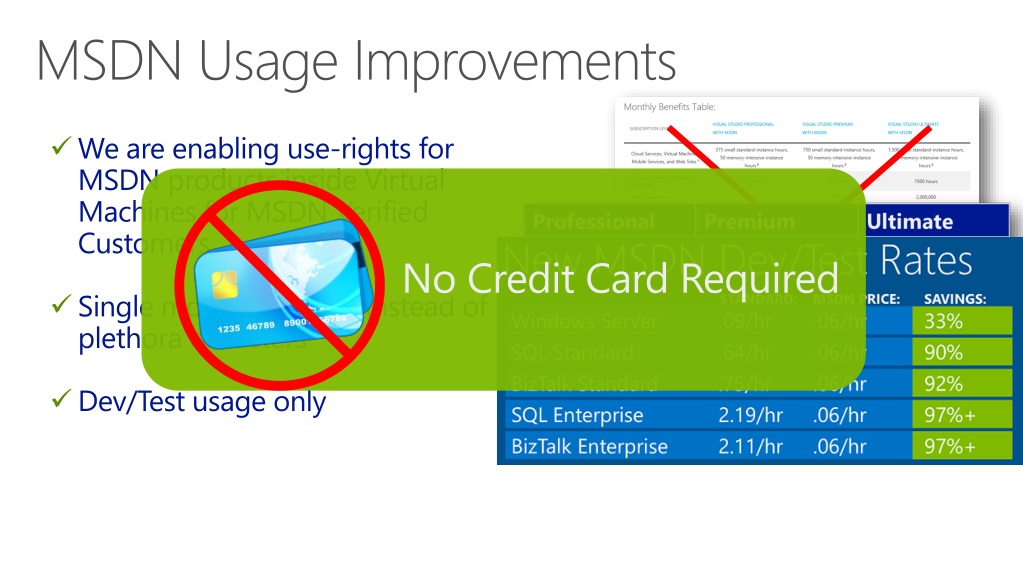

16. MSDN Usage Improvements • We are enabling use-rights for MSDN products inside Virtual Machines for MSDN Verified Customers • Single monetary credit instead of plethora of meters • Dev/Test usage only No Credit Card Required

17. Demo: VM Images in MSDN Subscription

18. SharePoint 2013 Automated Deployment

19. SharePoint 2013 Automation Scripts • Complex, multi-machine deployments through scripting • PowerShell automation for each tier • Active Directory, SQL Server and SharePoint • Two Sample Configurations Available • SingleVMs and HighlyAvailable • Download from GitHub • https://github.com/windowsazure/azure-sdk-tools-samples

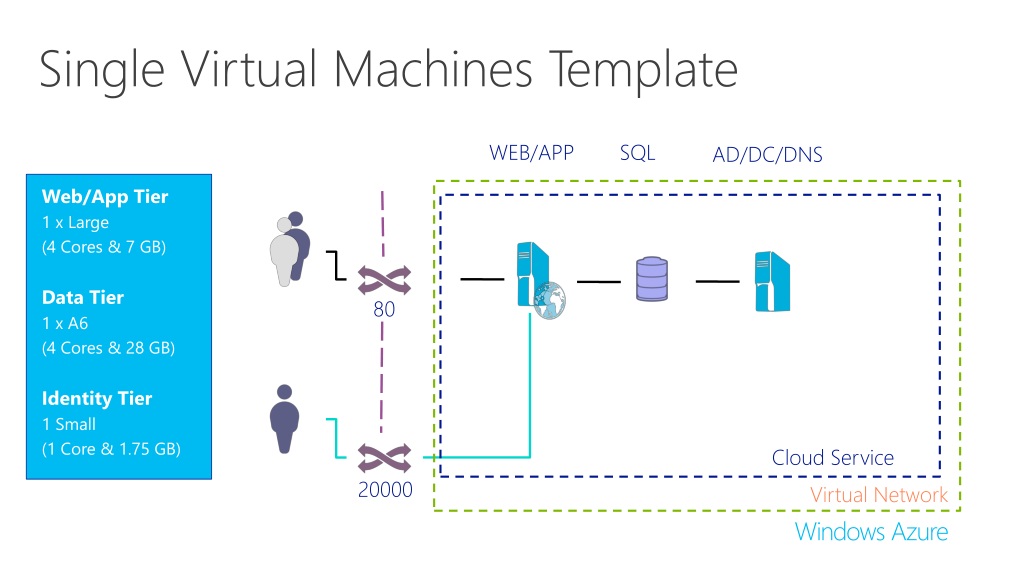

20. Single Virtual Machines Template WEB/APP SQL AD/DC/DNS LB Web/App Tier 1 x Large (4 Cores & 7 GB) Data Tier 1 x A6 (4 Cores & 28 GB) Identity Tier 1 Small (1 Core & 1.75 GB) 80 Cloud Service 20000 Virtual Network Windows Azure Windows Azure

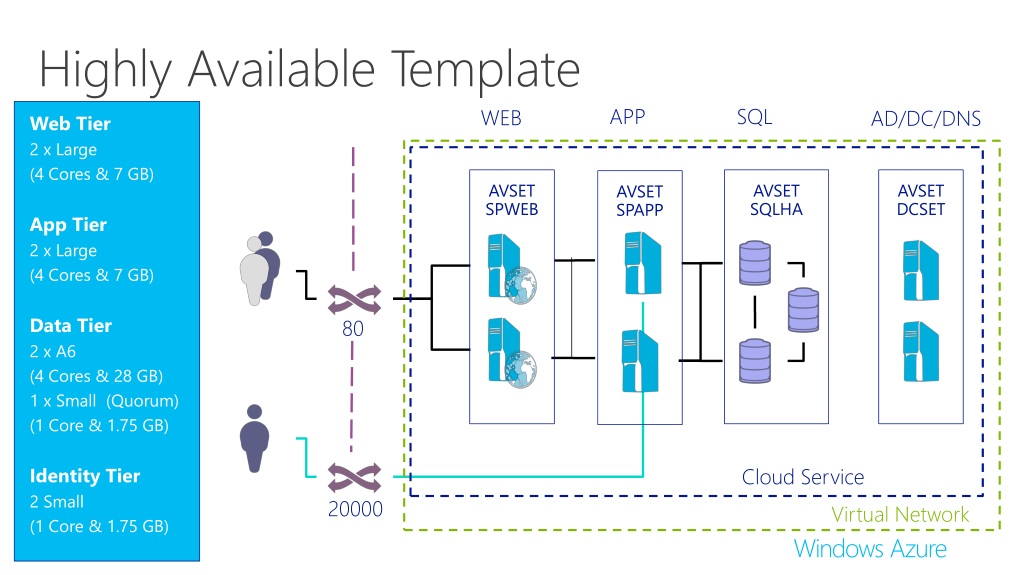

21. Highly Available Template Web Tier 2 x Large (4 Cores & 7 GB) App Tier 2 x Large (4 Cores & 7 GB) Data Tier 2 x A6 (4 Cores & 28 GB) 1 x Small (Quorum) (1 Core & 1.75 GB) Identity Tier 2 Small (1 Core & 1.75 GB) APP SQL WEB AD/DC/DNS LB AVSET SPWEB AVSET SQLHA AVSET DCSET AVSET SPAPP 80 Cloud Service 20000 Virtual Network Windows Azure

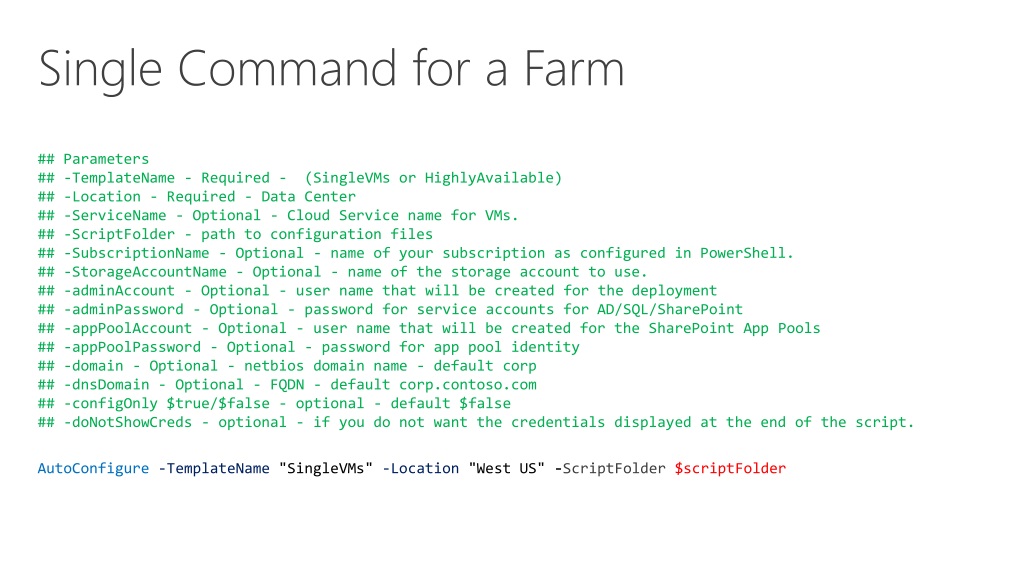

22. Single Command for a Farm • ## Parameters • ## -TemplateName - Required - (SingleVMs or HighlyAvailable) • ## -Location - Required - Data Center • ## -ServiceName - Optional - Cloud Service name for VMs. • ## -ScriptFolder - path to configuration files • ## -SubscriptionName - Optional - name of your subscription as configured in PowerShell. • ## -StorageAccountName - Optional - name of the storage account to use. • ## -adminAccount - Optional - user name that will be created for the deployment • ## -adminPassword - Optional - password for service accounts for AD/SQL/SharePoint • ## -appPoolAccount - Optional - user name that will be created for the SharePoint App Pools • ## -appPoolPassword - Optional - password for app pool identity • ## -domain - Optional - netbios domain name - default corp • ## -dnsDomain - Optional - FQDN - default corp.contoso.com • ## -configOnly $true/$false - optional - default $false • ## -doNotShowCreds - optional - if you do not want the credentials displayed at the end of the script. • AutoConfigure-TemplateName"SingleVMs" -Location "West US" -ScriptFolder$scriptFolder

23. Scripts Structure • Configuration File • XML File • User-defined or auto-generated settings • Script for each tier • Used to deploy VMs and data disks • VM Configuration • Remote PowerShell scripts to configure each VM

24. Demo: SharePoint Application

25. Dev/Test with Point-to-Site Virtual Networks

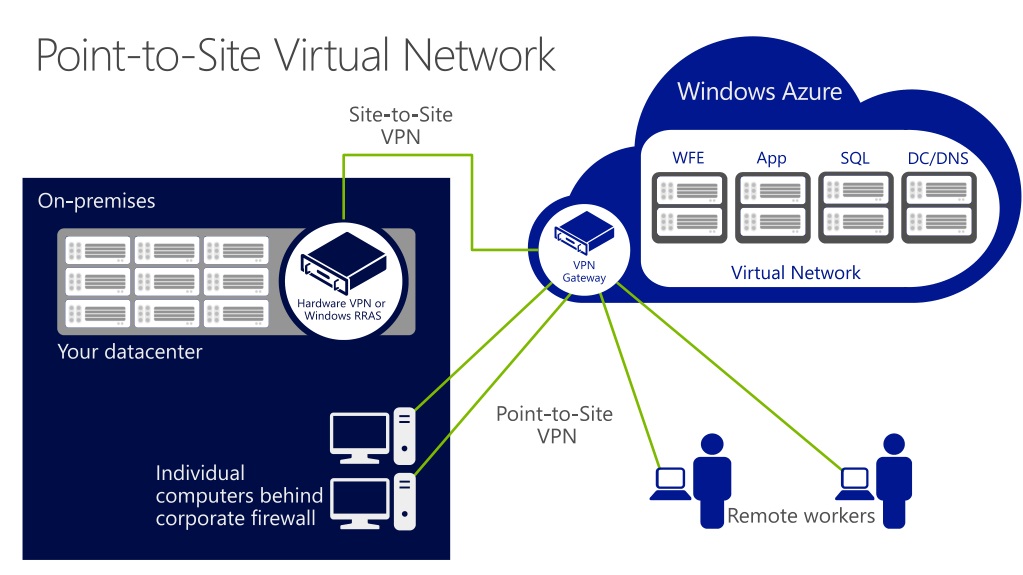

26. Point-to-Site Virtual Network Windows Azure Site-to-SiteVPN Virtual Network WFE App SQL DC/DNS On-premises VPN Gateway VPN Gateway Hardware VPN or Windows RRAS Your datacenter Point-to-Site VPN Individual computers behind corporate firewall Remote workers

27. Demo: Testing with Point-to-Site VNet

28. In Summary

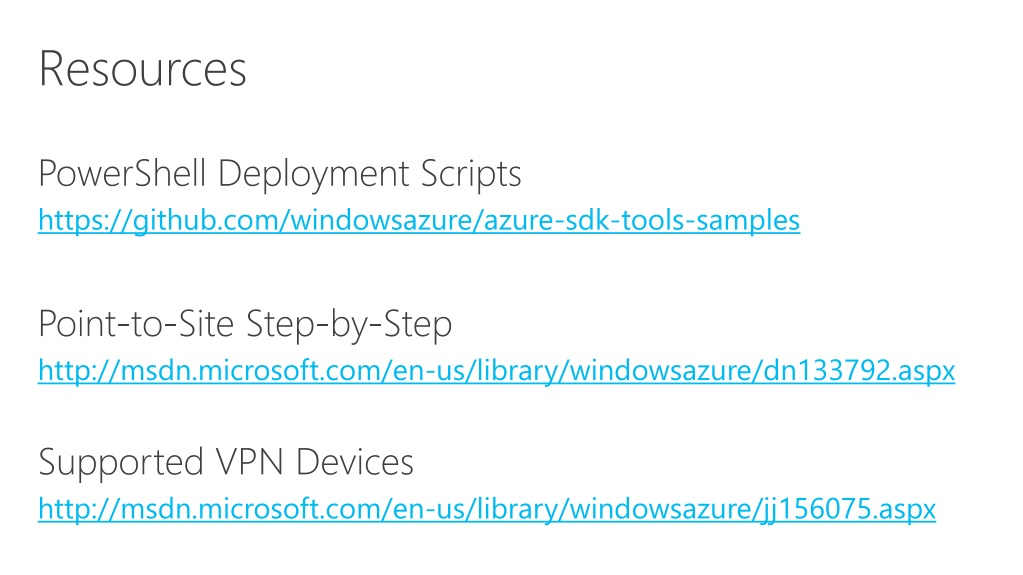

29. Resources • PowerShell Deployment Scripts • https://github.com/windowsazure/azure-sdk-tools-samples • Point-to-Site Step-by-Step • http://msdn.microsoft.com/en-us/library/windowsazure/dn133792.aspx • Supported VPN Devices • http://msdn.microsoft.com/en-us/library/windowsazure/jj156075.aspx
