Analysis of Global IPv6 Deployment: Results from 2012 Survey of RIR Community

The 2012 Global IPv6 Deployment Survey, conducted by GNKS in collaboration with the world's Regional Internet Registries (RIRs), aimed to gauge current IPv6 penetration and future deployment plans among Internet Service Providers (ISPs) and users. Key findings include that 77% of respondents reported some IPv6 presence in their networks, marking a significant shift towards active usage rather than just preparedness. The survey highlighted the challenges faced by organizations in implementing IPv6 and the growing significance of IPv6 traffic in comparison to IPv4.

kalyca
Télécharger la présentation

Analysis of Global IPv6 Deployment: Results from 2012 Survey of RIR Community

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. IPv6 Deployment Survey Based on responses from the global Regional Internet Registry (RIR) community during June 2012 - Maarten Botterman maarten@gnksconsult.com For the RIPE 65 meeting in Amsterdam on 27 September 2012 rev1

  2. IPv6 is becomingrealitynow Mainconclusion of the 2012 survey

  3. Global IPv6 Deployment Monitoring Survey • Aim is to establish the best possible comprehensive view of present IPv6 penetration and future plans of IPv6 deployment • Best way to establish this is to ask the Internet providers and users, basically: the RIR communities around the world • ARIN carried out such a survey with its members in March 2008, a starting point for the currently proposed survey • RIPE NCC and APNIC carried out this same survey in 2009. In 2010, 2011 and 2012, all RIRs participated to the survey making it truly global: • Survey was prepared and carried out by GNKS in close collaboration with RIPE AFRINIC, APNIC, ARIN, LACNIC and RIPE NCC • Survey was kept short and focused on essentials. Changes to the survey were kept to a minimum and are taken into account in the analysis • Privacy is guaranteed • Every year, the last question is whether the survey should take place again next year. In 2009, 2010, 2011 and 2012 more than 90% of the respondents said “yes” IPv6 deployment monitoring

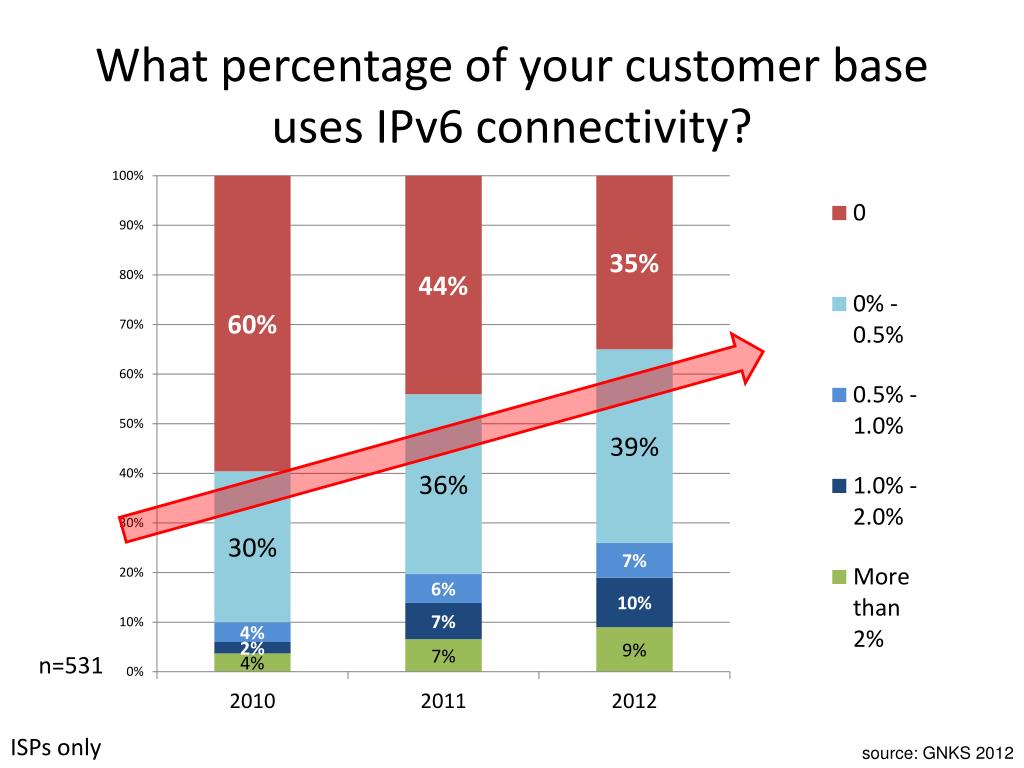

  4. What percentage of your customer base uses IPv6 connectivity? n=531 ISPs only source: GNKS 2012

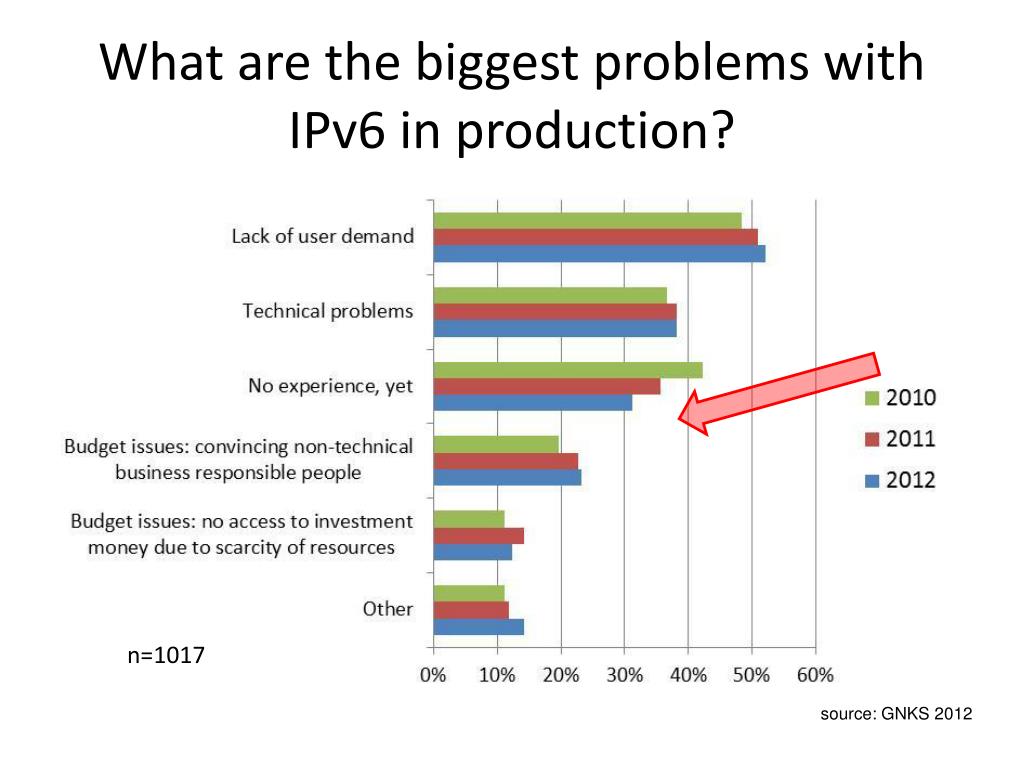

  5. What are the biggest problems with IPv6 in production? n=1017 source: GNKS 2012

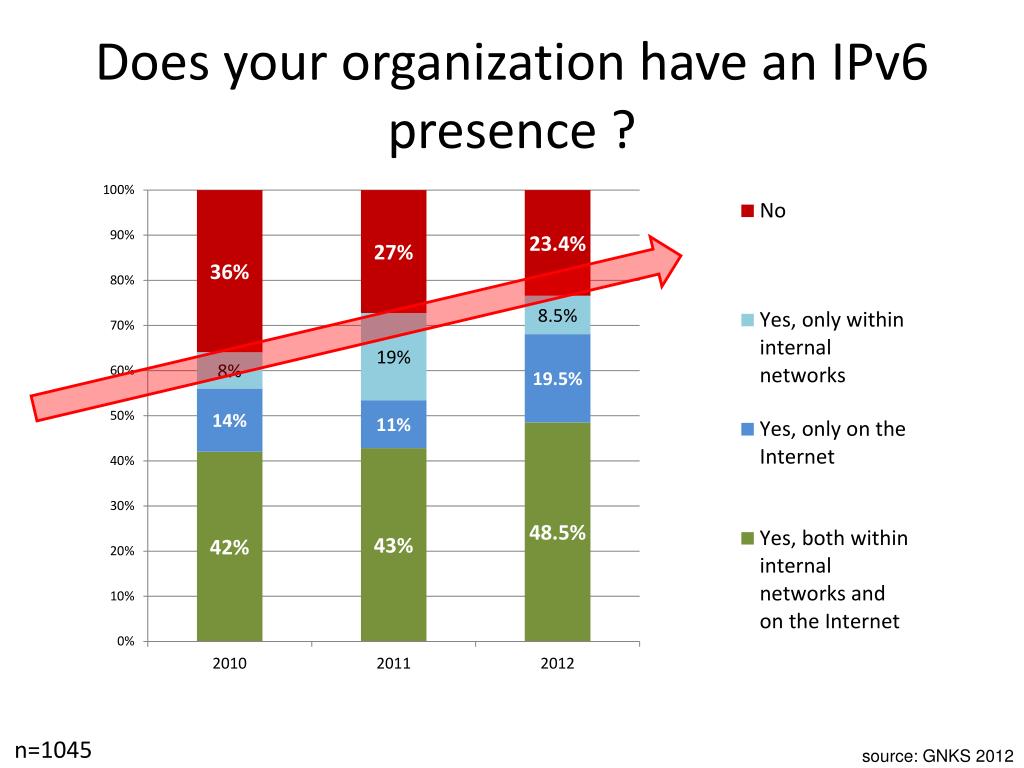

  6. Does your organization have an IPv6 presence ? n=1045 source: GNKS 2012

  7. If your organization has IPv6 in production, how does the amount of IPv6 traffic compare to your IPv4 traffic? n=919 source: GNKS 2012

  8. If your organisation is connected to one or several Internet Exchanges (IXs), do you: n=552 source: GNKS 2012 These answers are givenby the 55% of the 1104 respondents, whoindicatedtoconnecttoIXs.

  9. On Large Scale NAT (LSN aka CGN (Carrier Grade NAT): n=969 source: GNKS 2012

  10. Which best describes your organization’s IPv6 implementation (plans)? 2010 2011 2012 source: GNKS 2012

  11. MainConclusion Survey 2012 • 77% of respondents have some level of IPv6 presence today • 73% in 2011 • 64% in 2010 • 32% of responding ISPs indicate that IPv6 traffic is now “significant” • 22% in 2011 • 19% in 2010 • The survey findings confirm that emphasis shifts from “IPv6 preparedness” to real IPv6 usage now source: GNKS 2012

  12. The 2012 Global IPv6 Deployment survey was made possible by the Number Resource Organisation We thank all respondents for their contributions ! 91% of the respondents to the question “Would you be interested to participate again to this survey in a years’ time” said: “Yes” For more information: maarten@gnksconsult.com 30

  13. Background slides

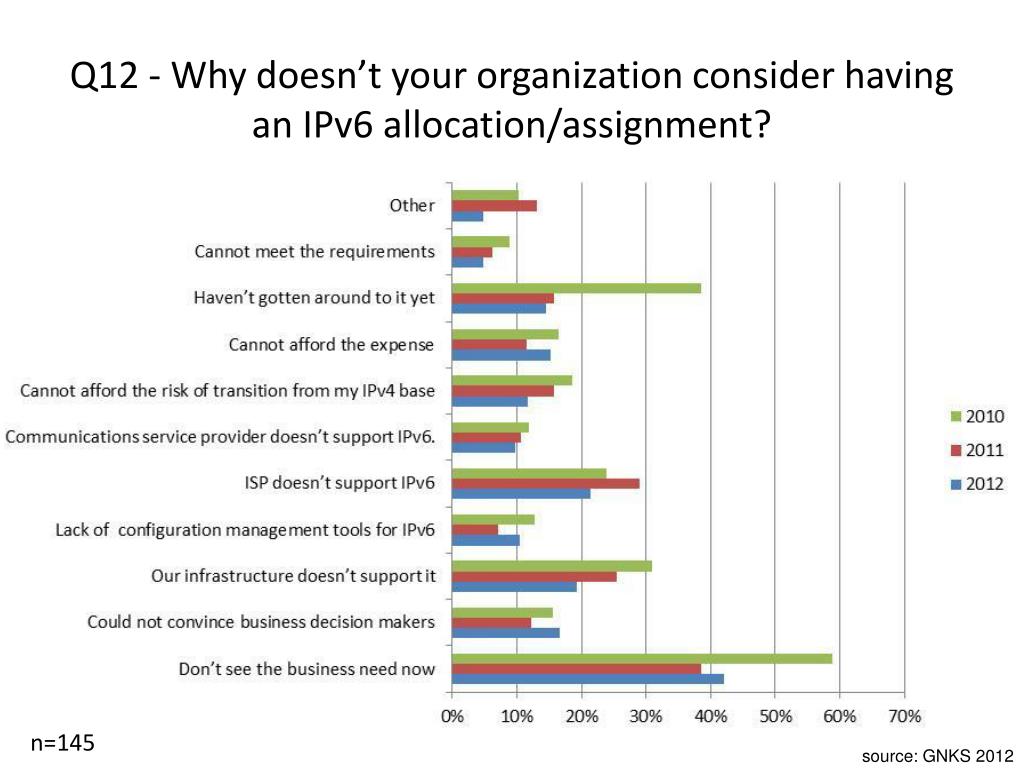

  14. Q12 - Why doesn’t your organization consider having an IPv6 allocation/assignment? n=145 source: GNKS 2012

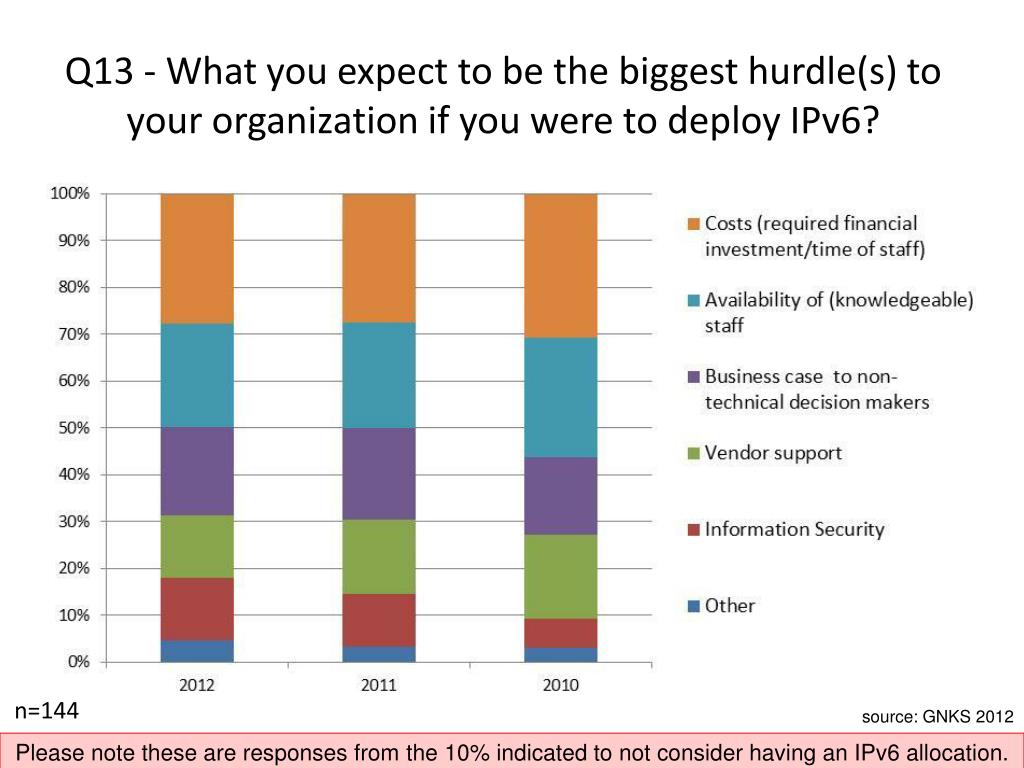

  15. Q13 - What you expect to be the biggest hurdle(s) to your organization if you were to deploy IPv6? n=144 source: GNKS 2012 Please note these are responses from the 10% indicated to not consider having anIPv6 allocation.

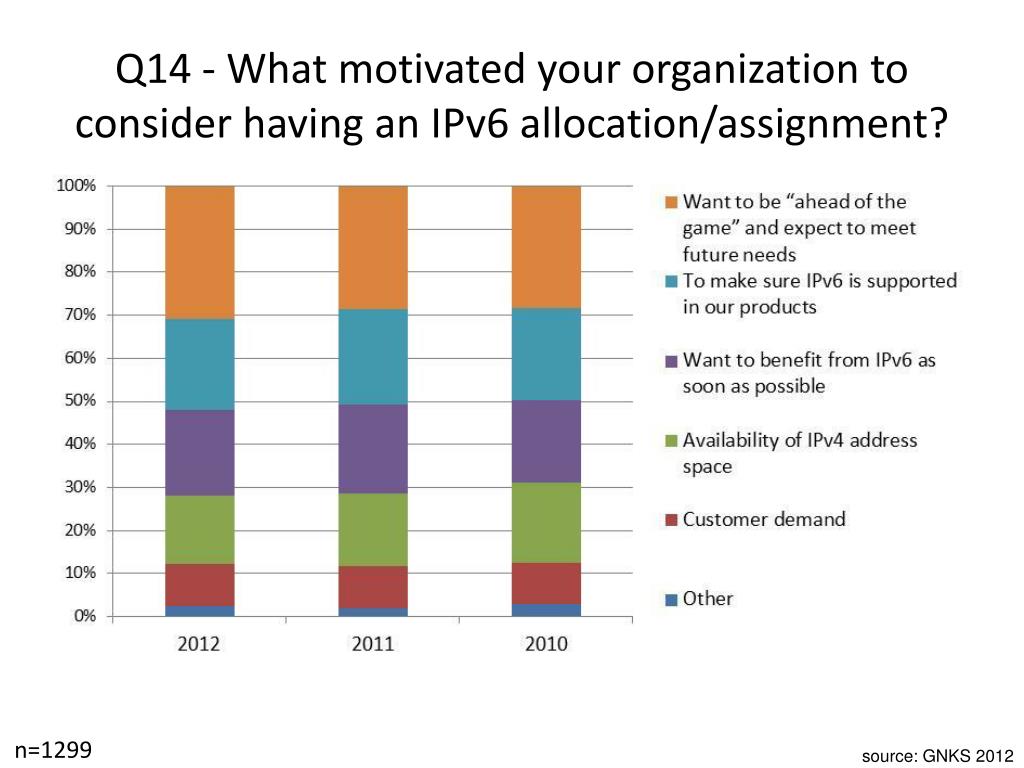

  16. Q14 - What motivated your organization to consider having an IPv6 allocation/assignment? n=1299 source: GNKS 2012

  17. Q17 - What are likely to be the biggest hurdle(s) when deploying IPv6? n=1025 source: GNKS 2012

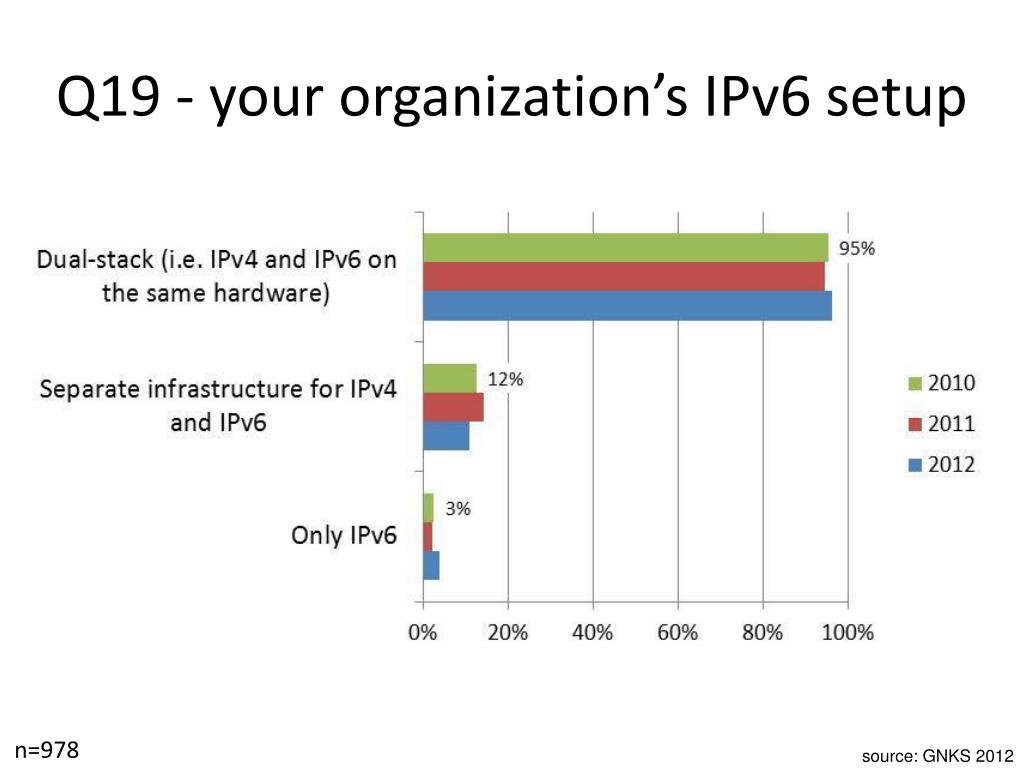

  18. Q19 - your organization’s IPv6 setup n=978 source: GNKS 2012

  19. Q20 - nature of your organization’s IPv6 production services n=919 source: GNKS 2012
