  1. XINFO The IT Information System TWS z/OS HORIZONT Software for Datacenters Garmischer Str. 8 D- 80339 München Tel ++49(0)89 / 540 162 - 0www.horizont-it.com

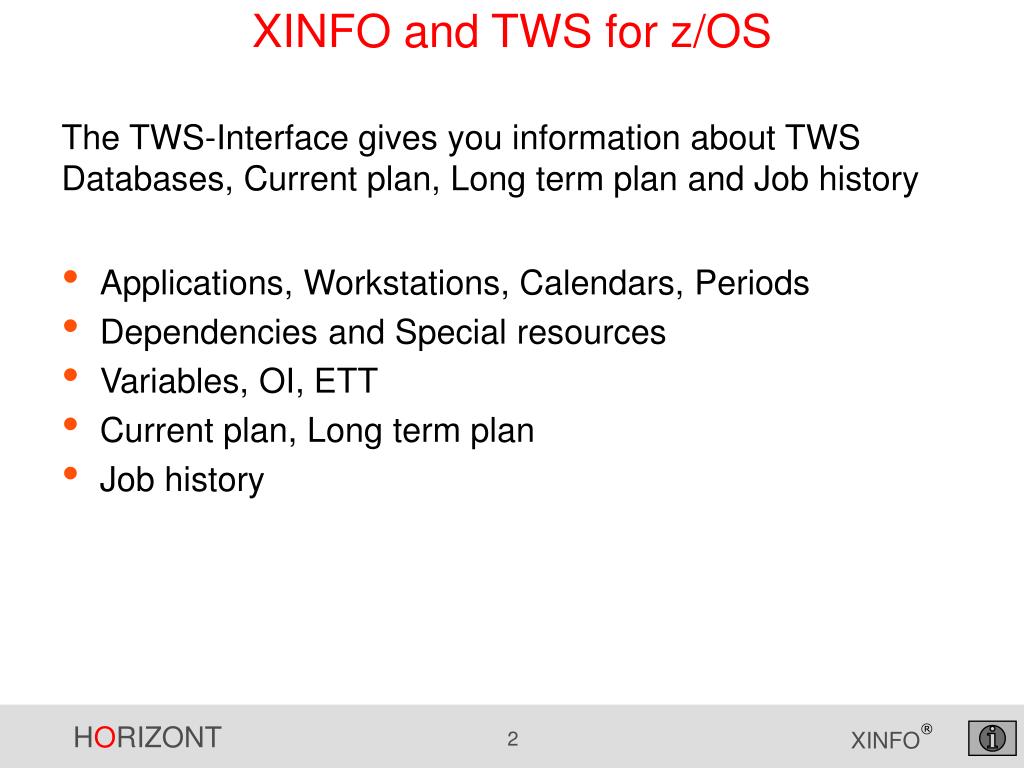

  2. XINFO and TWS for z/OS The TWS-Interface gives you information about TWS Databases, Current plan, Long term plan and Job history • Applications, Workstations, Calendars, Periods • Dependencies and Special resources • Variables, OI, ETT • Current plan, Long term plan • Job history

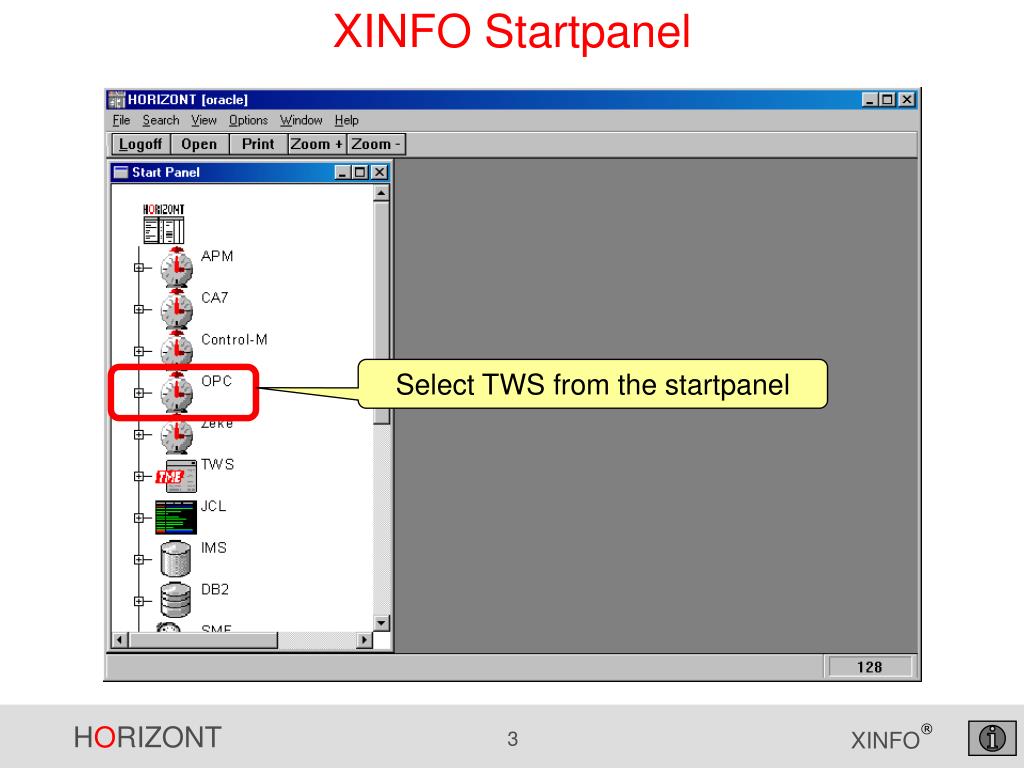

  3. XINFO Startpanel Select TWS from the startpanel

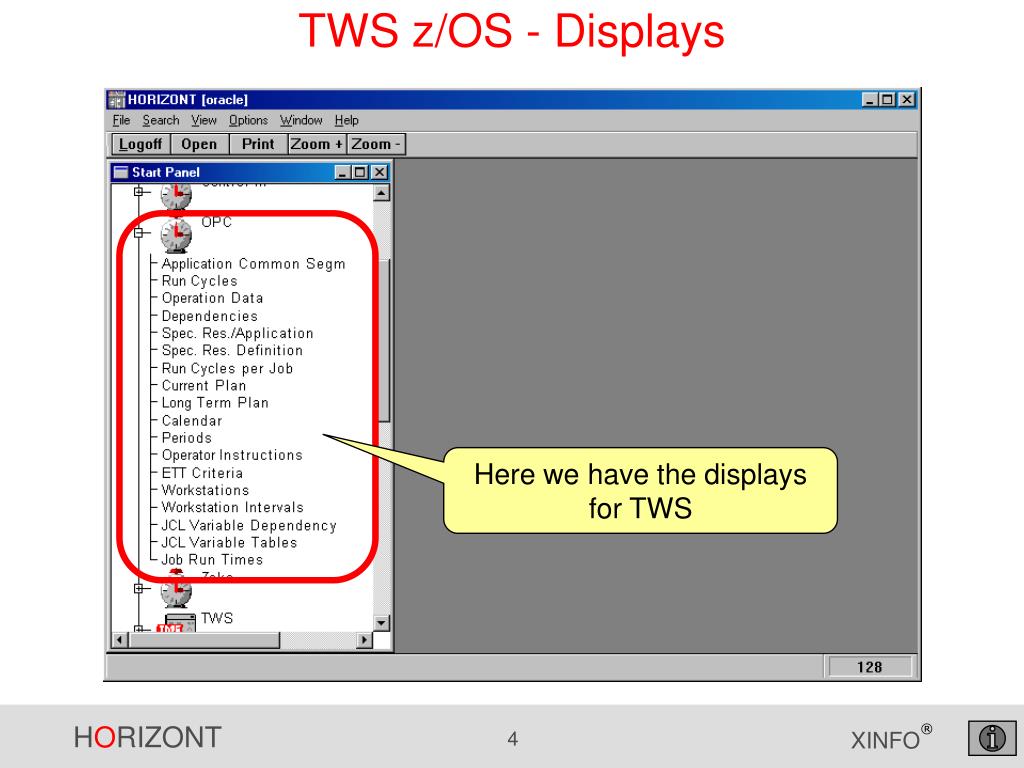

  4. TWS z/OS - Displays Here we have the displays for TWS

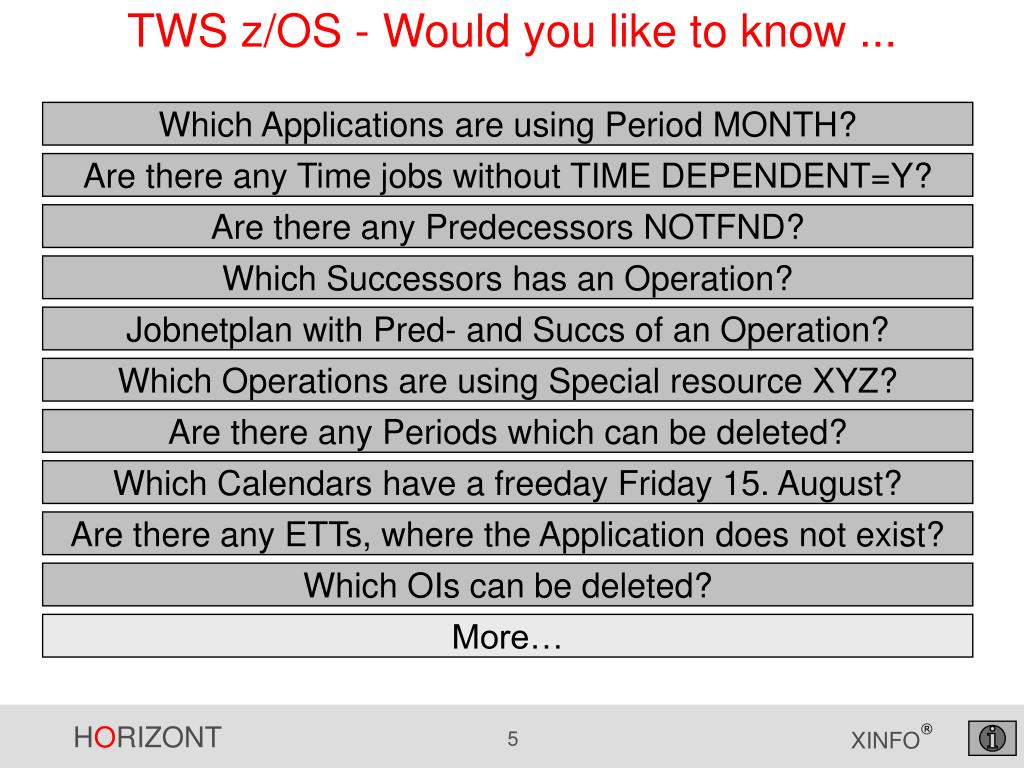

  5. TWS z/OS - Would you like to know ... Which Applications are using Period MONTH? Are there any Time jobs without TIME DEPENDENT=Y? Are there any Predecessors NOTFND? Which Successors has an Operation? Jobnetplan with Pred- and Succs of an Operation? Which Operations are using Special resource XYZ? Are there any Periods which can be deleted? Which Calendars have a freeday Friday 15. August? Are there any ETTs, where the Application does not exist? Which OIs can be deleted? More…

  6. TWS z/OS - Would you like to know ... Are there any manual modifications in the LTP? Which Operations are planned between 01:00 and 02:00? Which Operations did abend last July? Generate Batchloader statements

  7. TWS z/OS - Search for Periods To search for Run cycles... ... select option 2

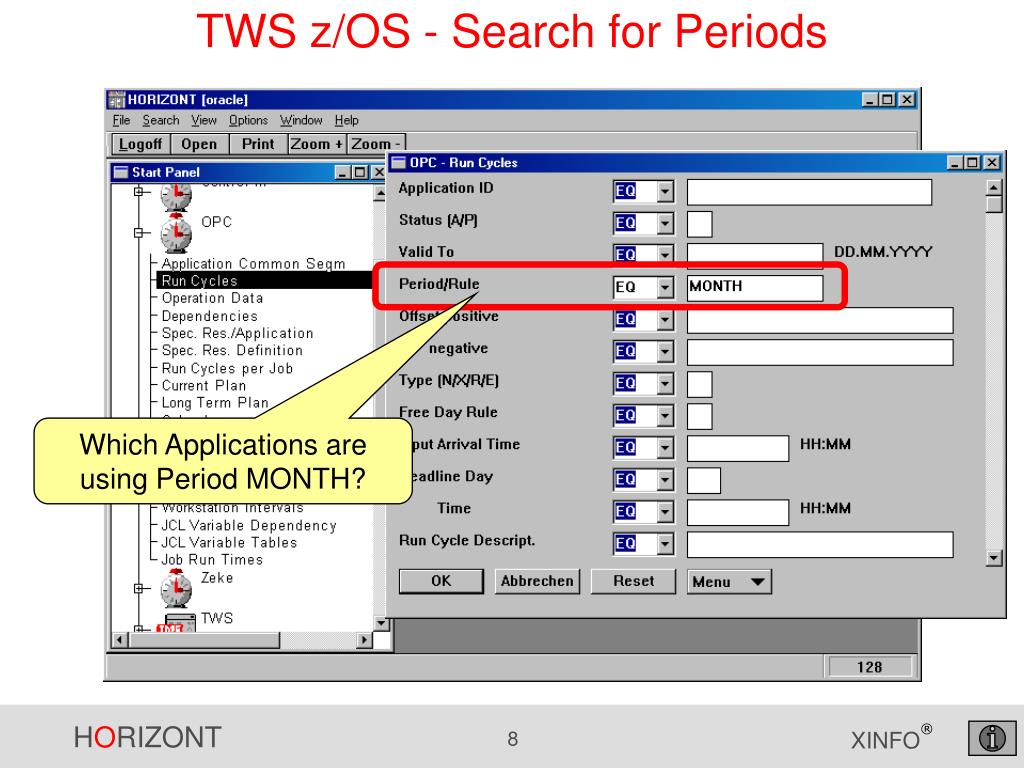

  8. TWS z/OS - Search for Periods Which Applications are using Period MONTH?

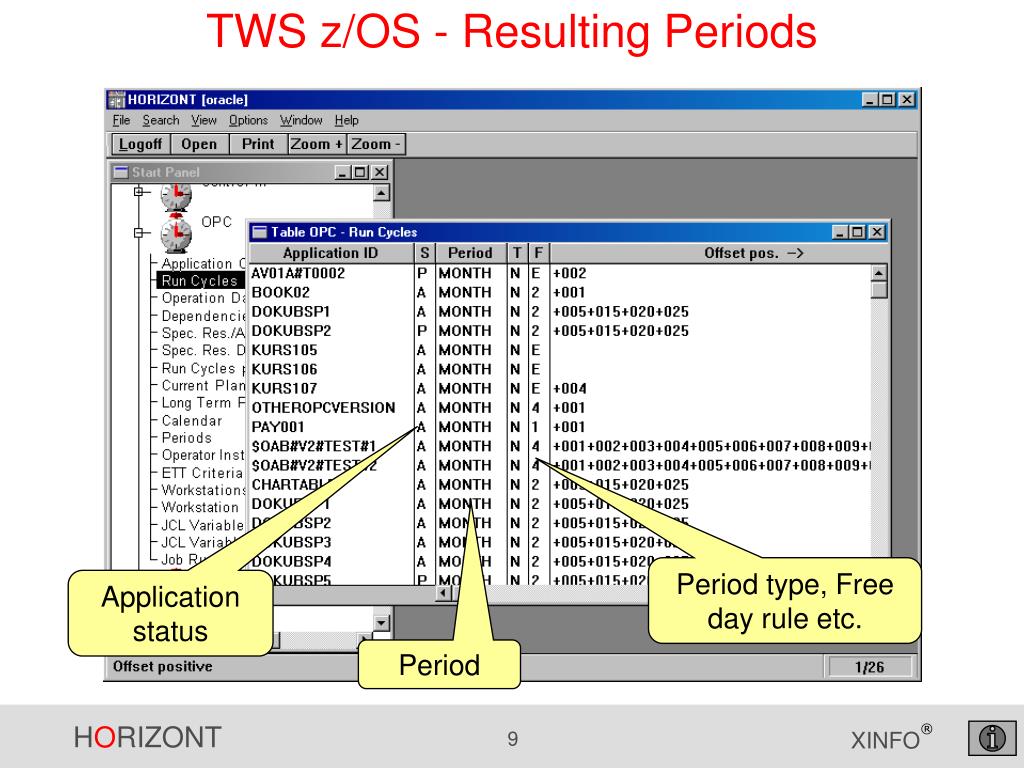

  9. TWS z/OS - Resulting Periods Period type, Free day rule etc. Application status Period

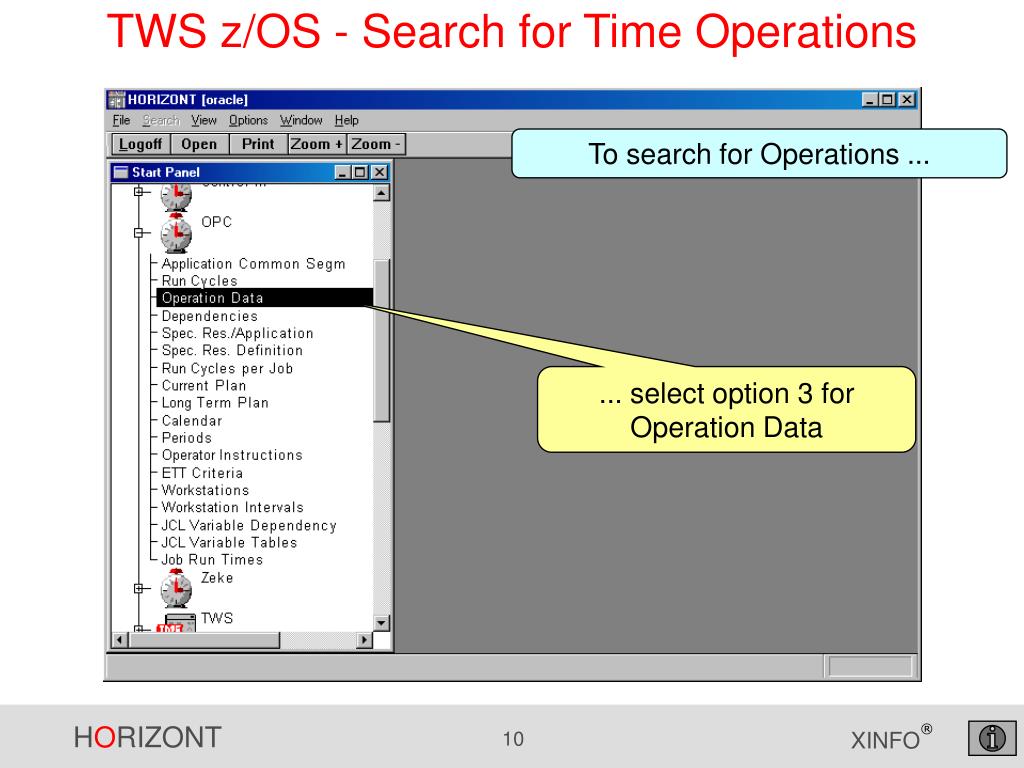

  10. TWS z/OS - Search for Time Operations To search for Operations ... ... select option 3 for Operation Data

  11. TWS z/OS - Search for Time Operations Scroll down for more selection criteria Which Operations have TIME DEPENDEND=N, but do have a Start Time? NB means “Not Blank”

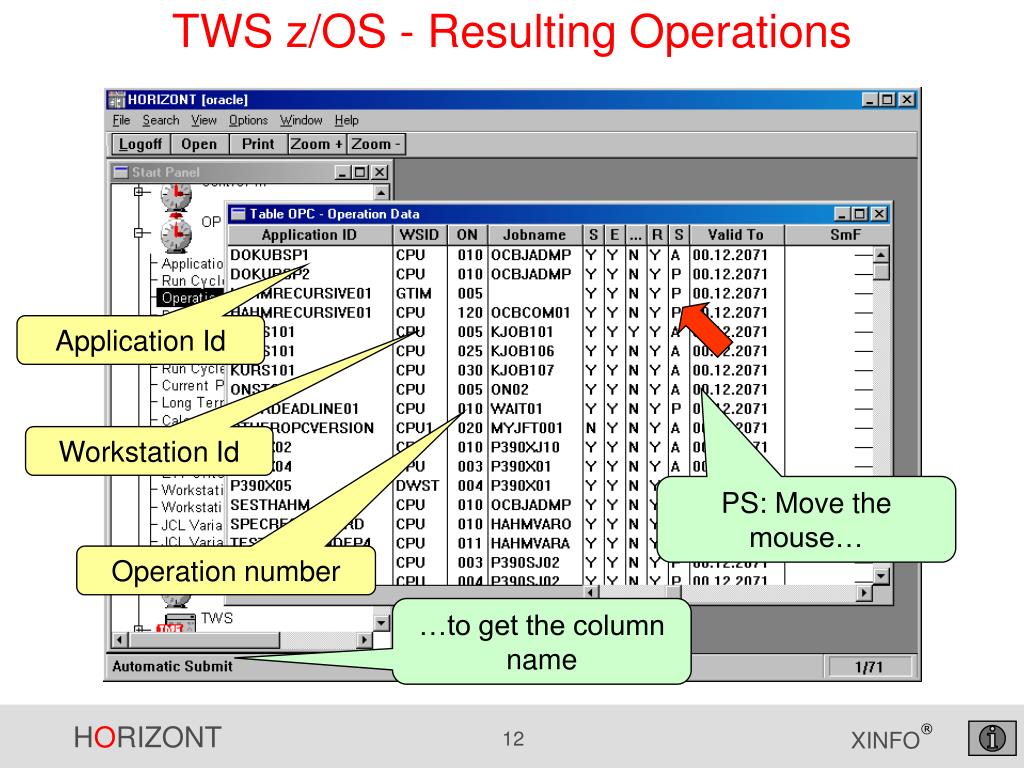

  12. TWS z/OS - Resulting Operations Application Id Workstation Id PS: Move the mouse… Operation number …to get the column name

  13. TWS z/OS - Search for Predecessors To search for Predecessors ... ... select option 4 Dependencies

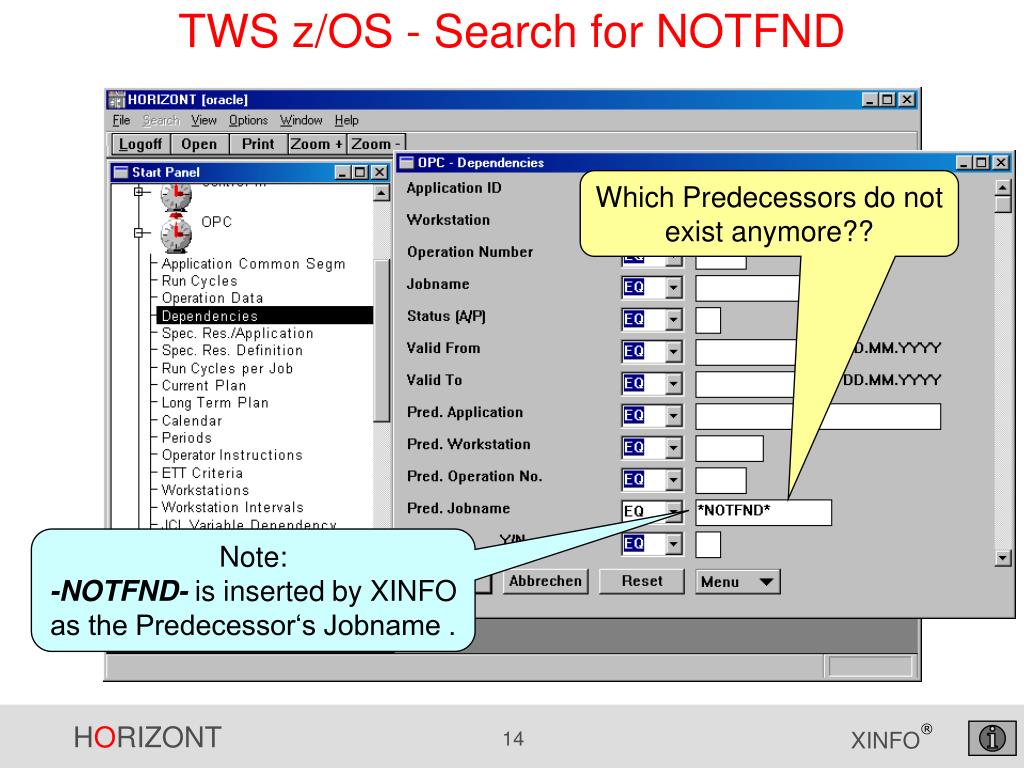

  14. TWS z/OS - Search for NOTFND Which Predecessors do not exist anymore?? Note: -NOTFND- is inserted by XINFO as the Predecessor‘s Jobname .

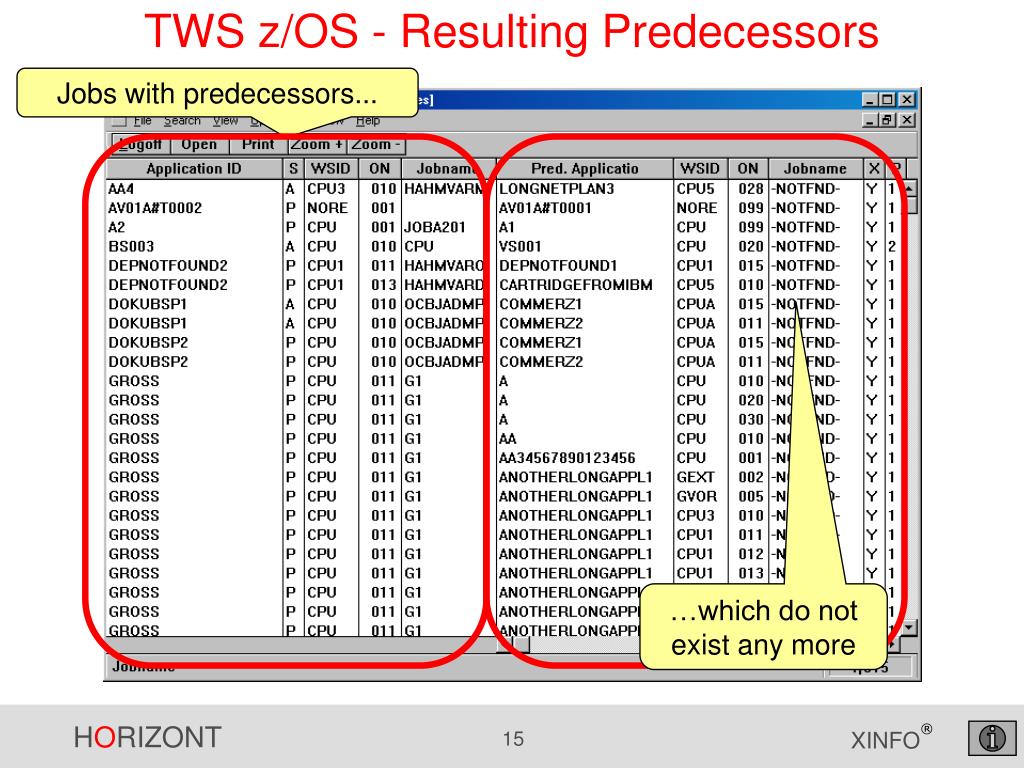

  15. TWS z/OS - Resulting Predecessors Jobs with predecessors... …which do not exist any more

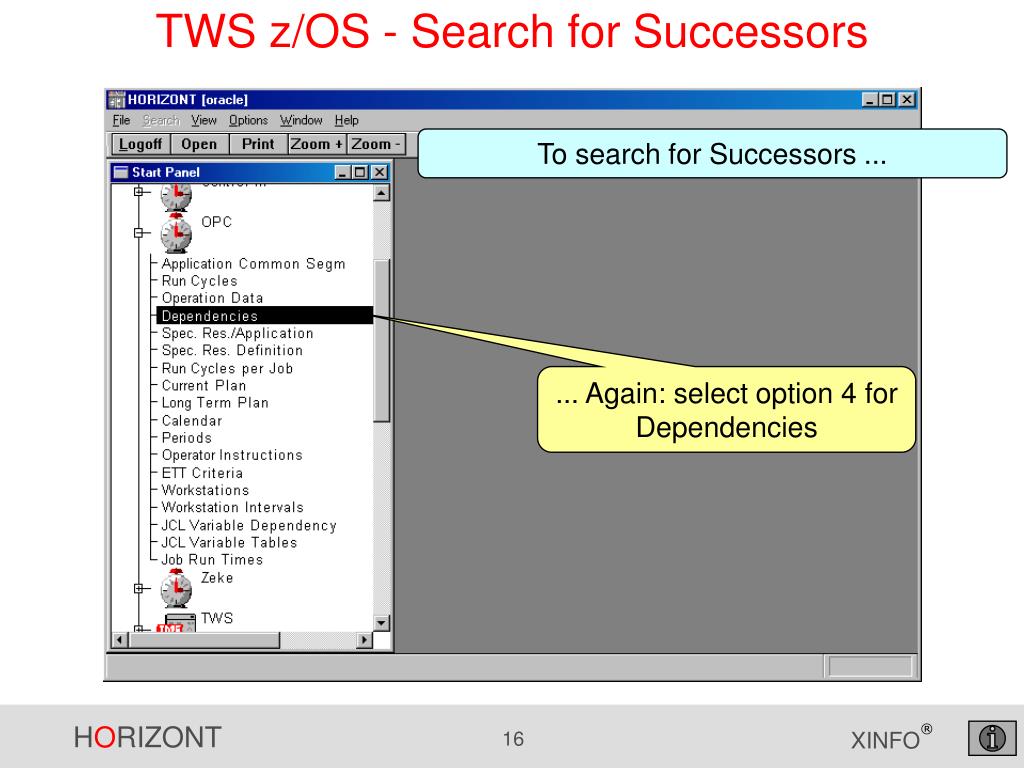

  16. TWS z/OS - Search for Successors To search for Successors ... ... Again: select option 4 for Dependencies

  17. TWS z/OS - Search for Successors Which are the successor from Jobs P390K4?

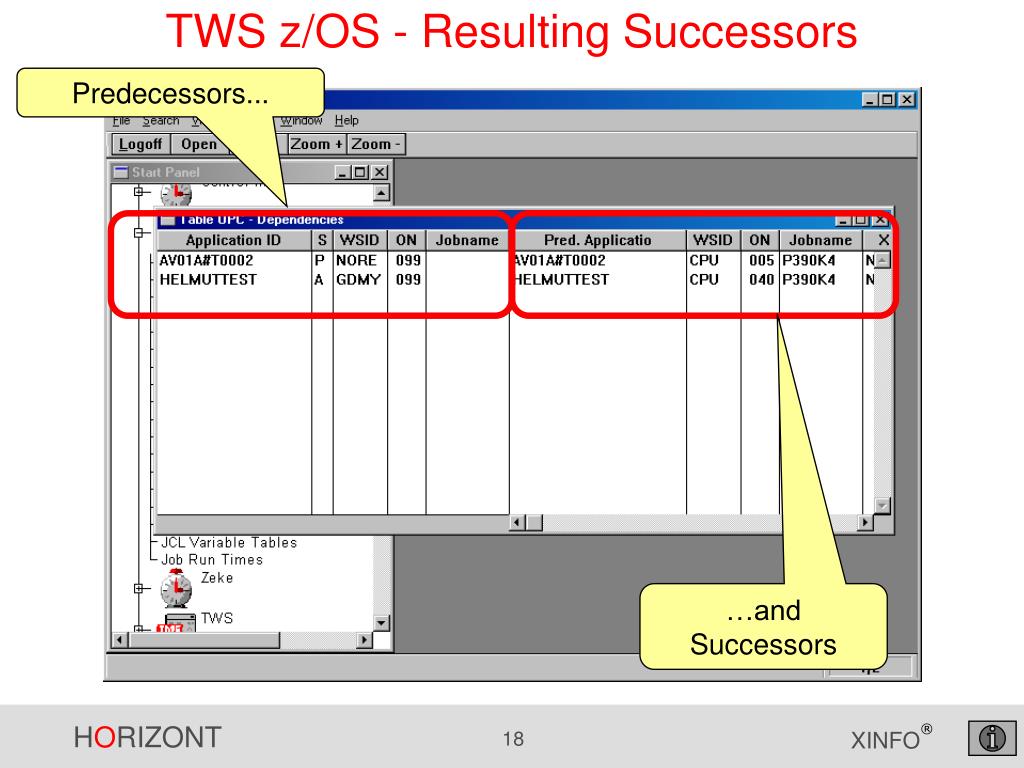

  18. TWS z/OS - Resulting Successors Predecessors... …and Successors

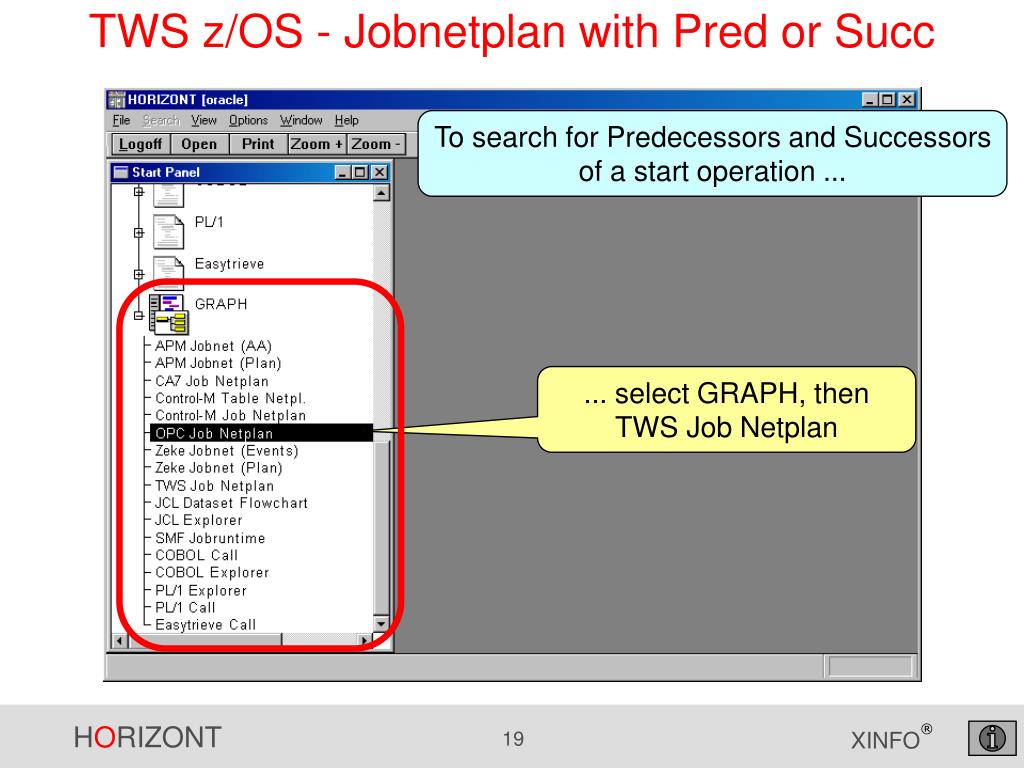

  19. TWS z/OS - Jobnetplan with Pred or Succ To search for Predecessors and Successors of a start operation ... ... select GRAPH, then TWS Job Netplan

  20. TWS z/OS - Jobnetplan with Pred or Succ Specify start point… …and the desired Pred(ecessor) and Succ(essor) level

  21. TWS z/OS - Jobnetplan with Pred or Succ The result is a Job Netplan with all predecessors and successors of job XXRJUP

  22. TWS z/OS - Search for Special Resources To search for Special Resources ... ... select option 5 for Spec.Res./Applications

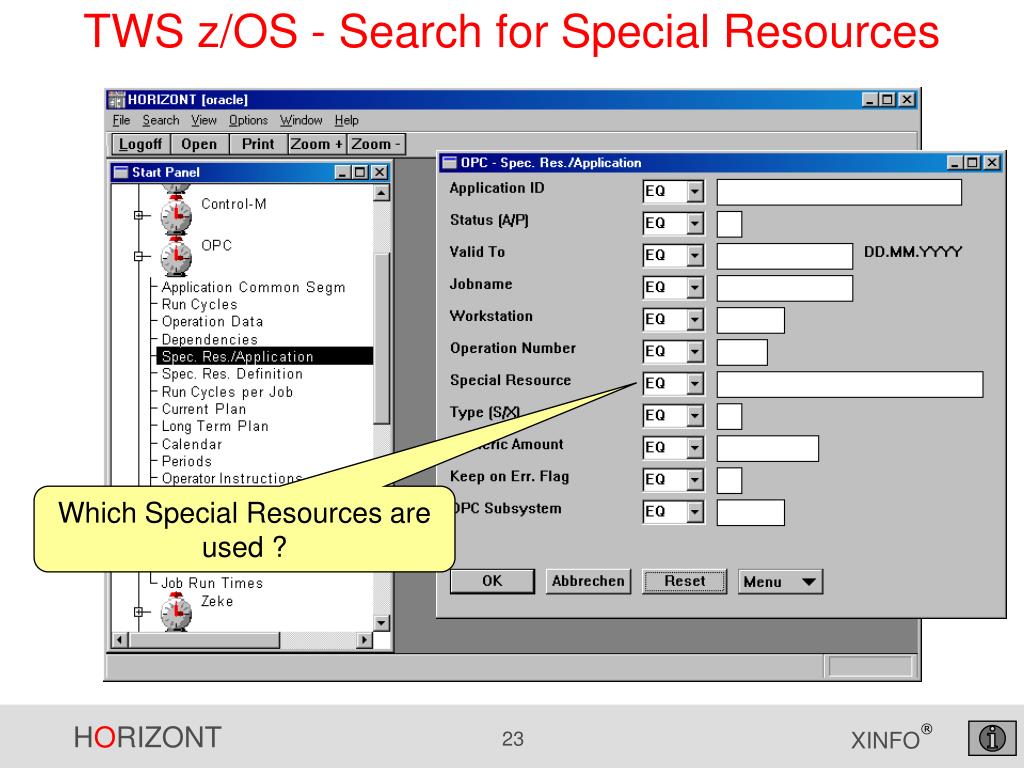

  23. TWS z/OS - Search for Special Resources Which Special Resources are used ?

  24. TWS z/OS - Resulting Special Resources Application Id Job Resources

  25. TWS z/OS - Search for Period Definitions to search for Periods ... ... select Periods

  26. TWS z/OS - Search for Period Definitions Search for all Periods with an End Date Interval lower than 1998

  27. TWS z/OS - Resulting Period Definitions All Periods which are not valid since 1998

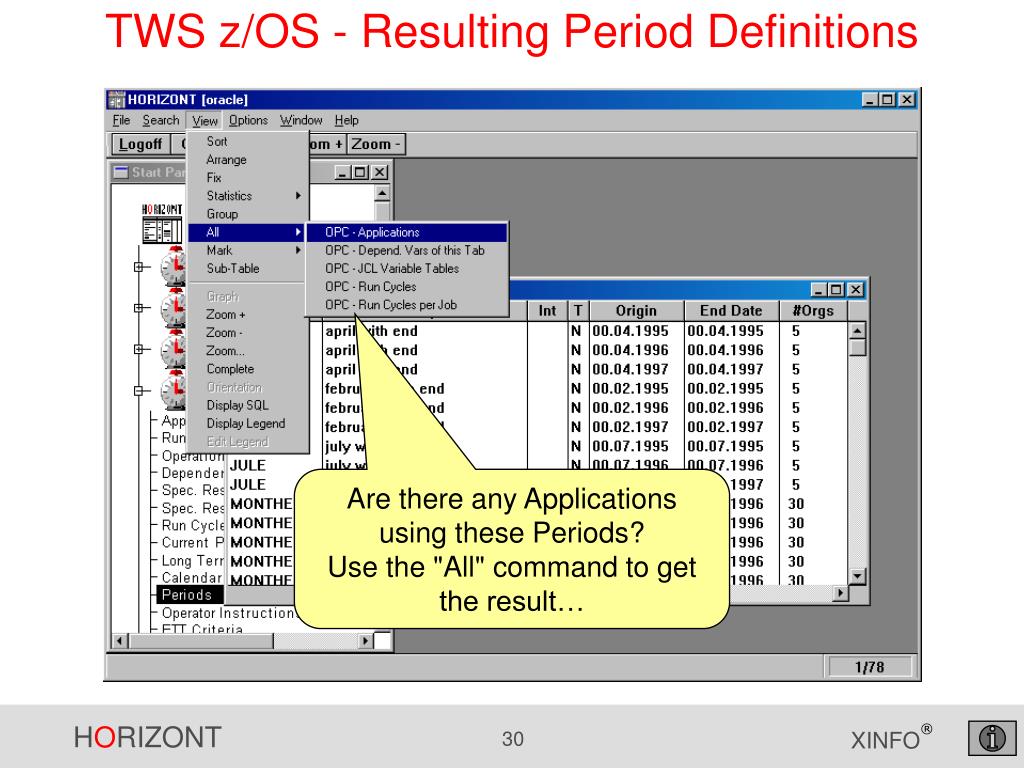

  28. TWS z/OS - Resulting Period Definitions Are there any Applications using these Periods?Use the "All" command to get the result…

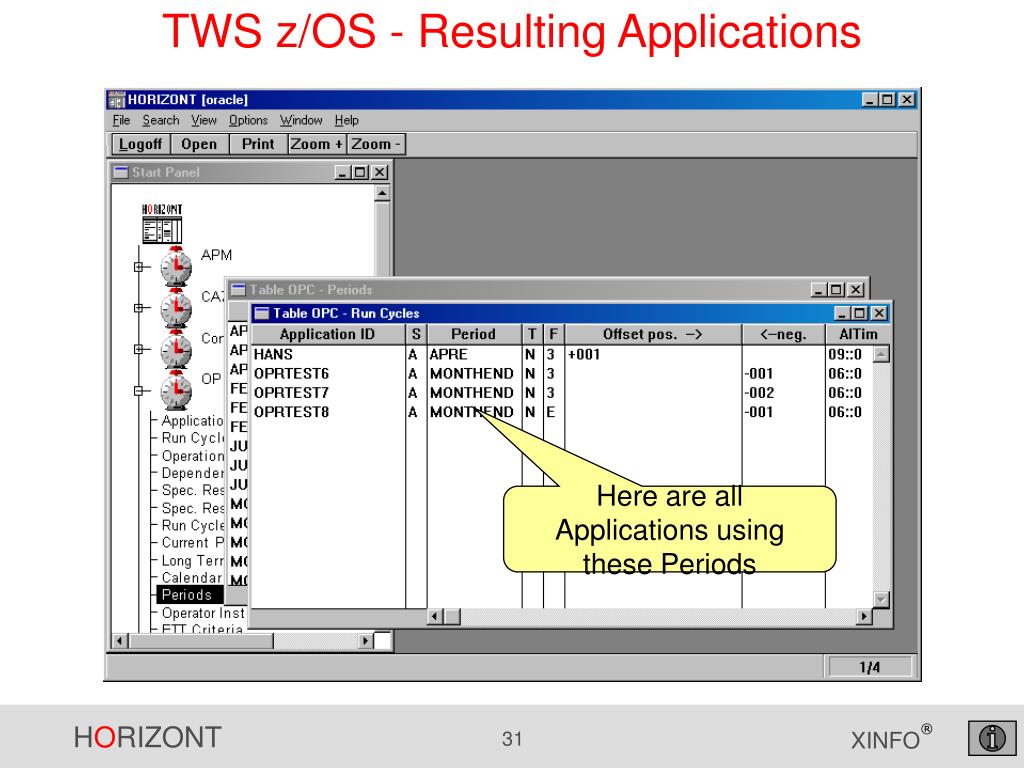

  29. TWS z/OS - Resulting Applications Here are all Applications using these Periods

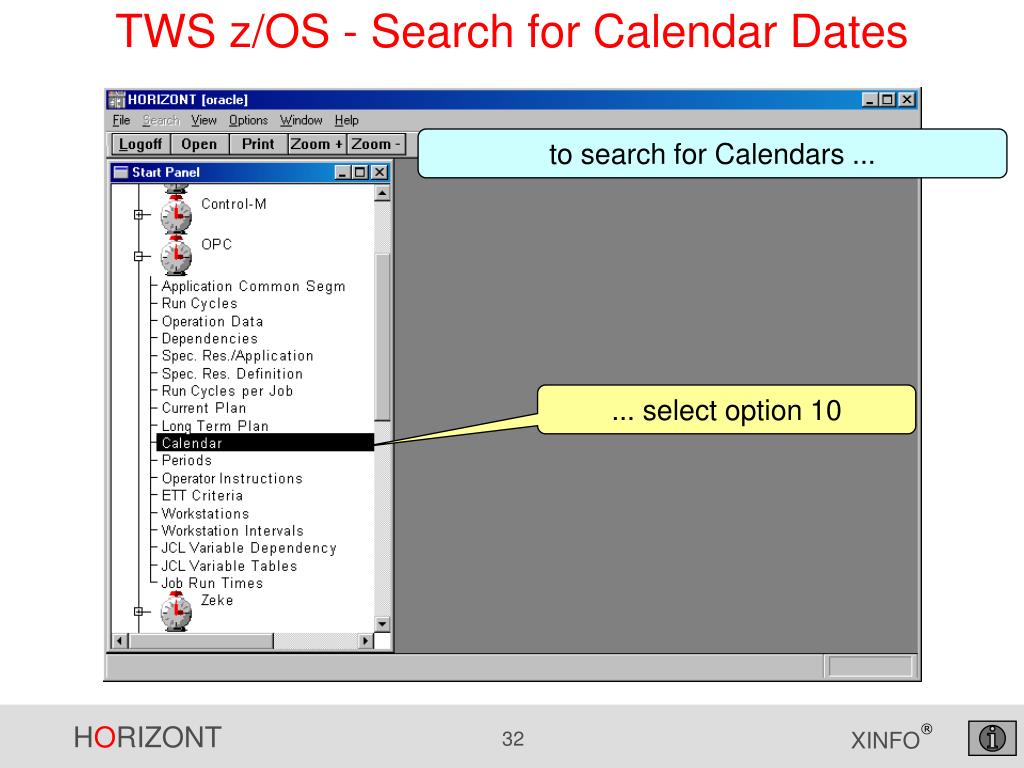

  30. TWS z/OS - Search for Calendar Dates to search for Calendars ... ... select option 10

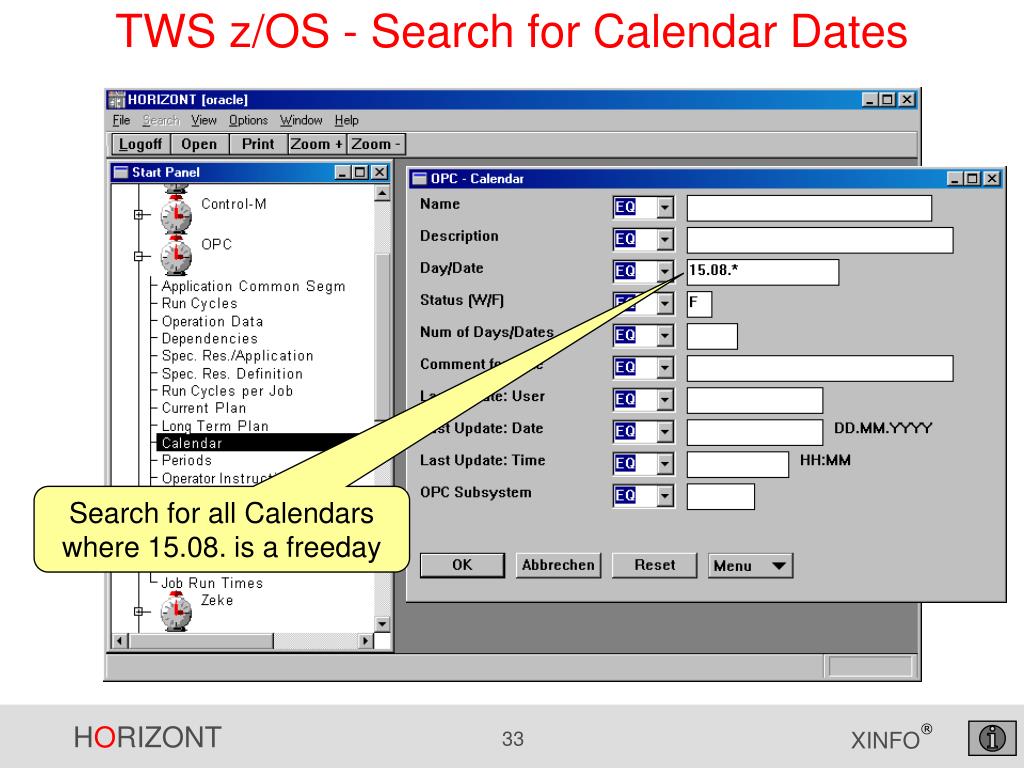

  31. TWS z/OS - Search for Calendar Dates Search for all Calendars where 15.08. is a freeday

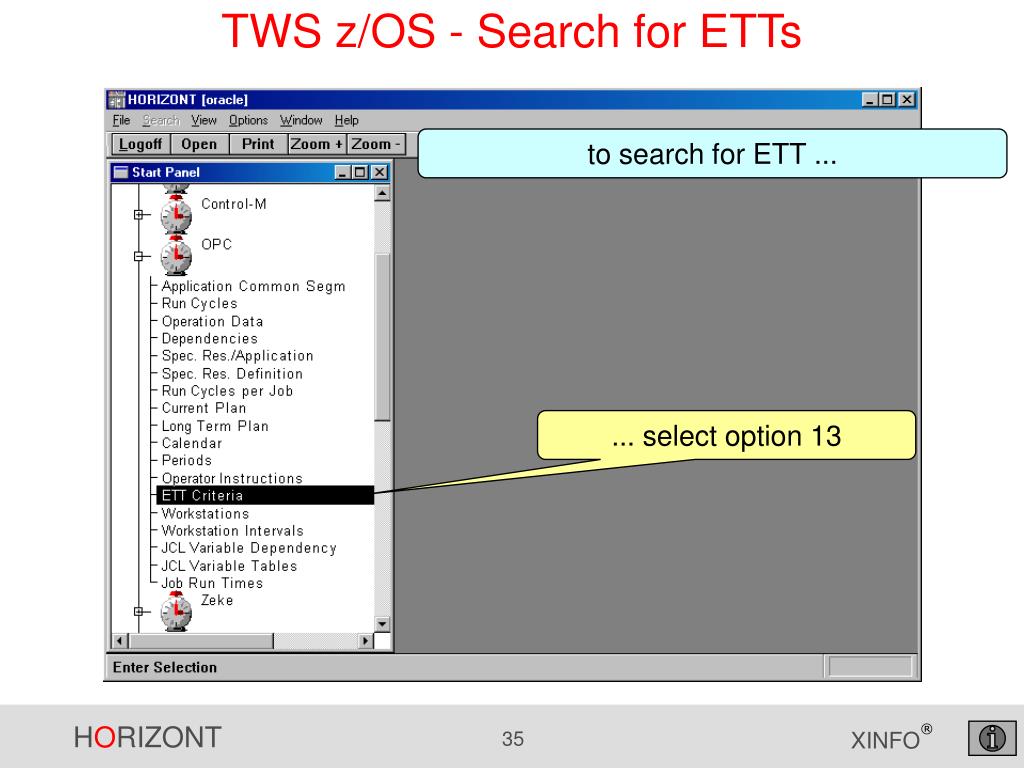

  32. TWS z/OS - Search for ETTs to search for ETT ... ... select option 13

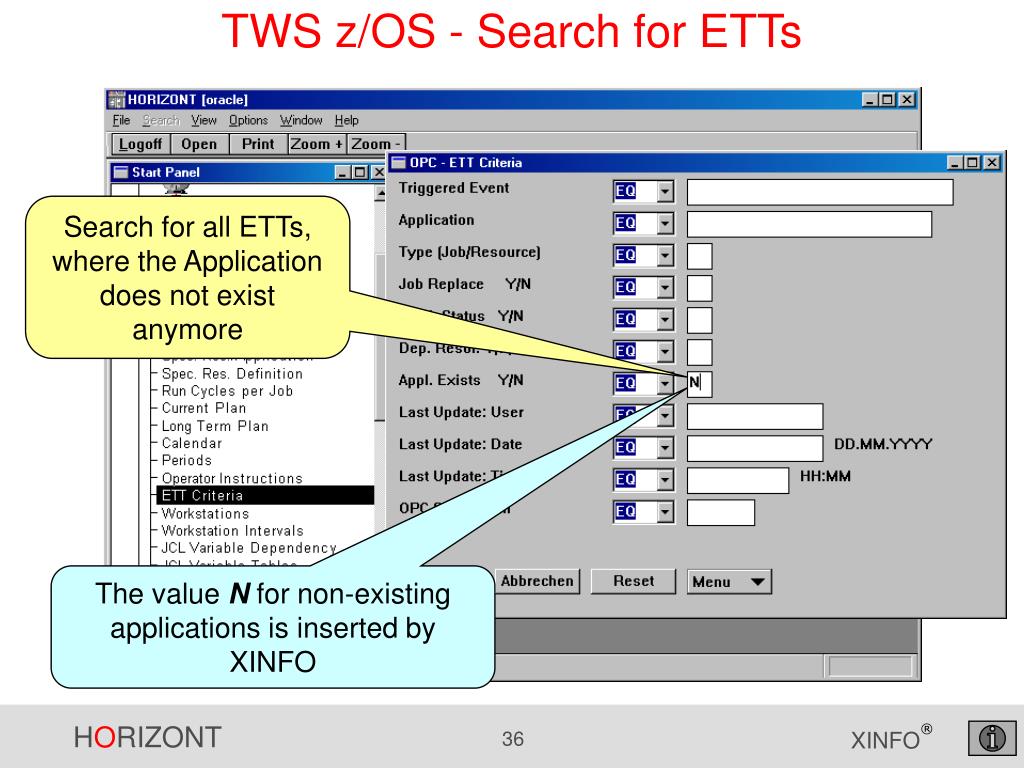

  33. TWS z/OS - Search for ETTs Search for all ETTs, where the Application does not exist anymore The value N for non-existing applications is inserted by XINFO

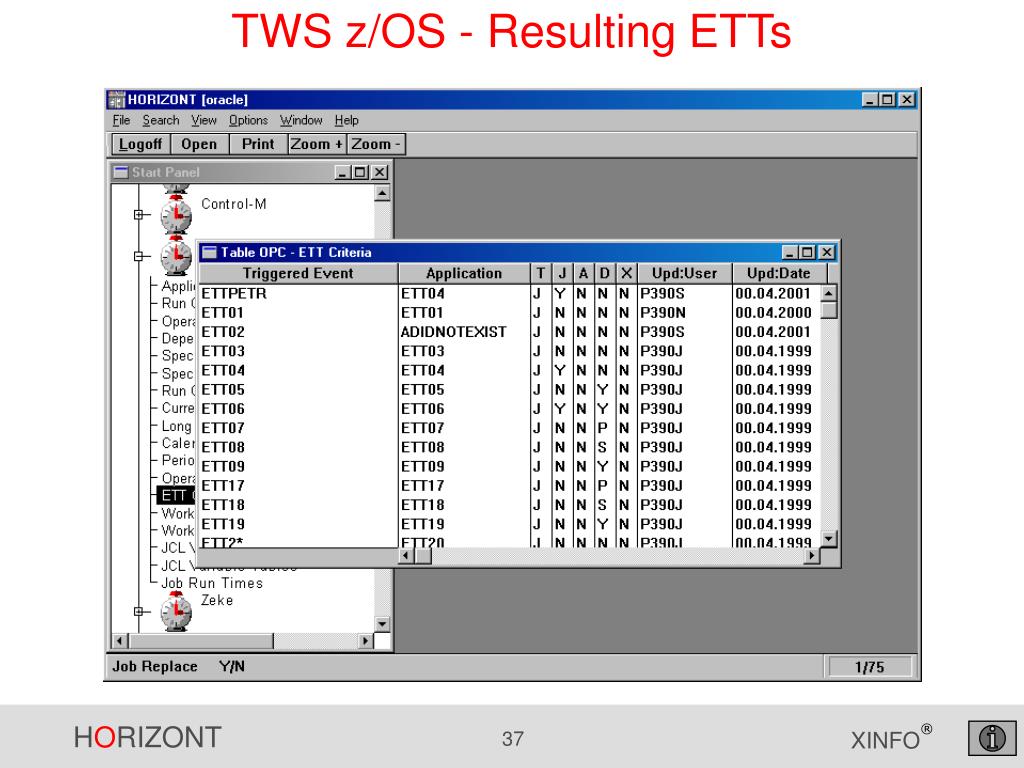

  34. TWS z/OS - Resulting ETTs

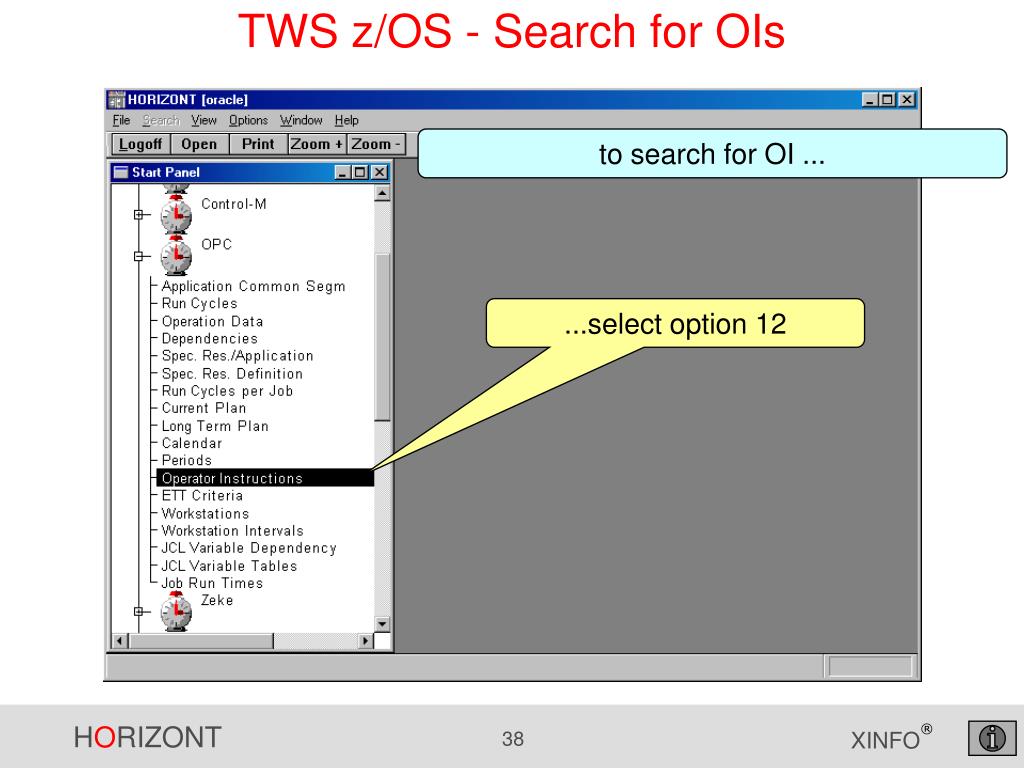

  35. TWS z/OS - Search for OIs to search for OI ... ...select option 12

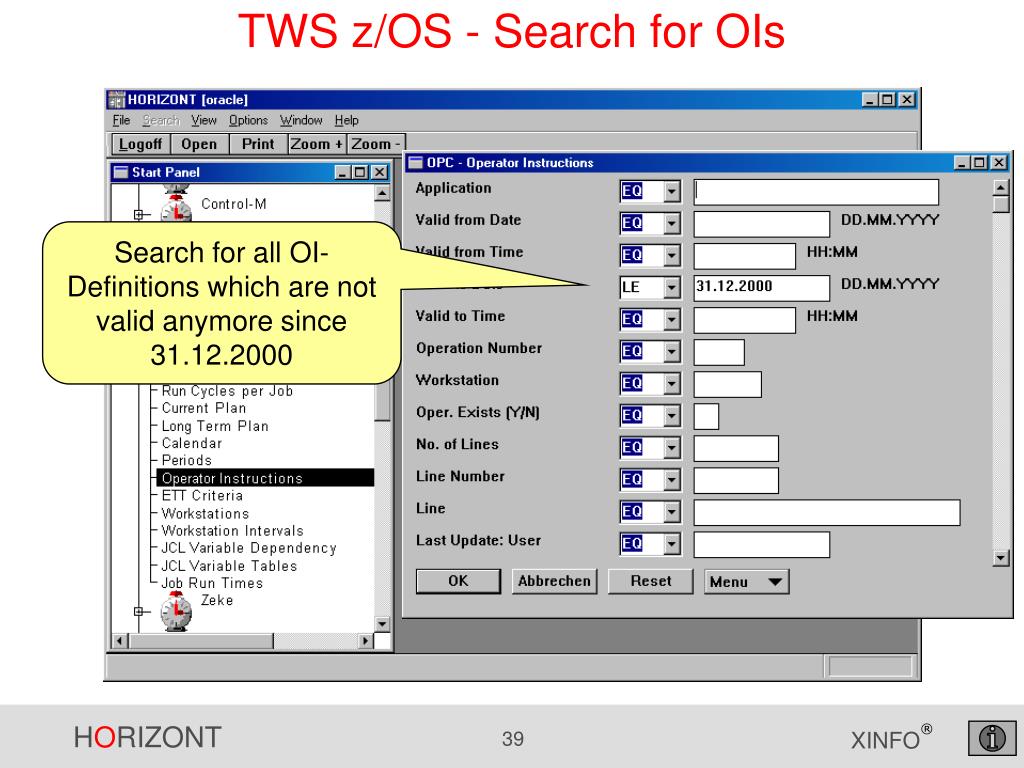

  36. TWS z/OS - Search for OIs Search for all OI-Definitions which are not valid anymore since 31.12.2000

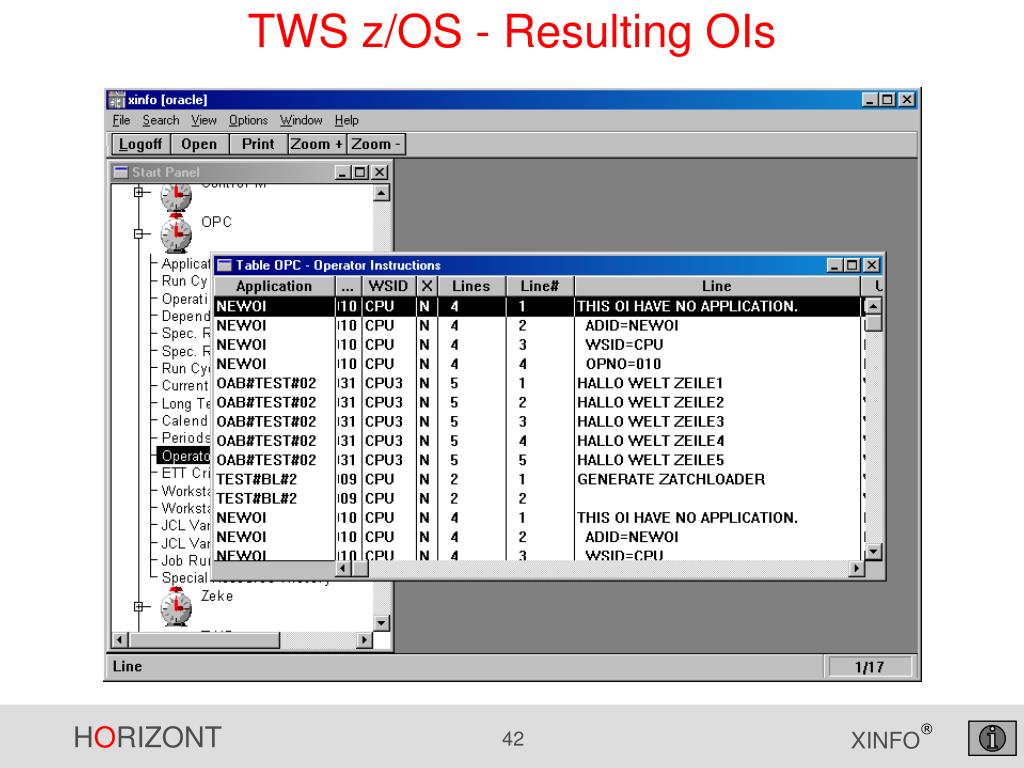

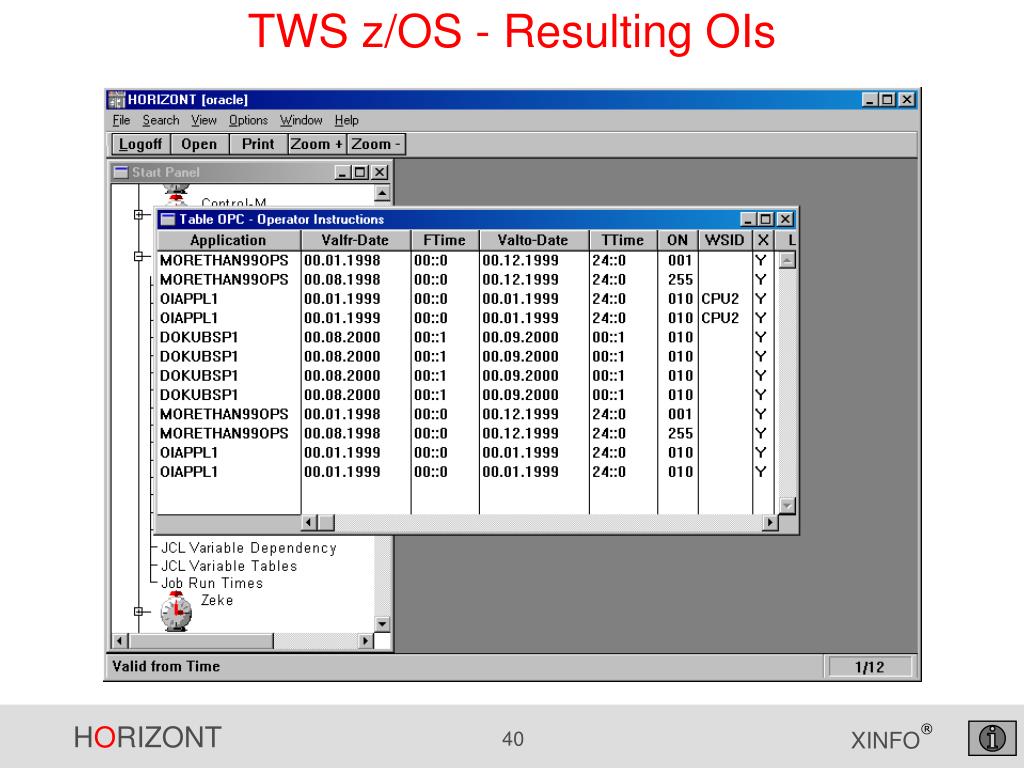

  37. TWS z/OS - Resulting OIs

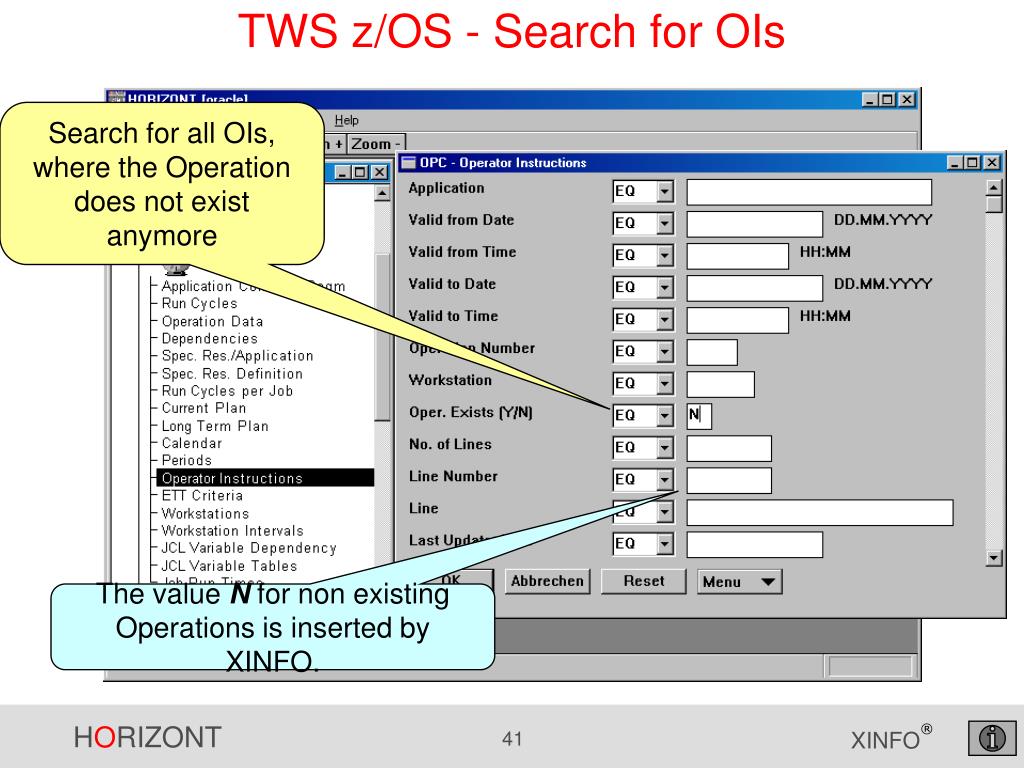

  38. TWS z/OS - Search for OIs Search for all OIs, where the Operation does not exist anymore The value N for non existing Operations is inserted by XINFO.

  39. TWS z/OS - Resulting OIs

  40. TWS z/OS - Search for LTP data To search for data from the LTP ... ... select option 9

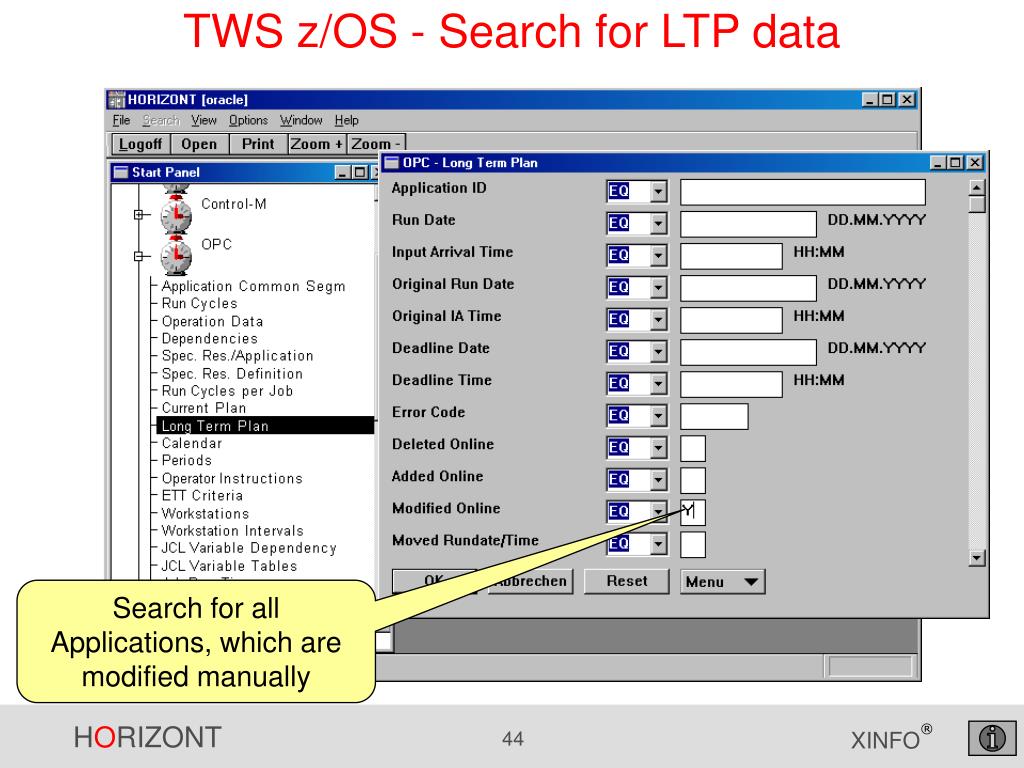

  41. TWS z/OS - Search for LTP data Search for all Applications, which are modified manually

  42. TWS z/OS - Resulting LTP data There are no Applications, which are modified manually

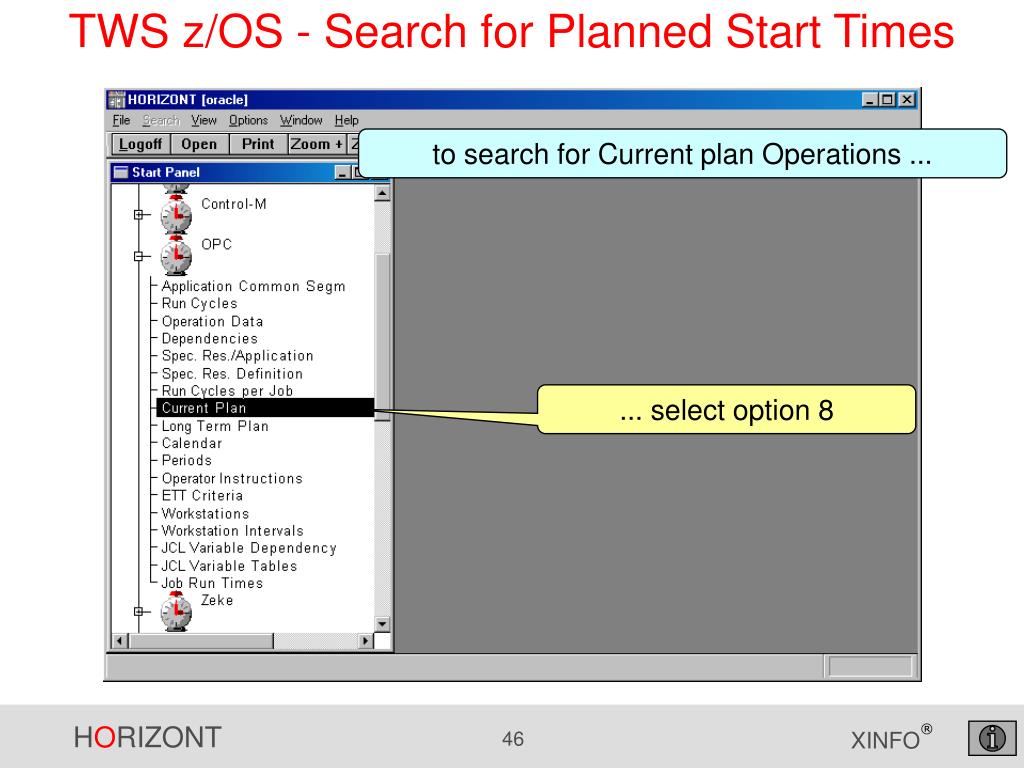

  43. TWS z/OS - Search for Planned Start Times to search for Current plan Operations ... ... select option 8

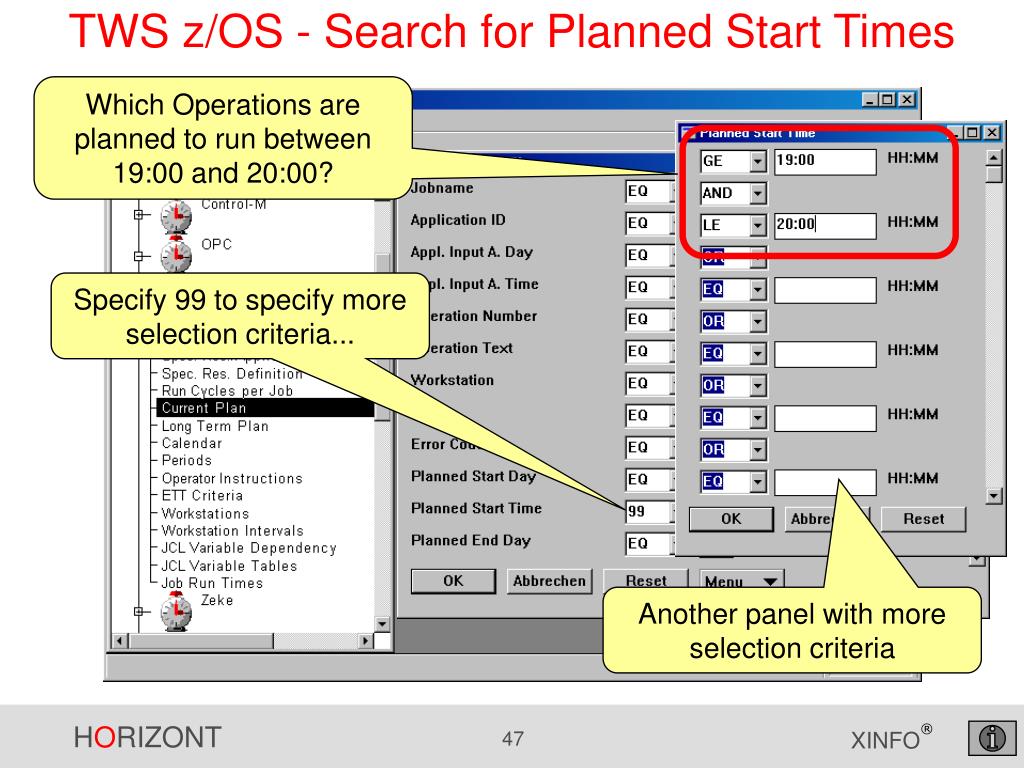

  44. TWS z/OS - Search for Planned Start Times Which Operations are planned to run between 19:00 and 20:00? Specify 99 to specify more selection criteria... Another panel with more selection criteria

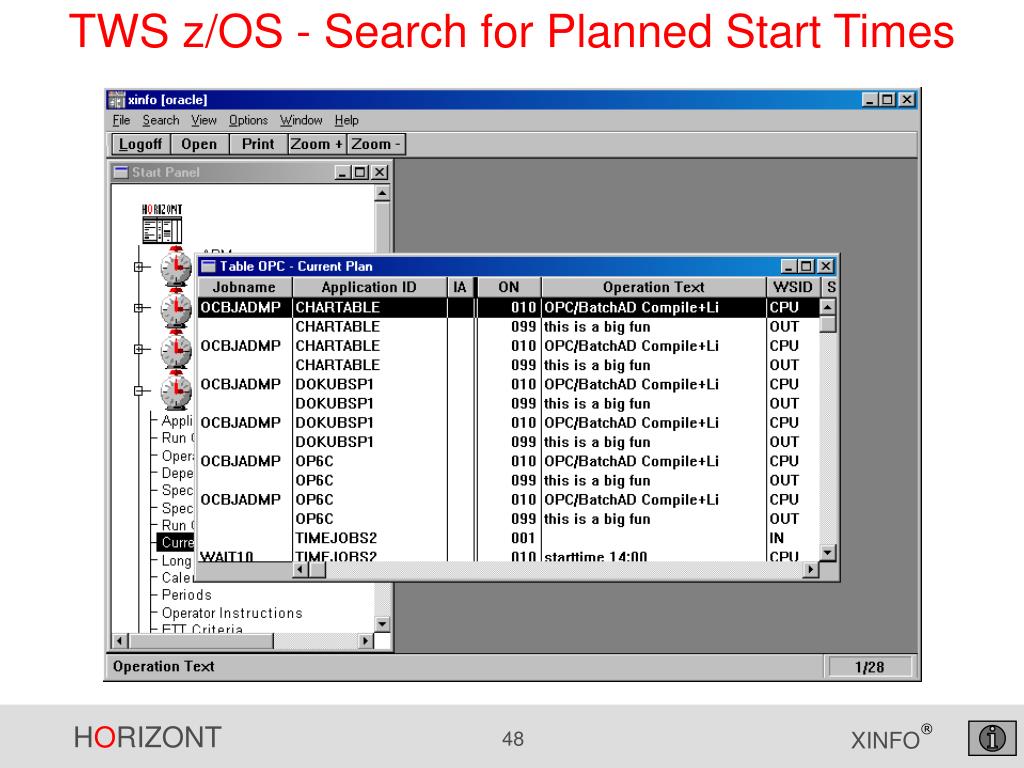

  45. TWS z/OS - Search for Planned Start Times

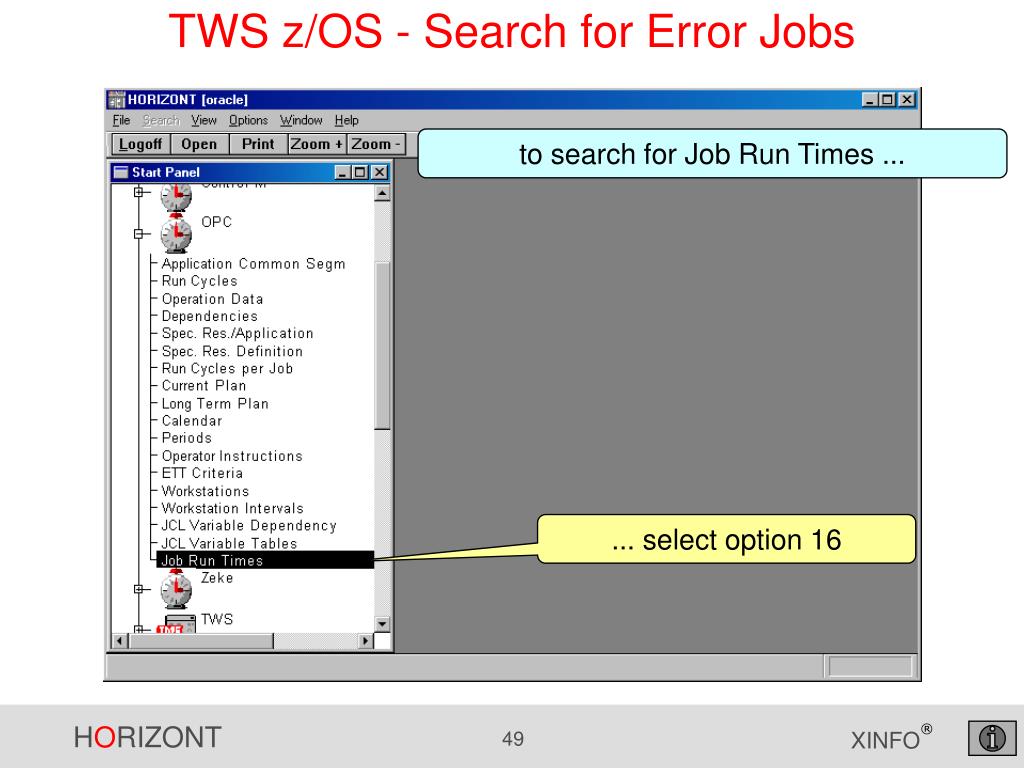

  46. TWS z/OS - Search for Error Jobs to search for Job Run Times ... ... select option 16

  47. TWS z/OS - Search for Error Jobs Specify 99 at Job Start Time ...and status E... ...another panel to specify the Start Time...

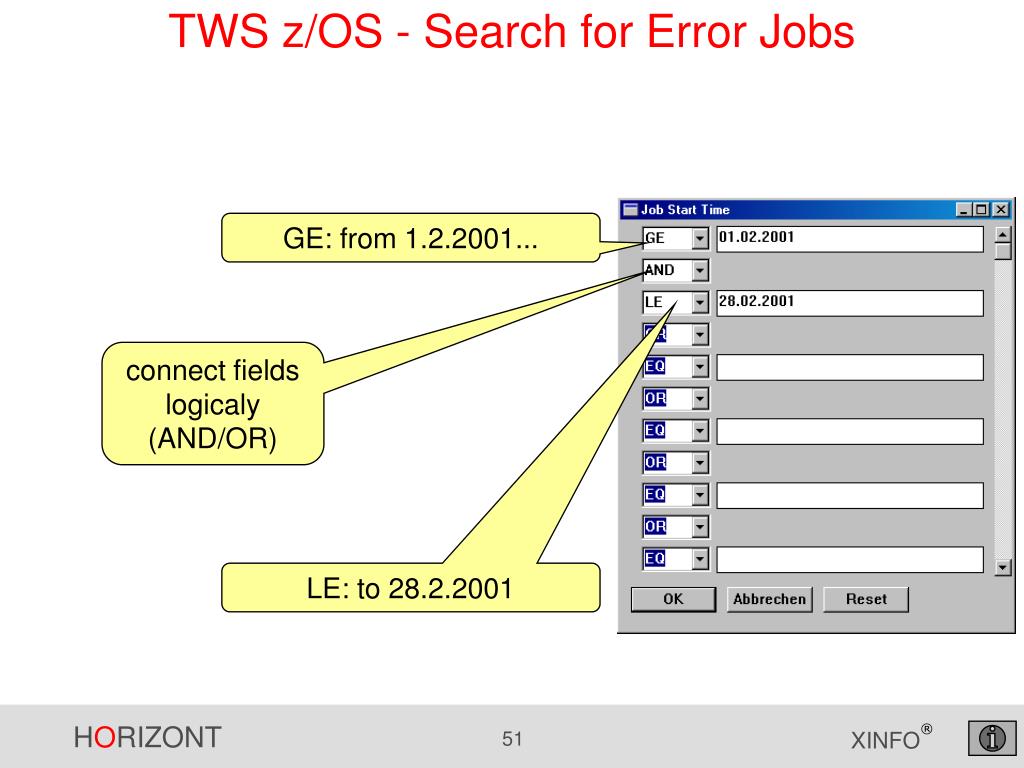

  48. TWS z/OS - Search for Error Jobs GE: from 1.2.2001... connect fields logicaly (AND/OR) LE: to 28.2.2001

  49. TWS z/OS - Resulting Error Jobs The result can be grouped by Jobname…

  50. TWS z/OS - Resulting Error Jobs
