  1. Physics

  2. Session Kinematics - 5

  3. Session Opener How far can this cannon fire the shot? Courtesy : http://physics.nad.ru/Physics/English/thermo.htm

  4. Session Objectives

  5. Session Objectives • Projectile motion (Definition) • Parameters of Projectile Motion • Path of Projectile Motion • Instantaneous radius of Curvature • Projectile motion on an inclined plane

  6. Projectile motion (Definition) Projectile Motion = Uniform horizontal motion + Non-Uniform vertical motion (constant acceleration due to gravity) Assumptions : (1) g=constant (y<<Rearth) (2) v<<vescape (3) Air friction & force of buoyancy are neglected (4) Object is a particle

  7. Projectile Motion Gravity free path: Vx=constant Vertical free fall: Vy= f(t) Courtesy : www.physicsclassroom.com

  8. vtY= vsin -gt Y vtx=vcos g=constant H v  X R Projectile motion

  9. y x H R Parameters of Projectile Motion

  10. Path of Projectile Motion

  11. Class Exercise

  12. A stone is thrown with a velocity of 19.6 m/s at an angle 30° above horizontal from the top of a building 14.7 m high. Find (i) the time after which the stone strikes the ground (ii) the distance of the landing point of the stone from the building (iii) the velocity with which the stone hits the ground (iv) the maximum height attained by the stone above the ground Class Exercise - 1

  13. (i) y(t) = vy(0)t + ayt2 –14.7 = 9.8t – 9.8t2 Solution vx(0) = v cosq = 19.6 cos30º = 9.8 Ö3 m/s vy(0) = v sinq = 19.6 sin30º = 9.8 m/s ax = 0, ay = -9.8 ms–2 or 4.9t2 – 9.8t – 14.7 = 0 or t2 – 2t – 3 = 0 Þ t = 3 s

  14. (ii) R = vxt = = 50.92 m Solution vx(t) = 9.8 Ö3 m/s vy(t) = vy(0) + ayt = 9.8 – 9.8 × 3 or vy = –19.6 m/s

  15. Solution Maximum height attained above the ground = Height of B above the point of projection + Height of building

  16. A projectile of mass m is projected with a speed v at an angle q with the horizontal. Which one of the following graphs represents the variation of kinetic energy of the projectile with time? (c) (b) (a) (d) Class Exercise - 2

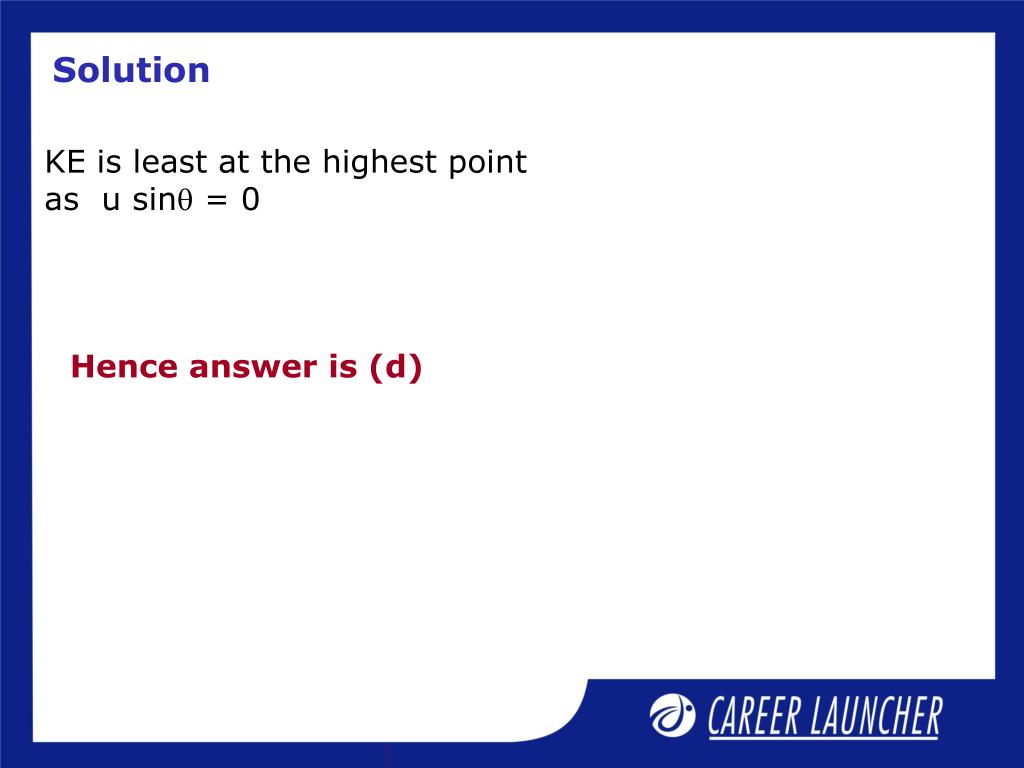

  17. Solution KE is least at the highest point as u sinq = 0 Hence answer is (d)

  18. A particle is projected upwards with a velocity of 120 m/s at an angle of 60° to the horizontal. The time after which the particle will be moving upwards at an angle of 45° to the horizontal will be(Take g = 10 m/s2) Class Exercise - 3

  19. Solution 120 cos60° = v cos45° Hence answer is (a)

  20. If is the equation of a trajectory, then the time of flight will be Class Exercise - 5

  21. Þ tanq = 1 or q = 45° and u = Solution Comparing the equation with that of the trajectory of a projectile. Hence answer is (a)

  22. Class Exercise - 6 A projectile is thrown at an angle q = 30° with a velocity of 50 m/s in magnitude. Find the time after which the velocity of the projectile makes an angle of 60° with the initial velocity. (Take g = 10 m/s2) Solution : Angle between u and v = 2 (Angle of projection) The particle will be at the same horizontal level finally.

  23. find the time elapsed after the projectile is thrown up. Class Exercise - 7 Solution : uy = 60, vy = –40 vy = uy – gt –40 = 60 – gt t = 10 s

  24. y vt ds a v vtcosa a mg mgcosa q x Instantaneous radius of Curvature ds approximates a circular arc.

  25. A ball is thrown with a velocity of m/s at an angle of 45° with the horizontal. It just clears two vertical poles of heights 90 cm each. Find the separation between the poles. vy(0) = v sin45º Now, y(t) = vy(0)t + ayt2 Class Exercise - 4 Solution : Let t be the time after which the ball is at the top of the poles. y(t) = 0.9 m

  26. Hence the ball is at A after s and at B after s. OP = vxt1 = 7 × = 1 m 0.9 = 7t – (9.8)t2 OQ = vxt2 = 7 × = 9 m Solution 4.9t2 – 7t + 0.9 = 0 On solving, we get  PQ = 8 m

  27. Class Exercise - 8 What should be the velocity of x such that the objects A, B would collide if both are thrown simultaneously?

  28. Solution For the particles to collide, vertical velocity should be the same. So, B should be thrown vertically up with a velocity of 20 m/s.

  29. O u g q Projectile motion on an inclined plane A particle is thrown horizontally from top of an inclined plane (inclination q with horizontal) with speed m . How far from the point of projection will it strike the plane ?

  30. Along x axis y Along y axis u q g q x Projectile motion on an inclined plane Axis ox and oy.

  31. y u q g q x Projectile motion on an inclined plane T=0 (particle at O)

  32. HOME EXERCISE
