  1. Grid Application Support by the P-GRADE Portal Gergely Sipossipos@sztaki.hu MTA SZTAKI Computer and Automation Research InstituteHungarian Academy of Scienceswww.lpds.sztaki.hu/pgportal pgportal@lpds.sztaki.hu CEOS WGISS Meeting, May 8-12, 2006, Budapest

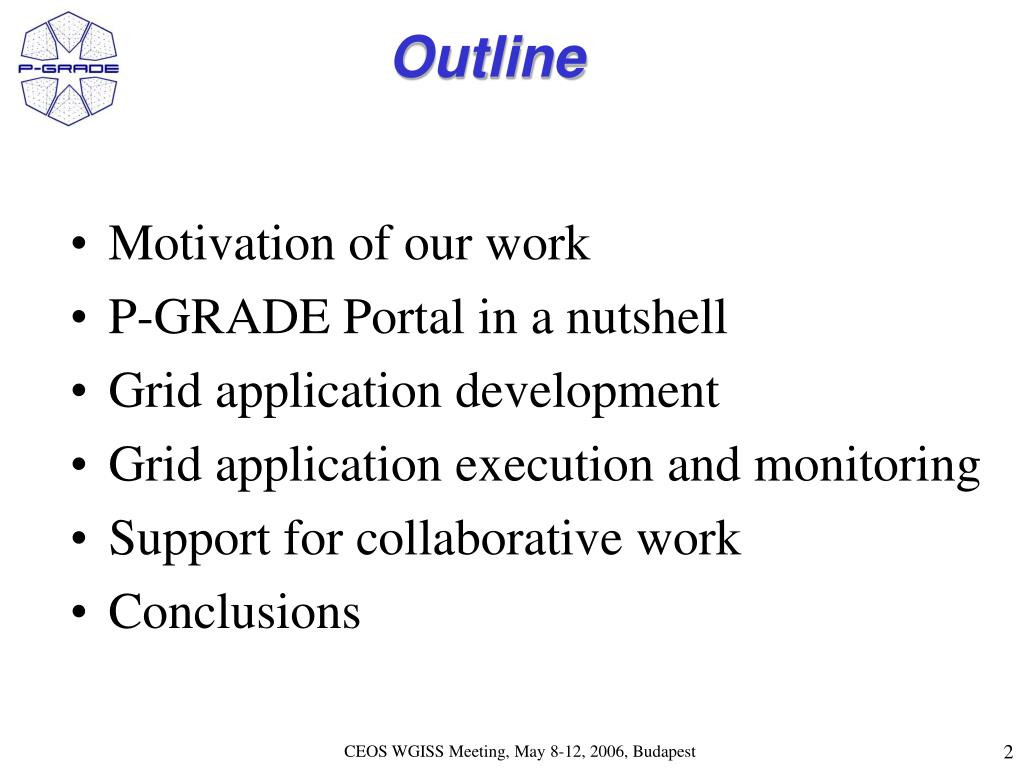

  2. Outline • Motivation of our work • P-GRADE Portal in a nutshell • Grid application development • Grid application execution and monitoring • Support for collaborative work • Conclusions CEOS WGISS Meeting, May 8-12, 2006, Budapest

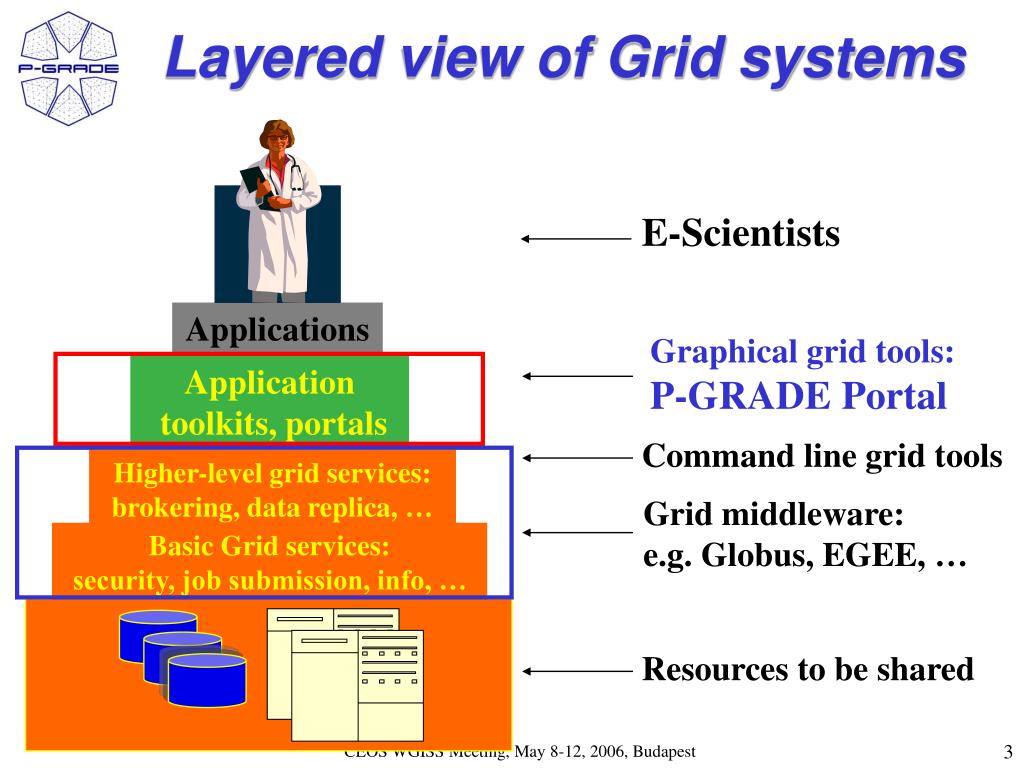

  3. Layered view of Grid systems E-Scientists Applications Graphical grid tools:P-GRADE Portal Application toolkits, portals Command line grid tools Higher-level grid services: brokering, data replica, … Grid middleware:e.g. Globus, EGEE, … Basic Grid services:security, job submission, info, … Resources to be shared CEOS WGISS Meeting, May 8-12, 2006, Budapest

  4. Motivation to theP-GRADE Portal • Fast evolution of Grid middleware technologies and tools: • GT2, OGSA, GT3 (OGSI), GT4 (WSRF), LCG-2, gLite, … • Many production Grids are now freely available for e-Scientists • EGEE (LCG-2  gLite), UK NGS (GT2), US Open Science Grid (GT2  GT4), NorduGrid (ARC), … • The same set of services are available everywhere, but implemented in different ways • Computation services, data services, security services, (brokers) • Let’s provide a technology-neutral, intuitive graphical interface for the most common Grid middleware services! CEOS WGISS Meeting, May 8-12, 2006, Budapest

  5. P-GRADE Portal in a nutshell • General purpose, workflow-oriented computational Grid portal. Supports the development and execution of workflow-based Grid applications. • Based on standard portlet framework (Gridsphere) • Easy to expand with new portlets (e.g. application-specific portlets) • Easy to tailor to community needs • Grid services supported by the portal: The P-GRADE Portal hides middleware technologies and solves Grid interoperability problem at the workflow level CEOS WGISS Meeting, May 8-12, 2006, Budapest

  6. What is a P-GRADE Portal workflow? • a directed acyclic graph where • Nodes represent jobs (batch programs to be executed on a computing resource) • Ports represent input/output files the jobs expect/produce • Arcs represent file transfer operations • semantics of the workflow: • A job can be executed if all of its input files are available CEOS WGISS Meeting, May 8-12, 2006, Budapest

  7. Parallel execution inside a workflow node • Parallel execution among workflow nodes Multiple jobs run parallel Each job can be a parallel program Two levels of parallelism • The workflow concept of the P-GRADE Portal enables the efficient parallelization of complex problems • Semantics of the workflow enables two levels of parallelism: CEOS WGISS Meeting, May 8-12, 2006, Budapest

  8. Ultra-short range weather forecast (Hungarian Meteorology Service) Forecasting dangerous weather situations (storms, fog, etc.),crucial task in the protection of life and property 25 x Processed information: surface level measurements, high-altitude measurements, radar, satellite, lightning, results of previous computed models 10 x 5 x 25 x • Requirements: • Execution time < 10 min • High resolution (1km) CEOS WGISS Meeting, May 8-12, 2006, Budapest

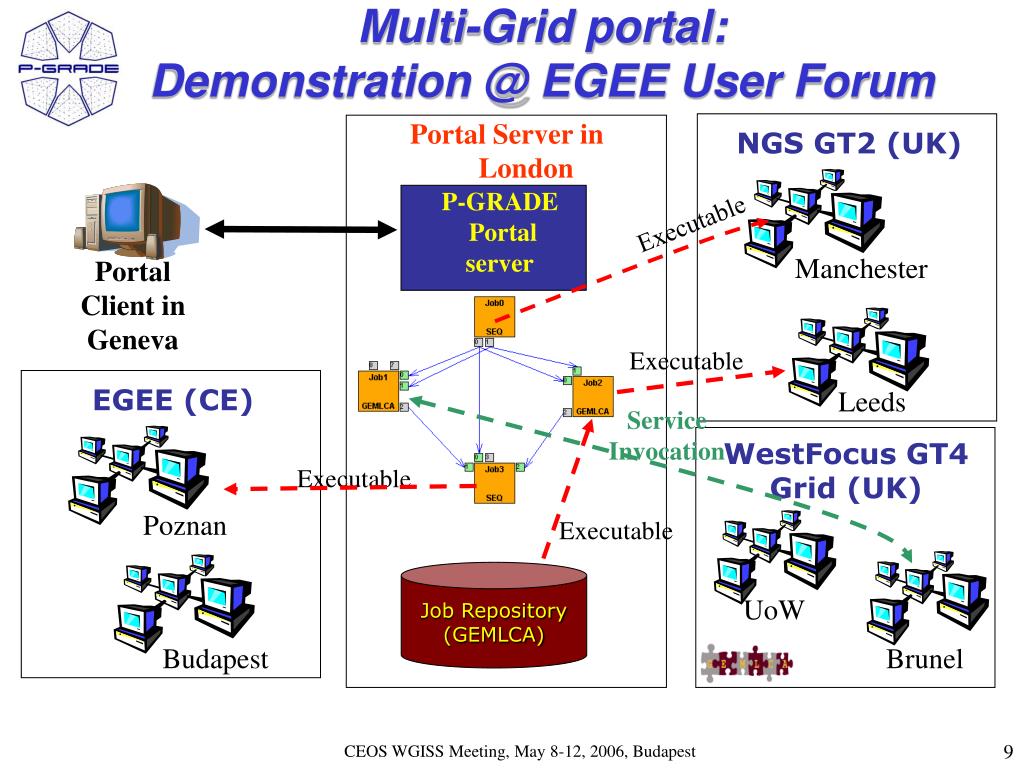

  9. Executable Executable Portal Client in Geneva EGEE (CE) Service Invocation WestFocus GT4 Grid (UK) Executable Leeds Poznan Executable UoW Budapest Brunel Multi-Grid portal: Demonstration @ EGEE User Forum Portal Server in London NGS GT2 (UK) P-GRADE Portalserver Manchester Job Repository (GEMLCA) CEOS WGISS Meeting, May 8-12, 2006, Budapest

  10. SAVE WORKFLOW START EDITOR The typical user scenarioPart 1 - development phase Certificate servers Gridservices Portal server OPEN & EDIT or DEVELOP WORKFLOW CEOS WGISS Meeting, May 8-12, 2006, Budapest

  11. TRANSFER FILES, SUBMIT JOBS DOWNLOAD PROXY CERTIFICATES MONITOR JOBS VISUALIZE JOBS and WORKFLOW PROGRESS SUBMIT WORKFLOW DOWNLOAD RESULTS DOWNLOAD RESULTS The typical user scenarioPart 2 - execution phase Certificate servers Gridservices Portal server CEOS WGISS Meeting, May 8-12, 2006, Budapest

  12. Opening the workflow editor The editor is a Java Webstart applicationdownload and installation is only a click! CEOS WGISS Meeting, May 8-12, 2006, Budapest

  13. Workflow Editor Define DAG of batch jobs: • Drag & drop components:jobs and ports • Connect ports by channels(no cycles, no loops) • Define job and port properties CEOS WGISS Meeting, May 8-12, 2006, Budapest

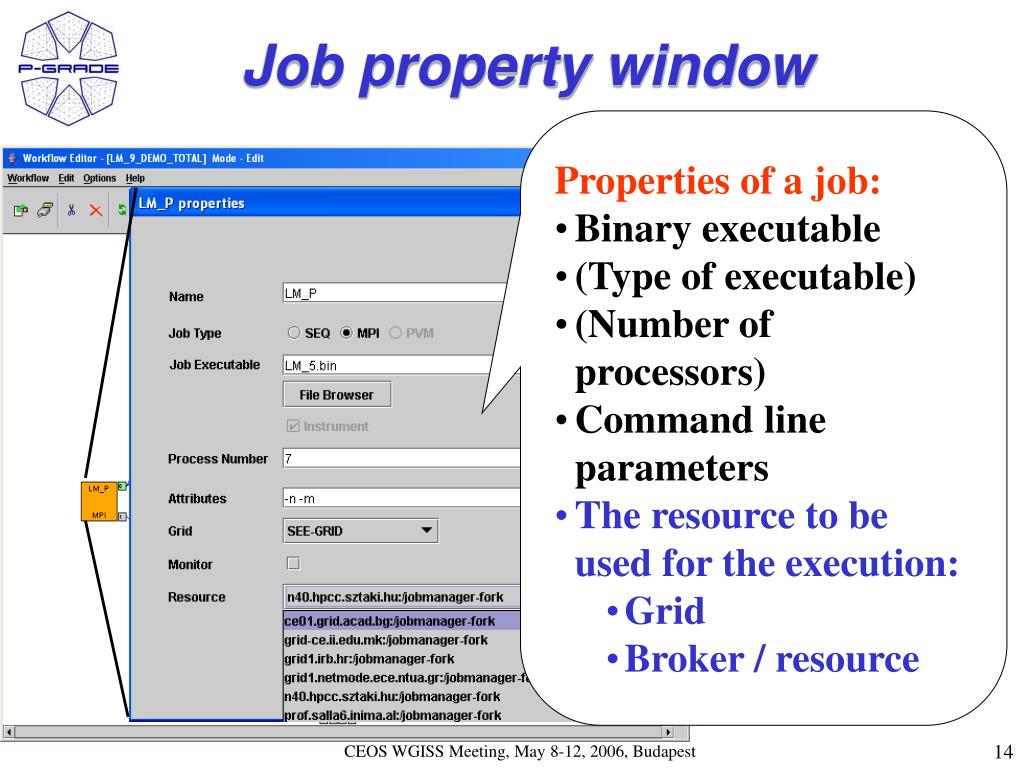

  14. Job property window • Properties of a job: • Binary executable • (Type of executable) • (Number of processors) • Command line parameters • The resource to be used for the execution: • Grid • Broker / resource CEOS WGISS Meeting, May 8-12, 2006, Budapest

  15. Support for manual resource selection:information system browser The information system portlet queries EGEE and Globus information systems CEOS WGISS Meeting, May 8-12, 2006, Budapest

  16. Support for broker-based resource selection • Select a broker Grid/VO for the job • (Specify extra ranks & requirements for the job in Job Description Language) • The broker will find the best resource for your job! CEOS WGISS Meeting, May 8-12, 2006, Budapest

  17. Defining input/output data File type: input:required by the job output:produced by the job File location:local:my desktop remote: grid storage site File name: unique name of the file File storage type: Permanent:final result of the WF Volatile:only used for inter-job data transfer CEOS WGISS Meeting, May 8-12, 2006, Budapest

  18. The typical user scenarioExecution phase – step 1: Certificate servers Gridservices DOWNLOAD PROXY CERTIFICATES Portal server CEOS WGISS Meeting, May 8-12, 2006, Budapest

  19. Prerequisite of workflow execution: Download user certificates • Certificate server details: • Hostname • Port number • User name • Password • Certificate parameters: • Lifetime CEOS WGISS Meeting, May 8-12, 2006, Budapest

  20. Result of certificate download Multiple certificates for multiple Grids/VOs can be available on the portal server at the same time! HUNGRID resources SEE-GRID resources CEOS WGISS Meeting, May 8-12, 2006, Budapest

  21. Workflow Execution(observation by the workflow portlet) CEOS WGISS Meeting, May 8-12, 2006, Budapest White/Red/Green color means the job is initial/running/finished state

  22. Workflow Execution(observation by the workflow portlet) CEOS WGISS Meeting, May 8-12, 2006, Budapest White/Red/Green color means the job is initial/running/finished state

  23. Workflow Execution(observation by the workflow portlet) CEOS WGISS Meeting, May 8-12, 2006, Budapest White/Red/Green color means the job is initial/running/finished state

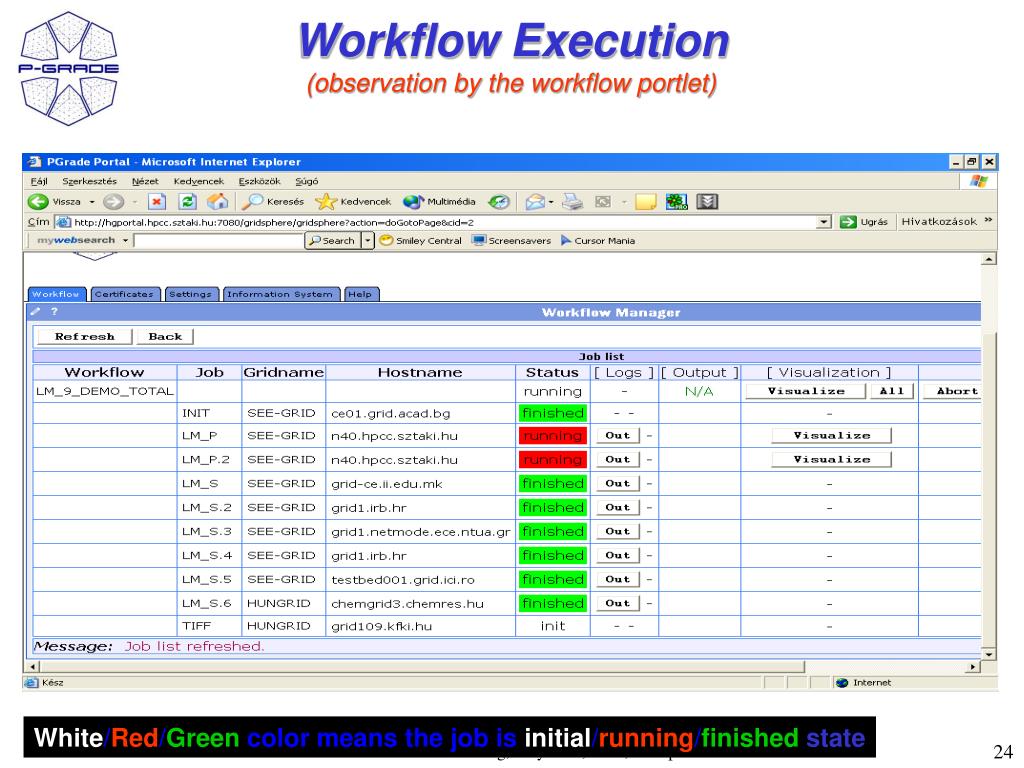

  24. Workflow Execution(observation by the workflow portlet) CEOS WGISS Meeting, May 8-12, 2006, Budapest White/Red/Green color means the job is initial/running/finished state

  25. Workflow Execution(observation by the workflow portlet) CEOS WGISS Meeting, May 8-12, 2006, Budapest White/Red/Green color means the job is initialised/running/finished

  26. The portal monitors and visualizes parallel jobs On-Line application monitoring • The portal monitors and visualizes workflows: • Input data transfer • Job execution • Output data transfer CEOS WGISS Meeting, May 8-12, 2006, Budapest

  27. Downloading the results… • Download small files in a single ZIP file • Keep large files in the Grid for future analysis! CEOS WGISS Meeting, May 8-12, 2006, Budapest

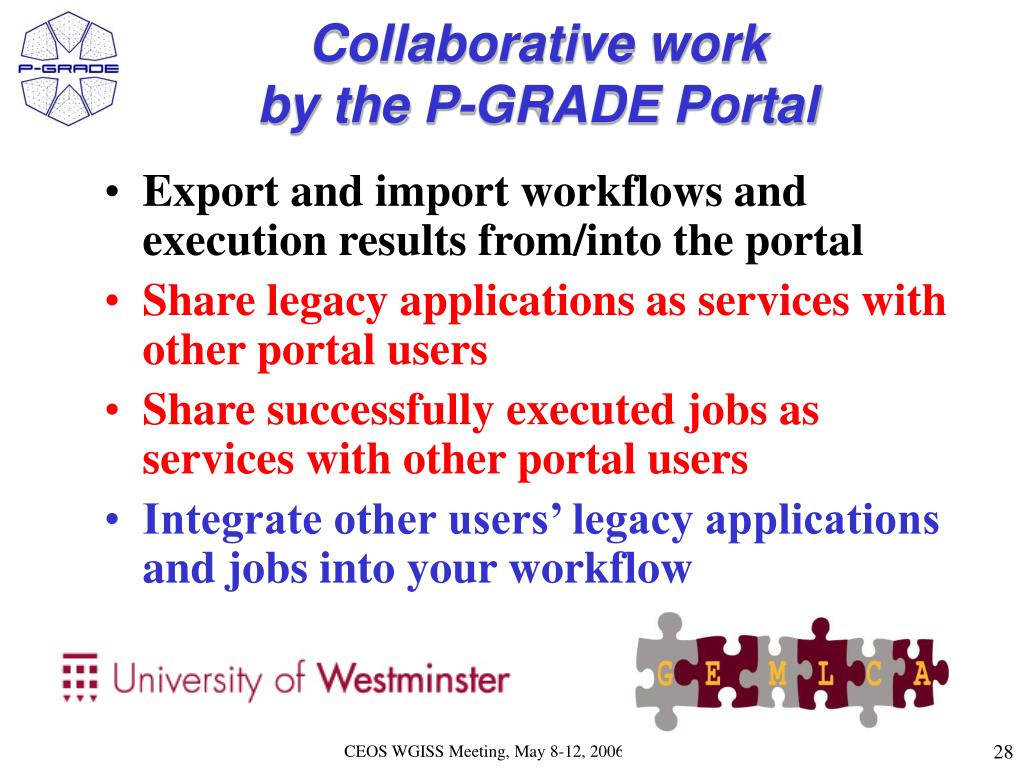

  28. Collaborative work by the P-GRADE Portal • Export and import workflows and execution results from/into the portal • Share legacy applications as services with other portal users • Share successfully executed jobs as services with other portal users • Integrate other users’ legacy applications and jobs into your workflow CEOS WGISS Meeting, May 8-12, 2006, Budapest

  29. References • P-GRADE Portal service is available for • SEE-GRID infrastructure • HUNGRID VO of EGEE • Central European VO of EGEE • GILDA: Training VO of EGEE • UK National Grid Service • Under preparation for • US Open Science Grid, Economy-Grid, Swiss BioGrid, BioInfoGrid, Turkish Grid • P-GRADE portal can be installed for any public/private EGEE or Globus Grid/VO Please contact us! CEOS WGISS Meeting, May 8-12, 2006, Budapest

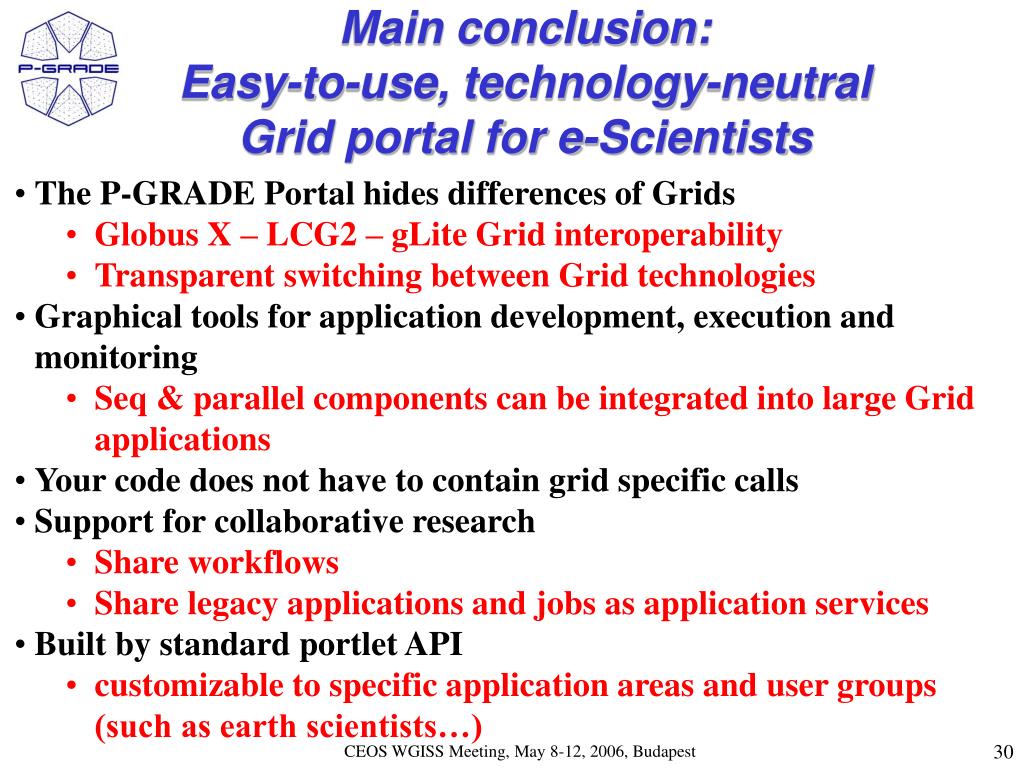

  30. Main conclusion:Easy-to-use, technology-neutral Grid portal for e-Scientists • The P-GRADE Portal hides differences ofGrids • Globus X – LCG2 – gLite Grid interoperability • Transparent switching between Grid technologies • Graphical tools for application development, execution and monitoring • Seq & parallel components can be integrated into large Grid applications • Your code does not have to contain grid specific calls • Support for collaborative research • Share workflows • Share legacy applications and jobs as application services • Built by standard portlet API • customizable to specific application areas and user groups(such as earth scientists…) CEOS WGISS Meeting, May 8-12, 2006, Budapest

  31. Further information… • Visit the www.lpds.sztaki.hu/pgportal site(manuals, slide shows, installation procedure, etc.) • Visit or request a training event!(see list of events on P-GRADE Portal homepage) • Lectures, demos, hands-on tutorials, application development support • Get an account for a portal service: • VOCE portal - SZTAKI • SEEGRID portal – SZTAKI • HUNGrid portal – SZTAKI • NGS portal – University of Westminster • Install a portal for your community: If you are the administrator of a Grid/VO SZTAKI is pleased to help you install a portal for your community! CEOS WGISS Meeting, May 8-12, 2006, Budapest

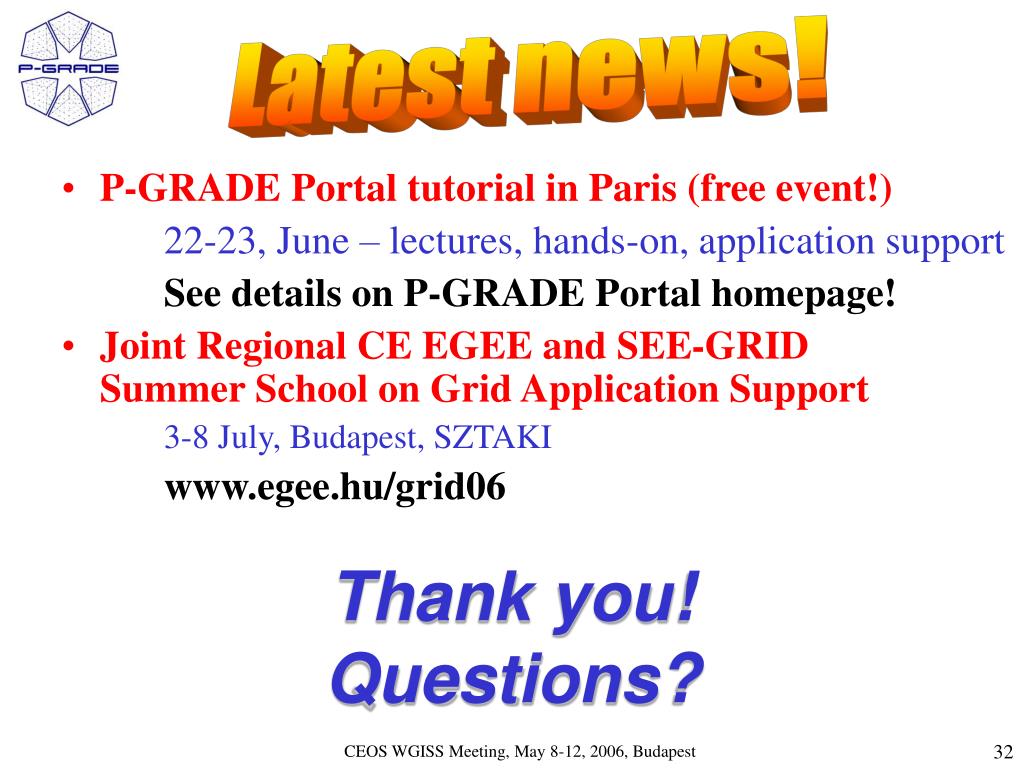

  32. Latest news! Thank you!Questions? • P-GRADE Portal tutorial in Paris (free event!) 22-23, June – lectures, hands-on, application support See details on P-GRADE Portal homepage! • Joint Regional CE EGEE and SEE-GRIDSummer School on Grid Application Support 3-8 July, Budapest, SZTAKI www.egee.hu/grid06 CEOS WGISS Meeting, May 8-12, 2006, Budapest
