  1. Chapter 16-17Physical Database Design Methodology • Software & Hardware • Mapping Logical Design to DBMS • Physical Implementation • Security Implementation • Monitoring and Tuning DBMS

  2. Software & Hardware • Define user’s requirement • Select software based on user’s requirement • Select hardware based on software requirement

  3. Mapping Logical Design to DBMS • Create base relations • Name of relation • Attributes (domain & defaults) • Primary key (not null) • Foreign key (referential integrity) • Alternative keys • Indexes • Integrity rules • Enterprise • Referential • Entity

  4. Physical Implementation • Efficiency measurement • Throughput • Response time • Factors for efficiency measurement • Main memory • CPU • Disk I/O (os, database, index, recovery log) • Network (traffic, collisions) • File organization & access method

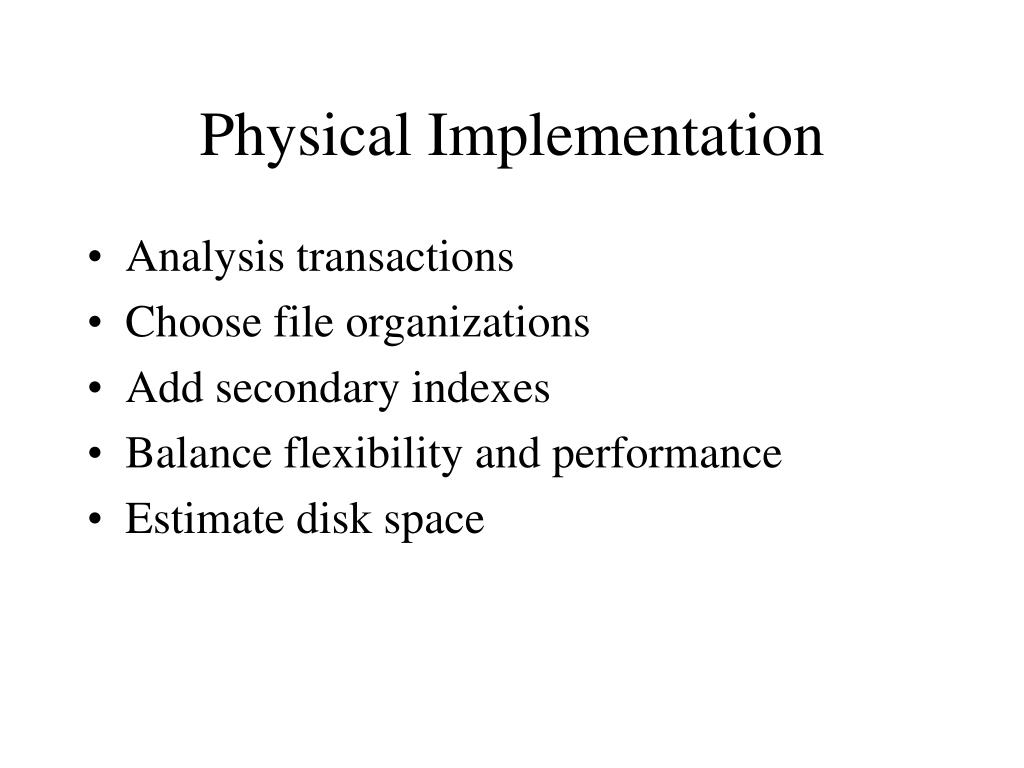

  5. Physical Implementation • Analysis transactions • Choose file organizations • Add secondary indexes • Balance flexibility and performance • Estimate disk space

  6. Analyze Transactions • Frequency of the transaction - logical access map • max • avg • min • Access structure - attributes used in “where” conditions • Relational operations (join, select, project) • Data operations (I, D, U, R) • User response time requirement • Day • Time

  7. File Organization Selection Criteria • Heap • Bulk-loading • A few pages • Retrieve most record • Primary & secondary indexes • Indexed sequential • Exact key match • Direct & sequential accesses • Update deterioration

  8. File Organization Selection Criteria • Direct (hash or random) • Direct access • Primary and secondary indexes • Update deterioration • Not for pattern match or range of values • B+ tree • Similar to indexed sequential • No overflow problem (deterioration) • Pattern match or range of values • Dynamic growth

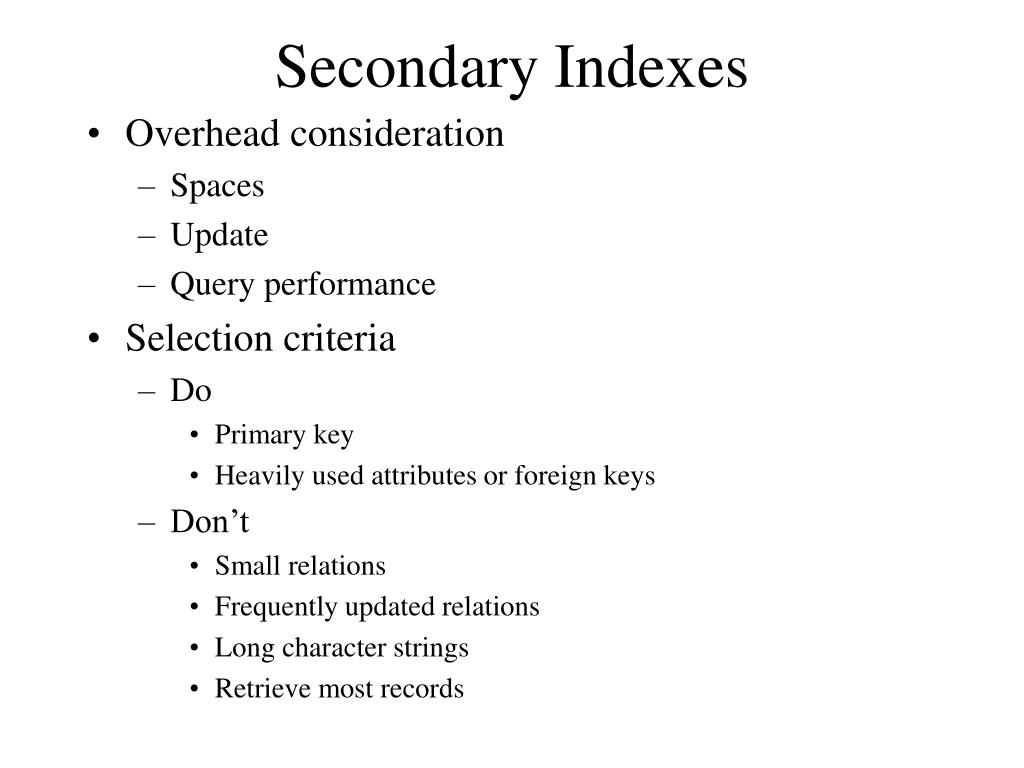

  9. Secondary Indexes • Overhead consideration • Spaces • Update • Query performance • Selection criteria • Do • Primary key • Heavily used attributes or foreign keys • Don’t • Small relations • Frequently updated relations • Long character strings • Retrieve most records

  10. Balance Flexibility and Performance • Denormalization • Low update rate • High query rate • Cross-referencing transactions and relations table • Steps • Derived data • Redundancy

  11. Derived Data • Storage costs • Calculation costs • Response time

  12. Redundancy - Reduce Join • Combining one-to-one relationship (company, store) • Duplicating nonkey attributes or foreign keys in one-to-many relationship (po, supplier) • Duplicating attributes in man-to-many relationship (student, class) • Introducing repeating group • Static • Maximum no. • less than 12

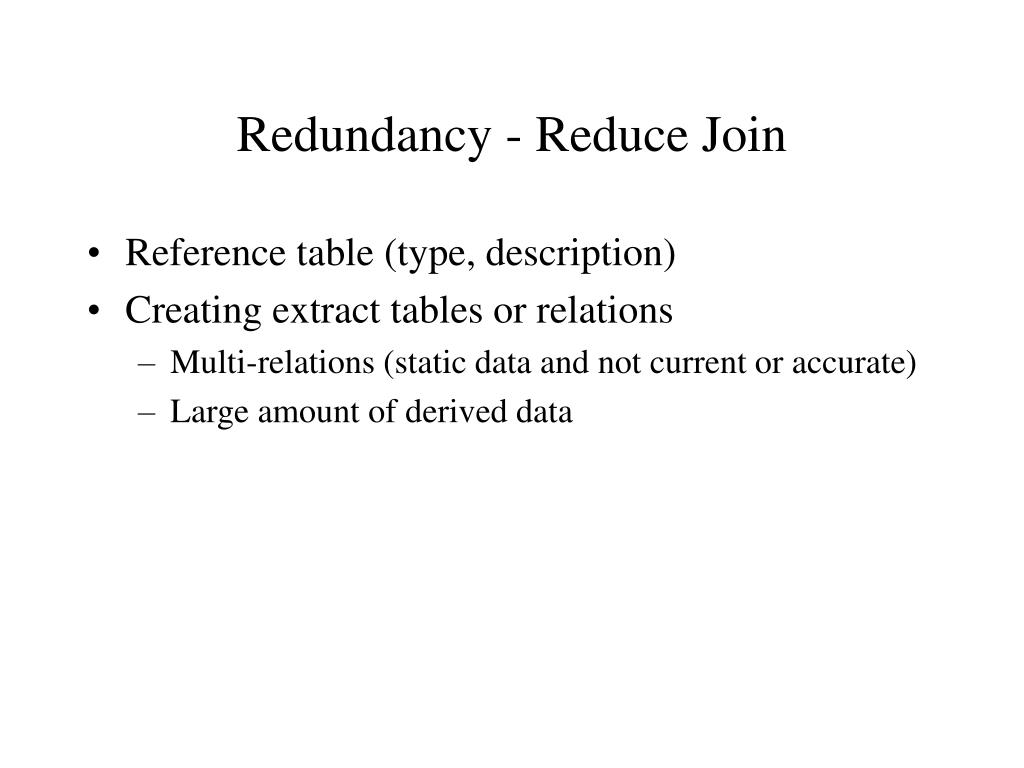

  13. Redundancy - Reduce Join • Reference table (type, description) • Creating extract tables or relations • Multi-relations (static data and not current or accurate) • Large amount of derived data

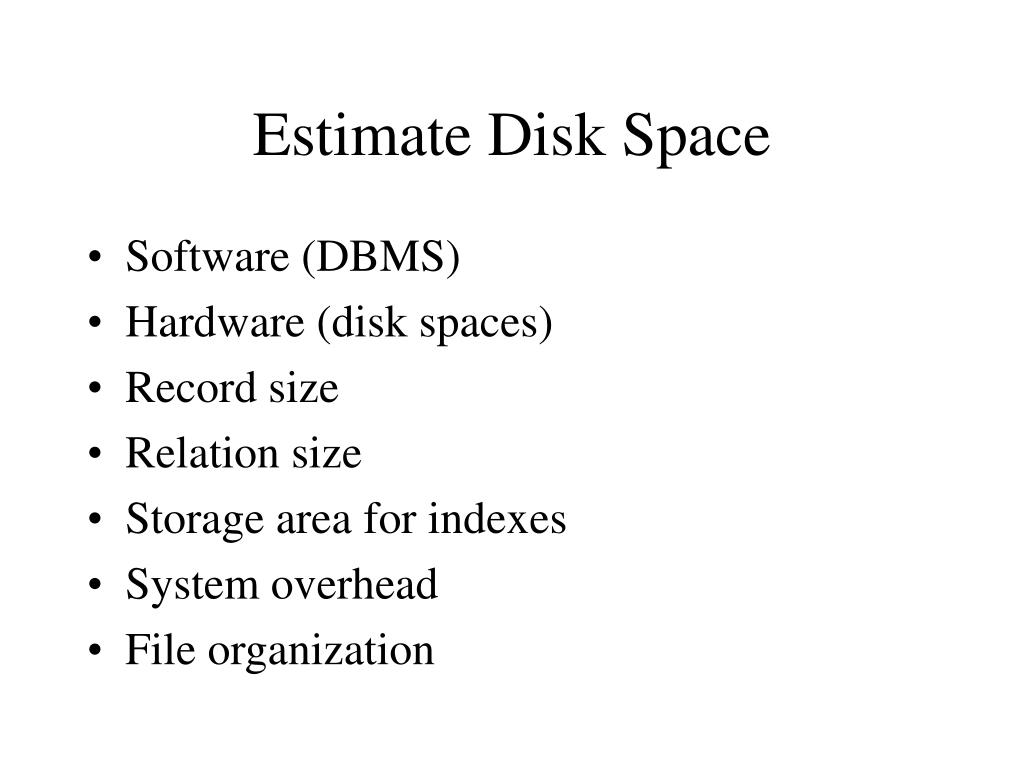

  14. Estimate Disk Space • Software (DBMS) • Hardware (disk spaces) • Record size • Relation size • Storage area for indexes • System overhead • File organization

  15. Security Implementation • User views • Access rules • Authorization • Privileges

  16. Monitoring and Tuning DBMS • Correct inappropriate design • Implement new minor requirement • Produce better Response time and throughput • Increase user’s satisfaction

  17. Assignment • Review chapter 5-6, 11-17, 24-26 • Read chapter 18 • Project (enhanced e-r & normalization) • Due date: • Project (SQL part) • Due date:
