  1. CIS 451:Introduction to ASP.NET Dr. Ralph D. Westfall January, 2009

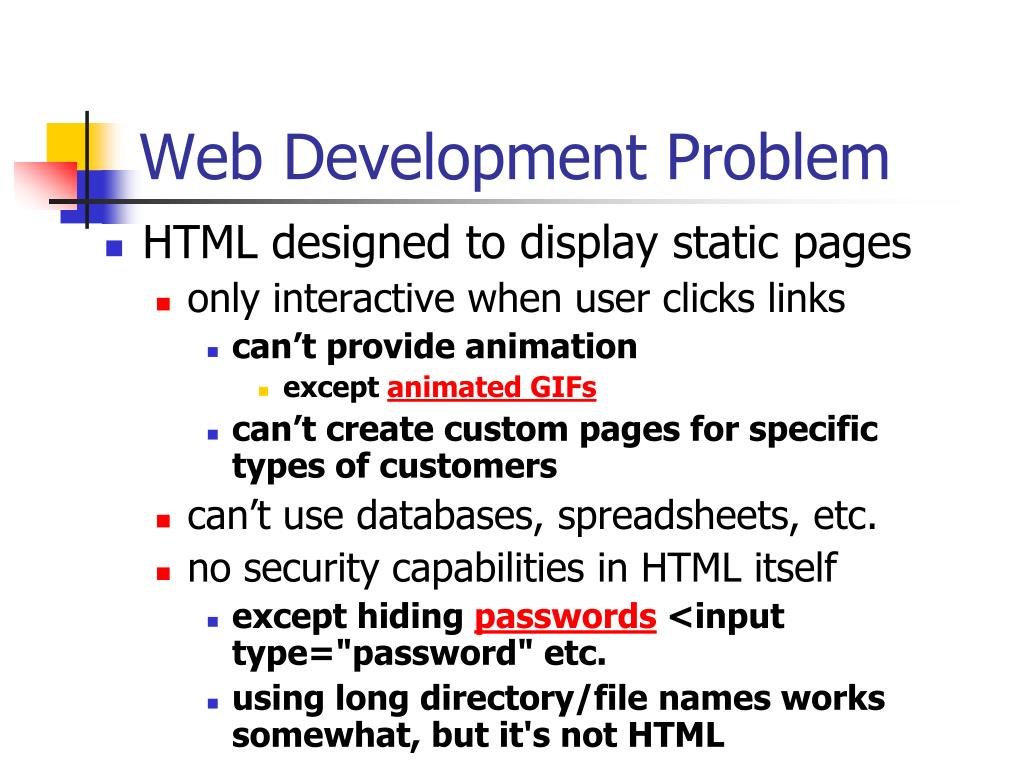

  2. Web Development Problem • HTML designed to display static pages • only interactive when user clicks links • can’t provide animation • except animated GIFs • can’t create custom pages for specific types of customers • can’t use databases, spreadsheets, etc. • no security capabilities in HTML itself • except hiding passwords <input type="password" etc. • using long directory/file names works somewhat, but it's not HTML

  3. Solution 1: Client Side Scripts • JavaScript (dominant product) can do • animation, rollovers, message boxes • calculations, validation of user inputs • incorporate customized content into pages • e.g. based on day/time, user inputs, etc. • provide limited access to user’s system • system date, browser, plug-in information • set cookies (data for server for next visit)

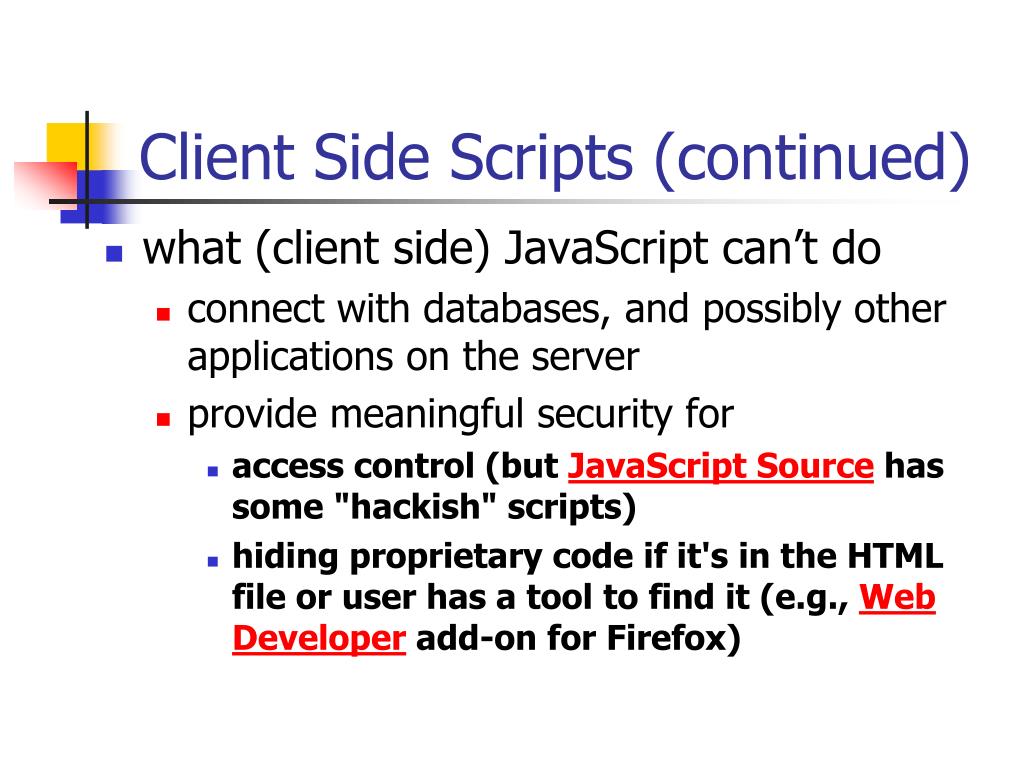

  4. Client Side Scripts (continued) • what (client side) JavaScript can’t do • connect with databases, and possibly other applications on the server • provide meaningful security for • access control (but JavaScript Source has some "hackish" scripts) • hiding proprietary code if it's in the HTML file or user has a tool to find it (e.g., Web Developer add-on for Firefox)

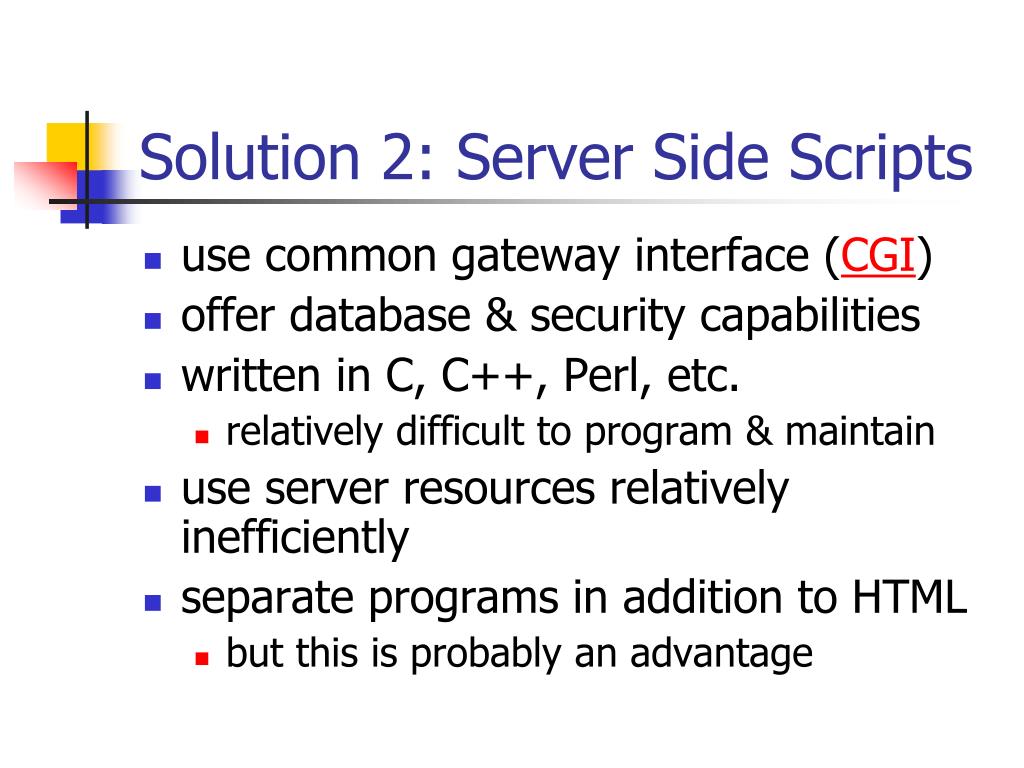

  5. Solution 2: Server Side Scripts • use common gateway interface (CGI) • offer database & security capabilities • written in C, C++, Perl, etc. • relatively difficult to program & maintain • use server resources relatively inefficiently • separate programs in addition to HTML • but this is probably an advantage

  6. Solution 3: ASP • Active Server Pages • released by Microsoft in 1996 • works with Microsoft servers • Windows Server 2008 • free Visual Web Developer Express 2008 IDE includes a lightweight personal web server for developing ASP.NET applications • so does Visual Studio

  7. Solution 3: ASP (continued) • simple language • can go in same files as HTML code • provides many of the capabilities of CGI • uses server resources more efficiently than CGI • using ASP server extensions, can work with non-Microsoft servers, but …

  8. ASP.NET • major revision of ASP • can use different languages, not just VB.NET • VB.NET code looks more like Java than the VBScript used previously • .NET code is compiled into MSIL (Microsoft Intermediate Language) • MSIL is then interpreted into machine language that runs on the server

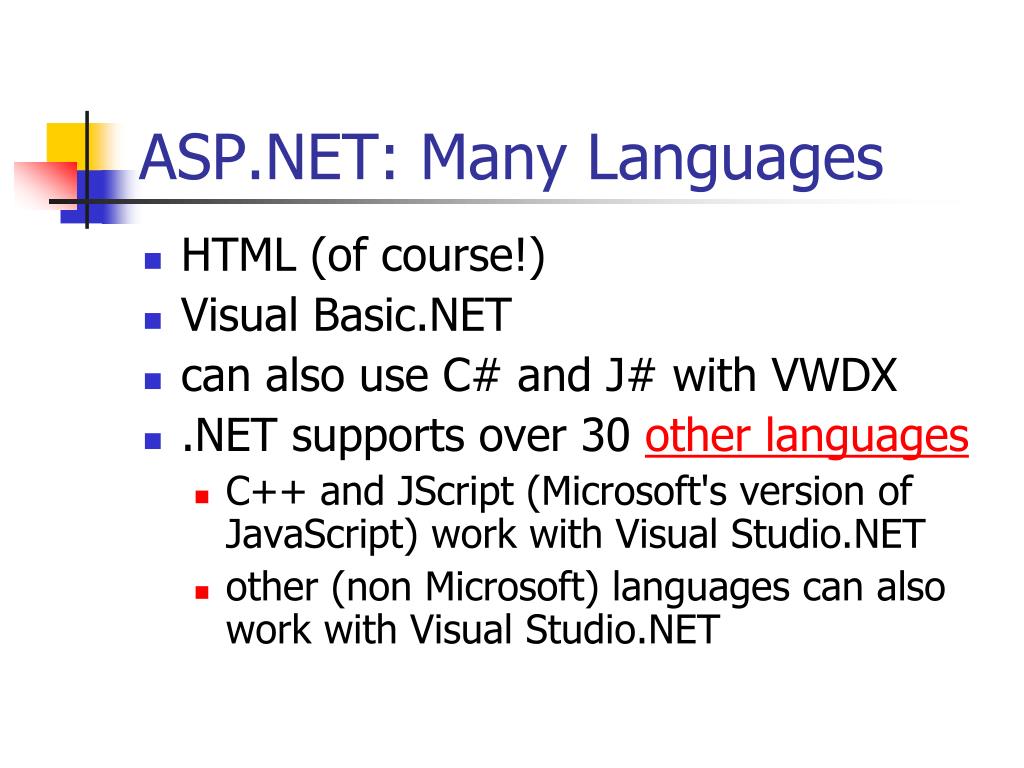

  9. ASP.NET: Many Languages • HTML (of course!) • Visual Basic.NET • can also use C# and J# with VWDX • .NET supports over 30 other languages • C++ and JScript (Microsoft's version of JavaScript) work with Visual Studio.NET • other (non Microsoft) languages can also work with Visual Studio.NET

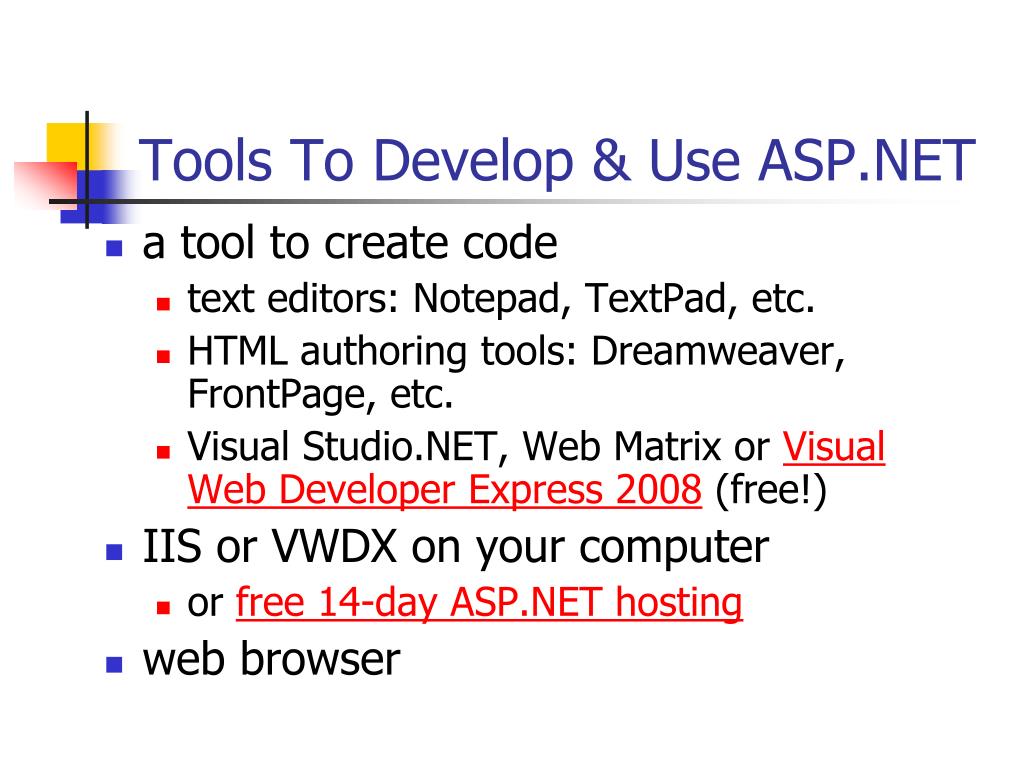

  10. Tools To Develop & Use ASP.NET • a tool to create code • text editors: Notepad, TextPad, etc. • HTML authoring tools: Dreamweaver, FrontPage, etc. • Visual Studio.NET, Web Matrix or Visual Web Developer Express 2008 (free!) • IIS or VWDX on your computer • or free 14-day ASP.NET hosting • web browser

  11. Creating an ASP.NET Page • create an HTML document • add ASP code in appropriate places • save with extension of .aspx • if don't have local server on computer, upload to a remote ASP.NET server • Cal Poly Intranet server won't run ASP • view in browser (file can be on local machine with server or remote server)

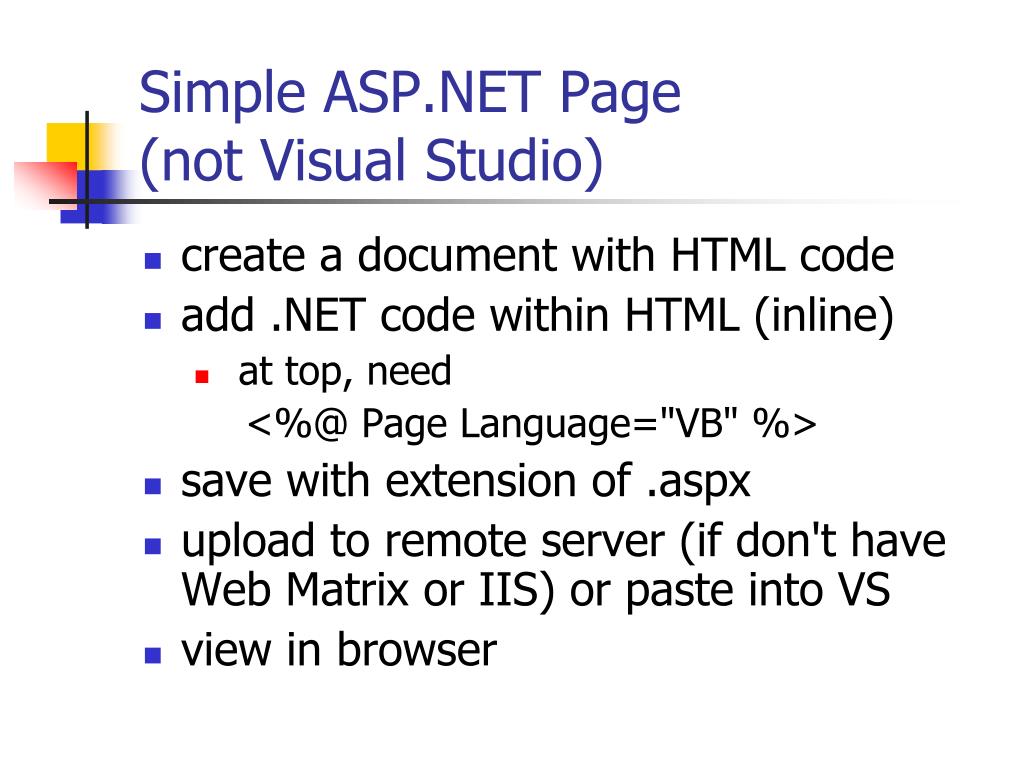

  12. Simple ASP.NET Page (not Visual Studio) • create a document with HTML code • add .NET code within HTML (inline) • at top, need <%@ Page Language="VB" %> • save with extension of .aspx • upload to remote server (if don't have Web Matrix or IIS) or paste into VS • view in browser

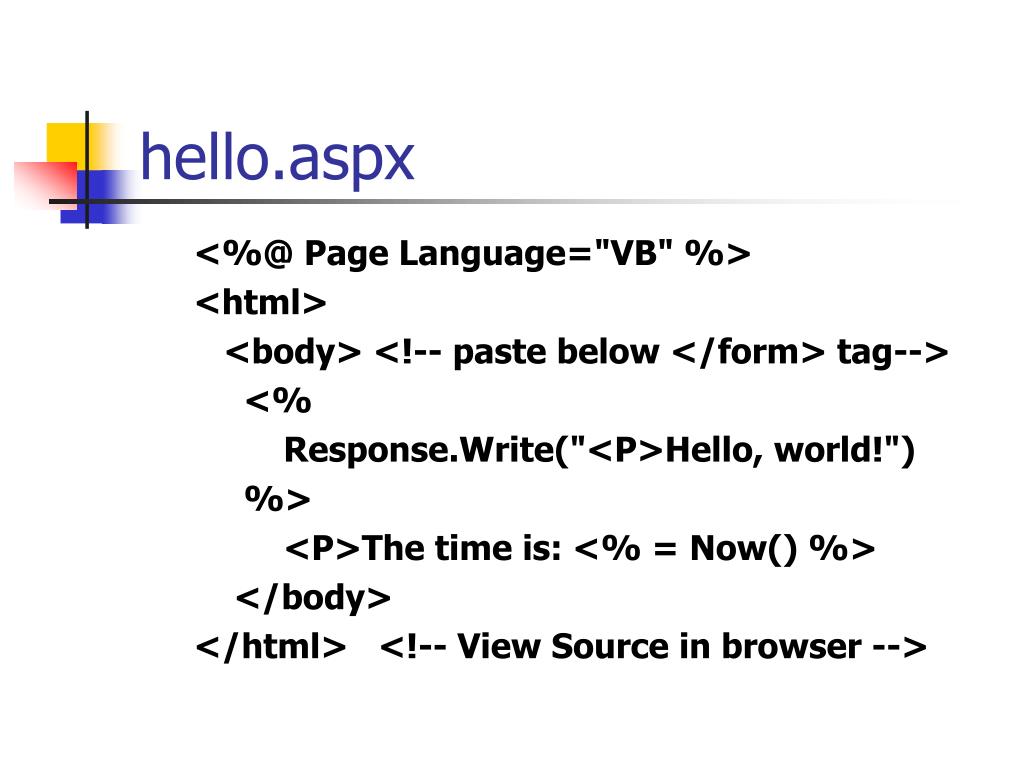

  13. hello.aspx <%@ Page Language="VB" %> <html> <body> <!-- paste below </form> tag--> <% Response.Write("<P>Hello, world!") %> <P>The time is: <% = Now() %> </body> </html> <!-- View Source in browser -->

  14. ASP.NET Coding within HTML • use <% at start, %> at end • on same line (inline) • <% = Time %> • or on multiple lines (block) • <% Response.Write "<P>Hello, world!" Response.Write 'like VB.NET Debug.Write • %>

  15. ASP.NET Output in HTML • ASP inside a HTML tag • <P>The time is: <% = Time %> • use <% = followed by a variable or a function that returns data, then %> • variable can come from server itself, or from client machine, or can be defined in code elsewhere in same or another ASP file • <% Dim strCar as String="Geo" %> <P>The car is: <% = strCar %>

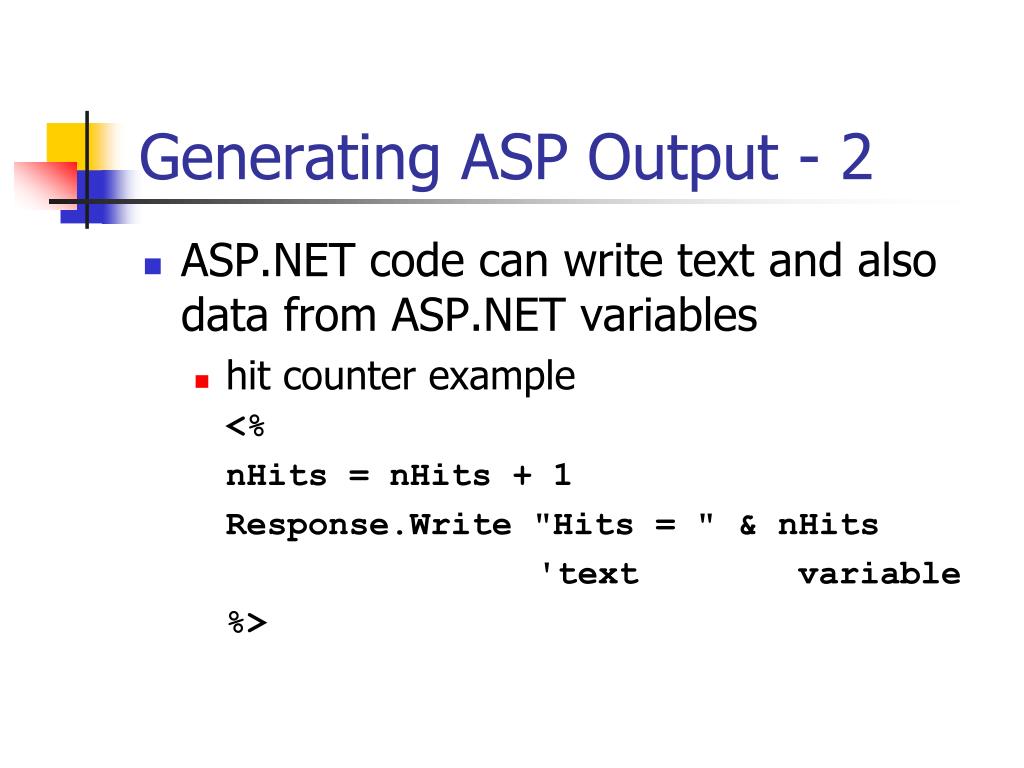

  16. Generating ASP Output - 2 • ASP.NET code can write text and also data from ASP.NET variables • hit counter example • <% • nHits = nHits + 1 • Response.Write "Hits = " & nHits • 'text variable • %>

  17. Generating ASP Output - 3 • can mix text, HTML, and ASP.NET variables in code • this includes using ASP to write HTML tags, in addition to writing variables and text

  18. fontsize.aspx • <% • Dim intI as Integer • For intI = 1 to 7 • %> <!-HTML inside ASP loop-> • <font size = <% = intI %> > • Size is <% = intI %> </font><br/> • <% Next %> <!-note-> • <!-what will you see from this?-> • <!-fontcolor.aspx 'notes->

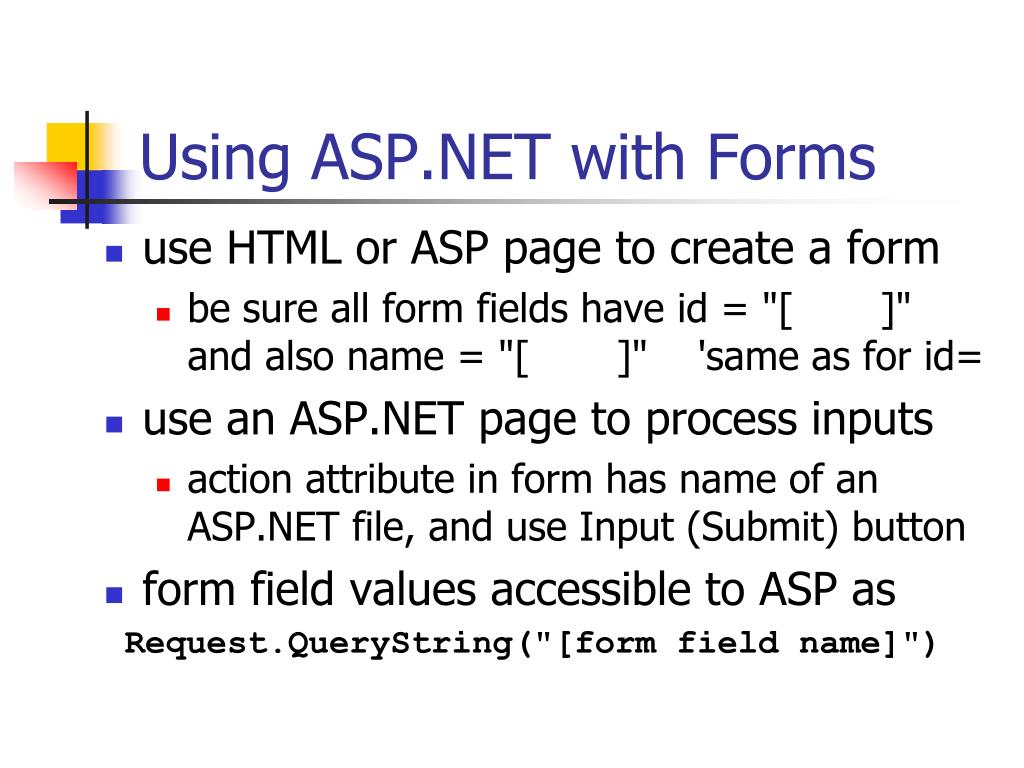

  19. Using ASP.NET with Forms • use HTML or ASP page to create a form • be sure all form fields have id = "[ ]" and also name = "[ ]" 'same as for id= • use an ASP.NET page to process inputs • action attribute in form has name of an ASP.NET file, and use Input (Submit) button • form field values accessible to ASP as Request.QueryString("[form field name]")

  20. form2.html <html><body> • <form method="get" • action="resp2.aspx"> Last Name <input type="text" name="custName" id="custName"> </body></html> <!--need to refresh?-->

  21. Default.aspx • <%@ Page Language="VB" %> • <html><body> • Input from form: • <% • Dim strCustName as String strCustName = _ Request.QueryString("custName") • Response.Write("last name is " & _ strCustName) • %></body></html>

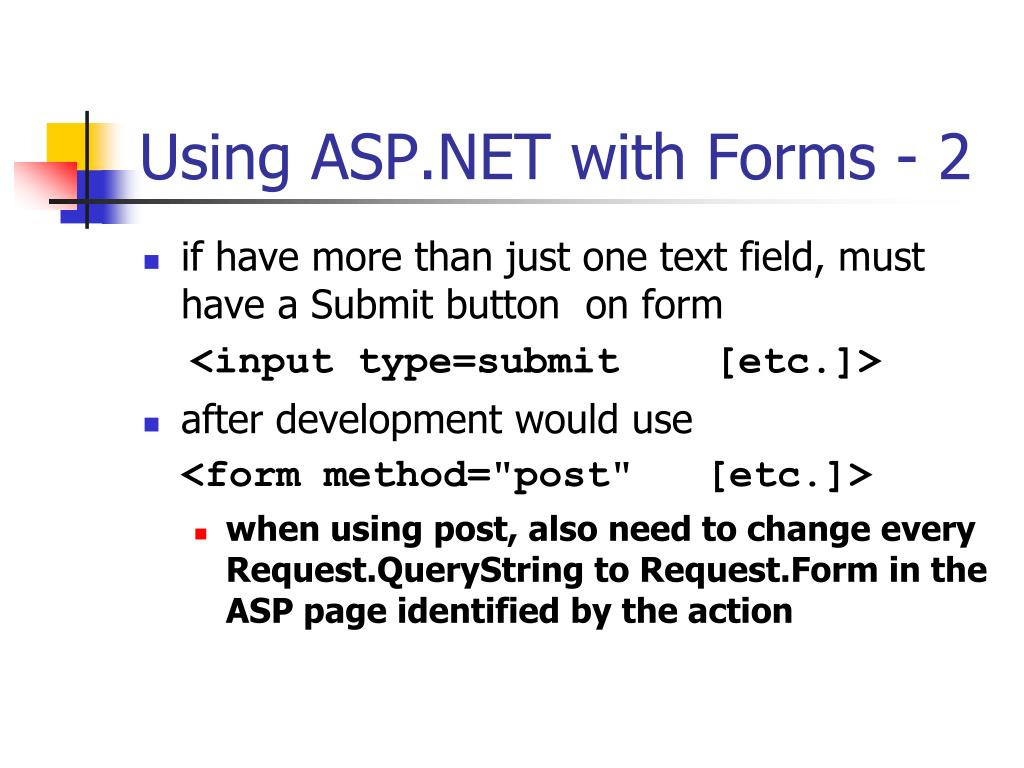

  22. Using ASP.NET with Forms - 2 • if have more than just one text field, must have a Submit button on form <input type=submit [etc.]> • after development would use • <form method="post"[etc.]> • when using post, also need to change every Request.QueryString to Request.Form in the ASP page identified by the action

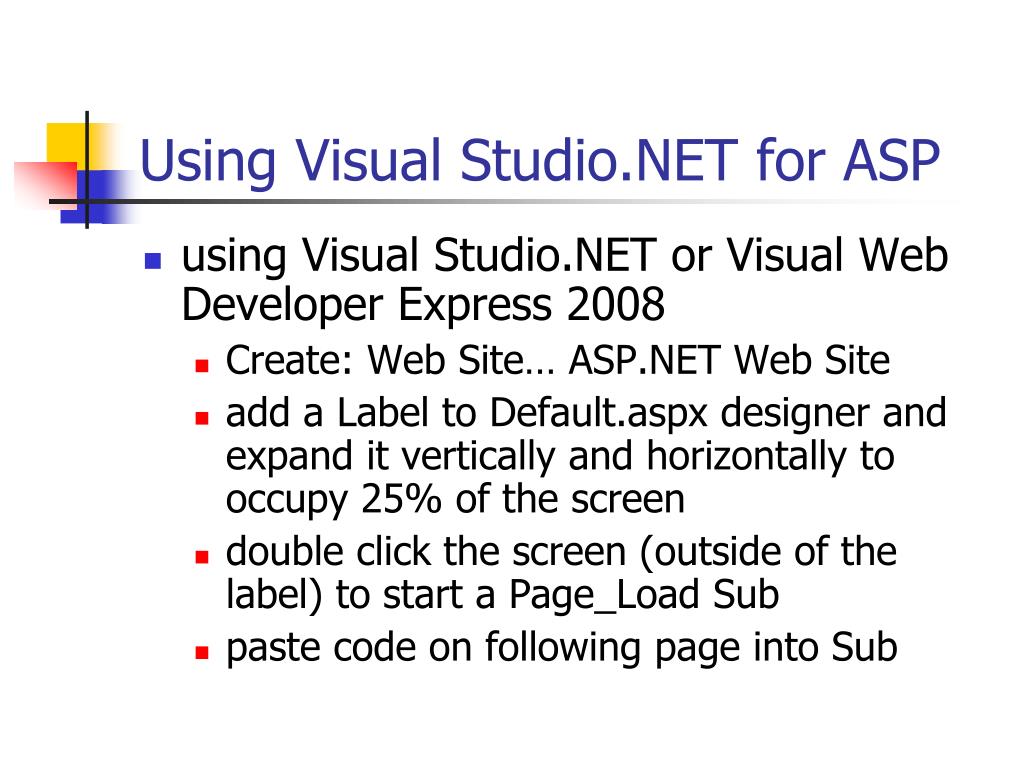

  23. Using Visual Studio.NET for ASP • using Visual Studio.NET or Visual Web Developer Express 2008 • Create: Web Site… ASP.NET Web Site • add a Label to Default.aspx designer and expand it vertically and horizontally to occupy 25% of the screen • double click the screen (outside of the label) to start a Page_Load Sub • paste code on following page into Sub

  24. VB.NET Web Code Dim i As Integer Dim colr() As String = {"000000", "333300", _"666600", "999900", "cccc00", "ffff00"} Dim output As String = "" For i = 0 To 5 output &= "<h1><font color=#" & colr(i) _ & ">" & colr(i) & "</font></h1>" Next Label1.Text = output

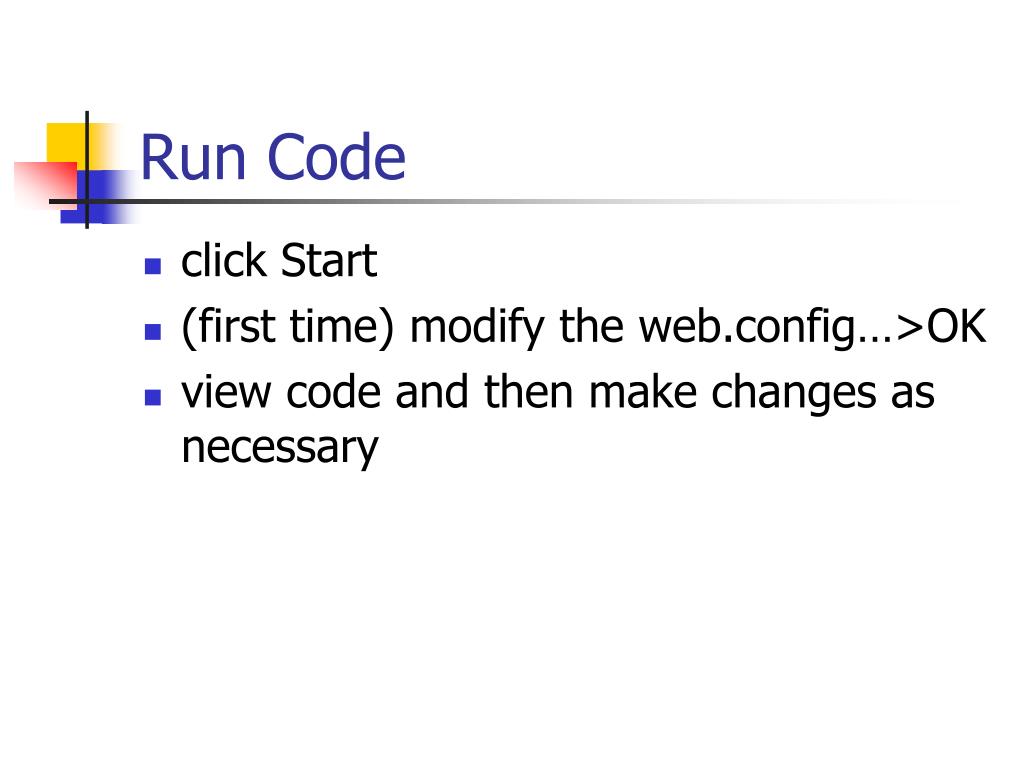

  25. Run Code • click Start • (first time) modify the web.config…>OK • view code and then make changes as necessary

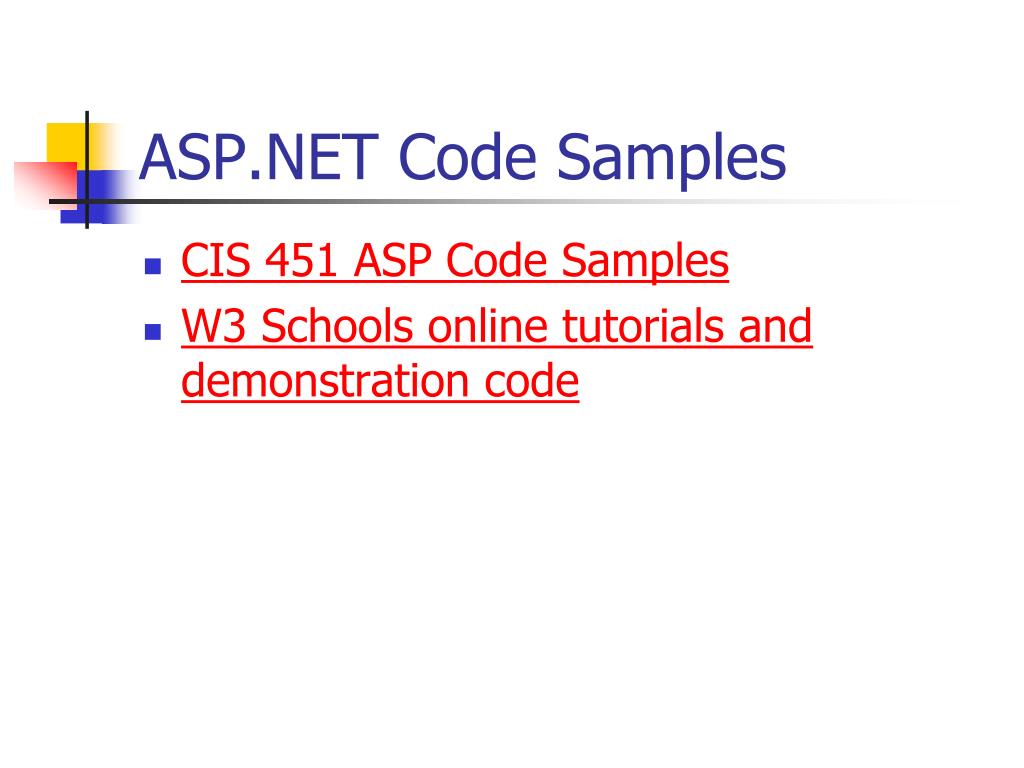

  26. ASP.NET Code Samples • CIS 451 ASP Code Samples • W3 Schools online tutorials and demonstration code
