  1. Chapter 23: Aggregate Demand and Aggregate Supply

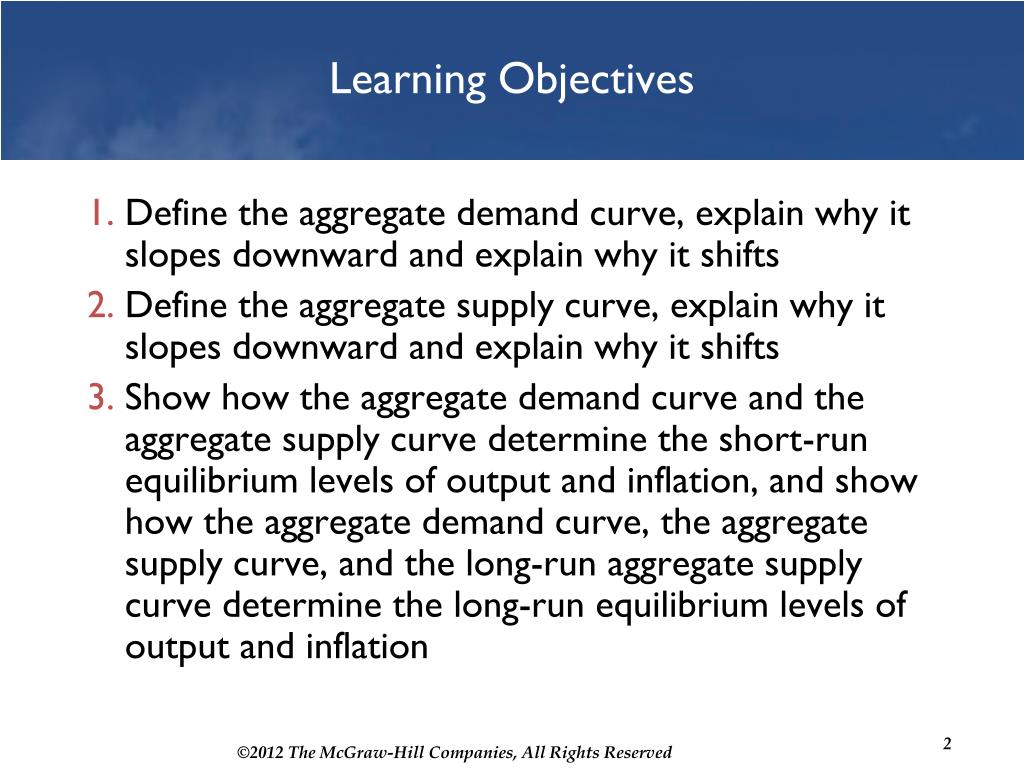

  2. Learning Objectives • Define the aggregate demand curve, explain why it slopes downward and explain why it shifts • Define the aggregate supply curve, explain why it slopes downward and explain why it shifts • Show how the aggregate demand curve and the aggregate supply curve determine the short-run equilibrium levels of output and inflation, and show how the aggregate demand curve, the aggregate supply curve, and the long-run aggregate supply curve determine the long-run equilibrium levels of output and inflation

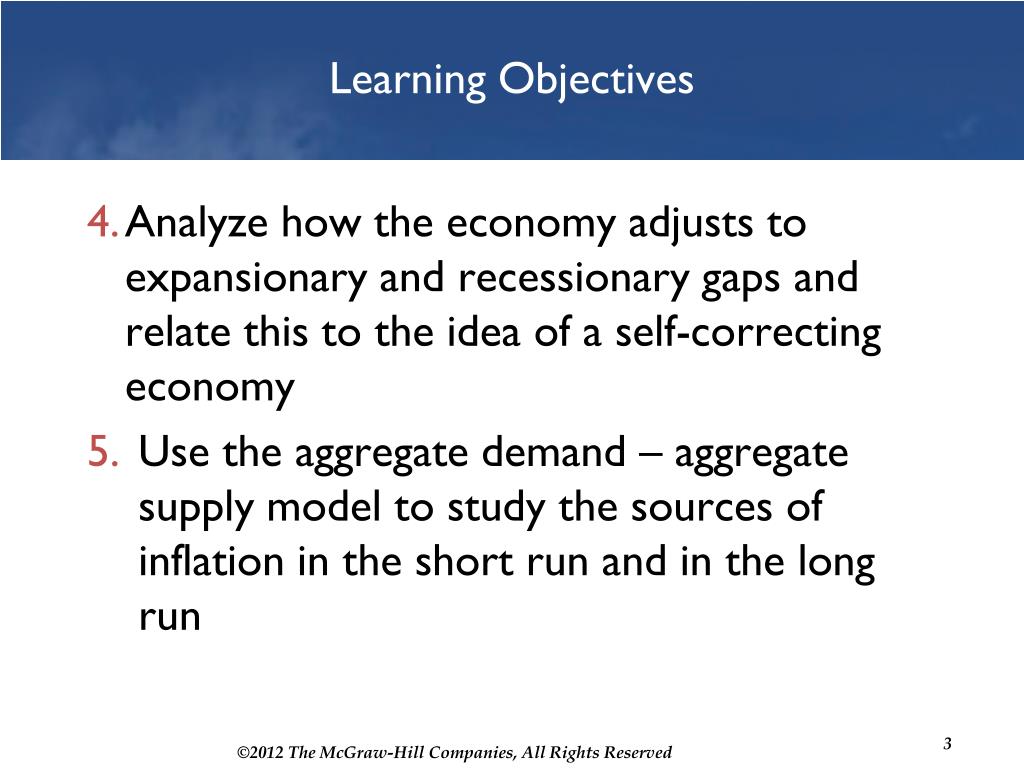

  3. Learning Objectives • Analyze how the economy adjusts to expansionary and recessionary gaps and relate this to the idea of a self-correcting economy • Use the aggregate demand – aggregate supply model to study the sources of inflation in the short run and in the long run

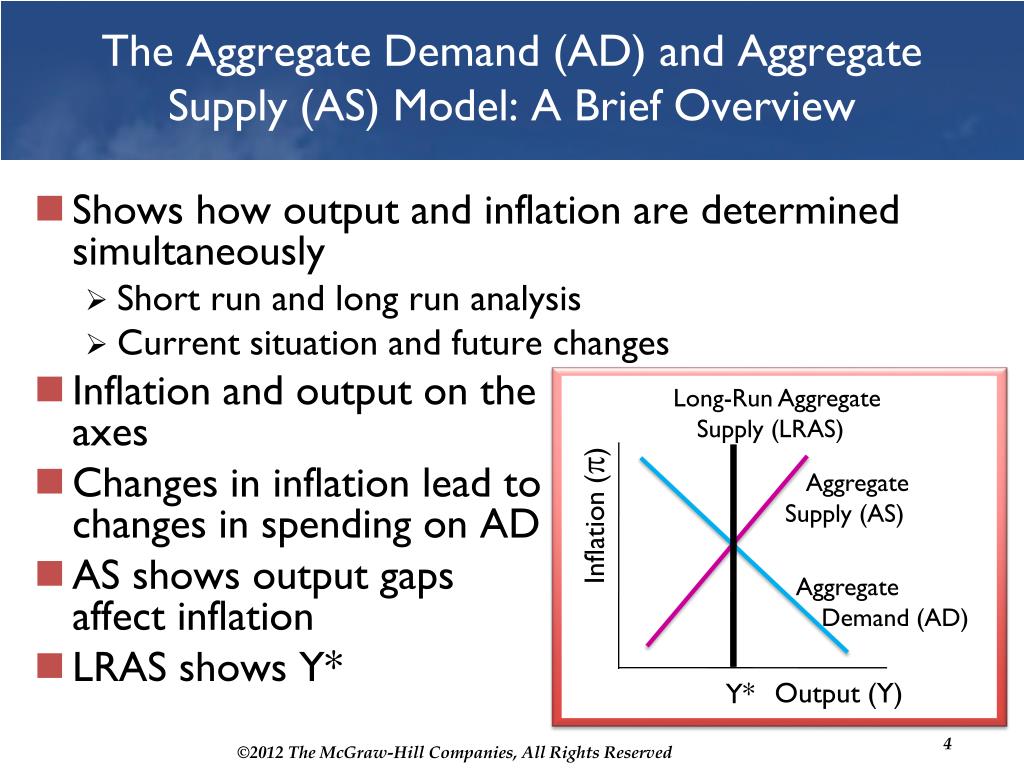

  4. The Aggregate Demand (AD) and Aggregate Supply (AS) Model: A Brief Overview • Shows how output and inflation are determined simultaneously • Short run and long run analysis • Current situation and future changes • Inflation and output on theaxes • Changes in inflation lead tochanges in spending on AD • AS shows output gaps affect inflation • LRAS shows Y* Long-Run AggregateSupply (LRAS) AggregateSupply (AS) Inflation () AggregateDemand (AD) Output (Y) Y*

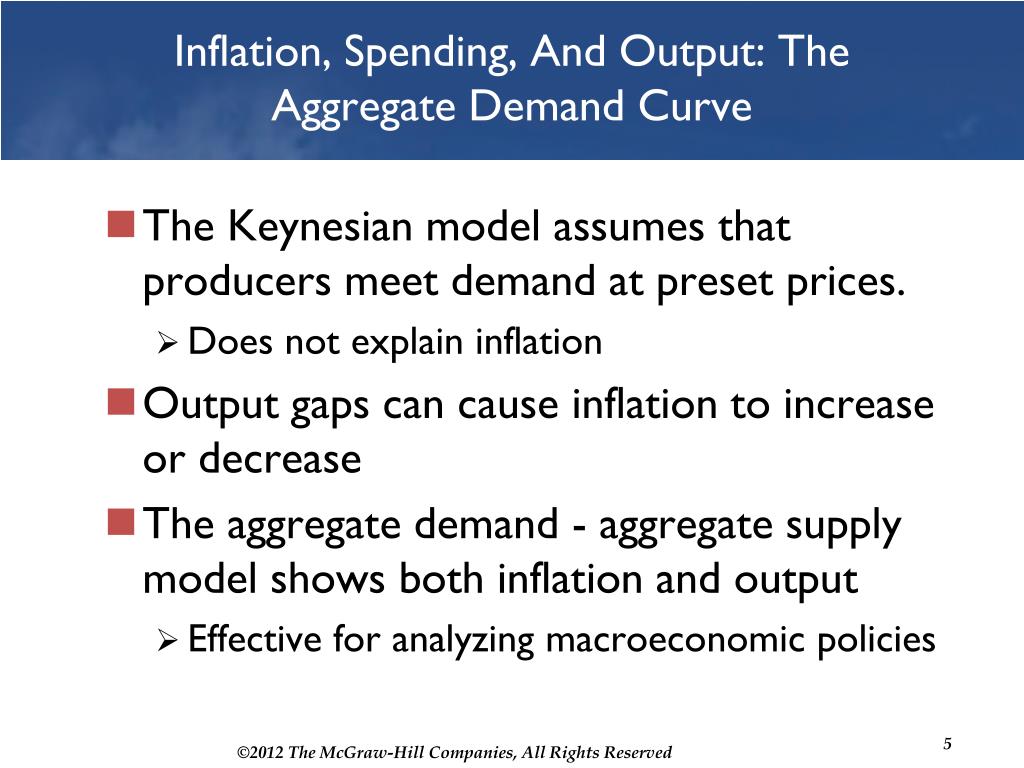

  5. Inflation, Spending, And Output: The Aggregate Demand Curve • The Keynesian model assumes that producers meet demand at preset prices. • Does not explain inflation • Output gaps can cause inflation to increase or decrease • The aggregate demand - aggregate supply model shows both inflation and output • Effective for analyzing macroeconomic policies

  6. Inflation, The Central Bank, And The AD Curve • A primary objective of the central bank is to maintain a low and stable inflation rate • Inflation is likely to occur when Y > Y* • To control inflation, the central bank must keep Y from exceeding Y* • When inflation increases, the central bank increases the nominal interest rate which, in turn, increases real interest rates

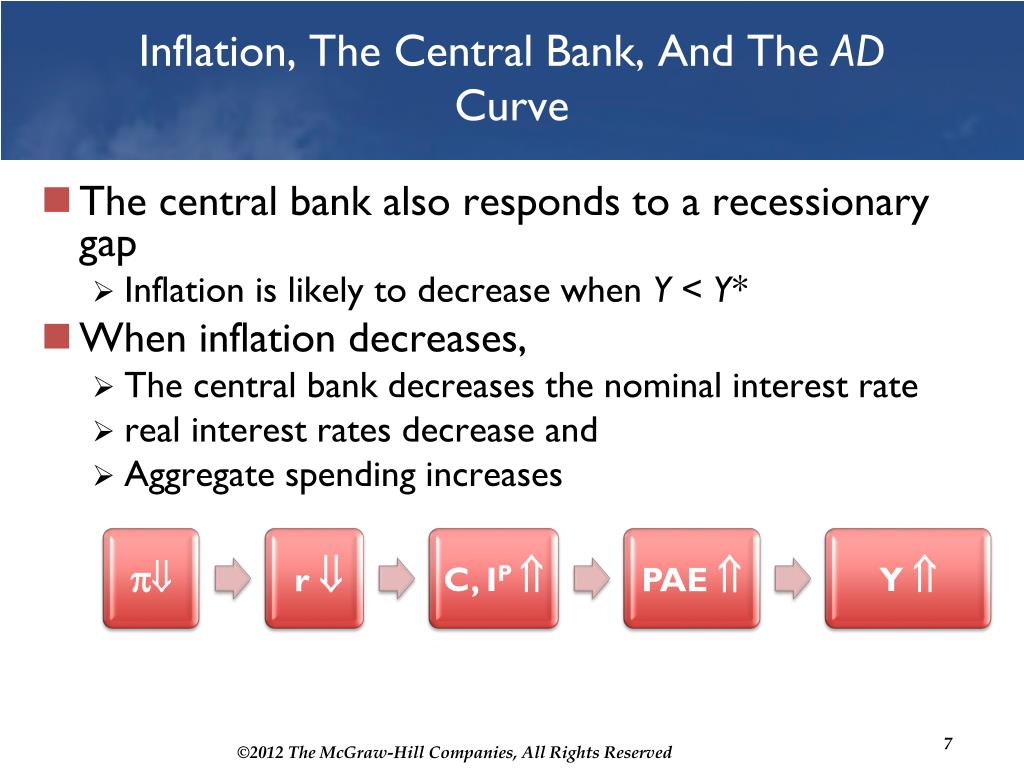

  7. Inflation, The Central Bank, And The AD Curve • The central bank also responds to a recessionary gap • Inflation is likely to decrease when Y < Y* • When inflation decreases, • The central bank decreases the nominal interest rate • real interest rates decrease and • Aggregate spending increases

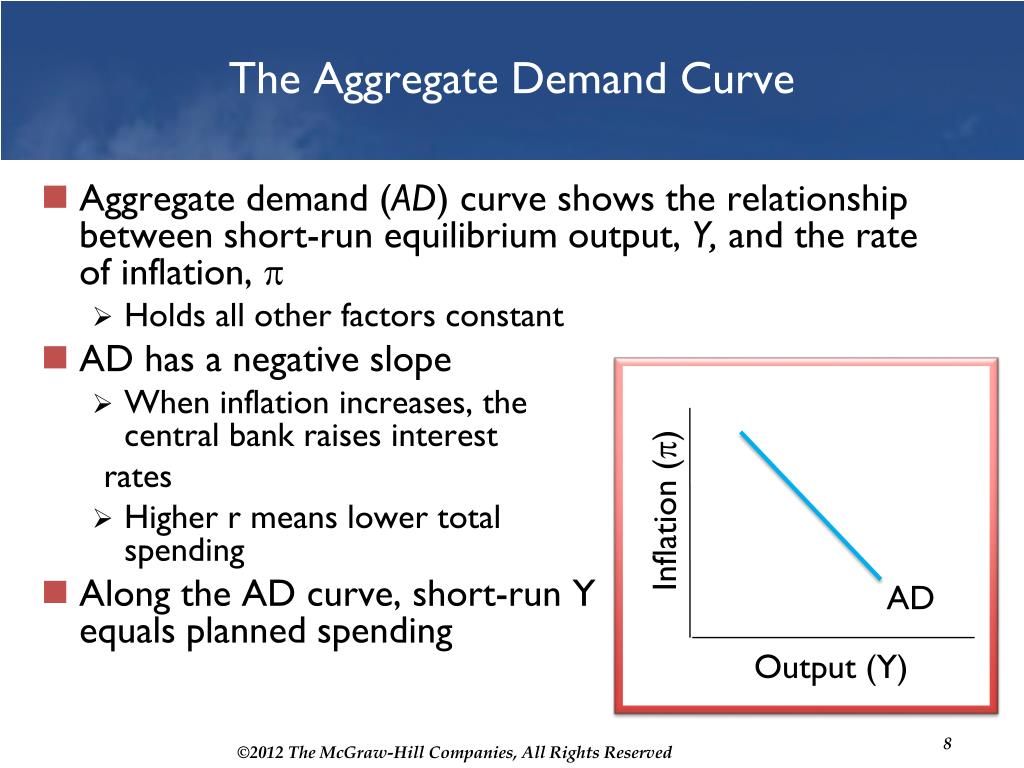

  8. The Aggregate Demand Curve • Aggregate demand (AD) curveshows the relationship between short-run equilibrium output, Y, and the rate of inflation,  • Holds all other factors constant • AD has a negative slope • When inflation increases, thecentral bank raises interest rates • Higher r means lower total spending • Along the AD curve, short-run Yequals planned spending Inflation () AD Output (Y)

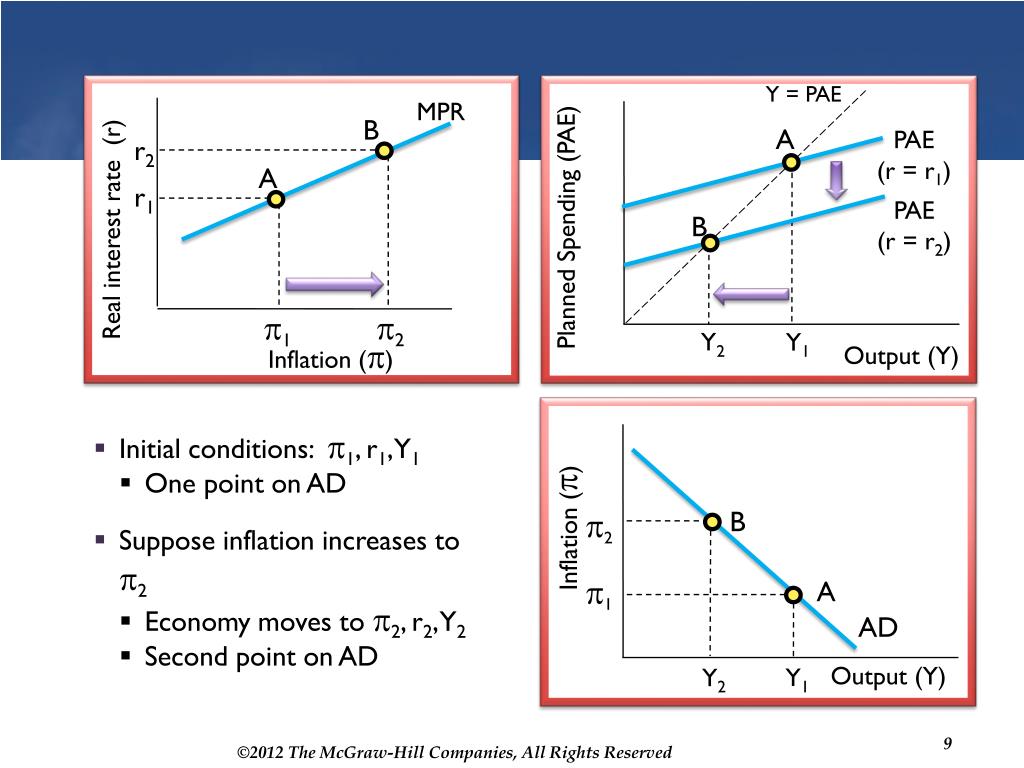

  9. Y = PAE MPR B A PAE (r = r1) r2 A r1 PAE (r = r2) Planned Spending (PAE) B Real interest rate (r) 2 1 Y2 Y1 Inflation () Output (Y) • Initial conditions: 1, r1, Y1 • One point on AD • Suppose inflation increases to 2 • Economy moves to 2, r2, Y2 • Second point on AD 2 B Inflation () 1 A AD Output (Y) Y2 Y1

  10. Shifts in Aggregate Demand Curve • At a given inflation rate, aggregate demand shifts when • Exogenous changes in spending occur • Central bank's monetary policy reaction function changes • Exogenous changes in spending are changes other than those caused by changes in output or the real interest rate • Consumer wealth • Business confidence • Foreign demand for local goods Inflation () AD' AD Output (Y)

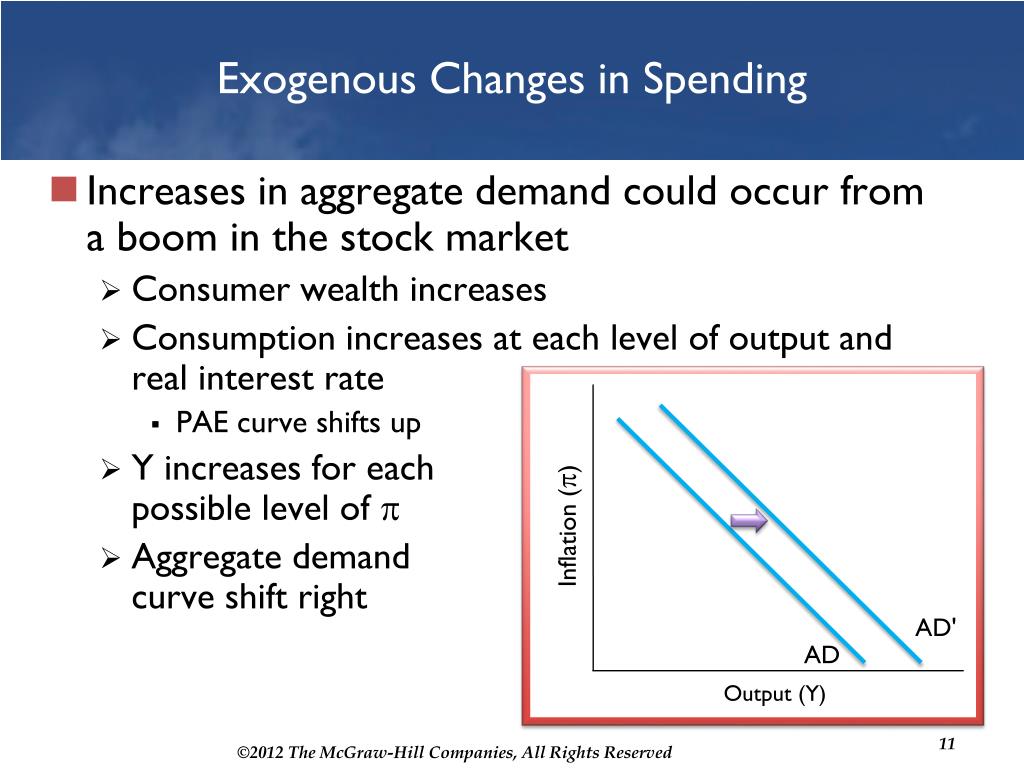

  11. Exogenous Changes in Spending • Increases in aggregate demand could occur from a boom in the stock market • Consumer wealth increases • Consumption increases at each level of output and real interest rate • PAE curve shifts up • Y increases for each possible level of  • Aggregate demand curve shift right Inflation () AD' AD Output (Y)

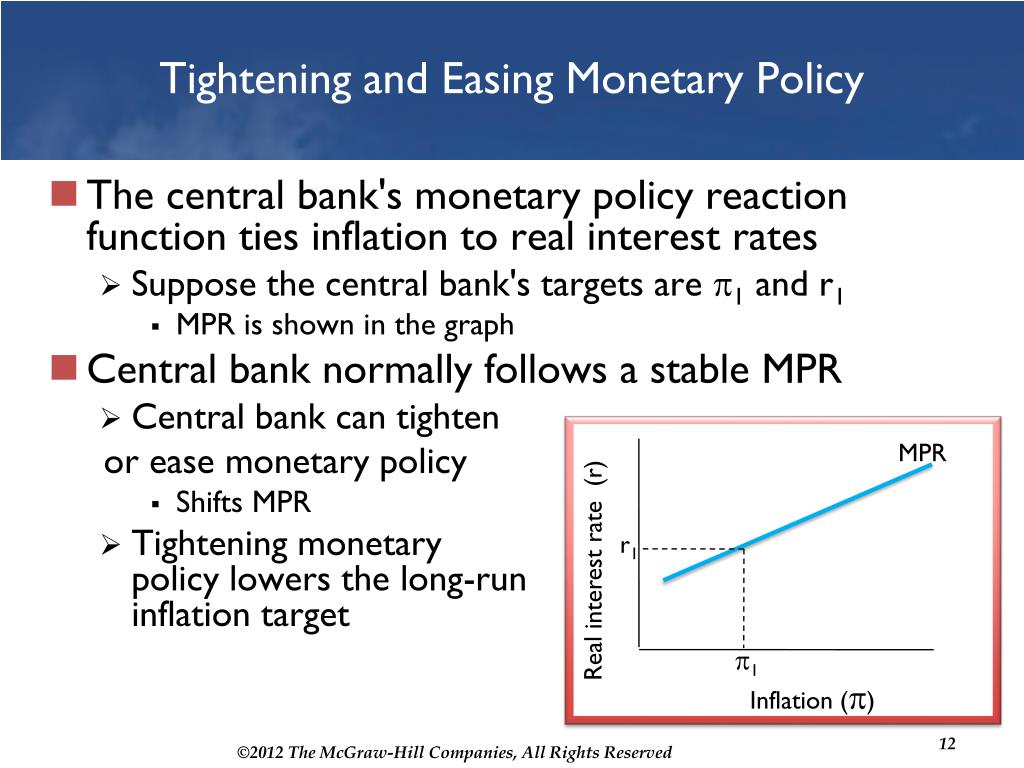

  12. Tightening and Easing Monetary Policy • The central bank's monetary policy reaction function ties inflation to real interest rates • Suppose the central bank's targets are 1 and r1 • MPR is shown in the graph • Central bank normally follows a stable MPR • Central bank can tighten or ease monetary policy • Shifts MPR • Tightening monetary policy lowers the long-run inflation target MPR r1 Real interest rate (r) 1 Inflation ()

  13. Tightening Monetary Policy • Tighter monetary policy results in each interest rate, r, being associated with a lower rate of inflation • A leftward shift of the MPR • The economy begins at the original target inflation rate, 1 • MPR shifts to MPR2 • Central bank increases interest rate from r1 to r2 MPR2 MPR1 r2 r1 Real interest rate (r) 2 1 Inflation ()

  14. Easing Monetary Policy • Easing monetary policy results in each interest rate, r, being associated with a higher rate of inflation • A rightward shift of the MPR • The economy begins at the original target inflation rate, 1 • MPR shifts to MPR3 • Central bank decreases interest rate from r1 to r3 MPR1 r1 MPR3 Real interest rate (r) r3 1 3 Inflation ()

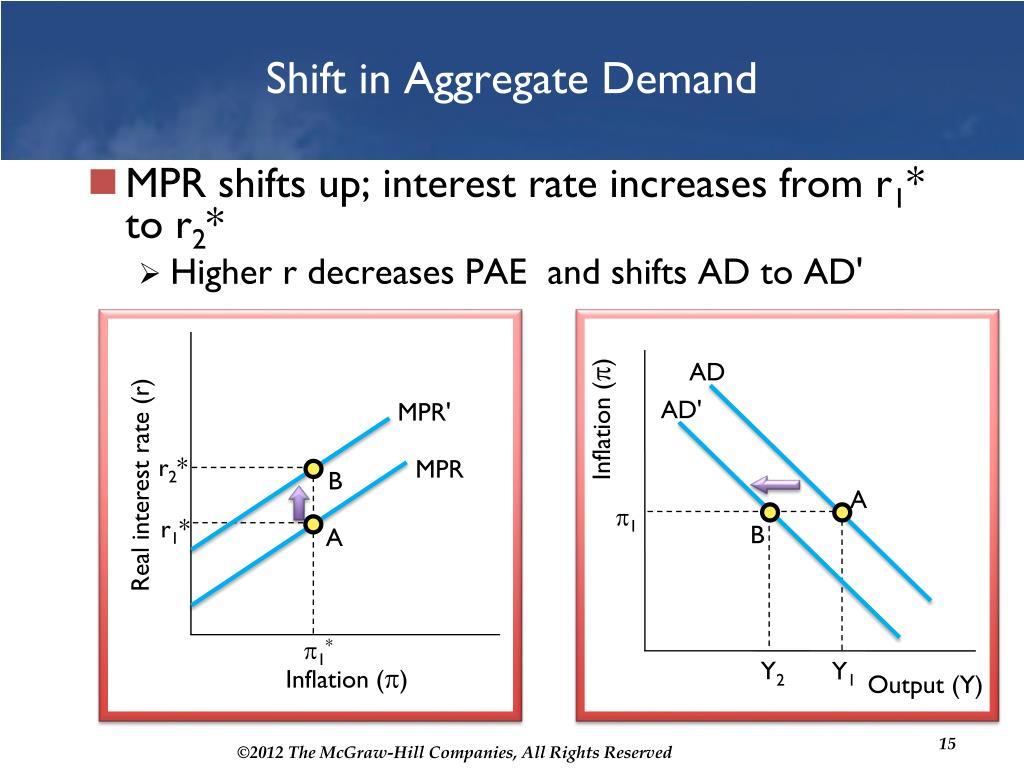

  15. Shift in Aggregate Demand • MPR shifts up; interest rate increases from r1* to r2* • Higher r decreases PAE and shifts AD to AD' AD AD' MPR' Inflation () r2* MPR B Real interest rate (r) A 1 r1* B A 1* Y2 Y1 Inflation () Output (Y)

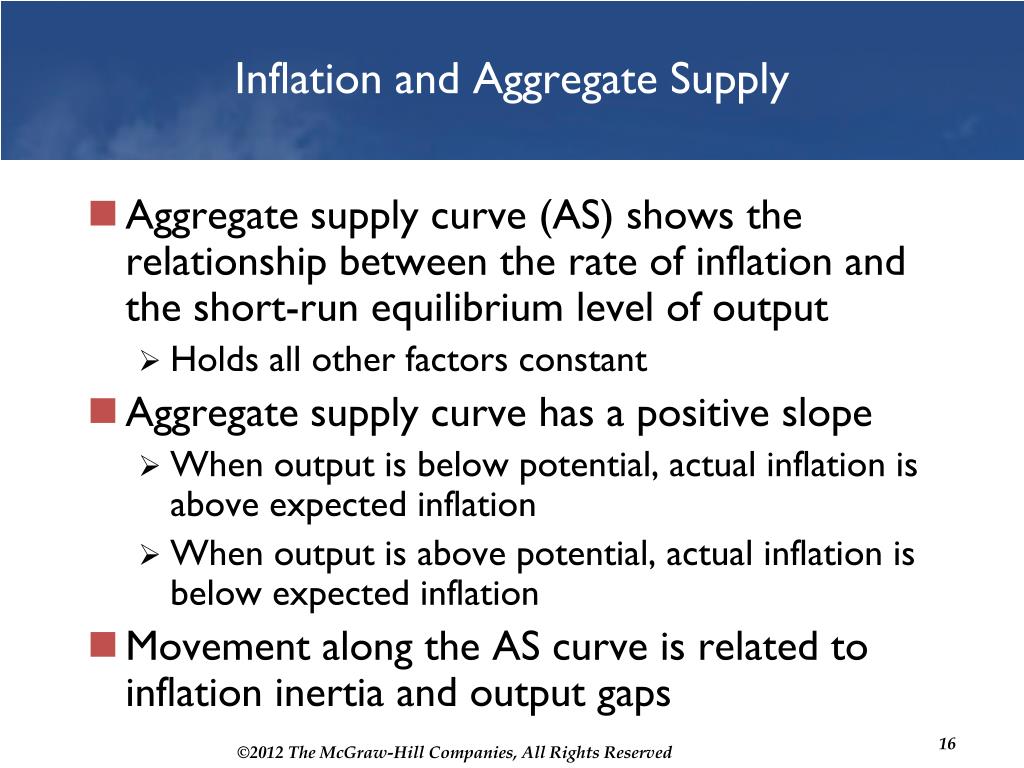

  16. Inflation and Aggregate Supply • Aggregate supply curve (AS) shows the relationship between the rate of inflation and the short-run equilibrium level of output • Holds all other factors constant • Aggregate supply curve has a positive slope • When output is below potential, actual inflation is above expected inflation • When output is above potential, actual inflation is below expected inflation • Movement along the AS curve is related to inflation inertia and output gaps

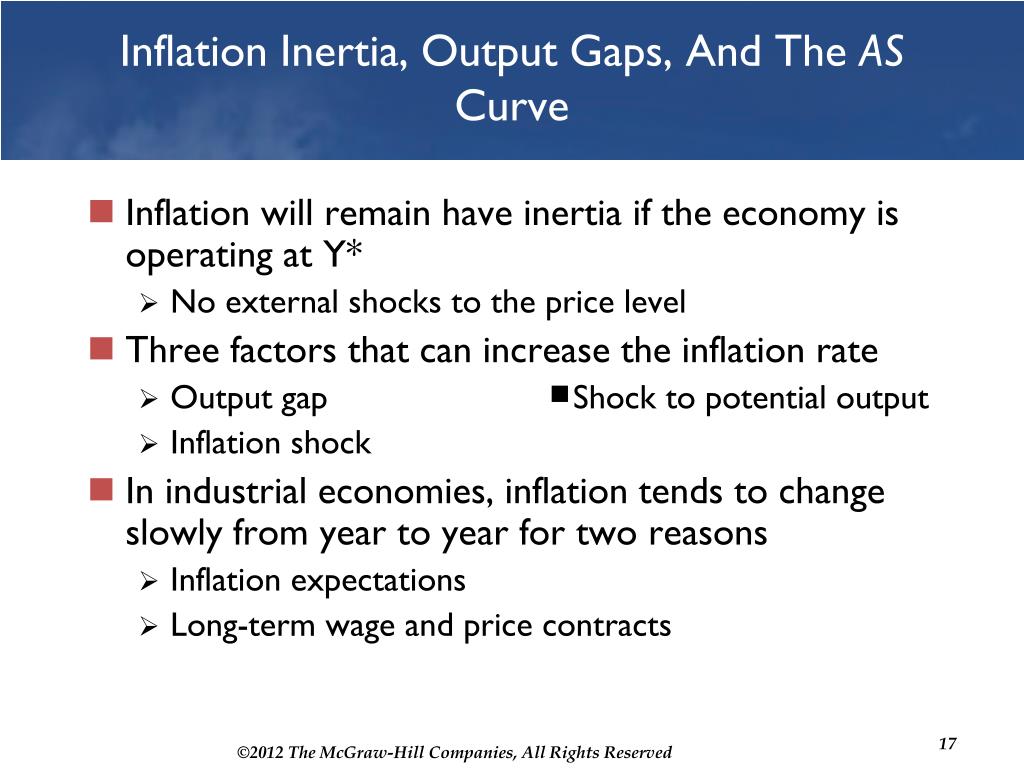

  17. Inflation Inertia, Output Gaps, And The AS Curve • Inflation will remain have inertia if the economy is operating at Y* • No external shocks to the price level • Three factors that can increase the inflation rate • Output gap ■ Shock to potential output • Inflation shock • In industrial economies, inflation tends to change slowly from year to year for two reasons • Inflation expectations • Long-term wage and price contracts

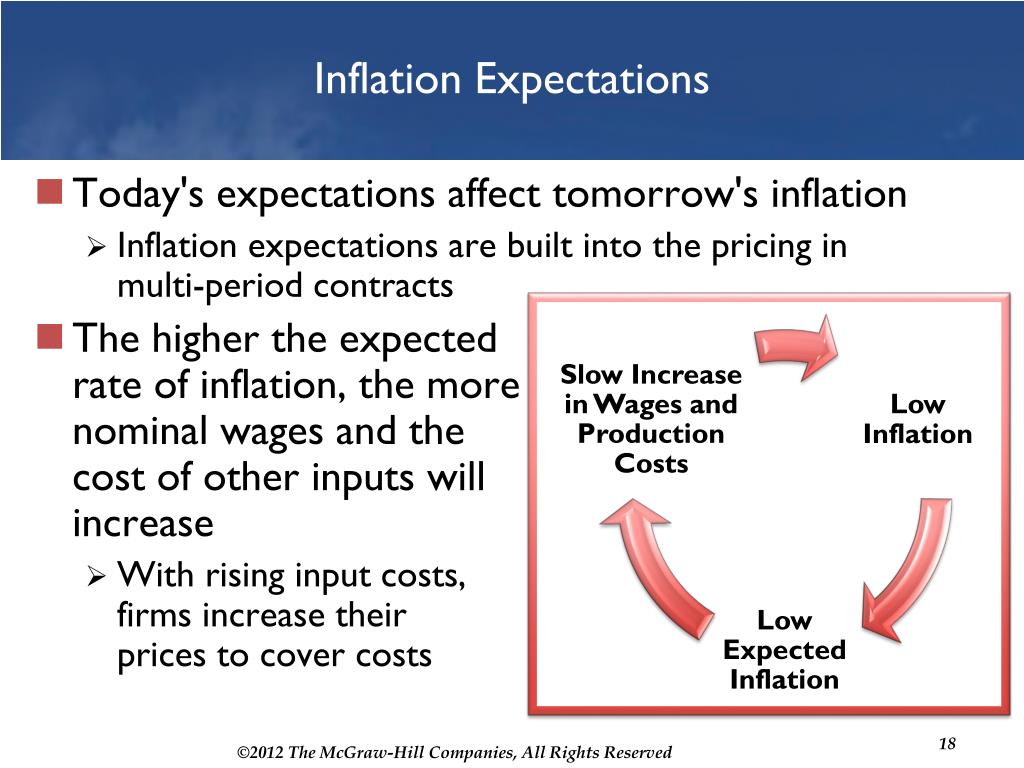

  18. Inflation Expectations • Today's expectations affect tomorrow's inflation • Inflation expectations are built into the pricing in multi-period contracts • The higher the expected rate of inflation, the more nominal wages and the cost of other inputs will increase • With rising input costs, firms increase their prices to cover costs

  19. Expected Inflation • Expectations are influenced by recent experience • If inflation is low and stable, people expect that to continue • Volatile inflation leads to volatile expectations • Low and stable inflation creates a virtuous circlethat keeps inflation low • High and stable inflation creates a vicious circle that keeps inflation high

  20. Long-term Wage and Price Contracts • Long-term contracts reduce the cost of negotiations between buyers and sellers • Cost - Benefit Principle • Labor contracts may be multi-year agreements • Supply agreements, particularly for high cost inputs, extend over several years • Long-term contracts build in wage and price increases that build in current expectations about inflation • In the absence of external shocks, inflation tends to be stable over time • Especially true in industrialized economies

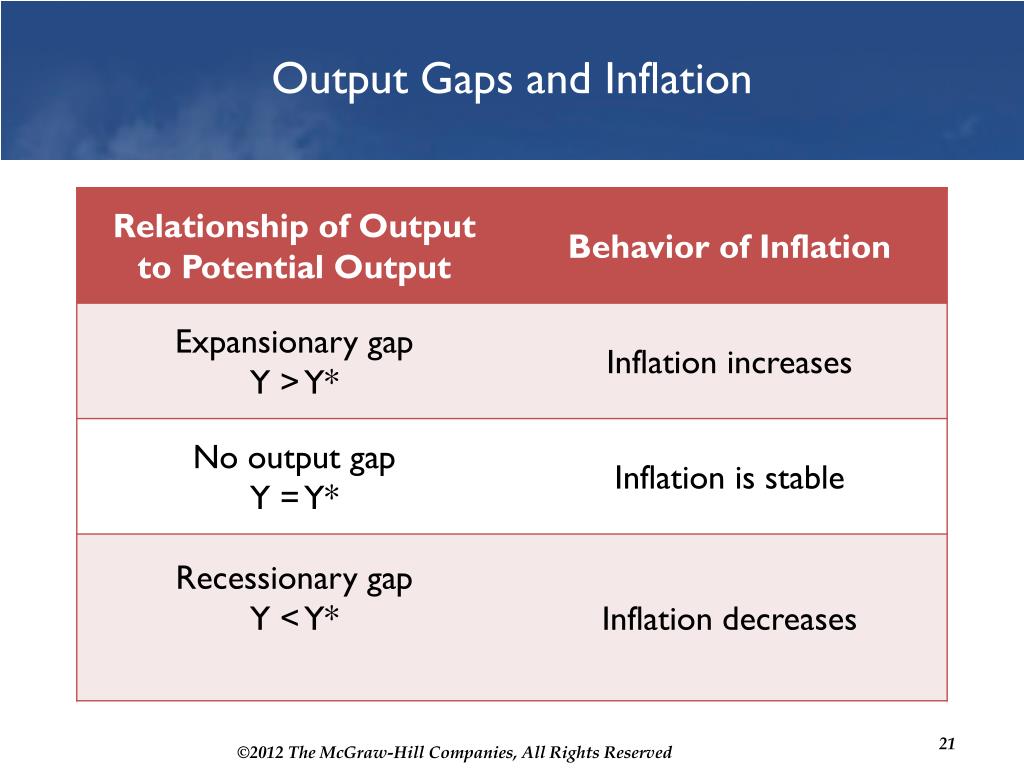

  21. Output Gaps and Inflation

  22. Deriving the AS Curve: Graphical Analysis Current inflation () = expected inflation (e) + inflation from an output gap • If the economy is operating at potential output, then= e = 1 at A • If the economy has an inflationary gap, Y > Y* and 2> e at B • If the economy has an expansionary gap, Y < Y* and 3< e at C • The AS curve slope up AggregateSupply (AS) B Inflation () 2 A 1 C 3 Output (Y) Y* Y2 Y1

  23. Shifts in the AS Curve • Two changes can shift the AS curve • Inflation expectations • Inflation shocks • If actual inflation exceeds expectations, expected inflation increases • AS curve shifts to the left • At each level of output, inflation is higher AS2 AS1 2 Inflation () 1 Y* Output (Y)

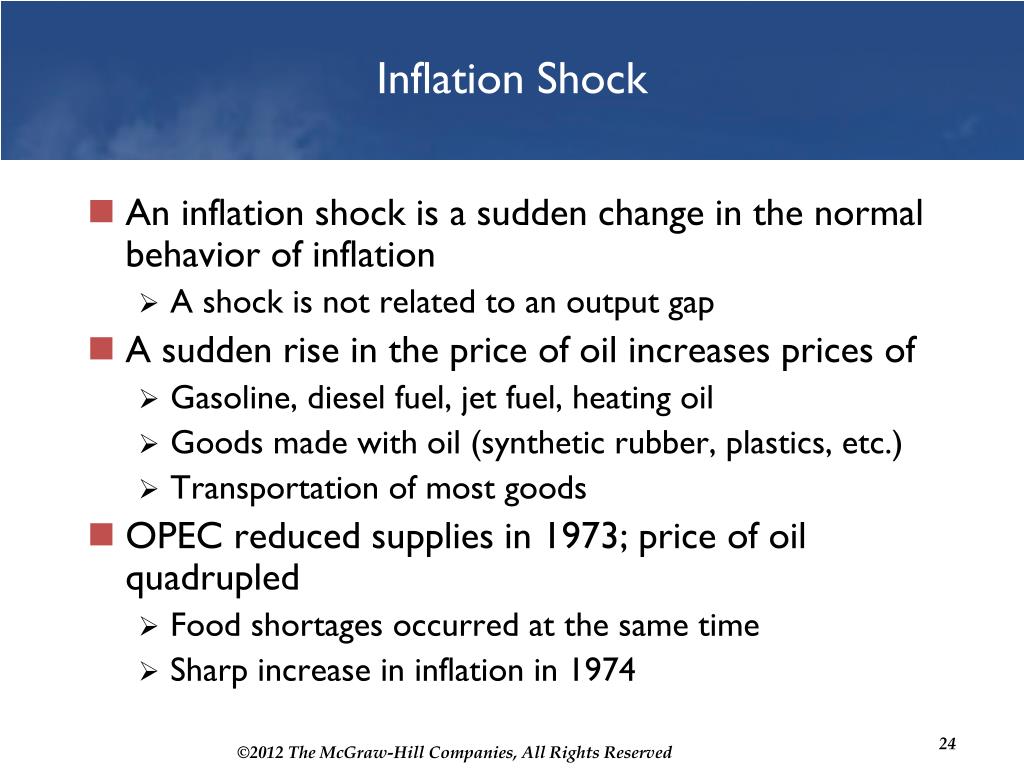

  24. Inflation Shock • An inflation shock is a sudden change in the normal behavior of inflation • A shock is not related to an output gap • A sudden rise in the price of oil increases prices of • Gasoline, diesel fuel, jet fuel, heating oil • Goods made with oil (synthetic rubber, plastics, etc.) • Transportation of most goods • OPEC reduced supplies in 1973; price of oil quadrupled • Food shortages occurred at the same time • Sharp increase in inflation in 1974

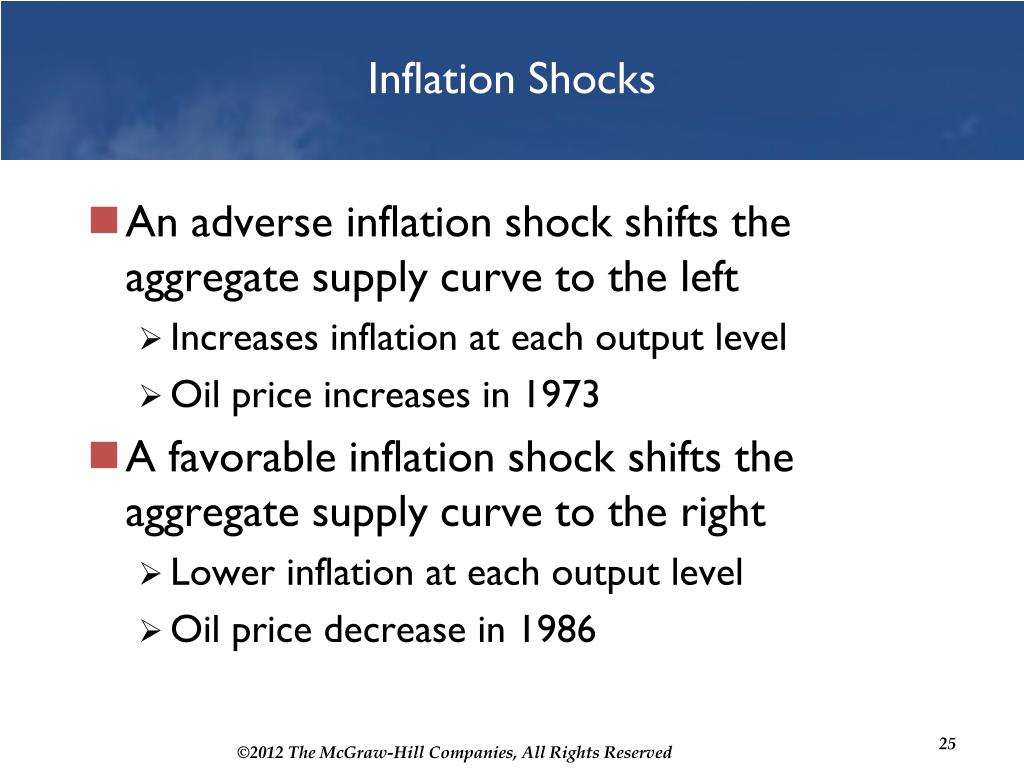

  25. Inflation Shocks • An adverse inflation shock shifts the aggregate supply curve to the left • Increases inflation at each output level • Oil price increases in 1973 • A favorable inflation shock shifts the aggregate supply curve to the right • Lower inflation at each output level • Oil price decrease in 1986

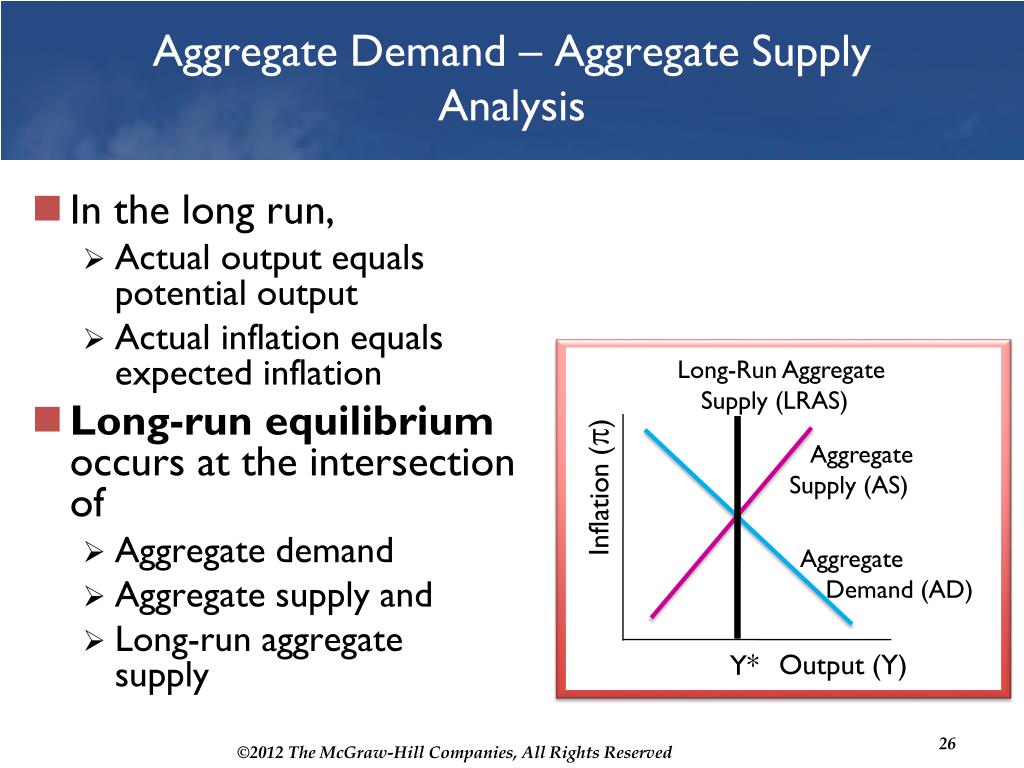

  26. Aggregate Demand – Aggregate Supply Analysis • In the long run, • Actual output equals potential output • Actual inflation equals expected inflation • Long-run equilibriumoccurs at the intersection of • Aggregate demand • Aggregate supply and • Long-run aggregate supply Long-Run AggregateSupply (LRAS) AggregateSupply (AS) Inflation () AggregateDemand (AD) Output (Y) Y*

  27. Aggregate Demand – Aggregate Supply Analysis • Short-run equilibrium occurs when there is either an expansionary gap or a recessionary gap • Intersection of AD and AS curves at a level of output different from Y* • Point A in the graph • Short-run equilibrium is temporary LRAS AS1 Inflation () A 1 AD Y* Y1 Output (Y)

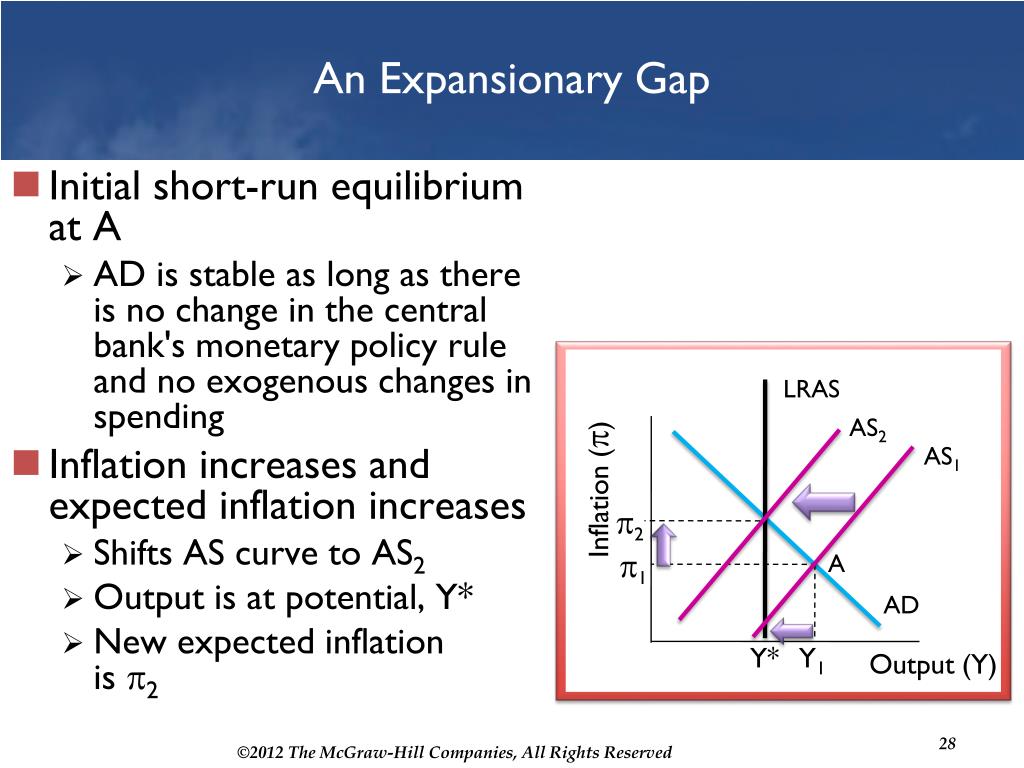

  28. An Expansionary Gap • Initial short-run equilibrium at A • AD is stable as long as there is no change in the central bank's monetary policy rule and no exogenous changes in spending • Inflation increases and expected inflation increases • Shifts AS curve to AS2 • Output is at potential, Y* • New expected inflation is 2 LRAS AS2 AS1 2 Inflation () 1 A AD Y* Y1 Output (Y)

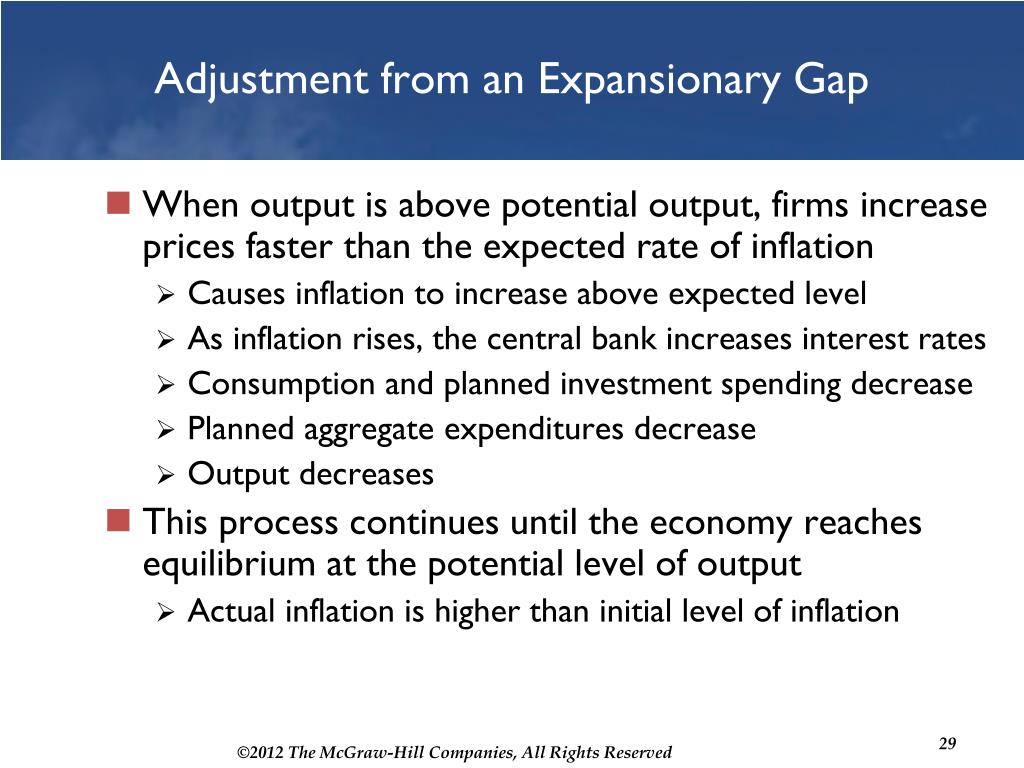

  29. Adjustment from an Expansionary Gap • When output is above potential output, firms increase prices faster than the expected rate of inflation • Causes inflation to increase above expected level • As inflation rises, the central bank increases interest rates • Consumption and planned investment spending decrease • Planned aggregate expenditures decrease • Output decreases • This process continues until the economy reaches equilibrium at the potential level of output • Actual inflation is higher than initial level of inflation

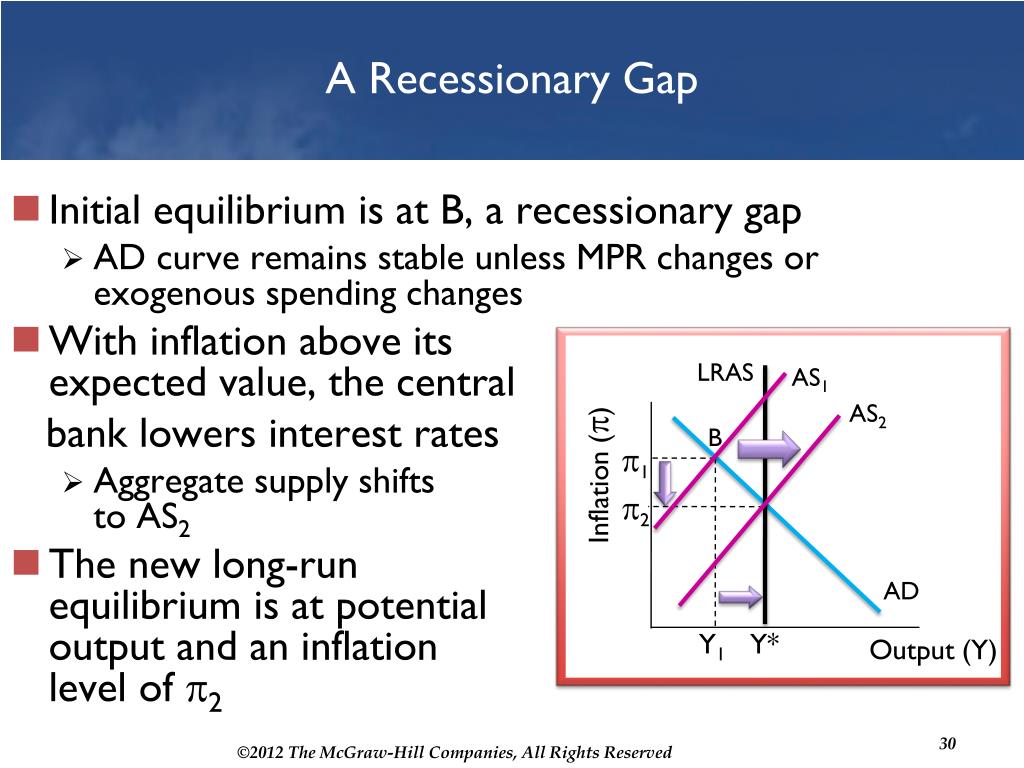

  30. A Recessionary Gap • Initial equilibrium is at B, a recessionary gap • AD curve remains stable unless MPR changes or exogenous spending changes • With inflation above its expected value, the central bank lowers interest rates • Aggregate supply shiftsto AS2 • The new long-run equilibrium is at potential output and an inflation level of 2 LRAS AS1 AS2 B 1 Inflation () 2 AD Y1 Y* Output (Y)

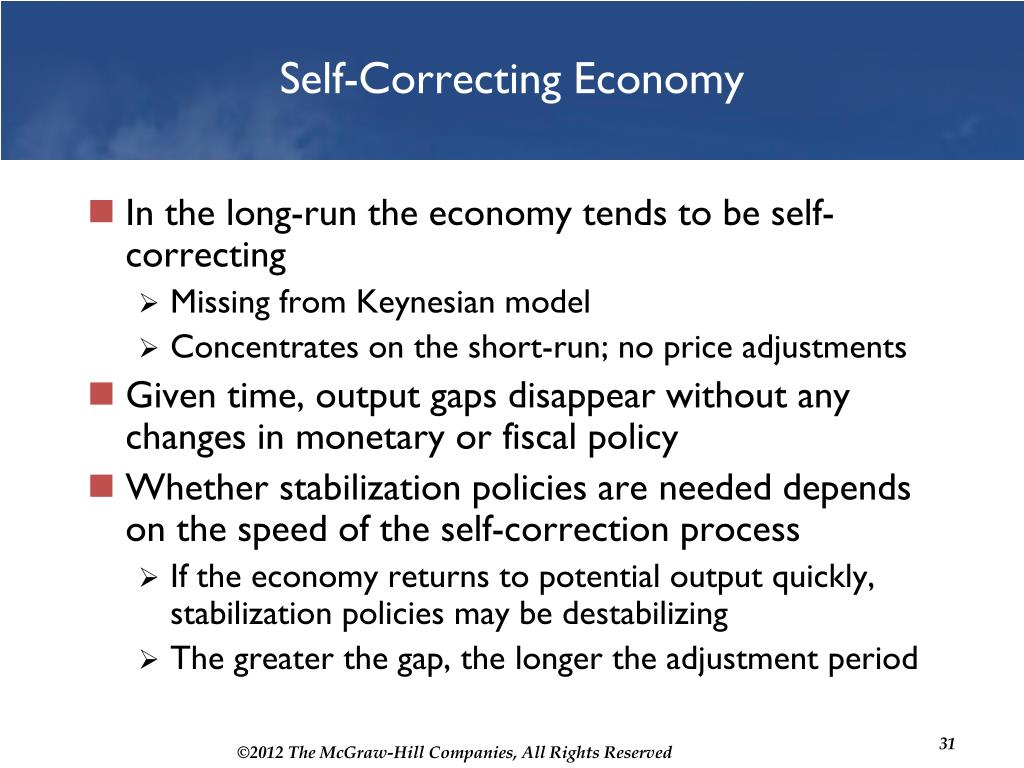

  31. Self-Correcting Economy • In the long-run the economy tends to be self-correcting • Missing from Keynesian model • Concentrates on the short-run; no price adjustments • Given time, output gaps disappear without any changes in monetary or fiscal policy • Whether stabilization policies are needed depends on the speed of the self-correction process • If the economy returns to potential output quickly, stabilization policies may be destabilizing • The greater the gap, the longer the adjustment period

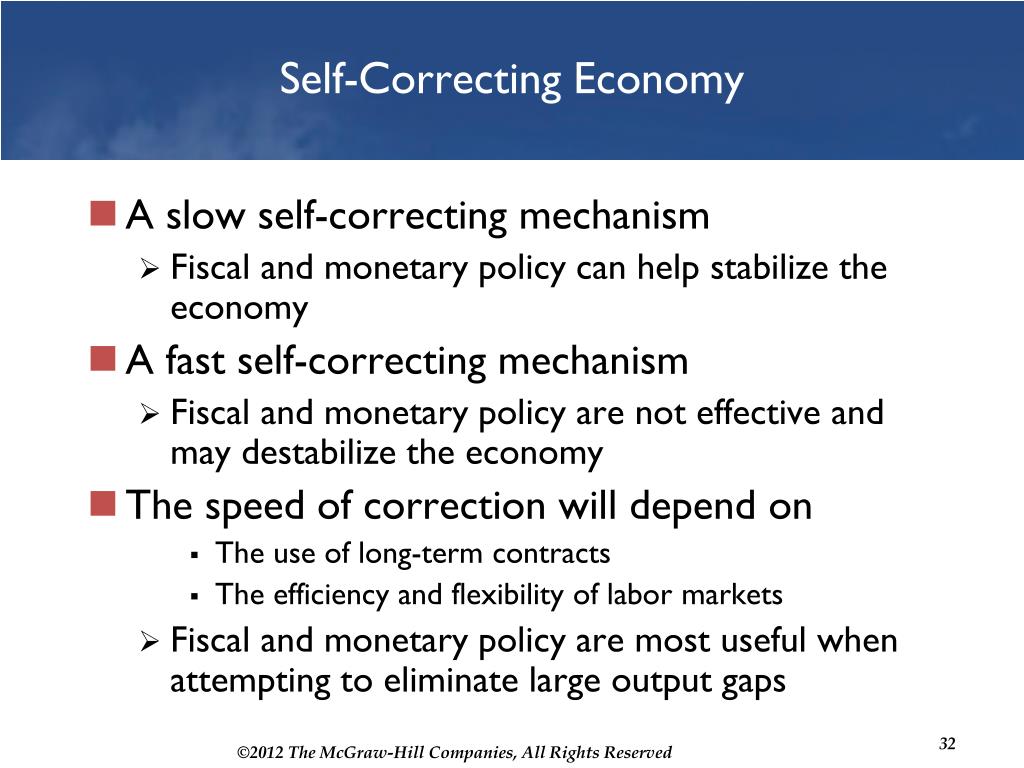

  32. Self-Correcting Economy • A slow self-correcting mechanism • Fiscal and monetary policy can help stabilize the economy • A fast self-correcting mechanism • Fiscal and monetary policy are not effective and may destabilize the economy • The speed of correction will depend on • The use of long-term contracts • The efficiency and flexibility of labor markets • Fiscal and monetary policy are most useful when attempting to eliminate large output gaps

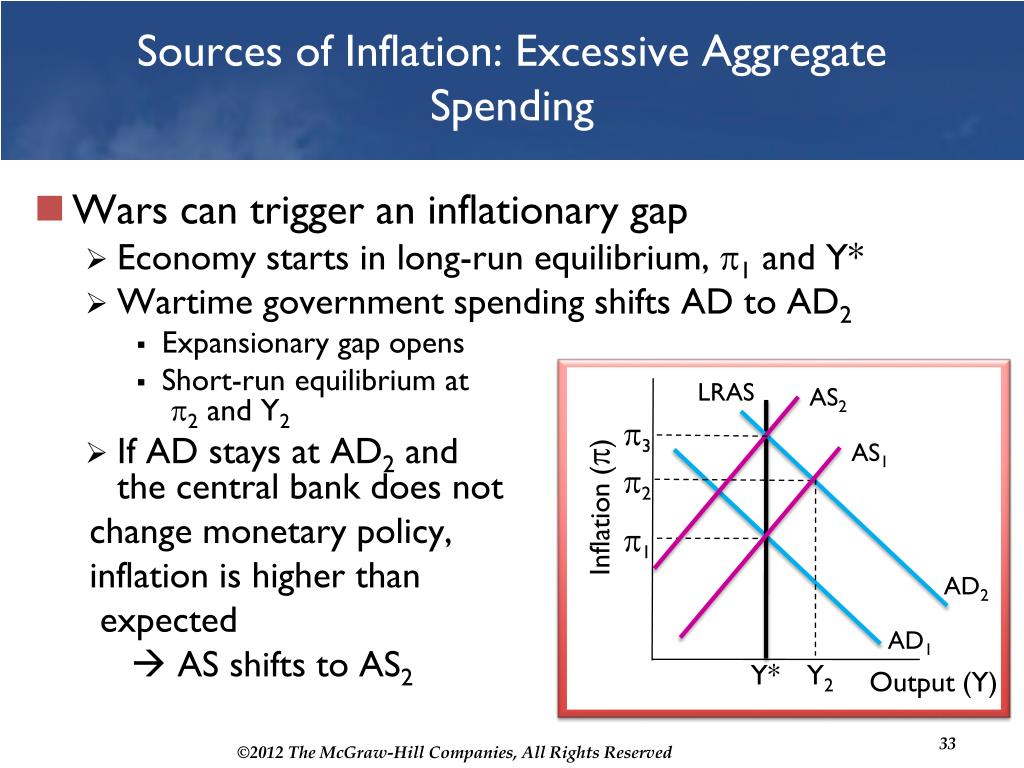

  33. Sources of Inflation: Excessive Aggregate Spending • Wars can trigger an inflationary gap • Economy starts in long-run equilibrium, 1 and Y* • Wartime government spending shifts AD to AD2 • Expansionary gap opens • Short-run equilibrium at2 and Y2 • If AD stays at AD2 and the central bank does not change monetary policy, inflation is higher than expected  AS shifts to AS2 LRAS AS2 3 AS1 2 Inflation () 1 AD2 AD1 Y* Y2 Output (Y)

  34. Wartime Spending • The increased output created by the shift in aggregate demand is temporary • Economy returns to its potential output at Y* but at a higher inflation rate • Since Y has decreased, some component of aggregate spending has also decreased • As inflation rose, the central bank increased the real interest rate • Investment spending declined, crowded out by government spending

  35. The War and the Central Bank • The central bank can prevent the increased inflation from the rise in military spending • The central bank aggressively tightens money during the military buildup • Real interest rates increase • Consumption and planned investment decrease to offset the increase in spending for the war • Lowers current and future standards of living • Planned spending is stable • No expansionary gap occurs

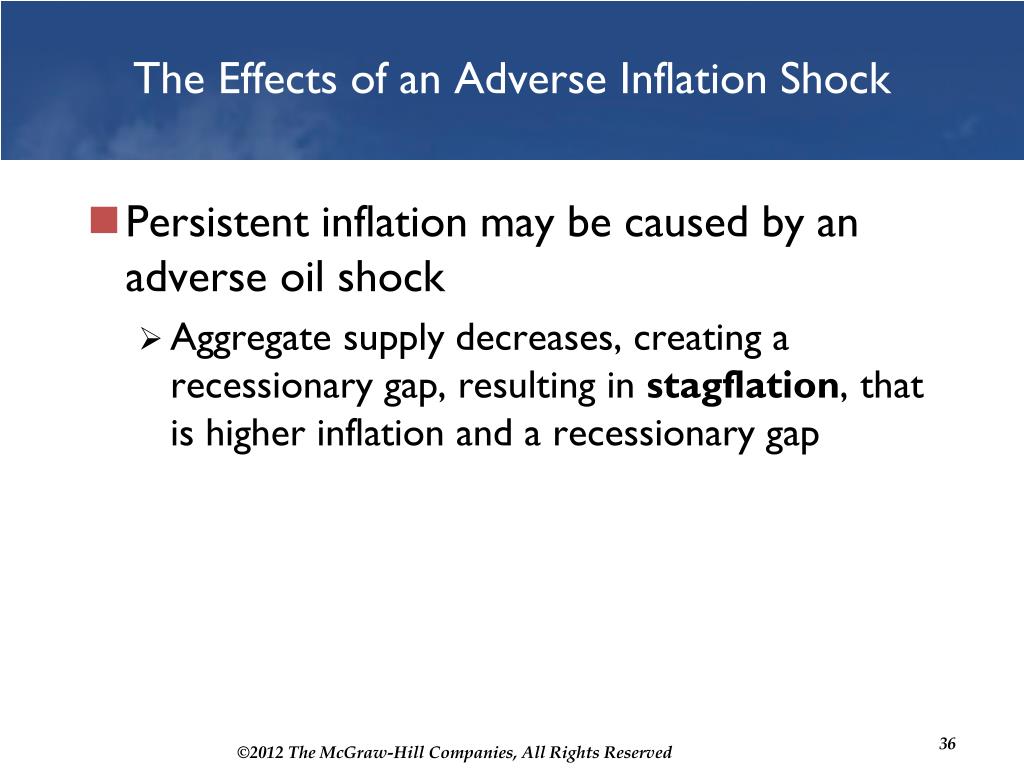

  36. The Effects of an Adverse Inflation Shock • Persistent inflation may be caused by an adverse oil shock • Aggregate supply decreases, creating a recessionary gap, resulting in stagflation, that is higher inflation and a recessionary gap

  37. The Effects of an Adverse Inflation Shock • Adverse oil shocks and stagflation are policy challenges • Government can keeps policies constant • Inflation will eventually decrease • Aggregate supply curve shifts right • Recessionary gap closes • However, economy has a prolonged recession while adjustment occurs • If the government attacks the recessionary gap with added government spending and loosening monetary policy, inflation increases • Higher and higher inflation rates resulted

  38. The Effects of an Adverse Inflation Shock • Initial equilibrium is at 1 and Y*, potential output • Oil shock reduces aggregate supply to AS2 • Short-term equilibrium is a recessionary gap at 2 and Y2 • Government can increase AD to AD2 to address recessionary gap • Raises inflation to 3 • Government can keep policies constant and let the economy adjust back to AS1 with1 and Y* LRAS AS2 3 AS1 2 Inflation () 1 AD2 AD1 Y* Y2 Output (Y)

  39. Shocks to Potential Output • Oil shocks may lead to lower potential output • Compounds the inflationary effects of the shock • Suppose long-run equilibriumis at Y1 and 1 • Potential output falls to Y2and LRAS shifts to LRAS2 • Expansionary gap at Y1, 1 leads to lower output and higher inflation • Aggregate supply shock is either an inflation shock or a shock to potential output LRAS2 LRAS1 2 Inflation () 1 AD Y2 Y1 Output (Y)
