  1. Toward an Environment for Comprehending Distributed Systems Reverse Engineering (Dynamic Analysis)

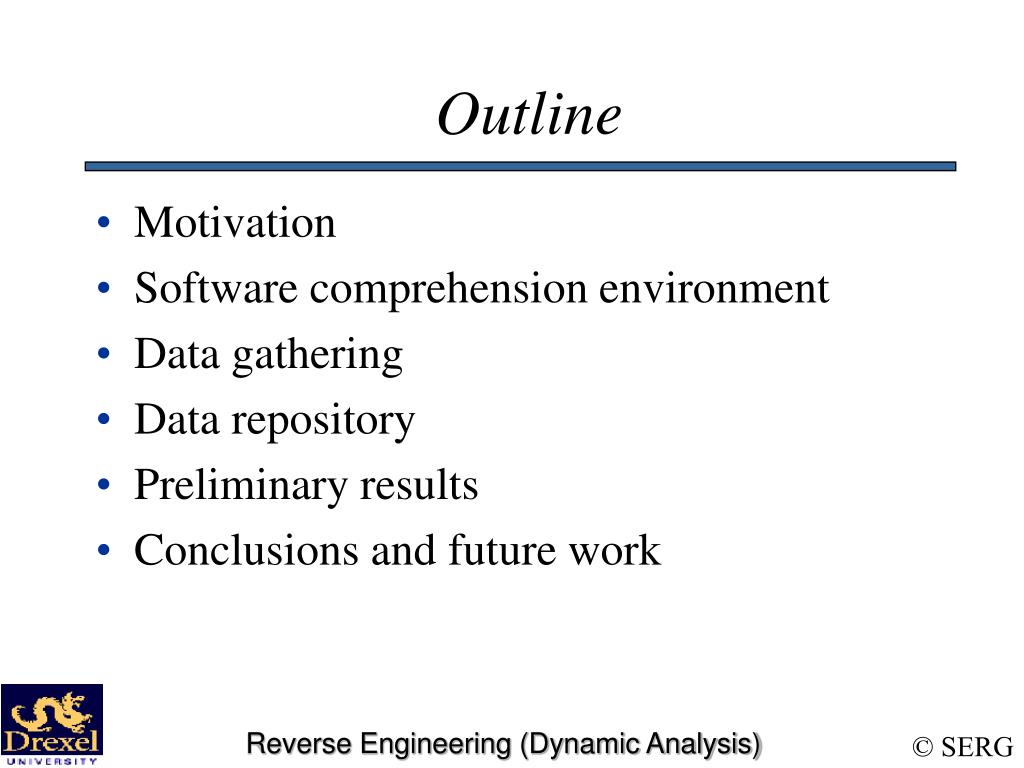

  2. Outline • Motivation • Software comprehension environment • Data gathering • Data repository • Preliminary results • Conclusions and future work Reverse Engineering (Dynamic Analysis)

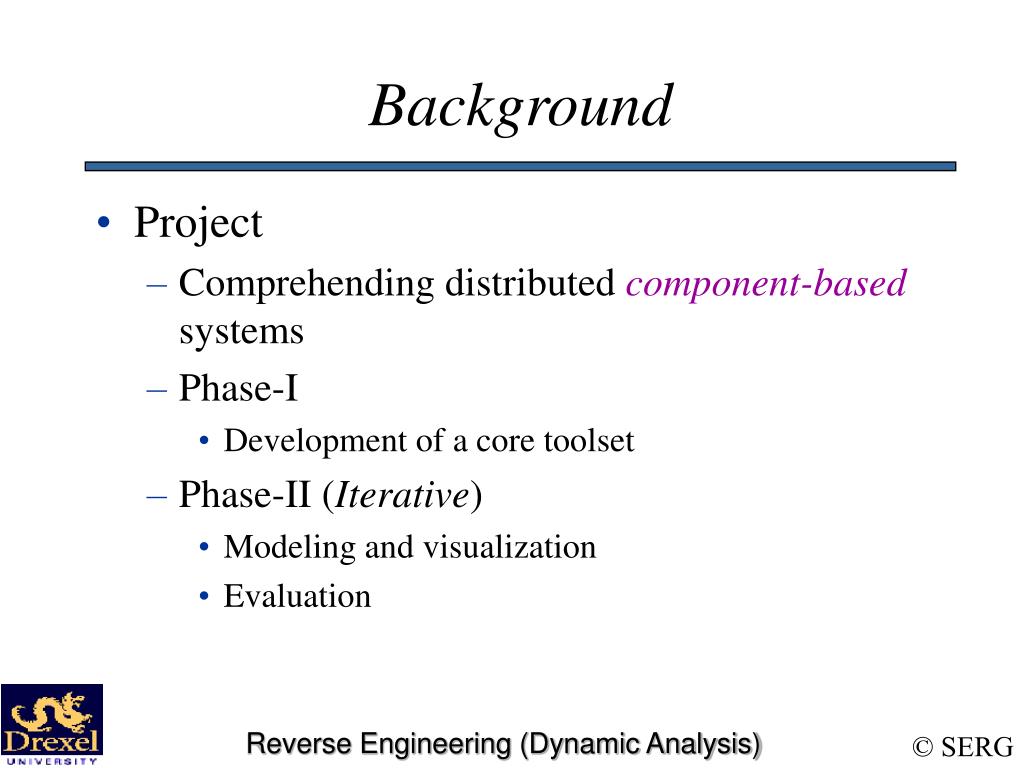

  3. Background • Project • Comprehending distributed component-based systems • Phase-I • Development of a core toolset • Phase-II (Iterative) • Modeling and visualization • Evaluation Reverse Engineering (Dynamic Analysis)

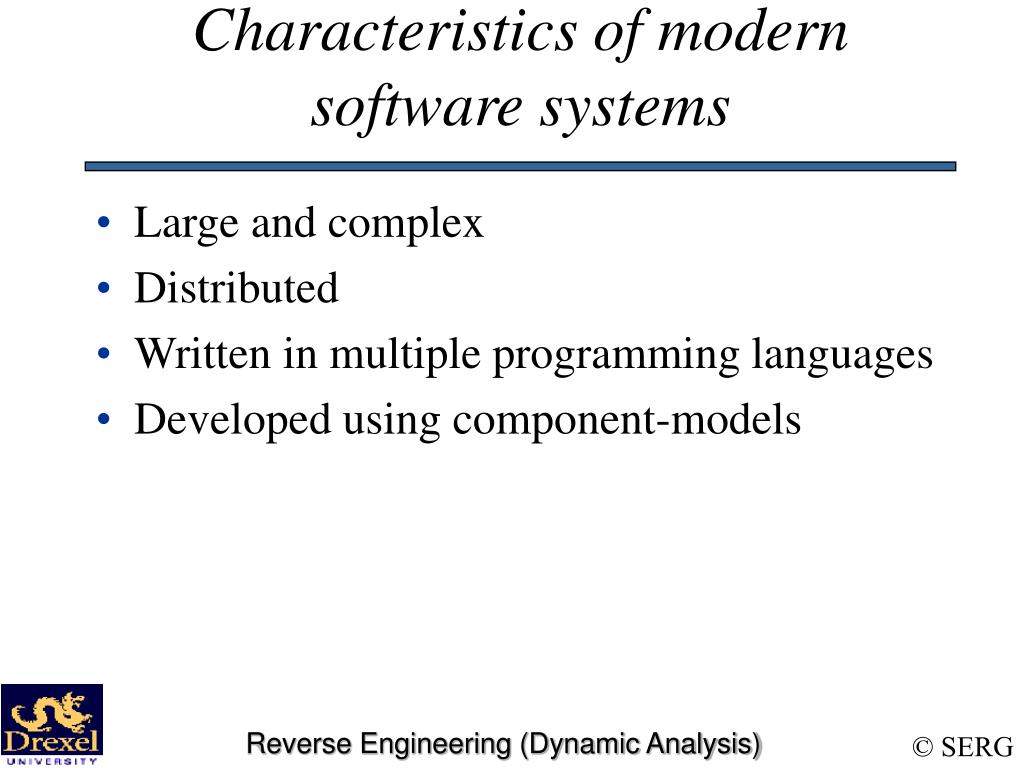

  4. Characteristics of modern software systems • Large and complex • Distributed • Written in multiple programming languages • Developed using component-models Reverse Engineering (Dynamic Analysis)

  5. Software Comprehension Challenges • Unavailability of source code • Vigder-2001, Weyuker-2001 • Physical distribution of components • Bruegge-1993, Mendonca-1999 • Use of pre-built component • Stroermer-2002, Vigder-2001, Weyuker-2001 • Multiple programming languages • Hassan-2002, Chen-1995, • Koschke-1998, Stroermer-2002 • Demeyer-1999, CDIF-1994, XML/XMI-2002 Reverse Engineering (Dynamic Analysis)

  6. Approach • Software Comprehension Environment • Technical issues • Distributed profilers • Single data repository • Data management • Extensible architecture • Data gathering and Repository subsystems • Modeling and visualization subsystem • Empirical evaluation • Survey/questionnaire • Industrial-strength case studies – Cigna Corporation Reverse Engineering (Dynamic Analysis)

  7. Software Comprehension Environment Reverse Engineering (Dynamic Analysis)

  8. Data Gathering subsystem Reverse Engineering (Dynamic Analysis)

  9. Data Gathering subsystem • Distributed Profiler • Local Profiler • Logical Time Server • Data collection manager • Remote Interactions • Network interceptor • Communication Endpoint • Program Facts/Data • Static: Entities and Relations • Dynamic: Entities, Relations and Events Reverse Engineering (Dynamic Analysis)

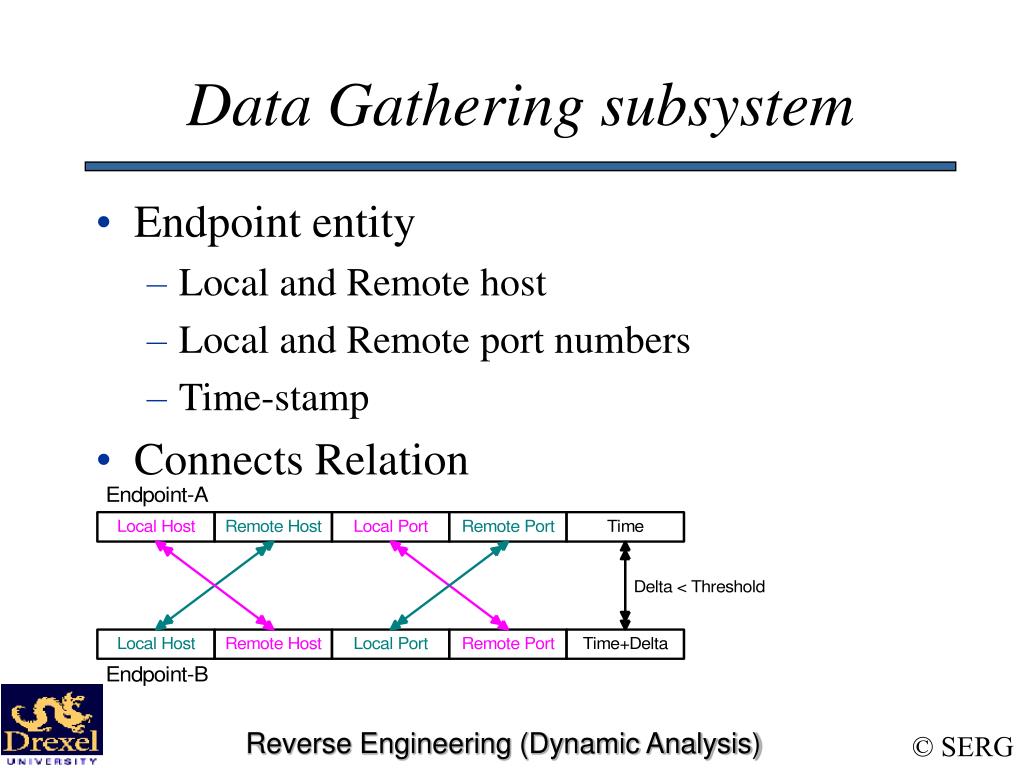

  10. Data Gathering subsystem • Endpoint entity • Local and Remote host • Local and Remote port numbers • Time-stamp • Connects Relation Reverse Engineering (Dynamic Analysis)

  11. Example: Sequence Diagram Reverse Engineering (Dynamic Analysis)

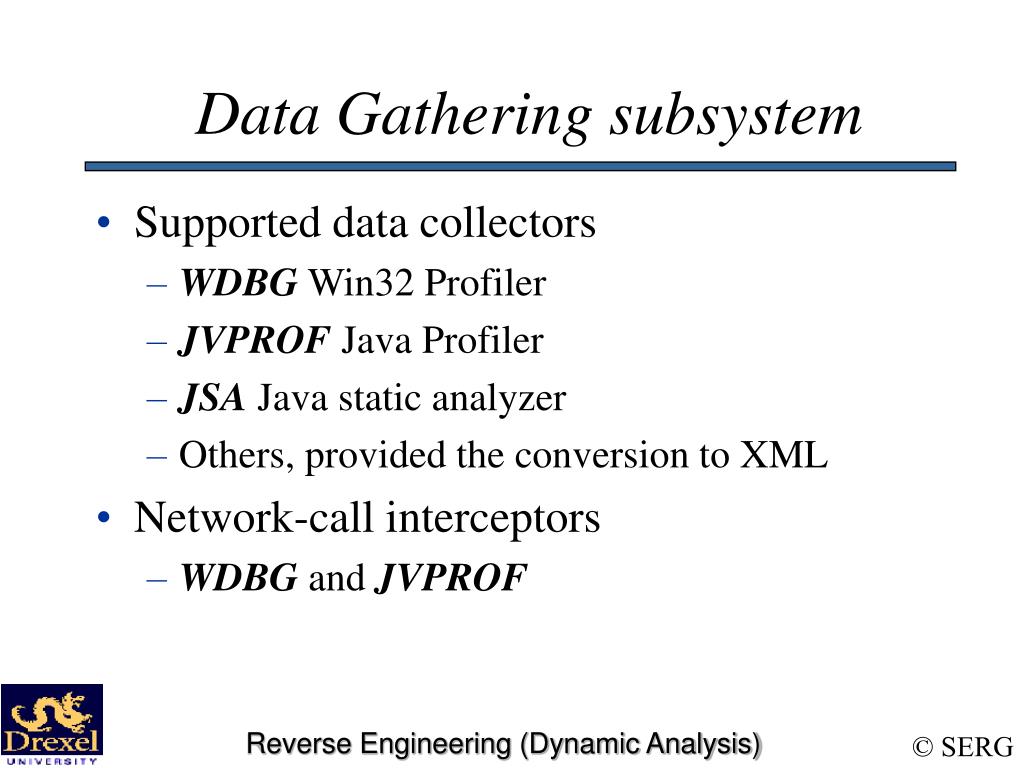

  12. Data Gathering subsystem • Supported data collectors • WDBG Win32 Profiler • JVPROF Java Profiler • JSA Java static analyzer • Others, provided the conversion to XML • Network-call interceptors • WDBG and JVPROF Reverse Engineering (Dynamic Analysis)

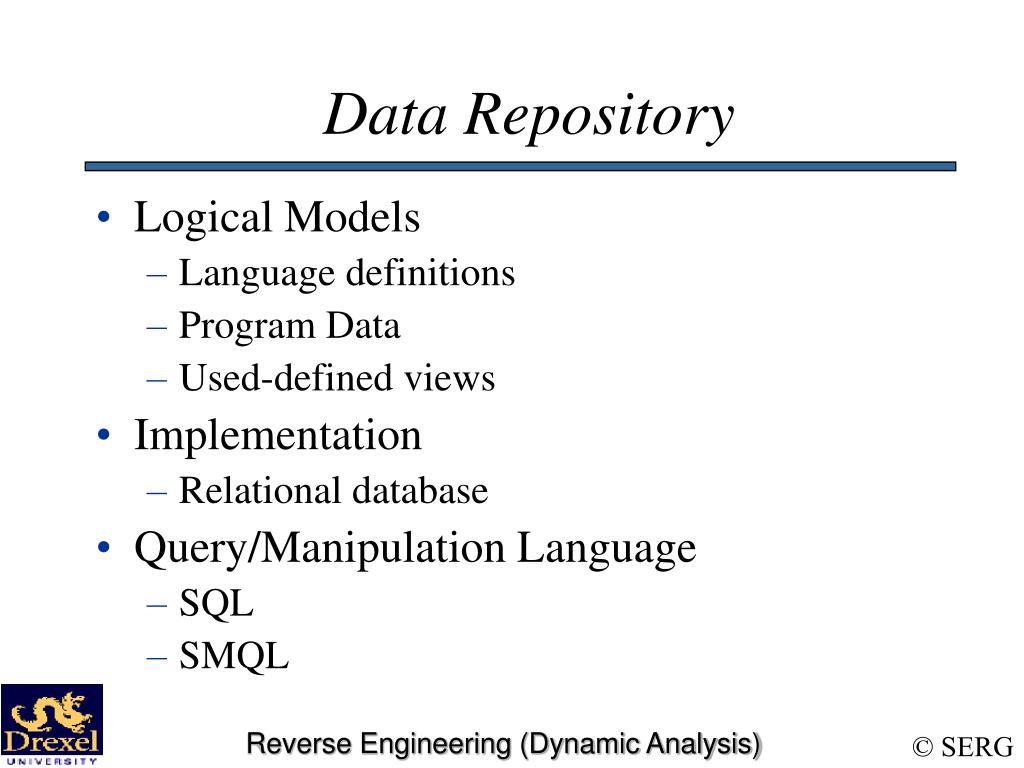

  13. Data Repository • Logical Models • Language definitions • Program Data • Used-defined views • Implementation • Relational database • Query/Manipulation Language • SQL • SMQL Reverse Engineering (Dynamic Analysis)

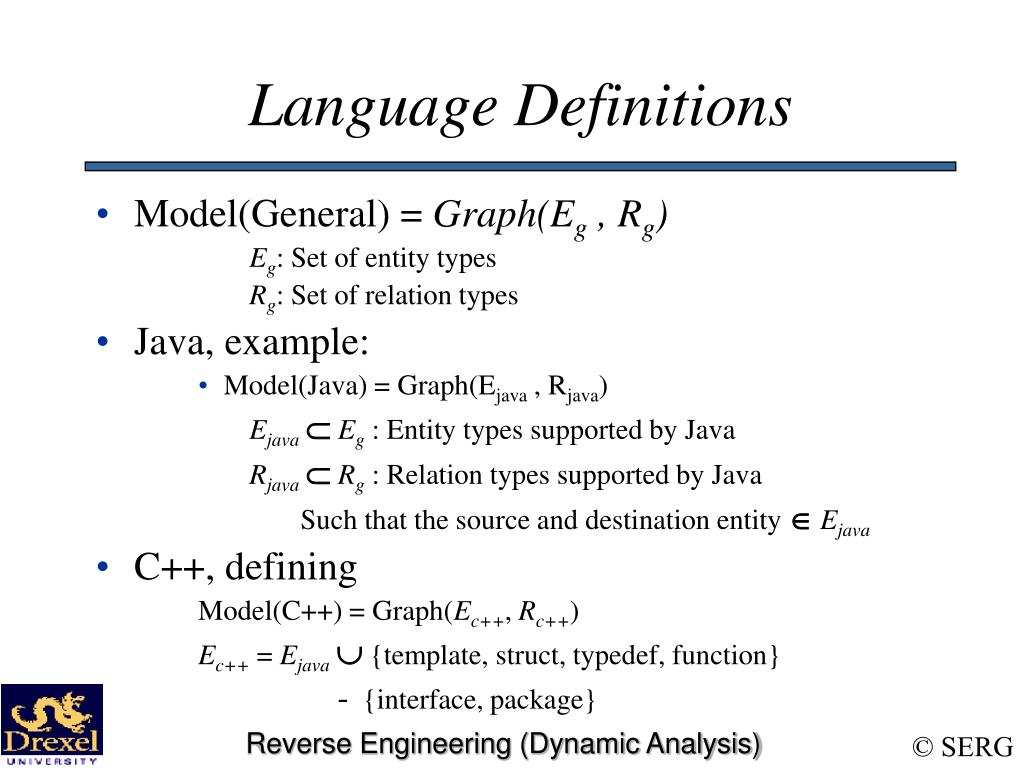

  14. Language Definitions • Model(General) = Graph(Eg , Rg) Eg: Set of entity types Rg: Set of relation types • Java, example: • Model(Java) = Graph(Ejava , Rjava) EjavaEg : Entity types supported by Java RjavaRg : Relation types supported by Java Such that the source and destination entity Ejava • C++, defining Model(C++) = Graph(Ec++, Rc++) Ec++ = Ejava {template, struct, typedef, function} - {interface, package} Reverse Engineering (Dynamic Analysis)

  15. Java Language Example Reverse Engineering (Dynamic Analysis)

  16. SMQL • SMQL • Software Modeling Query Language • Set-based: • Typed Set • Entity Set • Relation Set • Event Set • Generic Set • Extensible using Java Reverse Engineering (Dynamic Analysis)

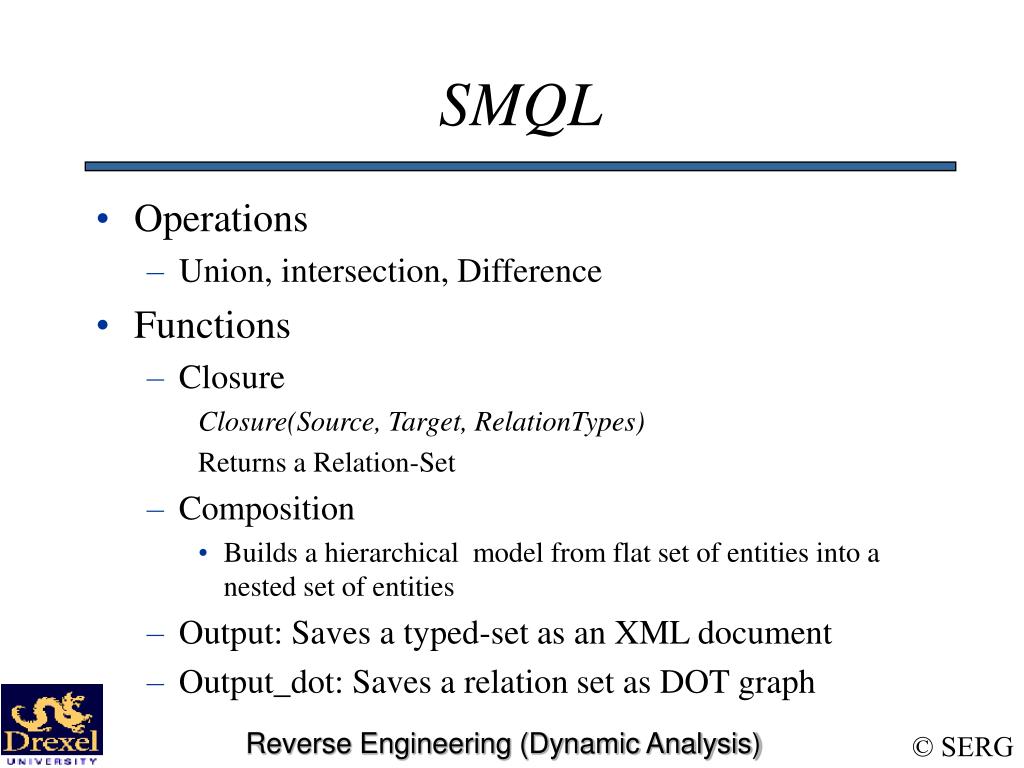

  17. SMQL • Operations • Union, intersection, Difference • Functions • Closure Closure(Source, Target, RelationTypes) Returns a Relation-Set • Composition • Builds a hierarchical model from flat set of entities into a nested set of entities • Output: Saves a typed-set as an XML document • Output_dot: Saves a relation set as DOT graph Reverse Engineering (Dynamic Analysis)

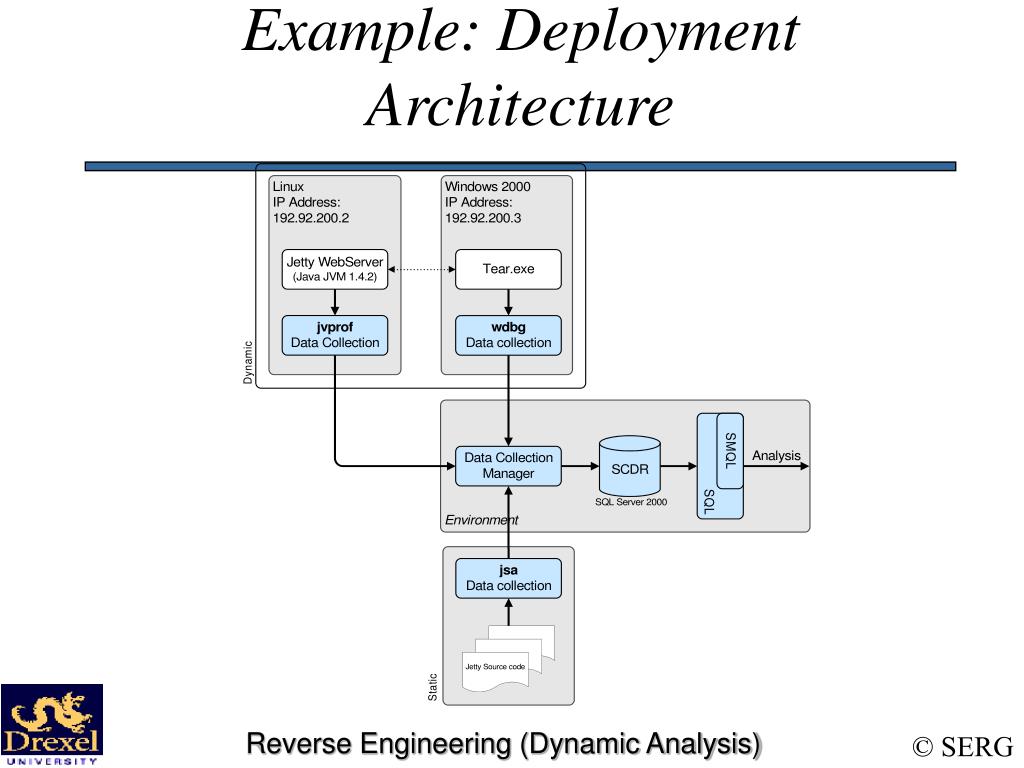

  18. Example: Deployment Architecture Reverse Engineering (Dynamic Analysis)

  19. SMQL: Defining Entity Set EntityIdentifier { [caption=String;] type=StringSet; (EntityFirstOrderFilter)+ } EntityFirstOrderFilter :: include ( EntityAttrib ) = StringSet ; | exclude ( EntityAttrib ) = StringSet ; Reverse Engineering (Dynamic Analysis)

  20. SMQL: Inheritance example // Get Inheritance tree rooted at org.mortbay.http.HttpListener // OR org.mortbay.http.HttpHandler EntitySet Http { caption = "HttpListener" ; type = {“interface”, “class”} ; include (name) = { "org.mortbay.http.HttpListener", "org.mortbay.http.HttpHandler" } ; include (project) = { "jetty" } ; } Inh_Http = closure(null, Http, { “implement”, “subclass” } ) ; Output (“file.xml”, Inh_Http, Http) ; Output_dot (“graph.dot”, Inh_Http) ; Reverse Engineering (Dynamic Analysis)

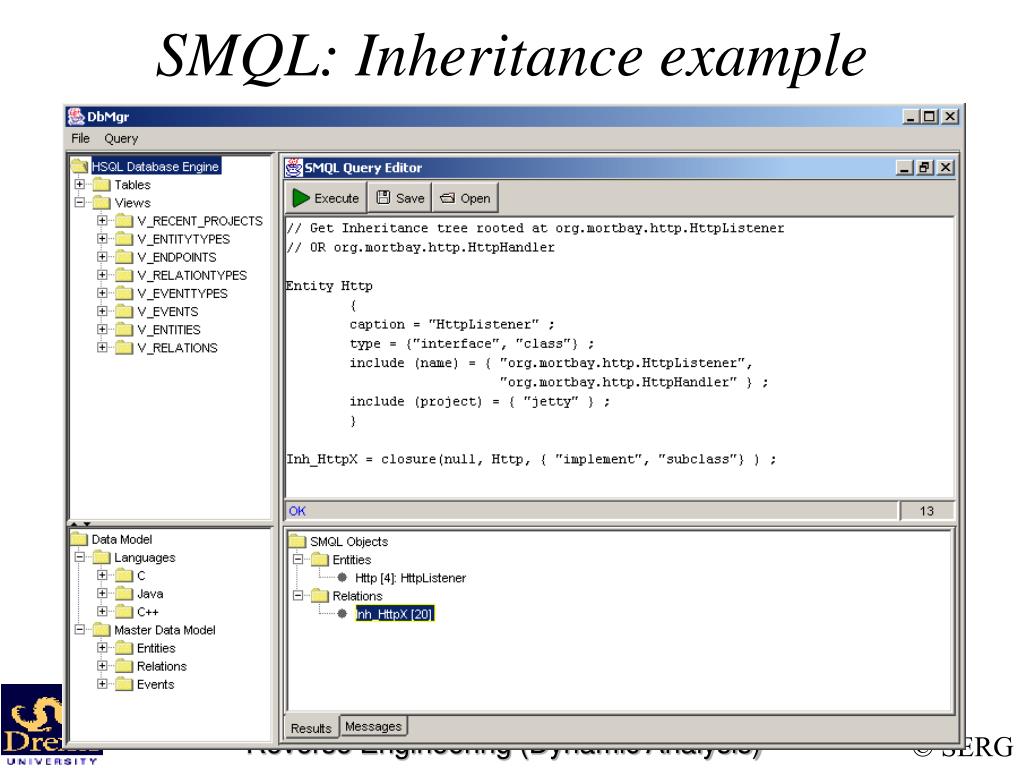

  21. SMQL: Inheritance example Reverse Engineering (Dynamic Analysis)

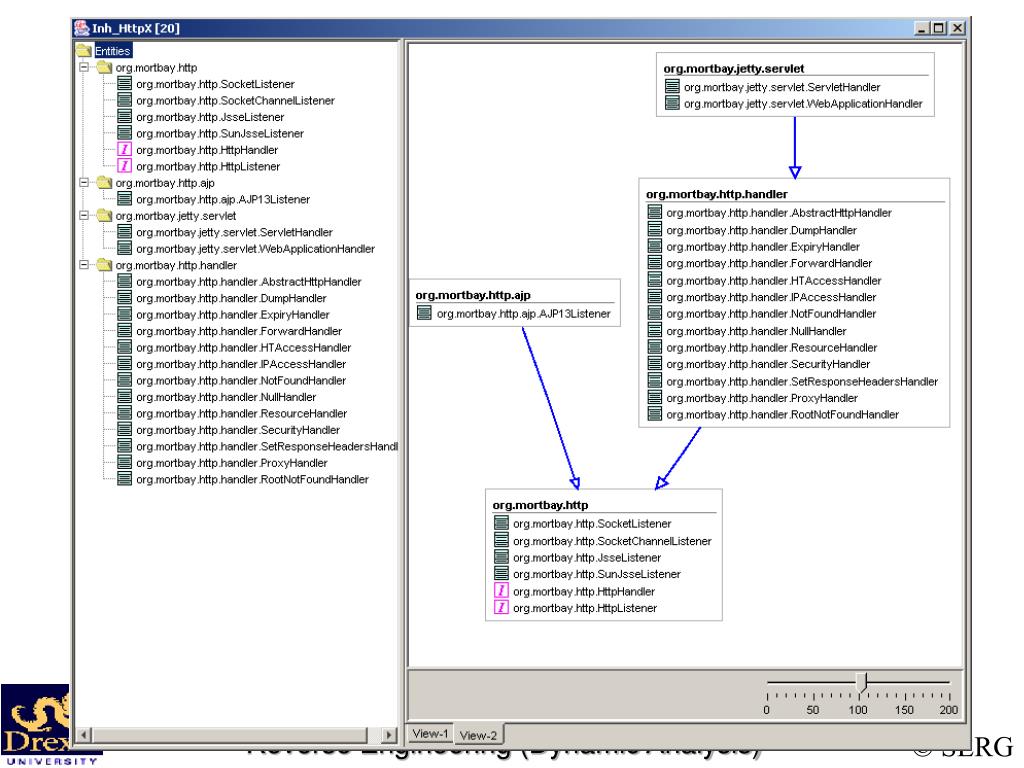

  22. Reverse Engineering (Dynamic Analysis)

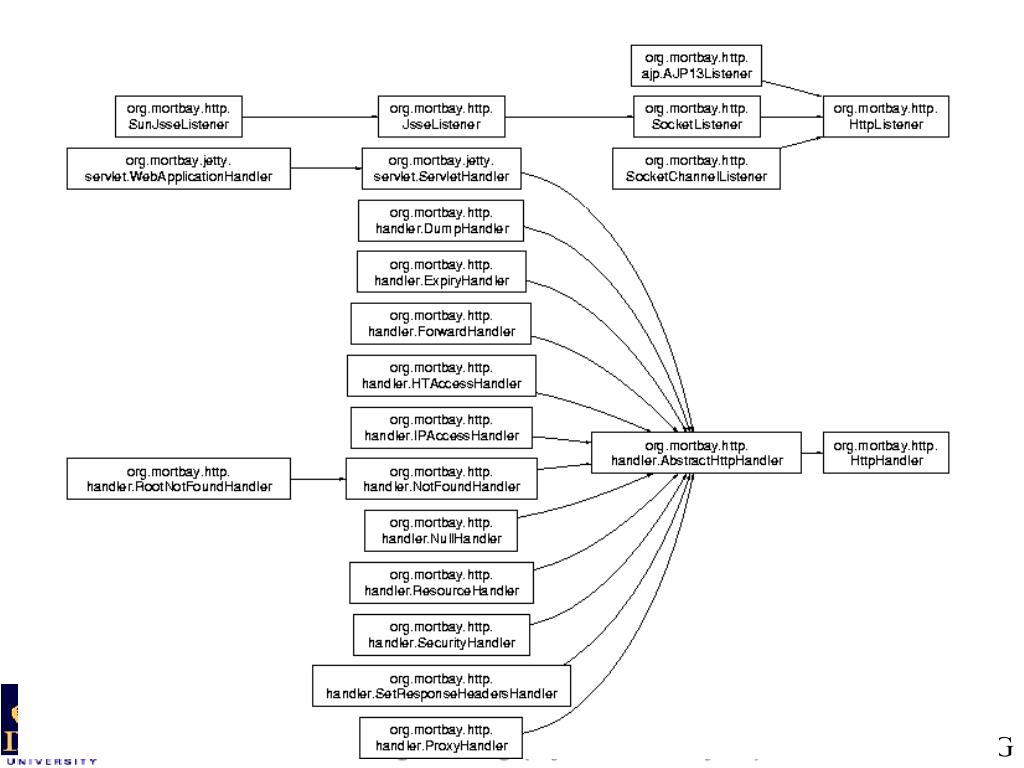

  23. Reverse Engineering (Dynamic Analysis)

  24. SMQL: Events Example // Events from Tear & Jetty importjava:serg.sc.filter.CallGraph as CallGraph ; EventSet Events { caption = "Event (Jetty & Tear) " ; type = { "method-entry", "method-exit", "endpoint", "thread-start", "thread-end", "module-load", "process-start", "process-end"} ; include (project) = {"jetty-rt", "Tear"} ; } // Convert events trace into a CallGraph (Relation Set) GC = CallGraph( events ) ; // Save as results output ("tear-jetty.xml", events); Output_dot (“GC.dot”, GC) ; Reverse Engineering (Dynamic Analysis)

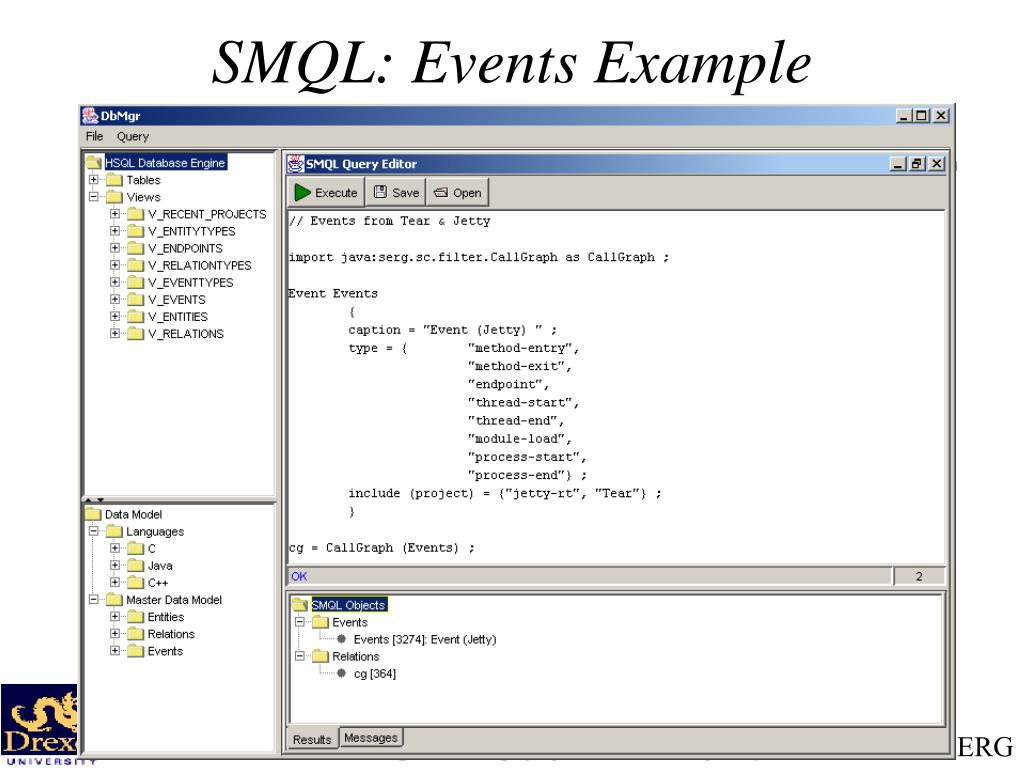

  25. SMQL: Events Example Reverse Engineering (Dynamic Analysis)

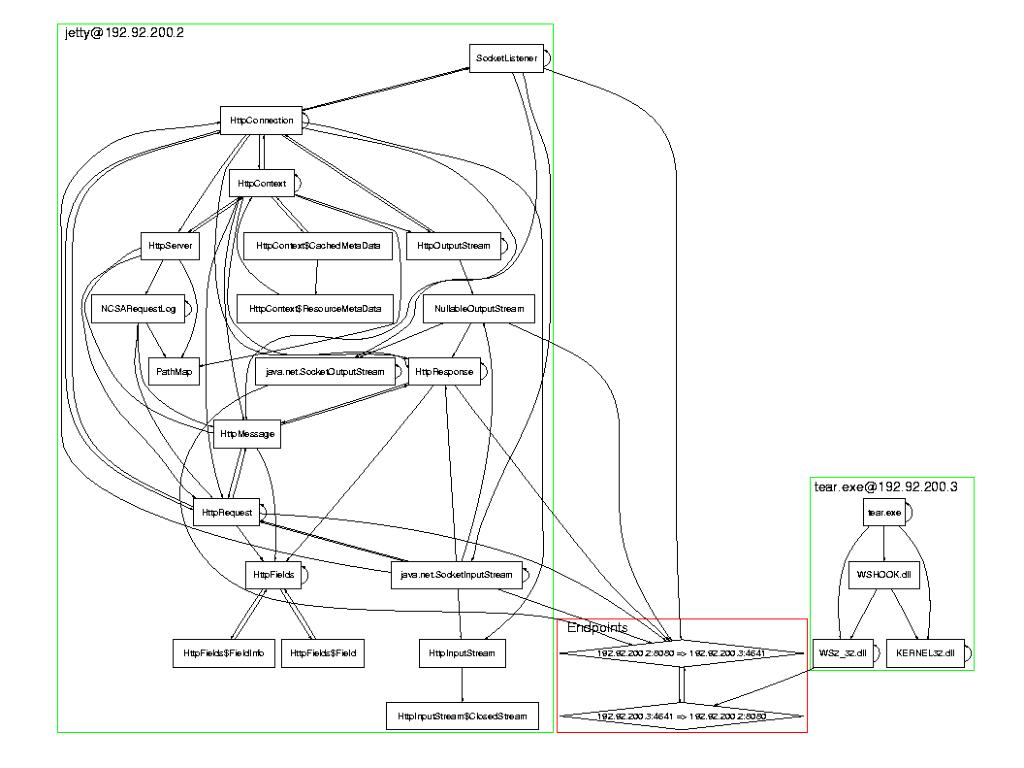

  26. Reverse Engineering (Dynamic Analysis)

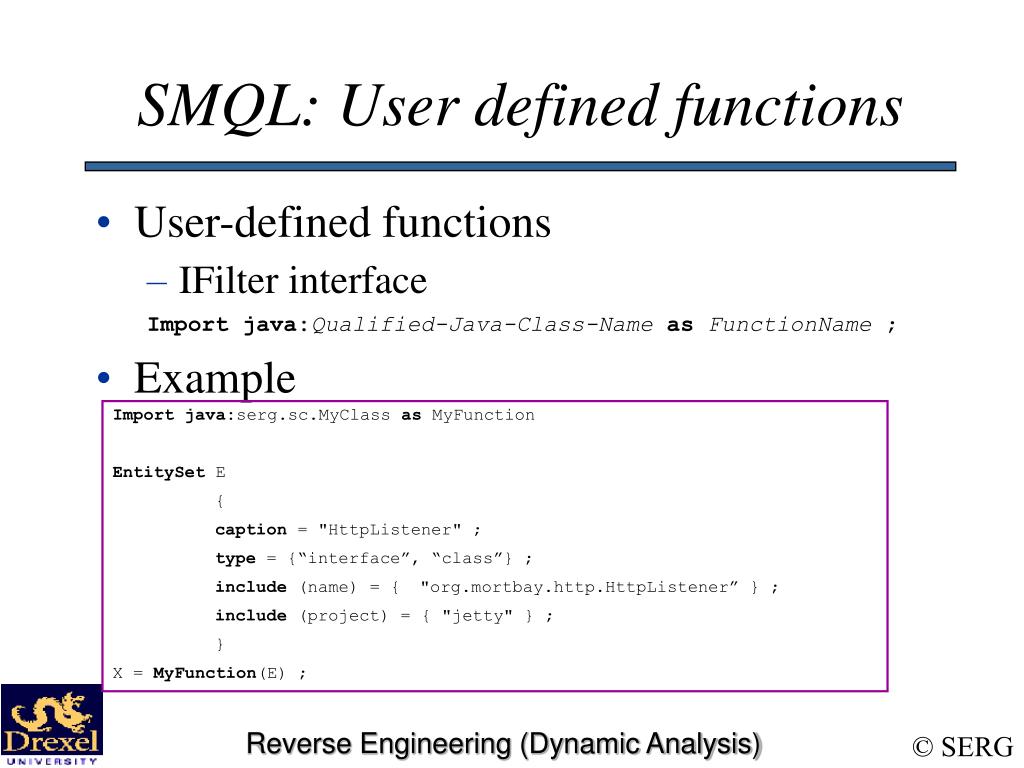

  27. SMQL: User defined functions • User-defined functions • IFilter interface Importjava:Qualified-Java-Class-NameasFunctionName ; • Example Importjava:serg.sc.MyClass as MyFunction EntitySet E { caption = "HttpListener" ; type = {“interface”, “class”} ; include (name) = { "org.mortbay.http.HttpListener” } ; include (project) = { "jetty" } ; } X = MyFunction(E) ; Reverse Engineering (Dynamic Analysis)

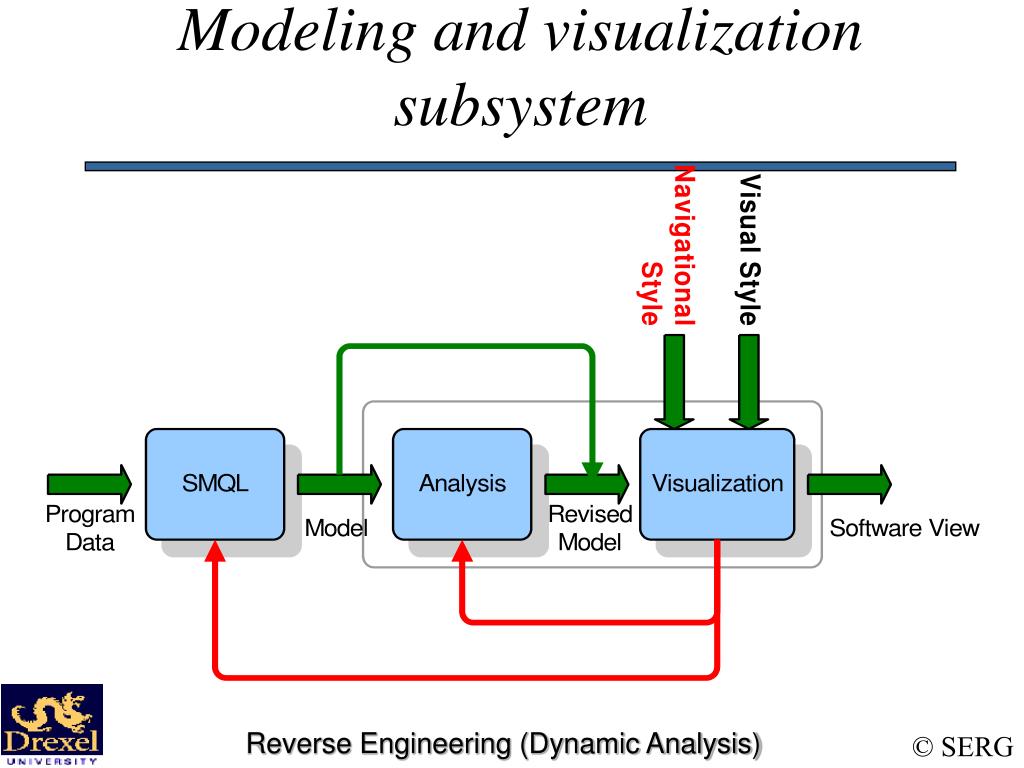

  28. Modeling and visualization subsystem Reverse Engineering (Dynamic Analysis)

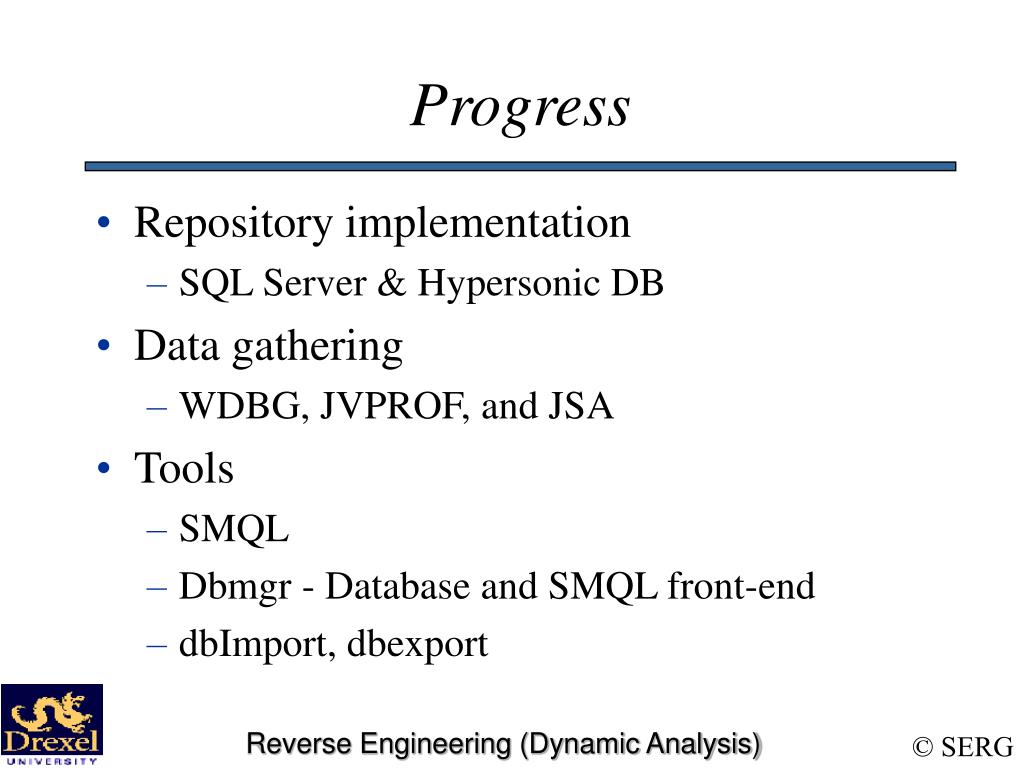

  29. Progress • Repository implementation • SQL Server & Hypersonic DB • Data gathering • WDBG, JVPROF, and JSA • Tools • SMQL • Dbmgr - Database and SMQL front-end • dbImport, dbexport Reverse Engineering (Dynamic Analysis)

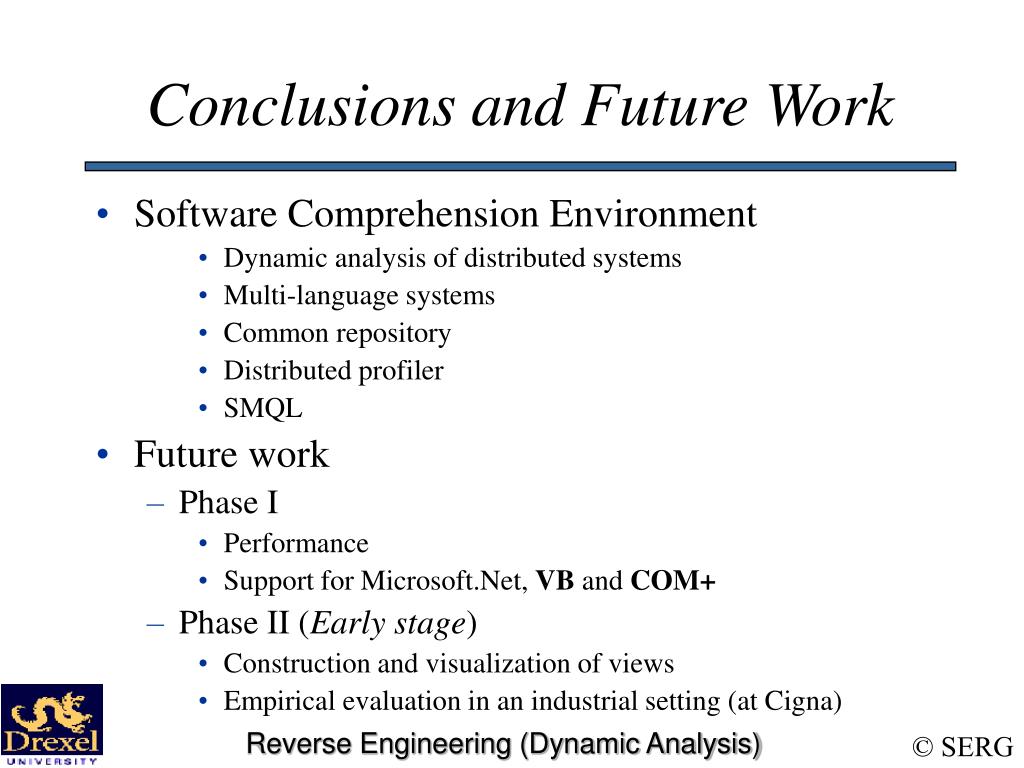

  30. Conclusions and Future Work • Software Comprehension Environment • Dynamic analysis of distributed systems • Multi-language systems • Common repository • Distributed profiler • SMQL • Future work • Phase I • Performance • Support for Microsoft.Net, VB and COM+ • Phase II (Early stage) • Construction and visualization of views • Empirical evaluation in an industrial setting (at Cigna) Reverse Engineering (Dynamic Analysis)

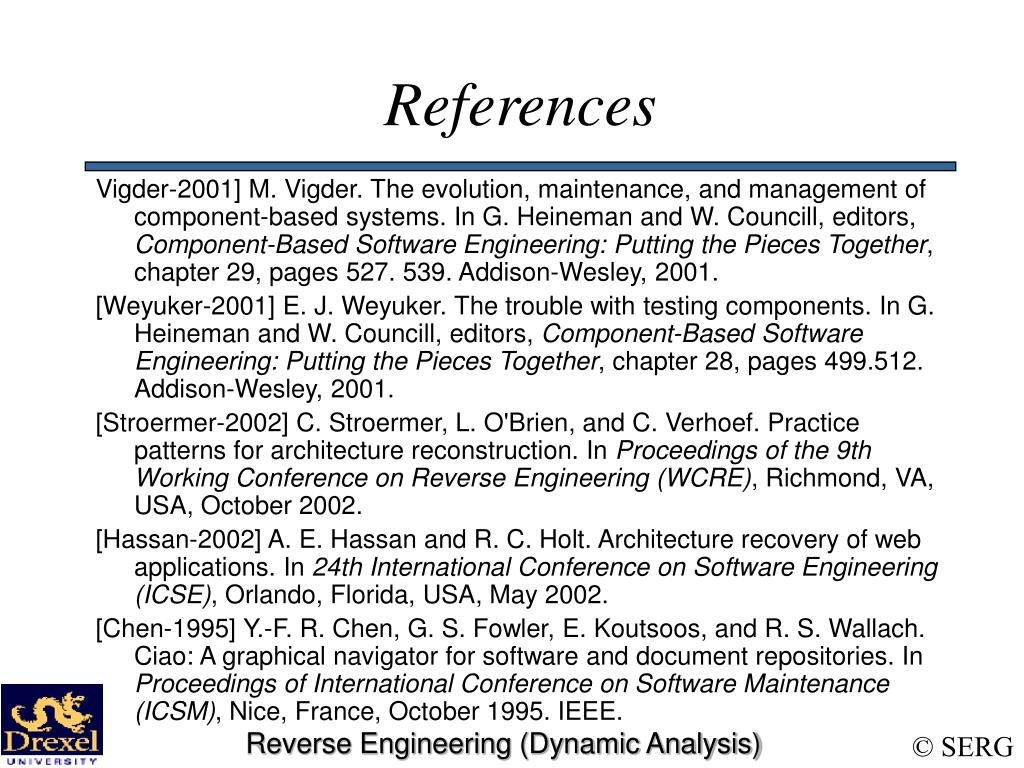

  31. References Vigder-2001] M. Vigder. The evolution, maintenance, and management of component-based systems. In G. Heineman and W. Councill, editors, Component-Based Software Engineering: Putting the Pieces Together, chapter 29, pages 527. 539. Addison-Wesley, 2001. [Weyuker-2001] E. J. Weyuker. The trouble with testing components. In G. Heineman and W. Councill, editors, Component-Based Software Engineering: Putting the Pieces Together, chapter 28, pages 499.512. Addison-Wesley, 2001. [Stroermer-2002] C. Stroermer, L. O'Brien, and C. Verhoef. Practice patterns for architecture reconstruction. In Proceedings of the 9th Working Conference on Reverse Engineering (WCRE), Richmond, VA, USA, October 2002. [Hassan-2002] A. E. Hassan and R. C. Holt. Architecture recovery of web applications. In 24th International Conference on Software Engineering (ICSE), Orlando, Florida, USA, May 2002. [Chen-1995] Y.-F. R. Chen, G. S. Fowler, E. Koutsoos, and R. S. Wallach. Ciao: A graphical navigator for software and document repositories. In Proceedings of International Conference on Software Maintenance (ICSM), Nice, France, October 1995. IEEE. Reverse Engineering (Dynamic Analysis)

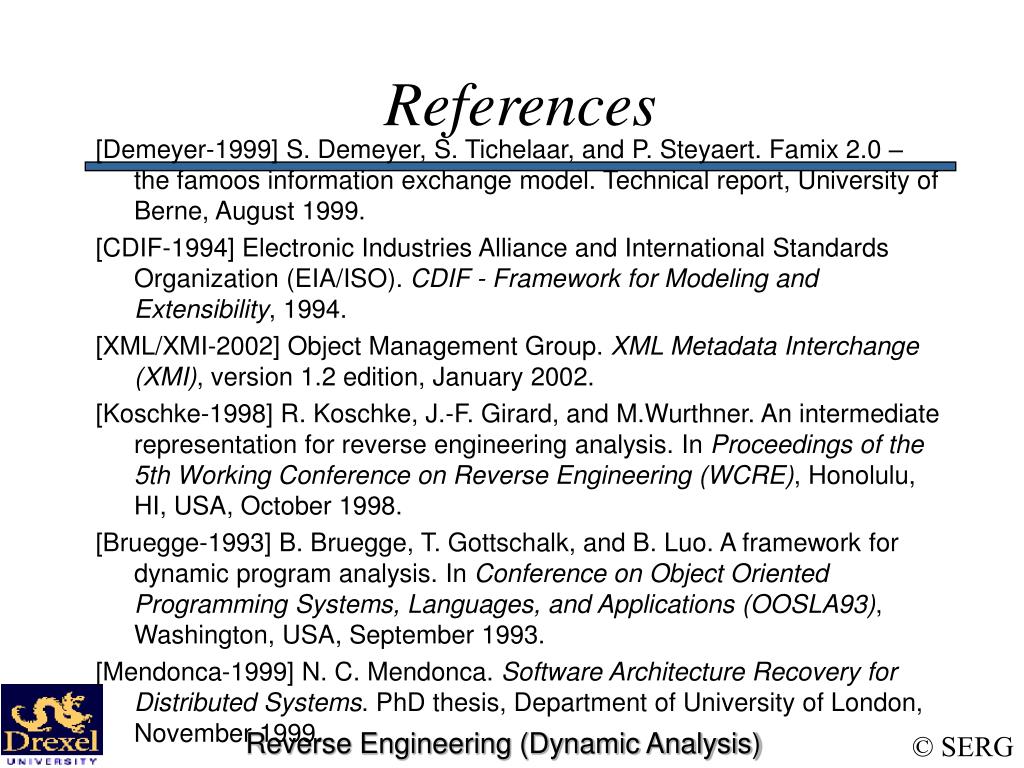

  32. References [Demeyer-1999] S. Demeyer, S. Tichelaar, and P. Steyaert. Famix 2.0 – the famoos information exchange model. Technical report, University of Berne, August 1999. [CDIF-1994] Electronic Industries Alliance and International Standards Organization (EIA/ISO). CDIF - Framework for Modeling and Extensibility, 1994. [XML/XMI-2002] Object Management Group. XML Metadata Interchange (XMI), version 1.2 edition, January 2002. [Koschke-1998] R. Koschke, J.-F. Girard, and M.Wurthner. An intermediate representation for reverse engineering analysis. In Proceedings of the 5th Working Conference on Reverse Engineering (WCRE), Honolulu, HI, USA, October 1998. [Bruegge-1993] B. Bruegge, T. Gottschalk, and B. Luo. A framework for dynamic program analysis. In Conference on Object Oriented Programming Systems, Languages, and Applications (OOSLA93), Washington, USA, September 1993. [Mendonca-1999] N. C. Mendonca. Software Architecture Recovery for Distributed Systems. PhD thesis, Department of University of London, November 1999. Reverse Engineering (Dynamic Analysis)
