Improving GOES-R Cloud and Precipitation Products Associated with DCSs using NEXRAD Radar Network over Continental USA. Cold Cloud Shield (GOES). NEXRAD. GOES. PI: Xiquan Dong ( NEXRAD&GOES Classification ), Uni . of North Dakota

kaori
Télécharger la présentation

E c d

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

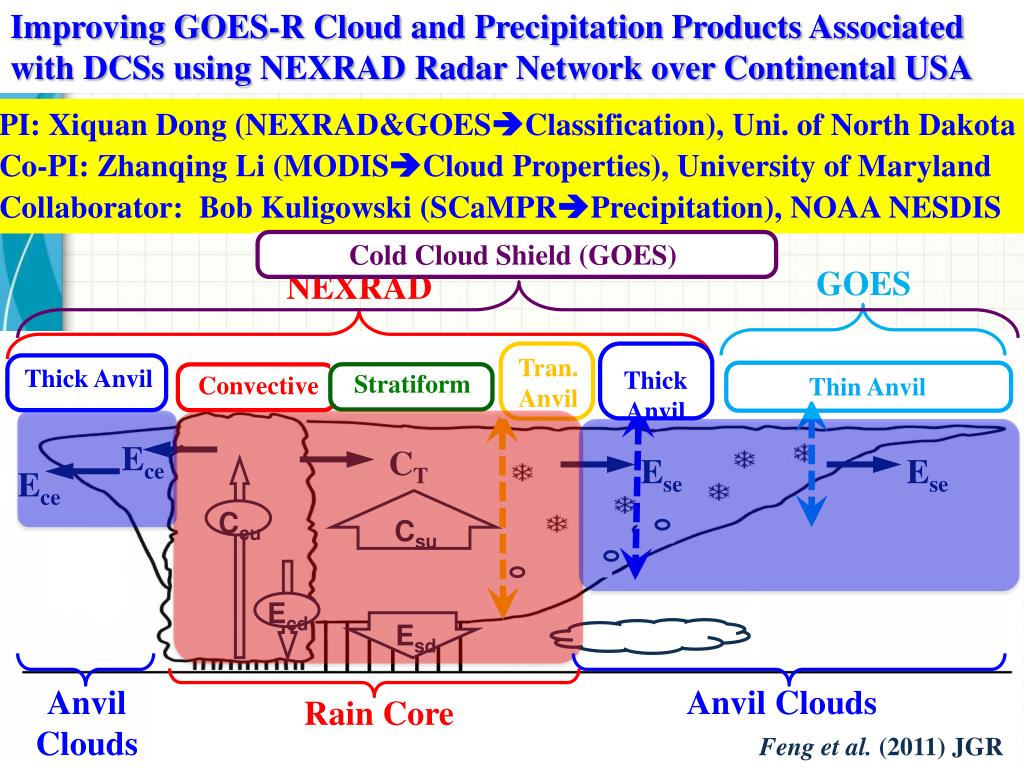

  1. Improving GOES-R Cloud and Precipitation Products Associated with DCSs using NEXRAD Radar Network over Continental USA Cold Cloud Shield (GOES) NEXRAD GOES • PI: Xiquan Dong (NEXRAD&GOESClassification),Uni. of North Dakota • Co-PI: Zhanqing Li (MODISCloud Properties), University of Maryland • Collaborator:Bob Kuligowski (SCaMPRPrecipitation), NOAA NESDIS Convective Stratiform Thin Anvil Thick Anvil Tran. Anvil Ece CT Thick Anvil Ese Ece Ese Csu Ccu Esd Ecd Rain Core Anvil Clouds Anvil Clouds Feng et al. (2011) JGR

  2. Classify Rainfall from DCS Components SCaMPR Rainfall IR Temperature Classification Q2 Rainfall RC AC AC What are the % of rainfall from rain core and anvils in SCaMPR and Q2?

  3. Rainfall Comparison True Value Rainfall in anvil: SCaMPR (29%) vs. Q2 (2%) Rainfall in rain core: SCaMPR (70%) vs. Q2 (97%) Overall: SCaMPR overestimated precipitation compared to Q2, in particular over Anvil region .

  4. How to Improve SCaMPR Precipitation? • Daytime optical depth shows significant difference between both types of anvil clouds and rain core • Optical depths in anvil region may be used to improve the SCaMPR precipitation retrieval (filter out non raining areas) Step 1: Improving SCaMPR method by distinguishing anvil clouds from rain cores using more available channels (MODIS proxy data), Radar, and Aircraft data during MC3E experiment over ARM SGP (15 convective+anvil cases during Apr-June 2011) Step 2: Extending the modified SCaMPR method to continental USA and comparing with NEXRAD Q2 precipitation product. (For more details, See ZheFeng’s poster)
