Security Engineering with Patterns

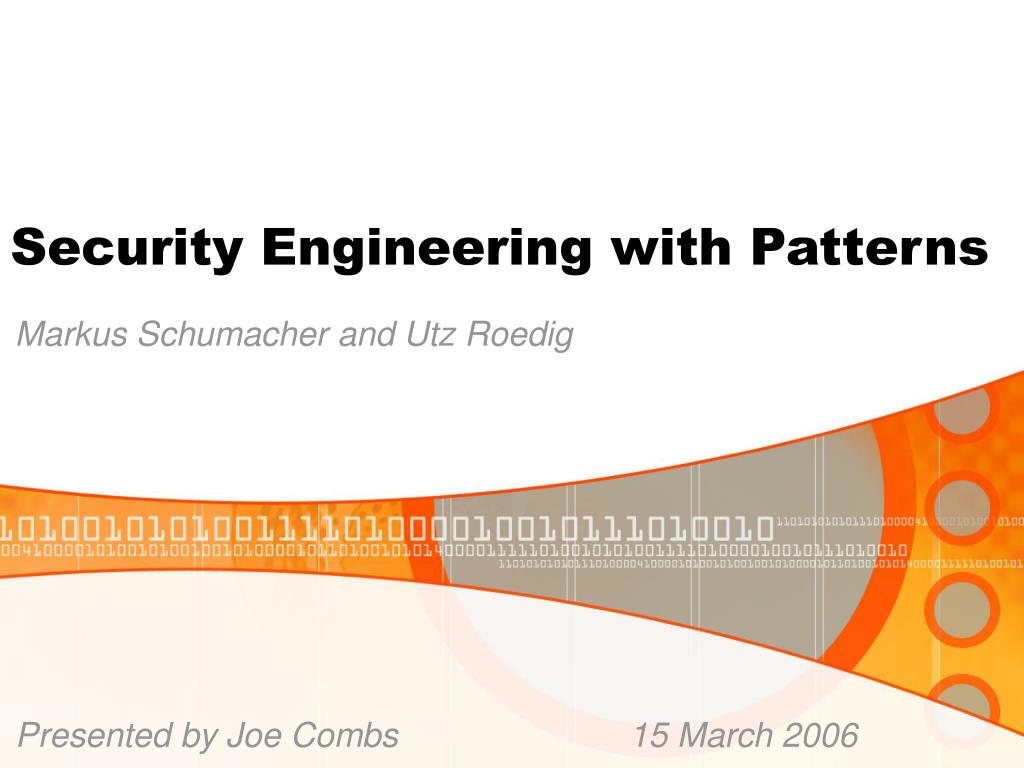

1. Security Engineering with Patterns Markus Schumacher and Utz Roedig Presented by Joe Combs 15 March 2006

2. Agenda • What do patterns seek to accomplish? • Other approaches • How do the authors define a pattern? • Security engineering using patterns • Related work

3. What Problem are We Trying to Solve? • Allow novices to act as security experts • Give security experts a mechanism to identify, name and discuss both problems and solutions more effectively • Solve problems in a structured way • Identify and consider dependencies between components

4. Other approaches • Security policy • Evaluation criteria • Tree representations • Formal methods • Semi-formal approaches

5. Schumacher & Roedig Pattern Template • Name • Context and related patterns • Problem • Solution • Other optional sections include aliases, structure and interactions of participants, consequences, examples and counter-examples

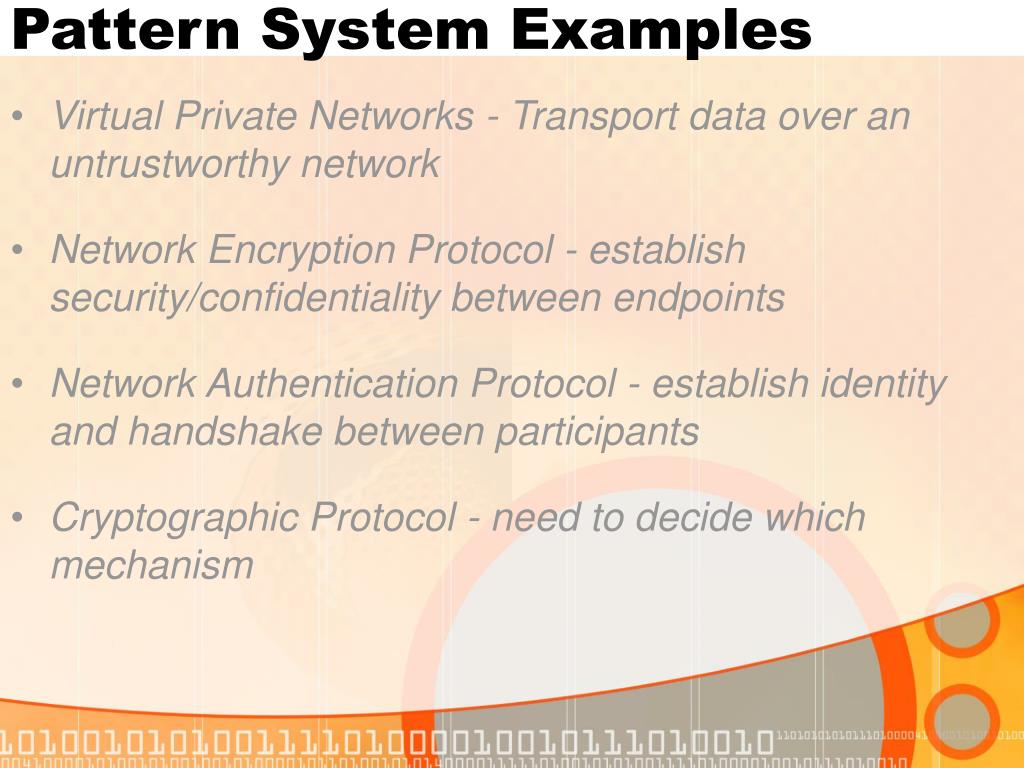

6. Pattern System Examples • Virtual Private Networks - Transport data over an untrustworthy network • Network Encryption Protocol - establish security/confidentiality between endpoints • Network Authentication Protocol - establish identity and handshake between participants • Cryptographic Protocol - need to decide which mechanism

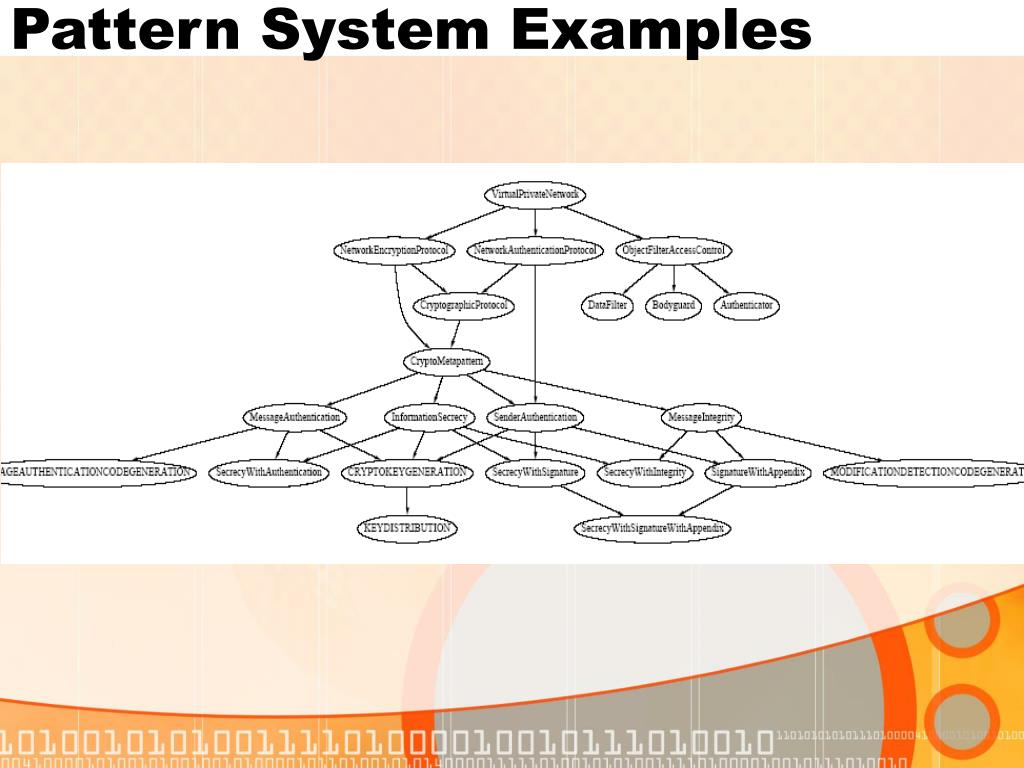

7. Pattern System Examples

8. Security Engineering w/Patterns • Does this template does meet the criteria for the problem we’re trying to solve? • security by non-experts • structured problem solution • scope & time dependencies • Tool support needed: • maintenance • classification • modeling • reasoning

9. An Engineering Example

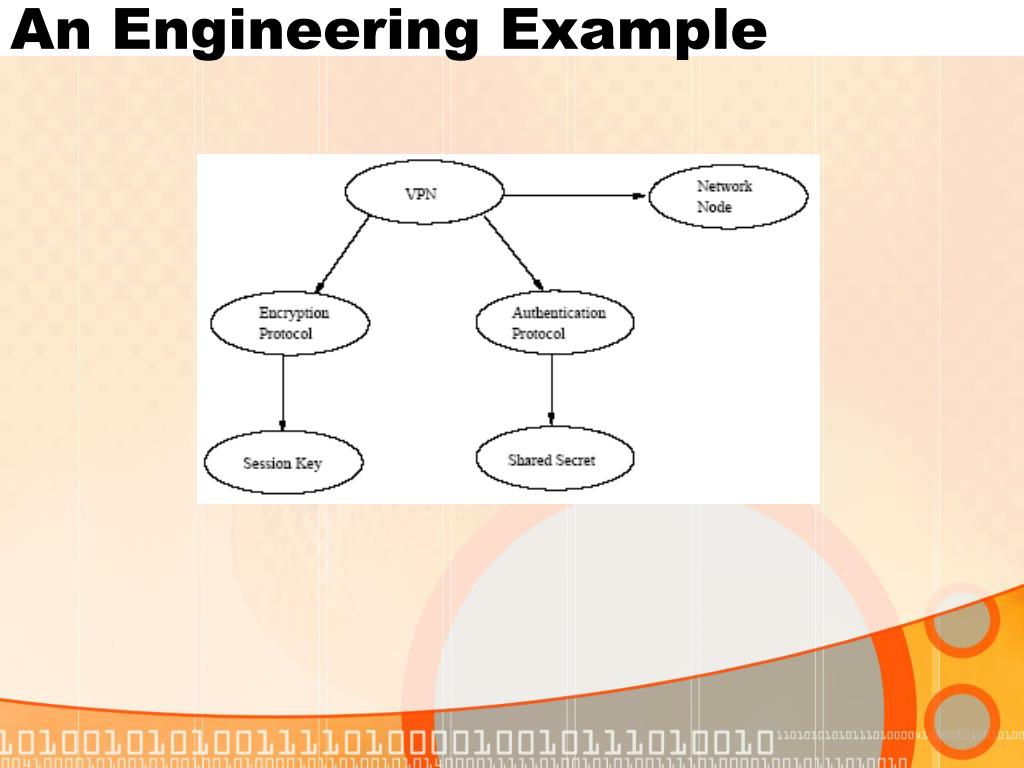

10. An Engineering Example

11. Conclusions • Need a way to support both formal & informal approaches to achieve security • Average programmers need a mechanism to design secure systems • Several patterns offered as examples - need a classification scheme to develop a pattern system • Need to establish a larger pattern community with repositories of patterns, tool support and so on for this to be effective
