  1. Eduserv and the Cloud Who we are, what we do, what you can do… Matt Johnson

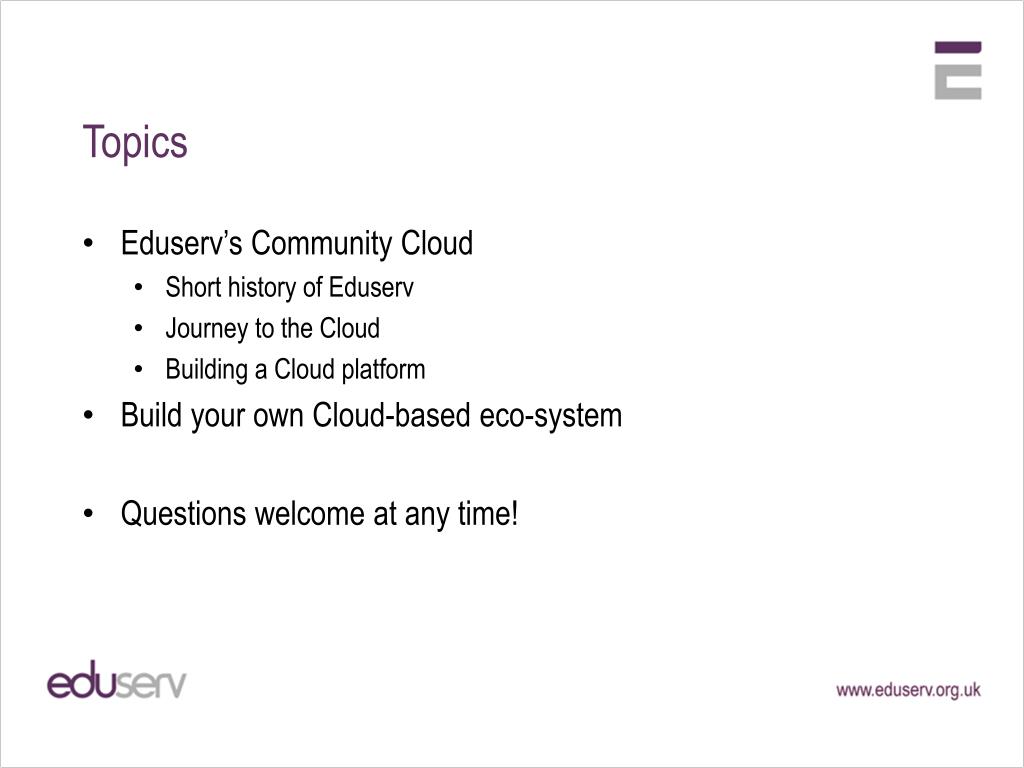

  2. Topics • Eduserv’s Community Cloud • Short history of Eduserv • Journey to the Cloud • Building a Cloud platform • Build your own Cloud-based eco-system • Questions welcome at any time!

  3. Short History of Eduserv

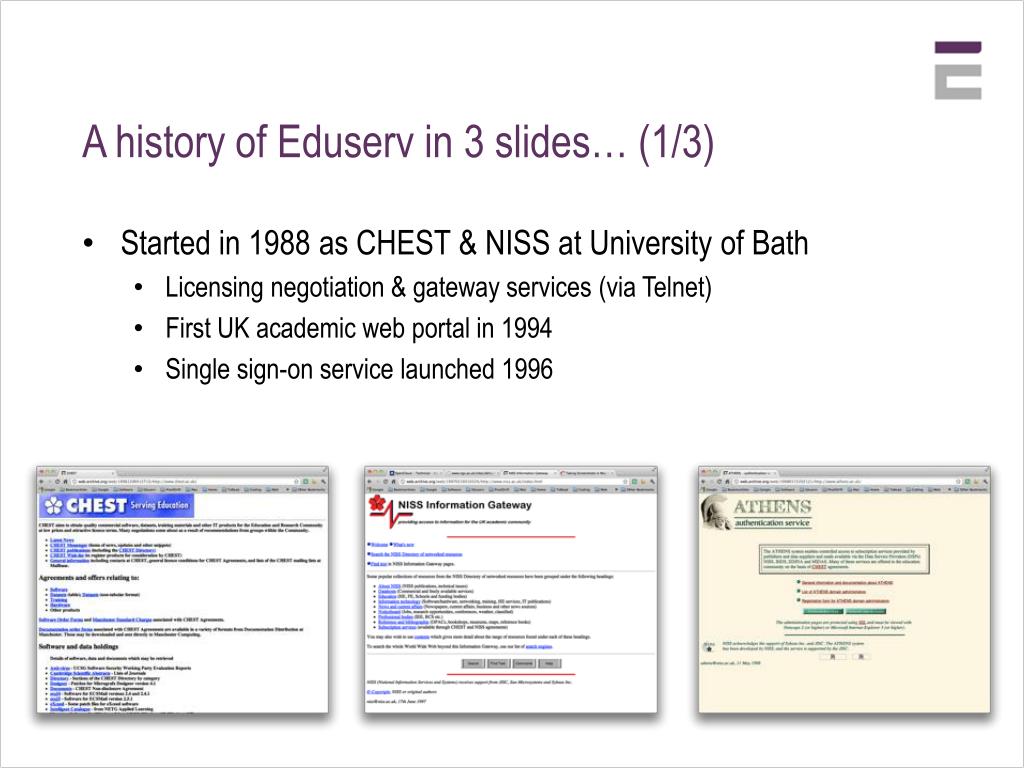

  4. A history of Eduserv in 3 slides… (1/3) • Started in 1988 as CHEST & NISS at University of Bath • Licensing negotiation & gateway services (via Telnet) • First UK academic web portal in 1994 • Single sign-on service launched 1996

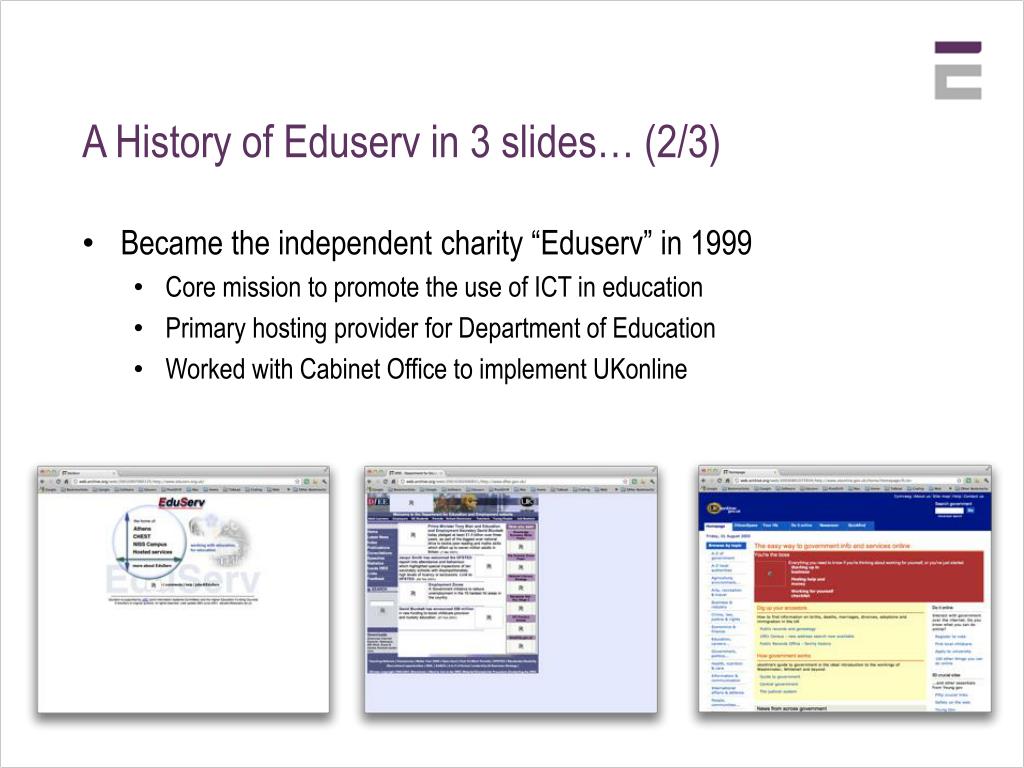

  5. A History of Eduserv in 3 slides… (2/3) • Became the independent charity “Eduserv” in 1999 • Core mission to promote the use of ICT in education • Primary hosting provider for Department of Education • Worked with Cabinet Office to implement UKonline

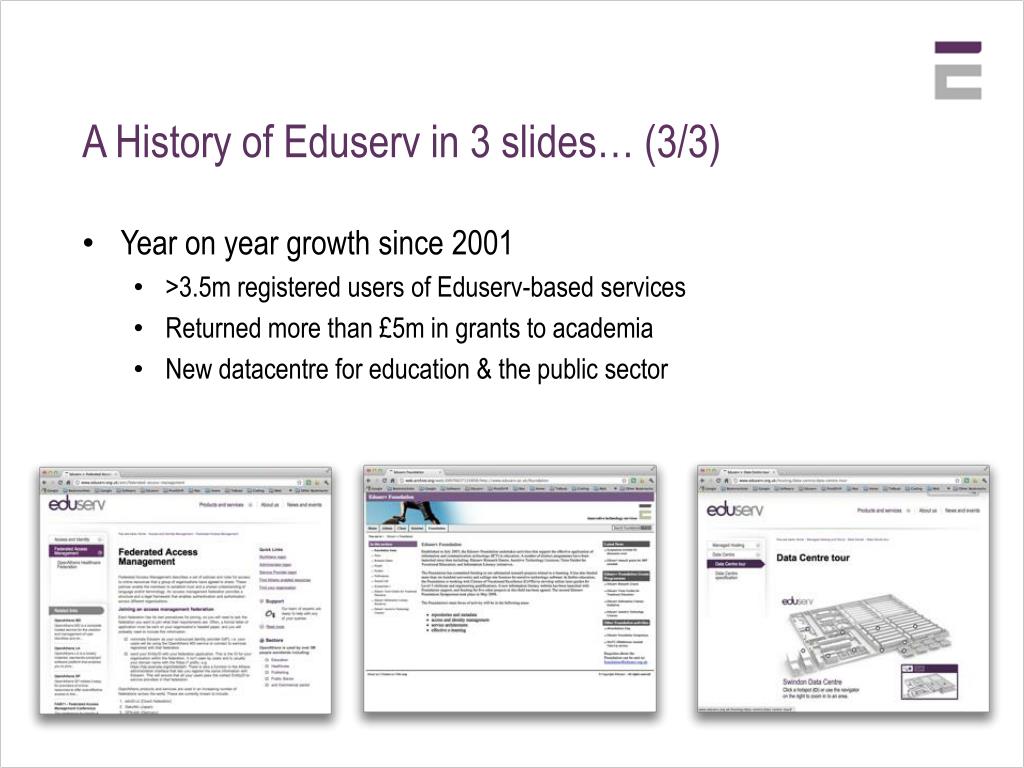

  6. A History of Eduserv in 3 slides… (3/3) • Year on year growth since 2001 • >3.5m registered users of Eduserv-based services • Returned more than £5m in grants to academia • New datacentre for education & the public sector

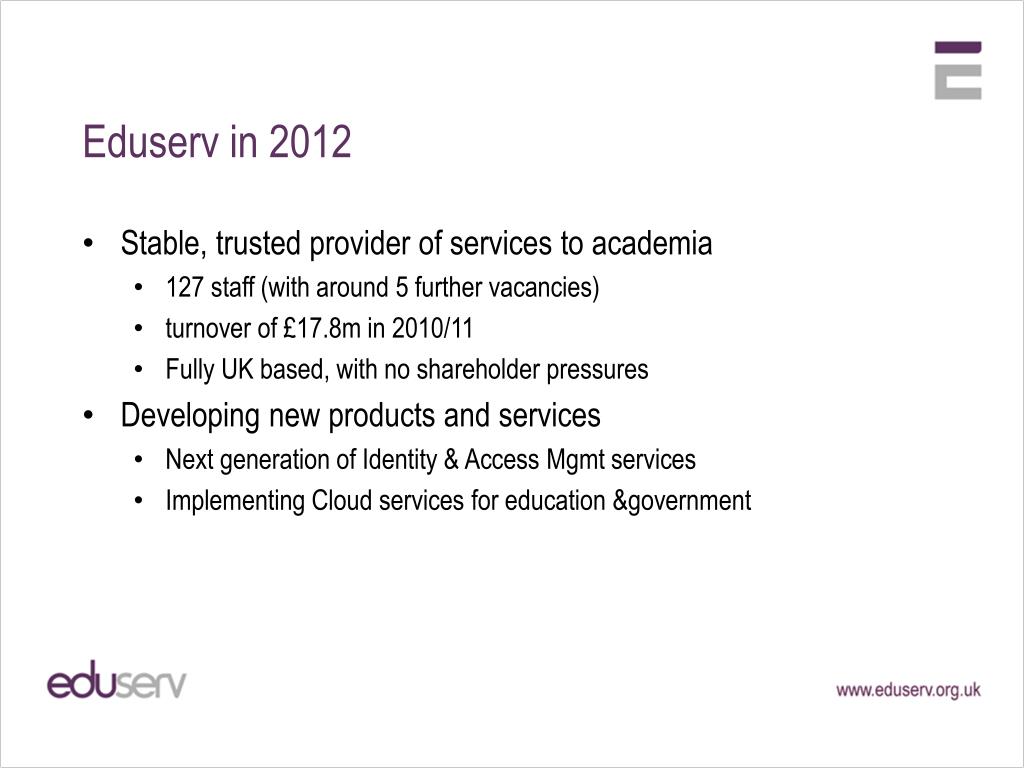

  7. Eduserv in 2012 • Stable, trusted provider of services to academia • 127 staff (with around 5 further vacancies) • turnover of £17.8m in 2010/11 • Fully UK based, with no shareholder pressures • Developing new products and services • Next generation of Identity & Access Mgmt services • Implementing Cloud services for education &government

  8. Journey to the Cloud

  9. Eduserv’s journey to the Cloud • Research into public cloud services (early 2010) • JISC FleSSR project (2010-2011) • £30k grant, partnership with University of Oxford • UMF Cloud pilot (2011-2012) • £1.3m HEFCE funded project • Eduserv Community Cloud Infrastructure (2012+) • Delivering multiple cloud-based services for our customers

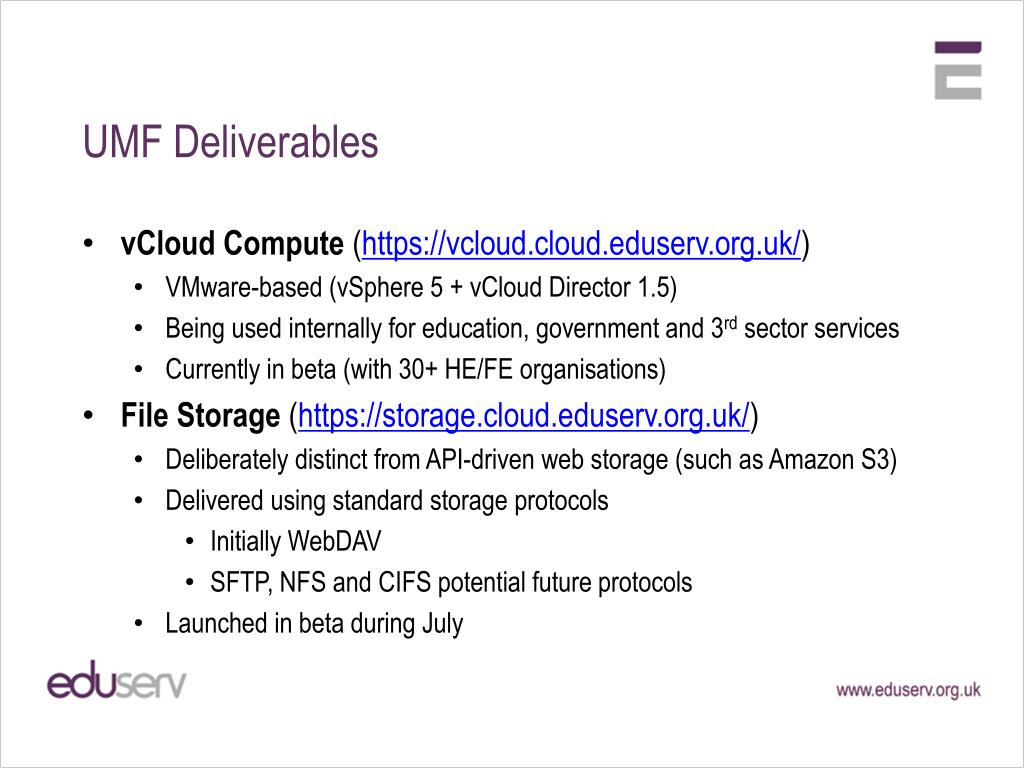

  10. UMF Deliverables • vCloud Compute (https://vcloud.cloud.eduserv.org.uk/) • VMware-based (vSphere 5 + vCloud Director 1.5) • Being used internally for education, government and 3rd sector services • Currently in beta (with 30+ HE/FE organisations) • File Storage (https://storage.cloud.eduserv.org.uk/) • Deliberately distinct from API-driven web storage (such as Amazon S3) • Delivered using standard storage protocols • Initially WebDAV • SFTP, NFS and CIFS potential future protocols • Launched in beta during July

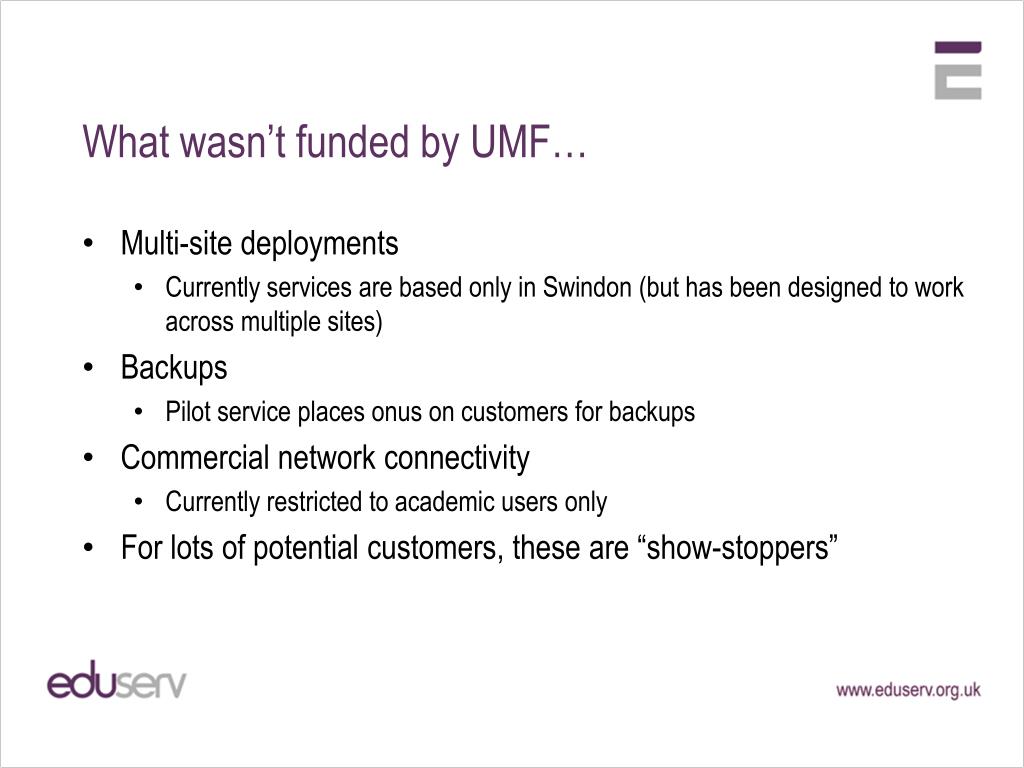

  11. What wasn’t funded by UMF… • Multi-site deployments • Currently services are based only in Swindon (but has been designed to work across multiple sites) • Backups • Pilot service places onus on customers for backups • Commercial network connectivity • Currently restricted to academic users only • For lots of potential customers, these are “show-stoppers”

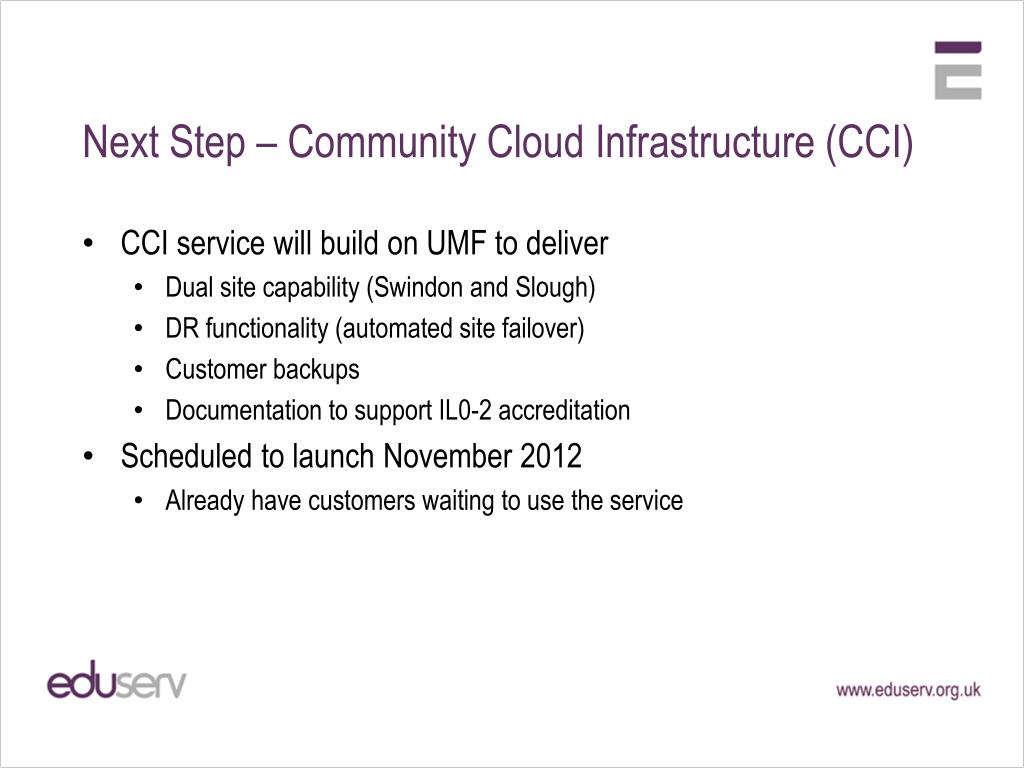

  12. Next Step – Community Cloud Infrastructure (CCI) • CCI service will build on UMF to deliver • Dual site capability (Swindon and Slough) • DR functionality (automated site failover) • Customer backups • Documentation to support IL0-2 accreditation • Scheduled to launch November 2012 • Already have customers waiting to use the service

  13. Building a Cloud platform

  14. Design Goals • Community Cloud, not Public Cloud • Already lots of public cloud providers • Need to differentiate on something other than scale • Quality • Built using “premium” components • Capable of being redeployed for different architectures • Security • UK ownership and location (US PATRIOT Act concerns) • Auditability of assets and processes

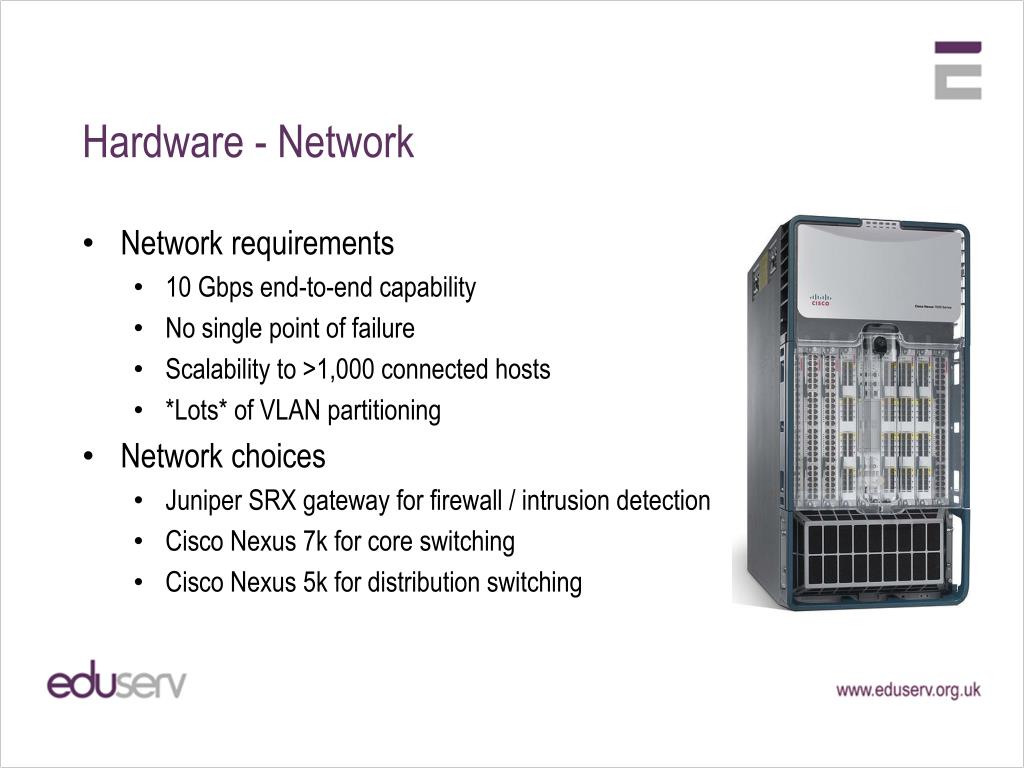

  15. Hardware - Network • Network requirements • 10 Gbps end-to-end capability • No single point of failure • Scalability to >1,000 connected hosts • *Lots* of VLAN partitioning • Network choices • Juniper SRX gateway for firewall / intrusion detection • Cisco Nexus 7k for core switching • Cisco Nexus 5k for distribution switching

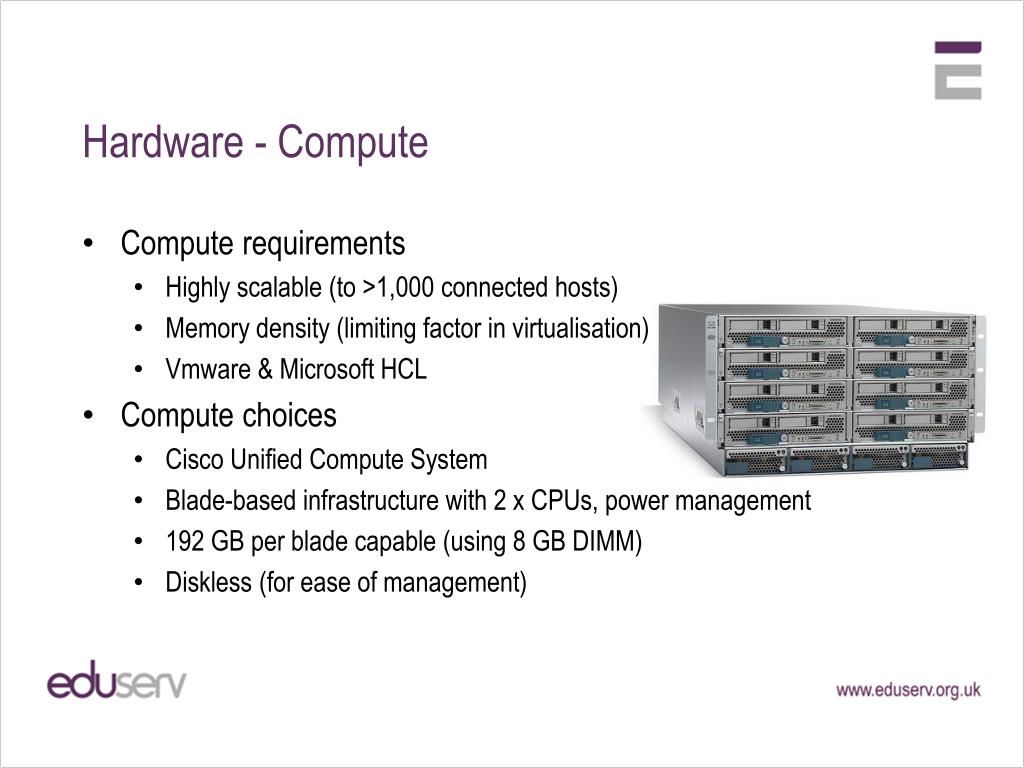

  16. Hardware - Compute • Compute requirements • Highly scalable (to >1,000 connected hosts) • Memory density (limiting factor in virtualisation) • Vmware & Microsoft HCL • Compute choices • Cisco Unified Compute System • Blade-based infrastructure with 2 x CPUs, power management • 192 GB per blade capable (using 8 GB DIMM) • Diskless (for ease of management)

  17. Hardware - Storage • Storage requirements • Highly scalable (multi-PB capable) • Support for block and file-level storage • Easy to manage / support • Storage choices • EMC Isilon Storage Cluster • NFS / iSCSI node-based NAS platform • Scalable to 14+ PB in a single namespace • Mix-and-match different performance/capacity nodes • High efficiency (90% usable space with N+2:1 protection)

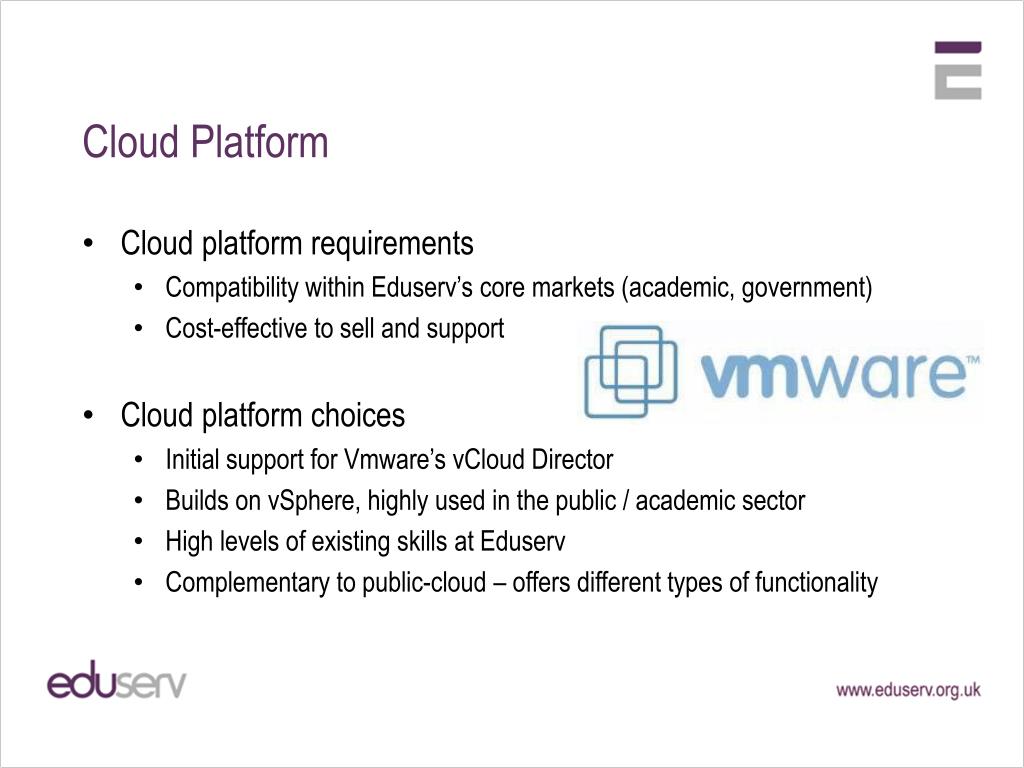

  18. Cloud Platform • Cloud platform requirements • Compatibility within Eduserv’s core markets (academic, government) • Cost-effective to sell and support • Cloud platform choices • Initial support for Vmware’s vCloud Director • Builds on vSphere, highly used in the public / academic sector • High levels of existing skills at Eduserv • Complementary to public-cloud – offers different types of functionality

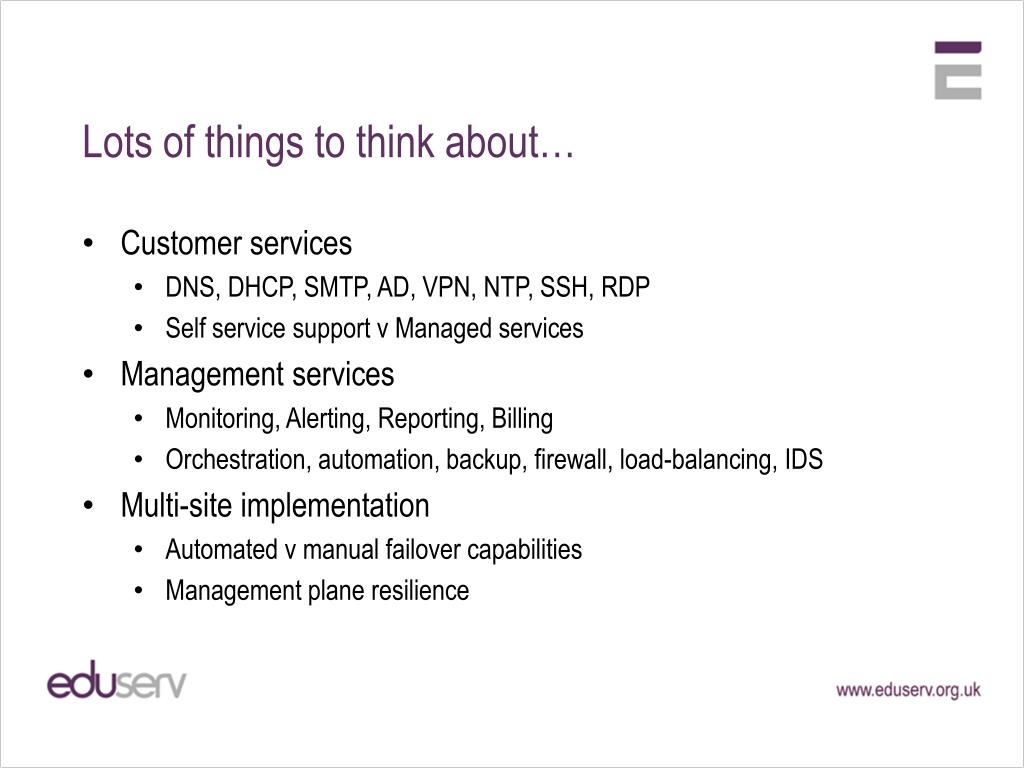

  19. Lots of things to think about… • Customer services • DNS, DHCP, SMTP, AD, VPN, NTP, SSH, RDP • Self service support v Managed services • Management services • Monitoring, Alerting, Reporting, Billing • Orchestration, automation, backup, firewall, load-balancing, IDS • Multi-site implementation • Automated v manual failover capabilities • Management plane resilience

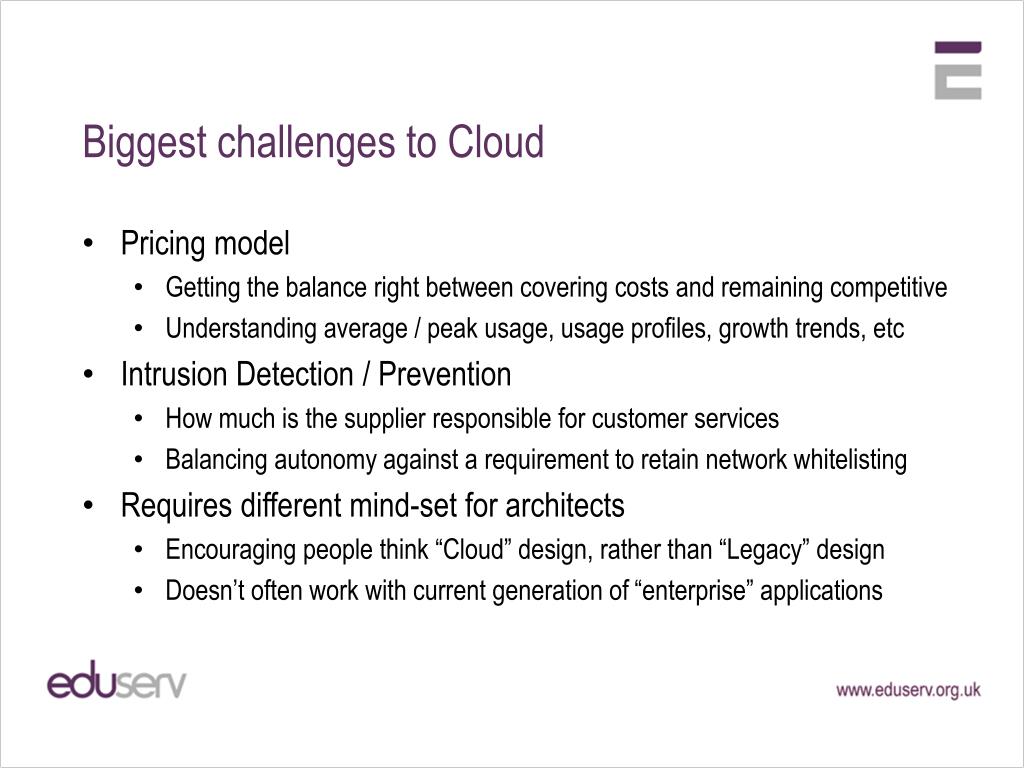

  20. Biggest challenges to Cloud • Pricing model • Getting the balance right between covering costs and remaining competitive • Understanding average / peak usage, usage profiles, growth trends, etc • Intrusion Detection / Prevention • How much is the supplier responsible for customer services • Balancing autonomy against a requirement to retain network whitelisting • Requires different mind-set for architects • Encouraging people think “Cloud” design, rather than “Legacy” design • Doesn’t often work with current generation of “enterprise” applications

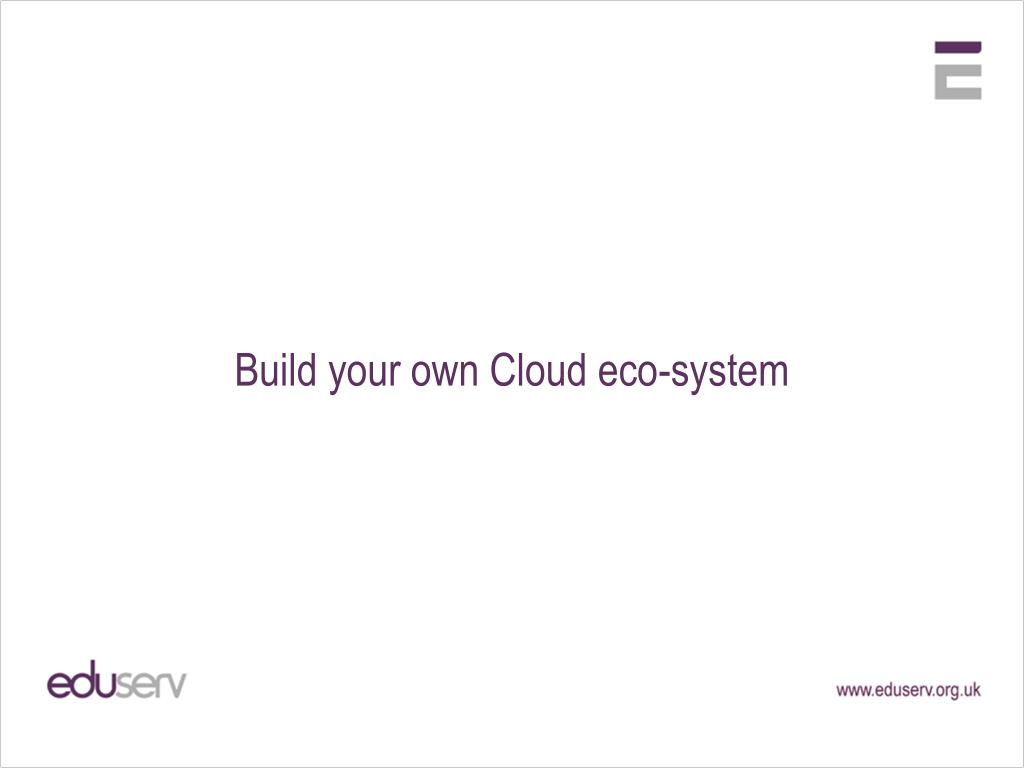

  21. Build your own Cloud eco-system

  22. In less than 2 hours, you will have • Generic email address with ActiveSync capabilities • Fully manageable DNS with own domain name • Personalised email address using own domain name • Website / Intranet / Wiki / Document Management services • Cloud compute, database, network and monitoring services • Cloud storage and synchronisation between computers • And all for the price of a domain registration (£2.40 per year)

  23. 1. Register a (generic) email address • Lots of free webmail services • Using MS Outlook.com • ActiveSync services • Clean interface • Time taken: 2 mins • summerschool12@outlook.com

  24. 2. Register a domain name • Lots of services • Using 123-reg • UK-based • Cheap (£2.39 for .info) • Time taken • 5 mins (to register) • 5 mins (to configure) • Up to 12 hours (to propagate)

  25. 3. Register for Name-server hosting • Using Point • SaaS DNS hosting • UK-based service • Free (for 5 domains) • Time taken • 5 mins (to register)

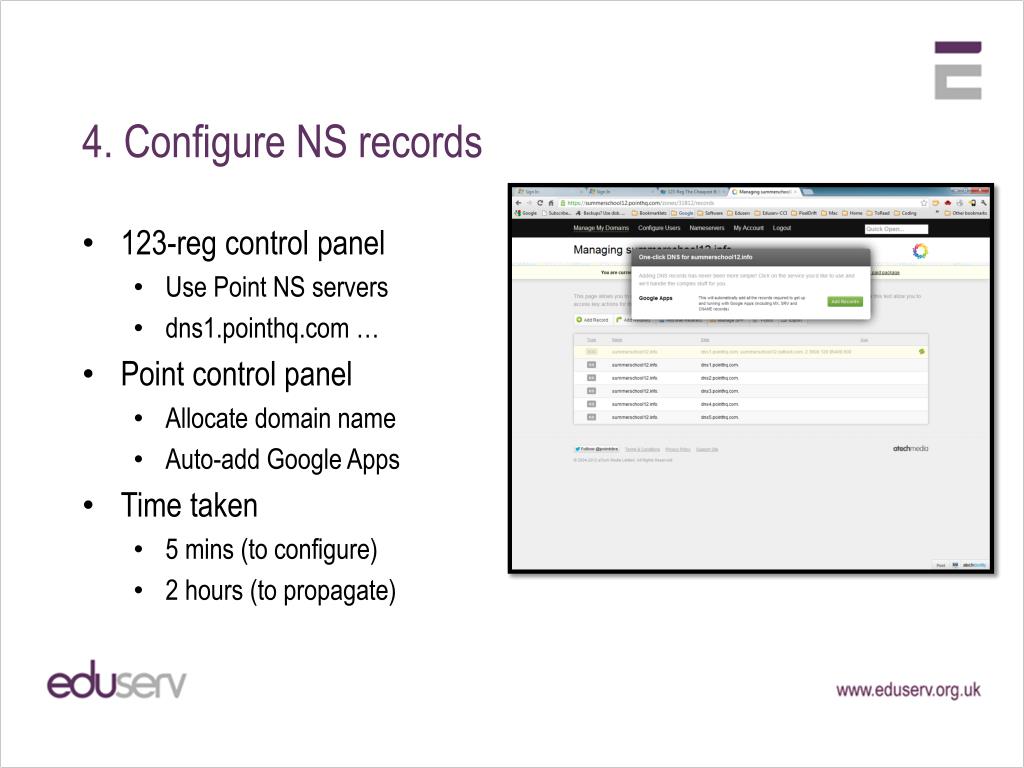

  26. 4. Configure NS records • 123-reg control panel • Use Point NS servers • dns1.pointhq.com … • Point control panel • Allocate domain name • Auto-add Google Apps • Time taken • 5 mins (to configure) • 2 hours (to propagate)

  27. 5. Check DNS configuration • From command line • Nslookup • From the web • DNS Stuff, Pingdom • Check • NS records • MX records • Time taken • 1 min

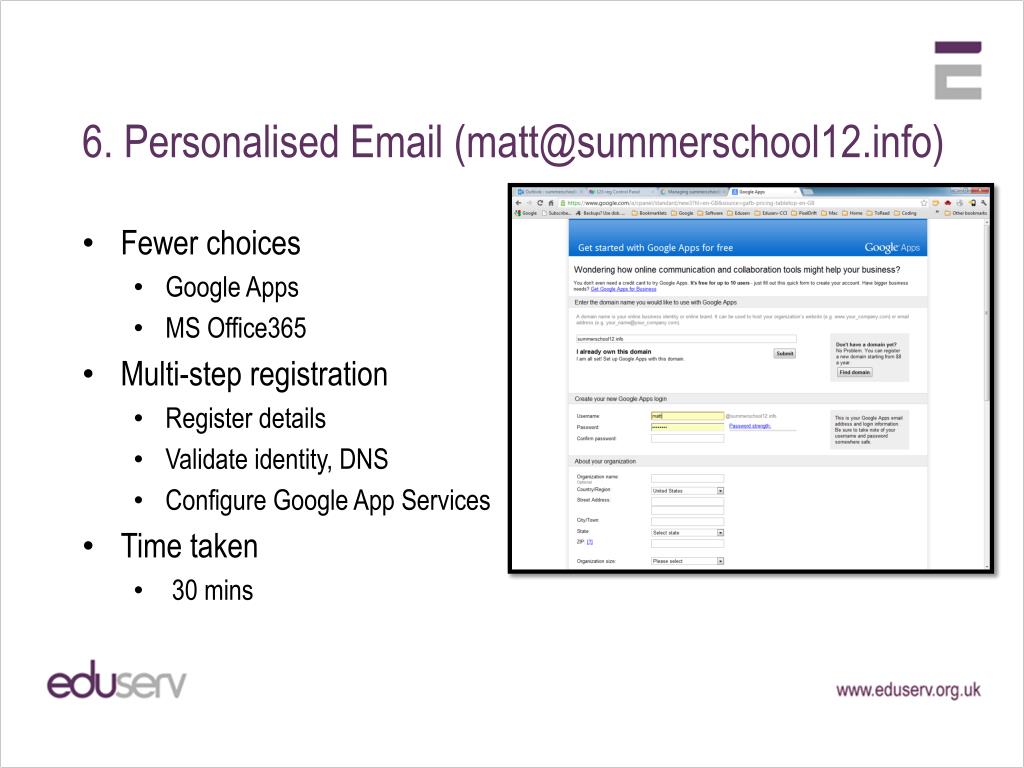

  28. 6. Personalised Email (matt@summerschool12.info) • Fewer choices • Google Apps • MS Office365 • Multi-step registration • Register details • Validate identity, DNS • Configure Google App Services • Time taken • 30 mins

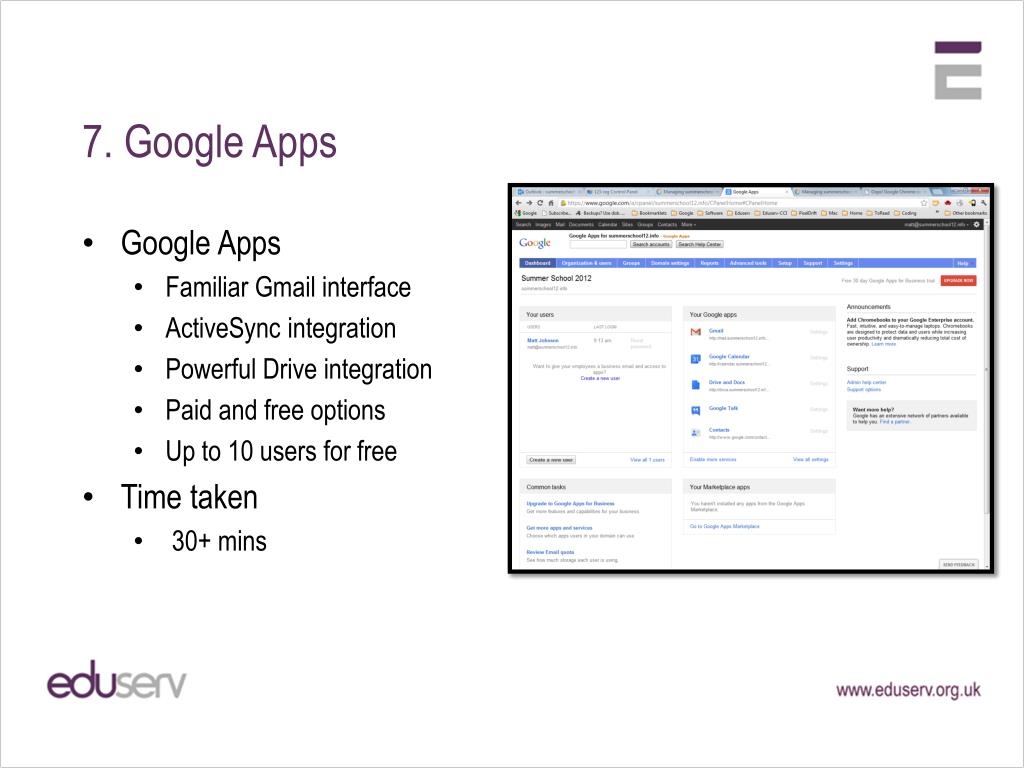

  29. 7. Google Apps • Google Apps • Familiar Gmail interface • ActiveSync integration • Powerful Drive integration • Paid and free options • Up to 10 users for free • Time taken • 30+ mins

  30. 8. Cloud IaaS, PaaS, SaaS • Lots of cloud services • Few offer free service • Amazon Web Services • Original & biggest cloud provider • Free tier (for one year) • Registration is straightforward • Requires credit card • Mobile validation • Time taken • 10 mins to register

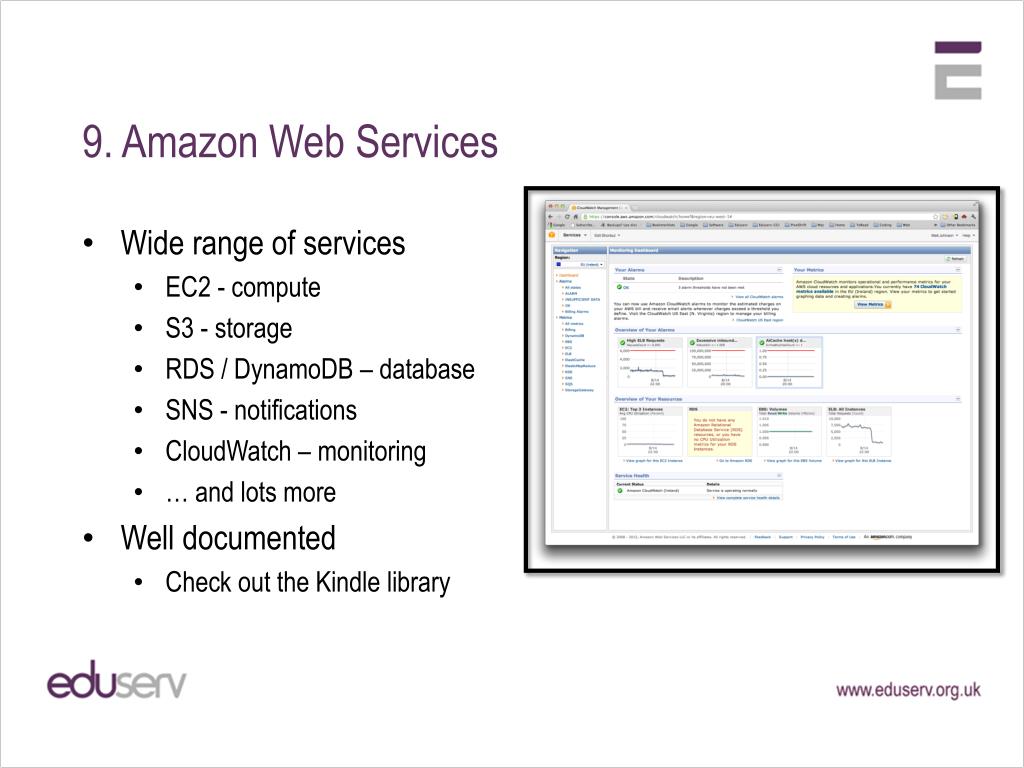

  31. 9. Amazon Web Services • Wide range of services • EC2 - compute • S3 - storage • RDS / DynamoDB – database • SNS - notifications • CloudWatch – monitoring • … and lots more • Well documented • Check out the Kindle library

  32. 10. Microsoft WebSiteSpark • MS Web Development • Aimed at SMEs / individuals • Free for 3 years • Range of services • Free licences (Visual Studio, etc) • Free access to Azure PaaS • Hosting support • Time taken • 15 mins to register

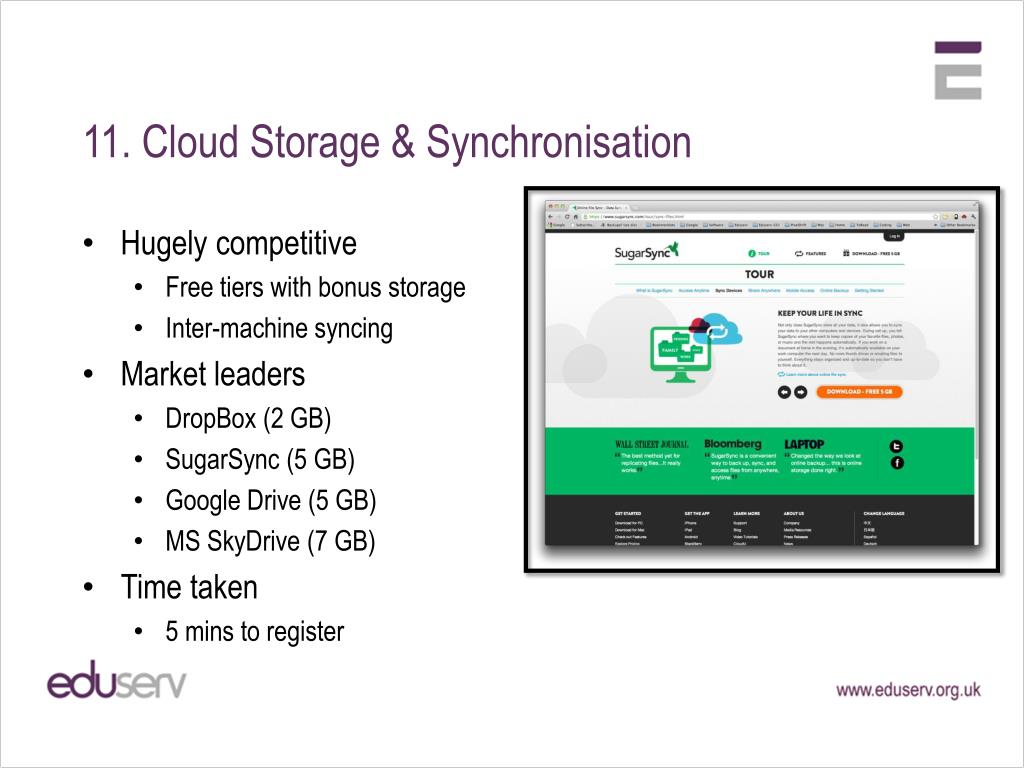

  33. 11. Cloud Storage & Synchronisation • Hugely competitive • Free tiers with bonus storage • Inter-machine syncing • Market leaders • DropBox (2 GB) • SugarSync (5 GB) • Google Drive (5 GB) • MS SkyDrive (7 GB) • Time taken • 5 mins to register

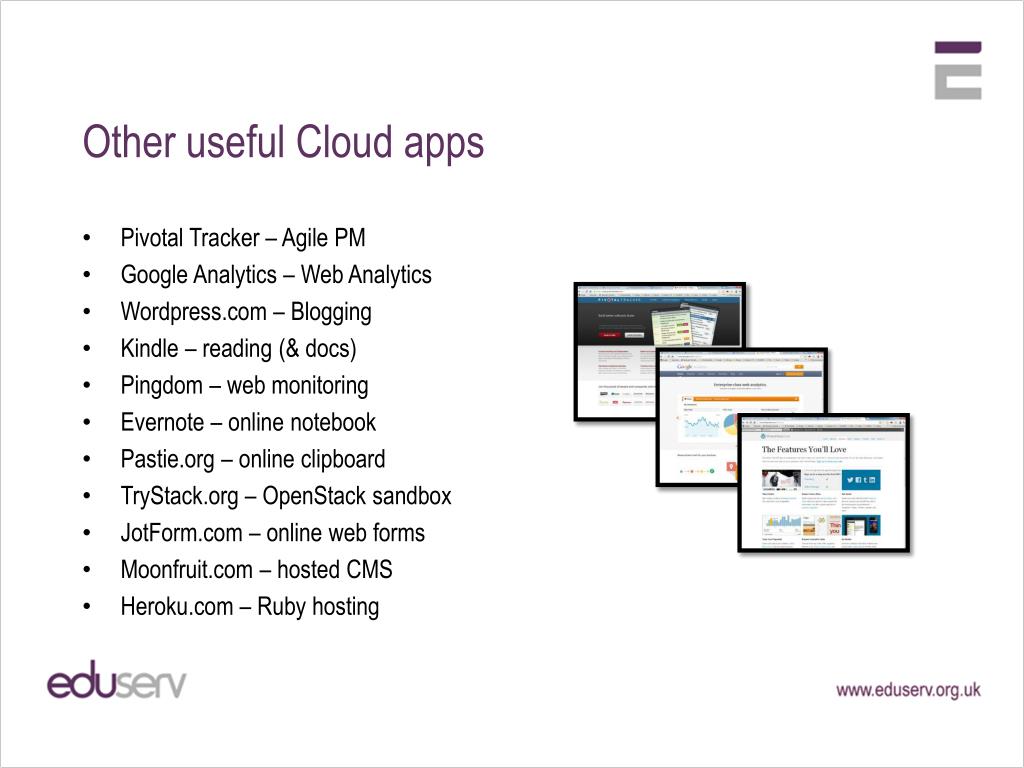

  34. Other useful Cloud apps • Pivotal Tracker – Agile PM • Google Analytics – Web Analytics • Wordpress.com – Blogging • Kindle – reading (& docs) • Pingdom – web monitoring • Evernote – online notebook • Pastie.org – online clipboard • TryStack.org – OpenStack sandbox • JotForm.com – online web forms • Moonfruit.com – hosted CMS • Heroku.com – Ruby hosting

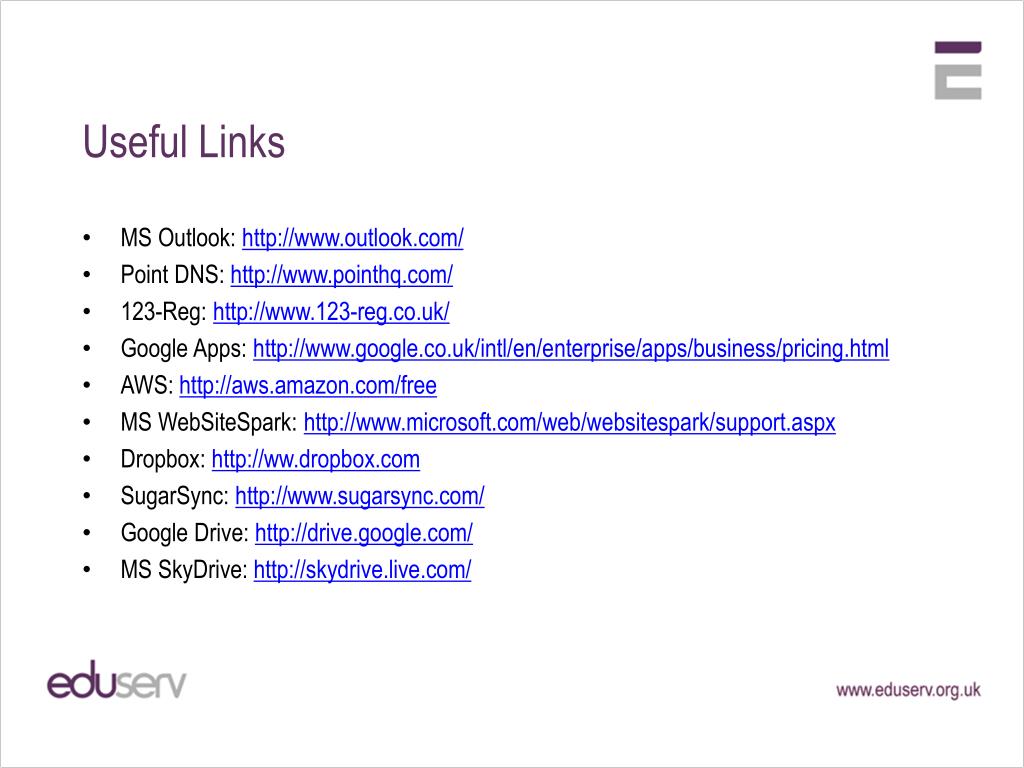

  35. Useful Links • MS Outlook: http://www.outlook.com/ • Point DNS: http://www.pointhq.com/ • 123-Reg: http://www.123-reg.co.uk/ • Google Apps: http://www.google.co.uk/intl/en/enterprise/apps/business/pricing.html • AWS: http://aws.amazon.com/free • MS WebSiteSpark: http://www.microsoft.com/web/websitespark/support.aspx • Dropbox: http://ww.dropbox.com • SugarSync: http://www.sugarsync.com/ • Google Drive: http://drive.google.com/ • MS SkyDrive: http://skydrive.live.com/

  36. Where to find out more • Education Cloud support site: • http://support.cloud.eduserv.org.uk/ • Website: • http://www.eduserv.org.uk/hosting/cloud-computing/
