  1. Highway Resurfacing Materials Cost Estimate Tool Richard D. Bellows Spring 2005

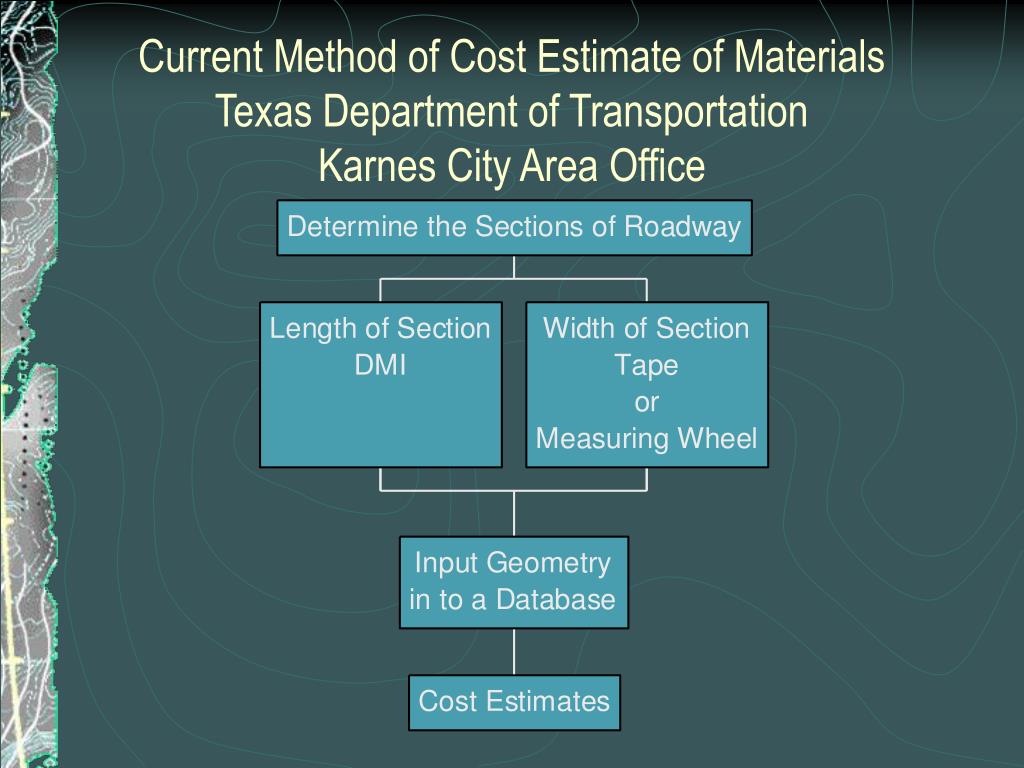

  2. Current Method of Cost Estimate of MaterialsTexas Department of TransportationKarnes City Area Office

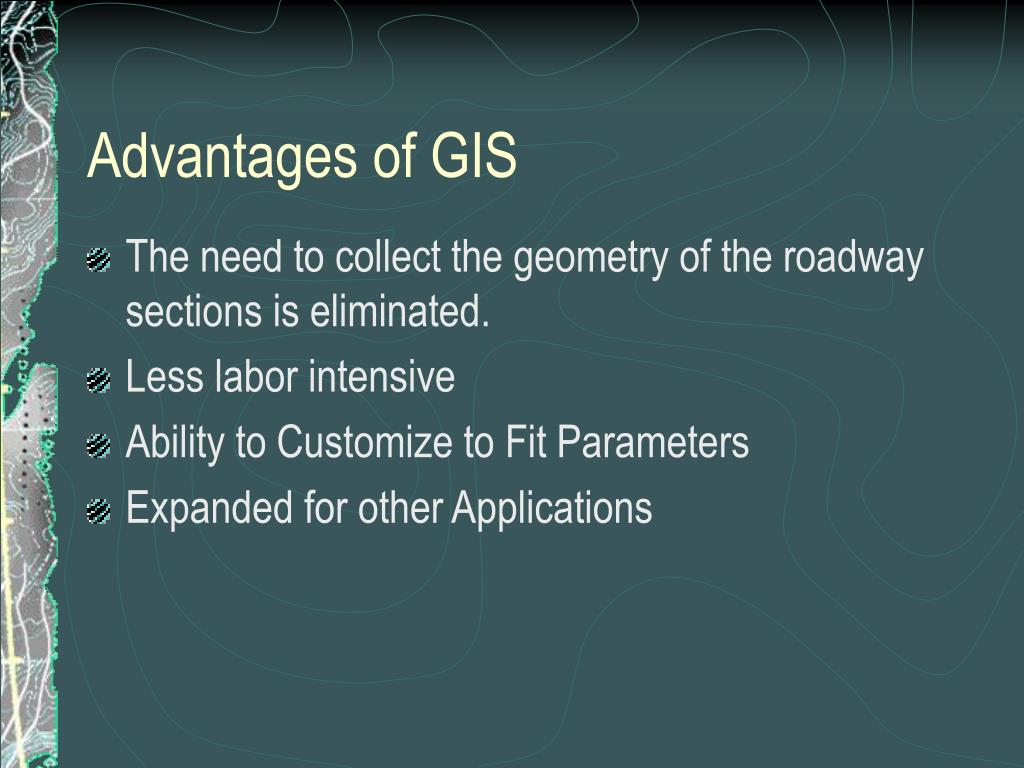

  3. Advantages of GIS • The need to collect the geometry of the roadway sections is eliminated. • Less labor intensive • Ability to Customize to Fit Parameters • Expanded for other Applications

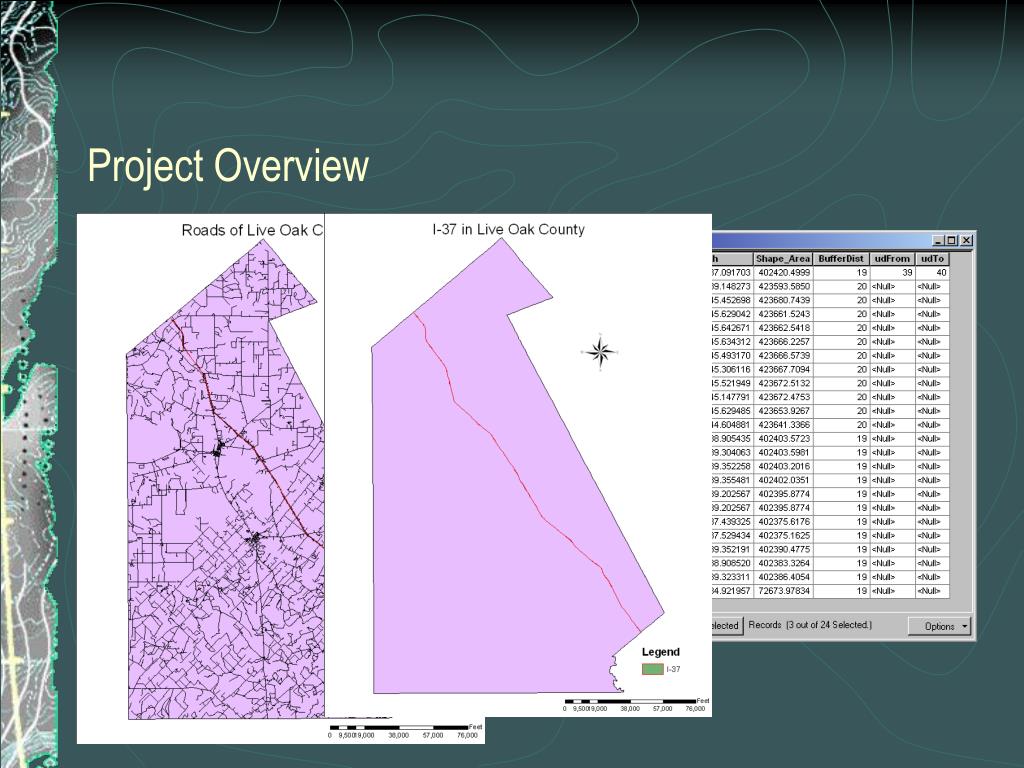

  4. Project Overview • Road data with lengths • Export I-37 • Divide the line feature into 2 mile sections • Buffer sections • Calculate Areas • Append

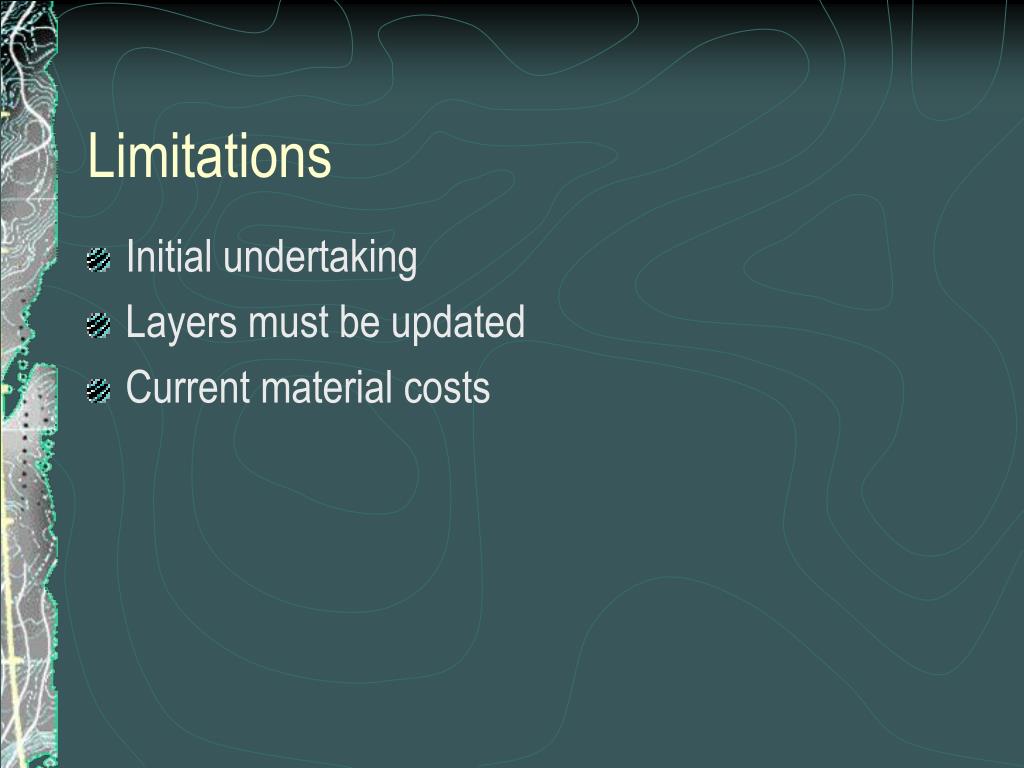

  5. Limitations • Initial undertaking • Layers must be updated • Current material costs

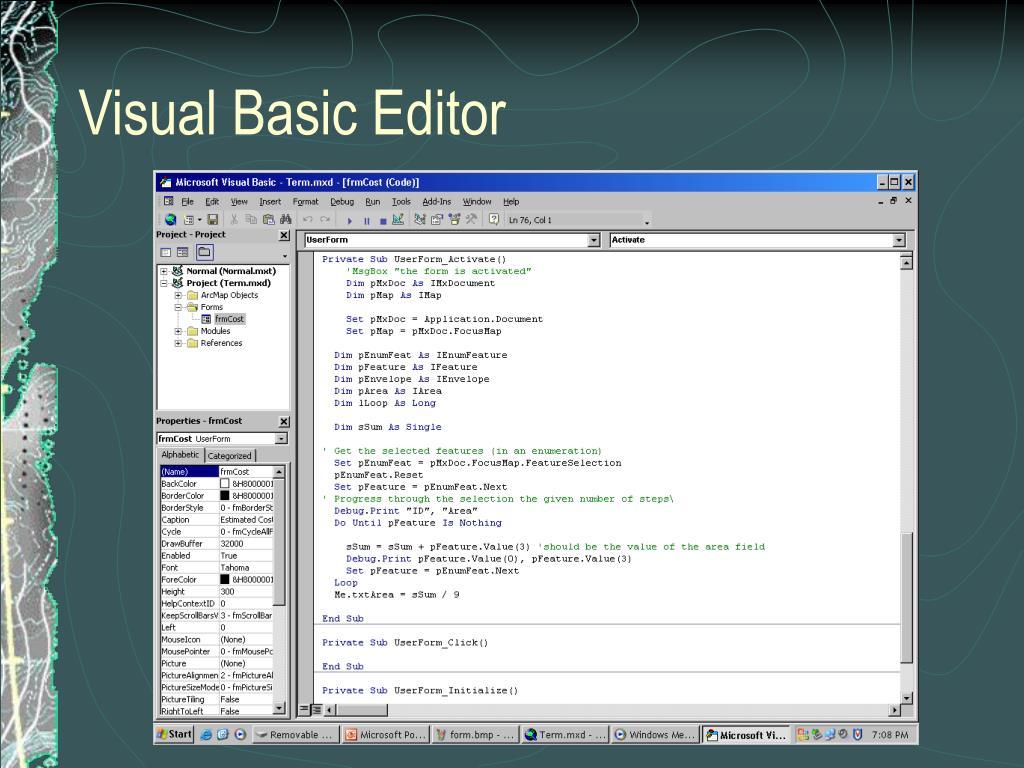

  6. Visual Basic Editor

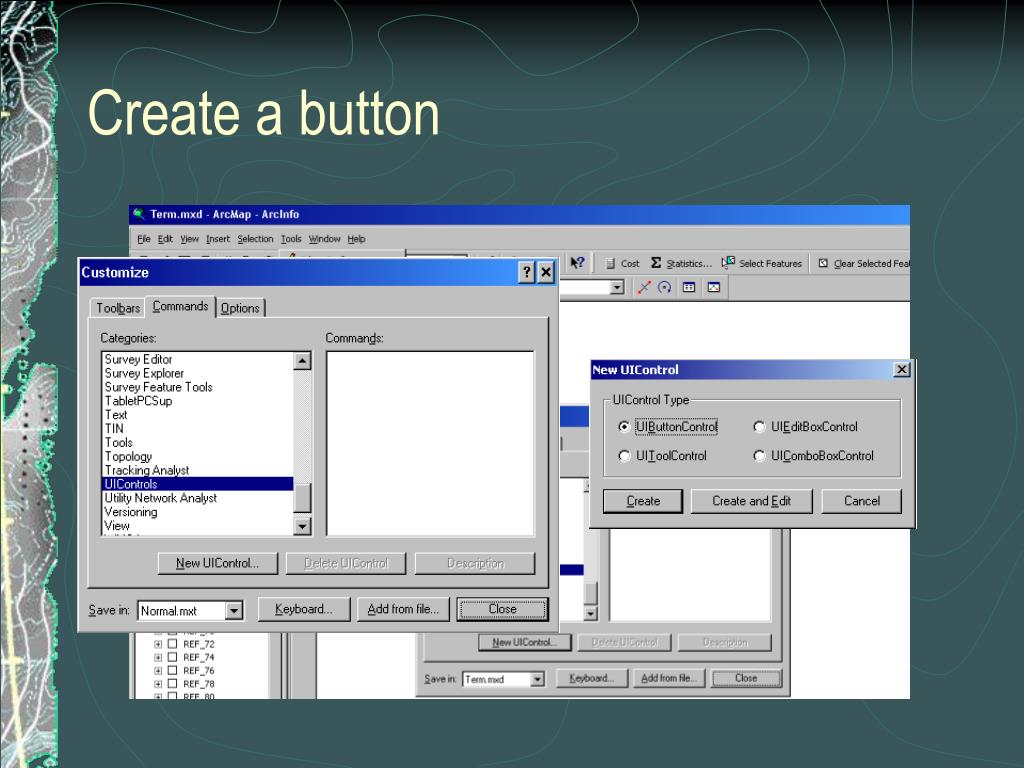

  7. Create a button

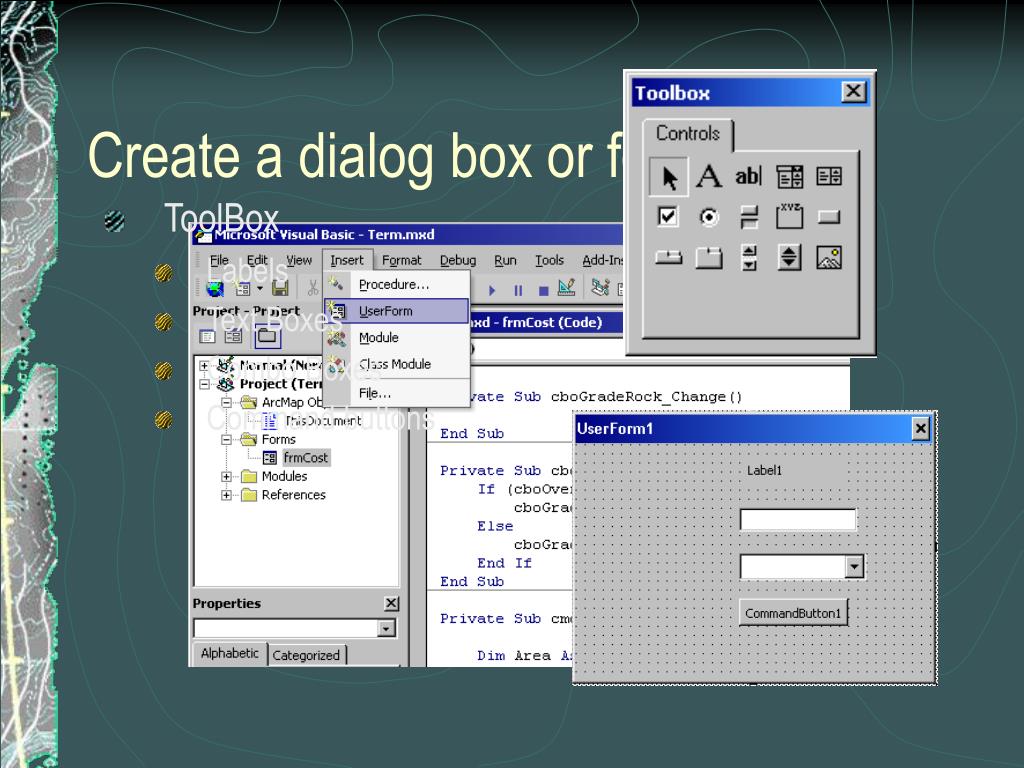

  8. Create a dialog box or form • ToolBox • Labels • Text Boxes • Combo Boxes • Command buttons

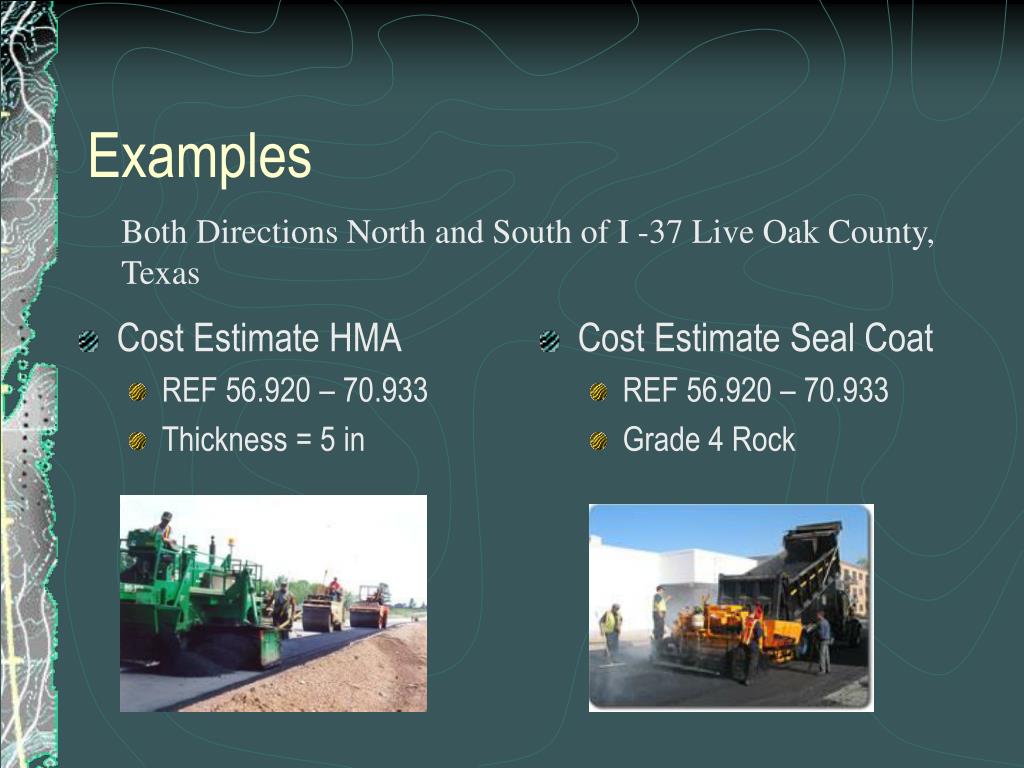

  9. Cost Estimate HMA REF 56.920 – 70.933 Thickness = 5 in Cost Estimate Seal Coat REF 56.920 – 70.933 Grade 4 Rock Examples Both Directions North and South of I -37 Live Oak County, Texas

  10. Future Developments • Include other features of highway resurfacing • Striping • Pavement Markers

  11. Conclusions • The use of GIS as a cost estimating tool for highway resurfacing is very effective. • Easily adjusted to fit constraining parameters • It can be expanded for other applications

  12. Questions ?
