  1. Processing Monitoring Queries on Mobile Objects Lecture for COMS 587 Department of Computer Science Iowa State University

  2. What is a mobile database? • A mobile database is a set of mobile devices • Centralized: there exists a central server with which each mobile device can communicate • Decentralized: these devices form a network by themselves • Mobile ad hoc network (MANET) • Mesh networks

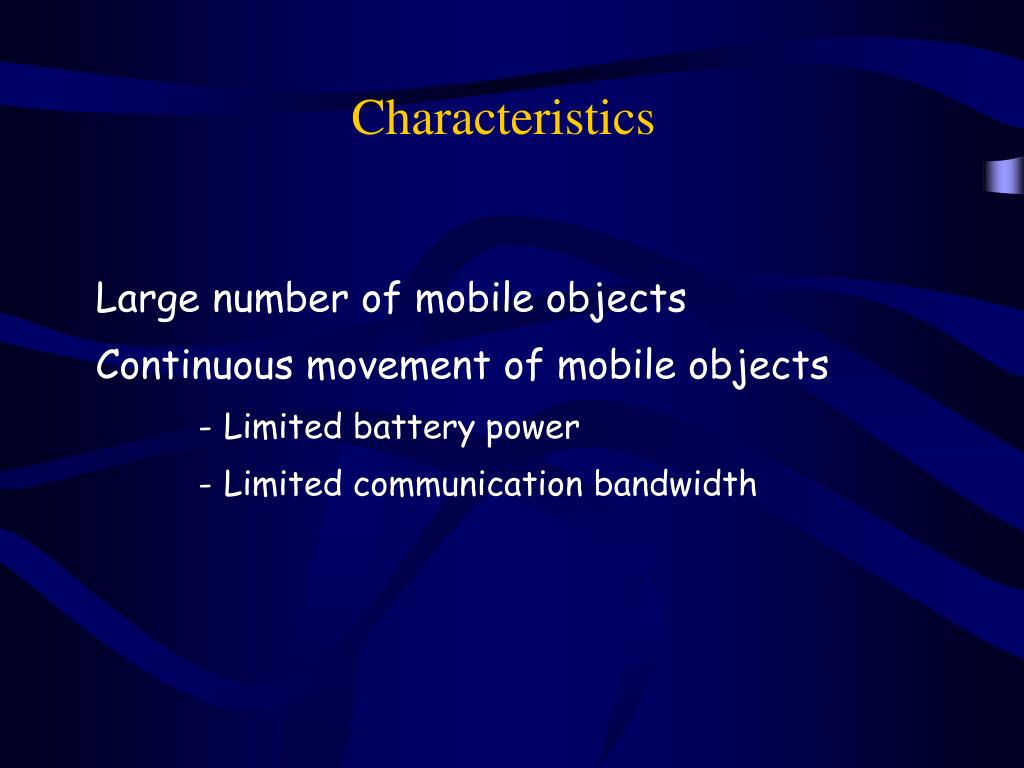

  3. Characteristics • Large number of mobile objects • Continuous movement of mobile objects • Limited battery power • Limited communication bandwidth

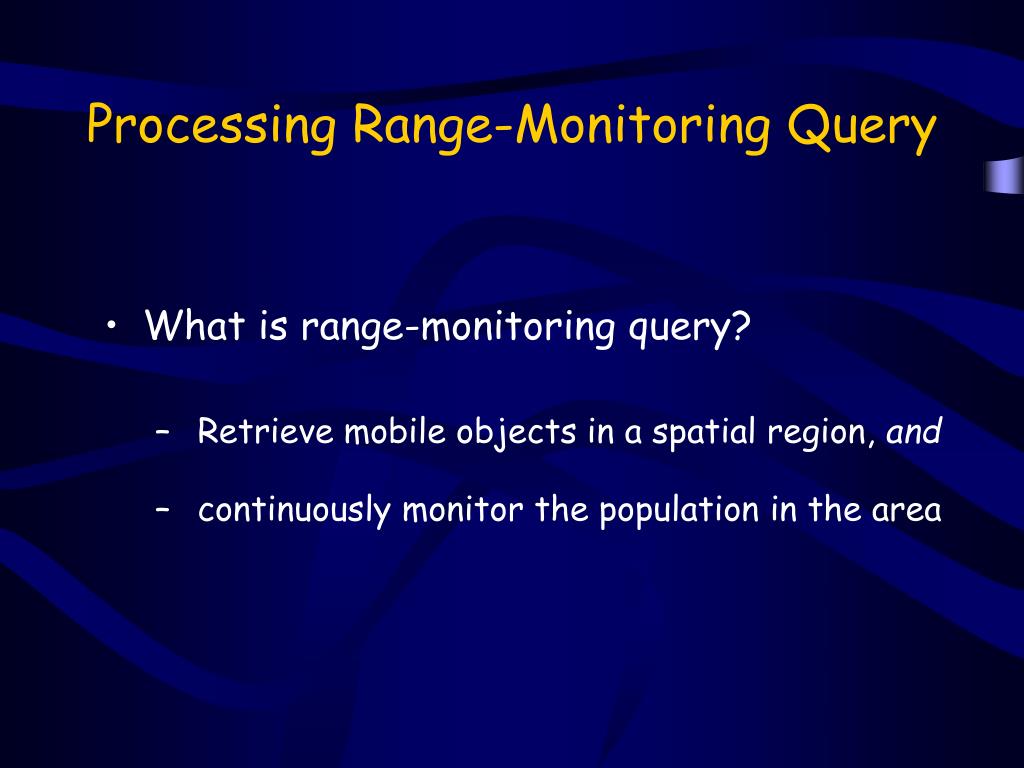

  4. Processing Range-Monitoring Query • What is range-monitoring query? • Retrieve mobile objects in a spatial region, and • continuously monitor the population in the area

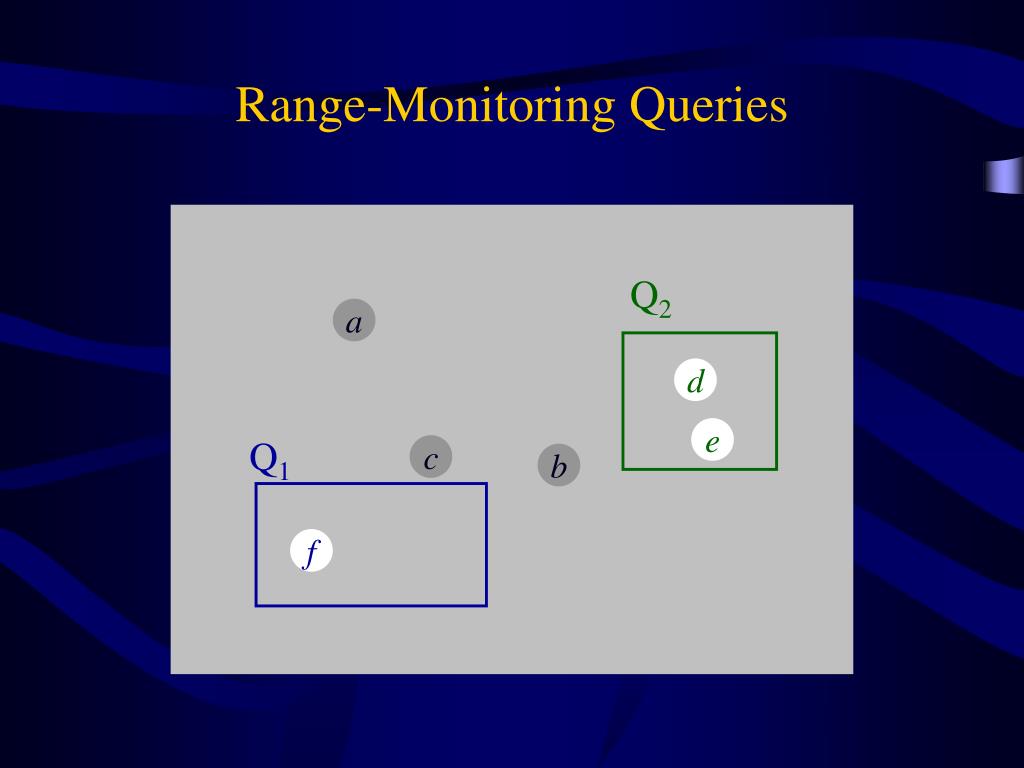

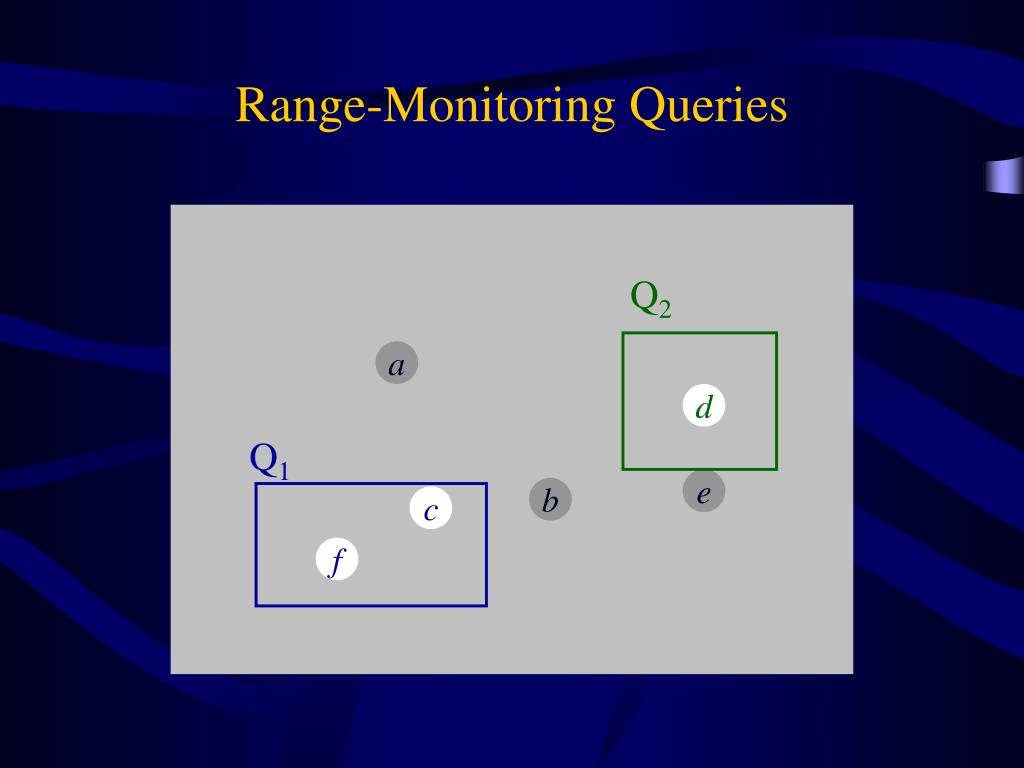

  5. Range-Monitoring Queries Q2 a d e Q1 c b f

  6. Range-Monitoring Queries Q2 a d Q1 e b c f

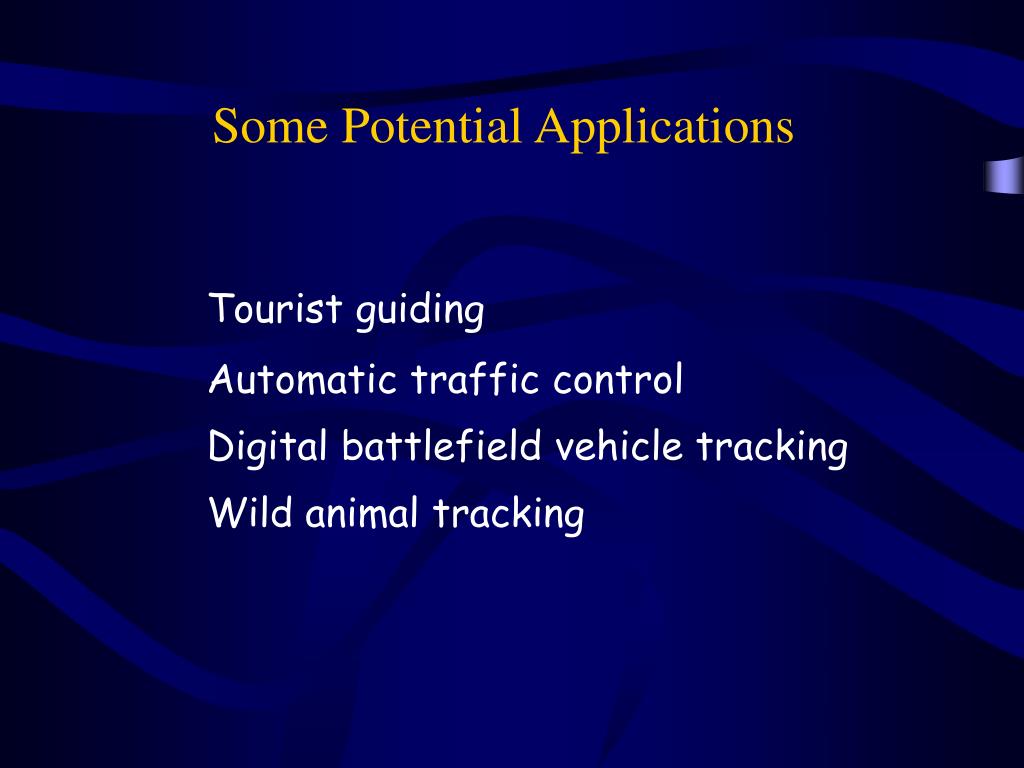

  7. Some Potential Applications Tourist guiding Automatic traffic control Digital battlefield vehicle tracking Wild animal tracking

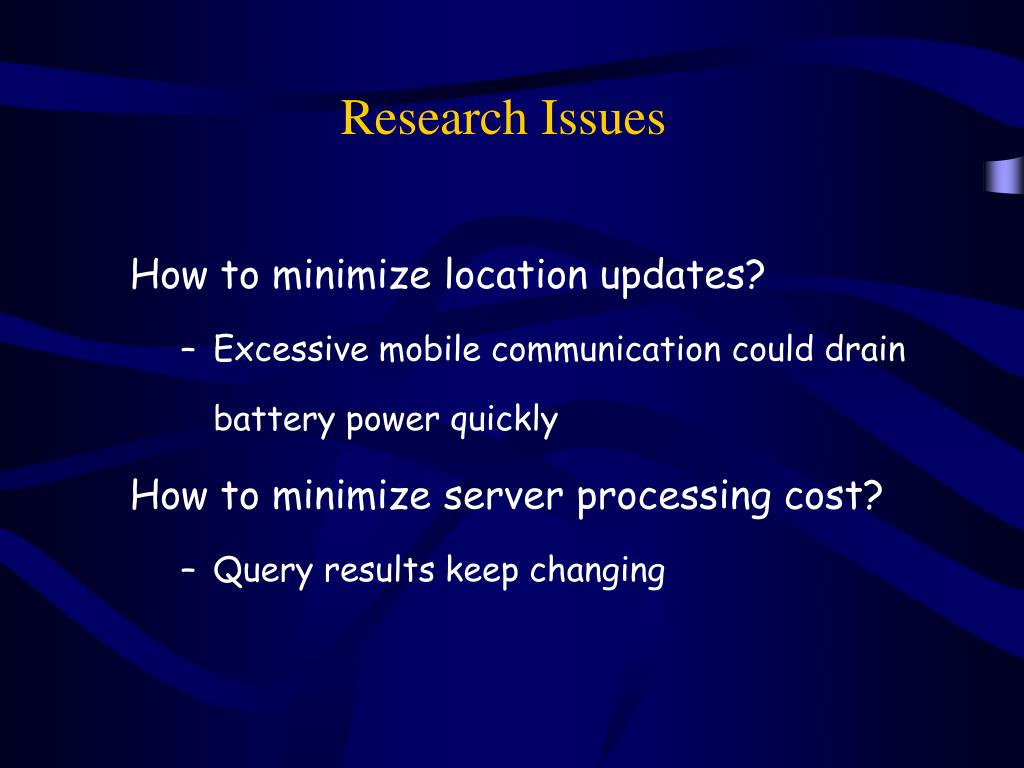

  8. Research Issues • How to minimize location updates? • Excessive mobile communication could drain battery power quickly • How to minimize server processing cost? • Query results keep changing

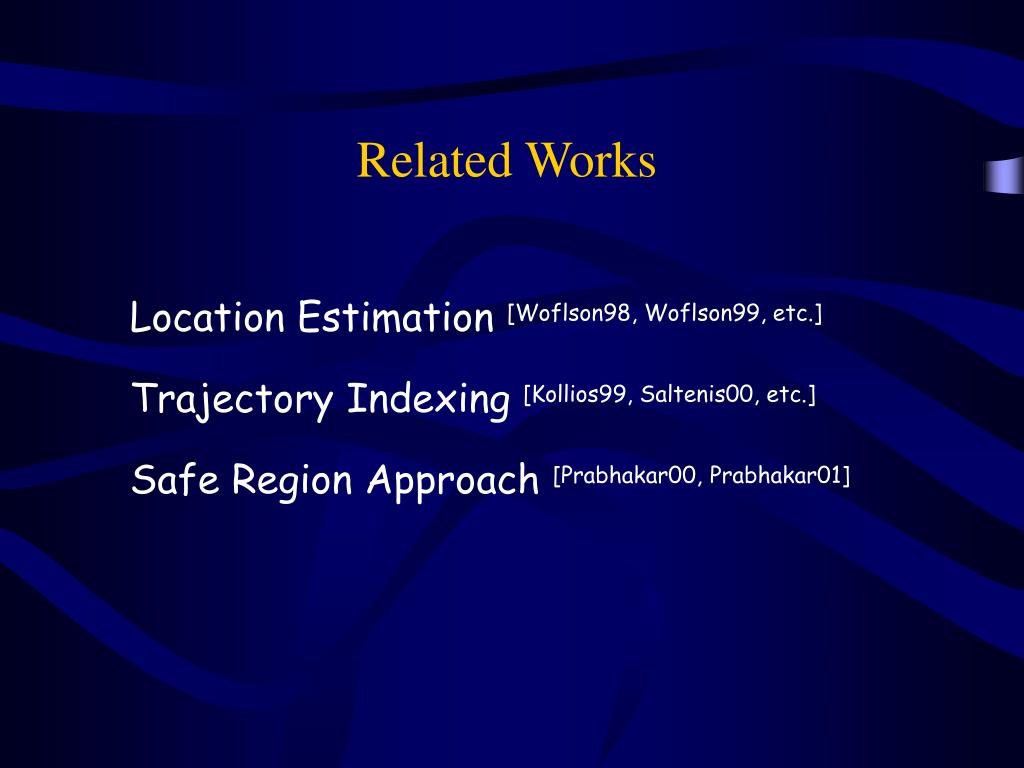

  9. Related Works Location Estimation [Woflson98, Woflson99, etc.] Trajectory Indexing [Kollios99, Saltenis00, etc.] Safe Region Approach [Prabhakar00, Prabhakar01]

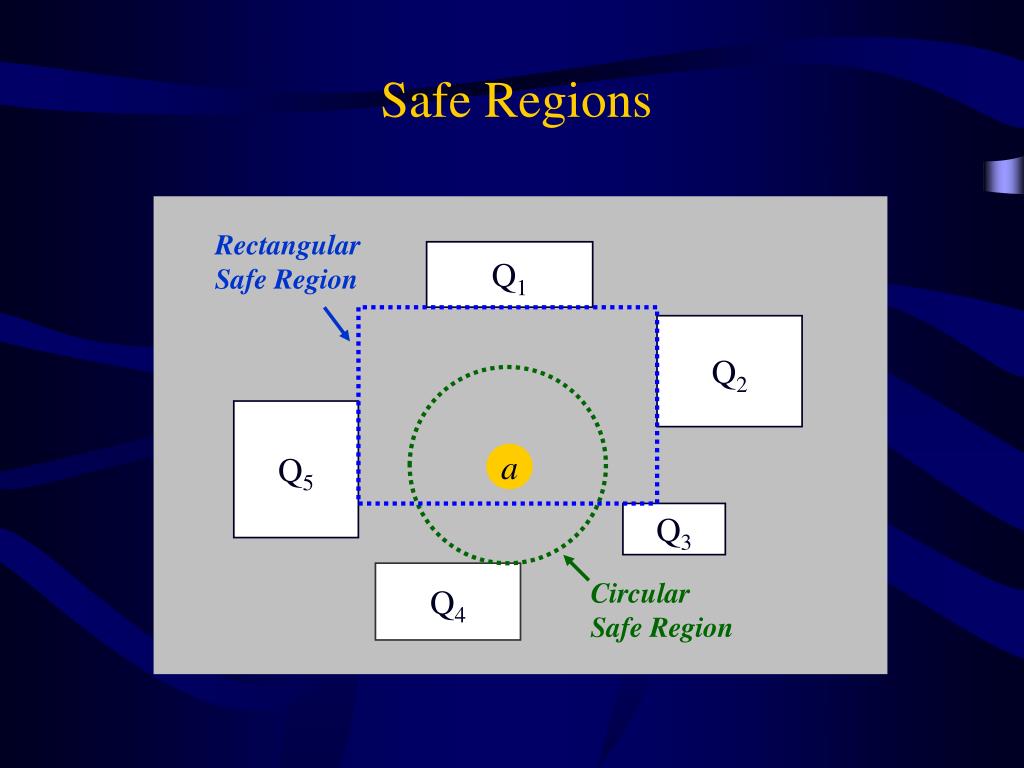

  10. Safe Regions Rectangular Safe Region Q1 Q2 Q5 a Q3 Q4 Circular Safe Region

  11. Problems with Safe Regions Computing a safe region takes from O(n) to O(n log3 n) Adding a new query requires to re-compute safe regions for all objects

  12. Challenge • How to provide • accurate query results, and • real-time updates?

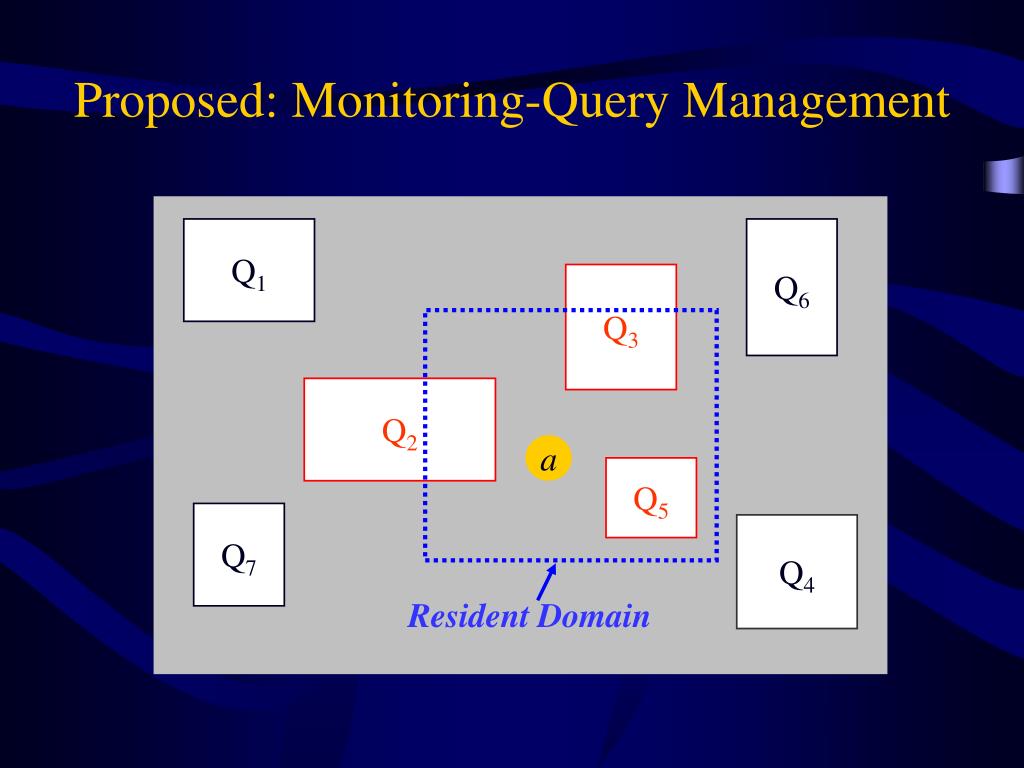

  13. Proposed: Monitoring-Query Management Q1 Q6 Q3 Q2 a Q5 Q7 Q4 Resident Domain

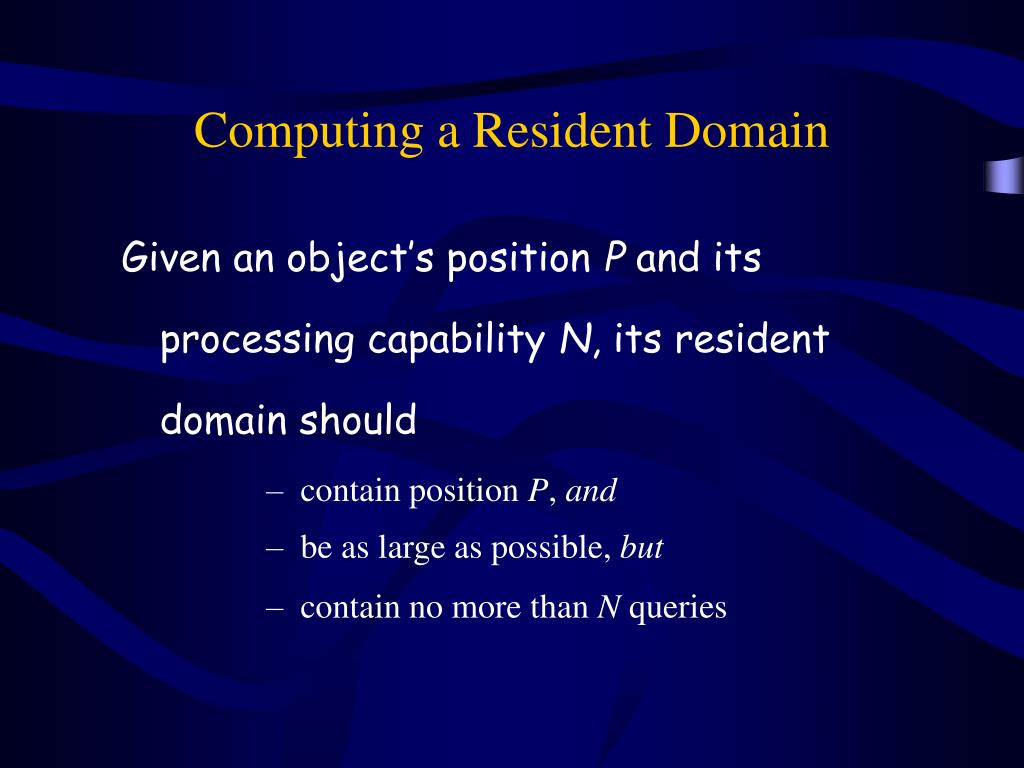

  14. Computing a Resident Domain Given an object’s position P and its processing capability N, its resident domain should • contain position P, and • be as large as possible, but • contain no more than N queries

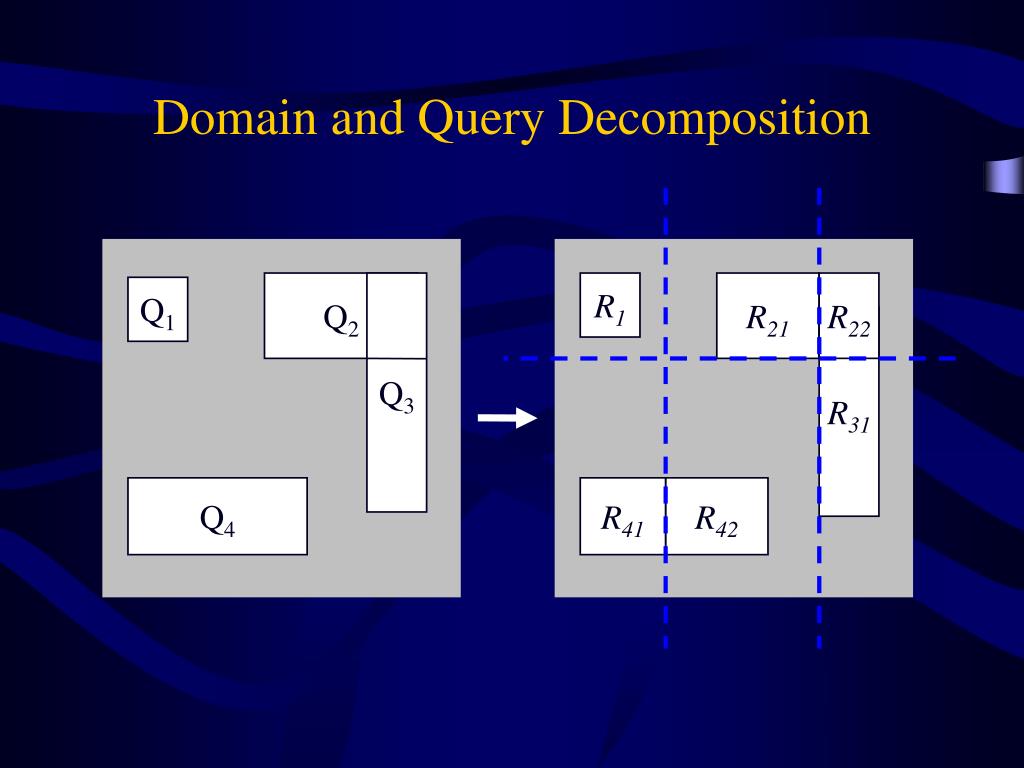

  15. Domain and Query Decomposition Q2 Q3 R1 R21 R22 Q1 R31 Q4 R41 R42

  16. Domain and Query Decomposition Q2 Q3 R1 R21 R22 Q1 R31 a Q4 R41 R42

  17. Domain and Query Decomposition Q2 Q3 R1 R21 R22 Q1 R31 a Q4 R41 R42

  18. Domain Tree (D-tree) D domain node D data node

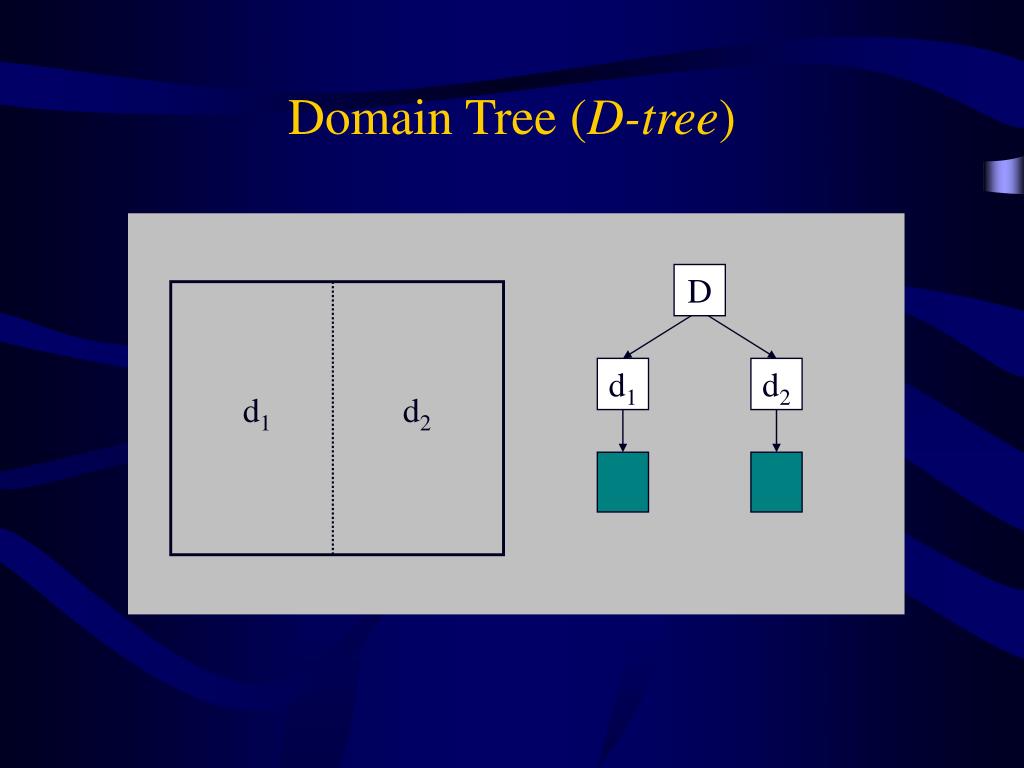

  19. Domain Tree (D-tree) D d1 d2 d1 d2

  20. Domain Tree (D-tree) D d21 d1 d2 d1 d21 d22 d22

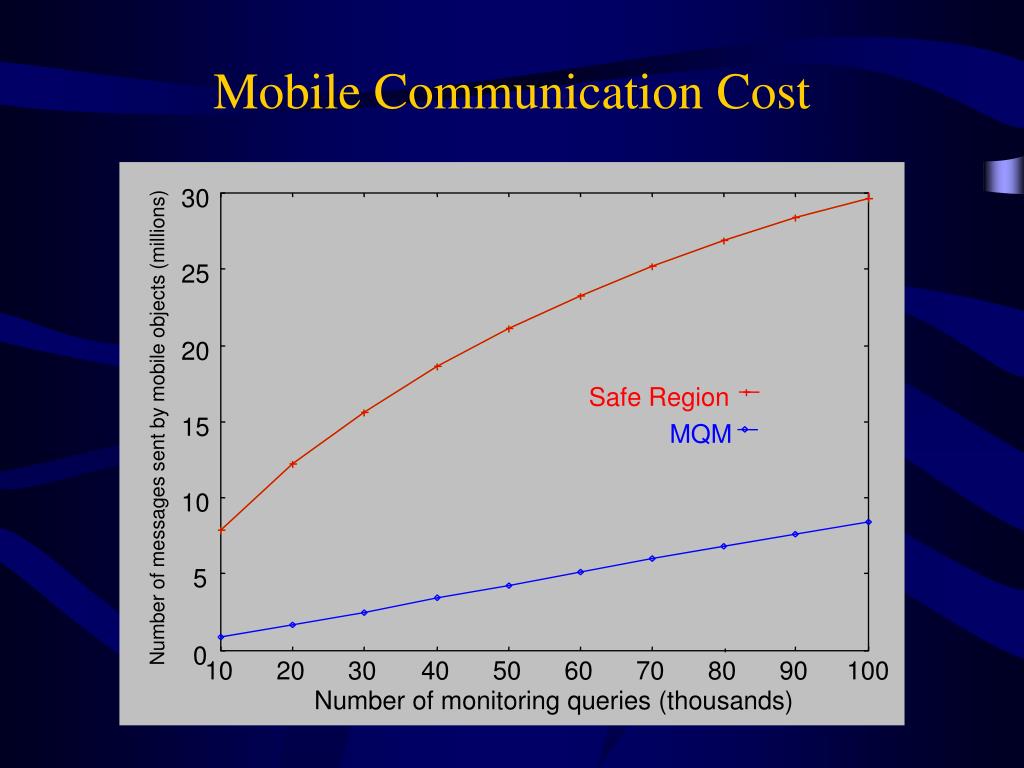

  21. Mobile Communication Cost 30 25 20 Safe Region 15 Number of messages sent by mobile objects (millions) MQM 10 5 0 10 20 30 40 50 60 70 80 90 100 Number of monitoring queries (thousands)

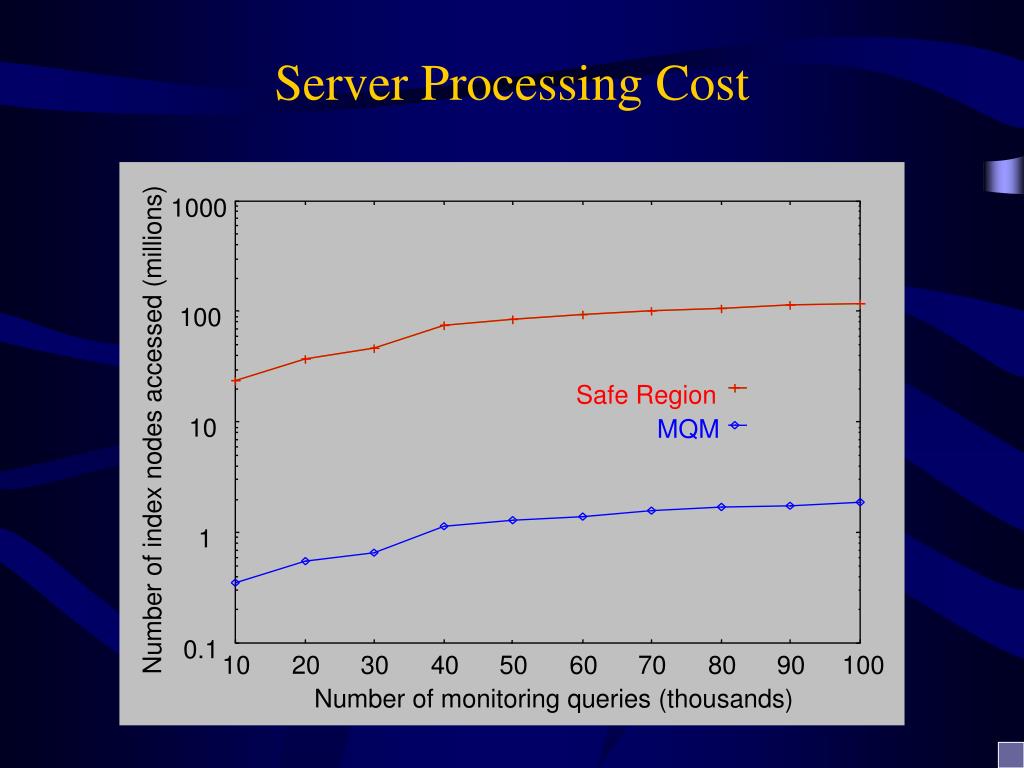

  22. Server Processing Cost 1000 100 Safe Region 10 MQM Number of index nodes accessed (millions) 1 0.1 10 20 30 40 50 60 70 80 90 100 Number of monitoring queries (thousands)

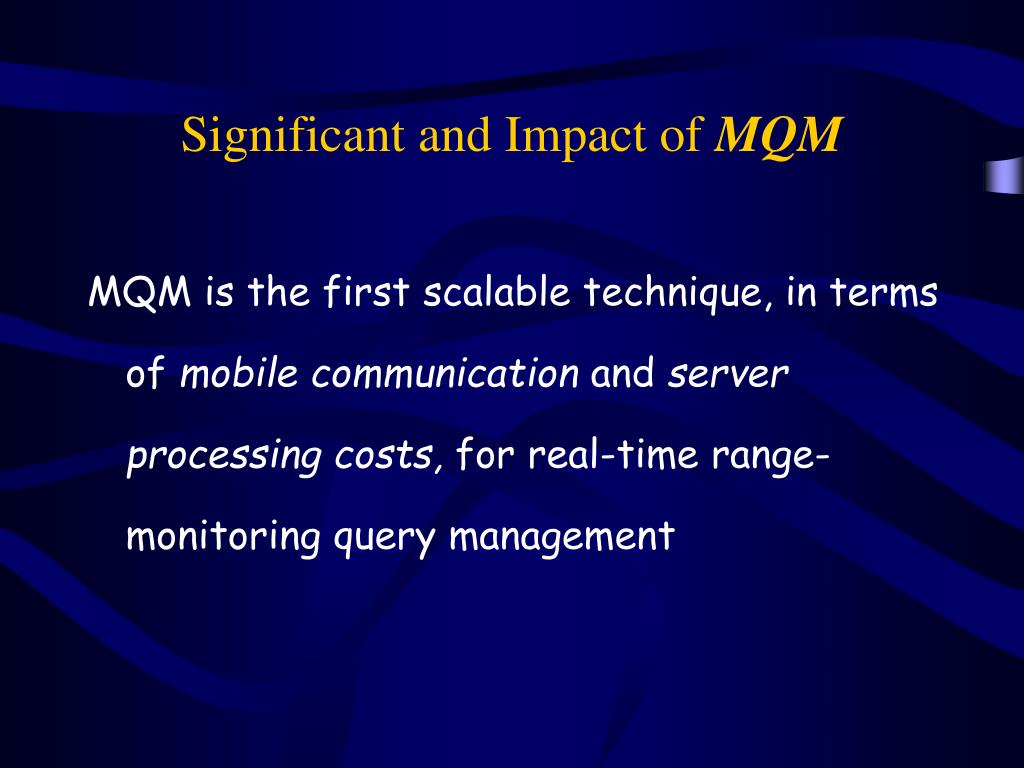

  23. Significant and Impact of MQM MQM is the first scalable technique, in terms of mobile communication and server processing costs, for real-time range-monitoring query management

  24. Mobile Range Monitoring Queries (M-RMQ) • A M-RMQ retrieves the mobile objects within a range centered on a mobile object • It is associated with a mobile object called focal node • The movement of the focal node and other mobile objects may lead to the change of query results

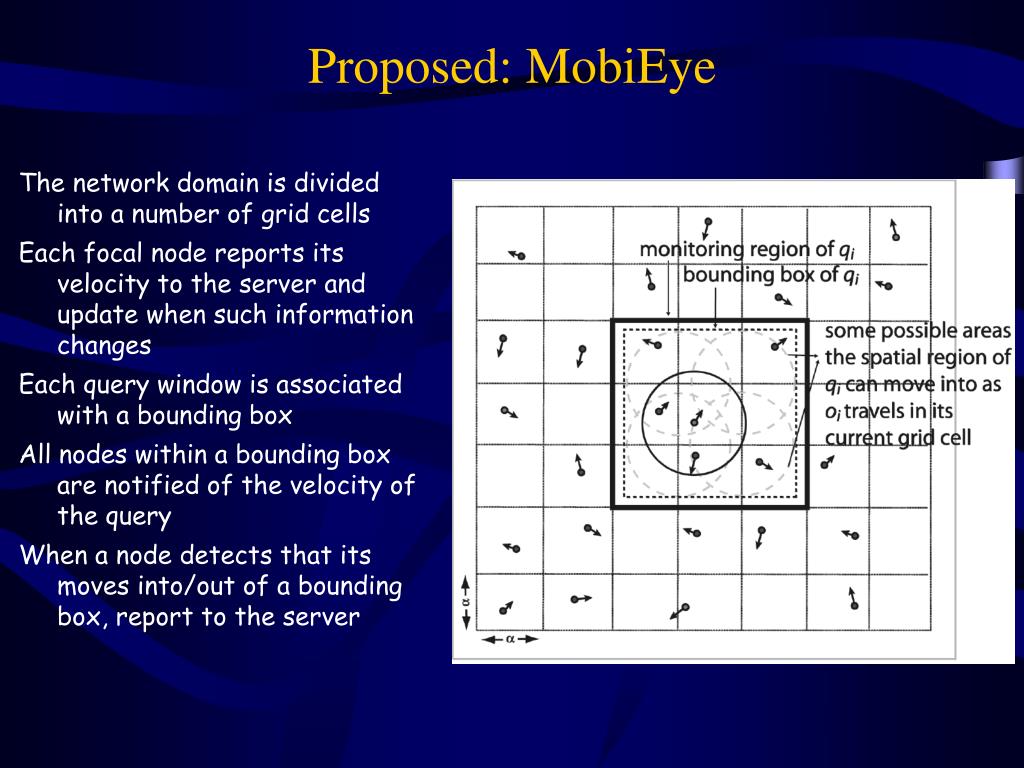

  25. Proposed: MobiEye The network domain is divided into a number of grid cells Each focal node reports its velocity to the server and update when such information changes Each query window is associated with a bounding box All nodes within a bounding box are notified of the velocity of the query When a node detects that its moves into/out of a bounding box, report to the server

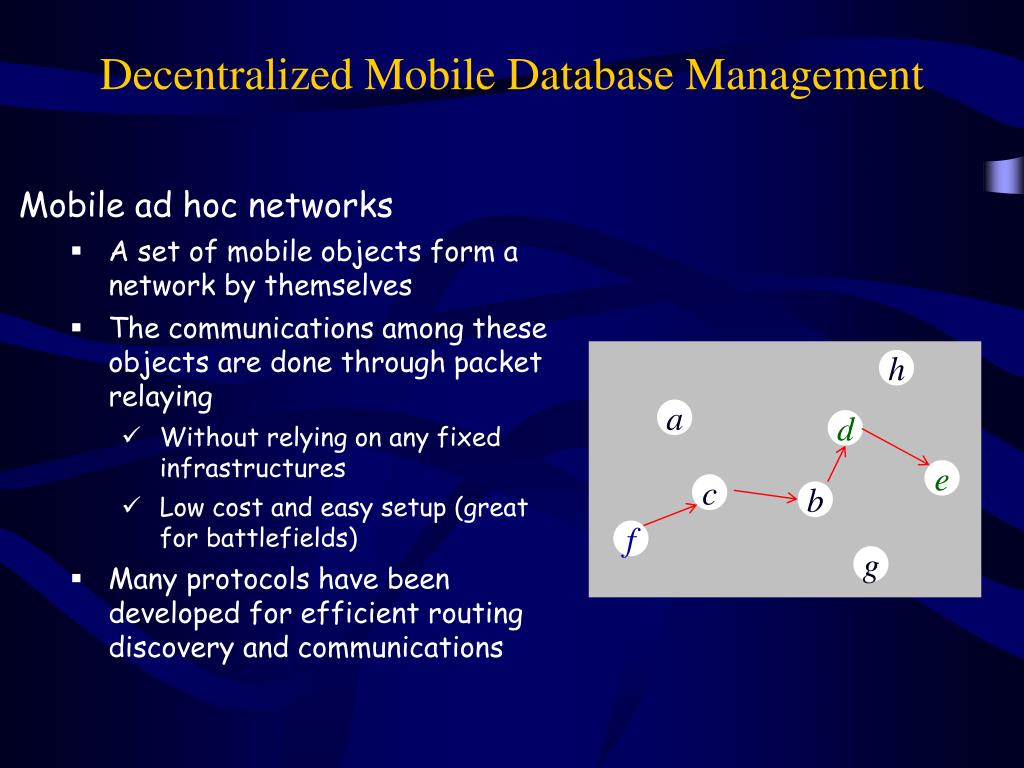

  26. Decentralized Mobile Database Management • Mobile ad hoc networks • A set of mobile objects form a network by themselves • The communications among these objects are done through packet relaying • Without relying on any fixed infrastructures • Low cost and easy setup (great for battlefields) • Many protocols have been developed for efficient routing discovery and communications h a d e c b f g

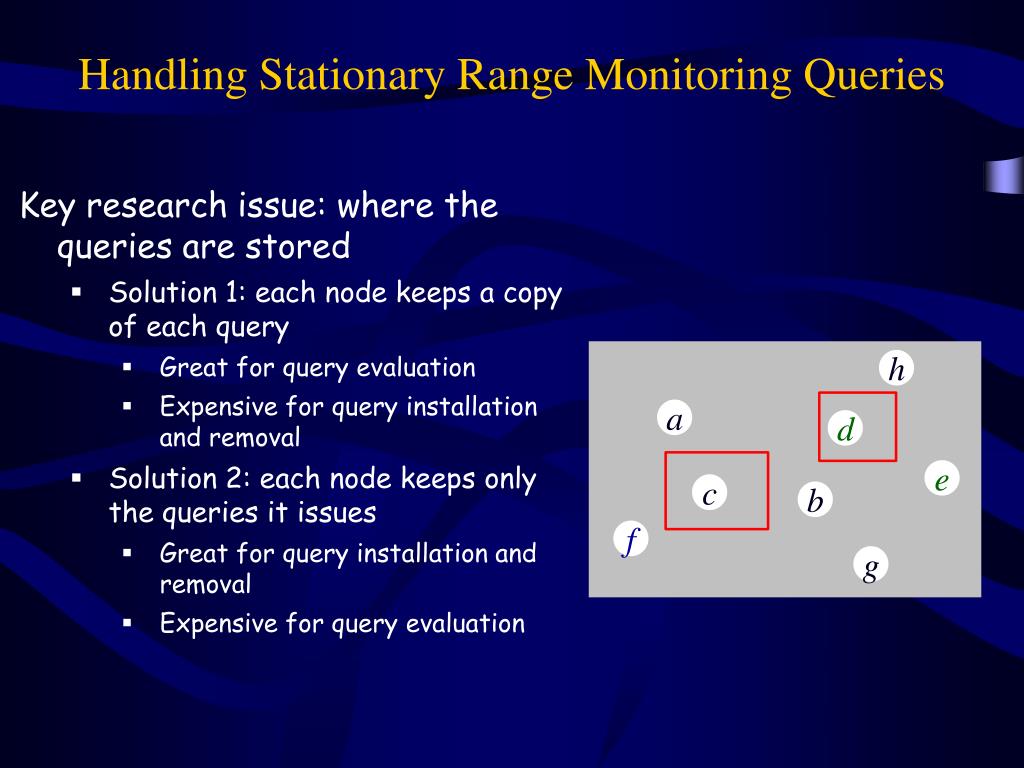

  27. Handling Stationary Range Monitoring Queries • Key research issue: where the queries are stored • Solution 1: each node keeps a copy of each query • Great for query evaluation • Expensive for query installation and removal • Solution 2: each node keeps only the queries it issues • Great for query installation and removal • Expensive for query evaluation h a d e c b f g

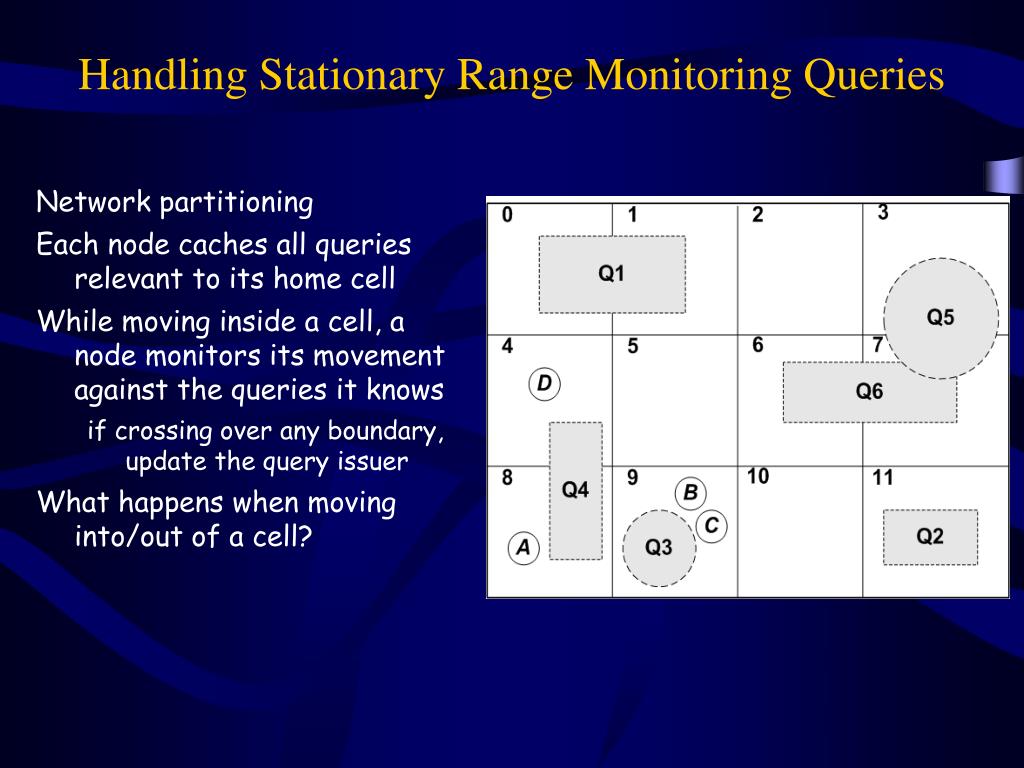

  28. Handling Stationary Range Monitoring Queries • Network partitioning • Each node caches all queries relevant to its home cell • While moving inside a cell, a node monitors its movement against the queries it knows • if crossing over any boundary, update the query issuer • What happens when moving into/out of a cell?

  29. Handling Stationary Range Monitoring Queries • Network partitioning • Each node caches all queries relevant to its home cell • While moving inside a cell, a node monitors its movement against the queries it knows • if crossing over any boundary, update the query issuer • What happens when moving into/out of a cell?

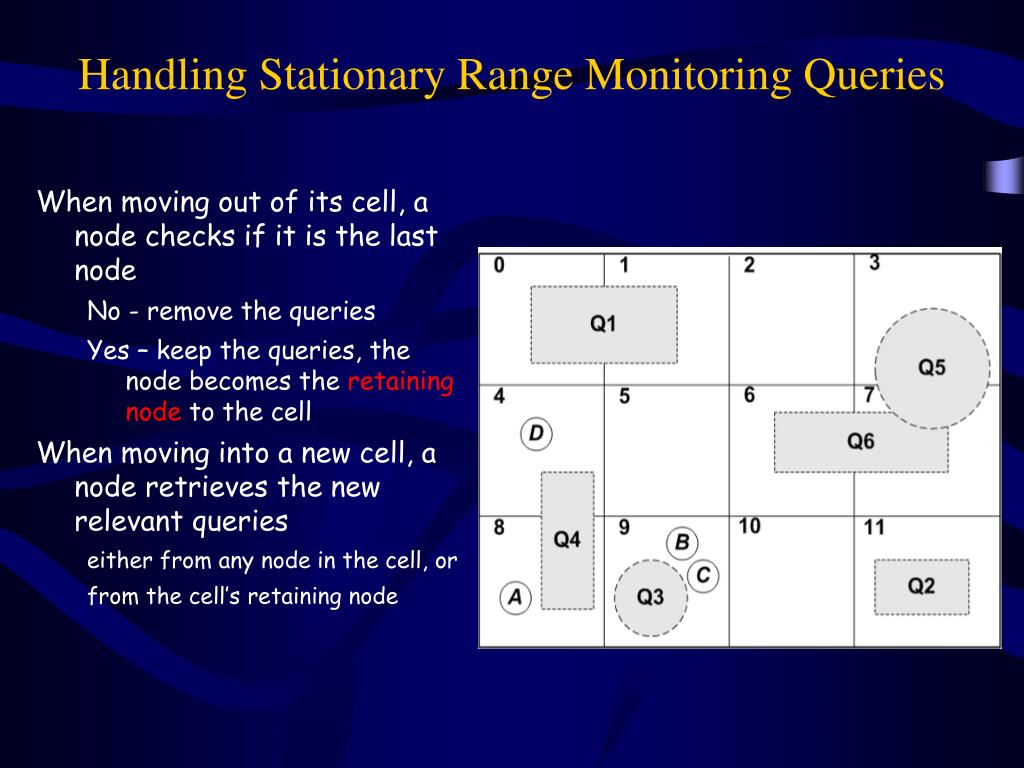

  30. Handling Stationary Range Monitoring Queries • When moving out of its cell, a node checks if it is the last node • No - remove the queries • Yes – keep the queries, the node becomes the retaining node to the cell • When moving into a new cell, a node retrieves the new relevant queries • either from any node in the cell, or • from the cell’s retaining node

  31. Handling Stationary Range Monitoring Queries • Searching for a retaining node can be done by expanding the search range step by step • A cell’s retaining node may move far away from the cell • Keep the queries in a node that is close to the cell • Compute the distance whenever moving into a new cell, and if necessary, unload the queries to some nearby node

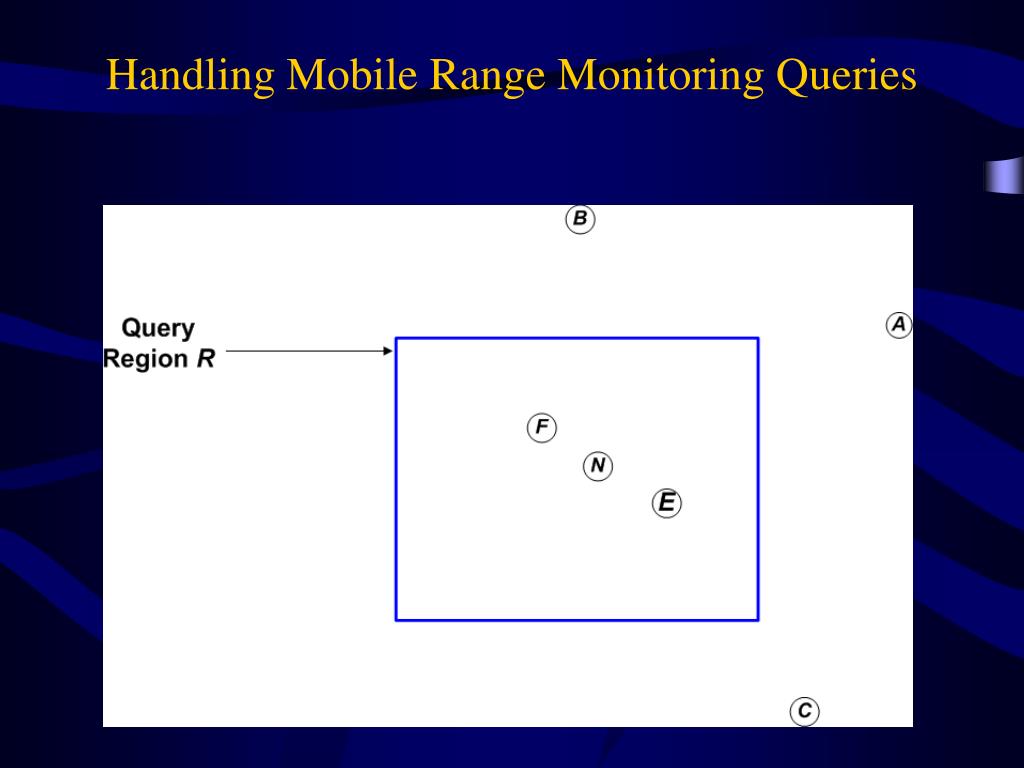

  32. Handling Mobile Range Monitoring Queries

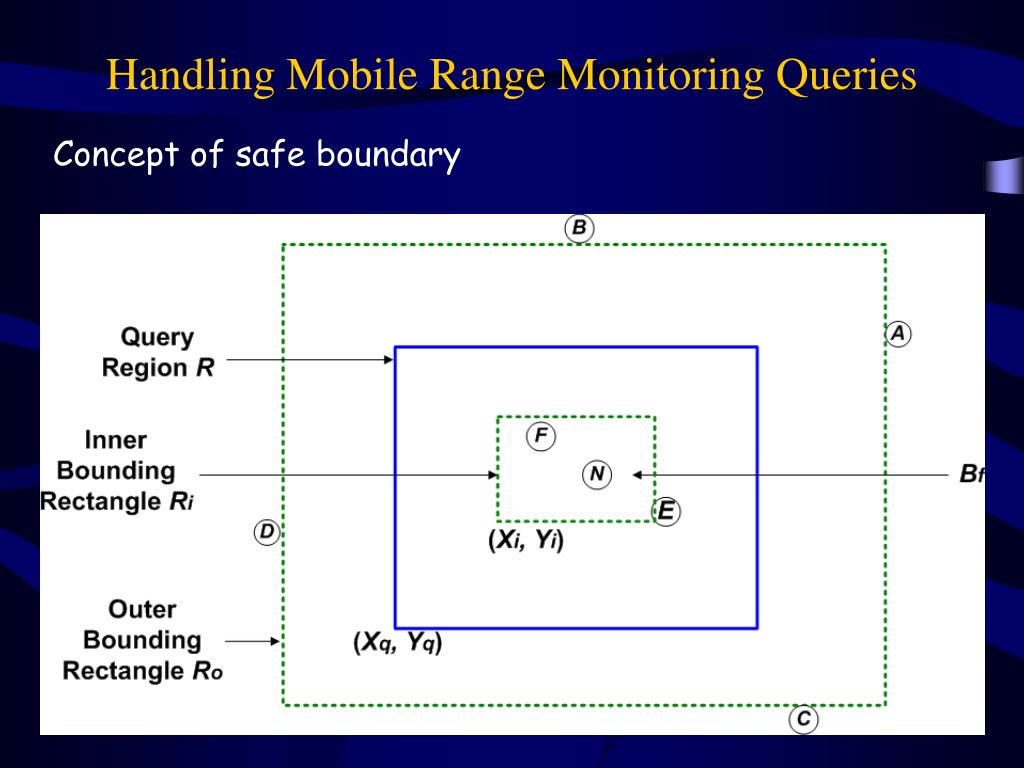

  33. Handling Mobile Range Monitoring Queries Concept of safe boundary

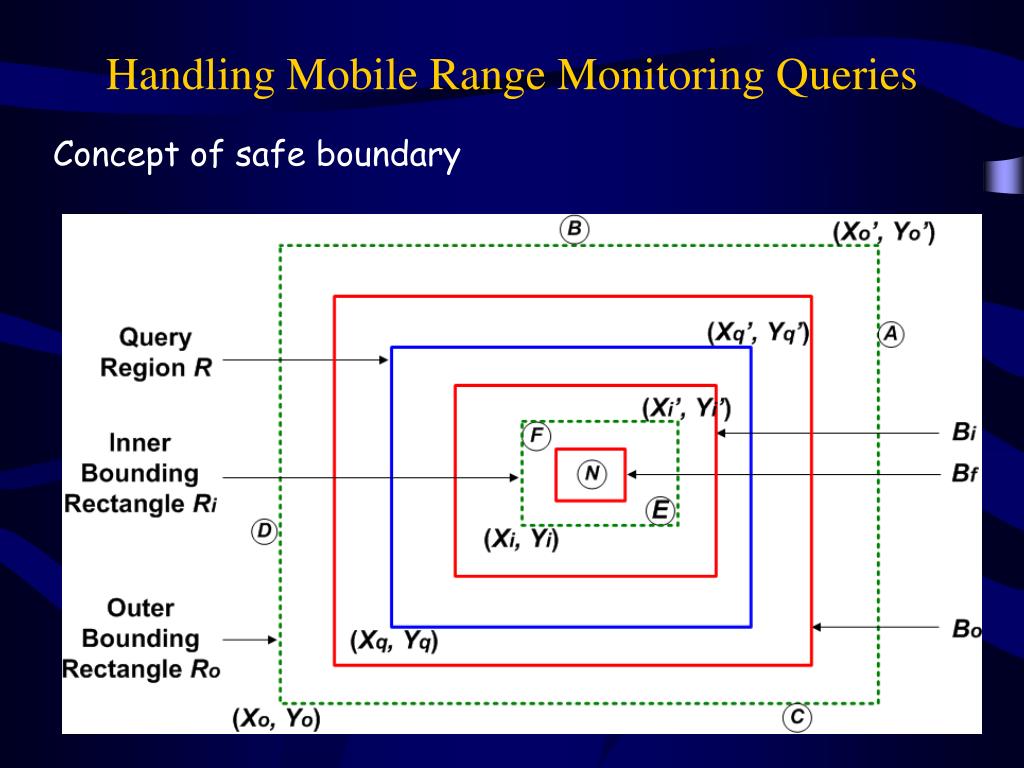

  34. Handling Mobile Range Monitoring Queries Concept of safe boundary

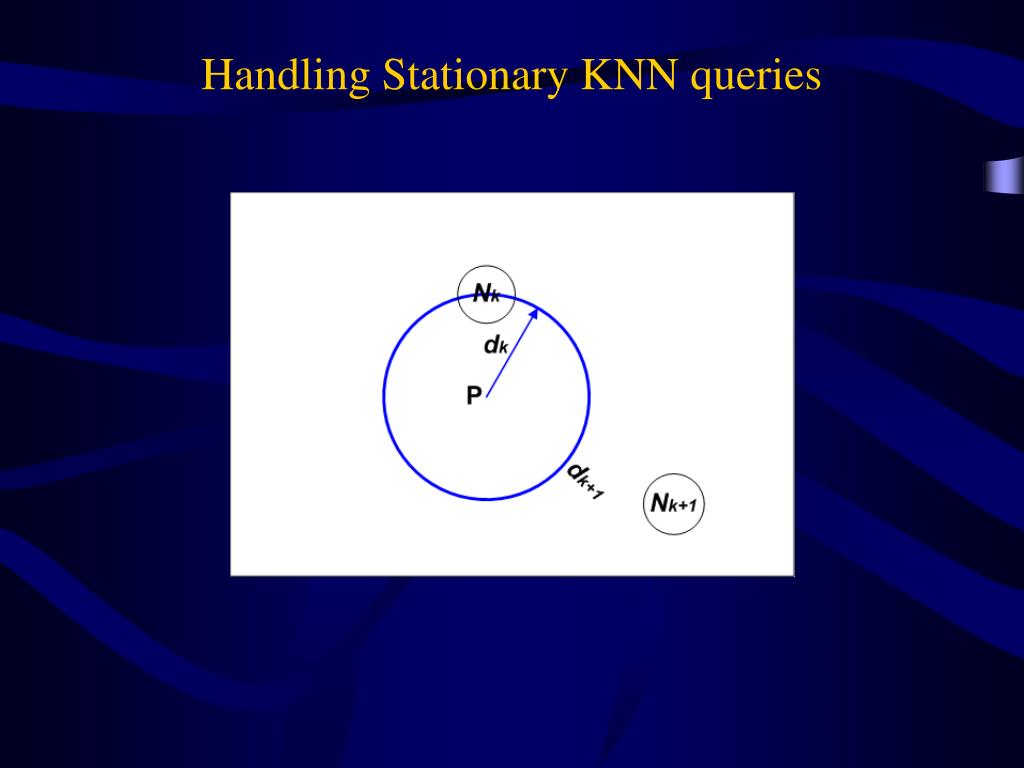

  35. Handling Stationary KNN queries

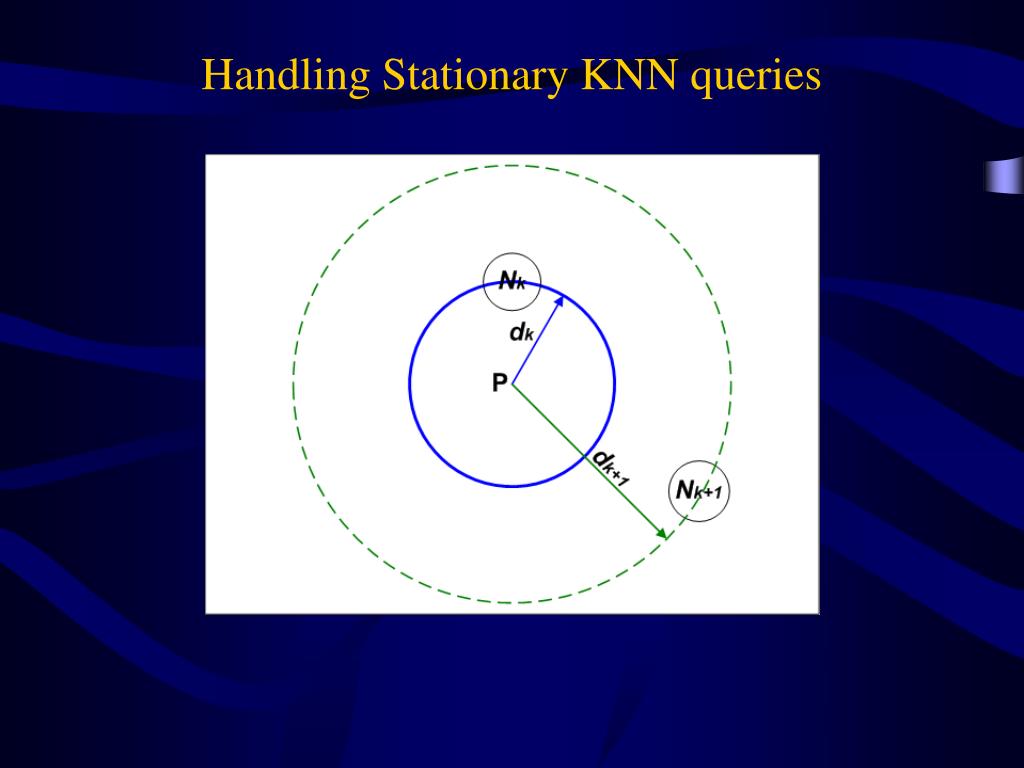

  36. Handling Stationary KNN queries

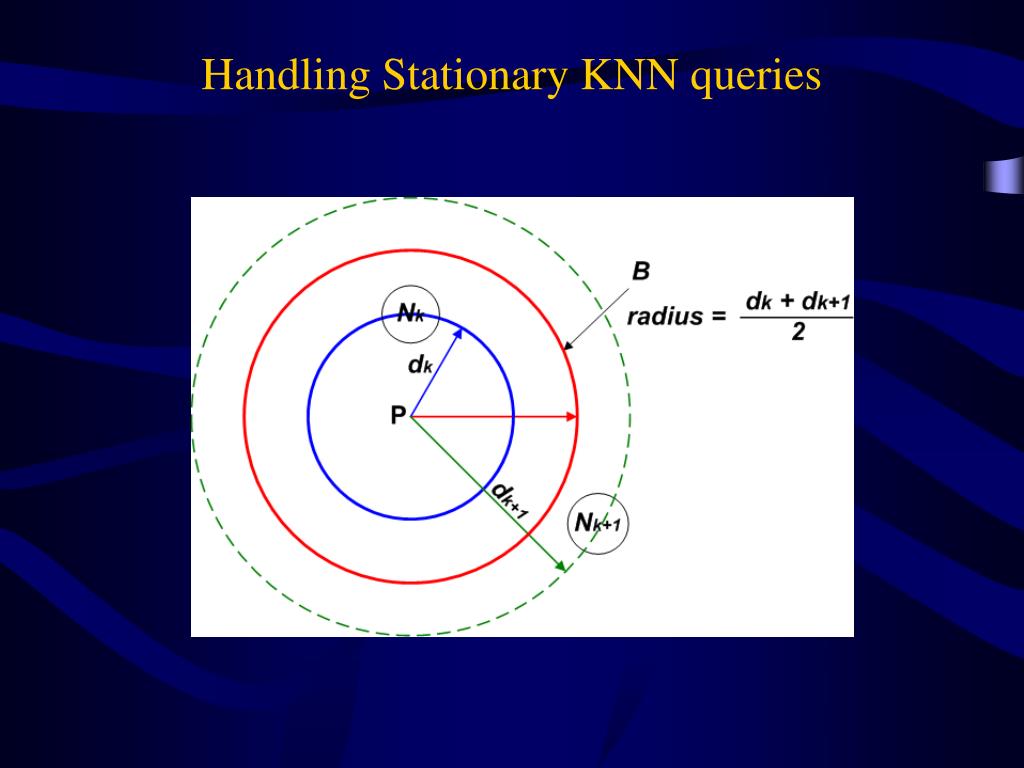

  37. Handling Stationary KNN queries

  38. Handling Mobile KNN queries

  39. Questions Any other types of queries? Can any type of queries be converted into one or more stationary range monitoring queries?
