A Small Vera/Verilog Example

A Small Vera/Verilog Example. Compilation Sequence. $1 is filename (w/o .v) and top module name. #!/bin/sh #template vera -tem -t $1 -c clock $1.v #compile vera -cmp -vlog $1.vr #vcs vcs -vera +v2k $1.v $1_shell.v $1.test_top.v #sim ./simv +vera_load=$1.vro

karli
Télécharger la présentation

A Small Vera/Verilog Example

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

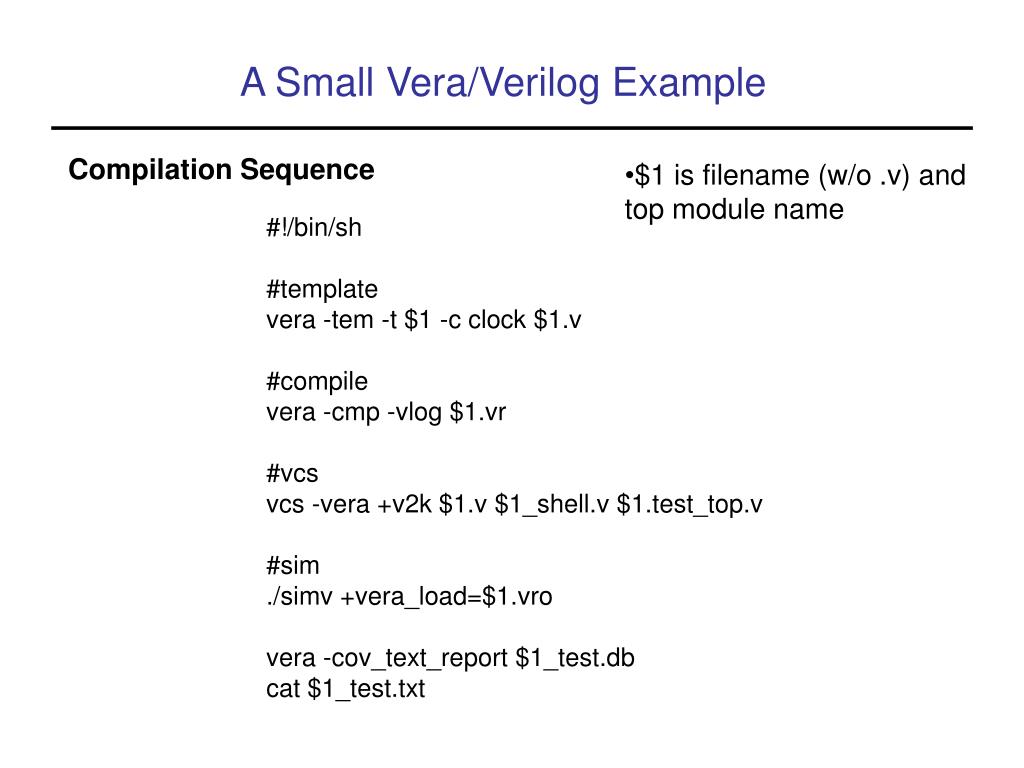

  1. A Small Vera/Verilog Example Compilation Sequence • $1 is filename (w/o .v) and • top module name #!/bin/sh #template vera -tem -t $1 -c clock $1.v #compile vera -cmp -vlog $1.vr #vcs vcs -vera +v2k $1.v $1_shell.v $1.test_top.v #sim ./simv +vera_load=$1.vro vera -cov_text_report $1_test.db cat $1_test.txt

  2. Simple Verilog Design module b01 (line1, line2, reset, out, overflow, clock); input line1, line2, reset, clock; wire line1, line2, reset, clock; output out, overflow; reg out, overflow; integer st=0; • A simple state machine in Verilog

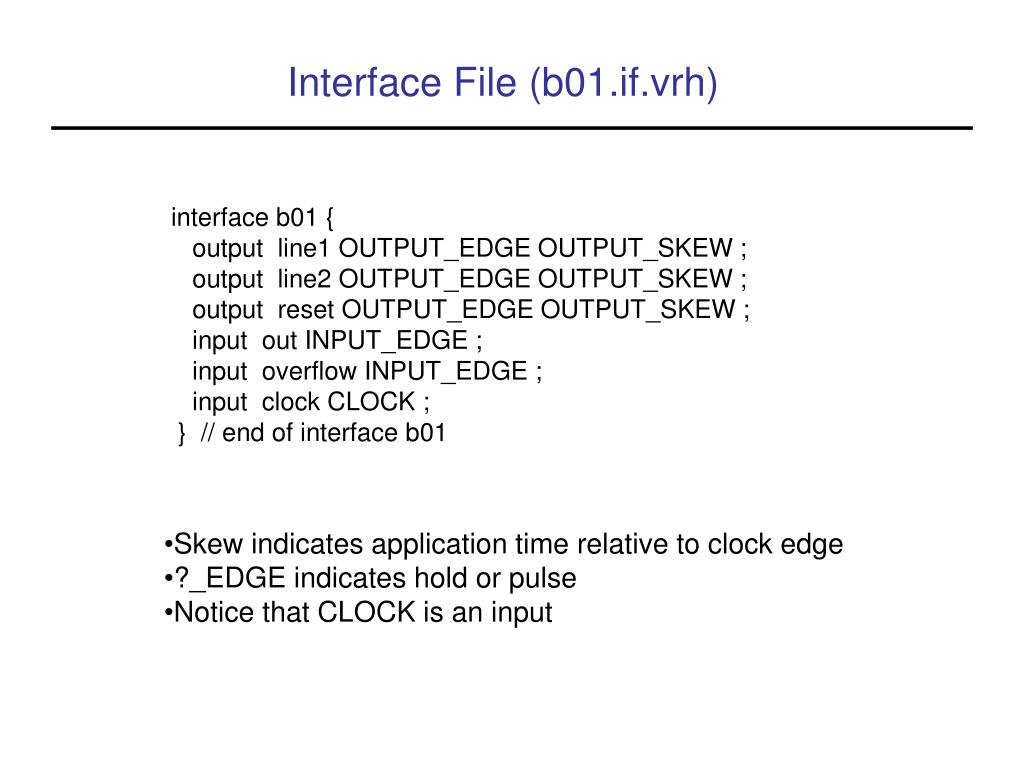

  3. Interface File (b01.if.vrh) interface b01 { output line1 OUTPUT_EDGE OUTPUT_SKEW ; output line2 OUTPUT_EDGE OUTPUT_SKEW ; output reset OUTPUT_EDGE OUTPUT_SKEW ; input out INPUT_EDGE ; input overflow INPUT_EDGE ; input clock CLOCK ; } // end of interface b01 • Skew indicates application time relative to clock edge • ?_EDGE indicates hold or pulse • Notice that CLOCK is an input

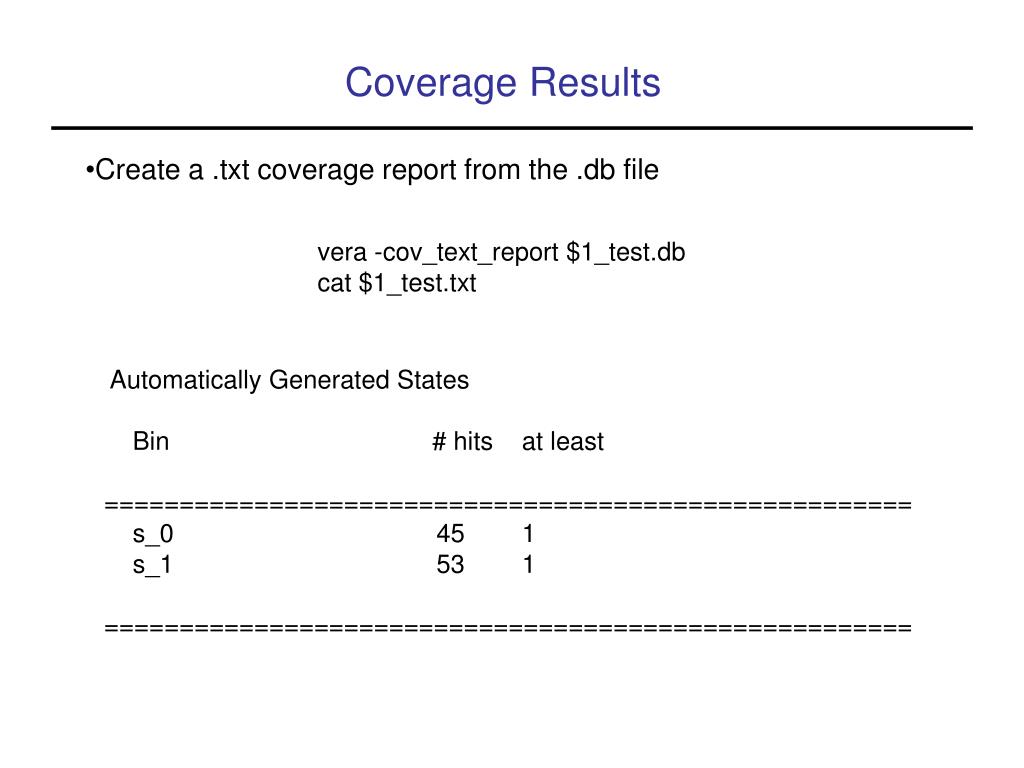

  4. Coverage Results • Create a .txt coverage report from the .db file vera -cov_text_report $1_test.db cat $1_test.txt Automatically Generated States Bin # hits at least ====================================================== s_0 45 1 s_1 53 1 ======================================================

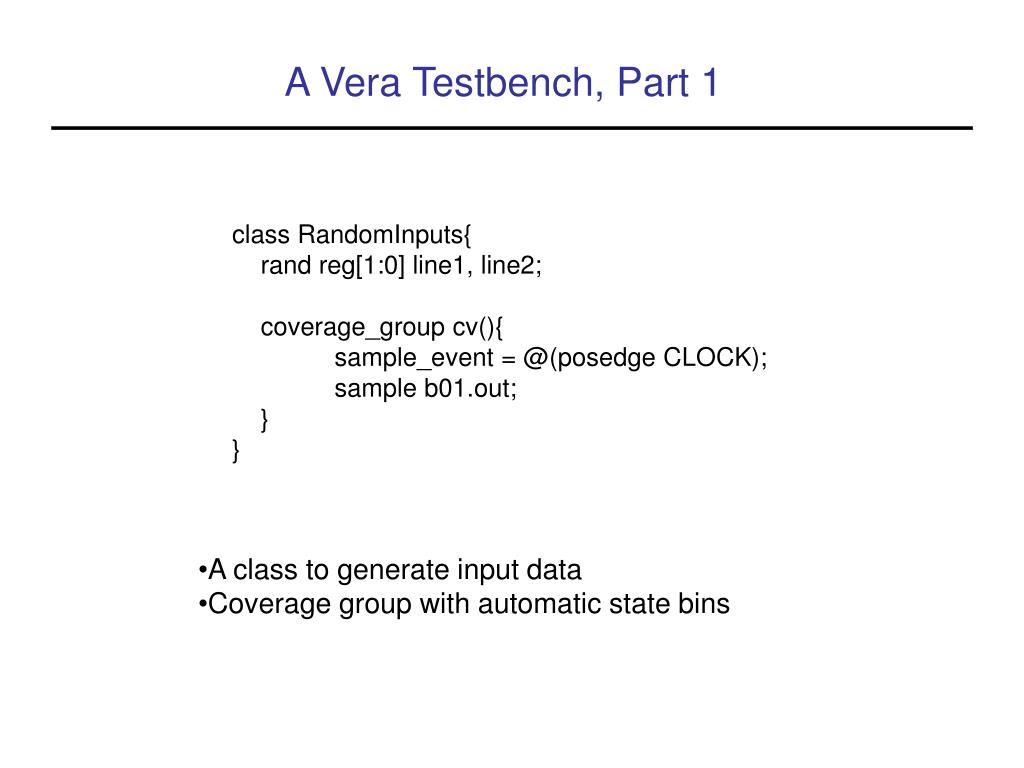

  5. A Vera Testbench, Part 1 class RandomInputs{ rand reg[1:0] line1, line2; coverage_group cv(){ sample_event = @(posedge CLOCK); sample b01.out; } } • A class to generate input data • Coverage group with automatic state bins

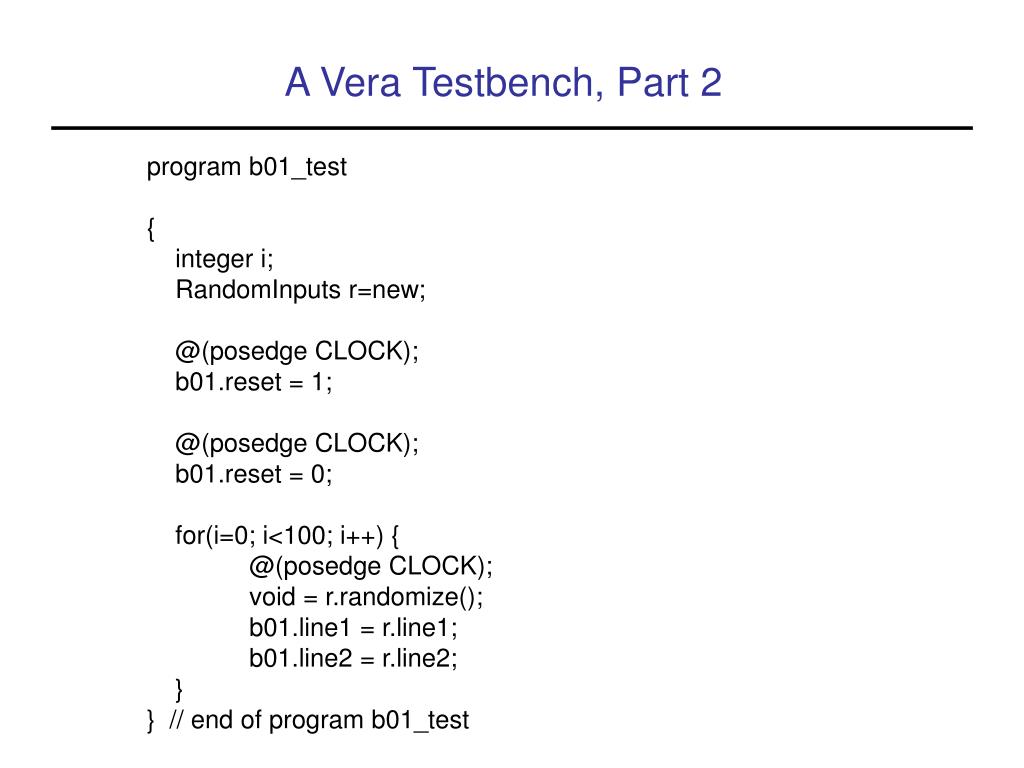

  6. A Vera Testbench, Part 2 program b01_test { integer i; RandomInputs r=new; @(posedge CLOCK); b01.reset = 1; @(posedge CLOCK); b01.reset = 0; for(i=0; i<100; i++) { @(posedge CLOCK); void = r.randomize(); b01.line1 = r.line1; b01.line2 = r.line2; } } // end of program b01_test
