  1. Laser safety Paul van Kampen 02/02/11

  2. Almost all you need to know about laser safety • Beware of electrical safety • Don’t expose your eyes or skin • Minimise the number of shiny surfaces • Wear goggles • Beware of water leaks • Use warning signs • Use interlocks

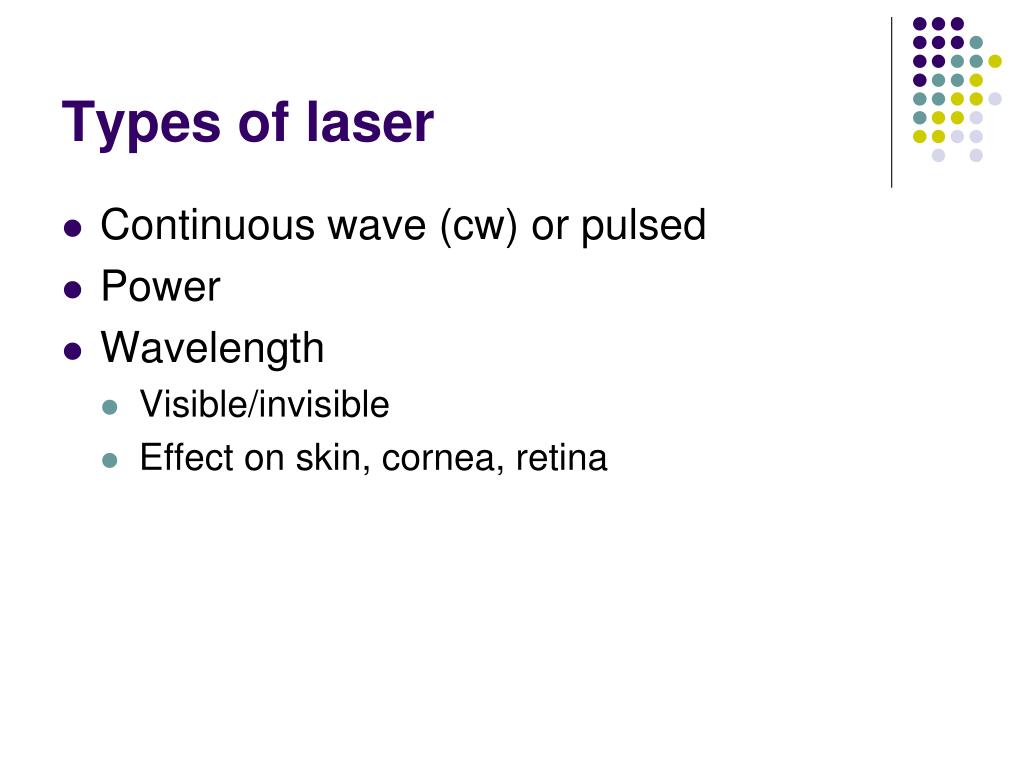

  3. Types of laser • Continuous wave (cw) or pulsed • Power • Wavelength • Visible/invisible • Effect on skin, cornea, retina

  4. Laser classification • What is it based on? • Maximum Permissible Exposure (MPE) • 10% of dose that has 50% chance of doing damage • Depends on wavelength, body part, cw or pulsed • Visible-IR range, cornea, cw: 1 mW/cm2 • Example: class 1 or class I laser limit • Fully dilated pupil: diameter 7 mm, area 0.39 cm2 • Maximum permissible power: 0.39 mW

  5. Laser classification (old) • Class I: safe (UNFOCUSSED!) • Class II: safe - your aversion to bright light will protect you • Class IIIA: cw: 1-5 mW, safe unless you look at it, or its reflection, directly • Class IIIB: cw 5-500 mW, pulsed <10 J/cm2, sometimes diffuse reflection hazard • Class IV: cw >500 mW, pulsed >10 J/cm2, diffuse reflection, fire, skin hazard

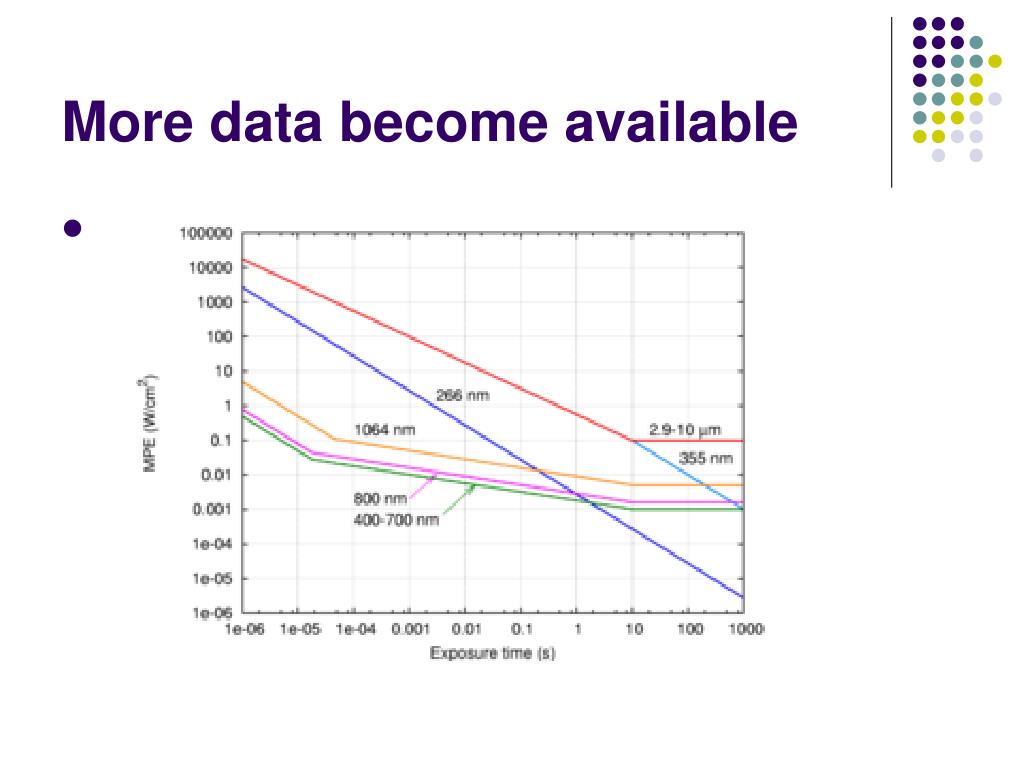

  6. More data become available

  7. More data become available

  8. Laser classification (new) • Class 1(M): safe (UNFOCUSSED!) <0.4 mW • Class 2(M): safe - your aversion to bright light will protect you. <1 mW • Class 3R: cw: 1-5 mW, safe unless you look at it, or its reflection, directly. Low risk • Class 3B: cw 5-500 mW, (<300 mW visible), pulsed <10 J/cm2, diffuse reflection OK • Class 4: cw >500 mW, pulsed >10 J/cm2, diffuse reflection, fire, skin hazard, interlock required

  9. UV lasers • Excimer lasers:gas premix typically contains 0.1 percent of fluorine/chlorine • ArF, KrCl, KrF: UV-C radiation • Eye: snowblindness • Skin: sunburn, skin cancer • XeCl: UV-B radiation • Eye: snowblindness • Skin: skin aging, increased pigmentation • XeF, Nd:YAG tripled: UV-A radiation • Eye: cataracts • Skin: skin burn, pigment darkening

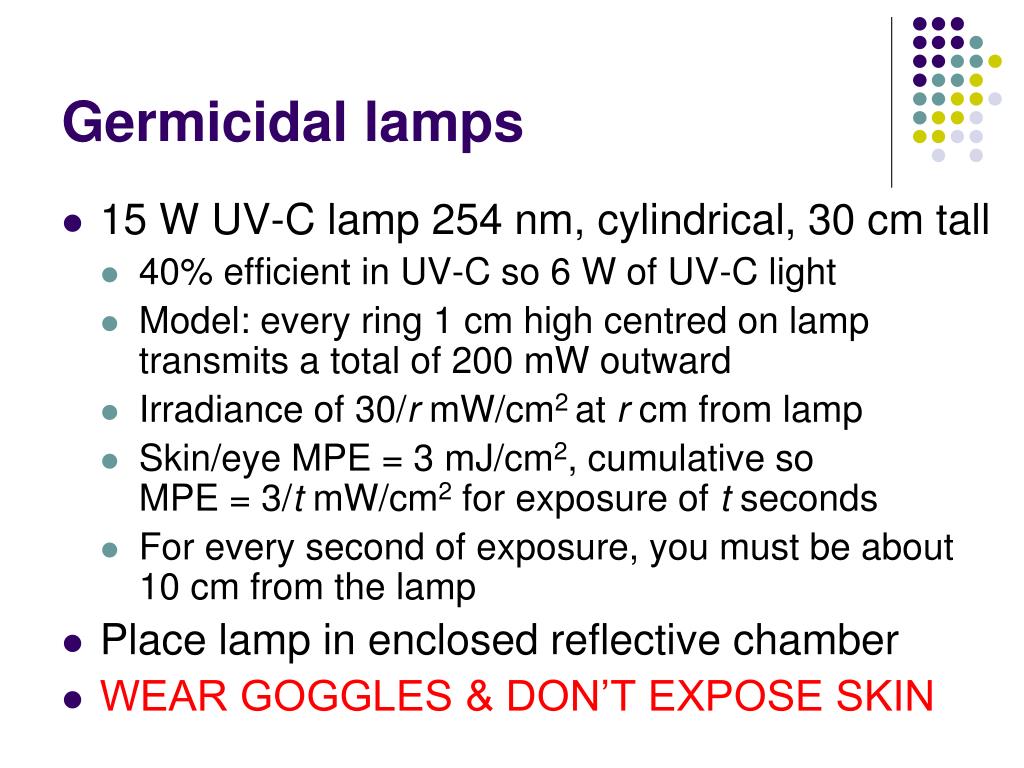

  10. Germicidal lamps • 15 W UV-C lamp 254 nm, cylindrical, 30 cm tall • 40% efficient in UV-C so 6 W of UV-C light • Model: every ring 1 cm high centred on lamptransmits a total of 200 mW outward • Irradiance of 30/r mW/cm2 at r cm from lamp • Skin/eye MPE = 3 mJ/cm2, cumulative so MPE = 3/t mW/cm2 for exposure of t seconds • For every second of exposure, you must be about 10 cm from the lamp • Place lamp in enclosed reflective chamber • WEAR GOGGLES & DON’T EXPOSE SKIN

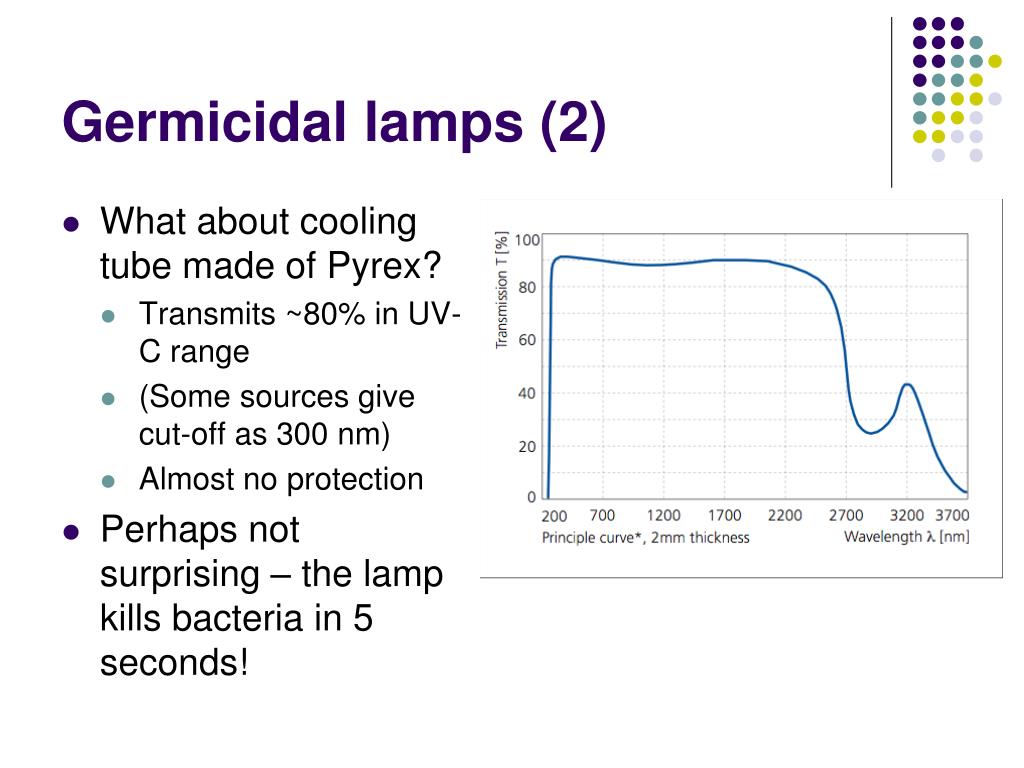

  11. What about cooling tube made of Pyrex? Transmits ~80% in UV-C range (Some sources give cut-off as 300 nm) Almost no protection Perhaps not surprising – the lamp kills bacteria in 5 seconds! Germicidal lamps (2)

  12. Visible/IR lasers • CW/pulsed: • protect your eyes • blue-green worse than red-infrared • don’t shoot at your skin • Dye lasers: dyes are carcinogens • CO2 lasers: fire hazard

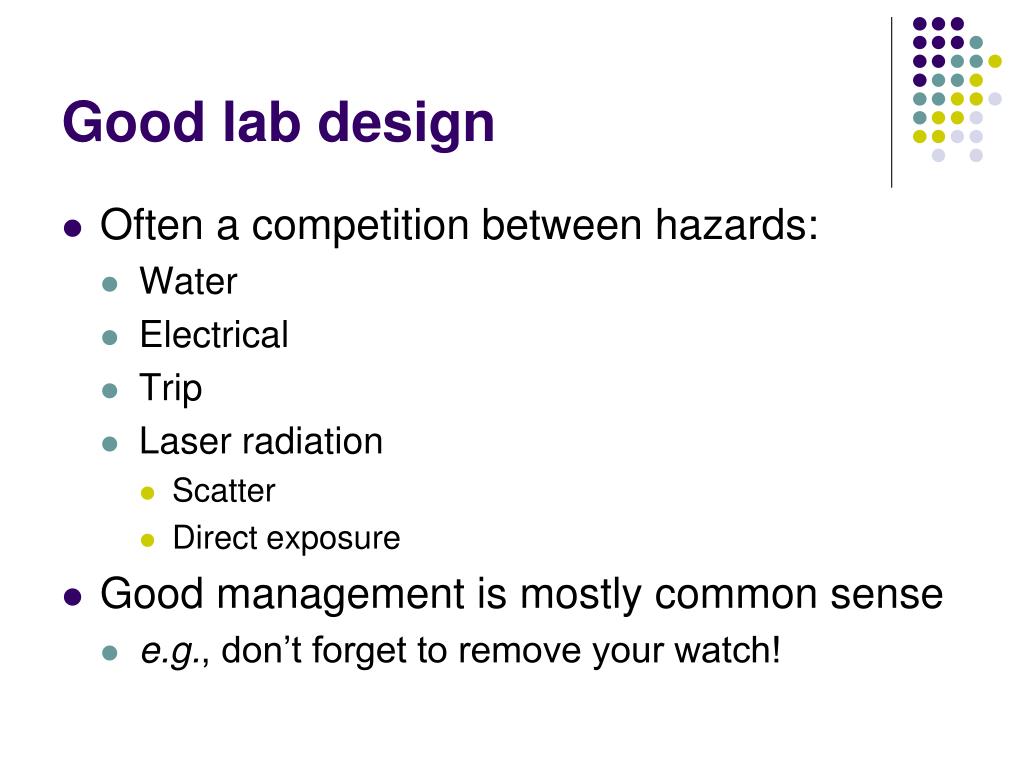

  13. Good lab design • Often a competition between hazards: • Water • Electrical • Trip • Laser radiation • Scatter • Direct exposure • Good management is mostly common sense • e.g., don’t forget to remove your watch!

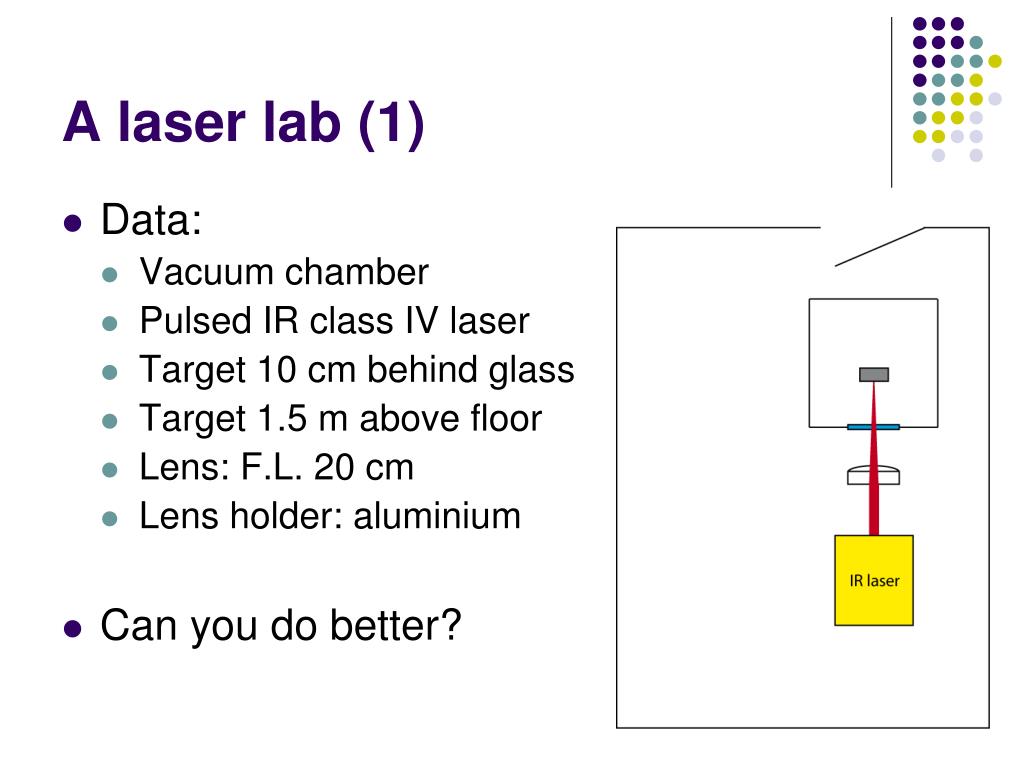

  14. A laser lab (1) • Data: • Vacuum chamber • Pulsed IR class IV laser • Target 10 cm behind glass • Target 1.5 m above floor • Lens: F.L. 20 cm • Lens holder: aluminium • Can you do better?

  15. A laser lab (2) • Beam height: • Unsafe for people >5 ft • If you can’t adjust target, move beam out of the way • Door: • Don’t shoot laser in that direction! • Make sure the system is interlocked – door open, laser off

  16. A laser lab (3) • Lens: • Beware of scatter • Each surface reflects 4% as a mirror (back into laser!) • AR coating • Turn lens around • You may hit lens holder • Spray paint black • Window: • 4% reflection focused on lens

  17. A laser lab (4) • Adaptability • Can’t easily adjust beam • Tripping: • Water/electrical leads all over the floor • Invisibility • Can you mount a collinear visible alignment laser?

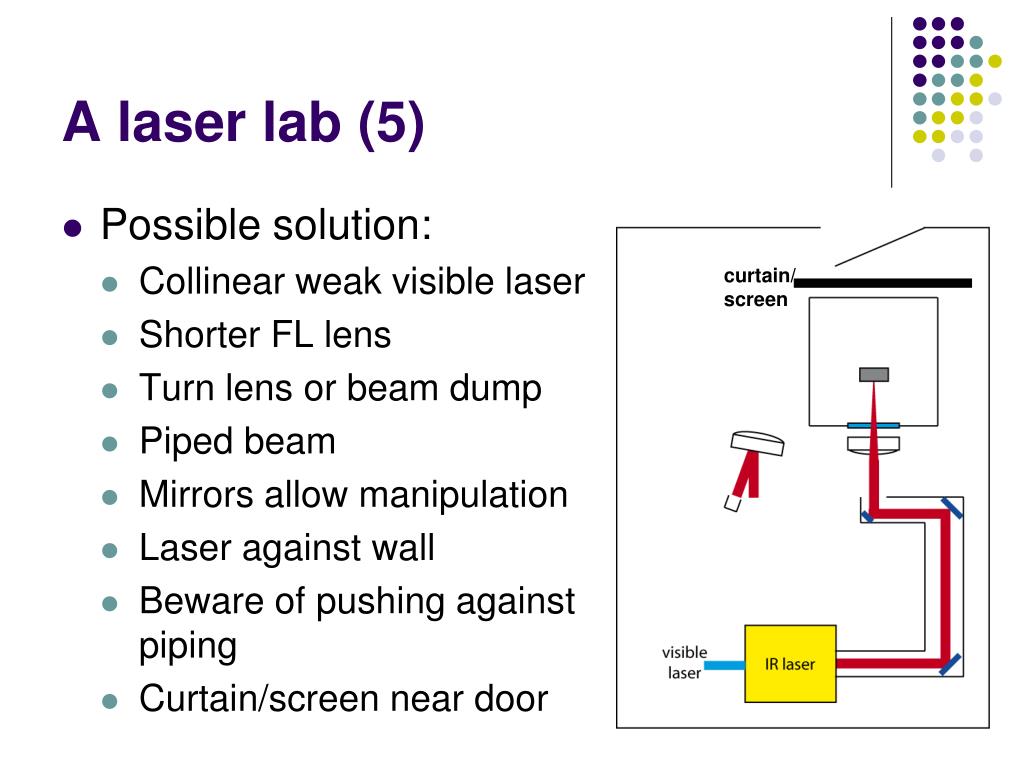

  18. A laser lab (5) • Possible solution: • Collinear weak visible laser • Shorter FL lens • Turn lens or beam dump • Piped beam • Mirrors allow manipulation • Laser against wall • Beware of pushing against piping • Curtain/screen near door curtain/ screen
