The C++ Programming Language

1. The C++ Programming Language • Declarations and Constant • H.J. Kim

2. Contents • 1. Declarations • 2. Declarations • 3. Objects and lvalues • 4. Lifetime • 5. Names • 6. Types • Overview • Fundametal types • Derived types • void

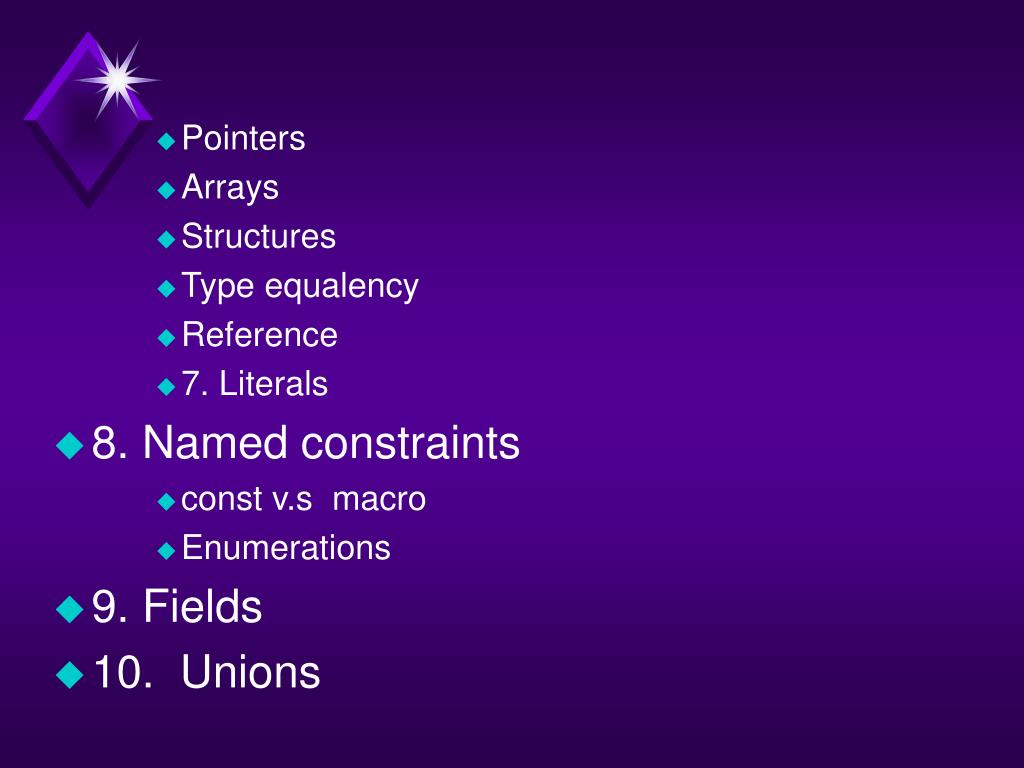

3. Pointers • Arrays • Structures • Type equalency • Reference • 7. Literals • 8. Named constraints • const v.s macro • Enumerations • 9. Fields • 10. Unions

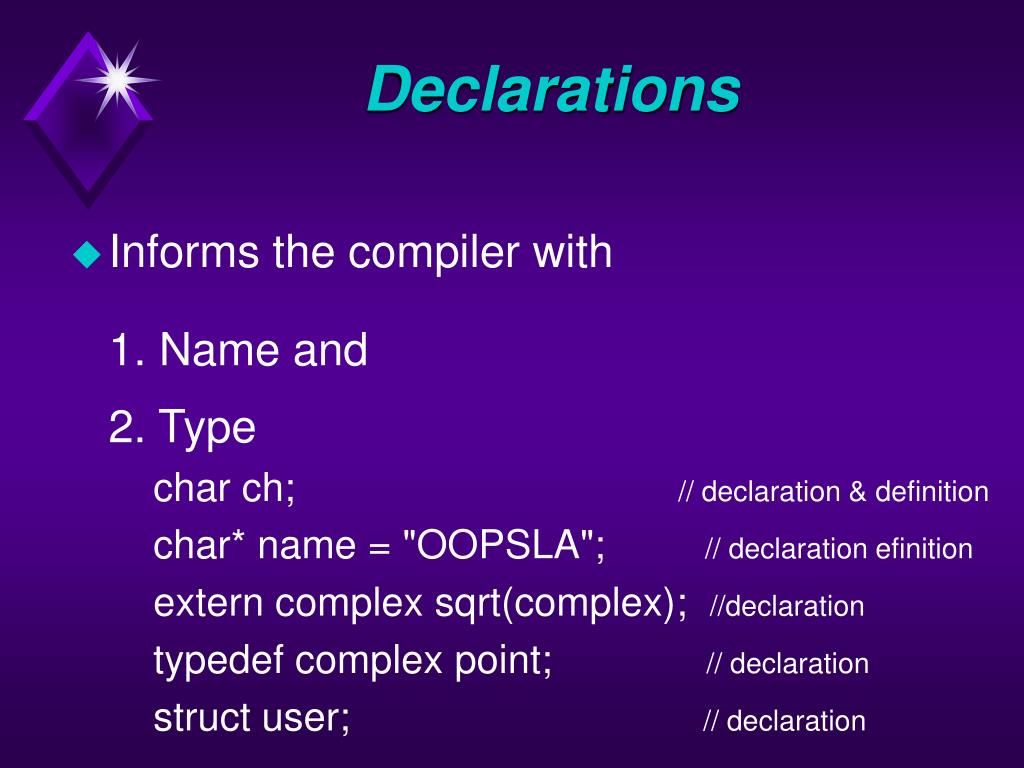

4. Declarations • Informs the compiler with • 1. Name and • 2. Type • char ch; // declaration & definition • char* name = "OOPSLA"; // declaration efinition • extern complex sqrt(complex); //declaration • typedef complex point; // declaration • struct user; // declaration

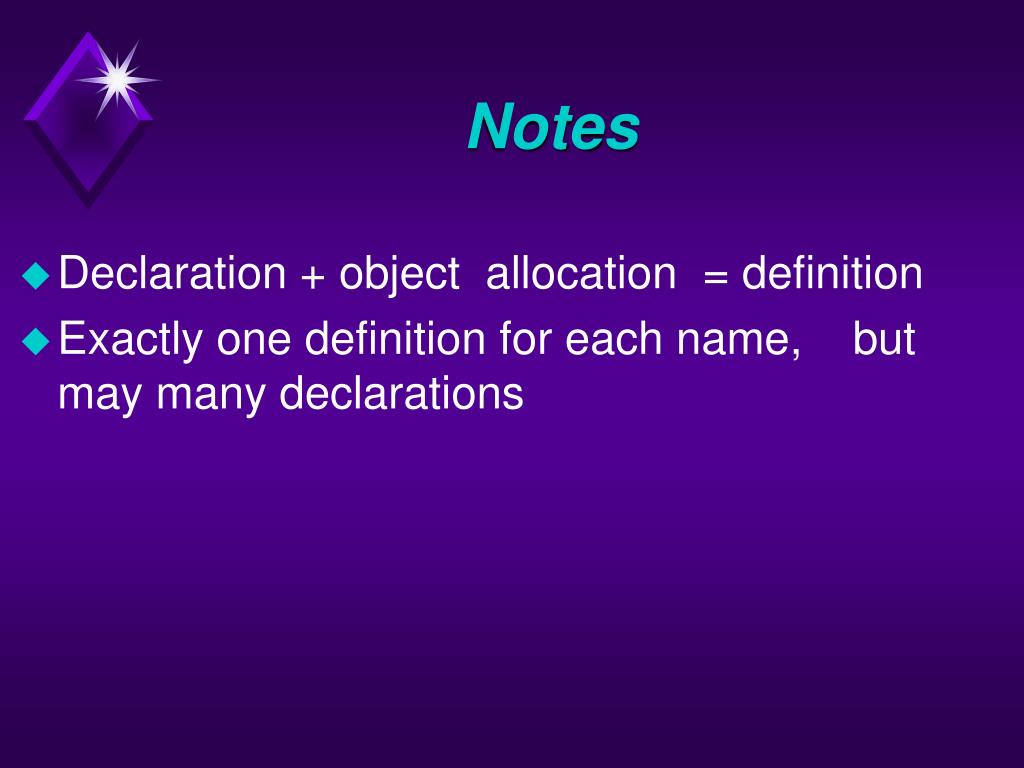

5. Notes • Declaration + object allocation = definition • Exactly one definition for each name, but may many declarations

6. Scopes • Declaration introduces a name into a scope • A declaration of a name in a block can hide a declaration in an enclosing block or a blobal name • cf) hidden global name can be used by using “::''

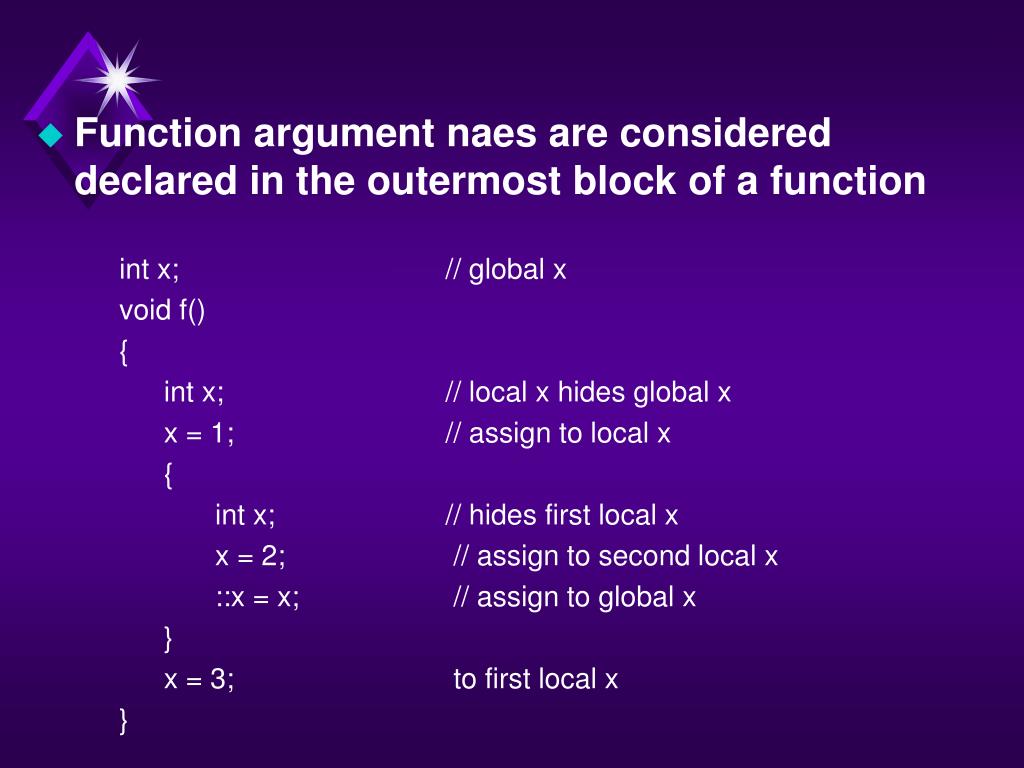

7. Function argument naes are considered declared in the outermost block of a function • int x; // global x • void f() • { • int x; // local x hides global x • x = 1; // assign to local x • { • int x; // hides first local x • x = 2; // assign to second local x • ::x = x; // assign to global x • } • x = 3; to first local x • }

8. Notes • Scope rule in C++ • A name declared in a function (local name) • from the point of declaration to the end of the block in which its declaration occurs • A name not in a function or in a class (= global name) • from the point of declaration to the end of the file in which its declaration occurs

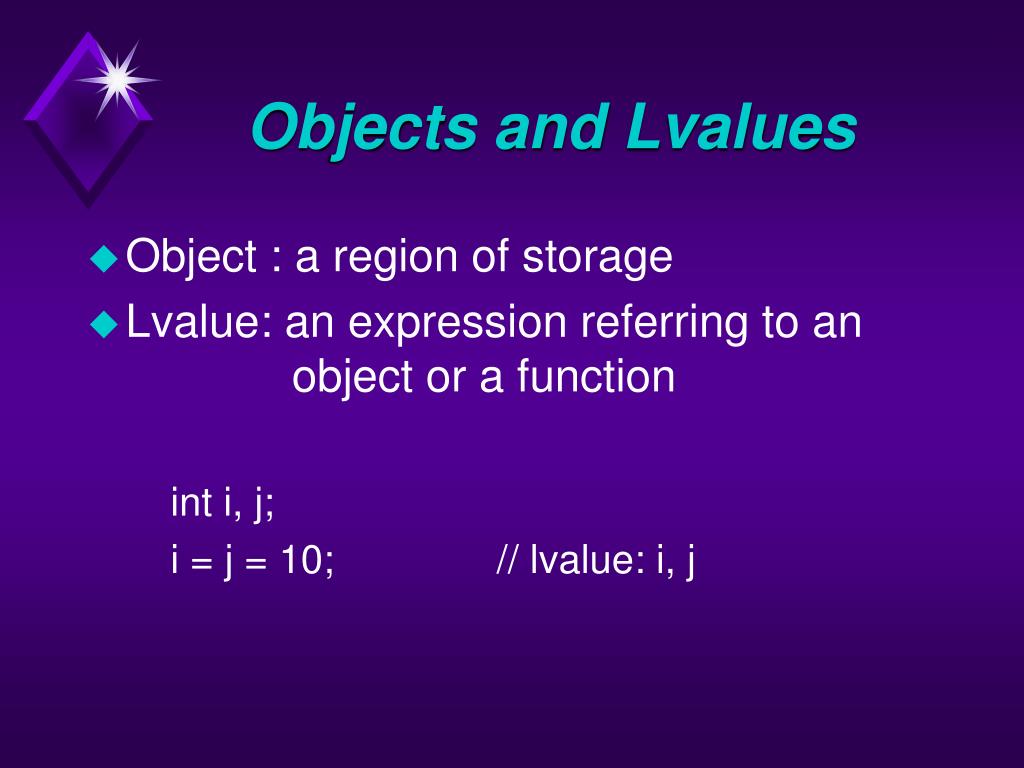

9. Objects and Lvalues • Object : a region of storage • Lvalue: an expression referring to an object or a function • int i, j; • i = j = 10; // lvalue: i, j

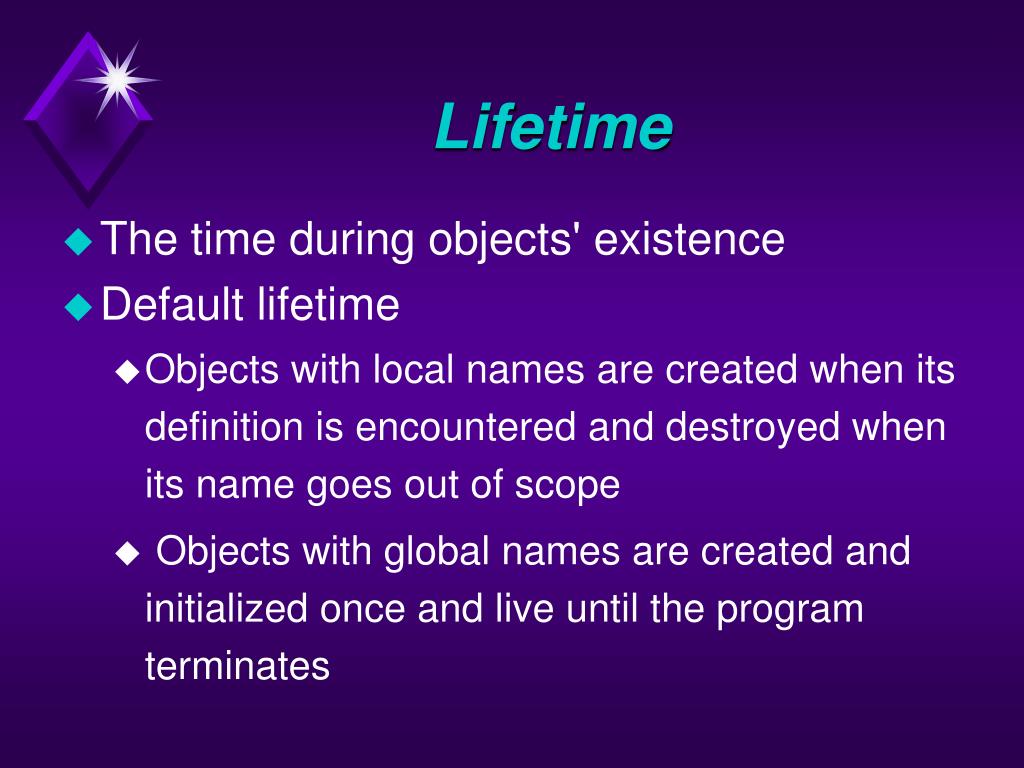

10. Lifetime • The time during objects' existence • Default lifetime • Objects with local names are created when its definition is encountered and destroyed when its name goes out of scope • Objects with global names are created and initialized once and live until the program terminates

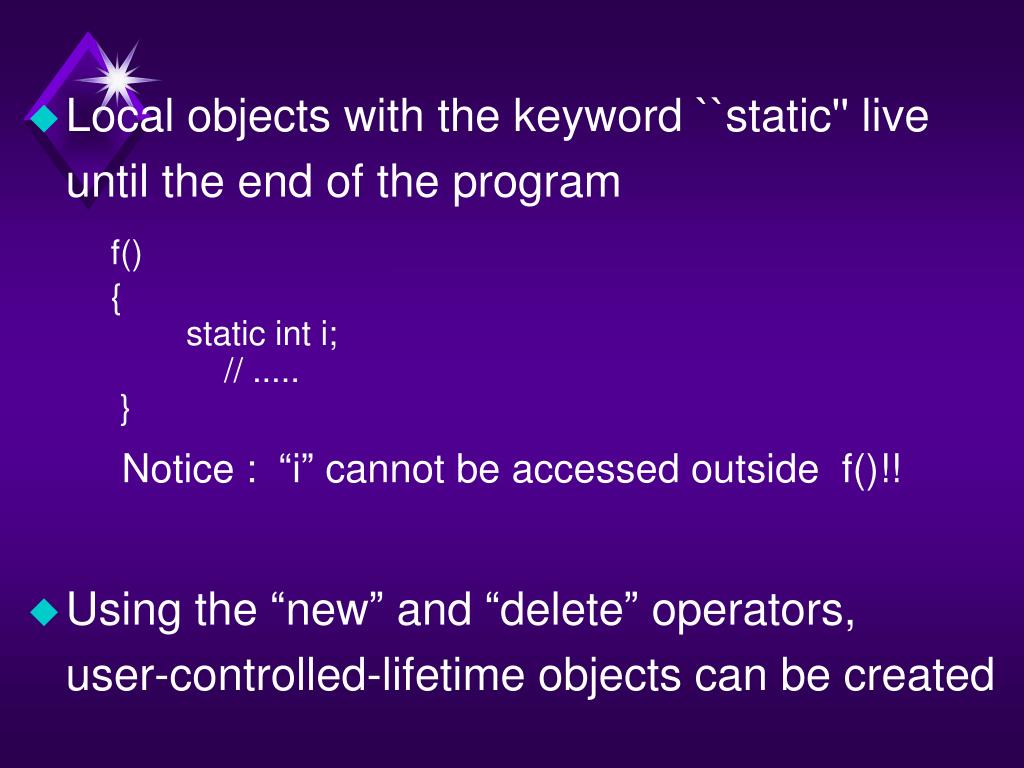

11. Local objects with the keyword ``static'' live until the end of the program • f() • { • static int i; • // ..... • } • Notice : “i” cannot be accessed outside f()!! • Using the “new” and “delete” operators, • user-controlled-lifetime objects can be created

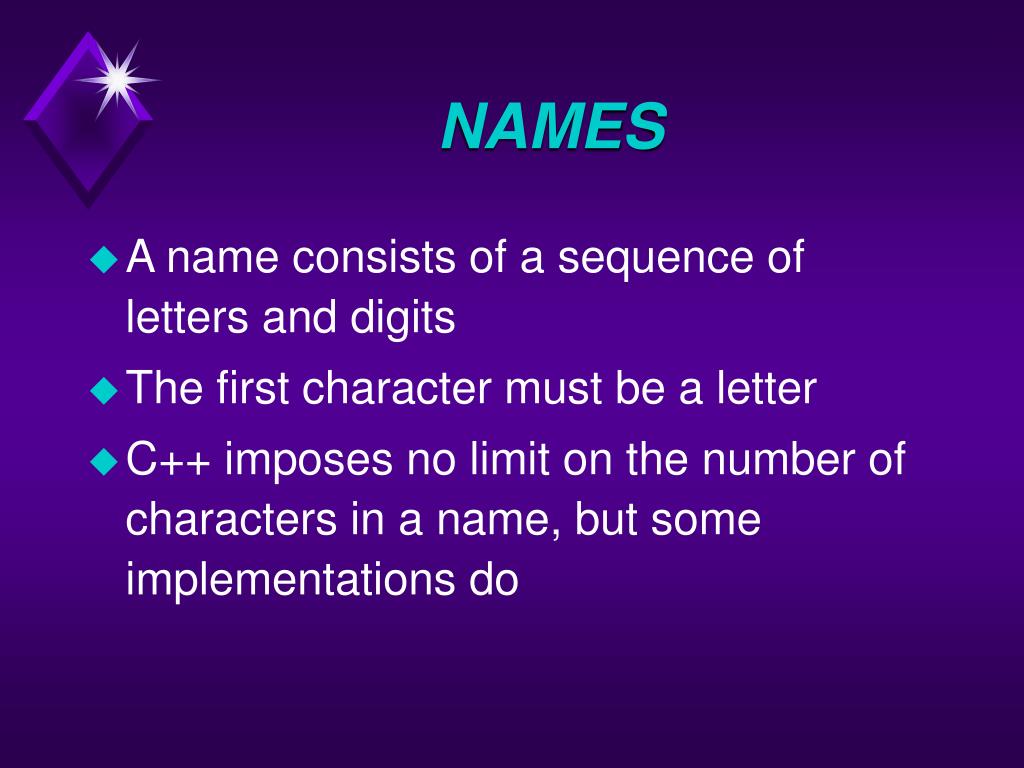

12. NAMES • A name consists of a sequence of letters and digits • The first character must be a letter • C++ imposes no limit on the number of characters in a name, but some implementations do

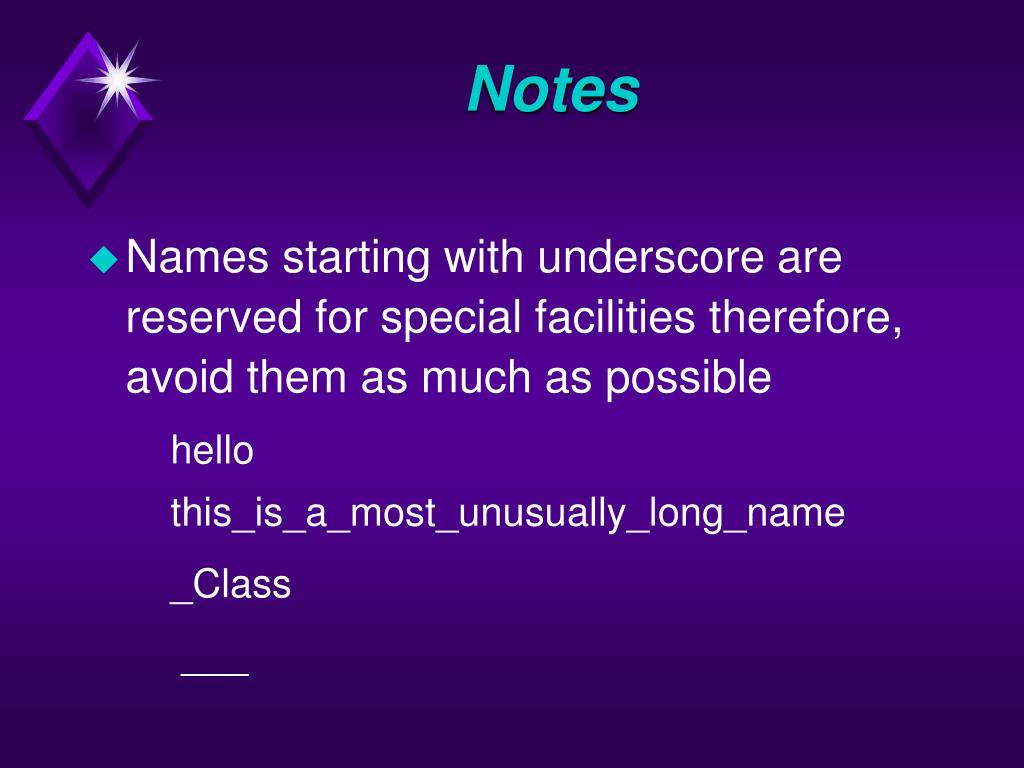

13. Notes • Names starting with underscore are reserved for special facilities therefore, avoid them as much as possible • hello this_is_a_most_unusually_long_name • _Class • ___

14. Types: Overview • Every name in a C++ program has a type associated with it • C++ is strongly-typed language • Type determines ...... • what operations can be applied to the name • how such operations are interpreted • (cf. operatoroverloading)

15. The only operators can be applied to type name are: • sizeof : determining the amount of memory required to hold an object of the type • new : free-store allocation of objects of the type

16. A type name can be used for explicite type conversion • float f; • char* p; • ................ • long ll = long(p); // convert p to a long • int i = int(f); // convert f to an int

17. Types : Fundamental Types • Basic integer types • char • short int • int • long int • enumerate • float • double • long double

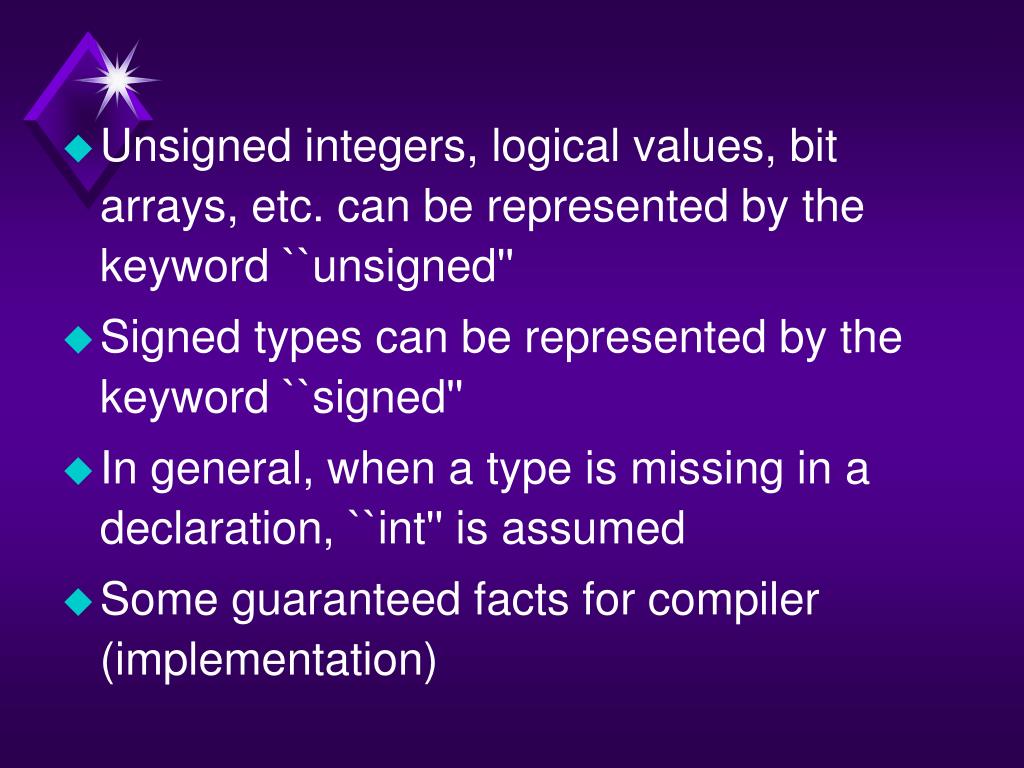

18. Unsigned integers, logical values, bit arrays, etc. can be represented by the keyword ``unsigned'' • Signed types can be represented by the keyword ``signed'' • In general, when a type is missing in a declaration, ``int'' is assumed • Some guaranteed facts for compiler (implementation)

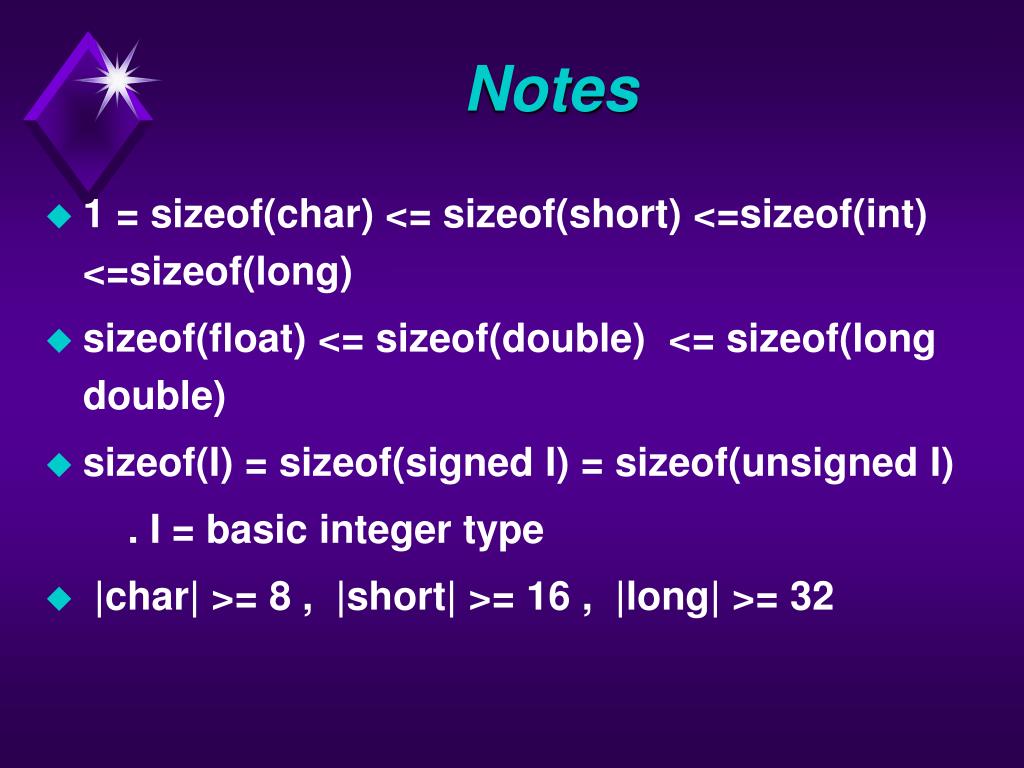

19. Notes • 1 = sizeof(char) <= sizeof(short) <=sizeof(int) <=sizeof(long) • sizeof(float) <= sizeof(double) <= sizeof(long double) • sizeof(I) = sizeof(signed I) = sizeof(unsigned I) • . I = basic integer type • |char| >= 8 , |short| >= 16 , |long| >= 32

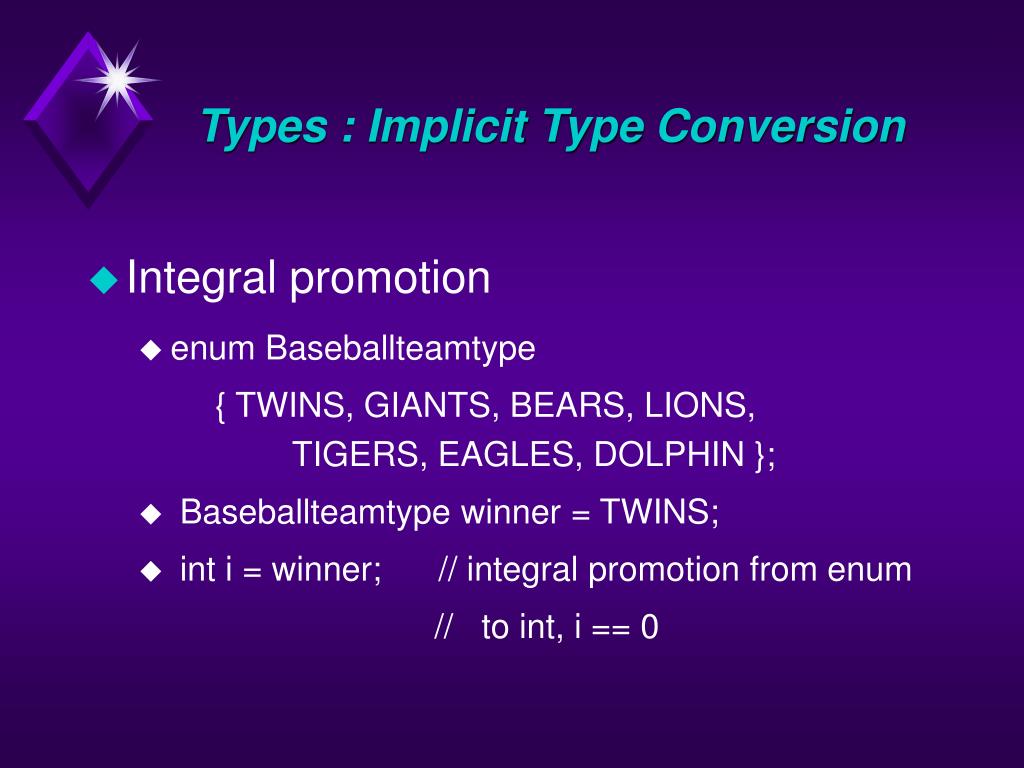

20. Types : Implicit Type Conversion • Integral promotion • enum Baseballteamtype • { TWINS, GIANTS, BEARS, LIONS, TIGERS, EAGLES, DOLPHIN }; • Baseballteamtype winner = TWINS; • int i = winner; // integral promotion from enum • // to int, i == 0

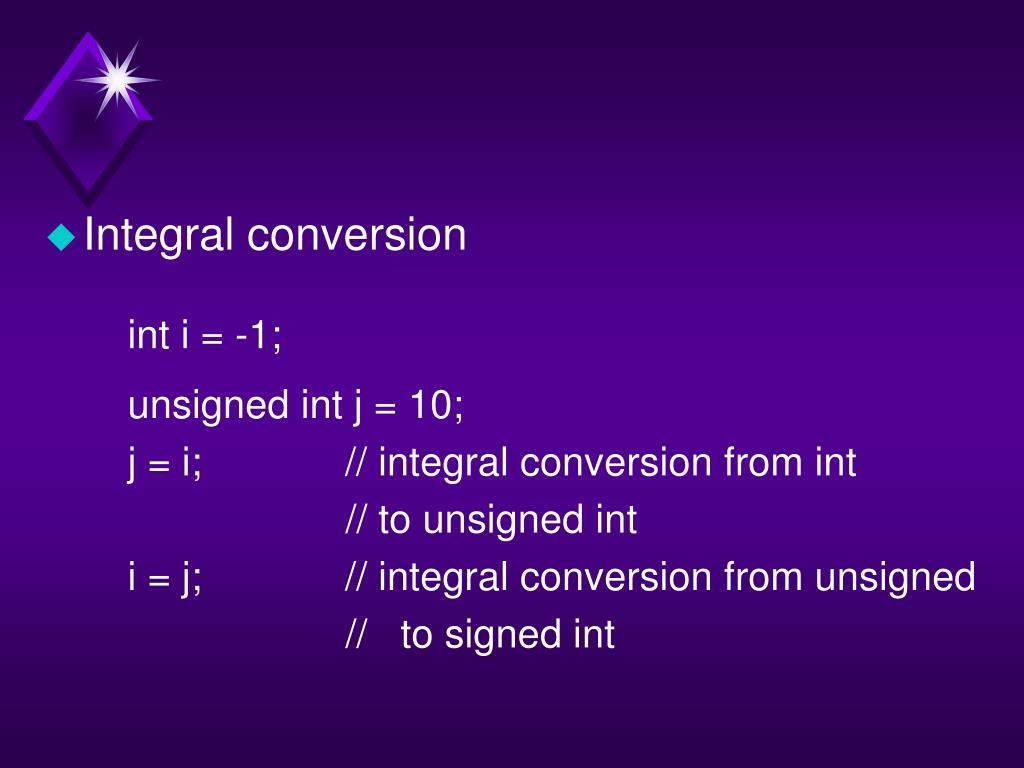

21. Integral conversion • int i = -1; • unsigned int j = 10; • j = i; // integral conversion from int • // to unsigned int • i = j; // integral conversion from unsigned • // to signed int

22. Notes • Integral promotion • From char, short int, enum,or int bit-field to int • If an int can represent all values of the original type, the value is converted to int • ; otherwise it is converted to unsigned int

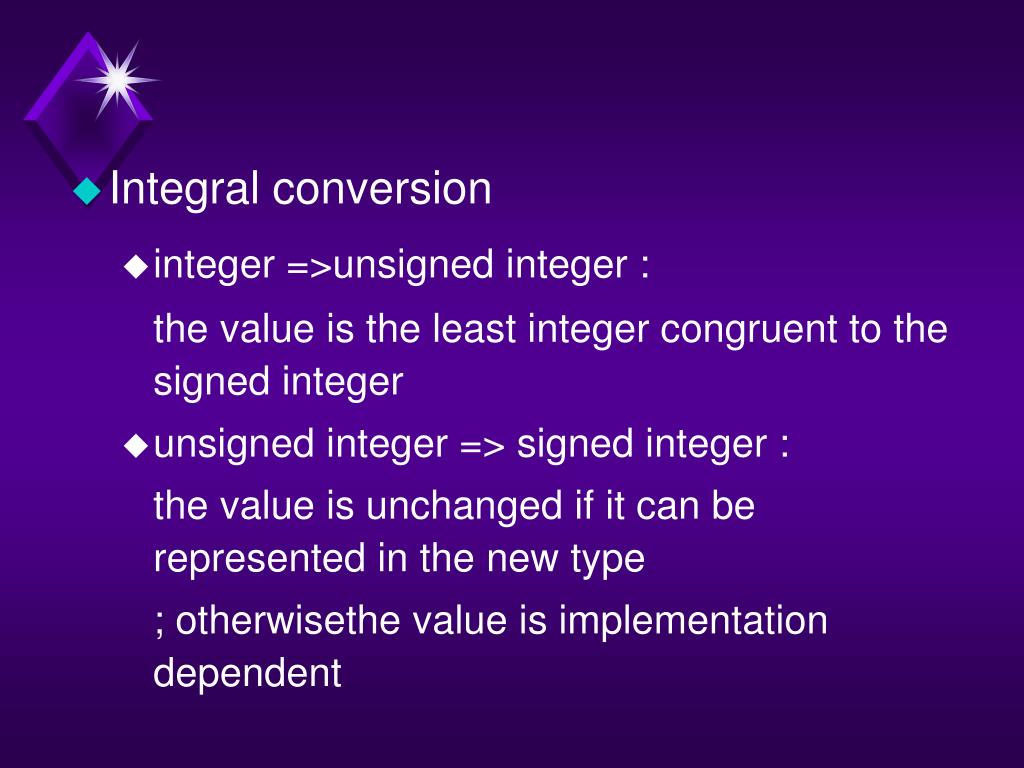

23. Integral conversion • integer =>unsigned integer : • the value is the least integer congruent to the signed integer • unsigned integer => signed integer : • the value is unchanged if it can be represented in the new type • ; otherwisethe value is implementation dependent

24. Types : Implicit Type Conversion (cont'd) • Float and Double • float x = 10.0; • double y = x; // conversion from float to double • x = y; // conversion from double to float • Floating and Integral • int i = 100; • float x = i; // conversion int to float • i = x; // conversion float to int

25. Notes • Float and Double • float -> double : • the value is unchanged • double -> float : • if the value with inrepresentable range, the result may be either the next higher or the next lower representable value; • otherwise the behavior is undefined

26. Floating and Integral • floating -> integral value: • the fractional part is discarded and such conversions are machine dependent • integral -> floating type: • loss of precision occurs if an integral value cannot be represented exactly as a value of the floating type • etc.

27. Types : Derived Types • New types can be derived by using the declaration operators • * : pointer • & : reference • [] : array • (): function • and the structure definition mechanism • (eg. struct})

28. When declaring derived types, note that declaration operators apply to the very next individual name only • int v[10]; • int *p; • int *v[10], (*p)[10]; • int* p, y; // same as int* p; \ int y;

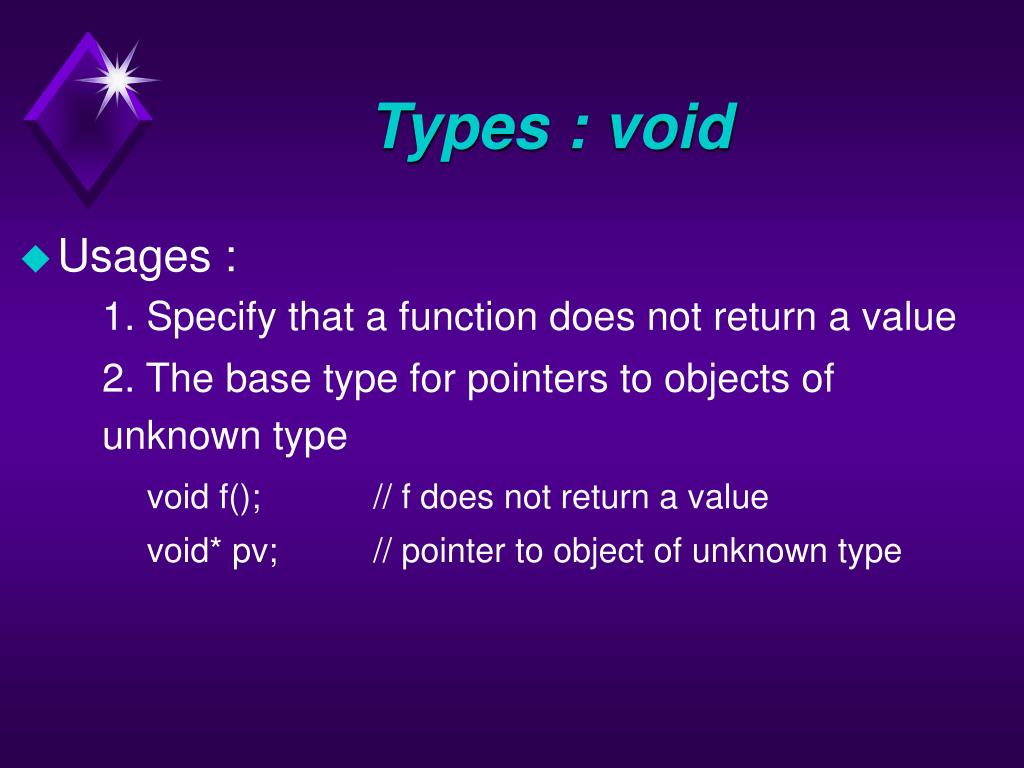

29. Types : void • Usages : • 1. Specify that a function does not return a value • 2. The base type for pointers to objects of unknown type • void f(); // f does not return a value • void* pv; // pointer to object of unknown type

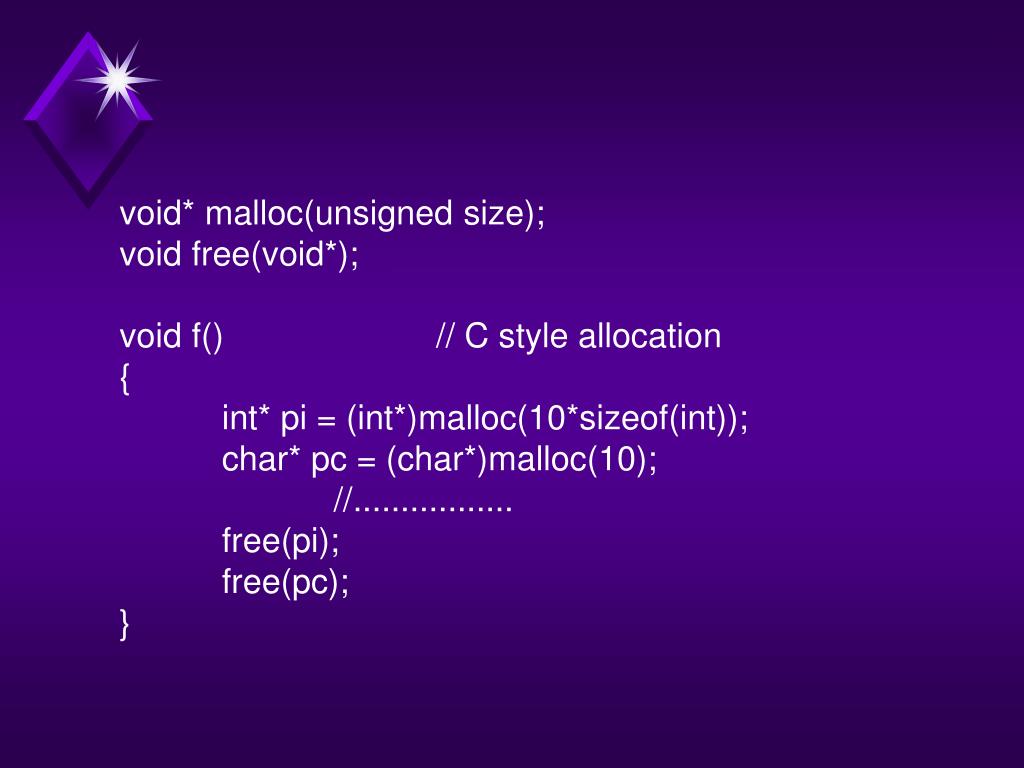

30. void* malloc(unsigned size); void free(void*); void f() // C style allocation { int* pi = (int*)malloc(10*sizeof(int)); char* pc = (char*)malloc(10); //................. free(pi); free(pc); }

31. Notes • A pointer of any type can be assigned to a value of type void* • 1.For passing pointers to functions that are not allowed to make assumptions about the type of the object • 2. For returning untyped objects from functions

32. Types : Pointers • For most types T, T* is the type pointer to T int *pi; char** cpp; // pointer to pointer to char int (*vp)[4]; // pointer to array of 4 ints int (*fp)(char,char*); // pointer to function // taking (char, char*) arguments // and return an int

33. Notes pi 123 cpp ‘a’ vp 123 234 456 678 fp function code for int f(char,char*)

34. Types : Arrays • For a type T,T[size] is the type “array of size • elements of type T” • Elements are indexed from 0 to size-1 • float v[3]; • int a[2][5]; • char* vpc[32]; // array of 32 character pointers • The name of an array can also be used as a pointer to its first element • int v[5] = {1, 2, 3, 4, 5}; • int i = *v // assign v[0] to i

35. If p is assumed to point to an element of an array: • p+1 means the next element of that array • p-1 means the previous element of that array #include <iostream.h> int v[5] = {1, 2, 3, 4, 5}; int* vp = &(v[2]); cout << *vp; // value of v[2] is printed cout << *(vp+1); // value of v[3] is printed cout << *(vp-1); // value of v[1] is printed

36. Notes • Only substraction between pointes is allowed. • -> conversion needed • void *p = &aa; • void *q = p + 10;

37. Types : Structures • A structure is an aggregate of elements of arbitrary types • struct address { • char* name;}; • The individual member can be accessed using . operator or -> operator • address ad; • address* adp = &ad; • ad.name = "Jim Dandy"; • adp->number = 61;

38. The name of a type becomes available for use immediately after it has been encountered, and not just after the complete declaration has been seen • struct link { • link* prev; • link* succ; • };

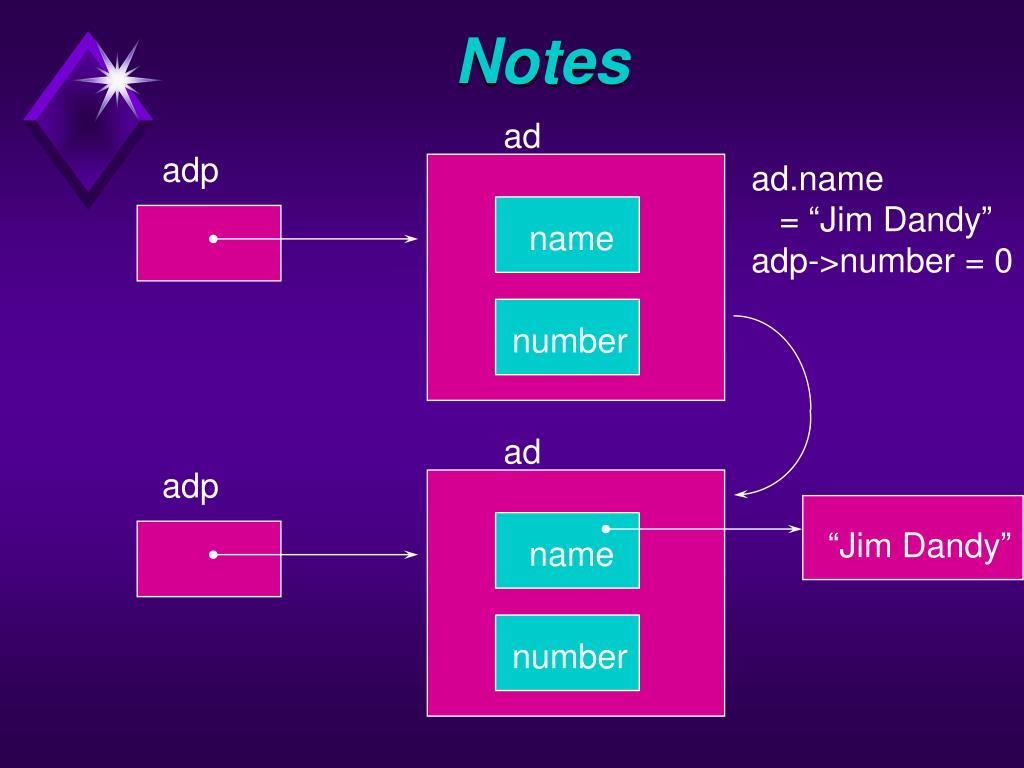

39. Notes ad adp ad.name = “Jim Dandy” adp->number = 0 name number ad adp “Jim Dandy” name number

40. Types : Type Equalency • Two structure types even when they have the same members • struct s1 {int a;}; • struct s2 {int a;}; • s1 x; • s2 y = x; // error: type mismatch • Structure types are different from fundamental types • s1 x; • int i = x; // error: type mismatch

41. A declaration prefixed by the keyword “typedef” declares a new name for the type • typedef char* Pchar; • Pchar p1; • char* p3 = p1;

42. Types: Reference • For a type T, T& means reference to T • A reference must be initialized • int i = 1; • int& r = i; // r and i now refer to the same int • For a type T, the initializer for a const T& need • not be an lvalue or even of type T • double& dr = 1; // error: lvalue needed • const double& cdr = 1; // ok • References can be used for call-by-reference in parameter passing

43. Notes i j,r 1 1 char ch; char ch; char *p = &ch; char &r = ch; *p = ‘a’; r = ‘a’ ; ch p r,ch ‘a’ ‘a’

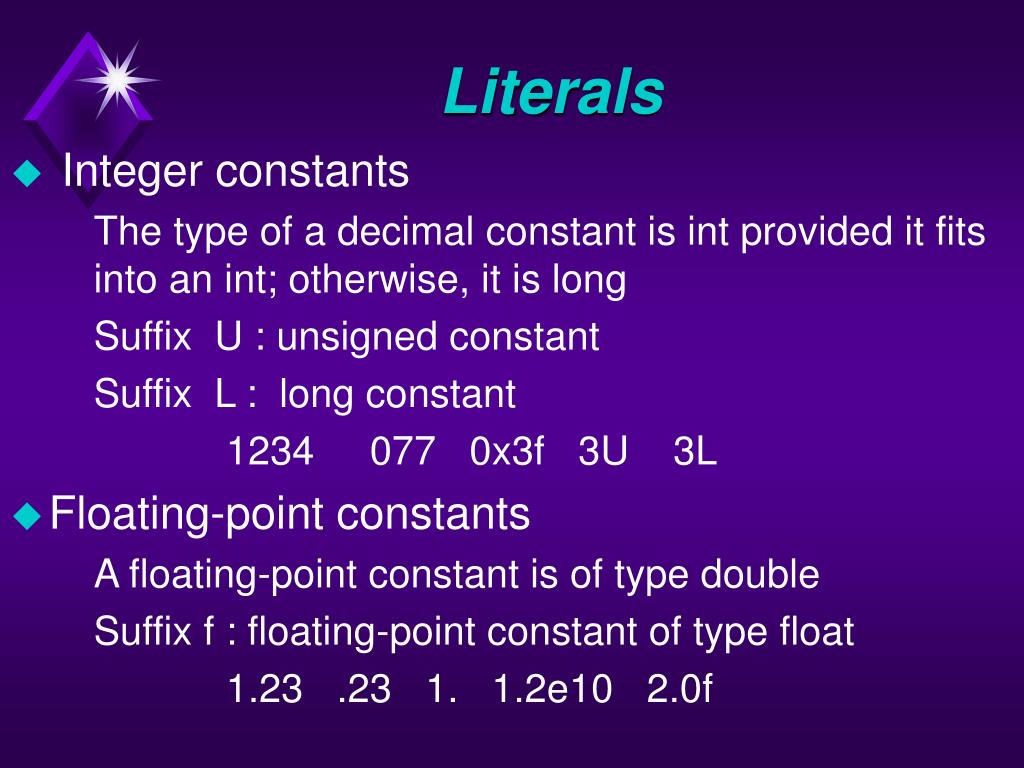

44. Literals • Integer constants • The type of a decimal constant is int provided it fits into an int; otherwise, it is long • Suffix U : unsigned constant • Suffix L : long constant • 1234 077 0x3f 3U 3L • Floating-point constants • A floating-point constant is of type double • Suffix f : floating-point constant of type float • 1.23 .23 1. 1.2e10 2.0f

45. Character constants • A character constant is a character enclosed in single quotes • It is possible to represent a character as a one-, • two-, or three-digit octal number ( \ followed by octal digits), or as a hexadecimal number ( \x followed by hexadecimal digits) • A few characters also have standard names that use backslash \ as an escape character • 'a' '\6' '\x5f' '\n' '\t'

46. Notes • String literals • A string literals is a character sequence enclosed in double quotes • The type of string is “array of the appropriate • number of characters'' • "this is a string" • Zeros • 0 is an int • Because of standard conversion, 0 can be usedas a constant of any integer, floating point, or pointer type

47. Named Constants • The keyword const can be added to the declaration of an object to make that object a constant • A constant must be initialized • const int model = 90; • const int v[] = {1, 2, 3, 4};

48. When using pointer types: • 1.the object pointed to: prefixing a declaration of a pointer with const • const char* pc = "asdf"; // pointer to constant • pc[3] = 'a'; // error • pc = "ghjk"; // ok • 2. the pointer itself: operator *const is used • char *const cp = "asdf"; // constant pointer • cp[3] = 'a'; // ok • p = "ghjk"; // error

49. Notes pc cp “asdf” “asdf” fixed fixed “asdf” pc cp “ghjk” “asdf” v.s.

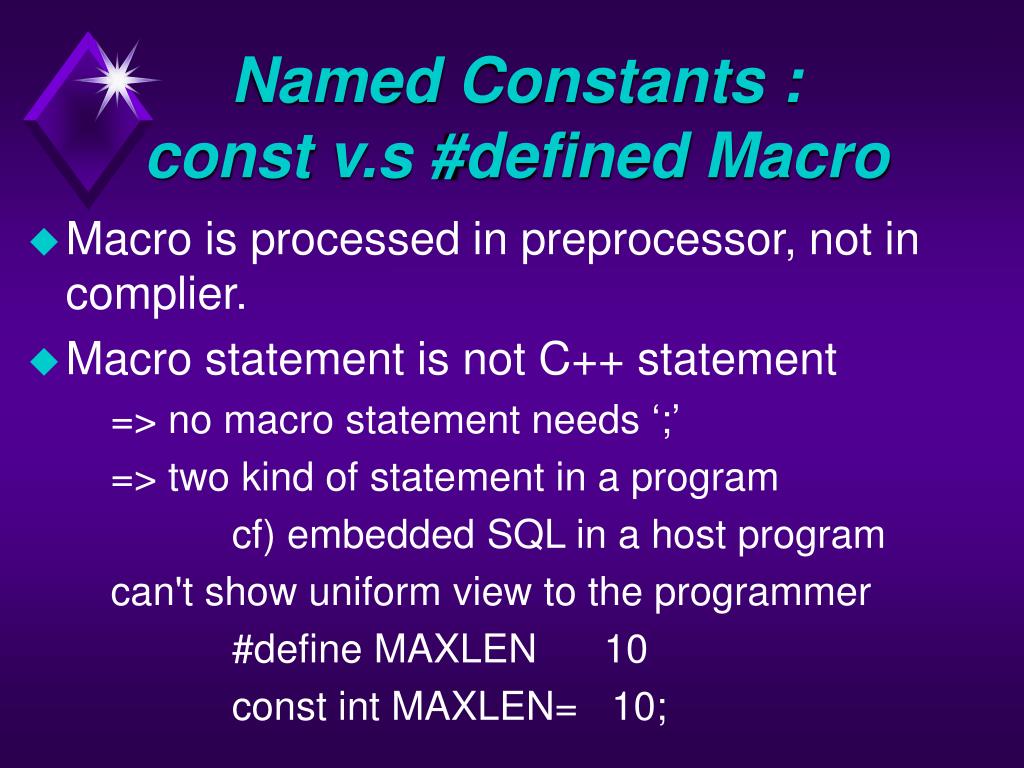

50. Named Constants : const v.s #defined Macro • Macro is processed in preprocessor, not in complier. • Macro statement is not C++ statement • => no macro statement needs ‘;’ • => two kind of statement in a program • cf) embedded SQL in a host program • can't show uniform view to the programmer • #define MAXLEN 10 • const int MAXLEN= 10;
