  1. Output Data Analysis

  2. How to analyze simulation data? • simulation • computer based statistical sampling experiment • estimates are just particular realizations of random variables that may have large variances • n independent replications • each replication terminated by same event • started with same initial conditions • replications are independent by means of using different random variables • single measure of performance one per replication 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

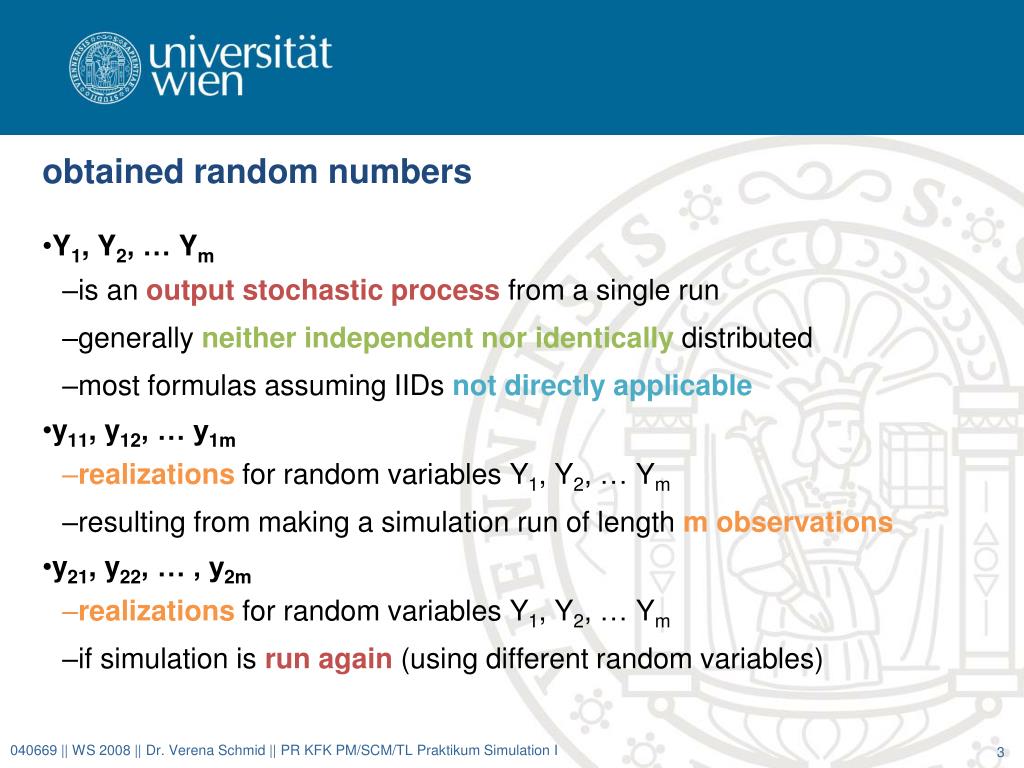

  3. obtained random numbers • Y1, Y2, … Ym • is an output stochastic process from a single run • generally neither independent nor identically distributed • most formulas assuming IIDs not directly applicable • y11, y12, … y1m • realizations for random variables Y1, Y2, … Ym • resulting from making a simulation run of length m observations • y21, y22, … , y2m • realizations for random variables Y1, Y2, … Ym • if simulation is run again (using different random variables) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

  4. obtained random numbers (cont) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I • if you make n independent replications (runs) • with different random number used • observations from particular run/rownot IID • observations from form ithcolumn are IID observations of random variable Yi (i = 1..m) ! independence across runs y11, y12, … y1i, …. y1m y21, y22, …. y2i, …. y2m … …. …. yn1, yn2, … yni, ….. ynm

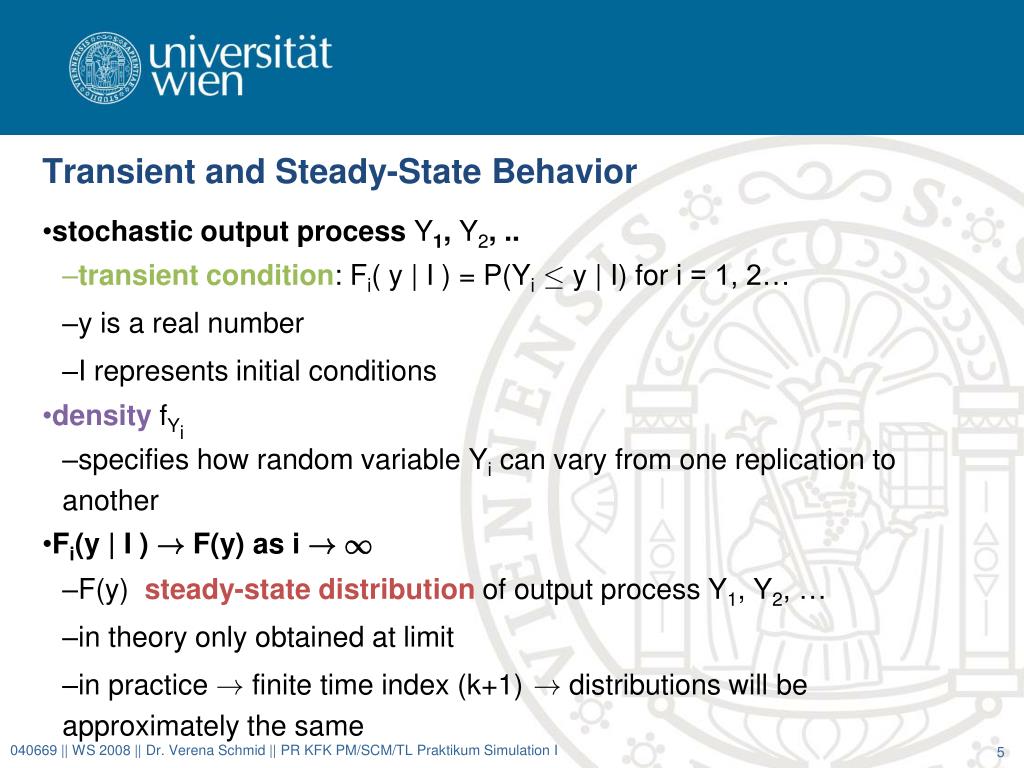

  5. Transient and Steady-State Behavior • stochastic output process Y1, Y2, .. • transient condition: Fi( y | I ) = P(Yi· y | I) for i = 1, 2… • y is a real number • I represents initial conditions • densityfYi • specifies how random variable Yi can vary from one replication to another • Fi(y | I ) ! F(y) as i!1 • F(y) steady-state distribution of output process Y1, Y2, … • in theory only obtained at limit • in practice ! finite time index (k+1) ! distributions will be approximately the same 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

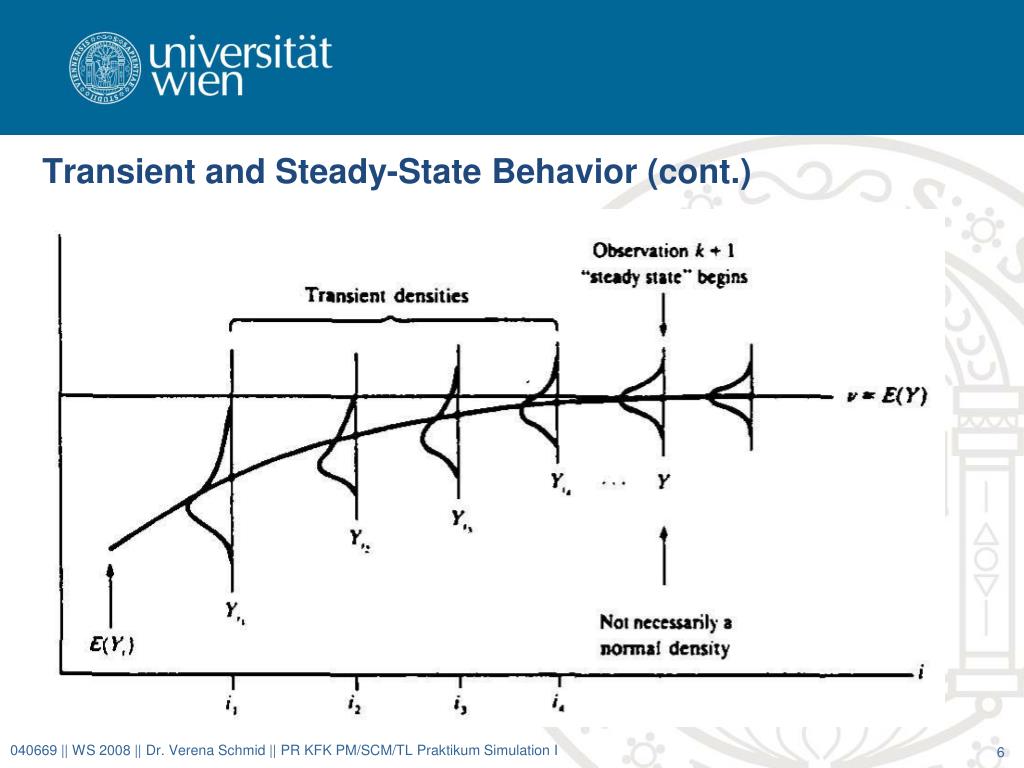

  6. Transient and Steady-State Behavior (cont.) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

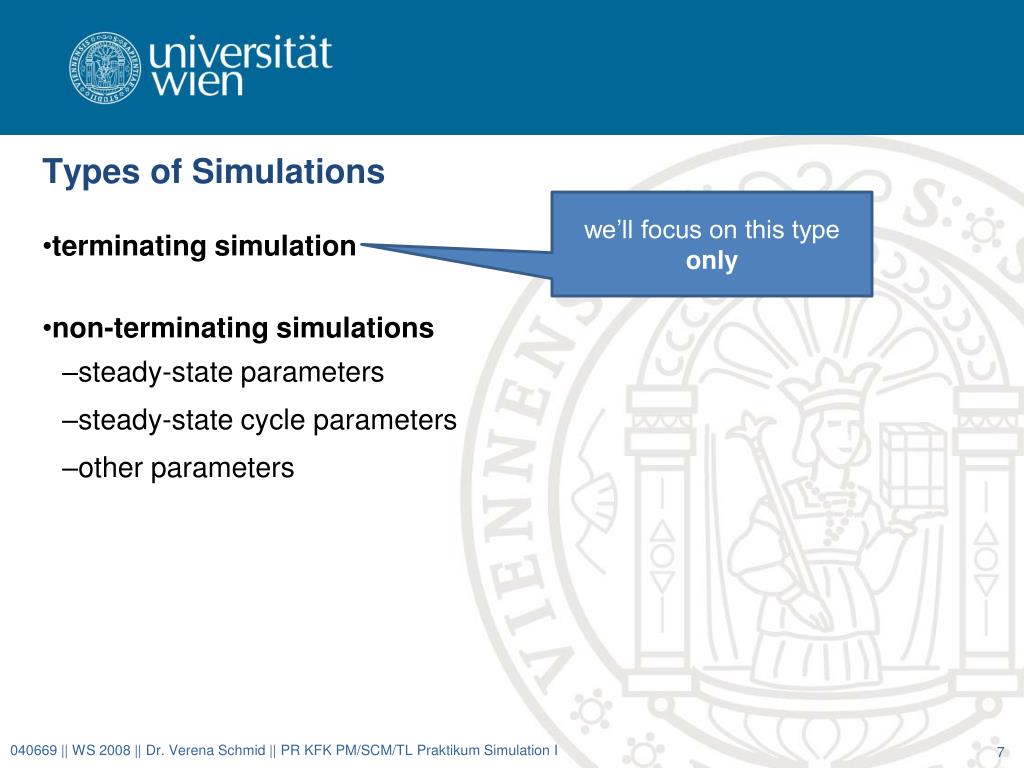

  7. Types of Simulations we’ll focus on this type only • terminating simulation • non-terminating simulations • steady-state parameters • steady-state cycle parameters • other parameters 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

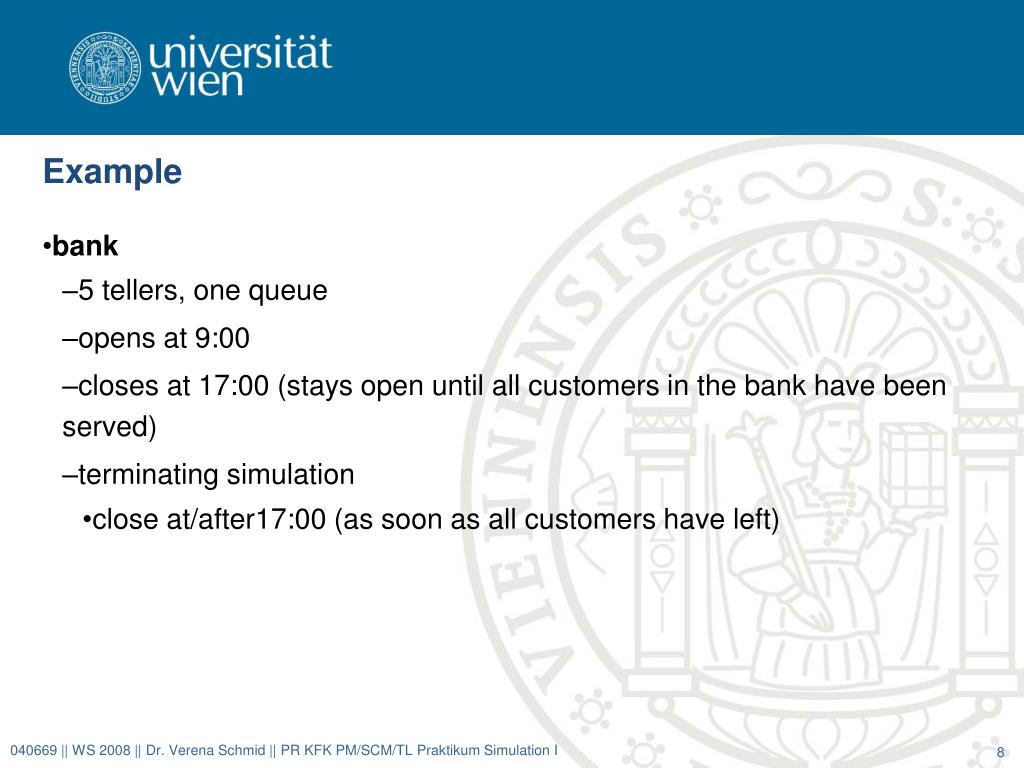

  8. Example • bank • 5 tellers, one queue • opens at 9:00 • closes at 17:00 (stays open until all customers in the bank have been served) • terminating simulation • close at/after17:00 (as soon as all customers have left) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

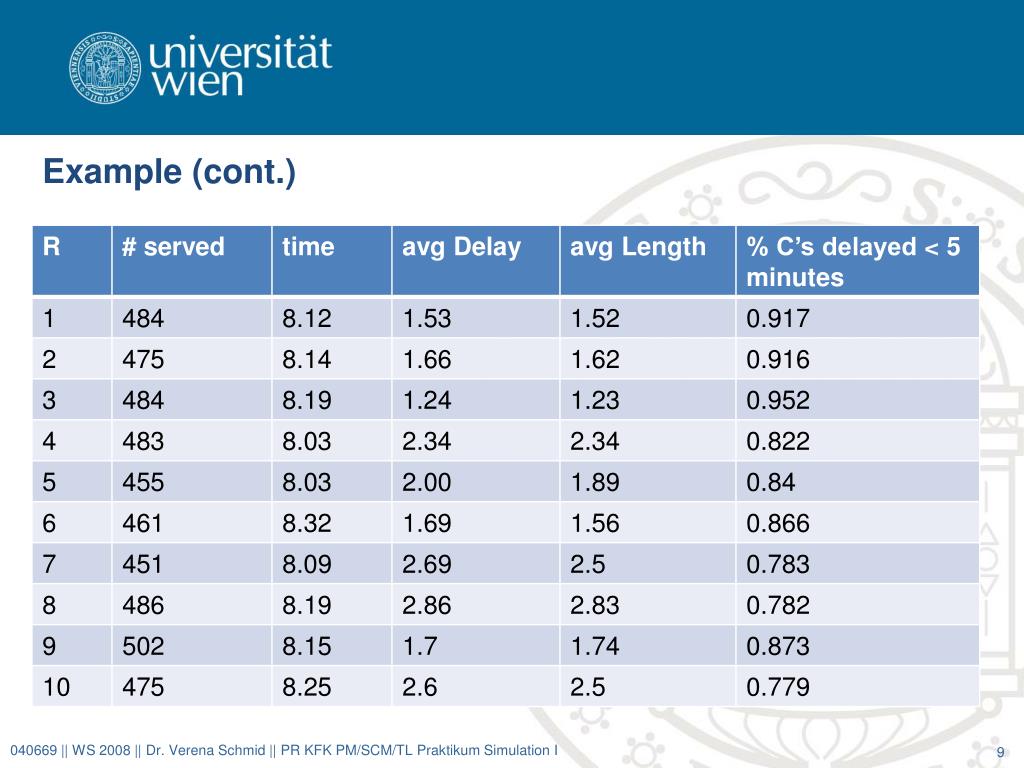

  9. Example (cont.) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

  10. Estimating Means • point estimate and confidence interval for mean ¹ = E(X) • unbiased point estimator for ¹ • approximate 100(1-®) percent confidence interval for ¹ 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

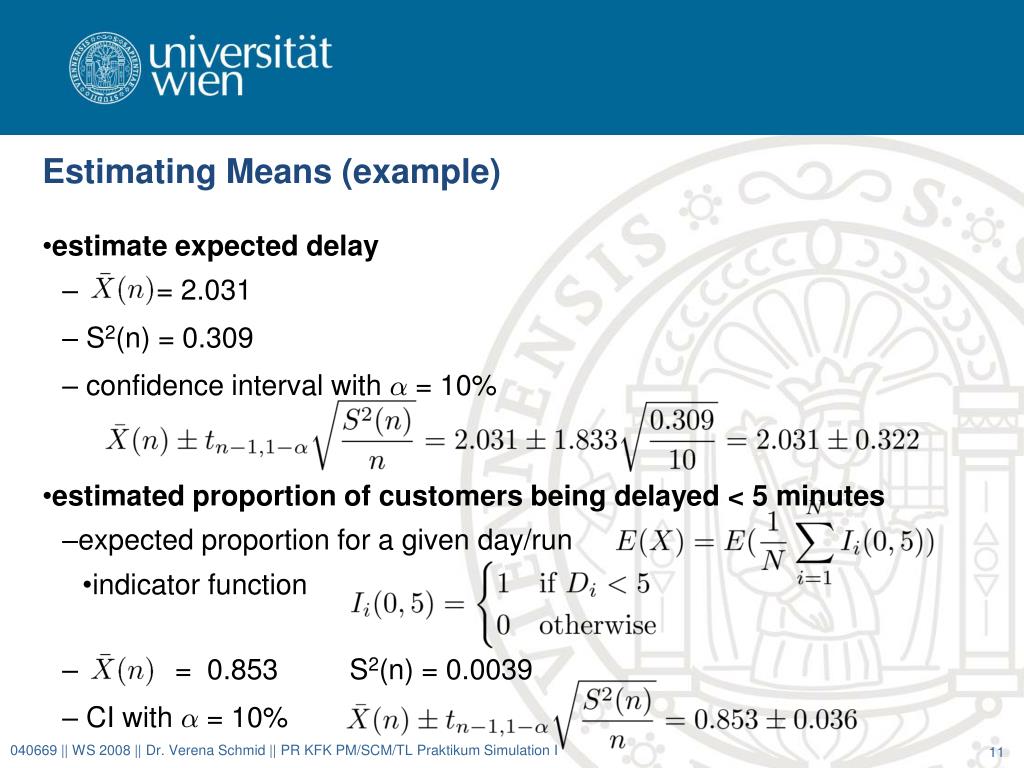

  11. Estimating Means (example) • estimate expected delay • = 2.031 • S2(n) = 0.309 • confidence interval with ® = 10% • estimated proportion of customers being delayed < 5 minutes • expected proportion for a given day/run • indicator function • = 0.853 S2(n) = 0.0039 • CI with ® = 10% 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

  12. Obtaining a desired precision • so far • fixed sample size procedure (based on n replications) • disadvantage: no control over the CI’s half length (i.e. precision of ) • half length depends on population variance S2(n) • 2 ways to measure the error in the estimate • absolute error ¯ • relative error ° • resulting number of replications may be random 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

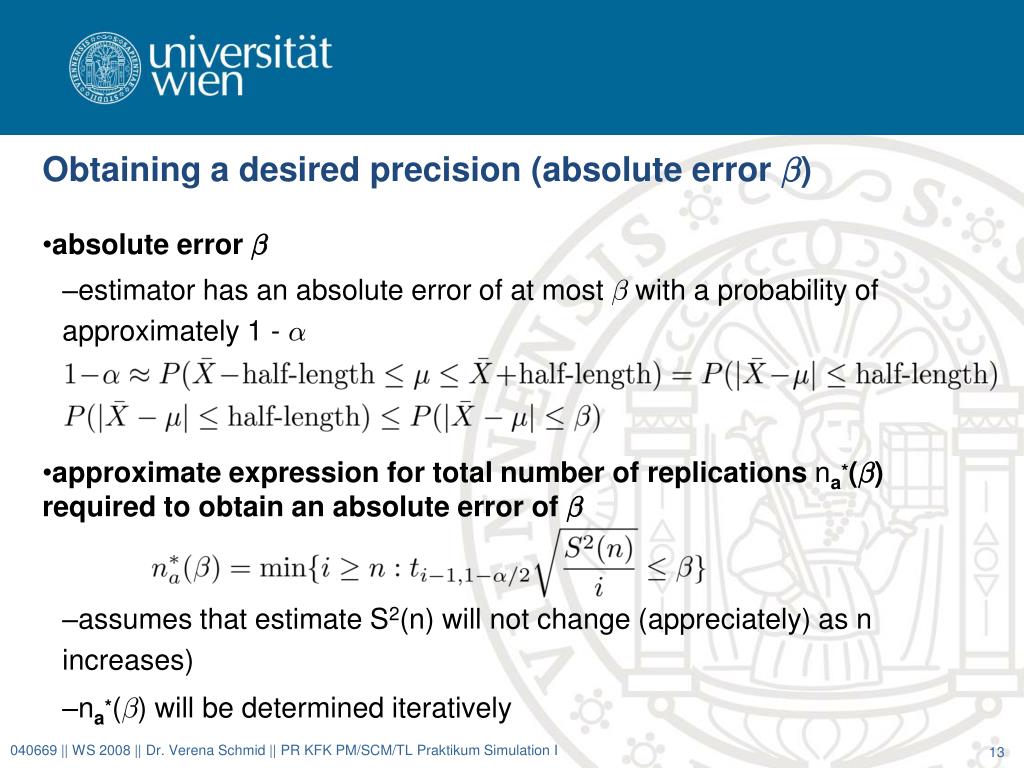

  13. Obtaining a desired precision (absolute error ¯) • absolute error ¯ • estimator has an absolute error of at most ¯ with a probability of approximately 1 - ® • approximate expression for total number of replications na*(¯) required to obtain an absolute error of ¯ • assumes that estimate S2(n) will not change (appreciately) as n increases) • na*(¯) will be determined iteratively 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

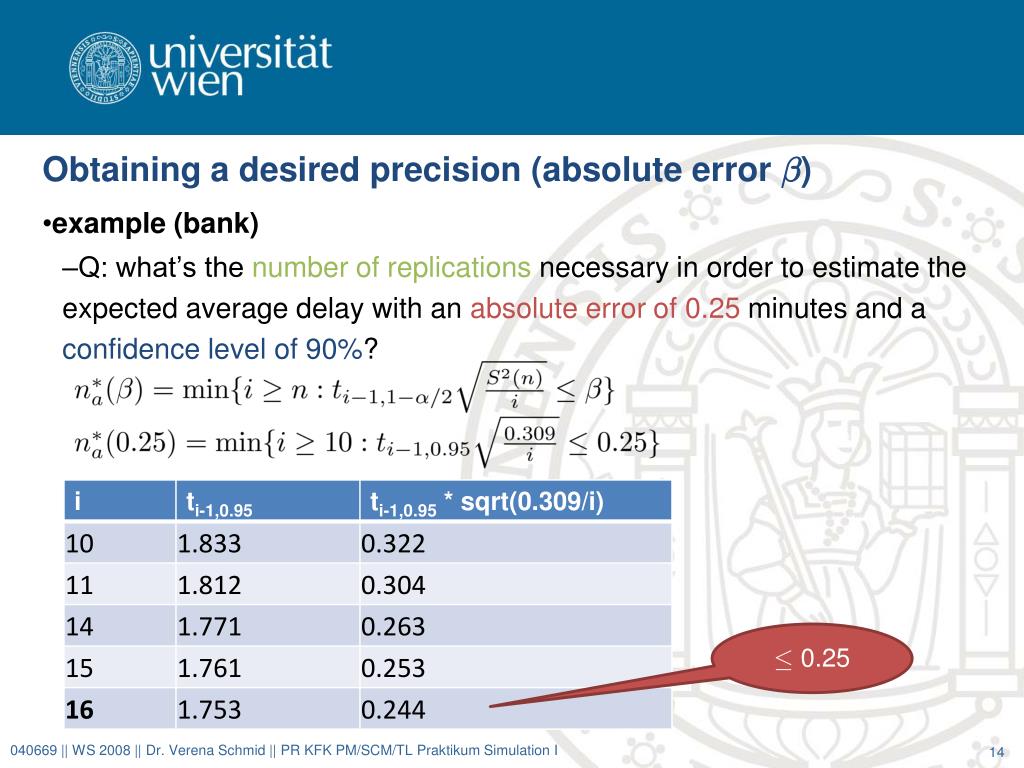

  14. Obtaining a desired precision (absolute error ¯) · 0.25 • example (bank) • Q: what’s the number of replications necessary in order to estimate the expected average delay with an absolute error of 0.25 minutes and a confidence level of 90%? 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

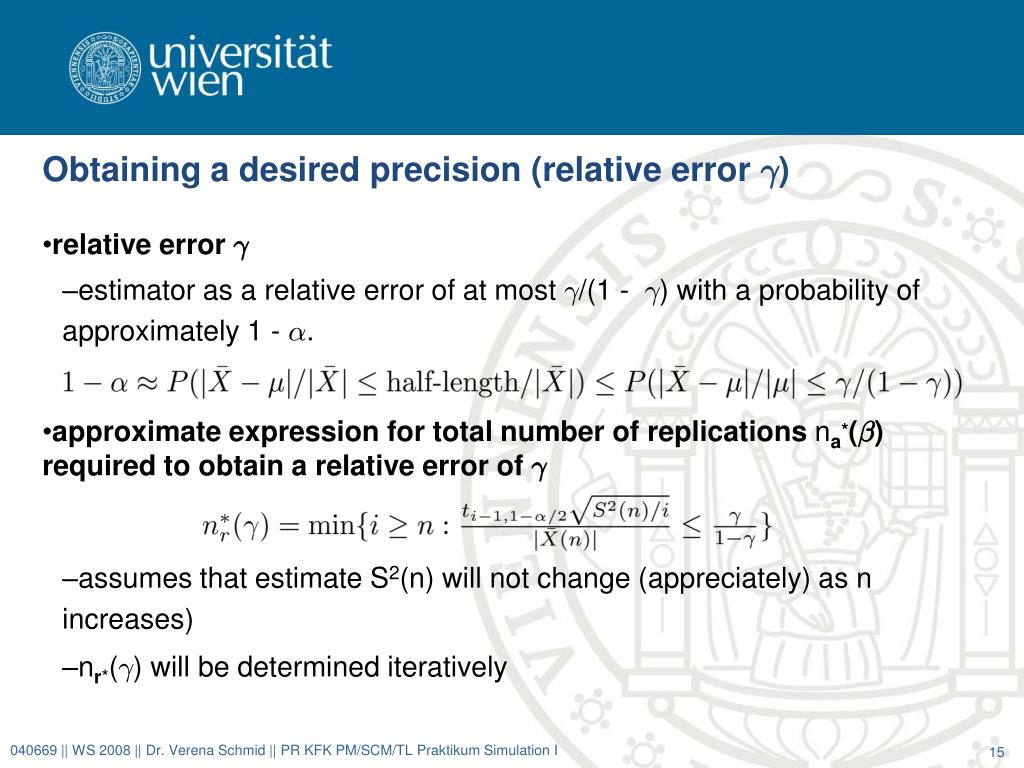

  15. Obtaining a desired precision (relative error °) • relative error ° • estimator as a relative error of at most °/(1 - °) with a probability of approximately 1 - ®. • approximate expression for total number of replications na*(¯) required to obtain a relative error of ° • assumes that estimate S2(n) will not change (appreciately) as n increases) • nr*(°) will be determined iteratively 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

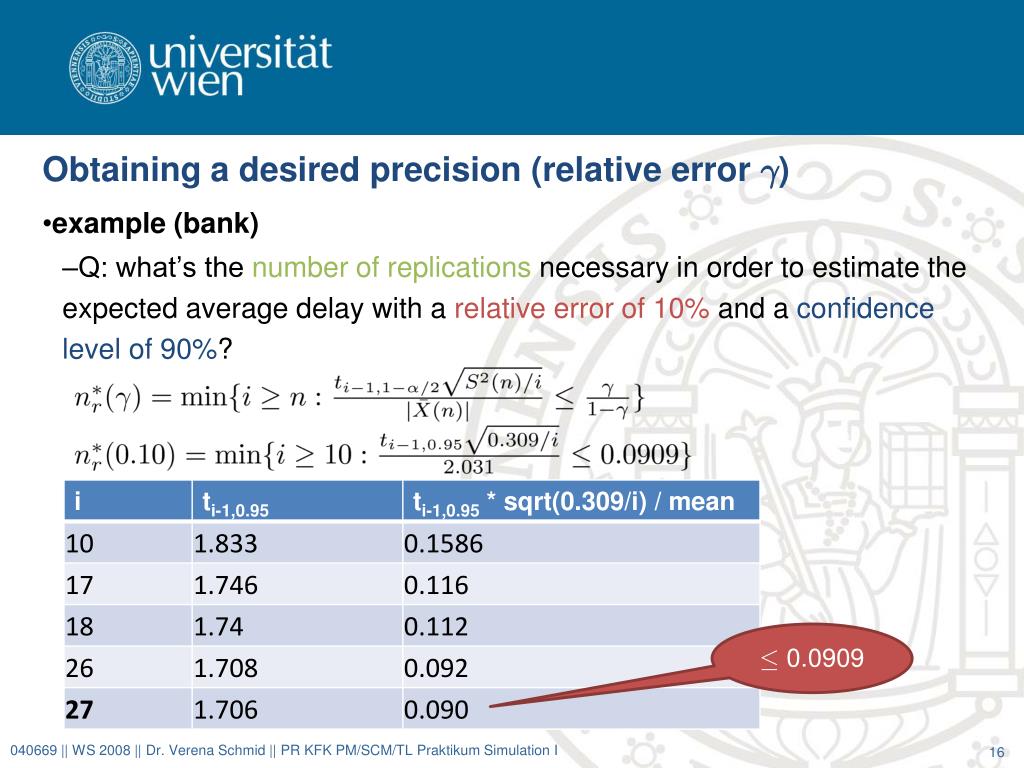

  16. Obtaining a desired precision (relative error °) · 0.0909 • example (bank) • Q: what’s the number of replications necessary in order to estimate the expected average delay with a relative error of 10% and a confidence level of 90%? 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

  17. Estimating other Measures of Performance • be careful! • comparing two systems by some sort of mean may result in misleading conclusions • example: 2 bank policies • 5 queues (one in front of every teller) • 1 queue (that feeds all tellers) 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

  18. Estimating other Measures of Performance still identical? Estimates of expected proportions of delays in interval 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

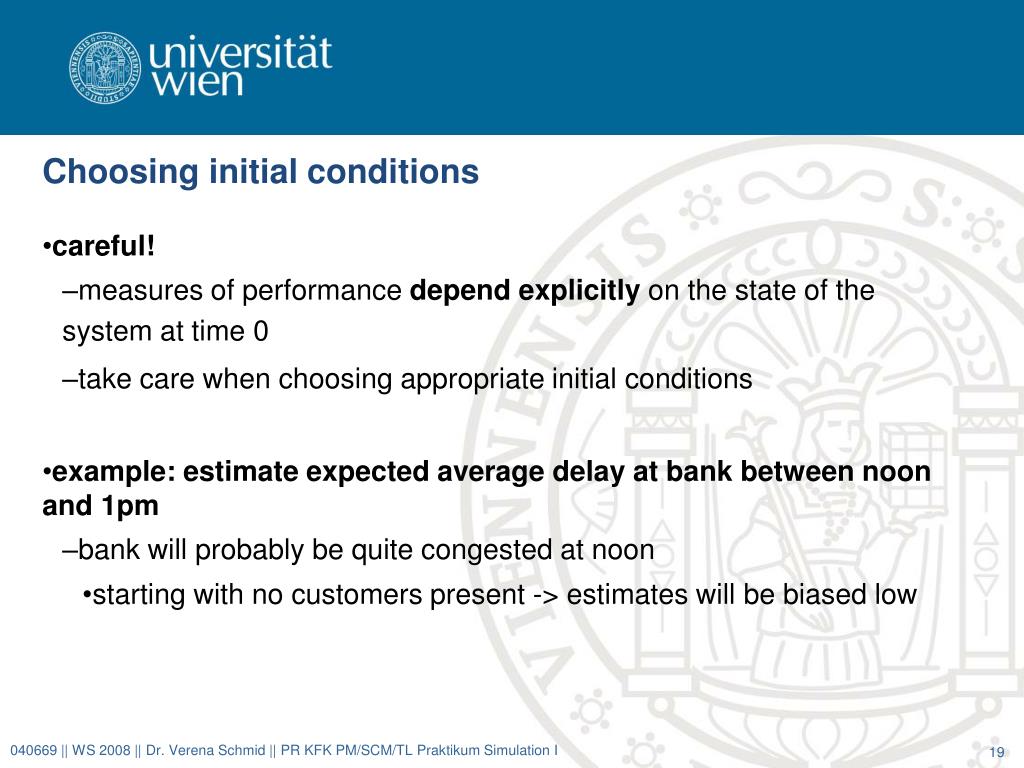

  19. Choosing initial conditions • careful! • measures of performance depend explicitly on the state of the system at time 0 • take care when choosing appropriate initial conditions • example: estimate expected average delay at bank between noon and 1pm • bank will probably be quite congested at noon • starting with no customers present -> estimates will be biased low 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I

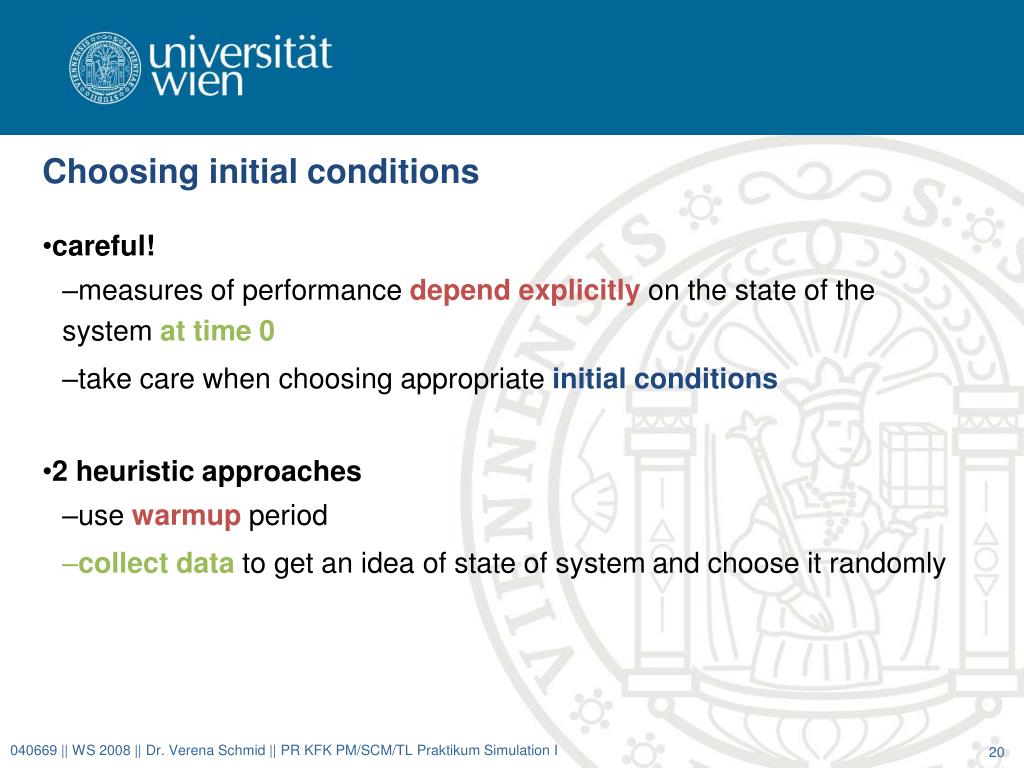

  20. Choosing initial conditions • careful! • measures of performance depend explicitly on the state of the system at time 0 • take care when choosing appropriate initial conditions • 2 heuristic approaches • use warmup period • collect data to get an idea of state of system and choose it randomly 040669 || WS 2008 || Dr. Verena Schmid || PR KFK PM/SCM/TL Praktikum Simulation I
