  1. Finite Automata COP 3402 System Software Spring 2008

  2. A Sample Automata • 1 is the start state • 4 is the final state • abc : recognized • abccabc : recognized • ac : not recognized a b c a 1 2 3 4 c

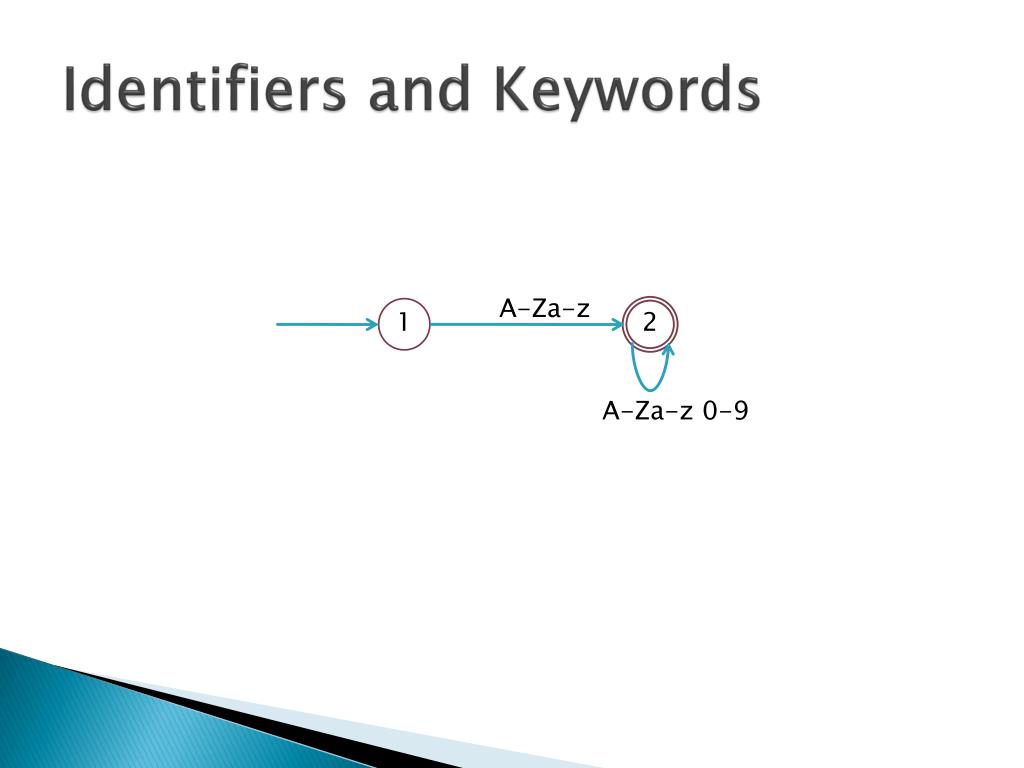

  3. Identifiers and Keywords A-Za-z 1 2 A-Za-z 0-9

  4. Identifiers and Keywords 2 • Allows character ‘-’, e.g. Next_Line • Can not begin with ‘-’ • Can not have consecutive ‘-’ A-Za-z - 1 2 3 A-Za-z 0-9 A-Z 0-9

  5. Integers • Can begin with 0, e.g. 000025 0-9 1 2 0-9

  6. Integers 2 • Can not begin with 0 • Except integer 0, followed by space 0-9 1 2 0 space 3 4 0-9

  7. . 0-9 1 2 4 Float Point Number • Can begin with “0” , e.g. 001.35 • Can end with “.”, e.g. 12. • Can end with “0”, e.g. 3.1400 0-9 0-9

  8. All-In-One Automata A-Za-z . 1 2 3 0-9 4 ;,+-*() 5 : = 6 7 0-9 A-Za-z 0-9

  9. All-In-One Automata A-Za-z . 1 2 3 0-9 4 ;,+-*() 5 : = 6 7 0-9 A-Za-z 0-9

  10. Reserved Words n u l . l 0 33 34 35 1 b e g . i 36 37 38 39 n 21 e n d 40 41 22 i f 42 23

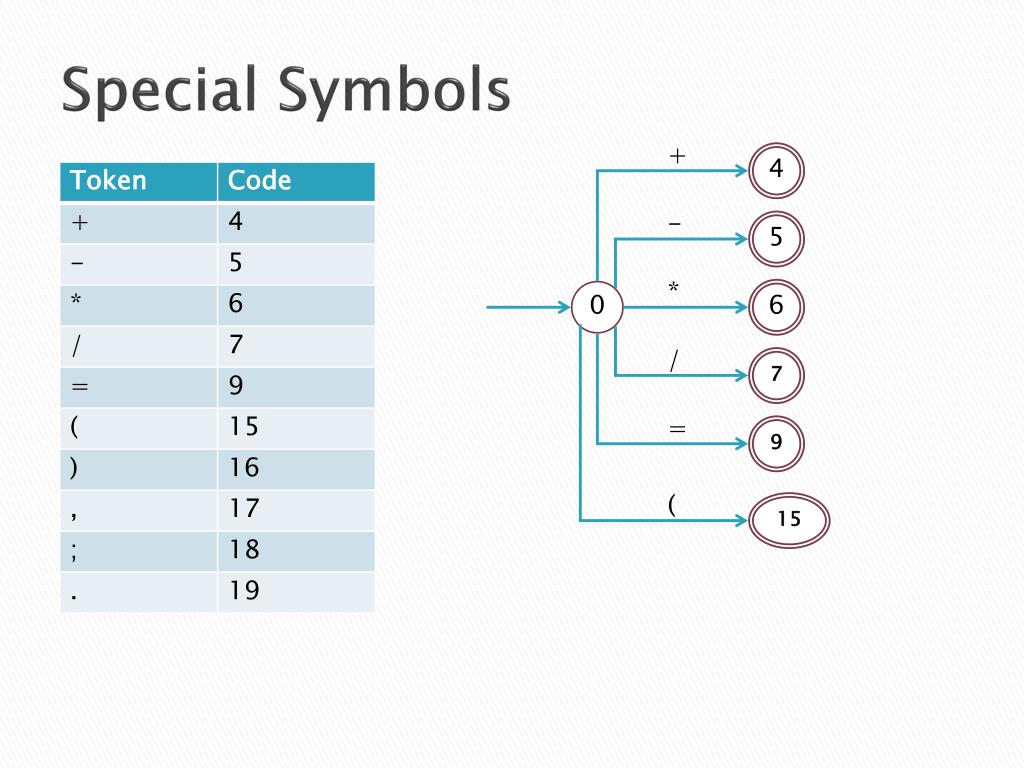

  11. Special Symbols + 4 - 5 * 0 6 / 7 = 9 ( 15
