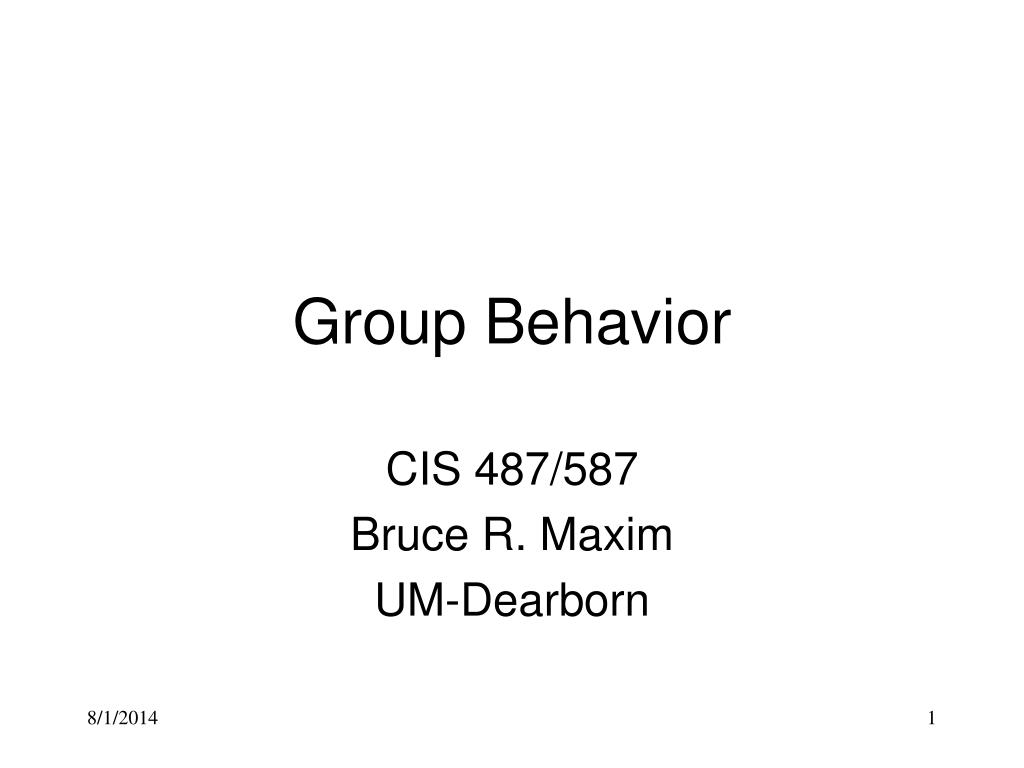

  1. Group Behavior CIS 487/587 Bruce R. Maxim UM-Dearborn

  2. Flocking • Emergent behavior that appears complex and purposeful, but is really derived from simple rules followed blindly by the agents • Composed out of three group behaviors • Cohesion (steering toward neighbors’ center of mass) • Separation (creates force that steers away from neighbors) • Alignment (keeps agent heading in the same direction as neighbors)

  3. Combining Steering Behavior • In an FPS you might want a bot that combines path following, separation, and wall avoidance • In an RTS you might want a group of bots to flock together while wandering, avoiding obstacles, and evading enemies

  4. Slides based on theCode from Advanced 3DGame Programmingby Kenneth Finney

  5. Group Behavior Rules • Members of a group should not bump into one another (collision avoidance) • Each group member should try to maintain its position relative to the center of the group (swarm centering) • Each member of the group should attempt to match its velocity with the average velocity of the other members (velocity matching)

  6. AIDropPoints • Execute the fps.starter demo and open the World Creator Interface • On lower right side, drill down and click on MissionObjects/System/SimGroup • Call the object AIDropPoints and switch to the World Editor Inspector (F3) • Make AIDropPoints an instant group using the Alt key and left mouse button

  7. Swarm • Switch to the World Creator (F4) • On lower right side, drill down and click on MissionObjects/System/SimGroup • Call the object Swarm and switch to the World Editor Inspector (F3) • Make Swarm an instant group using the Alt key and left mouse button

  8. SpawnSphere - 1 • Exit the Mission Editor (F11) and enter camera fly mode (F8) • Find a good location for an swarm and place it 20 feet off the terrain • Switch back to the Mission Editor (F11) and enter World Creator (F4) • Drill down to Shapes/Misc on lower right and click on SpawnSphereMarker • Place at least two more in the world

  9. SpawnSphere - 2 • Switch to World Editor Inspector (F3) • Select all 3 SpawnSpheres in upper left (Ctrl and left mouse click) • Click on expand all • Changes the radius field to 10 and press Apply button • Save the mission and exit to the desktop

  10. Code Modifications • Add this line to the server\script\game.cs function onServerCreated and disable the aiGuard code exec(“./swarm.cs”); // exec(“./aiGuard.cs”); • At the end of the same game.cs file add this line to start the bot placement process Schedule(3000, 0, “CreateBots”); • Save game.cs and copy the file swarm.cs to the server\script folder

  11. Test Swarm • Run the test application again. • Open the console and type InitSwarm( ); • To add some more bots to the swarm type SpawnASwarm( ); • Close the console window and watch them go

  12. Chasing Swarm • Replace the SwarmBotDB::DoScan function in the file swarm.cs • Add the code for functions AIPlayer::FindLeader AIPLayer::GetClosestHuman • Save the file and get ready to test the new behavior

  13. Test Chasing Swarm • Run the test application again. • Open the console and type InitSwarm( ); • To add some more bots to the swarm type SpawnASwarm( ); • Close the console window and watch them go • See how close (or far away) to get swarm to chase the player avatar
