Postorder traversal. Ed. 2. and 3.: Chapter 6 – Ed. 4.: Chapter 7 -. Postorder Traversal. Algorithm postorder(T,v): for each child w of v call postorder(T,w) perform the “visit” action for node v. postorder(T,v). v. postorder(T,w). w. Postorder Traversal of a Binary Tree.

katen
Télécharger la présentation

Postorder traversal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Postorder traversal • Ed. 2. and 3.: Chapter 6 – • Ed. 4.: Chapter 7 -

  2. Postorder Traversal

  3. Algorithm postorder(T,v): for each child w of v call postorder(T,w) perform the “visit” action for node v postorder(T,v) v postorder(T,w) w

  4. Postorder Traversal of a Binary Tree

  5. Postorder traversal using Stack Algorithm stack-postorder(T, v) establish stack S; S.push(v) while (S in not empty) do { u := S.top(); if (u is leaf or marked) then {visit u; S.pop();} else mark the top element of S; let u1, u2, …, un be the children of u; for (j = n; j >= 1; j--) S.push(uj); } }

  6. 0 1 2 3 4 5 6 7 8 9 a d f e h b k … Storing a tree onto disk file: a i = 0 node 0 d i = 1 node 1 e i = 2 node 2 …

  7. 0 1 2 3 4 5 6 7 8 9 a d f e h b k … Storing a tree onto disk file: a i = 0 node 0 1 4 d i = 1 node 1 2 3 e i = 2 node 2 h … …

  8. 3 7 8 A B+-tree pinternal = 3, pleaf = 2. 5 1 3 5 6 7 8 9 12 Records in a file

  9. Storing a tree onto disk We search a tree in preorder and use a special stack data structure to control the traversal in such a way the parent address can be recorded. parent address data flag to indicate left or right child

  10. Storing a tree onto disk Algorithm storing-tree(T, v) establish stack S; i = 0; S.push((v, 0, -1)) while (S in not empty) do { u := S.pop(); store u.Data in address i*3; if (u.Parent-address is not equal to –1) then {if (u.Flag == 0) then j := 0; else j := 1; store i in address (u.Parent-address)*3 + 1 + j;} let u1, u2 be the left and right child of u, respectively; S.push((u2, 1, i)); S.push((u1, 0, i)); i++; } -1 indicates that the corresponding node is the root.

  11. Lab: The tree shown in the following figure represents an expression: (((( 3 + 1 ) * 3 ) / (( 9 - 5 ) + 2 )) - (( 3 * ( 7 - 4 )) + 6 )) Please write a Java program to generate this tree and then compute the expression using the postorder searching method.

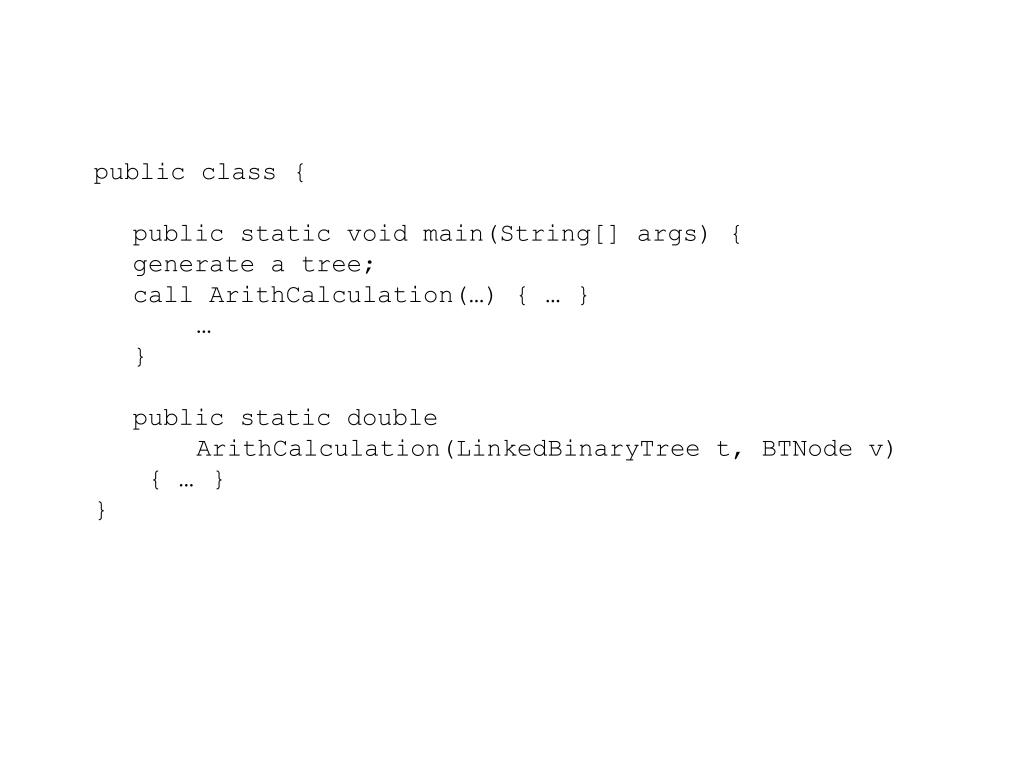

  12. public class { public static void main(String[] args) { generate a tree; call ArithCalculation(…) { … } … } public static double ArithCalculation(LinkedBinaryTree t, BTNode v) { … } }

  13. Generate a tree: LinkedBinaryTree tree = new LinkedBinaryTree(); Position p0 = tree.addRoot(new Character('-')); Position p1 = tree.insertLeft(p0, new Character('/')); Position p2 = tree.insertRight(p0, new Character('+')); Position p3 = tree.insertLeft(p1, new Character('*')); Position p4 = tree.insertRight(p1, new Character('+')); Position p5 = tree.insertLeft(p2, new Character('*')); Position p6 = tree.insertRight(p2, new Integer(6)); Position p7 = tree.insertLeft(p3, new Character('+')); Position p8 = tree.insertRight(p3, new Integer(3)); Position p9 = tree.insertLeft(p4, new Character('-'));

  14. Position p10 = tree.insertRight(p4, new Integer(2)); Position p11 = tree.insertLeft(p5, new Integer(3)); Position p12 = tree.insertRight(p5, new Character('-')); Position p13 = tree.insertLeft(p7, new Integer(3)); Position p14 = tree.insertRight(p7, new Integer(1)); Position p15 = tree.insertLeft(p9, new Integer(9)); Position p16 = tree.insertRight(p9, new Integer(5)); Position p17 = tree.insertLeft(p12, new Integer(7)); Position p18 = tree.insertRight(p12, new Integer(4));

  15. Algorithm ArithCalculation(T, v) – return a number Begin if v is a leaf node, then return v’s value; else { a = ArithCalculation(T, v’s leftChild); b = ArithCalculation(T, v’s rightChild); if v == ‘+’, then return a + b; if v == ‘-’, then return a - b; if v == ‘*’, then return a * b; if v == ‘/’, then return a / b; } End

  16. public double calculation(Position v) { double v1 = 0; double v2 = 0; if (hasLeft(v)) v1 = calculation(left(v)); if (hasRight(v)) v2 = calculation(right(v)); if (((BTPosition)v).element() instanceof Integer) return ((Integer)((BTPosition)v).element()).intValue(); else { char i = ((Character)((BTPosition)v).element()).charValue(); switch(i) { case '-': return v1 - v2; case '+': return v1 + v2; case '/': return v1/v2; case '*': return v1*v2; default: { System.out.println("Unrecognized symbol"); return 0;} } } }

  17. /** Returns whether a node has a left child. */ public boolean hasLeft(Position v) //throws InvalidPositionException { Position vv = checkPosition(v); return (vv.getLeft() != null); } /** Returns whether a node has a right child. */ public boolean hasRight(Position v) { //throws InvalidPositionException { Position vv = checkPosition(v); return (vv.getRight() != null); } /** If v is a good binary tree node, cast to BTPosition, else throw exception */ protected BTPosition checkPosition(Position v) throws InvalidPositionException { if (v == null || !(v instanceof BTPosition)) throw new InvalidPositionException("The position is invalid"); return (BTPosition) v; }
