  1. A Decision Support System for Supplier Evaluation and Order Allocation M.A. Thesis By Emir Göçen Supervised by Aslı Sencer Department of MIS November 2008

  2. Objectives of the Thesis Study • Focus on the improvement of supplier evaluation and order allocation process of one of the leaders of the white-good manufacturers in Turkey. • Develop a decision support system (DSS) to increase the quality and speed of decision making for this company.

  3. Related Studies in Recent Literature Four inspiring studies: Ghodsypour & O’Brien (1998): AHP-LP Çebi & Bayraktar (2003): AHP & LGP Wang et al. (2004-2005): AHP &PGP • Other studies: • Dağdeviren & Eren (2001) • Ghodsypour & O’Brien (2001) • Lee et al. (2001) • Muralidharan et al. (2001) • Bayazit & Karpak (2005) • Bei et al. (2006) • Perçin (2006) • Aguezzoul & Ladet (2007) • Pehlivan (2007) • ... 3

  4. Current Purchasing Process Budget is approved by the management. List of possible suppliers are given to the Purchasing Dept. Marketing Dept. forecasts next years sales figures. Production Dept. runs MRP and calculates the supply item requirements. Supplier performance evaluation is conducted twice a year. Production Dept. gives order directly to the suppliers through ERP. Tough negotiations are made with suppliers for annual order allocation. Suppliers are selected 4

  5. Analytic Hierarchy Process A multi-criteria decision making methodology developed by Thomas Saaty in 1986. Enables decision makers to design the decision making process in a hierarchical structure, demonstrating the relationship between the aim, criteria and the alternatives. Fundamental scale given below is used in pair-wise comparisons. 5

  6. Supplier Evaluation Model Proposed 6

  7. Goal Programming Model Concepts of linear programming expanded to meet the multi-objective conditions for optimum target levels. • General form of goal programming model: 7

  8. Order Allocation Model Proposed Goals included in the model: Maximize the overall utility Minimize total cost Maximize overall delivery performace Minimize defective material level Maximize overall rework performance • Regular constraints included in the model: • Satisfy demand • Satisfy supplier quantitiy • Allocate a minimum order • The objective of the model: • Minimize the deviation from the goal targets 8

  9. Order Allocation Model 9

  10. Order Allocation Model 10

  11. Order Allocation Model 11

  12. Order Allocation Model 12

  13. Order Allocation Model 13

  14. DSS Framework Database Supplier Inputs Supplier Inputs Supplier Inputs Annual Quota Allocation Among Suppliers Sensitivity Reports Scenario Analysis Supplier Evaluation Model (AHP) Order Allocation Model (GP) Supplier Grades Goals & Other Inputs -Annual Quota - ... Criteria Weights Supplier Comparison 14

  15. Conclusion • DSS is developed to improve the quality and the speed of the decision making process of the company. • It has been stated by the purchasing managers that it was difficult to make sure that the comparisons of main and sub-criteria were consistent. Software is enhanced to give feedback and detailed information on consistency is provided. • Another feedback was that the order allocation model only consisted of quantitative goals and constraints. It has been emphasized that the DSS is a tool to aid the decision maker and it is not developed to replace the decision maker. It has been proposed to develop scenario analysis function for the DSS. 15

  16. Conclusion (cont’d) • As future work, simulation can be integrated to the DSS after the execution of the order allocation model. Applying Monte Carlo simulation, the real world imitation of the purchasing process can be realized. • Another enhancement can be developing the supplier evaluation model with group decision making perspective. In that case, the decision makers will list the main and sub-criteria and vote for them seperately. Then the selected criteria will be evalauted by each decision maker and the overall supplier grades will be calculated according to the weightings of each decision maker on the evaluation process. 16

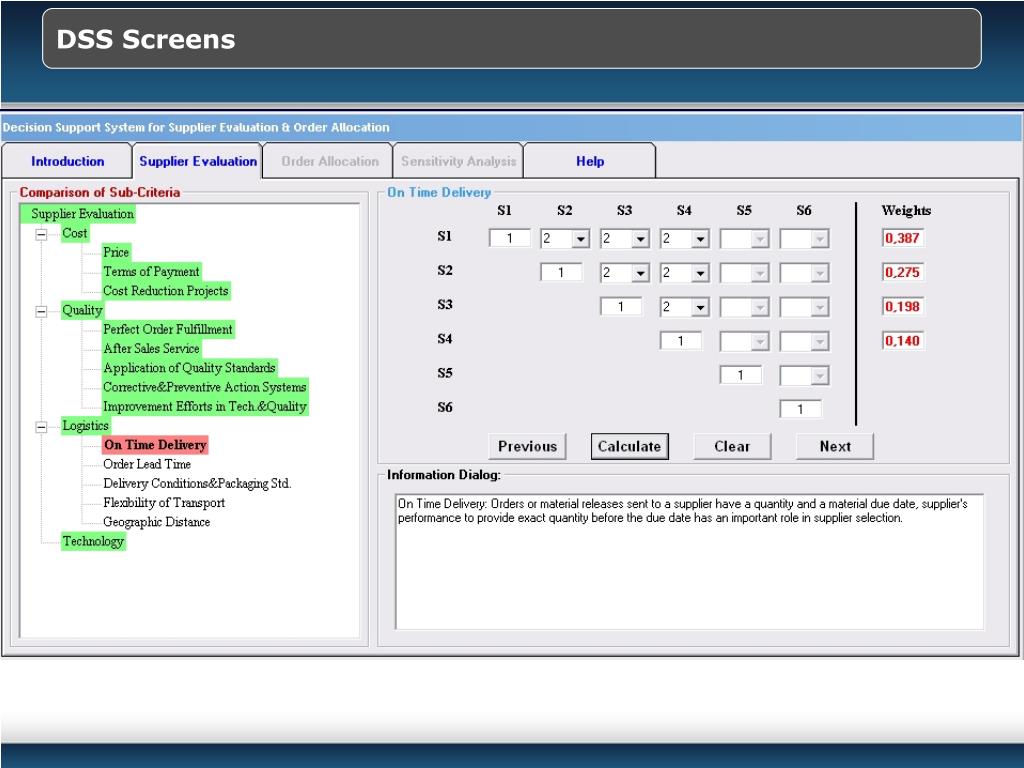

  17. DSS Screens

  18. DSS Screens

  19. DSS Screens

  20. DSS Screens

  21. DSS Screens

  22. DSS Screens

  23. DSS Screens

  24. DSS Screens

  25. DSS Screens

  26. DSS Screens

  27. DSS Screens

  28. DSS Screens

  29. DSS Screens

  30. DSS Screens

  31. DSS Screens

  32. DSS Screens

  33. DSS Screens

  34. DSS Screens

  35. DSS Screens

  36. DSS Screens

  37. DSS Screens

  38. DSS Screens

  39. DSS Screens

  40. DSS Screens

  41. DSS Screens

  42. DSS Screens

  43. DSS Screens

  44. DSS Screens

  45. DSS Screens

  46. DSS Screens

  47. DSS Screens
