  1. Programming Data-Driven WebSites(ASPX, Active Server Pages) Chris North CS 4604: DB

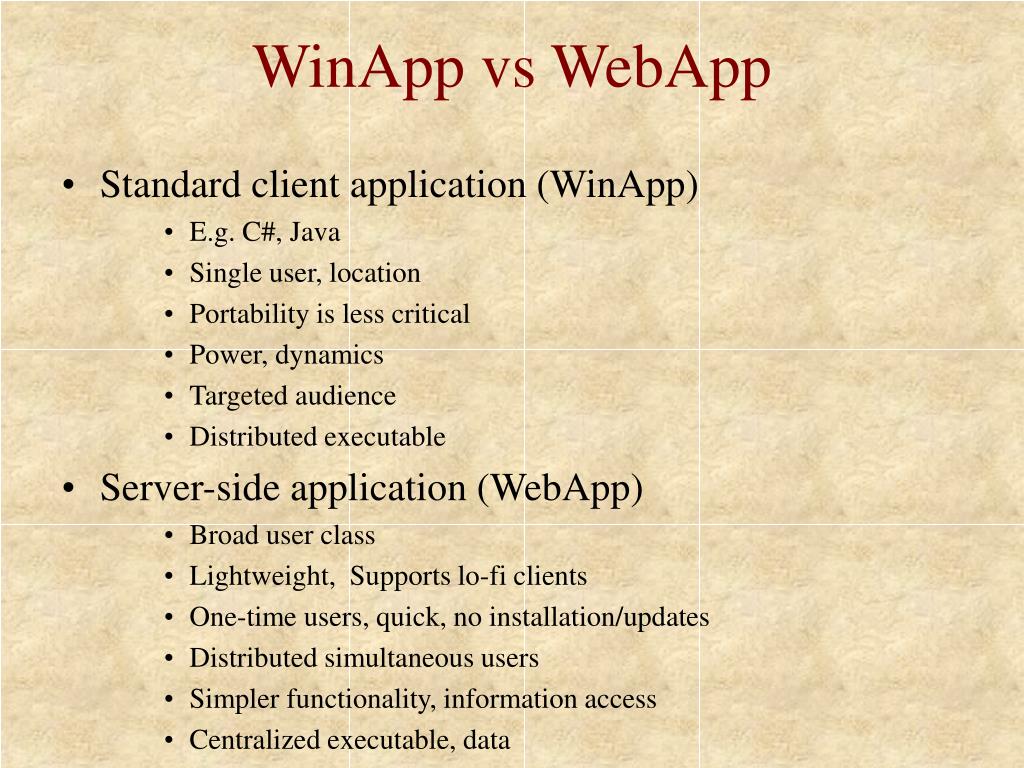

  2. WinApp vs WebApp • Standard client application (WinApp) • E.g. C#, Java • Single user, location • Portability is less critical • Power, dynamics • Targeted audience • Distributed executable • Server-side application (WebApp) • Broad user class • Lightweight, Supports lo-fi clients • One-time users, quick, no installation/updates • Distributed simultaneous users • Simpler functionality, information access • Centralized executable, data

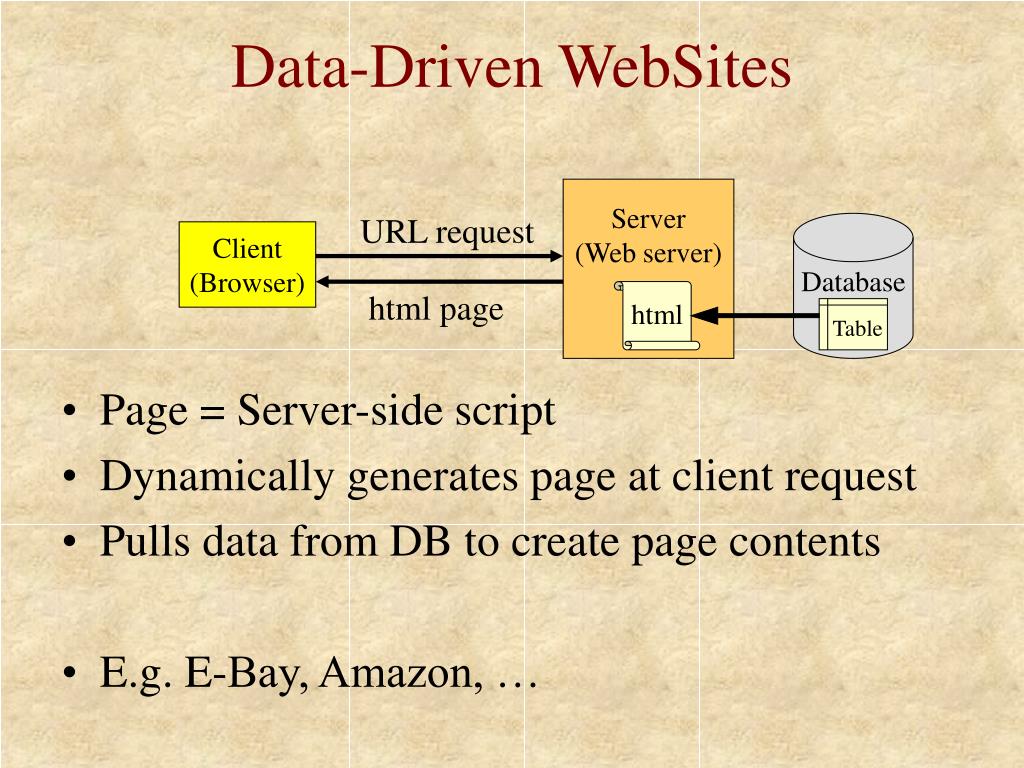

  3. Data-Driven WebSites • Page = Server-side script • Dynamically generates page at client request • Pulls data from DB to create page contents • E.g. E-Bay, Amazon, … Server (Web server) URL request Database Client (Browser) html page html Table

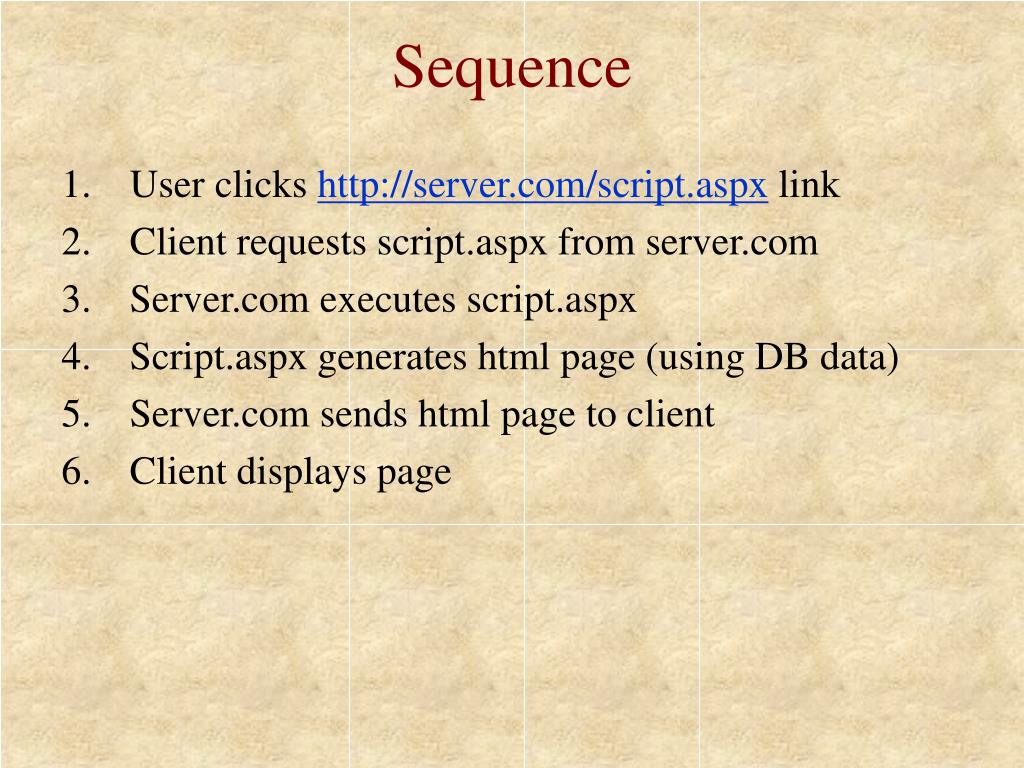

  4. Sequence • User clicks http://server.com/script.aspx link • Client requests script.aspx from server.com • Server.com executes script.aspx • Script.aspx generates html page (using DB data) • Server.com sends html page to client • Client displays page

  5. Example Amazon.com server Books.asp Cart.asp Purchase.asp • Charges credit card • Displays ‘thankyou’ • Link back to books • Shows books list • Add to cart • View cart button • Displays cart contents • Delete items • Purchase button

  6. ASPX • Microsoft Active Server Pages, .Net • IIS server • Old ASP: • Html with embedded server scripts • Session support • Visual Basic script • ASPX .Net: • Separation of html and code • Additional state-preservation capability • C# (or any other lang) • Visual Studio .net, C# Web Application If install IIS after install VStudio .Net, must run: C:/windows/MS.net/framework/Vx.x/aspnet_regiis.exe -i

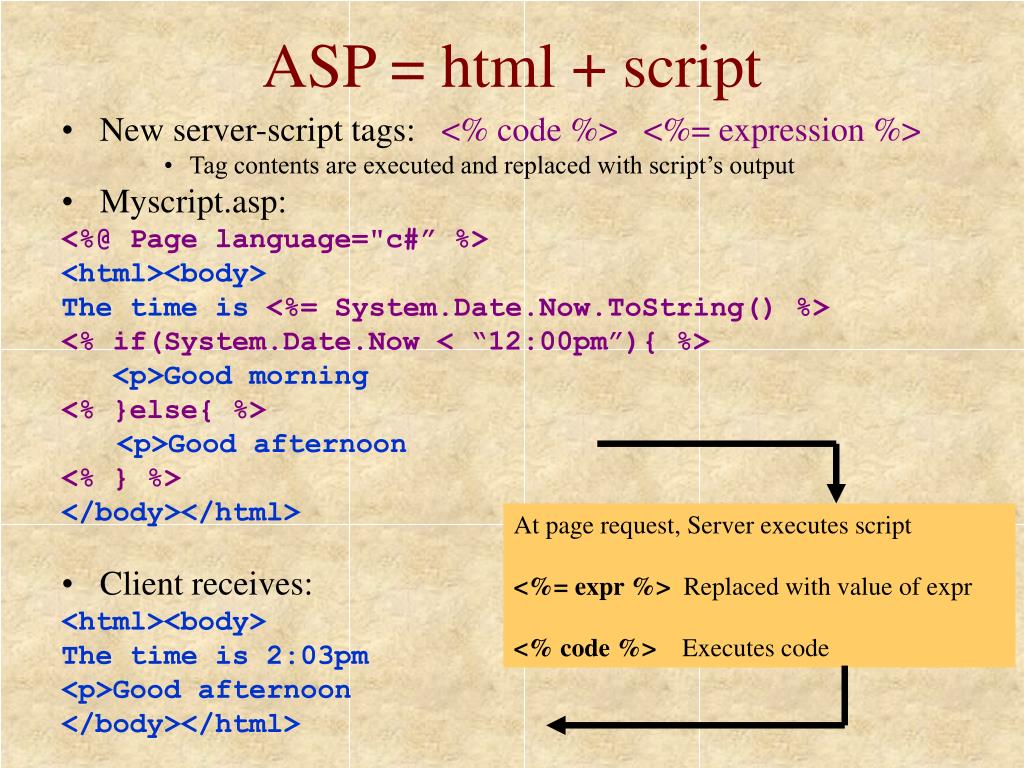

  7. ASP = html + script • New server-script tags: <% code %> <%= expression %> • Tag contents are executed and replaced with script’s output • Myscript.asp: <%@ Page language="c#” %> <html><body> The time is <%= System.Date.Now.ToString() %> <% if(System.Date.Now < “12:00pm”){ %> <p>Good morning <% }else{ %> <p>Good afternoon <% } %> </body></html> • Client receives: <html><body> The time is 2:03pm <p>Good afternoon </body></html> At page request, Server executes script <%= expr %> Replaced with value of expr <% code %> Executes code

  8. ASPX: Separate code • .aspx = html with asp tags • .aspx.cs = associated Csharp code • Also supports ASP-style embedded code • Env. similar to WinApp, execution different • Execution order: • Constructor, OnInit (auto-generated code) • Page load • Any events from form submit request • Embedded code in .aspx

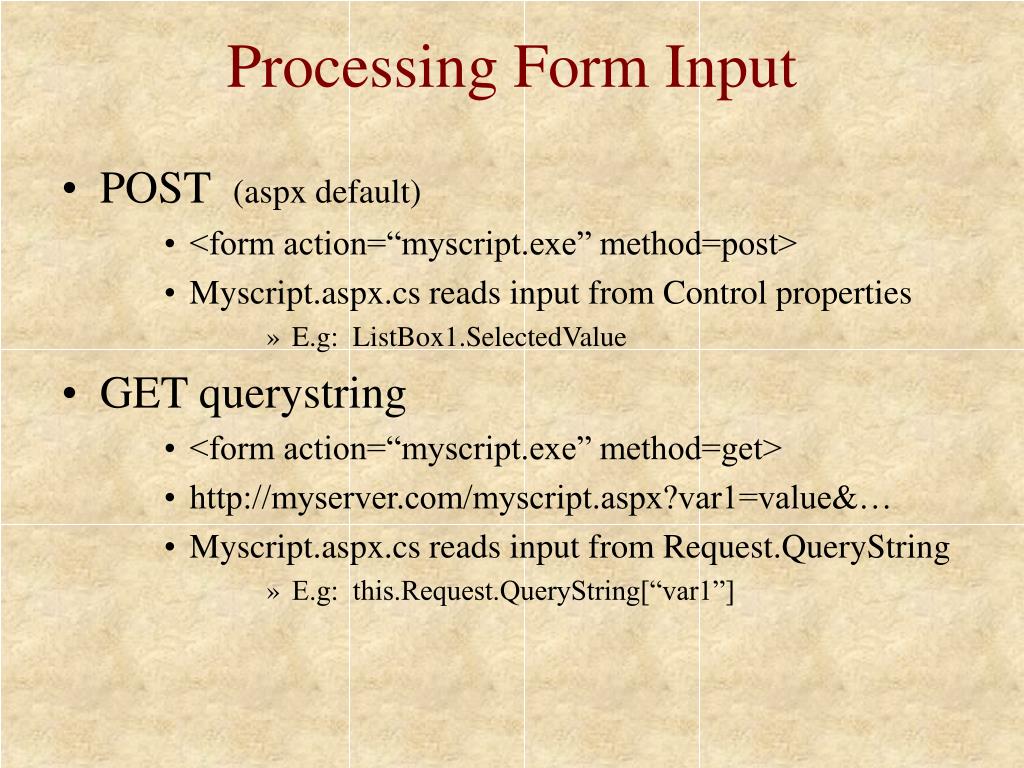

  9. Processing Form Input • POST (aspx default) • <form action=“myscript.exe” method=post> • Myscript.aspx.cs reads input from Control properties • E.g: ListBox1.SelectedValue • GET querystring • <form action=“myscript.exe” method=get> • http://myserver.com/myscript.aspx?var1=value&… • Myscript.aspx.cs reads input from Request.QueryString • E.g: this.Request.QueryString[“var1”]

  10. Problems • Many simultaneous users • Who’s who? • Request-Response HTTP model (page requests are independent) • How to maintain contiguous program state? • UI (browser) disconnect from back-end (server) • How to keep UI in sync with back-end? (e.g. ‘Back’ button) … Books.asp Cart.asp Purchase.asp

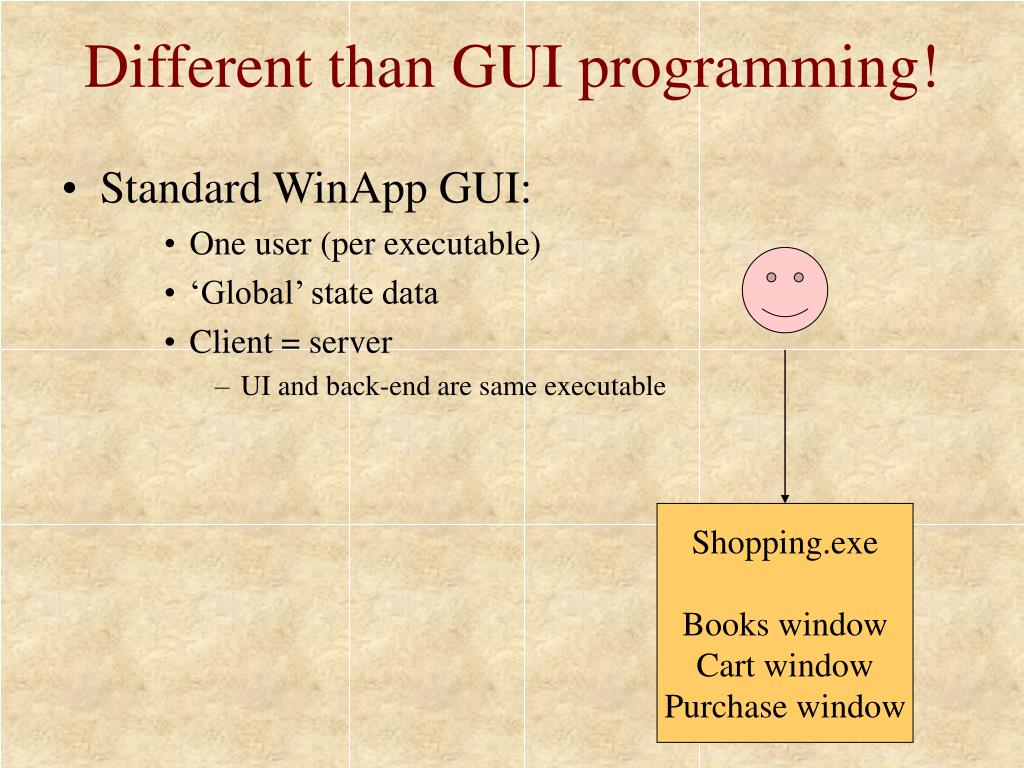

  11. Different than GUI programming! • Standard WinApp GUI: • One user (per executable) • ‘Global’ state data • Client = server • UI and back-end are same executable Shopping.exe Books window Cart window Purchase window

  12. Solutions in ASPX • Provides user ‘session’ awareness • (a) Recognizes users by cookies • (b) Maintains contiguous state info for each user in global storage. • E.g: this.session[“var1”] • (c) Keeps page state info in a hidden form item. • Maintains properties of all UI controls • Automatic • Who is the user? • What is his data? • Where is he in the ‘application’?

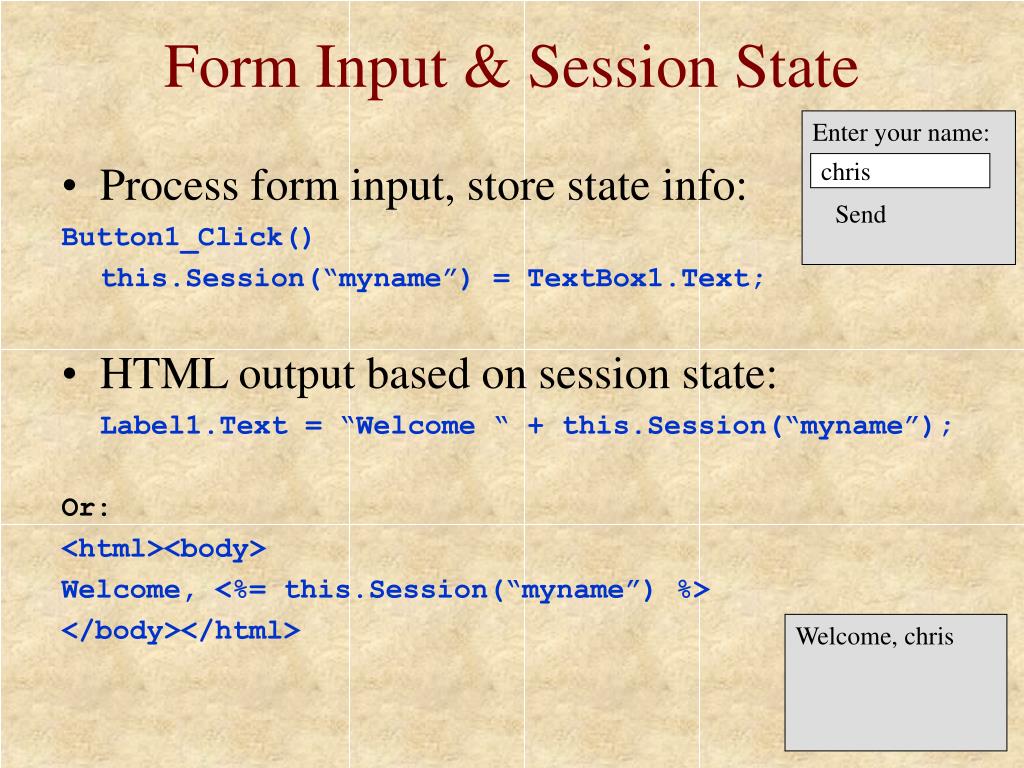

  13. Form Input & Session State Enter your name: • Process form input, store state info: Button1_Click() this.Session(“myname”) = TextBox1.Text; • HTML output based on session state: Label1.Text = “Welcome “ + this.Session(“myname”); Or: <html><body> Welcome, <%= this.Session(“myname”) %> </body></html> chris Send Welcome, chris

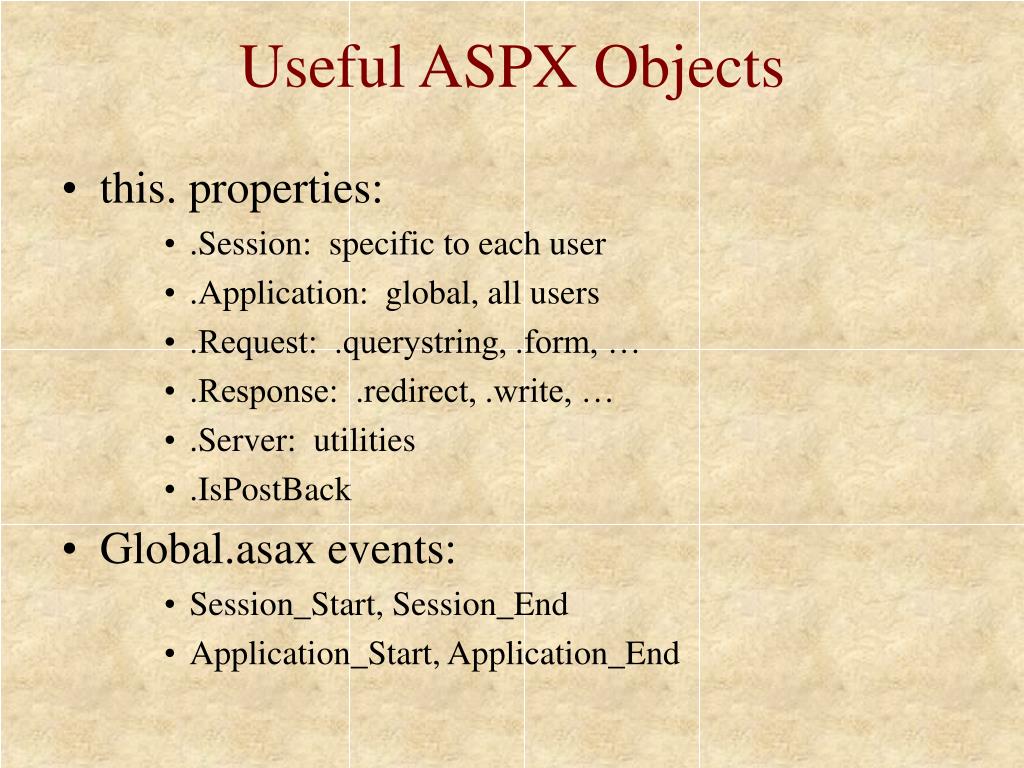

  14. Useful ASPX Objects • this. properties: • .Session: specific to each user • .Application: global, all users • .Request: .querystring, .form, … • .Response: .redirect, .write, … • .Server: utilities • .IsPostBack • Global.asax events: • Session_Start, Session_End • Application_Start, Application_End

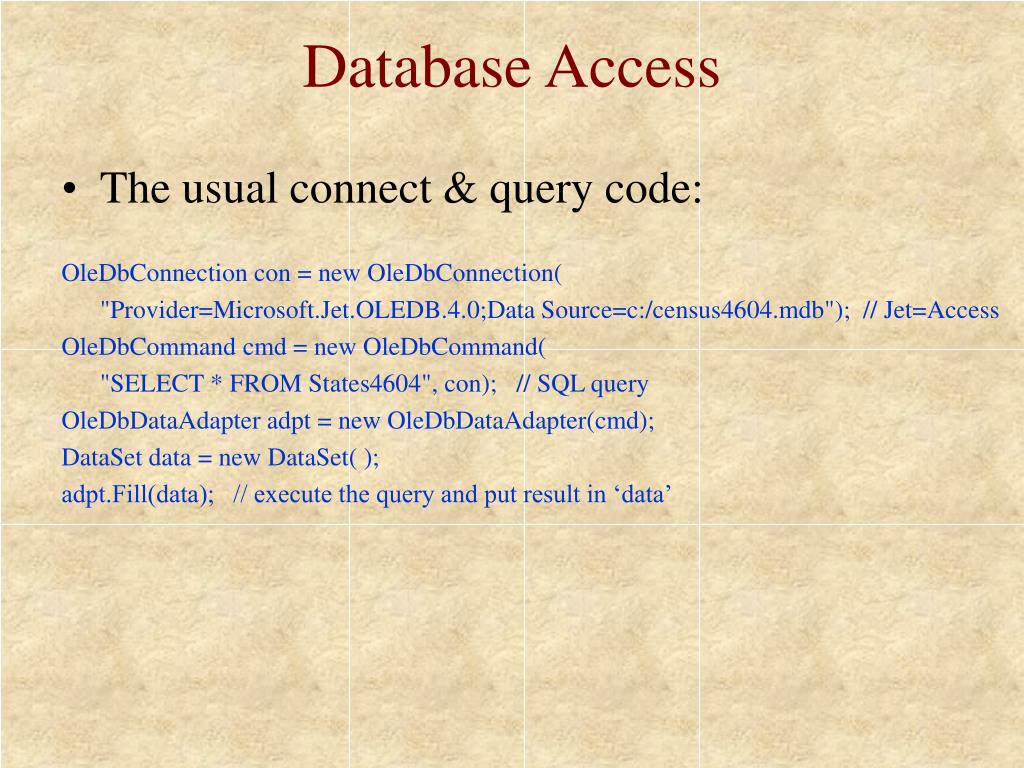

  15. Database Access • The usual connect & query code: OleDbConnection con = new OleDbConnection( "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=c:/census4604.mdb"); // Jet=Access OleDbCommand cmd = new OleDbCommand( "SELECT * FROM States4604", con); // SQL query OleDbDataAdapter adpt = new OleDbDataAdapter(cmd); DataSet data = new DataSet( ); adpt.Fill(data); // execute the query and put result in ‘data’

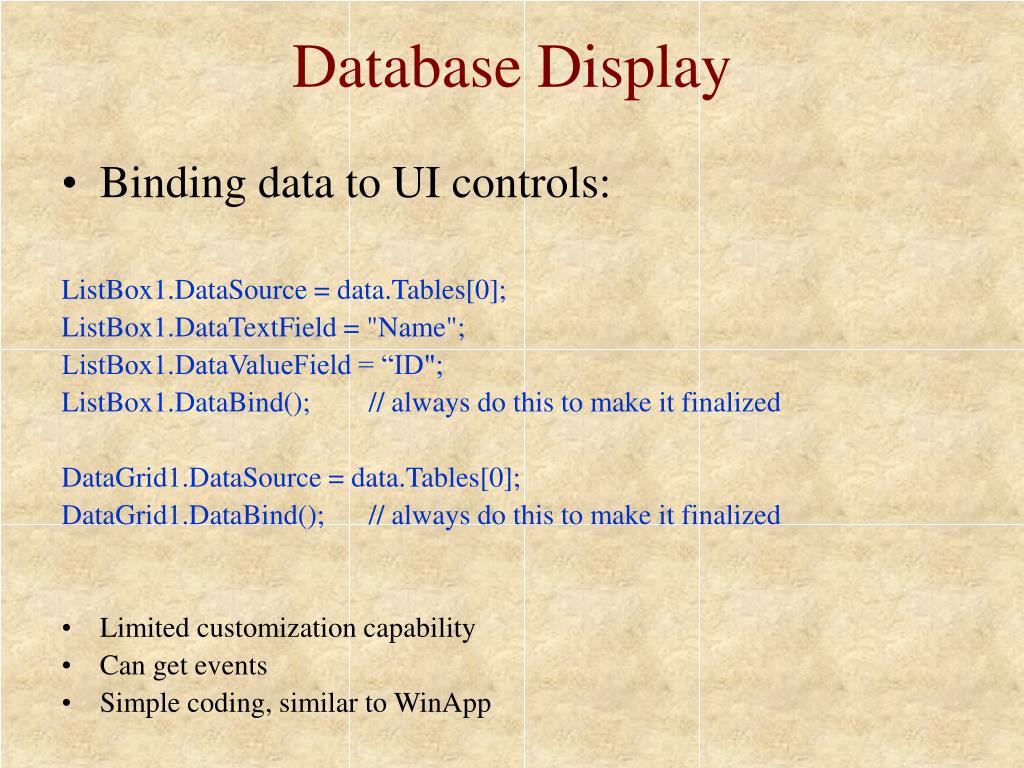

  16. Database Display • Binding data to UI controls: ListBox1.DataSource = data.Tables[0]; ListBox1.DataTextField = "Name"; ListBox1.DataValueField = “ID"; ListBox1.DataBind(); // always do this to make it finalized DataGrid1.DataSource = data.Tables[0]; DataGrid1.DataBind(); // always do this to make it finalized • Limited customization capability • Can get events • Simple coding, similar to WinApp

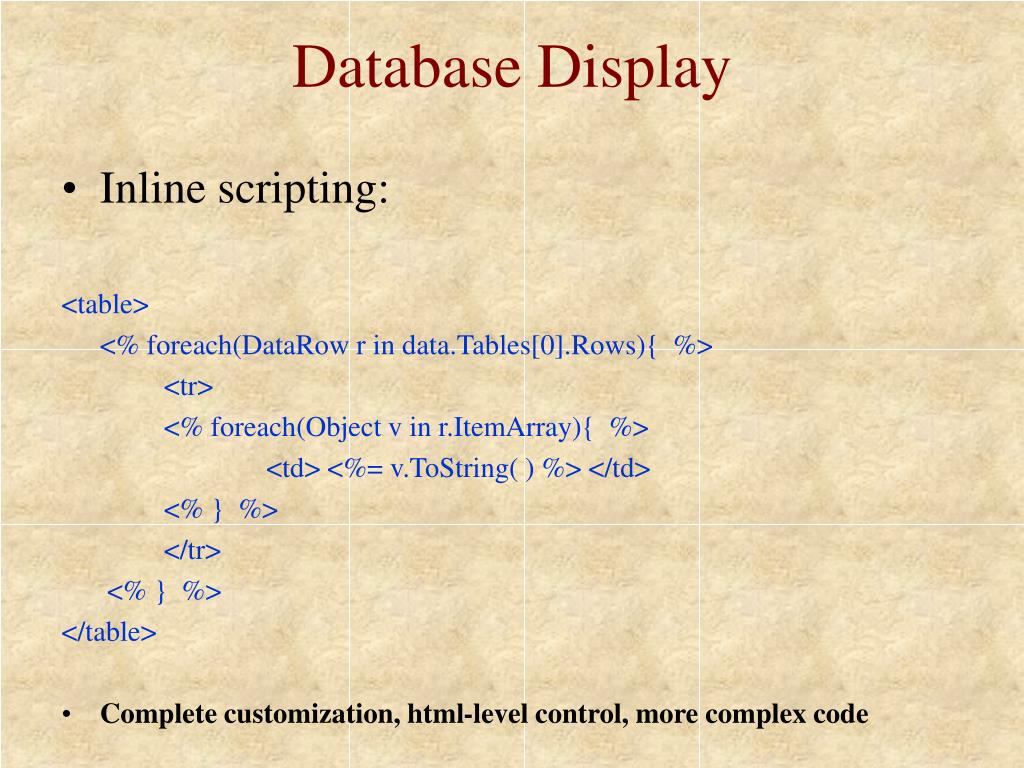

  17. Database Display • Inline scripting: <table> <% foreach(DataRow r in data.Tables[0].Rows){ %> <tr> <% foreach(Object v in r.ItemArray){ %> <td> <%= v.ToString( ) %> </td> <% } %> </tr> <% } %> </table> • Complete customization, html-level control, more complex code

  18. Database Display • Repeater control (combines binding & inline) In file.aspx.cs: Repeater1.DataSource = data.Tables[0]; Repeater1.DataBind(); In file.aspx: <asp:repeater id="Repeater1" runat="server"> <HeaderTemplate> <ul> </HeaderTemplate> <ItemTemplate> <li> <%# DataBinder.Eval(Container, "DataItem.Name") %> </li> </ItemTemplate> <FooterTemplate> </ul> </FooterTemplate> </asp:repeater> • Compromise: some customization, some automation

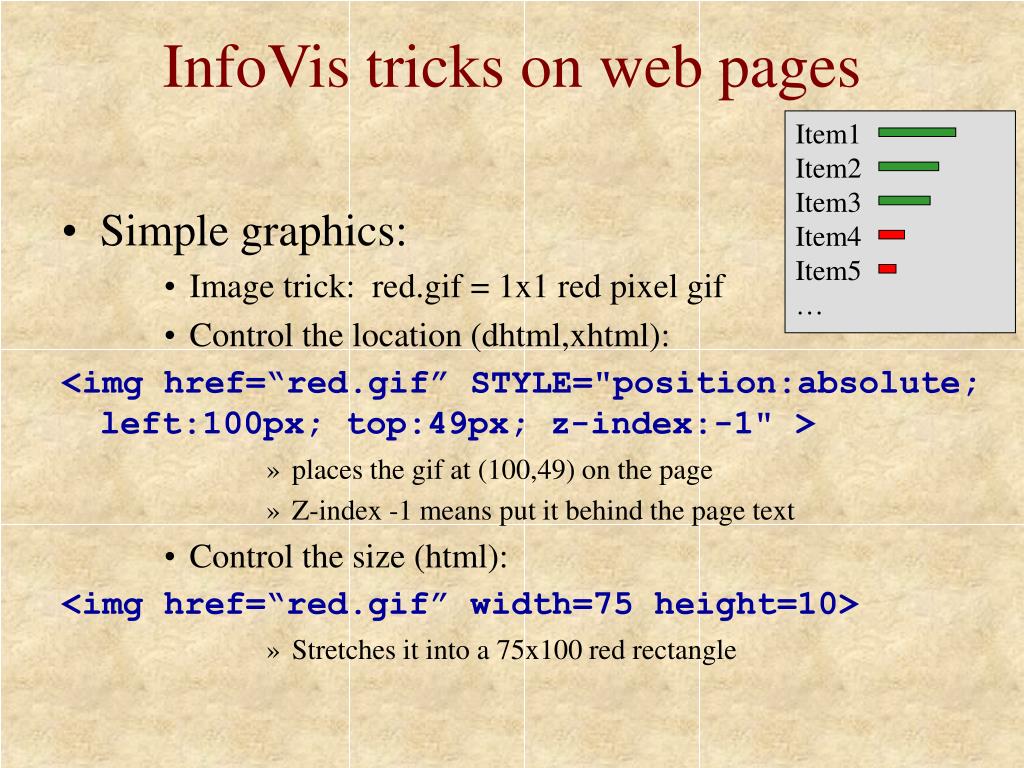

  19. InfoVis tricks on web pages Item1 Item2 Item3 Item4 Item5 … • Simple graphics: • Image trick: red.gif = 1x1 red pixel gif • Control the location (dhtml,xhtml): <img href=“red.gif” STYLE="position:absolute; left:100px; top:49px; z-index:-1" > • places the gif at (100,49) on the page • Z-index -1 means put it behind the page text • Control the size (html): <img href=“red.gif” width=75 height=10> • Stretches it into a 75x100 red rectangle

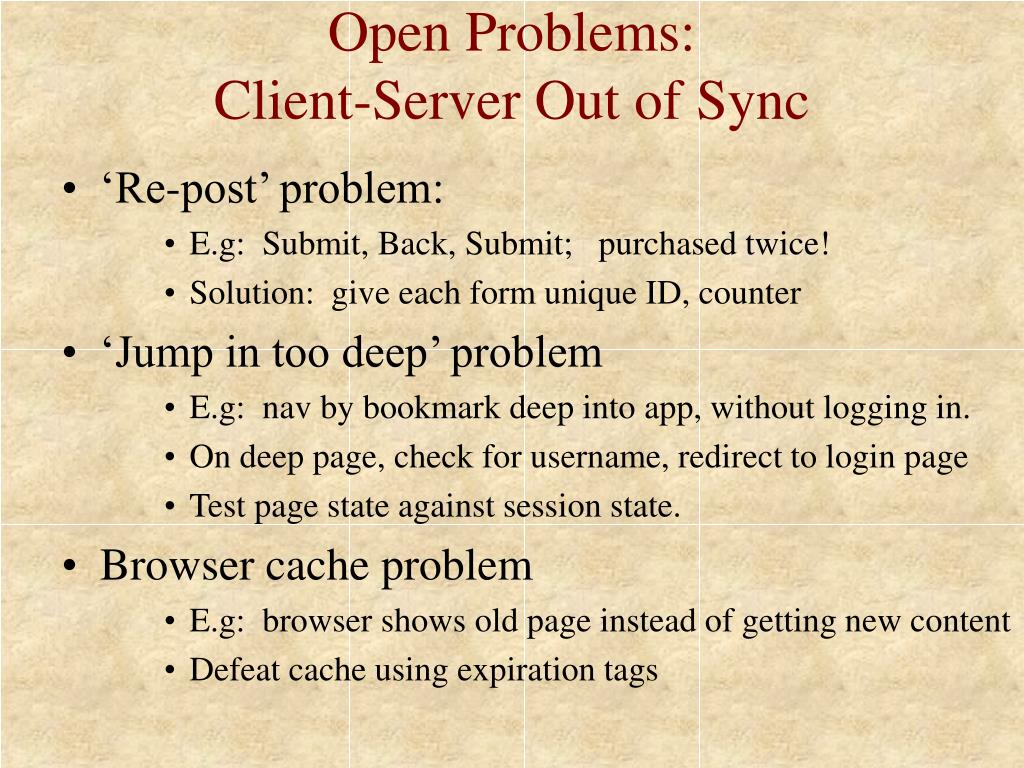

  20. Open Problems: Client-Server Out of Sync • ‘Re-post’ problem: • E.g: Submit, Back, Submit; purchased twice! • Solution: give each form unique ID, counter • ‘Jump in too deep’ problem • E.g: nav by bookmark deep into app, without logging in. • On deep page, check for username, redirect to login page • Test page state against session state. • Browser cache problem • E.g: browser shows old page instead of getting new content • Defeat cache using expiration tags

  21. Defeating Browser Cache • Expiration tags: <% Response.Expires = -1 Response.Expiresabsolute = Now() - 2 Response.AddHeader "pragma","no-cache" Response.AddHeader "cache-control","private" Response.CacheControl = "no-cache" %> • Random queryString: <a href=“myscript.asp?Nocache=<%=rnd()%>” > <a href=“myscript.asp?Nocache=4857493>”

  22. Consistent look-and-feel • Banner, Navigation bar, … • Server-side ‘include’ files: • Put banner, nav bar in separate ‘include’ file: • Can be used in .html files too <!-- #include file = "myfile.asp" -->

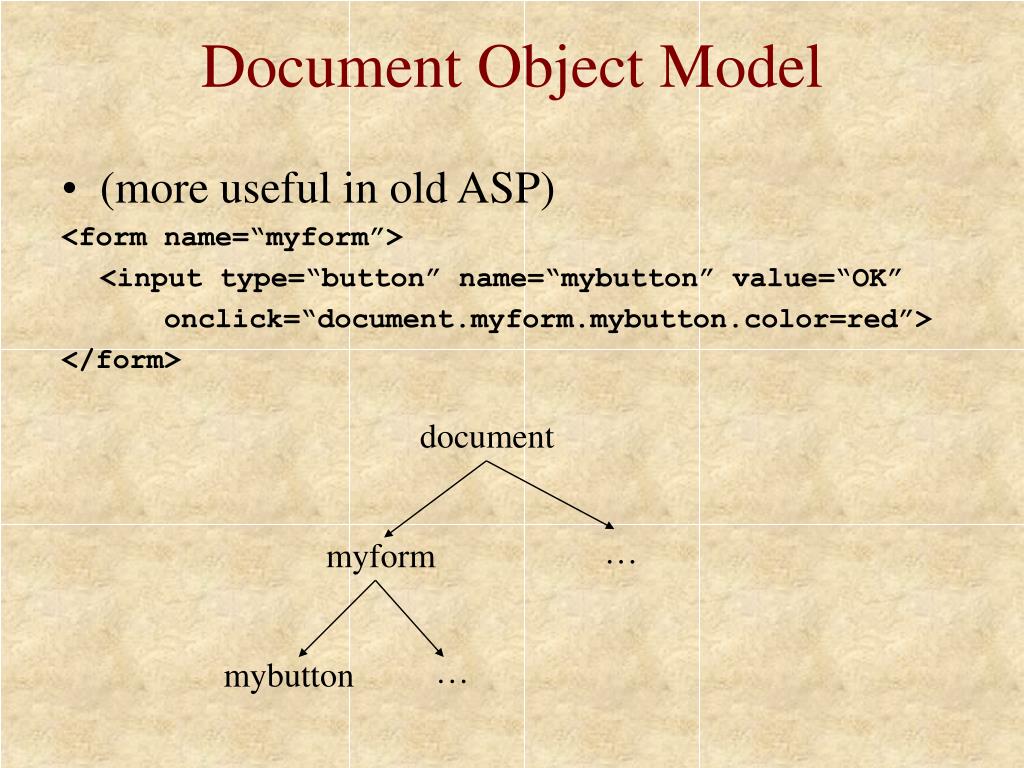

  23. Document Object Model • (more useful in old ASP) <form name=“myform”> <input type=“button” name=“mybutton” value=“OK” onclick=“document.myform.mybutton.color=red”> </form> document … myform … mybutton
