  1. Network Security: Lab#1 J. H. Wang Apr. 14, 2011

  2. Objectives • To learn to use one of the symmetric block cipher standards • DES • 3DES • AES • To learn to use random number generators • To learn to use stream cipher methods • RC4

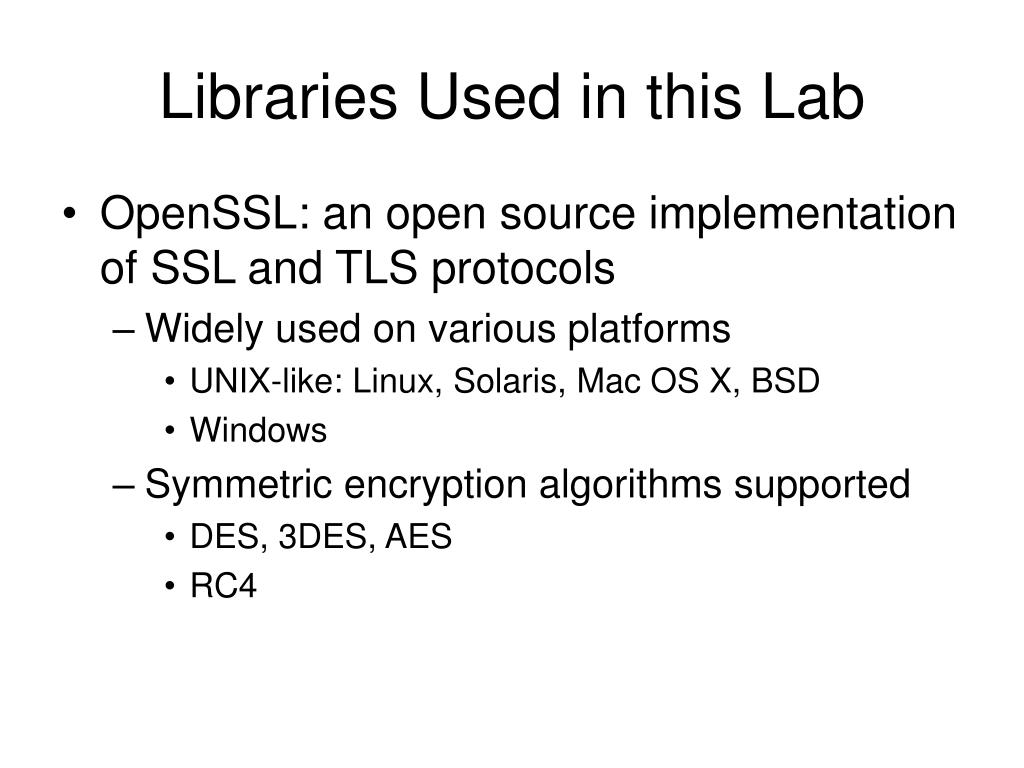

  3. Libraries Used in this Lab • OpenSSL: an open source implementation of SSL and TLS protocols • Widely used on various platforms • UNIX-like: Linux, Solaris, Mac OS X, BSD • Windows • Symmetric encryption algorithms supported • DES, 3DES, AES • RC4

  4. AES • Applications – archive and compression tools • RAR: encryption algorithm for RAR3 is AES 128-bit • WinZip: encryption algorithm AES 128-bit and 256-bit • 7z: open source archive file format • Encryption with AES 256-bit • Libraries • C: OpenSSL • C++: Crypto++

  5. 7-Zip • Homepage: http://www.7-zip.org/ • Current version: 9.20 for Windows (open source) • Steps • Install • Compress • Decompress

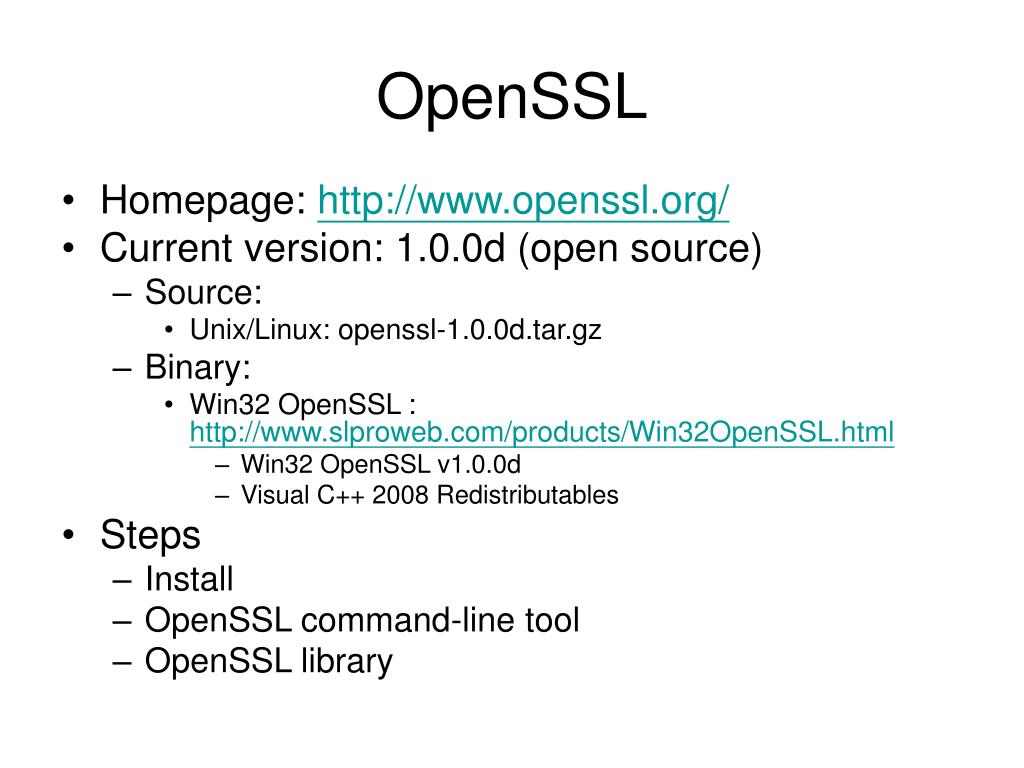

  6. OpenSSL • Homepage: http://www.openssl.org/ • Current version: 1.0.0d (open source) • Source: • Unix/Linux: openssl-1.0.0d.tar.gz • Binary: • Win32 OpenSSL : http://www.slproweb.com/products/Win32OpenSSL.html • Win32 OpenSSL v1.0.0d • Visual C++ 2008 Redistributables • Steps • Install • OpenSSL command-line tool • OpenSSL library

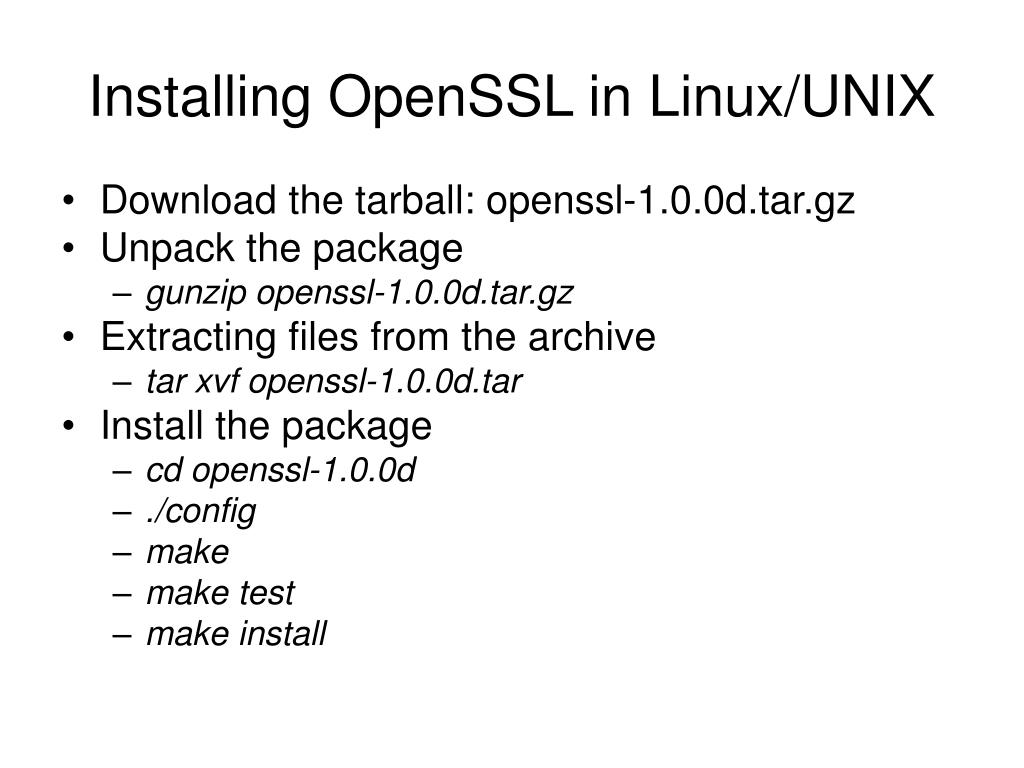

  7. Installing OpenSSL in Linux/UNIX • Download the tarball: openssl-1.0.0d.tar.gz • Unpack the package • gunzip openssl-1.0.0d.tar.gz • Extracting files from the archive • tar xvf openssl-1.0.0d.tar • Install the package • cd openssl-1.0.0d • ./config • make • make test • make install

  8. Experiment Scenario • Prepare a file for testing, say “original.txt” • Also, prepare a key (for encryption and decryption) on your own • After encryption, we get an encrypted file “enc.txt” • Decrypting the encrypted file will give us another file “dec.txt” • Finally, we check if “original.txt” is the same as “dec.txt”

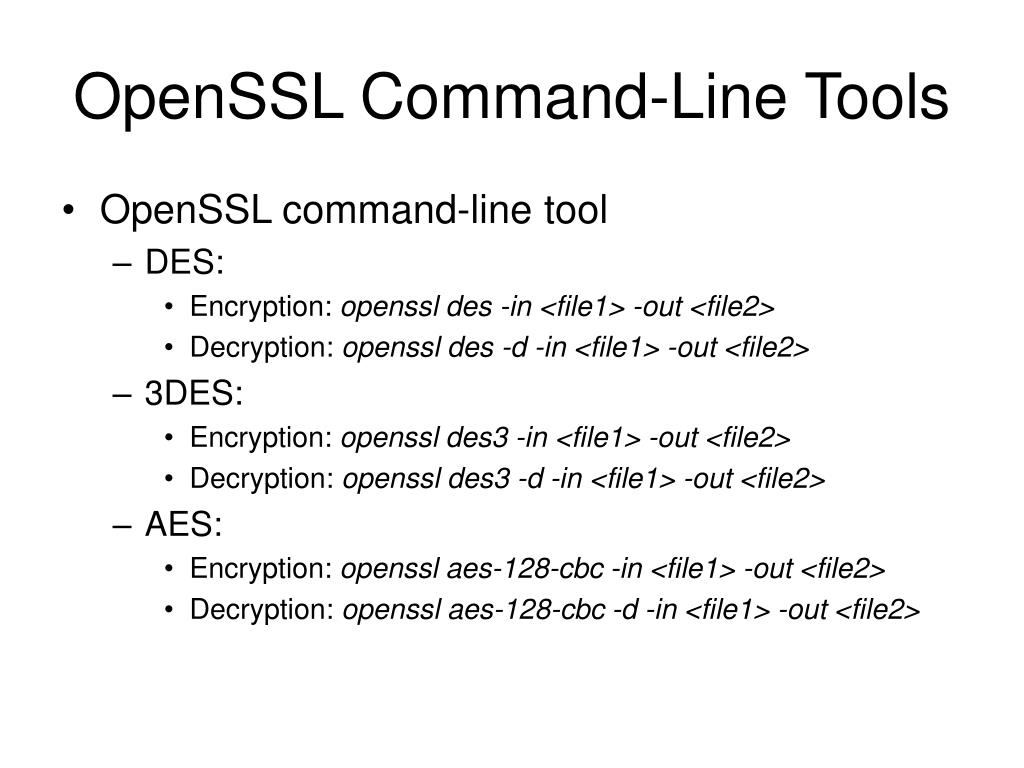

  9. OpenSSL Command-Line Tools • OpenSSL command-line tool • DES: • Encryption: openssl des -in <file1> -out <file2> • Decryption: openssl des -d -in <file1> -out <file2> • 3DES: • Encryption: openssl des3 -in <file1> -out <file2> • Decryption: openssl des3 -d -in <file1> -out <file2> • AES: • Encryption: openssl aes-128-cbc -in <file1> -out <file2> • Decryption: openssl aes-128-cbc -d -in <file1> -out <file2>

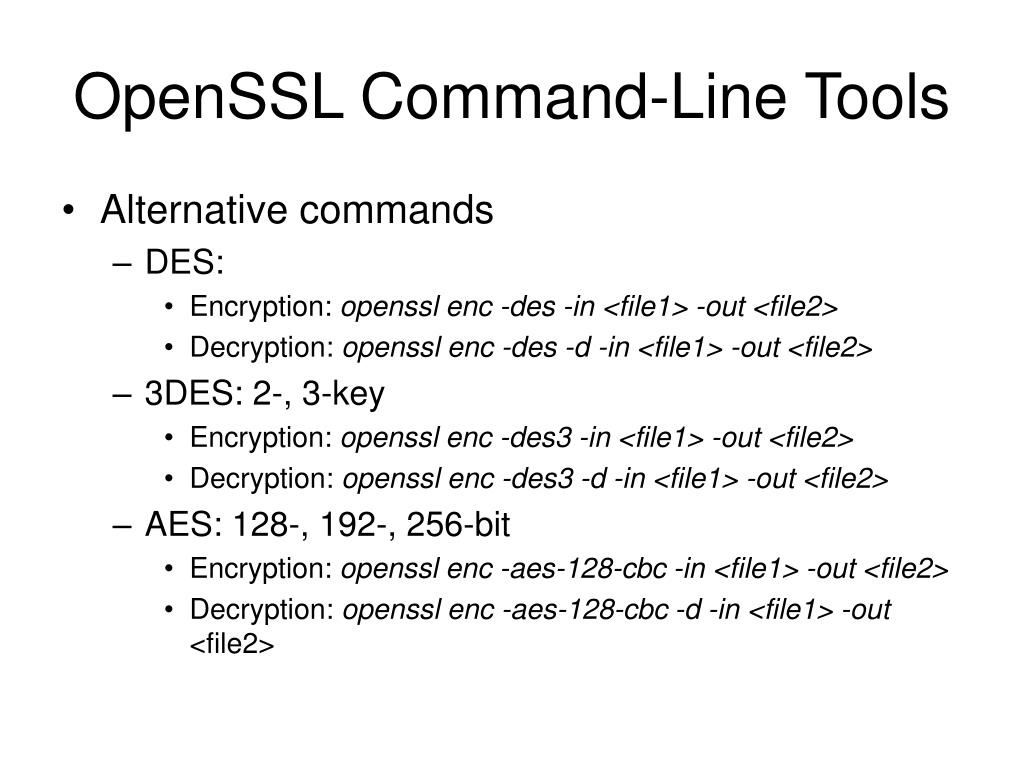

  10. OpenSSL Command-Line Tools • Alternative commands • DES: • Encryption: openssl enc -des -in <file1> -out <file2> • Decryption: openssl enc -des -d -in <file1> -out <file2> • 3DES: 2-, 3-key • Encryption: openssl enc -des3 -in <file1> -out <file2> • Decryption: openssl enc -des3 -d -in <file1> -out <file2> • AES: 128-, 192-, 256-bit • Encryption: openssl enc -aes-128-cbc -in <file1> -out <file2> • Decryption: openssl enc -aes-128-cbc -d -in <file1> -out <file2>

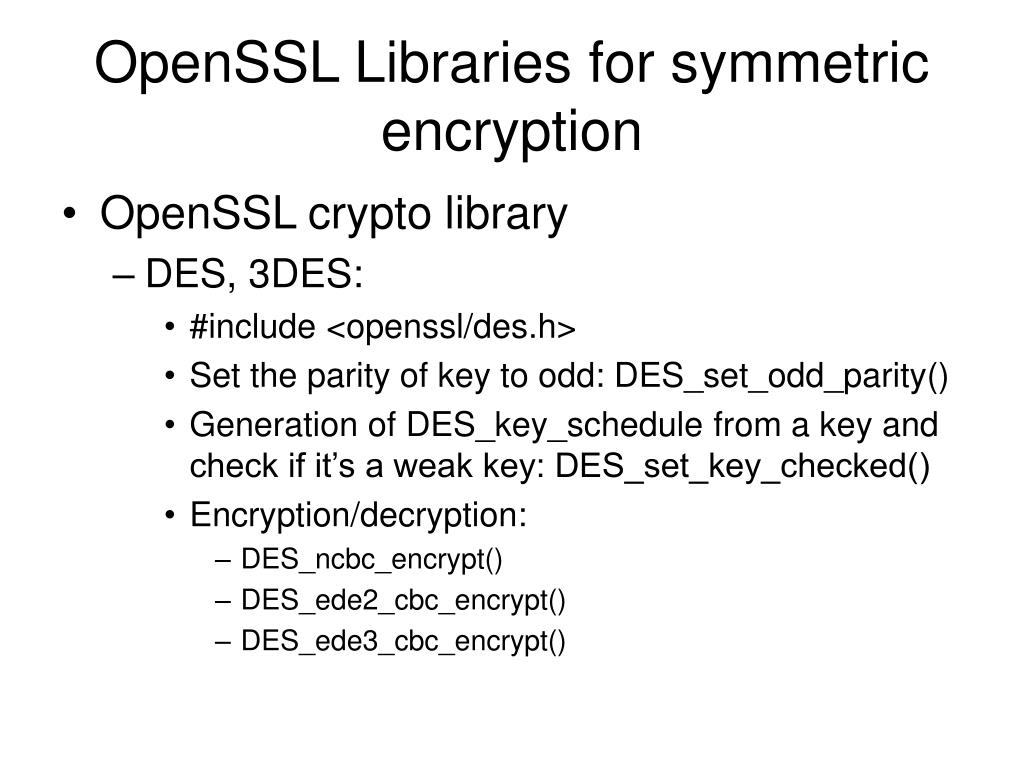

  11. OpenSSL Libraries for symmetric encryption • OpenSSL crypto library • DES, 3DES: • #include <openssl/des.h> • Set the parity of key to odd: DES_set_odd_parity() • Generation of DES_key_schedule from a key and check if it’s a weak key: DES_set_key_checked() • Encryption/decryption: • DES_ncbc_encrypt() • DES_ede2_cbc_encrypt() • DES_ede3_cbc_encrypt()

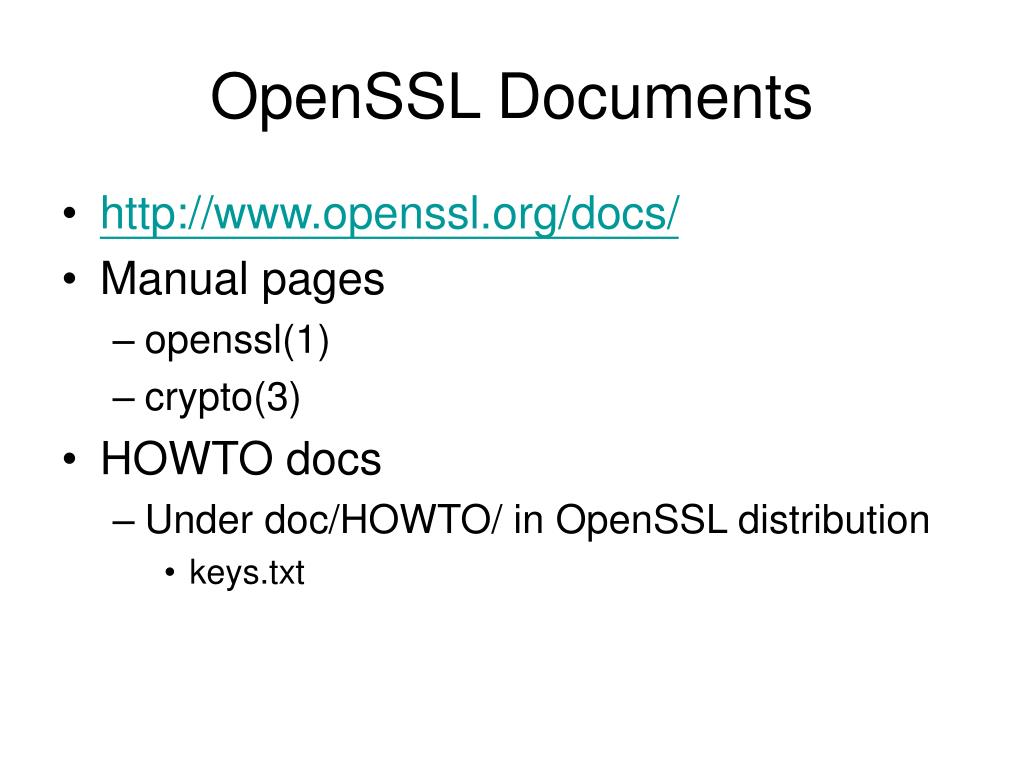

  12. OpenSSL Documents • http://www.openssl.org/docs/ • Manual pages • openssl(1) • crypto(3) • HOWTO docs • Under doc/HOWTO/ in OpenSSL distribution • keys.txt

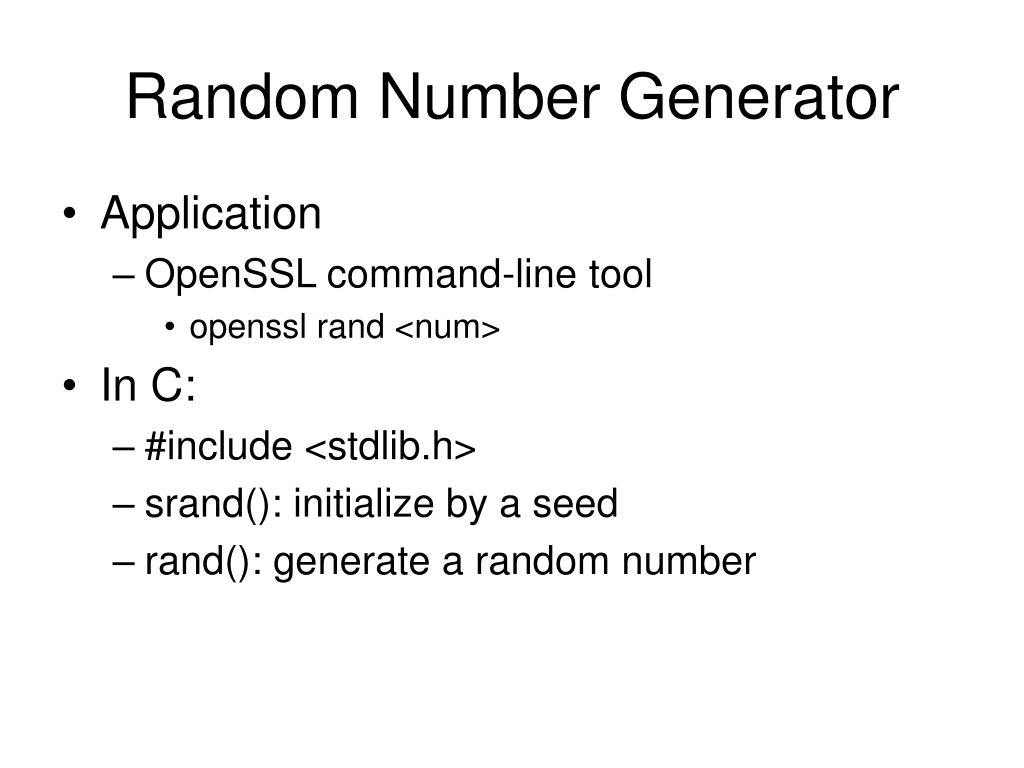

  13. Random Number Generator • Application • OpenSSL command-line tool • openssl rand <num> • In C: • #include <stdlib.h> • srand(): initialize by a seed • rand(): generate a random number

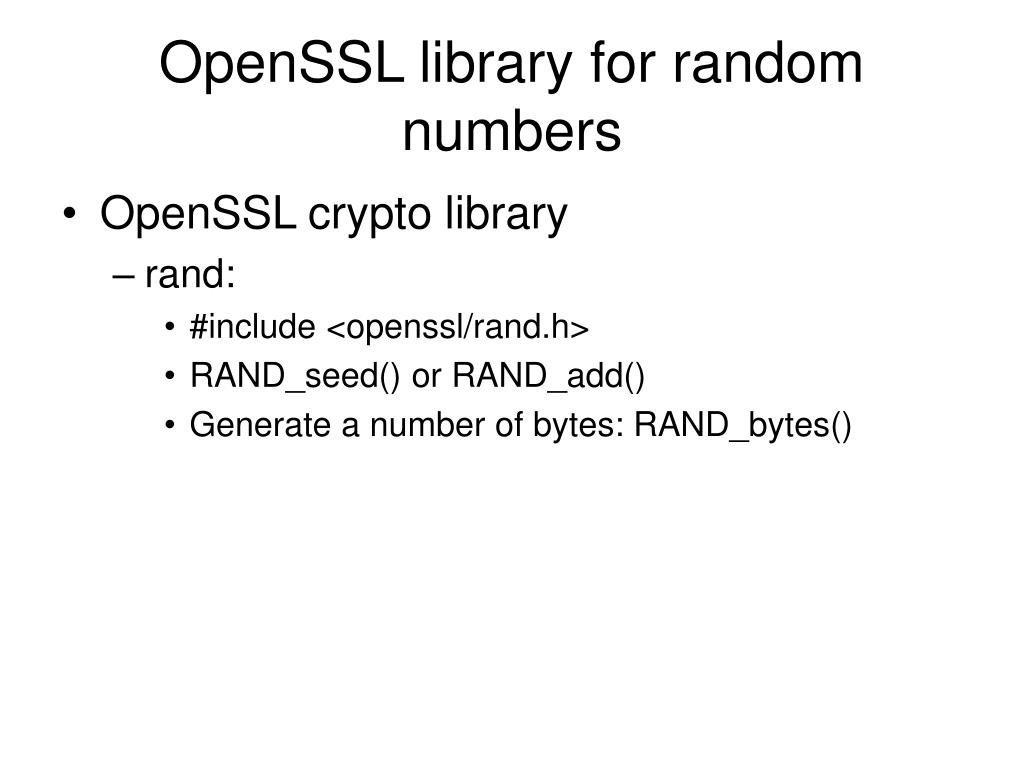

  14. OpenSSL library for random numbers • OpenSSL crypto library • rand: • #include <openssl/rand.h> • RAND_seed() or RAND_add() • Generate a number of bytes: RAND_bytes()

  15. RC4 • Applications • WEP • Remote Desktop Protocol • PDF • Skype

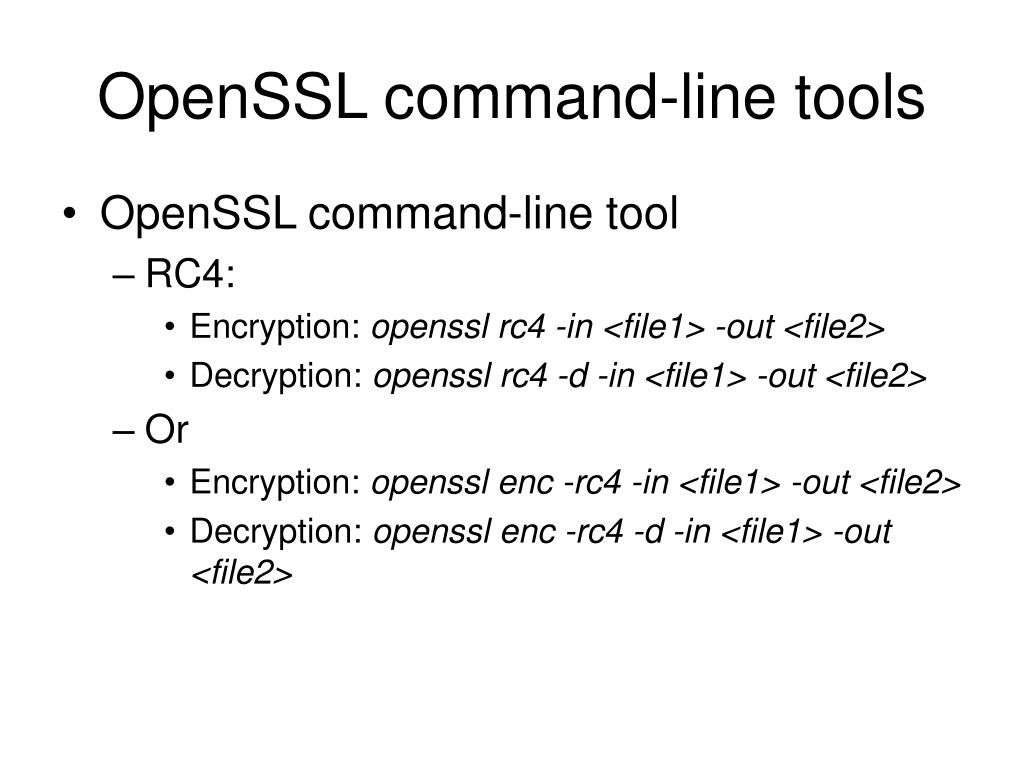

  16. OpenSSL command-line tools • OpenSSL command-line tool • RC4: • Encryption: openssl rc4 -in <file1> -out <file2> • Decryption: openssl rc4 -d -in <file1> -out <file2> • Or • Encryption: openssl enc -rc4 -in <file1> -out <file2> • Decryption: openssl enc -rc4 -d -in <file1> -out <file2>

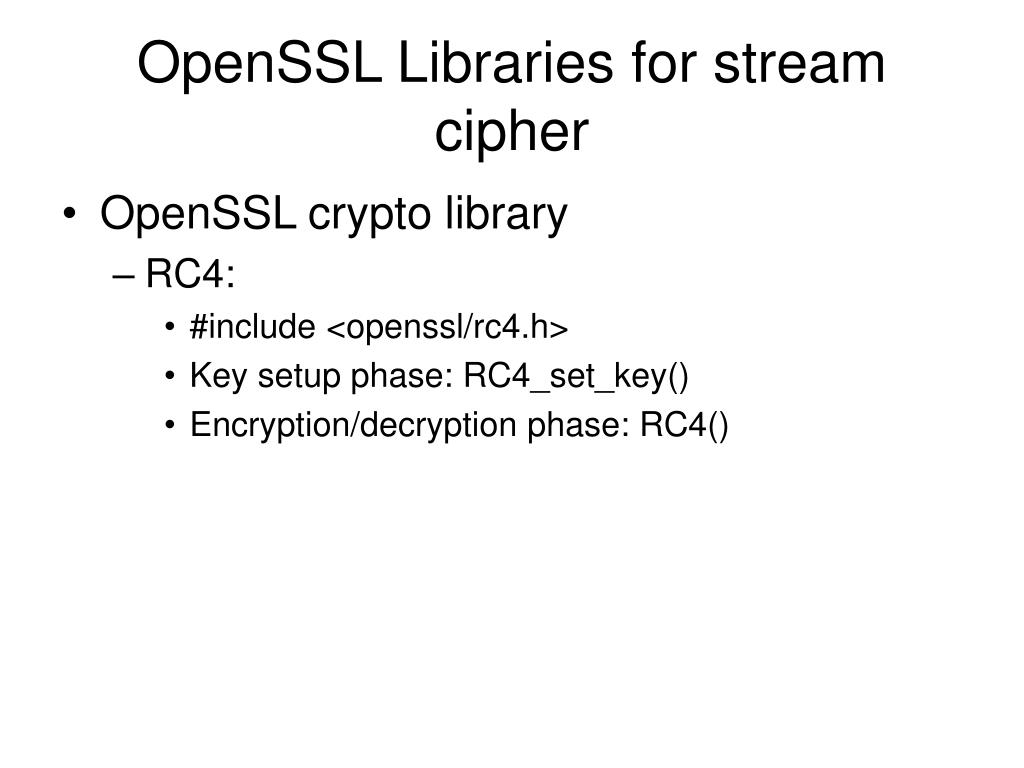

  17. OpenSSL Libraries for stream cipher • OpenSSL crypto library • RC4: • #include <openssl/rc4.h> • Key setup phase: RC4_set_key() • Encryption/decryption phase: RC4()

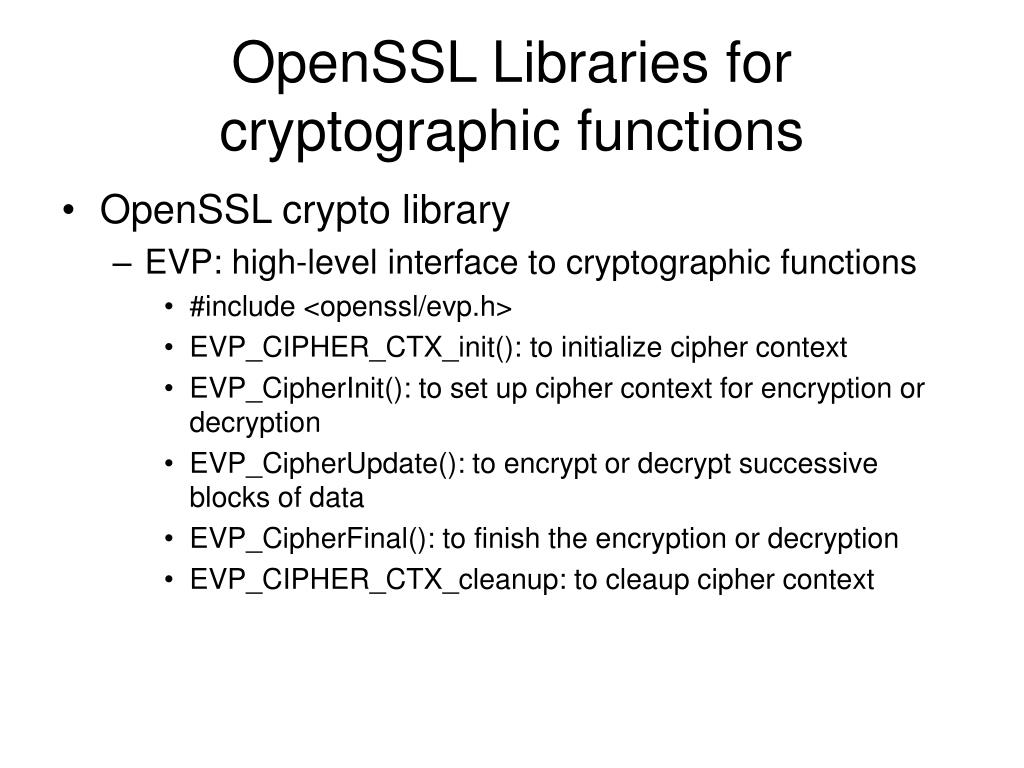

  18. OpenSSL Libraries for cryptographic functions • OpenSSL crypto library • EVP: high-level interface to cryptographic functions • #include <openssl/evp.h> • EVP_CIPHER_CTX_init(): to initialize cipher context • EVP_CipherInit(): to set up cipher context for encryption or decryption • EVP_CipherUpdate(): to encrypt or decrypt successive blocks of data • EVP_CipherFinal(): to finish the encryption or decryption • EVP_CIPHER_CTX_cleanup: to cleaup cipher context

  19. Summary • Encrypting a file • Decrypting a file • Generating a random number
