Secure Routing in Wireless Sensor Networks

1. Secure Routing in Wireless Sensor Networks

2. This Paper • One of the first to examine security on sensor networks • prior work focused on wired and adhoc • Not an algorithms or systems paper • Describes • general attacks on routing • attacks on specific sensor systems • some countermeasures • Also useful as survey of sensor routing protocols

3. Outline • Context • Routing attacks • Protocol attacks • What next?

4. Security for Sensor Nets • A larger challenge in sensor nets • security not priority in protocol design • mainly optimize for power (CPU / transmissions) • E2E principle does not apply • routers need access to data for aggregation • many to one communication instead of end-to-end • Result • Protocols easy to attack and cripple • Security needs to be built-in at protocol design

5. Context • Large static sensor networks • large # (100’s, 1000’s) of low power nodes • fixed location for their entire lifetime • focused scenario: Berkeley Motes • 4Mhz CPU, 4KB RAM (data), 40Kbps max b/w • Connectivity • base stations: powerful pts of central control • sensors form multi-hop wireless network • periodic data stream aggregated to BS

7. Worrying about Power • Power is #1 concern for sensors • small power reserves  1% duty cycle or less • radio uses power 103 more than sleep mode • Other constraints • minimal CPU, RAM, radio power • cannot support: public-key, source routing or distance vector, anything that requires • May not benefit from Moore’s law • strong pressure to use cheaper nodes • is this a temporary trend? will eventually benefit

8. Assumptions • Network assumptions • radio is insecure • base stations are trust-worthy • Attackers • can control/turn nodes, collude • mote-class vs. laptop-class attackers • inside vs. outside attackers

9. Outline • Context • Routing attacks • Protocol attacks • What next?

10. Attacks on Sensor Routing • Spoofed, altered, replayed routing info • result: routing loops, attract or repel network traffic, extend or shorten routes, partition network • Selective forwarding • drop subset of packets w/o being detected • (enabled by) Sinkhole attack • provide or falsely advertise shorter routes • many to one model makes this easy

11. Routing Attacks II • Sybil attack • one node, many (network) identities • Wormholes • use out-of-band fast channel to route msgs faster than regular network • exploit out-of-order delivery (race conditions) • hello flood • broadcast msg to all nodes (laptop-class) • disrupt topology construction • Ack spoofing • replay link layer acks to misrepresent link quality between nodes

12. Understanding Routing Attacks • Key weakness • insecure wireless channel (eavesdropping, replays) • unequal transmission power / link quality • Selective forwarding • be a sinkhole (concentrate traffic into malicious node) • Enablers (distort view of wireless network) • wormholes, HELLO flood (leverage transmission pwr) • acknowledgement/route spoofing (distort view of links) • sybil (appear as many nodes at once)

13. Outline • Context • Routing attacks • Protocol attacks • What next?

14. Protocols Attacks • TinyOS beaconing • base station constructs depth first spanning tree with itself as root • Attacks • w/o authentication: anyone can claim 2b BS • wormhole  sinkhole attack w/ laptop-class nodes • HELLO flood  strand nodes out of range

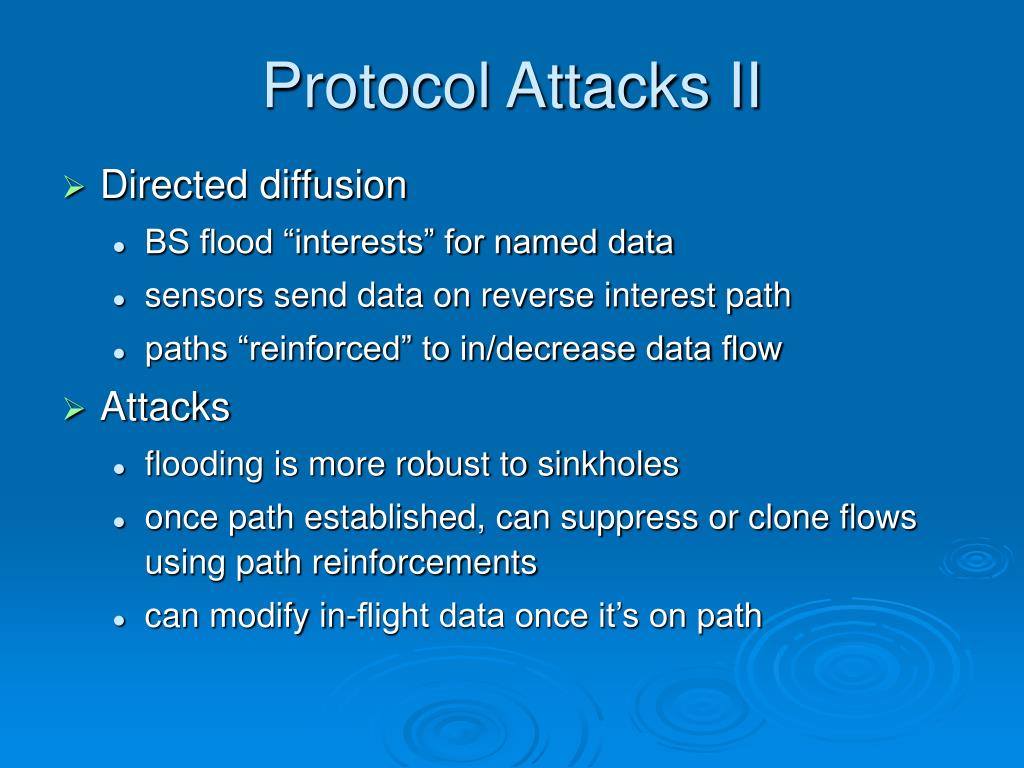

15. Protocol Attacks II • Directed diffusion • BS flood “interests” for named data • sensors send data on reverse interest path • paths “reinforced” to in/decrease data flow • Attacks • flooding is more robust to sinkholes • once path established, can suppress or clone flows using path reinforcements • can modify in-flight data once it’s on path

16. Protocol Attacks III • Geographic routing (GPSR, GEAR) • use coordinates to route towards destination • GEAR spreads out path to load-balance • attack: misrepresent location data for sinkhole attack • attack: use sybil to surround target node (sinkhole) • Minimum cost forwarding • each node keeps local cost of reaching BS • broadcast out msg w/ budget, each hop subtracts cost. If budget exceeded, msg dropped • attack: advertise low cost path (can also use HELLO)

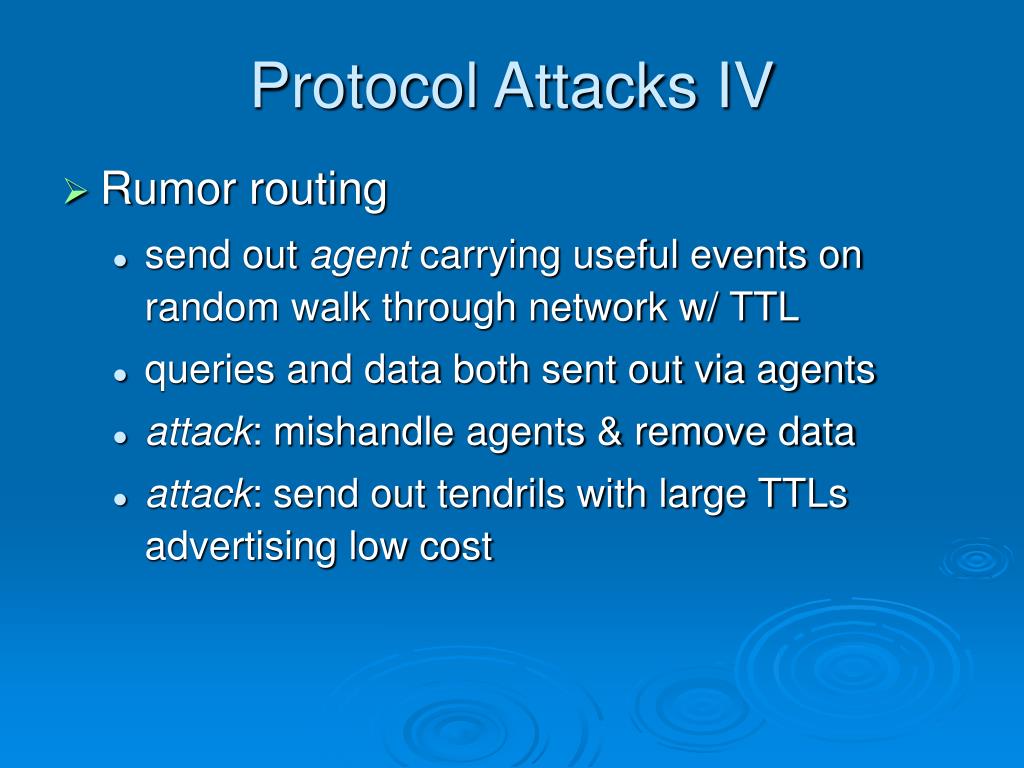

17. Protocol Attacks IV • Rumor routing • send out agent carrying useful events on random walk through network w/ TTL • queries and data both sent out via agents • attack: mishandle agents & remove data • attack: send out tendrils with large TTLs advertising low cost

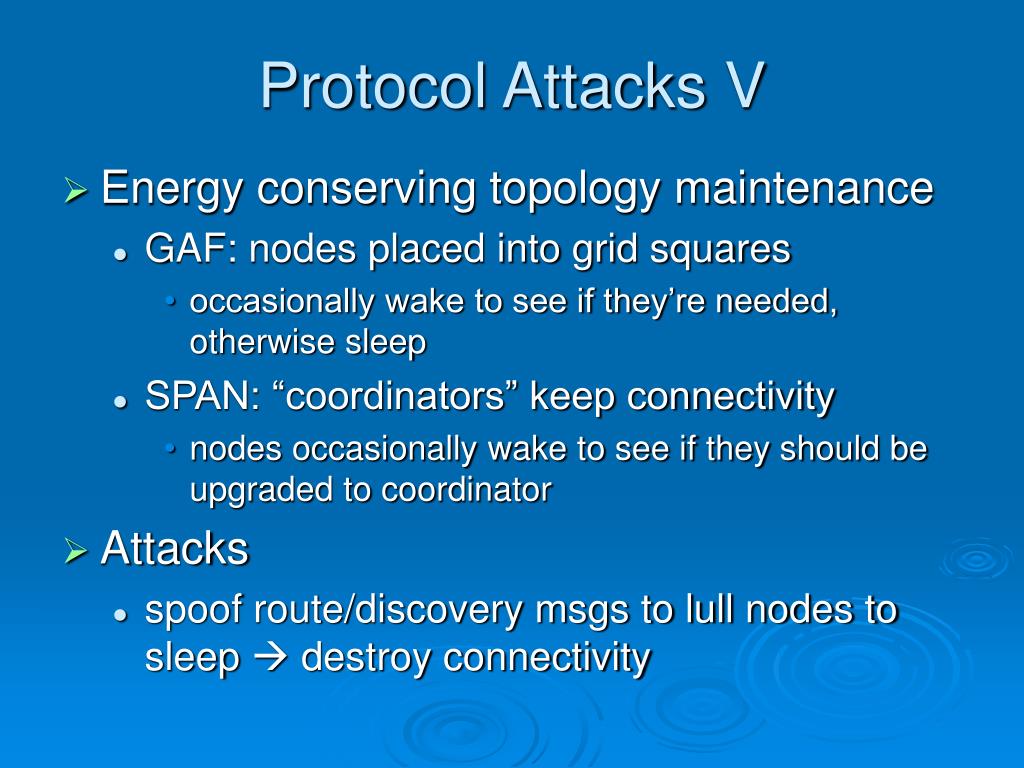

18. Protocol Attacks V • Energy conserving topology maintenance • GAF: nodes placed into grid squares • occasionally wake to see if they’re needed, otherwise sleep • SPAN: “coordinators” keep connectivity • nodes occasionally wake to see if they should be upgraded to coordinator • Attacks • spoof route/discovery msgs to lull nodes to sleep  destroy connectivity

19. Understanding Protocol Attacks • Inherent tradeoff: energy vs. security • optimizing route vs. susceptibility to attacks • Attacks • all leading to sinkhole attack • manipulate cost function to represent self as optimal path • Is resistance futile? • flooding  useful, but high cost • random walks  potentially high cost • key is randomization

20. Outline • Context • Routing attacks • Protocol attacks • What next?

21. Countermeasures • Link layer security (shared key auth.) • costly, but can disable sybil attacks • useless against compromised nodes (insiders) • Hello floods • verify bi-directionality, or authenticate identity of neighbors w/ separate protocol • Use global knowledge • nodes are static, so learn global map • scalability: enough state to keep info?

22. Intuition • Tight tradeoff • energy conservation via optimized paths • optimization  manipulation of cost factors • Avoid • powerful nodes (they can’t be authenticated) • centralized functionality (same reason) • What can we use? • randomization / probabilistic routing?
