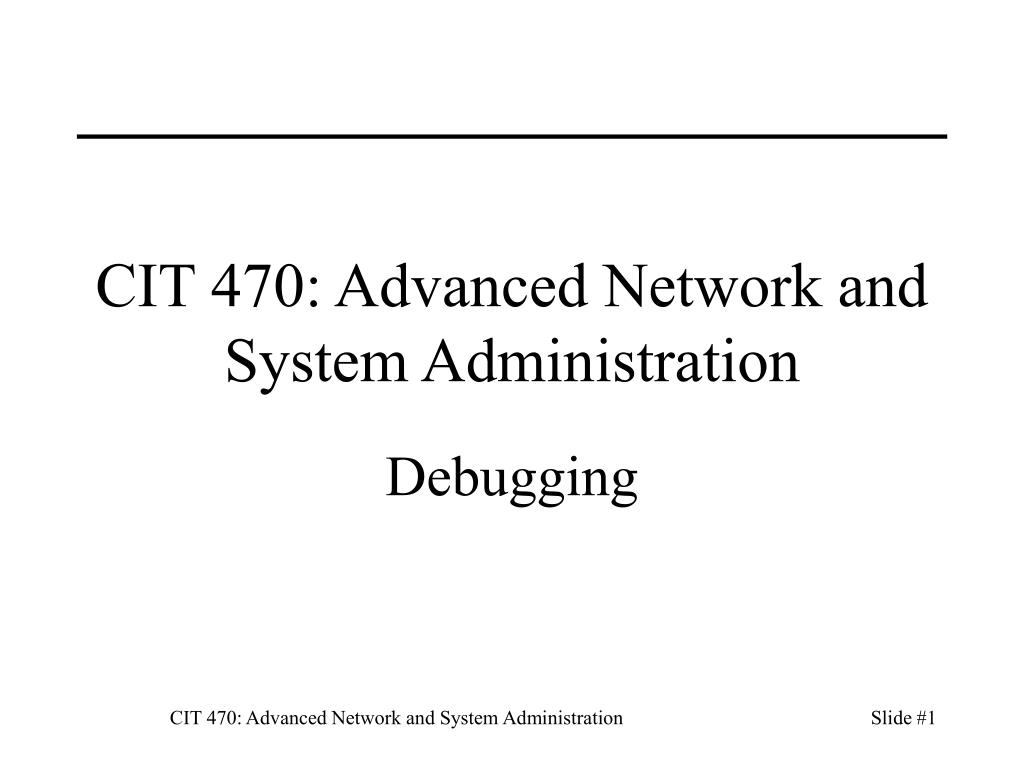

  1. CIT 470: Advanced Network and System Administration Debugging CIT 470: Advanced Network and System Administration

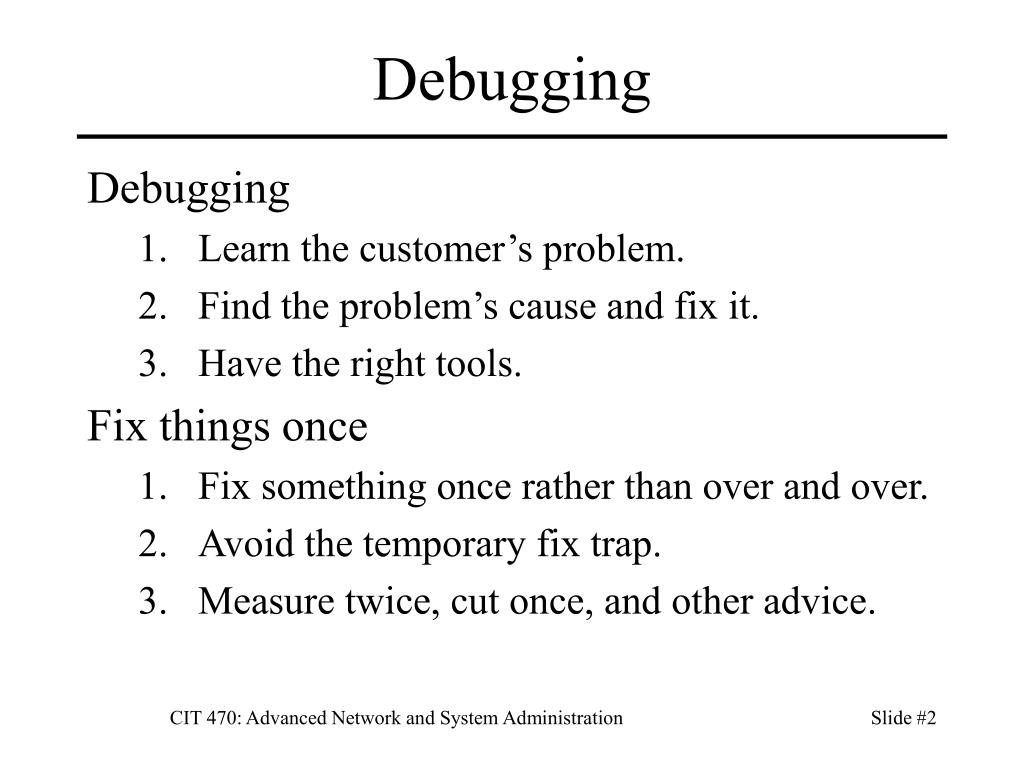

  2. Debugging Debugging • Learn the customer’s problem. • Find the problem’s cause and fix it. • Have the right tools. Fix things once • Fix something once rather than over and over. • Avoid the temporary fix trap. • Measure twice, cut once, and other advice. CIT 470: Advanced Network and System Administration

  3. Learn the Customer’s Problem • Understand at a high level what customer is attempting to do and what part is failing. • Customer problem reports vary: • My mail program is broken. • I can’t reach the mail server. • My mailbox disappeared! • Actual problem might be: • Network problem. • Power failure. • DNS problem. CIT 470: Advanced Network and System Administration

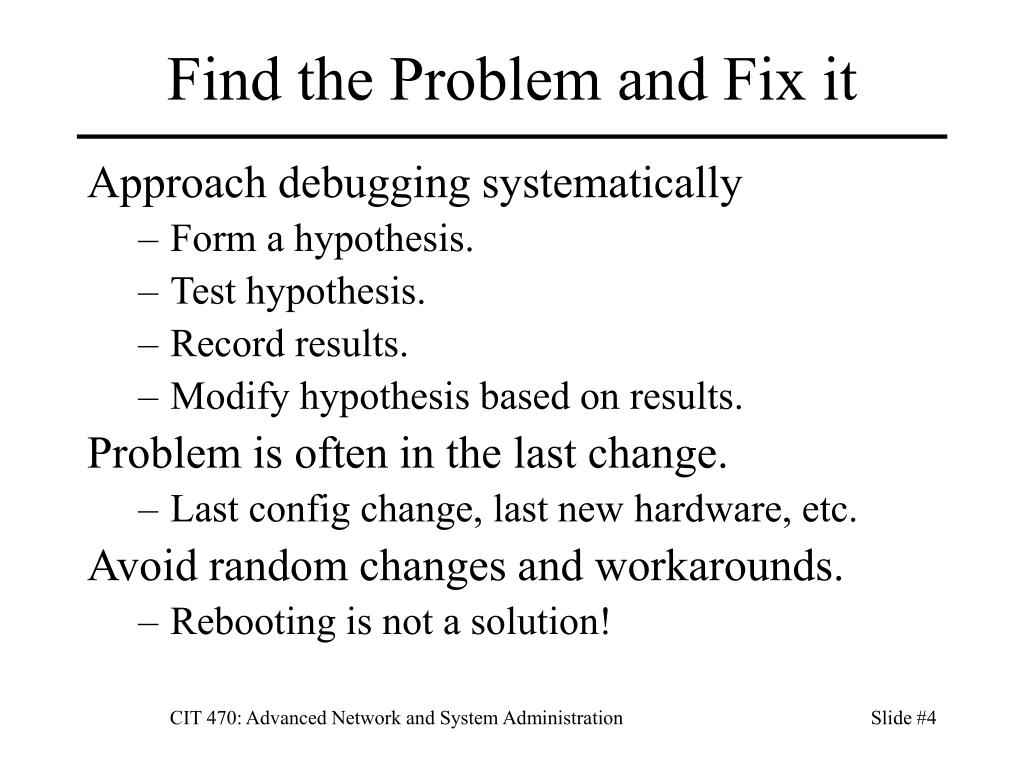

  4. Find the Problem and Fix it Approach debugging systematically • Form a hypothesis. • Test hypothesis. • Record results. • Modify hypothesis based on results. Problem is often in the last change. • Last config change, last new hardware, etc. Avoid random changes and workarounds. • Rebooting is not a solution! CIT 470: Advanced Network and System Administration

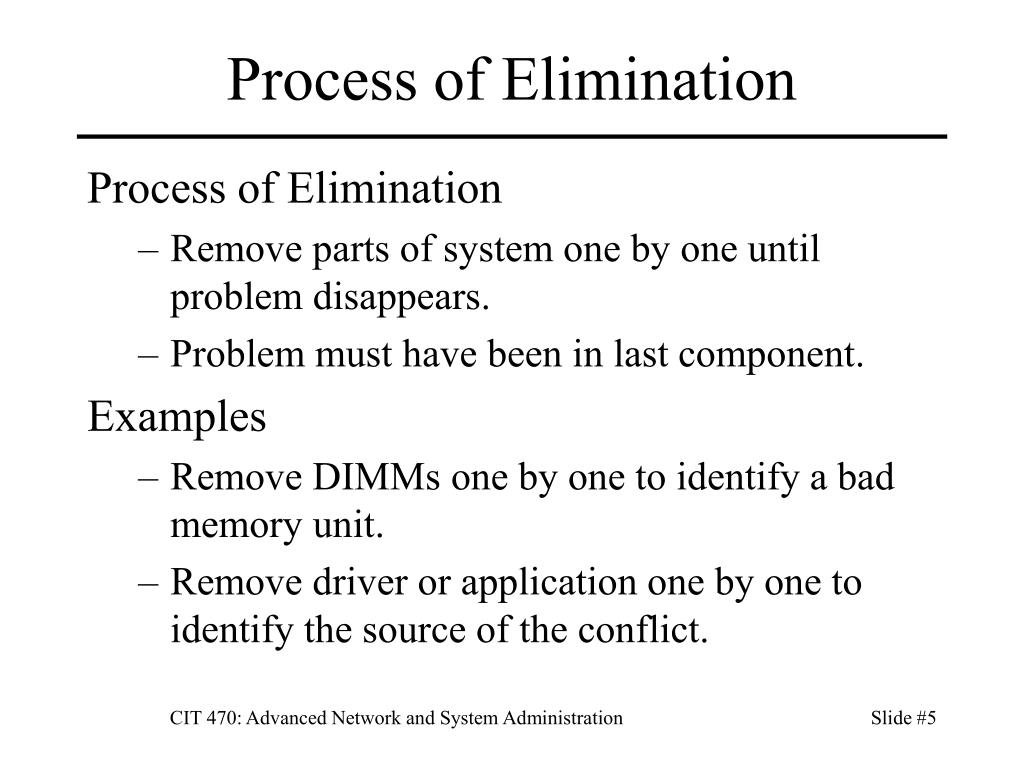

  5. Process of Elimination Process of Elimination • Remove parts of system one by one until problem disappears. • Problem must have been in last component. Examples • Remove DIMMs one by one to identify a bad memory unit. • Remove driver or application one by one to identify the source of the conflict. CIT 470: Advanced Network and System Administration

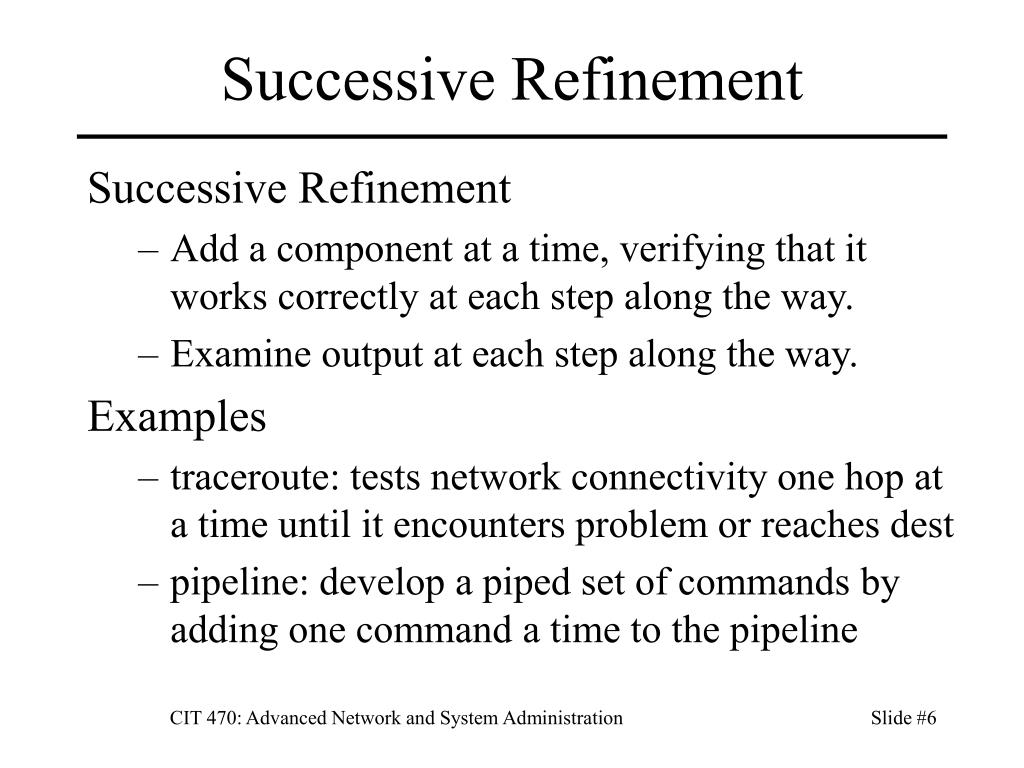

  6. Successive Refinement Successive Refinement • Add a component at a time, verifying that it works correctly at each step along the way. • Examine output at each step along the way. Examples • traceroute: tests network connectivity one hop at a time until it encounters problem or reaches dest • pipeline: develop a piped set of commands by adding one command a time to the pipeline CIT 470: Advanced Network and System Administration

  7. Have the Right Tools Tools to let you see inside devices/systems. network: sniffer, ping, traceroute, telnet/nc network services: netstat, rpcinfo operating system: log files process: system call tracer, e.g. strace performance: top, ps, vmstat, iostat Know how tools draw their conclusions. Tools can make mistakes or mislead you. CIT 470: Advanced Network and System Administration

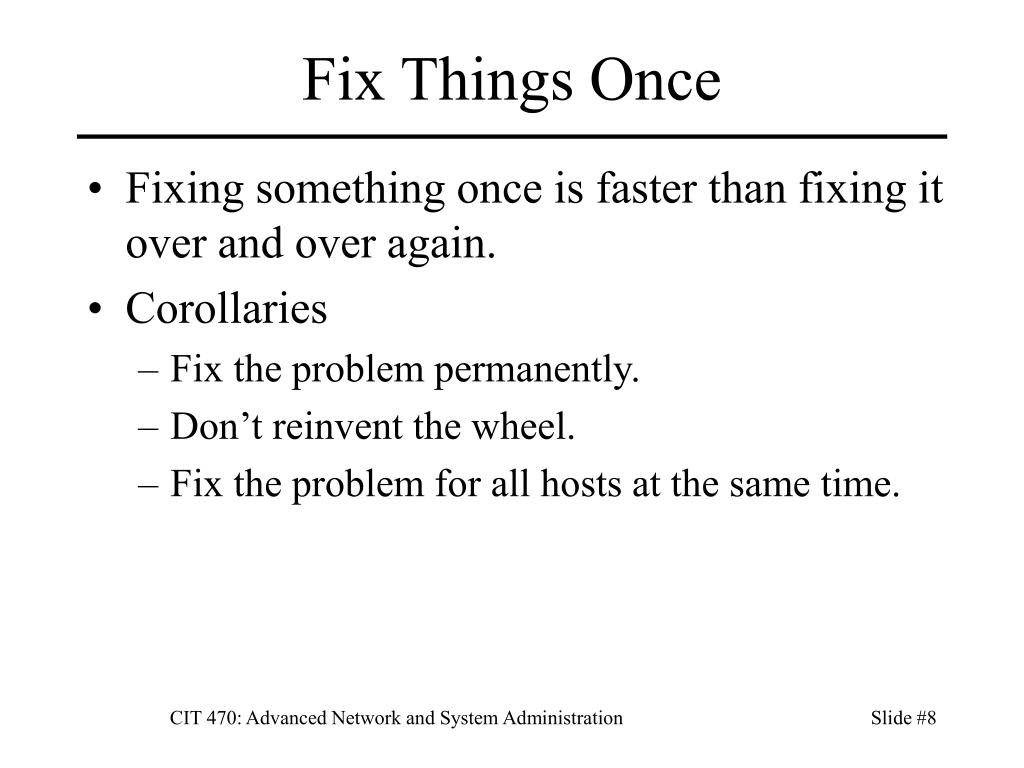

  8. Fix Things Once • Fixing something once is faster than fixing it over and over again. • Corollaries • Fix the problem permanently. • Don’t reinvent the wheel. • Fix the problem for all hosts at the same time. CIT 470: Advanced Network and System Administration

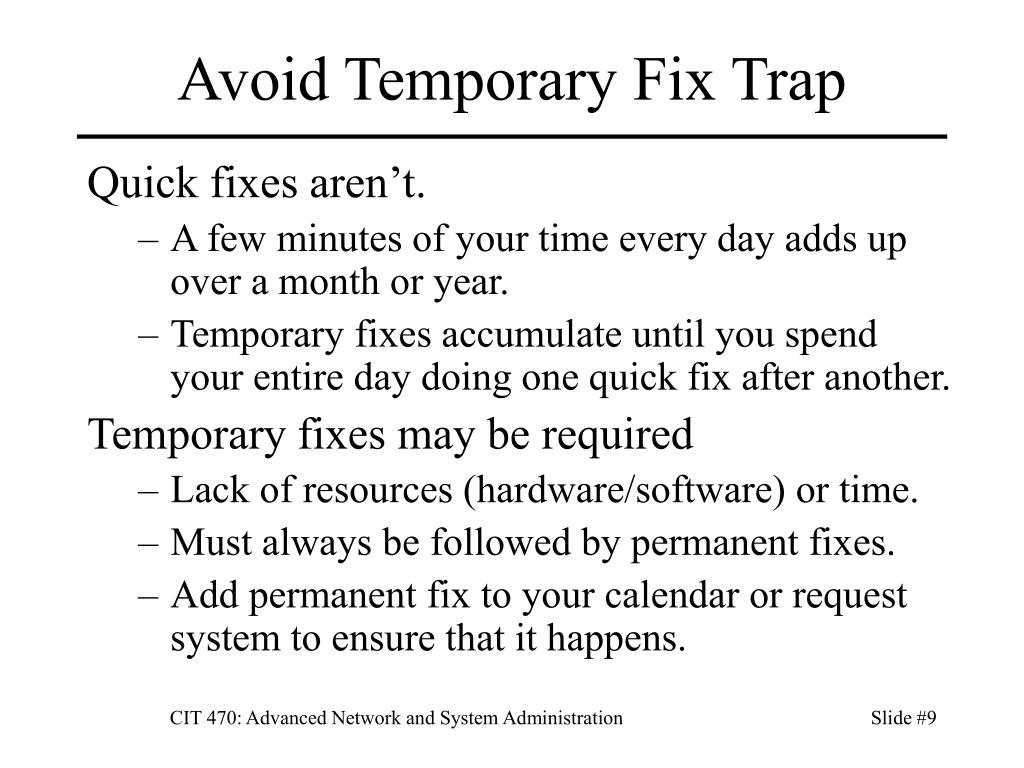

  9. Avoid Temporary Fix Trap Quick fixes aren’t. • A few minutes of your time every day adds up over a month or year. • Temporary fixes accumulate until you spend your entire day doing one quick fix after another. Temporary fixes may be required • Lack of resources (hardware/software) or time. • Must always be followed by permanent fixes. • Add permanent fix to your calendar or request system to ensure that it happens. CIT 470: Advanced Network and System Administration

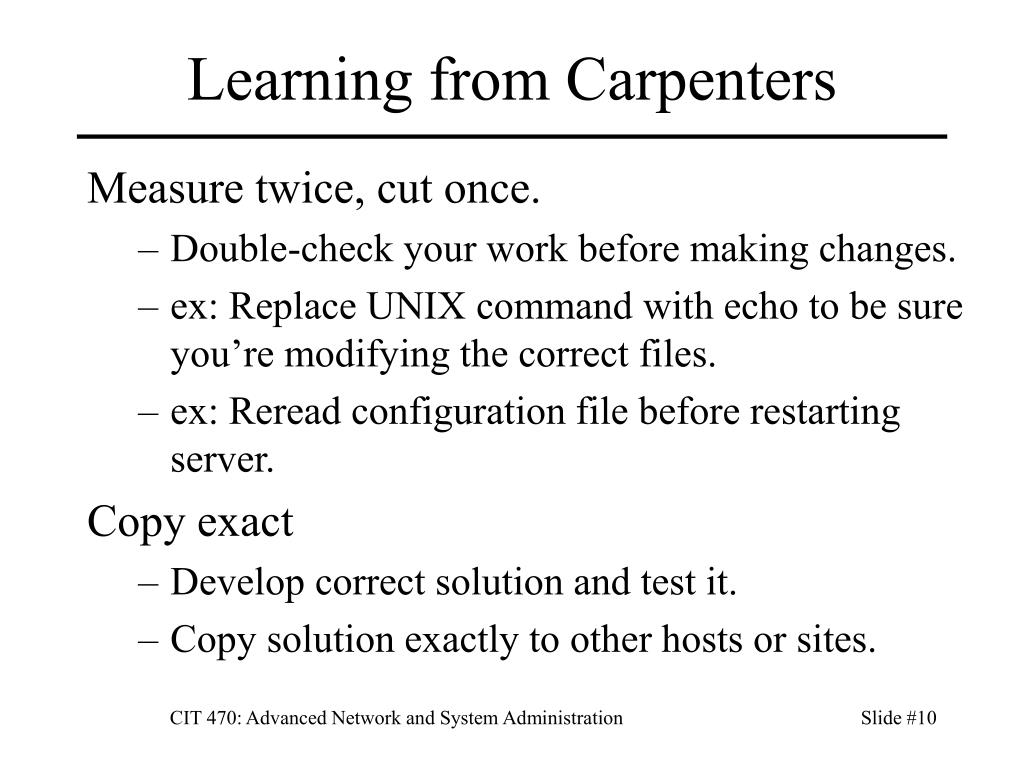

  10. Learning from Carpenters Measure twice, cut once. • Double-check your work before making changes. • ex: Replace UNIX command with echo to be sure you’re modifying the correct files. • ex: Reread configuration file before restarting server. Copy exact • Develop correct solution and test it. • Copy solution exactly to other hosts or sites. CIT 470: Advanced Network and System Administration

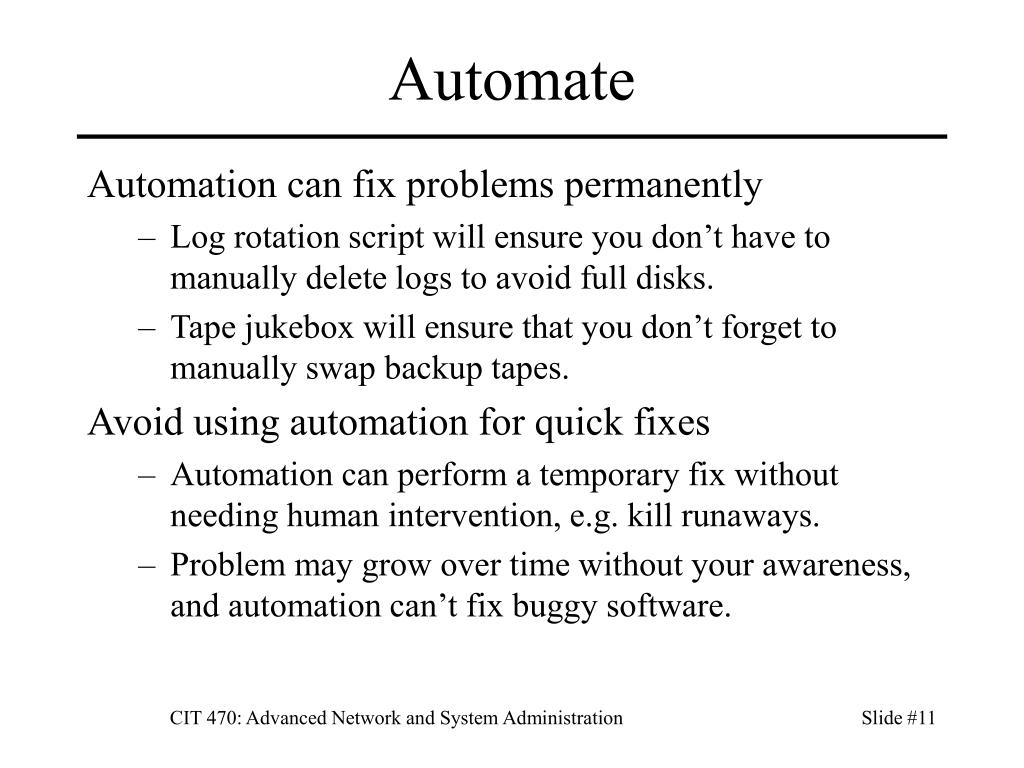

  11. Automate Automation can fix problems permanently • Log rotation script will ensure you don’t have to manually delete logs to avoid full disks. • Tape jukebox will ensure that you don’t forget to manually swap backup tapes. Avoid using automation for quick fixes • Automation can perform a temporary fix without needing human intervention, e.g. kill runaways. • Problem may grow over time without your awareness, and automation can’t fix buggy software. CIT 470: Advanced Network and System Administration

  12. Key Points • Learn the customer’s problem. • Systematically identify the cause and fix it. • Process of elimination. • Successive refinement. • Fix the problem permanently. • Don’t reinvent the wheel. • Test your solution. • Use fix on all of your hosts. • Use automation wisely. CIT 470: Advanced Network and System Administration

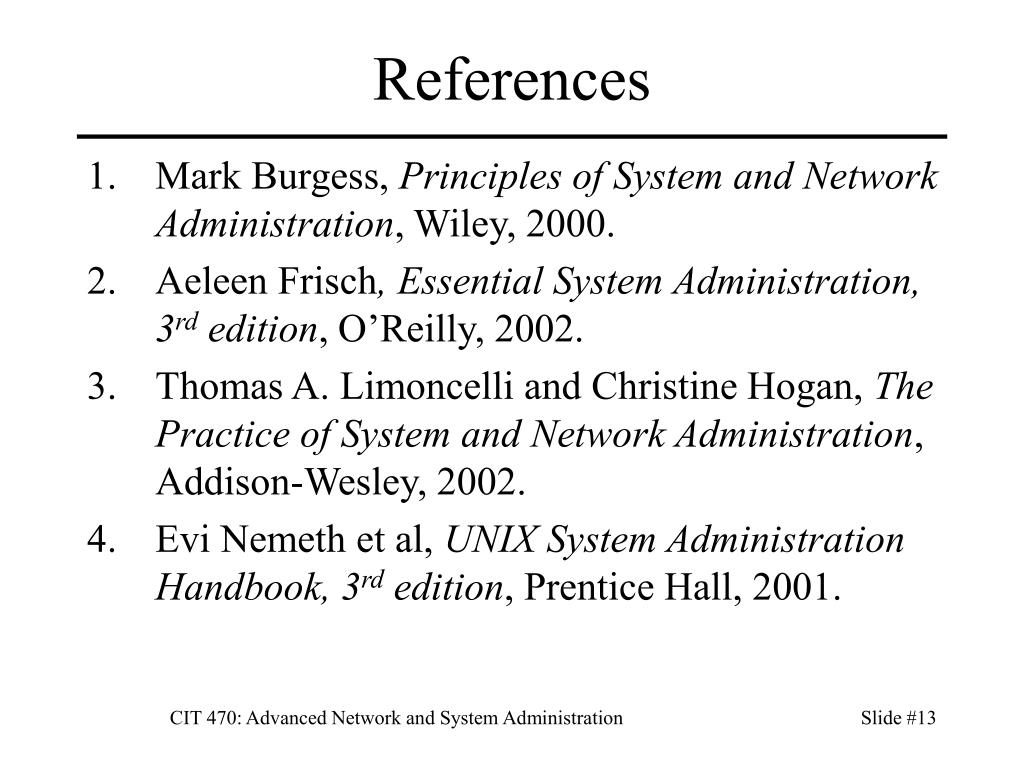

  13. References • Mark Burgess, Principles of System and Network Administration, Wiley, 2000. • Aeleen Frisch, Essential System Administration, 3rd edition, O’Reilly, 2002. • Thomas A. Limoncelli and Christine Hogan, The Practice of System and Network Administration, Addison-Wesley, 2002. • Evi Nemeth et al, UNIX System Administration Handbook, 3rd edition, Prentice Hall, 2001. CIT 470: Advanced Network and System Administration
