  1. New multi format HD Camcorder series Czech Roadshow 2009 Petr Krkavec director DISK Systems Petr@disk.cz Marco Kraft Sales Manager CEE marco.kraft@jvcpro.de

  2. JVC focus:improve the quality & make things easy with:- all HD formats- new affordable standart media- quick workflow

  3. New solid state HD Camera Products GY-HM100 handheld GY-HM700 shoulder

  4. New Optical Block • New patented 3-CCD optical system • Diagonal Spatial Offset with Adaptive Pixel Correlation Technique • More than 900 lines resolution • 1920x1080p 4:2:2 processing (Y [luminance]-channel 2560X1440 native) • Switchable 1080i or 1080p / 720p scanning

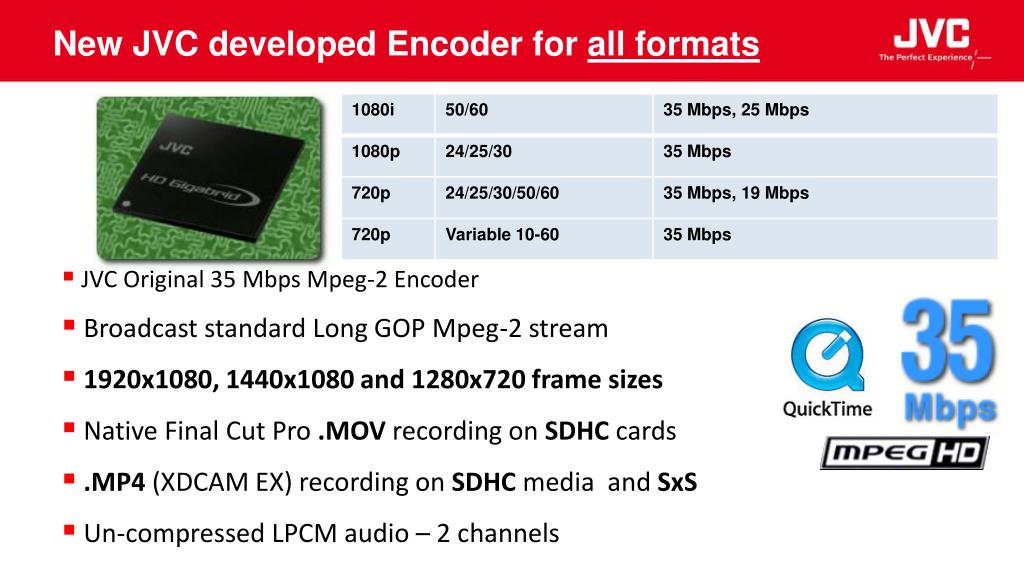

  5. New JVC developed Encoder for all formats • JVC Original 35 Mbps Mpeg-2 Encoder • Broadcast standard Long GOP Mpeg-2 stream • 1920x1080, 1440x1080 and 1280x720 frame sizes • Native Final Cut Pro .MOV recording on SDHC cards • .MP4 (XDCAM EX) recording on SDHC media and SxS • Un-compressed LPCM audio – 2 channels

  6. Media Comparison • SDHC – Compact, Low Cost, Archiveable media • SxS – High-Speed, optimized for fast data offloading • Reliable Digital Storage with 10 years+ shelf life. • for example: FULL HD 1080/50i (35Mb/s) = 1h/16GB = 35€

  7. DFA Workflow Comparison Example Key point: Compare the NLE workflow on Apple FCP platform to promote the advantage of DFA solution against the addressed competitors Method (Compare with AVCCAM) GY-HM700 .mov only file transfer JVC: Seamless ingest to FCP as native file Panasonic: Automatic transcode from AVCHD to ProRes422 takes more capacityhas higher load .mov GY-HM100 Faster less data amount AG-HMC150 .mts/ m2ts transcode to ProRes422 Only in Realtime! AG-HMC70

  8. Workflow example • Immediate editing off SDHC card • Drag-n-Drop to the NLE Timeline - no rewrapping! • No additional drivers required Final Cut Pro

  9. Other NLE Systems New!

  10. The new GY-HM700 - General • Proven Compact Shoulder form factor • Exchangeable Lenses, 1/3” Bayonet Mount, • New LCOS viewfinder 848x480x3 • Large 4.3” LCD Monitor • Professional Switch Layout • Focus Assist • 3 configurable User Buttons • Dual SDHC card slots • IDX V-Mount • Favourites menu • Spot metering

  11. The new GY-HM700 - Interfaces • HDSDI out with SD SDI downscale capability & Embedded Audio • Analogue component output, composite PAL switchable • IEEE1394 FireWire out with SD-DV Down-Convert Function • Remote Control Port RM-LP25 and 55 compatible • Audio XLR with Phantom Power • Audio RCA out

  12. Cinematography Features • 180 ° Image Rotation for Prime Lens adapter (35mm / 16mm) • Cine Gamma/Matrix • Over crank, Under crank 10-60 FPS in 720p mode

  13. GY-HM700 Dual media recording Camera KA-MR100 IDX battery • Choice of two Media Types • Record mov on SDHC and mp4 on SxS • Record .mp4 on both SDHC and SxS • Extra safety factor • 3 seconds retro cache

  14. Recording only on SDHC card 16GB Media • Two Hot-Swappable SDHC slots, class. 6 media • . mov or .mp4 • + 3 seconds retro cache

  15. MENU: Recording Formats

  16. Detailed clip info display More exact information of each clip Selected Clip Info Area

  17. Clip Name Prefix • Unique ID for multi-camera shoot clips • Asset Management friendly

  18. Workflow and Ingest • SDHC Slot • ExpressCard Slot • USB 2.0 Reader • Direct USB 2.0 connection • SxS Reader • For SD shooting: via IEEE during recording HD on solid state

  19. Pricing and Availability GY-HM700E14BAT Shipping: NOW! Price: 156.000,- Kč bez DPH Includes: Camcorder GY-HM700 14-times Canon lens 1 X 8GB SDHC card SCANdisc 1 X SDHC USB card reader 1 X Microphone Also available: 20X lens KT20X5BRS (Canon) SxS recorder KA-MR100 Harddisc recorder MR-HD100GB (SD/HD)

  20. New Camera Product: GY-HM100 .mp4

  21. GY-HM100 Key Features World’s first compact handheld camcorder to record 35mbps either in mp4 or mov file format onto SDHC 2 channel balanced audio input (mic/line) ・mp4/mov file recording ・MPEG-2 19/25/35Mbps ・1920x1080i (35Mbps) 1920x1080p 24/25/30 1440x1080i (25Mps) 1280x720p (19/35Mbps) ・1/4” 3CCD ・Fujinon 10x lens ・Manuel ring for focus or zoom ・Auto focus/ROIS ・Color/BW viewfinder ・Color LCD display ・USB 2.0 Interface ・HDMI output ・Compact size 1.6kg operating weight SDHC recording with 2 slots

  22. HDV GY-HM100 Advantages • Multiformat • Smallest Handheld with 35 Mbit/s capability • Up to 35 Mbit/s MPEG-2 encoding, Quicktime(.mov) and .mp4 Wrappers • Compatibility modes for 19Mbit/s and 25 Mbit/s HDV compliant MPEG-2 • 720p25/30/50/60, 1080i/50/60, 1080p24/25/30 • Pro Ergonomics • Pro-Like Switch Layout, Small and Light, Favourites Menu • OIS and Auto Focus • HDMI output (SD Down Converted and HD) • USB 2.0 Interface • Dual Slot System AB Recording

  23. Form factor comparison

  24. Workflow and Ingest • Instant DTE with .MOV and FCP 6.0 • Fully compatible with XDCAM EX apps • HDMI to HD-SDI lossless conversion with optional NanoConnect adapter

  25. GY-HM100 on Apple Final Cut Homepage Final Cut’s Companion: http://www.apple.com/finalcutstudio/

  26. Pricing and Availability • Special price: 67.000,- Kč bez DPH • Included Accessories: • SDHC card 8GB SCANdisc • SDHC USB Card Reader • 2.2 Ah Battery • Battery Charger • Power supply • Microphone • Component and AV cables

  27. OUR CURRENT LINE UP ->

  28. JVCs current camcorder line-up GY-HM100 – HD-handheld GY-HD200 SD/HD shoulder GY-HM700 – HD-shoulder GY-HD251 SD/HD studio

  29. Typical Installation with HDV GY-HD2xx • Components: IDX battery, KA-MR100, KA-UM100, Camera

  30. What are we showing additionallydurichg this road show?!:Easy going studio set-up …. Marco Kraft, Dipl.-Ing. Sales Manager CEE Professional Video marco.kraft@jvcpro.de

  31. GY-HM700 GY-HM700 PVW-2 PVW-1 HDSDI IEEE1394 Multicore HDMI Sync (BB,TLS) PAL HD Switcher basic studio USB Stick with institution logo and graphics PGM Out PGM Out PGM 2x DT-V9 PVW (PAL) CG Laptop with HDMI output used as character generator

  32. GY-HD251 GY-HD251 GY-HD251 PVW-1 PVW-3 PVW-2 HDSDI IEEE1394 Multicore HDMI Sync (BB,TLS) PAL HD Switcher Multicore Aux-1 out Video server or MAC with HDSDI-IO - DecLink card Aux-3 out Waveform Monitor PGM Out PGM PVW (PAL) 3x RM-HP250 BR-HD50 PGM out Key & Fill CG External feeds e.g. Wireless

  33. Fixed Studio Cable included with monitor Monitor DT-Vxx VF-HP840 (HD)SDI KM-H3000 GY-HD251E PGM Out Video Ret (HD)SDI Core RM-HP250DE (HD)SDI Core Genlock KA-HD250U HDSDI-Multicore Headset Example 25m: HK-VC25HD-SDI

  34. Workflow 1

  35. Workflow 2

  36. Workflow 3

  37. Workflow 4

  38. Thanks for your attention! Děkuji za pozornost!Marco Kraft
