The seminar presented by Yutao Zhong discusses the critical issues affecting web performance, including network congestion and server overloading, which lead to increased user-perceived latency. To combat these challenges, web caching emerges as a robust solution, storing popular objects closer to users via client-oriented, server-oriented, and proxy caching strategies. The advantages of web caching include reduced bandwidth usage, lighter server loads, and diminished latency. The seminar also addresses design issues like cache misses and stale data, outlining various cache replacement and prefetching strategies to ensure data coherence and optimal performance.

kaz
Télécharger la présentation

World Wide Web Caching

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. World Wide Web Caching CS457 Seminar Yutao Zhong 11/13/2001

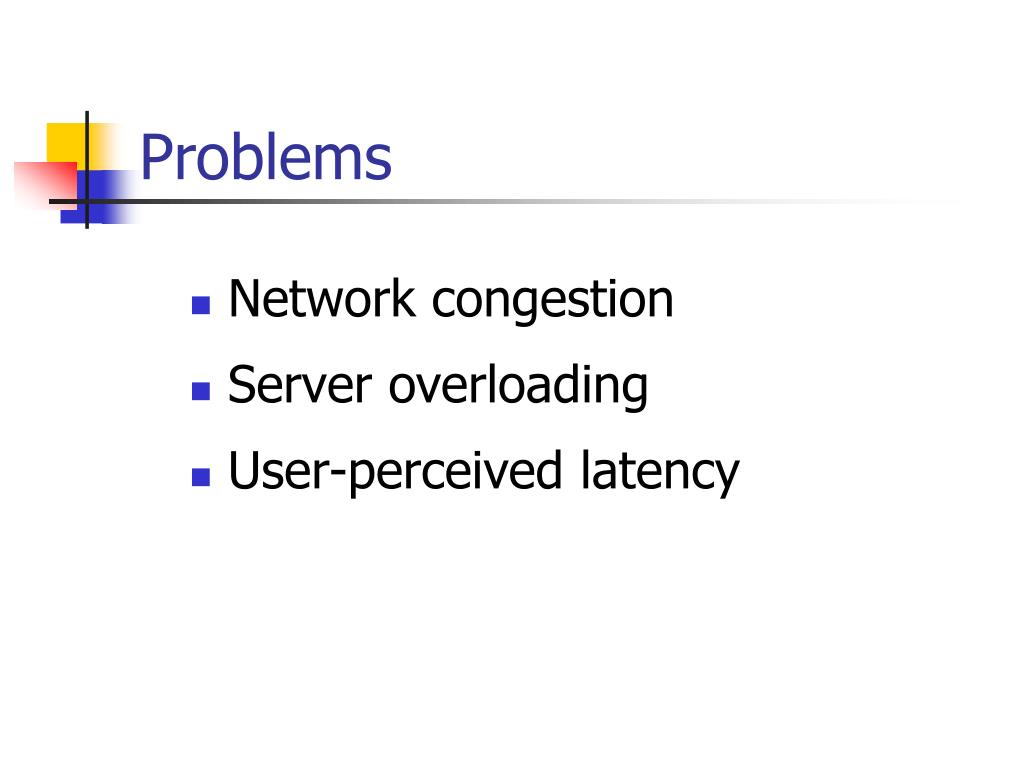

  2. Problems • Network congestion • Server overloading • User-perceived latency

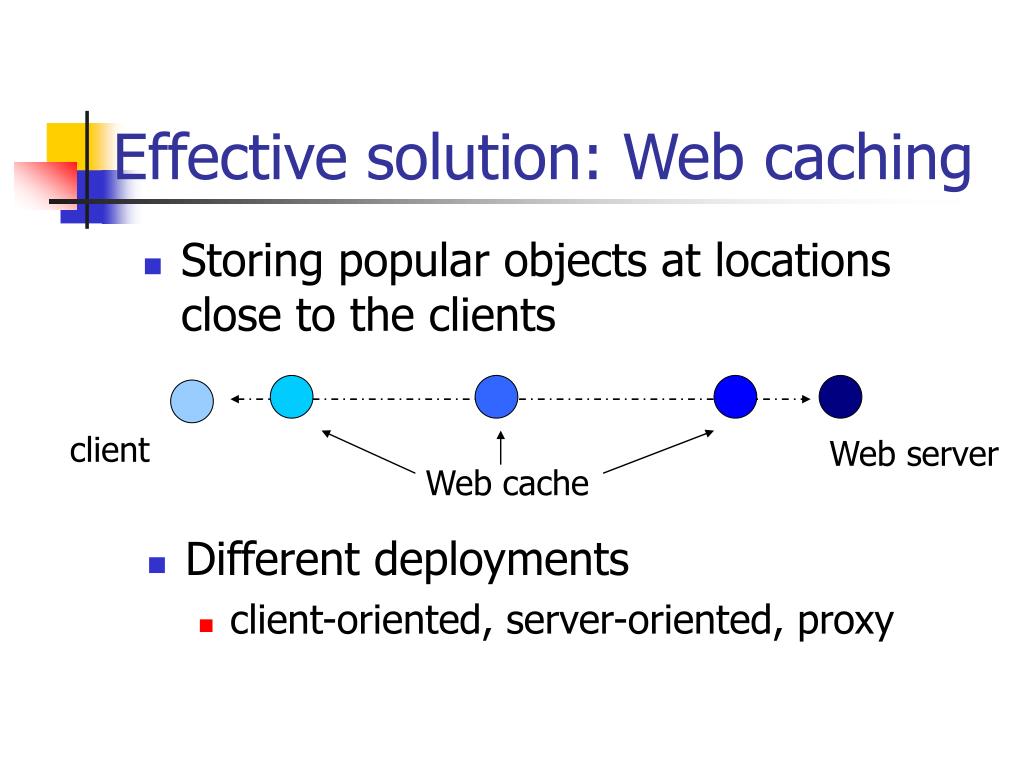

  3. client Web server Web cache Effective solution: Web caching • Storing popular objects at locations close to the clients • Different deployments • client-oriented, server-oriented, proxy

  4. Advantages of Web caching • Reduces bandwidth usage • Lightens Web server loads • Lessens user-perceived latency

  5. client Web client cache router client Proxy cache (I) • Standalone cache

  6. client Web client router client cache cache cache Proxy cache (II) • Transparent cache • Router level

  7. Web client L4 switch client router client cache cache cache Proxy cache (III) • Transparent cache • Switch level

  8. Design issues • Latency caused by cache miss (cache replacement, prefetching,…) • Stale data (cache coherence) • Dynamic data (dynamic cache)

  9. Cache replacement • Traditional policies • LRU, LFU, FIFO • Key-based policies • LRU-MIN, LRU-Threshold, HyperG • Function-based policies • Bolot/Hoschka, LNC-R (least normalized cost-replacement)

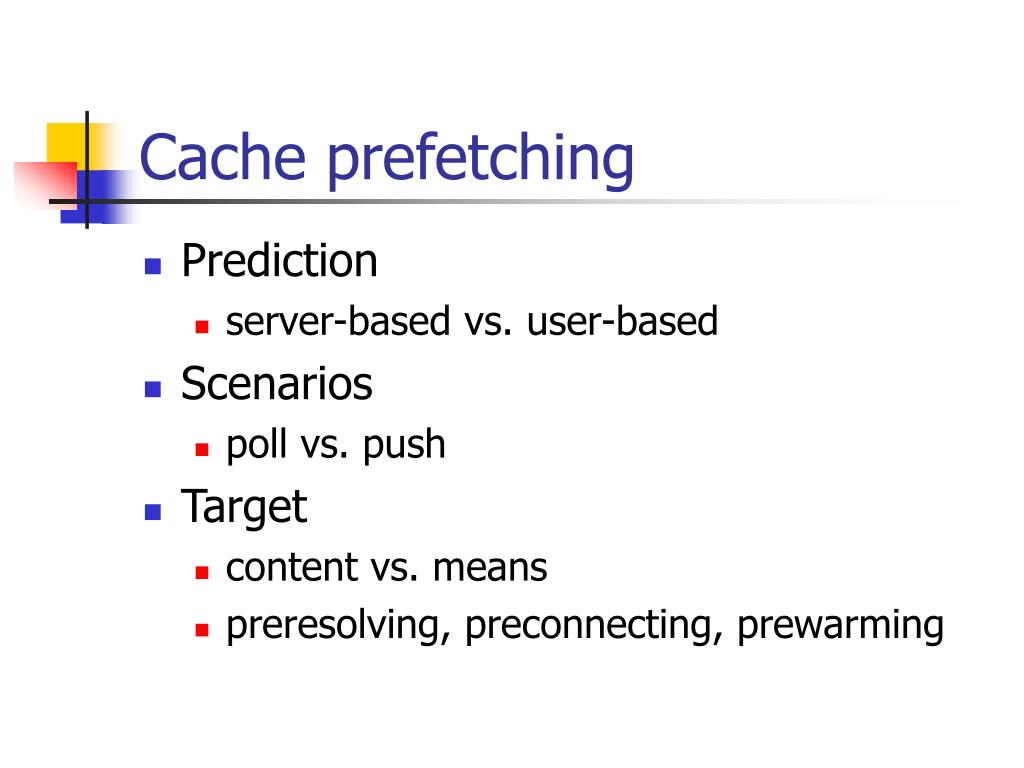

  10. Cache prefetching • Prediction • server-based vs. user-based • Scenarios • poll vs. push • Target • content vs. means • preresolving, preconnecting, prewarming

  11. Cache coherence:deals with stale data • Data validation • HTTP assistance • Conditional GET (IF-Modified-Since) • Date: date • Last-Modified: date • Expires: date • Pragma: no-cache • Cache-control: max-age

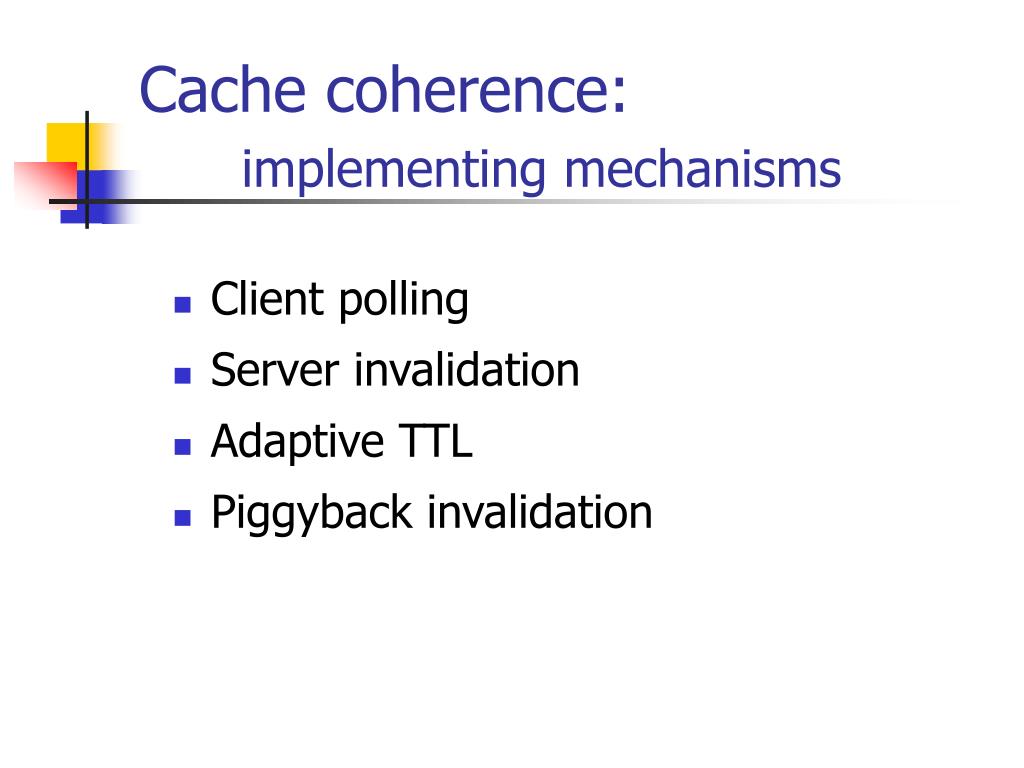

  12. Cache coherence:implementing mechanisms • Client polling • Server invalidation • Adaptive TTL • Piggyback invalidation

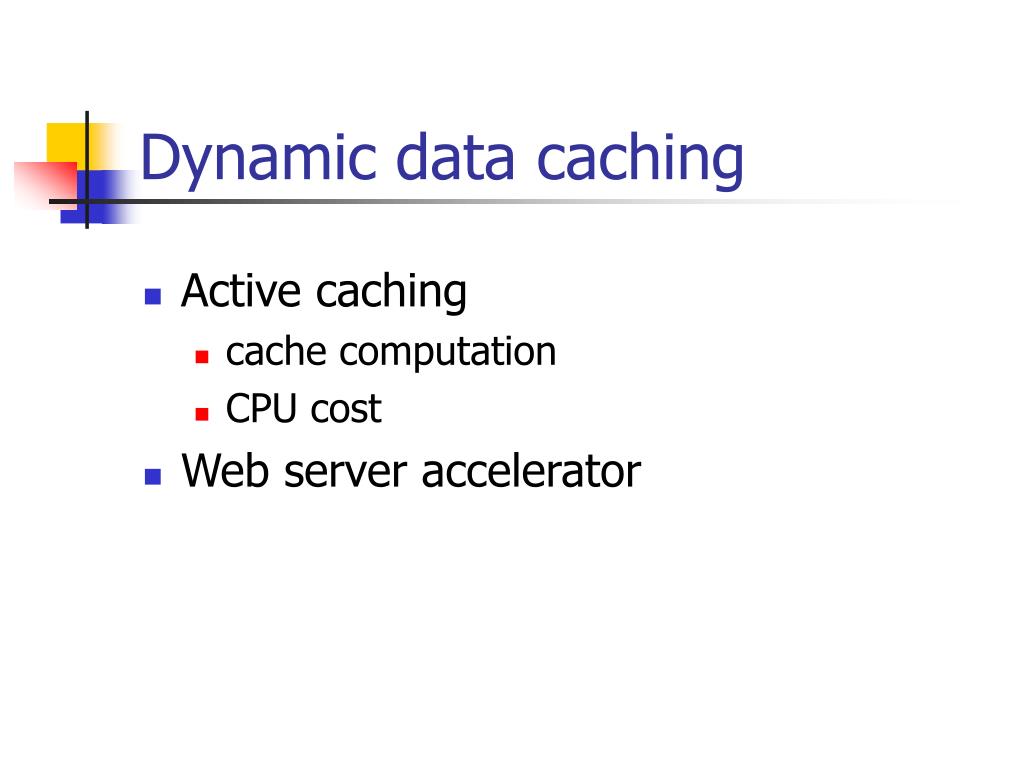

  13. Dynamic data caching • Active caching • cache computation • CPU cost • Web server accelerator

  14. Typical systems • CERN httpd: 1994 • Harvest (Squid): 1995 • Akamai

  15. Summary • Effective solution to Internet scalability problem • Issues and techniques • Open problems • cache routing, dynamic data caching, security...
