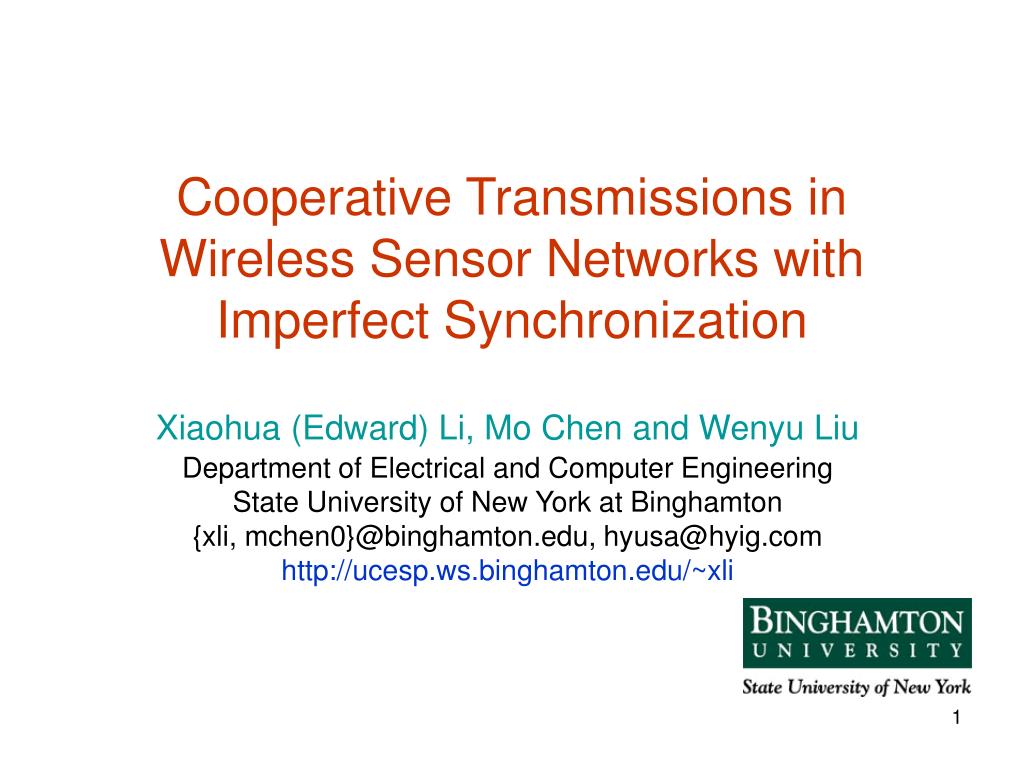

  1. Cooperative Transmissions in Wireless Sensor Networks with Imperfect Synchronization Xiaohua (Edward) Li, Mo Chen and Wenyu Liu Department of Electrical and Computer Engineering State University of New York at Binghamton {xli, mchen0}@binghamton.edu, hyusa@hyig.com http://ucesp.ws.binghamton.edu/~xli

  2. Major Contributions • Distributed STBC-encoded transmissions that tolerates imperfect synchronization • Sensor network energy efficiency considering • Cooperative diversity • Cooperation overhead • Synchronization cost

  3. Contents • Introduction • Cooperative transmissions in LEACH: overhead analysis • Distributed cooperative transmission:synchronization problem • New STBC with imperfect synchronization • Energy efficiency analysis and simulations • Conclusions

  4. Introduction • Cooperative transmissions in sensor networks: exploit the collaborative nature of sensors • Cooperative STBC: diversity induces energy efficiency • Challenges: • Circuitry energy consumption increases • Cooperation overhead reduces energy efficiency • Imperfect synchronization makes STBC not directly applicable

  5. Objectives: study the impact of • overhead of cooperation & circuitry energy by considering jointly PHY-layer cooperative transmission and higher-layer LEACH protocol • imperfect synchronization by developing new distributed STBC-encoded transmissions

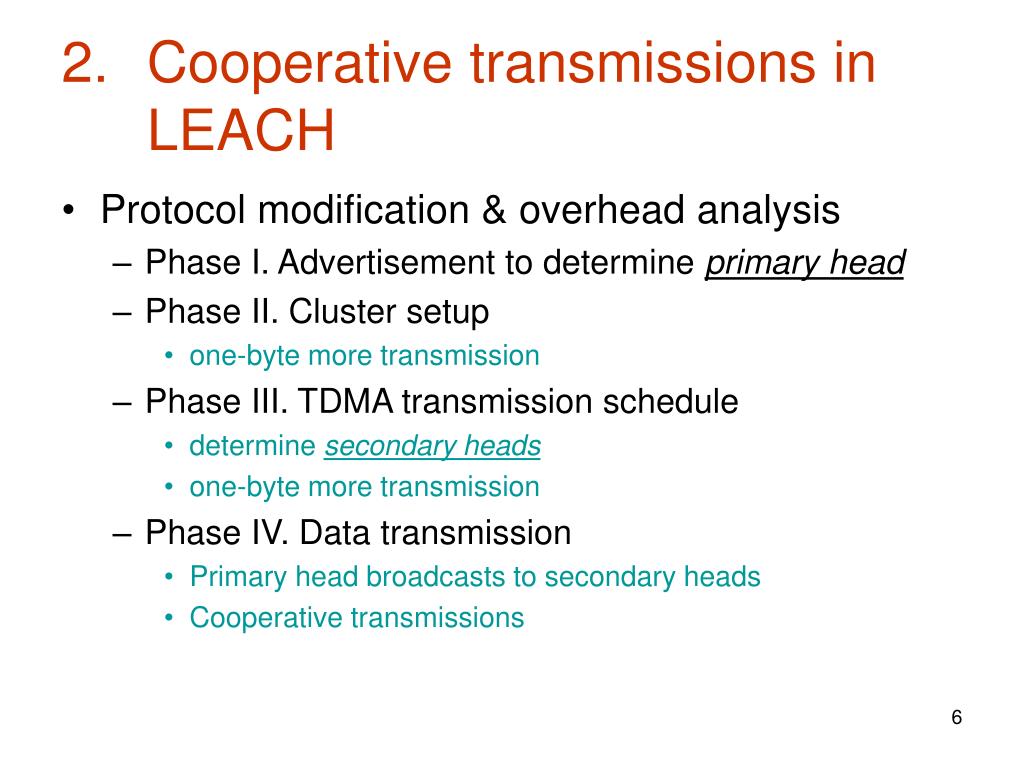

  6. Cooperative transmissions inLEACH • Protocol modification & overhead analysis • Phase I. Advertisement to determine primary head • Phase II. Cluster setup • one-byte more transmission • Phase III. TDMA transmission schedule • determine secondary heads • one-byte more transmission • Phase IV. Data transmission • Primary head broadcasts to secondary heads • Cooperative transmissions

  7. Major overhead is in Data Transmission Phase • Overhead is small

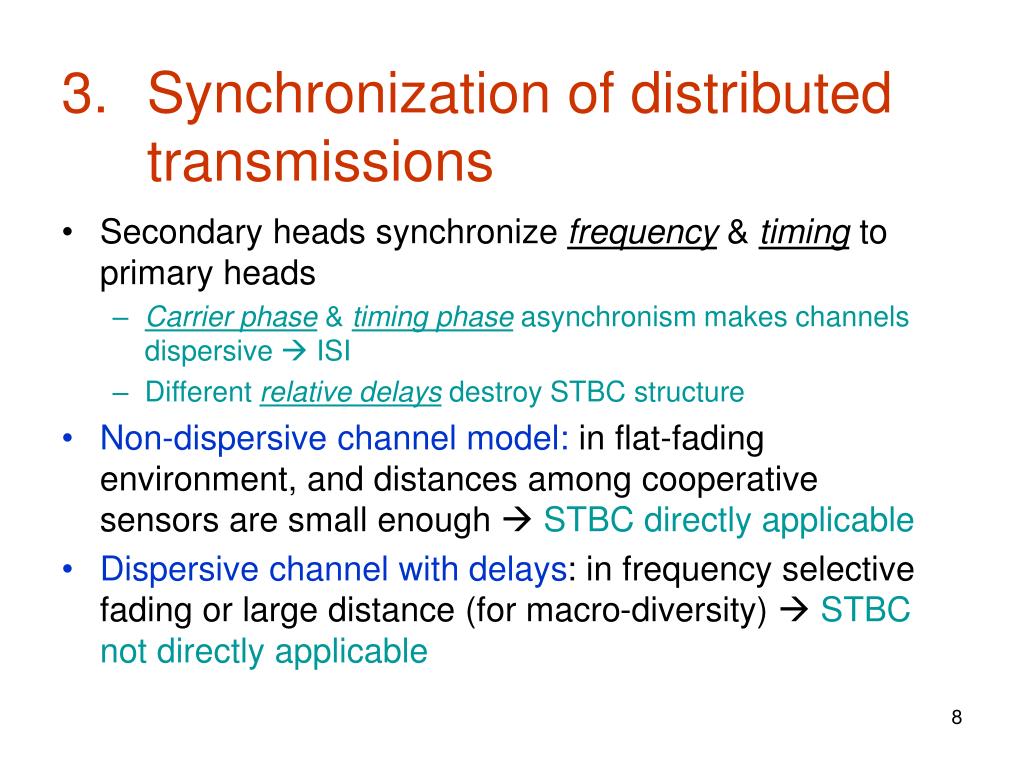

  8. Synchronization of distributed transmissions • Secondary heads synchronize frequency & timing to primary heads • Carrier phase & timing phase asynchronism makes channels dispersive  ISI • Different relative delays destroy STBC structure • Non-dispersive channel model: in flat-fading environment, and distances among cooperative sensors are small enoughSTBC directly applicable • Dispersive channel with delays: in frequency selective fading or large distance (for macro-diversity)  STBC not directly applicable

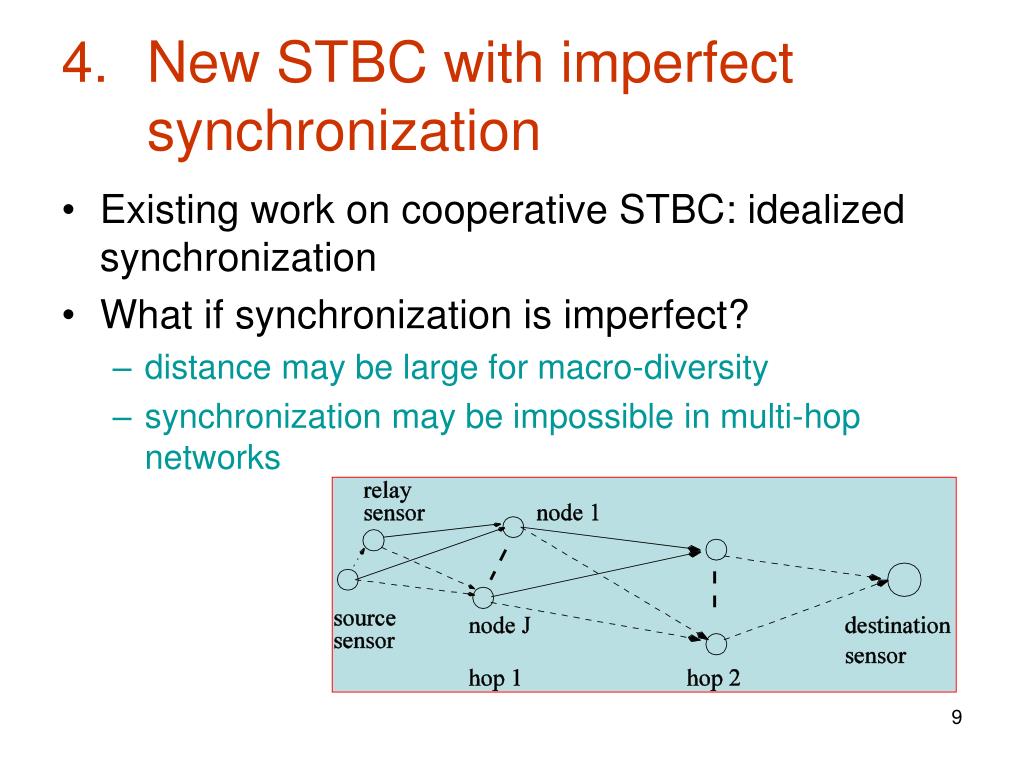

  9. New STBC with imperfect synchronization • Existing work on cooperative STBC: idealized synchronization • What if synchronization is imperfect? • distance may be large for macro-diversity • synchronization may be impossible in multi-hop networks

  10. Proposed STBC transmission scheme: • J transmitters transmit a data packet in P frames • Transmissions may be conjugated and time-reversed Special: J=2 nodes per cluster General: J nodes per cluster

  11. Receiving procedure • From received signal: • linear (maximal ratio) combiner for STBC decoding • linear equalizer for symbol estimation • Properties • Tolerate asynchronous delays & dispersive channels • Full diversity, with linear complexity • Rate comparable to ordinary STBC (for J=2 to 5)

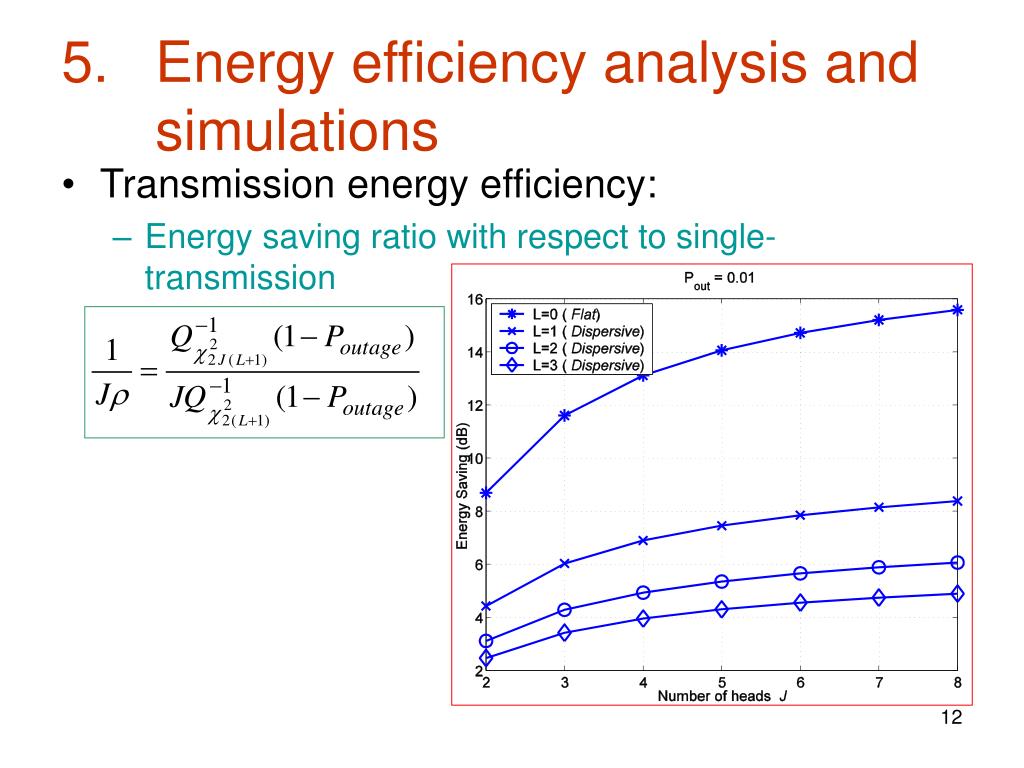

  12. Energy efficiency analysis and simulations • Transmission energy efficiency: • Energy saving ratio with respect to single-transmission

  13. Simulations: no loss of diversity while tolerating asynchronous transmissions

  14. Overall energy efficiency: • Consider cooperation overhead, circuitry energy, and synchronization cost • Use first-order energy consumption model • If transmission distance d satisfy then cooperative transmission is advantageous. • With typical parameters, for J=2,3,4,5, we have d=39,57,69,87 meters • Cooperative transmission is useful in sensor networks

  15. Sensor network simulations: 30% longer lifetime for J=2 than traditional LEACH

  16. Conclusions • Propose a distributed STBC-encoded transmission scheme with tolerance to imperfect synchronization • Study energy efficiency of cooperative transmissions considering cooperation overhead, circuitry energy, synchronization cost • Demonstrate the advantage of cooperative transmission in sensor networks
