  1. Feature-Based Image Metamorphosis Thaddeus Beier, Shawn Neely ACM SIGGRAPH 92’ 97753003 資碩一 陳界誠

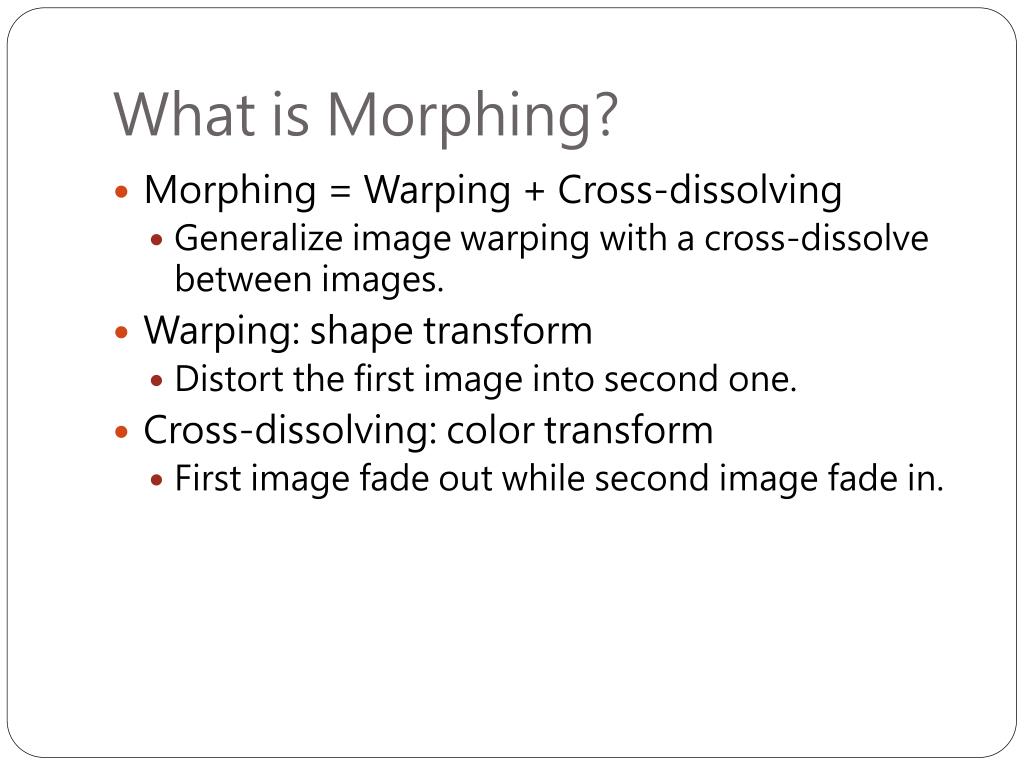

  2. What is Morphing? • Morphing = Warping + Cross-dissolving • Generalize image warping with a cross-dissolve between images. • Warping: shape transform • Distort the first image into second one. • Cross-dissolving: color transform • First image fade out while second image fade in.

  3. Two way to warp an image • Forward mapping • Scans through the source image pixel by pixel, and copies them to appropriate place in the destination image. • Some pixels is the destination might not be painted. • Reverse mapping • Goes through the destination image pixel by pixel and samples the correct pixel from the source image.

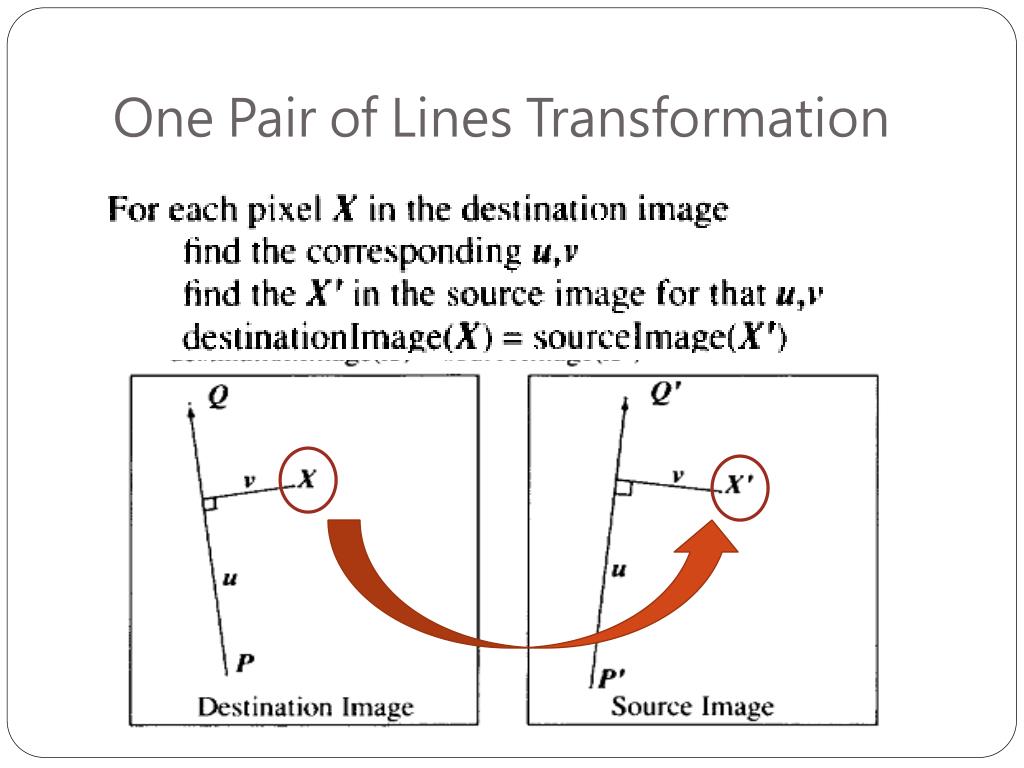

  4. One Pair of Lines Transformation

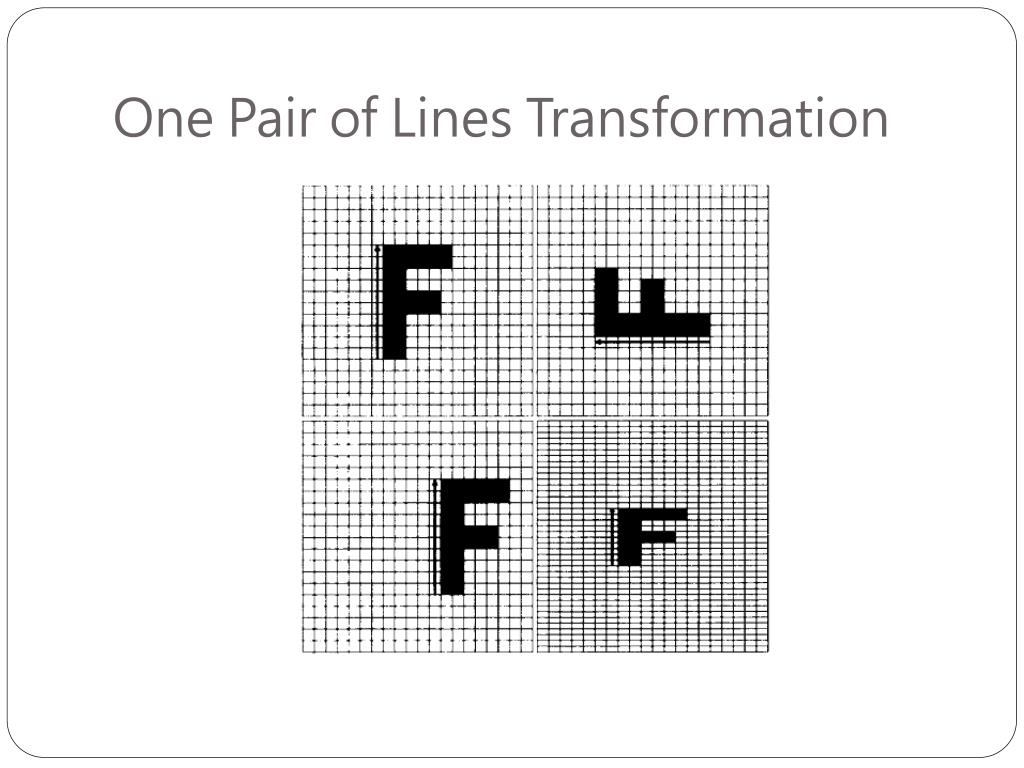

  5. One Pair of Lines Transformation

  6. One Pair of Lines Transformation

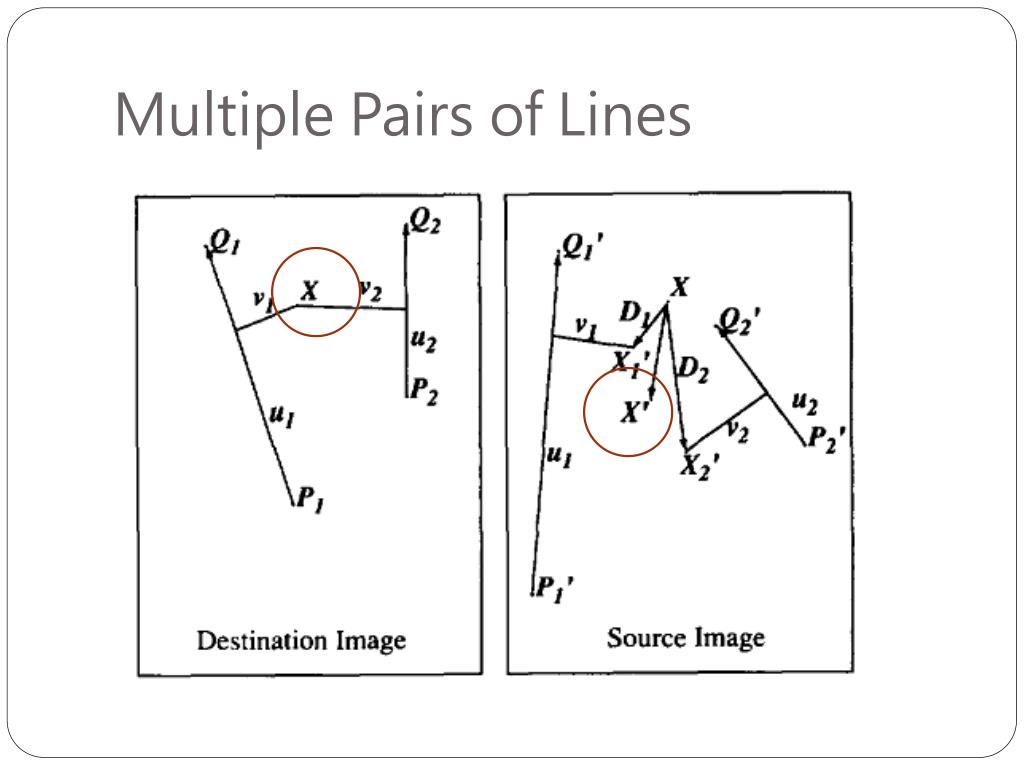

  7. Multiple Pairs of Lines

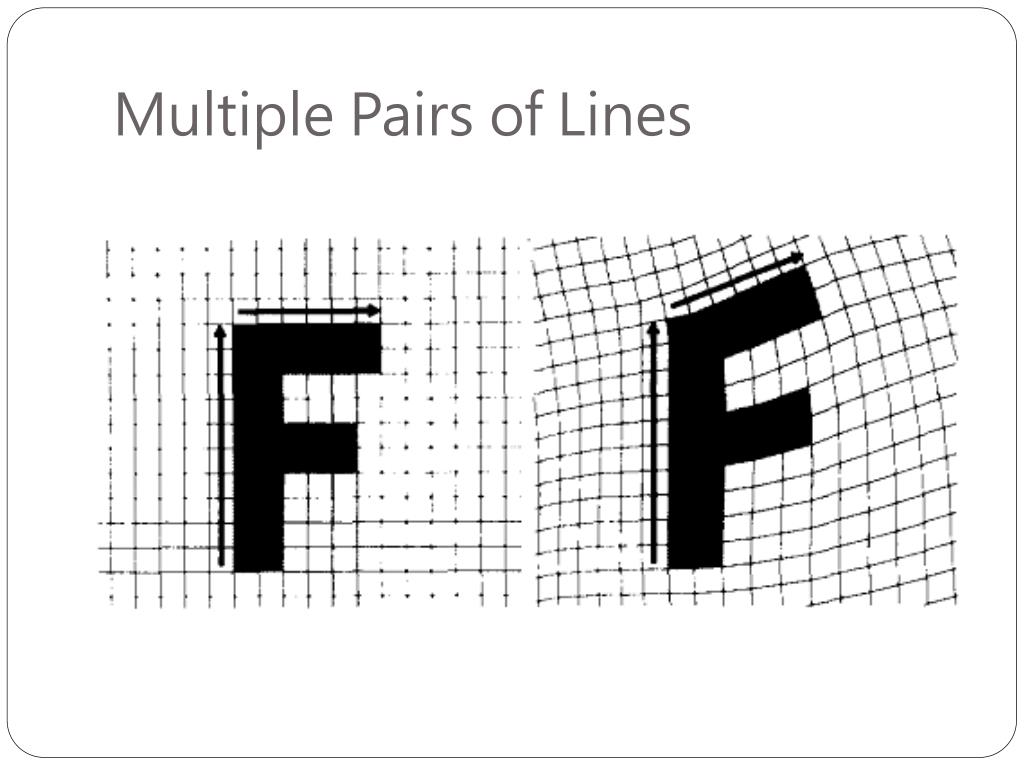

  8. Multiple Pairs of Lines

  9. Multiple Pairs of Lines

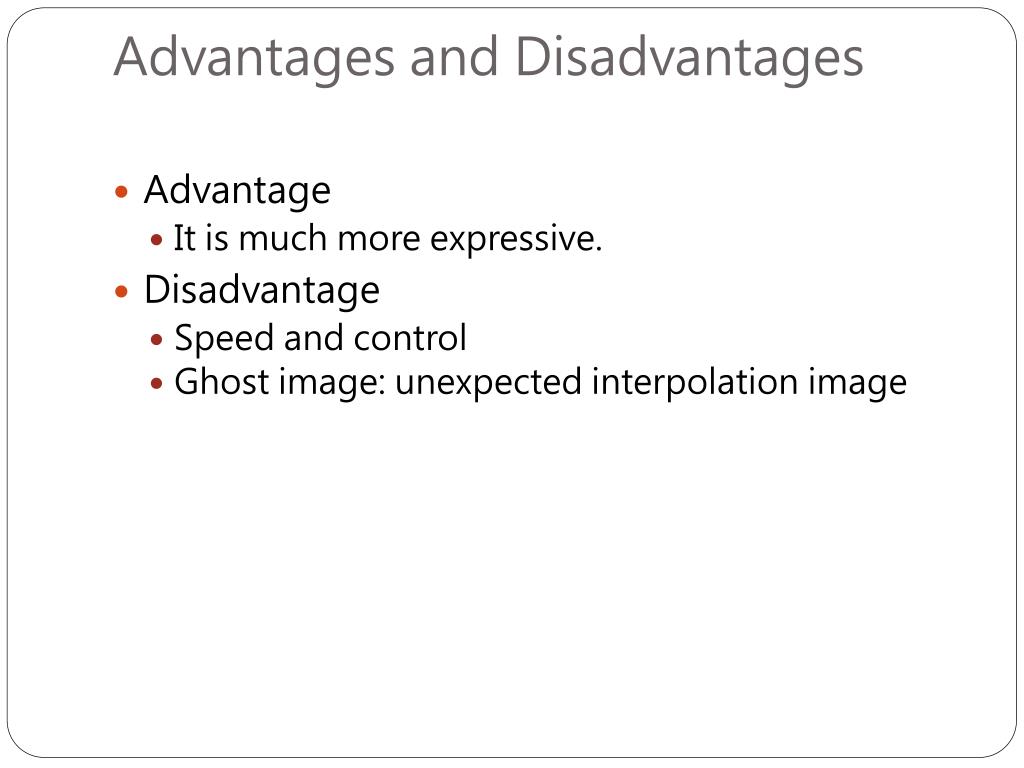

  10. Advantages and Disadvantages • Advantage • It is much more expressive. • Disadvantage • Speed and control • Ghost image: unexpected interpolation image

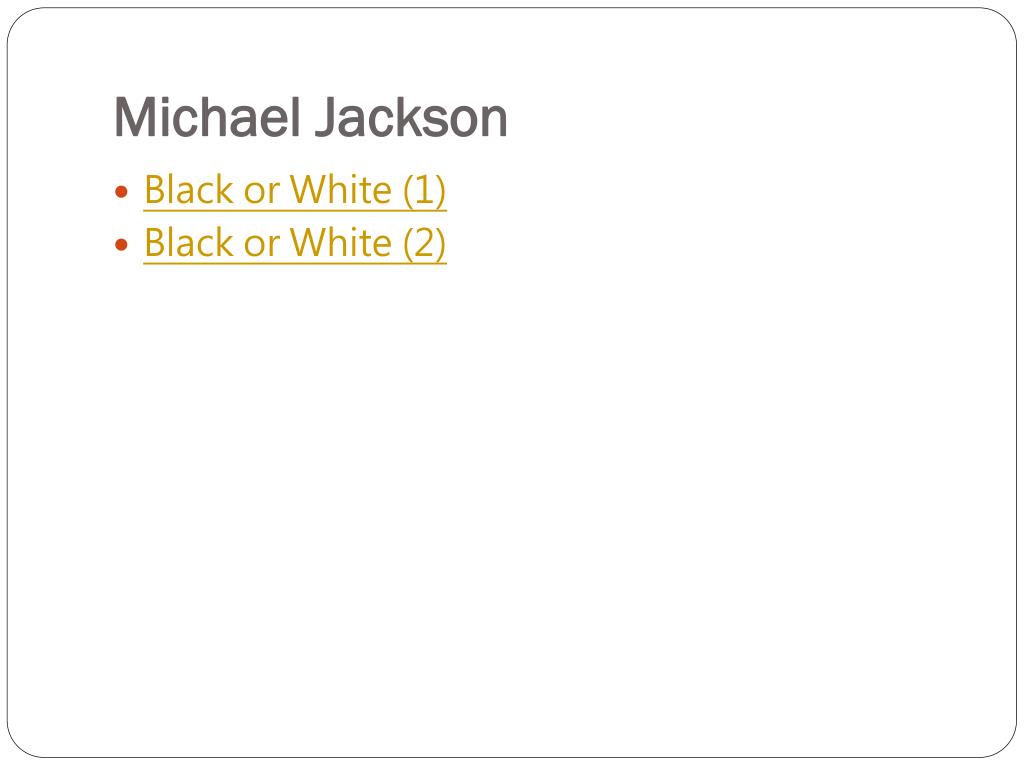

  11. Michael Jackson • Black or White (1) • Black or White (2)

  12. Process flow Input lines segments Lines interpolation Warping Bilinear lines interpolation Image blending

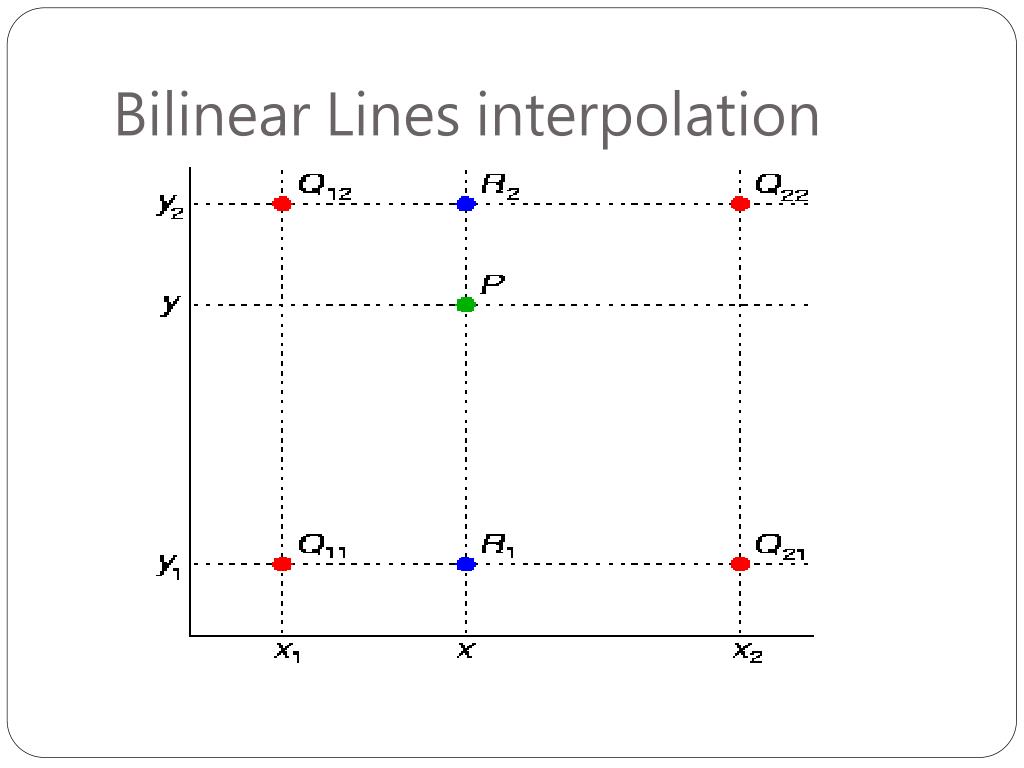

  13. Bilinear Lines interpolation

  14. Image blending • Blend = (1-t)*Src + t*dst , 0 <= t <= 1 T=1 T=0 T=0.5
