Understanding Ontology Management in Service-Oriented Computing

This chapter by Munindar Singh and Michael Huhns discusses the role of ontologies in Service-Oriented Computing (SOC), focusing on semantics, processes, and agents. It highlights the need for standard and consensus ontologies to facilitate communication among diverse parties. The chapter compares traditional top-down ontology development with emerging bottom-up consensus approaches, presenting various standard ontologies and their advantages and disadvantages. It also explores methods for inducing common ontologies and relating different ontologies to achieve mutual understanding in complex systems.

keelia
Télécharger la présentation

Understanding Ontology Management in Service-Oriented Computing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 9:Ontology Management Service-Oriented Computing: Semantics, Processes, Agents– Munindar P. Singh and Michael N. Huhns, Wiley, 2005

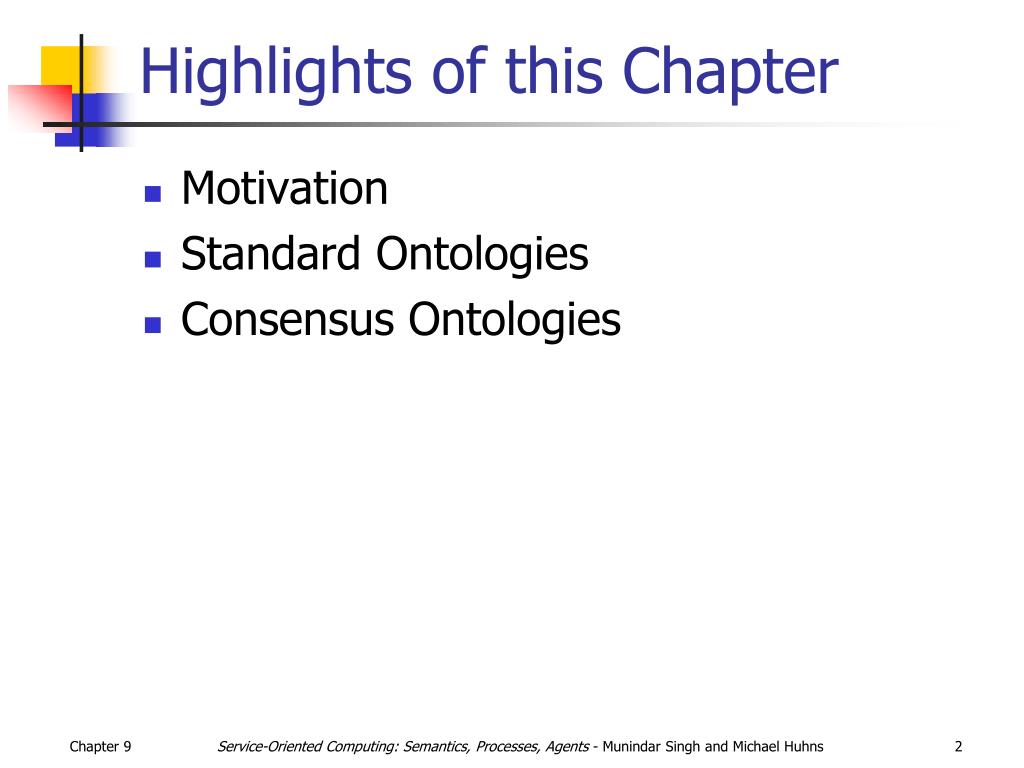

  2. Highlights of this Chapter • Motivation • Standard Ontologies • Consensus Ontologies Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  3. Motivation • Ontologies provide • A basis for communication among heterogeneous parties • A way to describe services at a high level • But how do we ensure the parties involved agree upon the ontologies? • Traditional approach: manually develop standard ontologies [top down] • Emerging approach: determine “correct” ontology via consensus [bottom up] Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

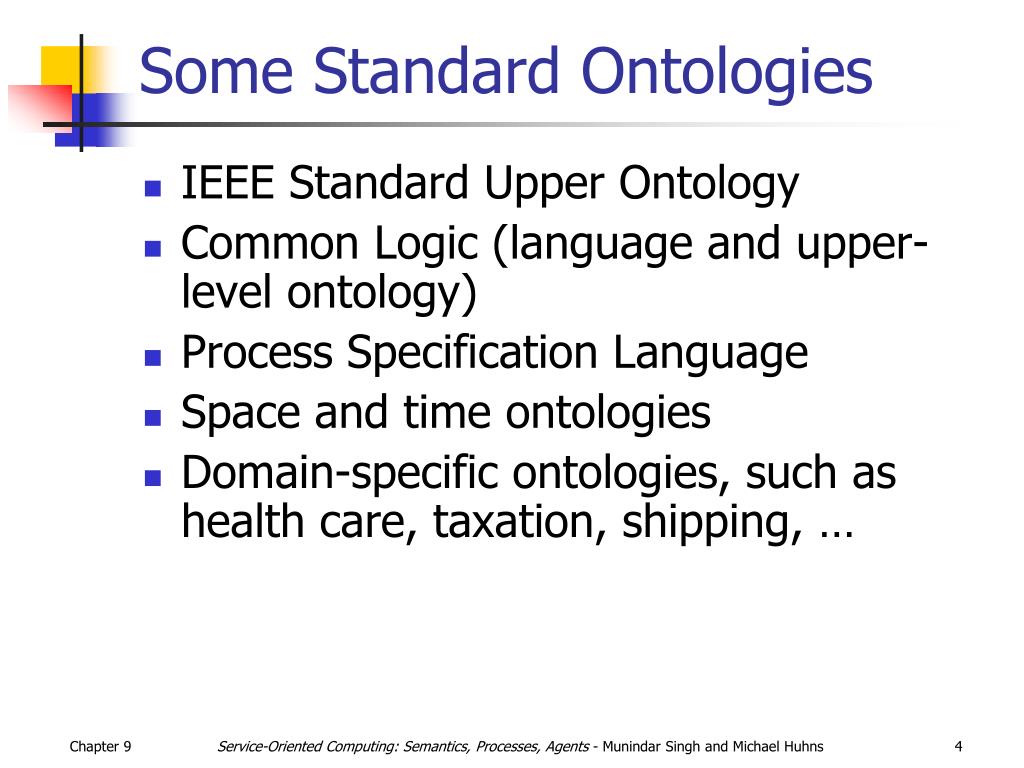

  4. Some Standard Ontologies • IEEE Standard Upper Ontology • Common Logic (language and upper-level ontology) • Process Specification Language • Space and time ontologies • Domain-specific ontologies, such as health care, taxation, shipping, … Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

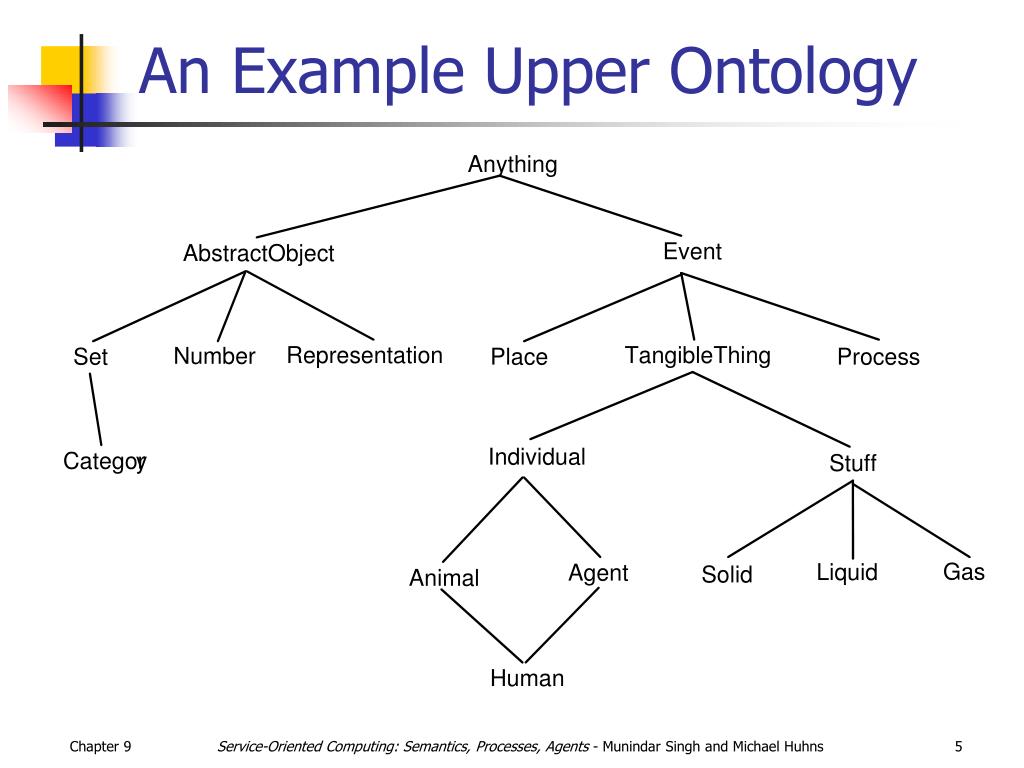

  5. An Example Upper Ontology Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  6. OASIS Universal Business Language (UBL) Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  7. Standardization Pros • Even if imperfect, standards can • Save time and improve effectiveness • Facilitate specialized tools where appropriate • Improve the reach of a solution over time and space • Suggest directions for improvement Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  8. Standardization Cons • Standardization of domain-specific ontologies is • Cumbersome: standardization is more a sociopolitical than a technical process • Difficult to maintain: often out of date by the time completed • Often violated for competitive reasons Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

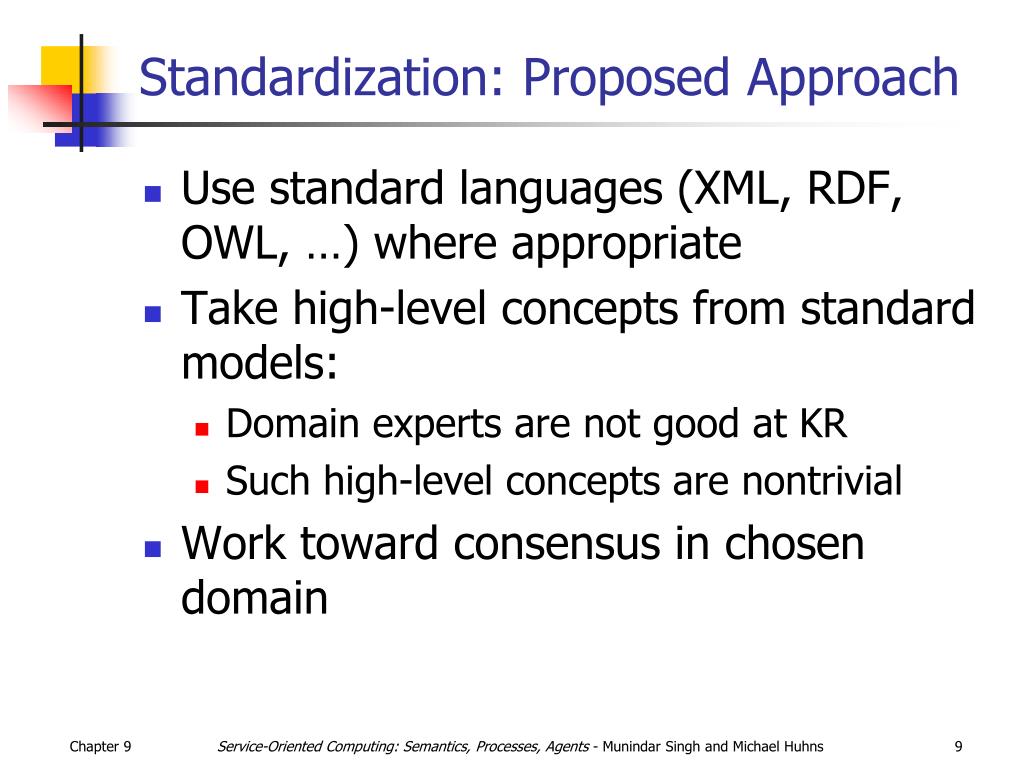

  9. Standardization: Proposed Approach • Use standard languages (XML, RDF, OWL, …) where appropriate • Take high-level concepts from standard models: • Domain experts are not good at KR • Such high-level concepts are nontrivial • Work toward consensus in chosen domain Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  10. Inducing Common Ontologies • Instead of beginning with a standard, develop consensus to induce common ontologies • Assumptions: • No global ontology • Individual sources have local ontologies • Which are heterogeneous and inconsistent • Motivation: Exploit richness of variety in ontologies • To see where they reinforce each other • To make indirect connections (next page) Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  11. Truck APC Wheel Tire Possibly equivalent Truck APC APC partOf equivalence Wheel equivalence Wheel Tire Relating Ontologies: No Overlap Safety in Numbers Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  12. Relating Ontologies • A concept in one ontology can have one of seven mutually exclusive relationships with a concept in another: • Subclass Of • Superclass Of • Part Of • Has Part • Sibling Of • Equivalent To • Other (topic-specific) • Each ontology adds constraints that can help to determine the most likely relationship Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

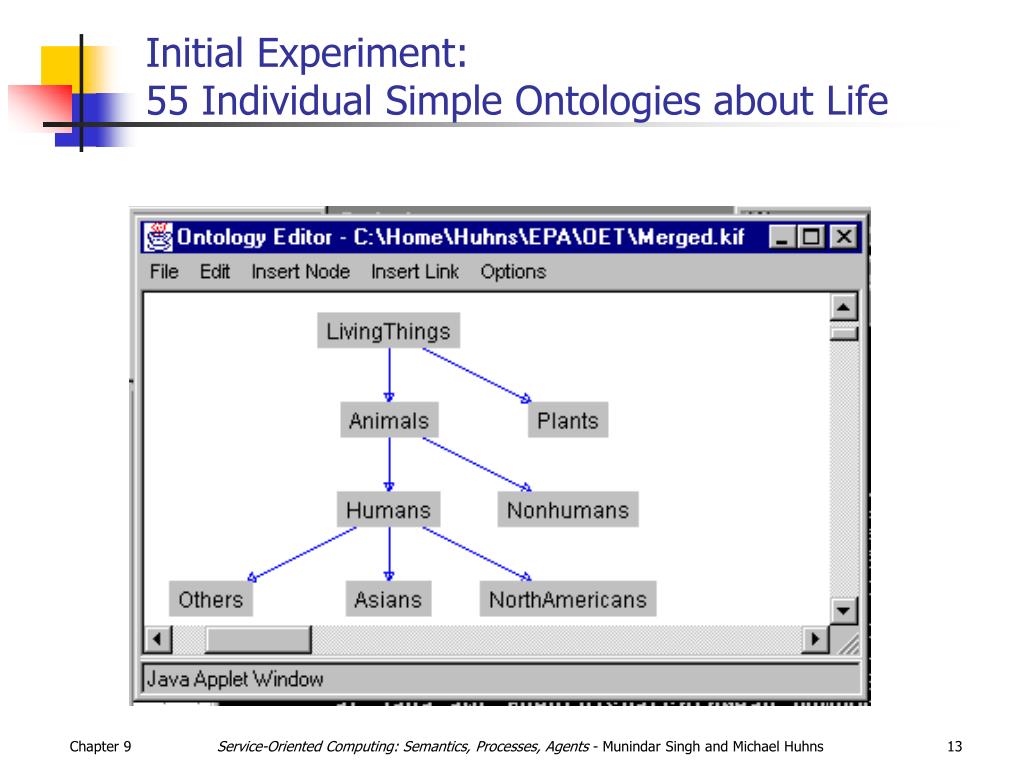

  13. Initial Experiment:55 Individual Simple Ontologies about Life Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  14. 55 Merged Ontologies Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  15. Methodology for Merging and Reinforcement • Merging used smart substring matching and subsumptionFor example, living  livingThingHowever, living X livingRoombecause they have disjoint subclasses • 864 classes with more than 1500 subclass links were merged into 281 classes related by 554 subclass links • Retained the classes and subclass links that appeared in more than 5% of the ontologies • 281 classes were reduced to 38 classes with 71 subclass links • Merged concepts that had the same superclass and subclass links • Result has 36 classes related by 62 subclass links Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

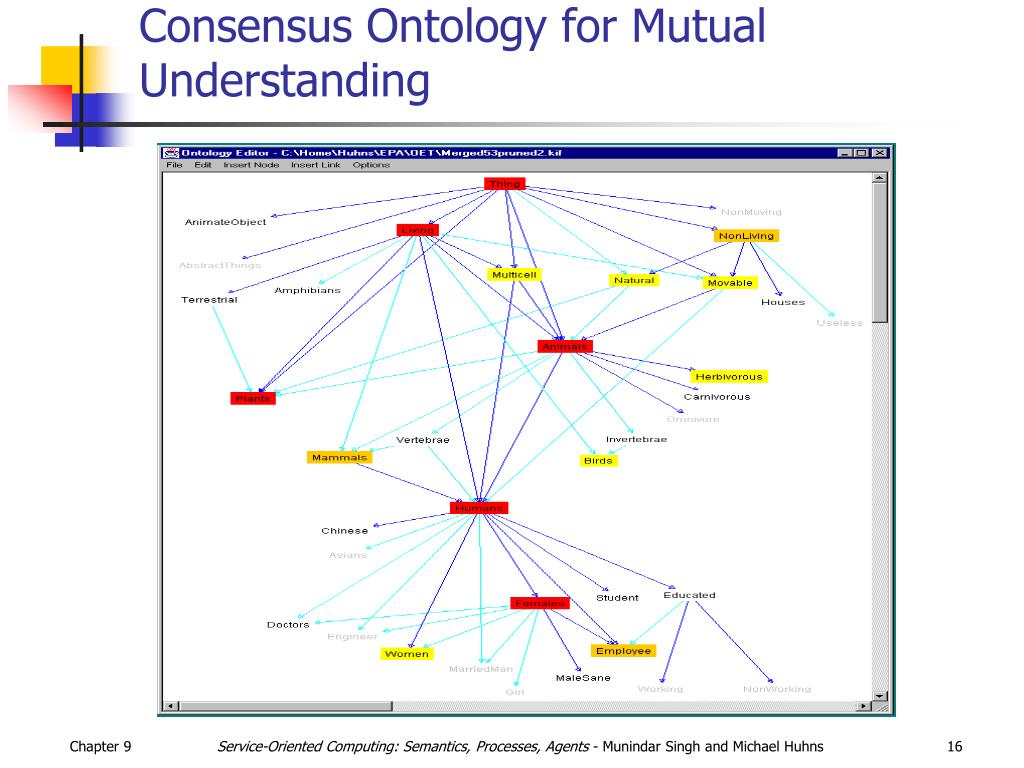

  16. Consensus Ontology for Mutual Understanding Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  17. Consensus Directions • The above approach considered lexical and syntactic bases for similarity • Other approaches can include • Folksonomies (as in tag clouds) • Richer dictionaries • Richer voting mechanisms • Richer forms of structure within ontologies, not just taxonomic structure • Models of authority as in the WWW Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  18. Alternative Approaches We may construct large ontologies by • Inducing classes from large numbers of instances using data-mining techniques • Building small specialized ontologies and merging them (Ontolingua) • Top-down construction from first principles (Cyc and IEEE SUO) Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

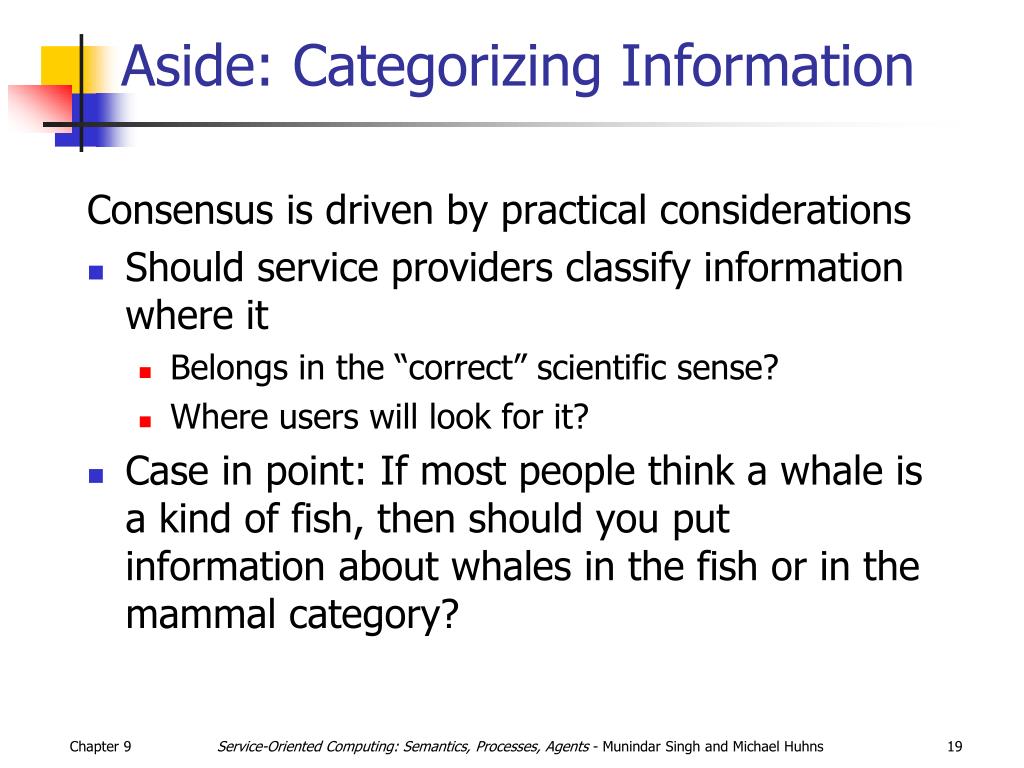

  19. Aside: Categorizing Information Consensus is driven by practical considerations • Should service providers classify information where it • Belongs in the “correct” scientific sense? • Where users will look for it? • Case in point: If most people think a whale is a kind of fish, then should you put information about whales in the fish or in the mammal category? Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

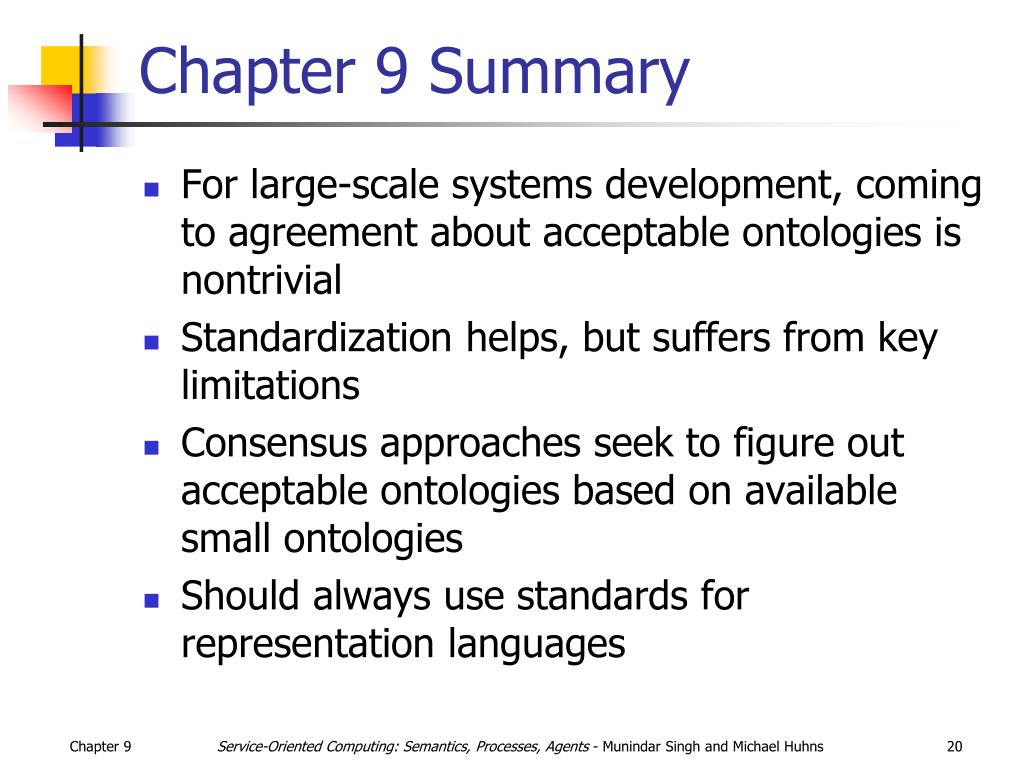

  20. Chapter 9 Summary • For large-scale systems development, coming to agreement about acceptable ontologies is nontrivial • Standardization helps, but suffers from key limitations • Consensus approaches seek to figure out acceptable ontologies based on available small ontologies • Should always use standards for representation languages Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns
